GB/T 14486-2008: Dimensional tolerances for moulded plastic parts

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 14486-2008 (Self-service in 1-minute)
Newer / historical versions: GB/T 14486-2008

Preview True-PDF

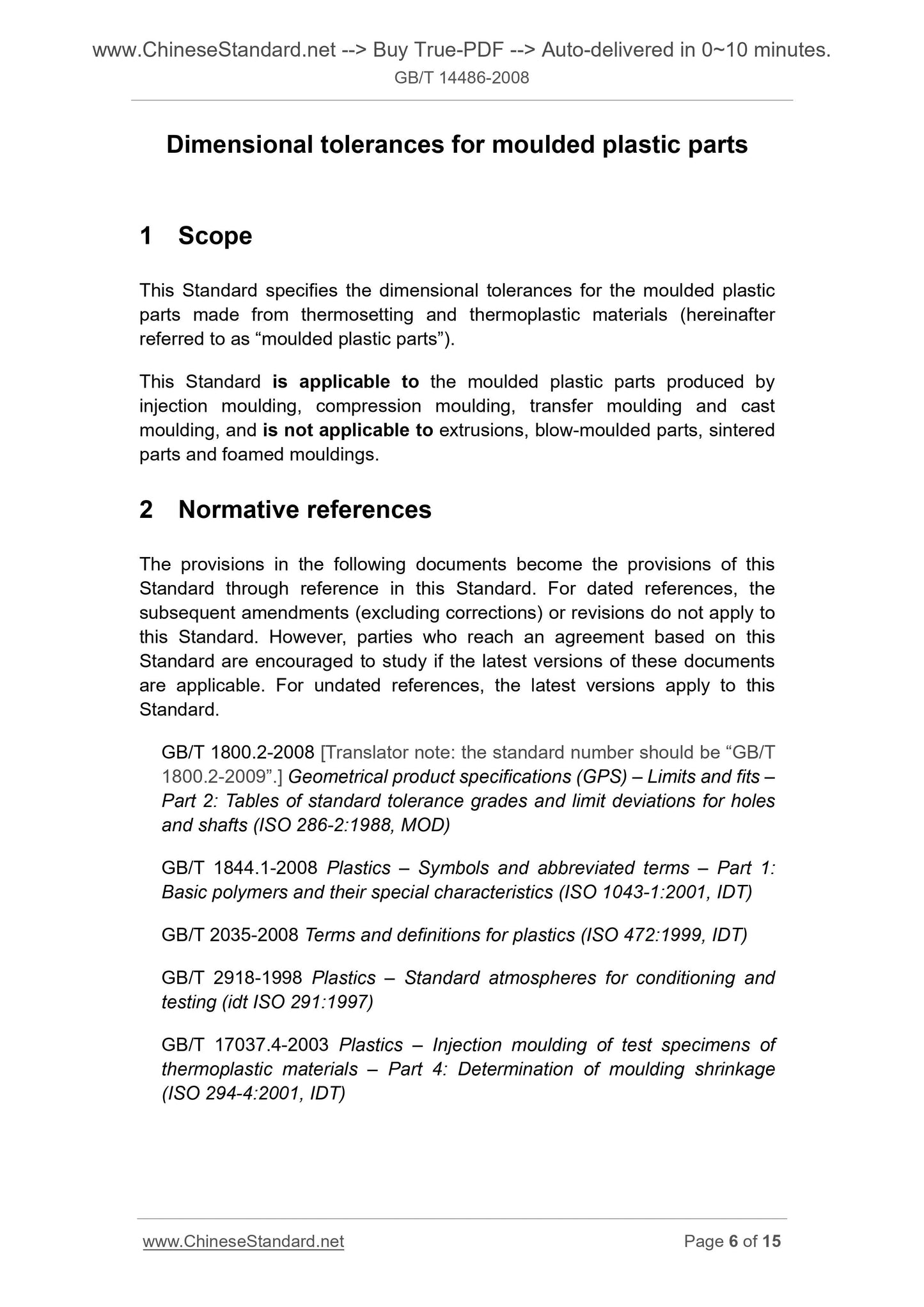

Scope

This Standard specifies the dimensional tolerances for the moulded plastic
parts made from thermosetting and thermoplastic materials (hereinafter
referred to as “moulded plastic parts”).
This Standard is applicable to the moulded plastic parts produced by
injection moulding, compression moulding, transfer moulding and cast
moulding, and is not applicable to extrusions, blow-moulded parts, sintered
parts and foamed mouldings.

Basic Data

Standard ID	GB/T 14486-2008 (GB/T14486-2008)
Description (Translated English)	Dimensional tolerances for moulded plastic parts
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	G31
Classification of International Standard	83.080; 83.080.01
Word Count Estimation	11,165
Date of Issue	2008-08-14
Date of Implementation	2009-04-01
Older Standard (superseded by this standard)	GB/T 14486-1993
Quoted Standard	GB/T 1800.2-2008; GB/T 1844.1-2008; GB/T 2035-2008; GB/T 2918-1998; GB/T 17037.4-2003
Adopted Standard	DIN 16901-1982, NEQ
Regulation (derived from)	National Standard Approval Announcement 2008 No.14 (Total No.127)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the thermoset and thermoplastic molded parts (hereinafter referred to as molded) dimensional tolerances. This standard applies to injection, compression molding, transfer molding and casting plastic molded parts. Not available for extrusion, sintering and foam molding parts, blow.
