GB/T 14480.2-2015: Non-destructive testing instruments -- Equipment for eddy current examination -- Part 2: Probe characteristics and verification

GB/T 14480.2-2015

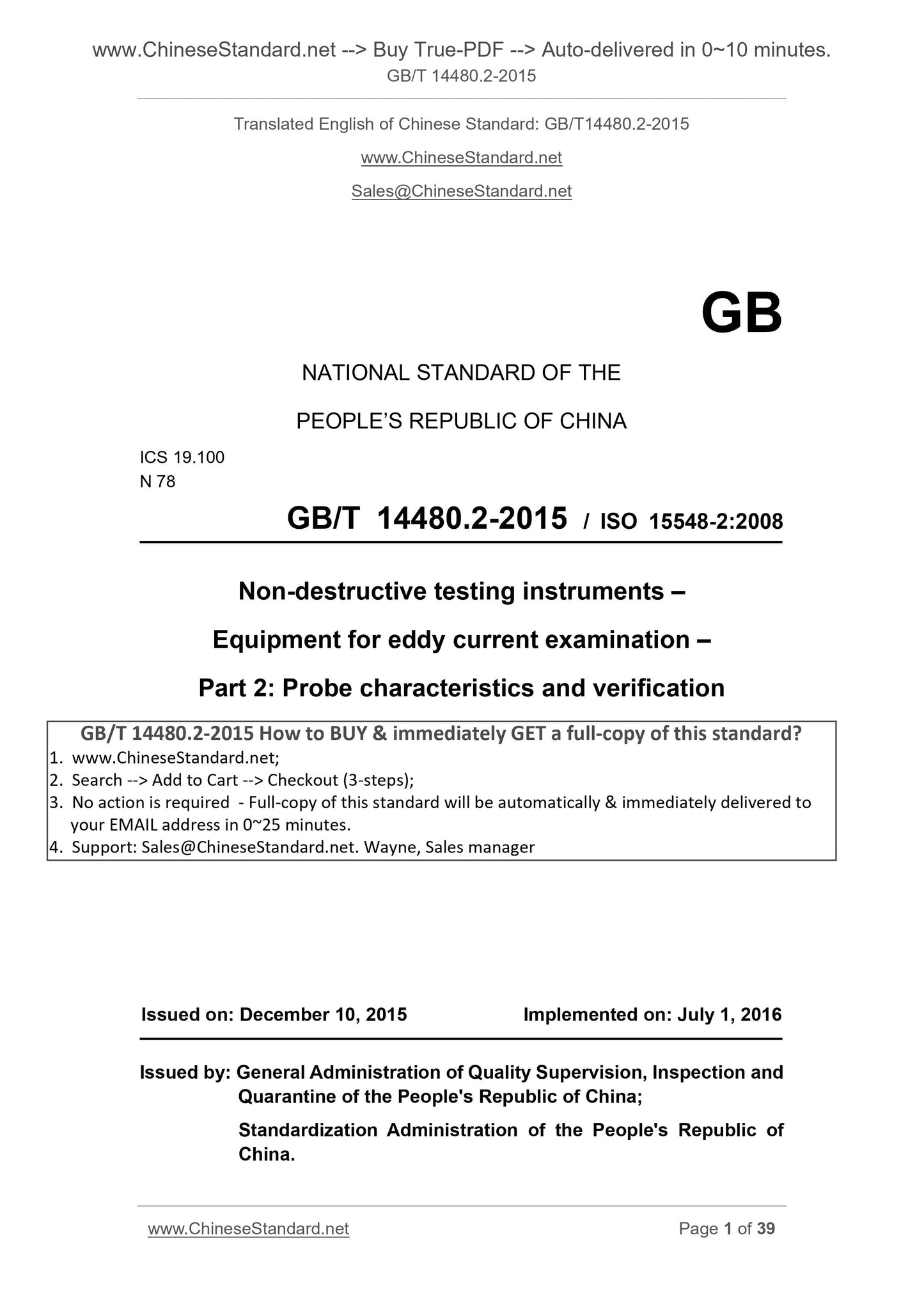

GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 19.100
N 78
GB/T 14480.2-2015 / ISO 15548-2.2008
Non-destructive testing instruments –
Equipment for eddy current examination –
Part 2. Probe characteristics and verification
(ISO 15548-2.2008, Non-destructive testing - Equipment for eddy current examination - Part 2. Probe characteristics and verification, IDT)
ISSUED ON. DECEMBER 10, 2015
IMPLEMENTED ON. JULY 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.
Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Characteristics of probe and interconnecting elements ... 4
5 Verification ... 7
6 Measurement of electrical and functional characteristics of a probe ... 9 7 Influence of interconnecting elements ... 36
Annex A (informative) Reference block A6 ... 37
Bibliography ... 39

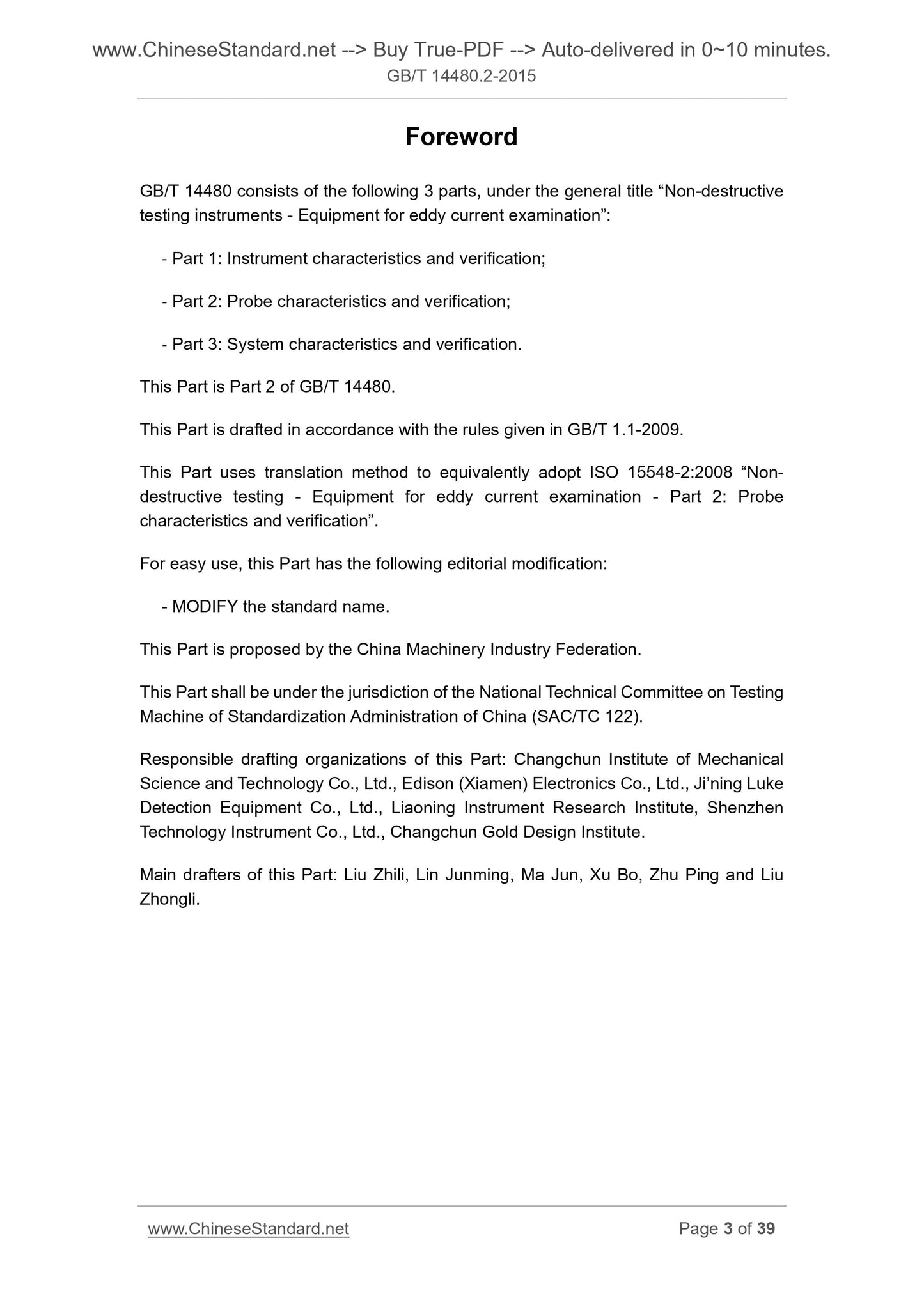

Foreword
GB/T 14480 consists of the following 3 parts, under the general title “Non-destructive testing instruments - Equipment for eddy current examination”.
‐ Part 1. Instrument characteristics and verification;
‐ Part 2. Probe characteristics and verification;
‐ Part 3. System characteristics and verification.
This Part is Part 2 of GB/T 14480.
This Part is drafted in accordance with the rules given in GB/T 1.1-2009. This Part uses translation method to equivalently adopt ISO 15548-2.2008 “Non- destructive testing - Equipment for eddy current examination - Part 2. Probe characteristics and verification”.
For easy use, this Part has the following editorial modification.
- MODIFY the standard name.
This Part is proposed by the China Machinery Industry Federation.
This Part shall be under the jurisdiction of the National Technical Committee on Testing Machine of Standardization Administration of China (SAC/TC 122).
Responsible drafting organizations of this Part. Changchun Institute of Mechanical Science and Technology Co., Ltd., Edison (Xiamen) Electronics Co., Ltd., Ji’ning Luke Detection Equipment Co., Ltd., Liaoning Instrument Research Institute, Shenzhen Technology Instrument Co., Ltd., Changchun Gold Design Institute.
Main drafters of this Part. Liu Zhili, Lin Junming, Ma Jun, Xu Bo, Zhu Ping and Liu Zhongli.

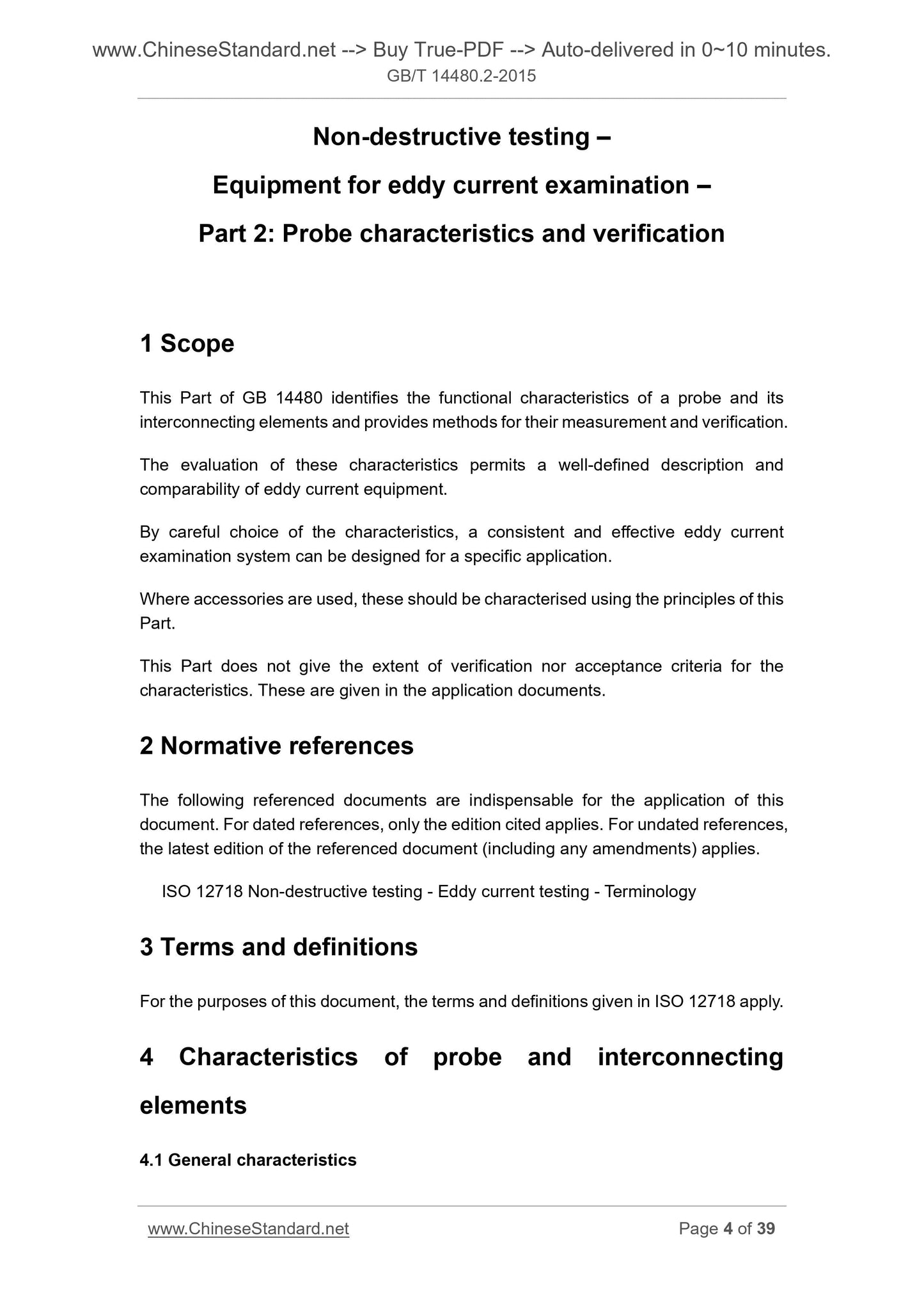

Non-destructive testing –
Equipment for eddy current examination –
Part 2. Probe characteristics and verification
1 Scope
This Part of GB 14480 identifies the functional characteristics of a probe and its interconnecting elements and provides methods for their measurement and verification. The evaluation of these characteristics permits a well-defined description and comparability of eddy current equipment.
By careful choice of the characteristics, a consistent and effective eddy current examination system can be designed for a specific application.
Where accessories are used, these should be characterised using the principles of this Part.
This Part does not give the extent of verification nor acceptance criteria for the characteristics. These are given in the application documents.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ISO 12718 Non-destructive testing - Eddy current testing - Terminology
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12718 apply. 4 Characteristics of probe and interconnecting
elements
4.1 General characteristics
