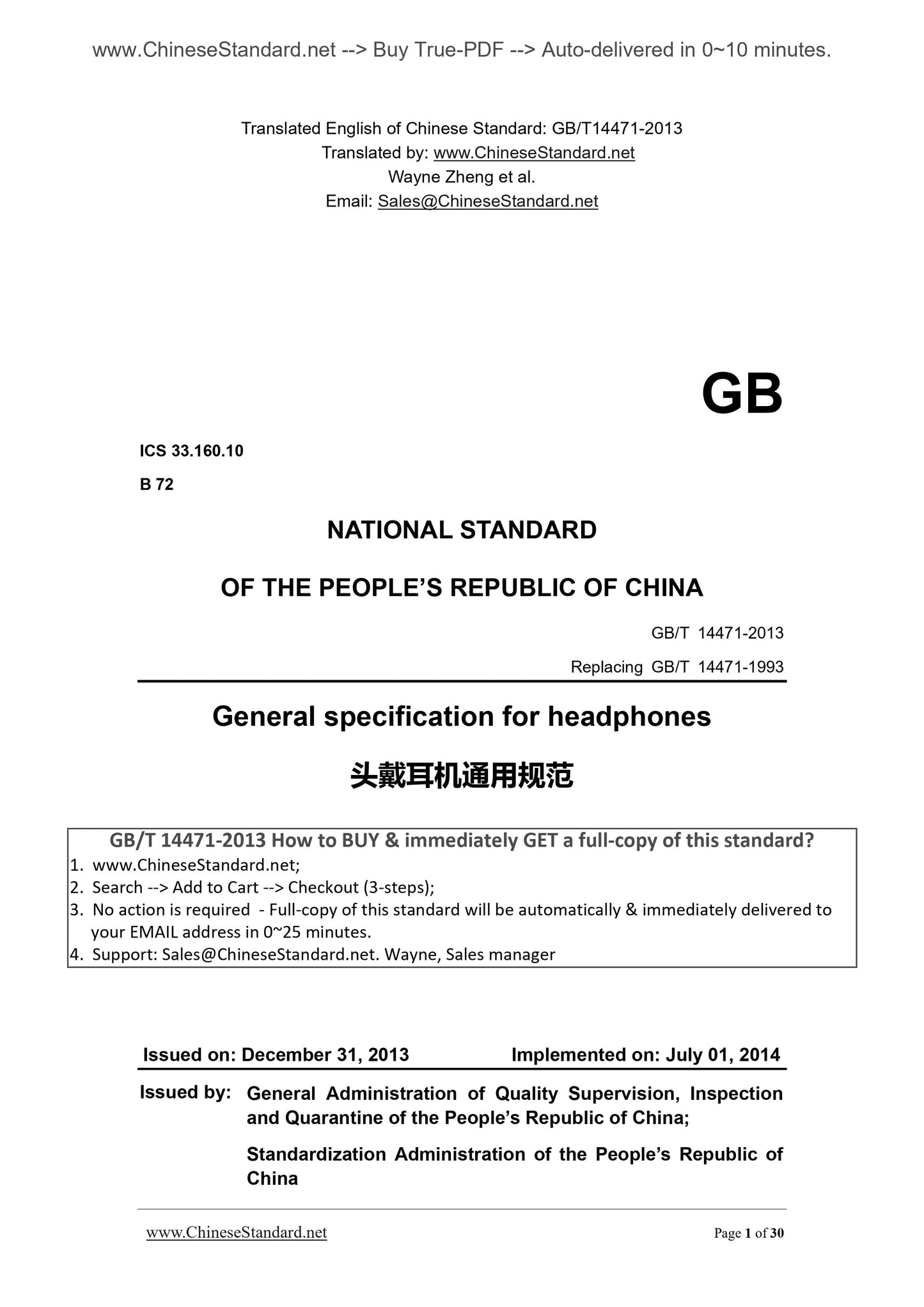

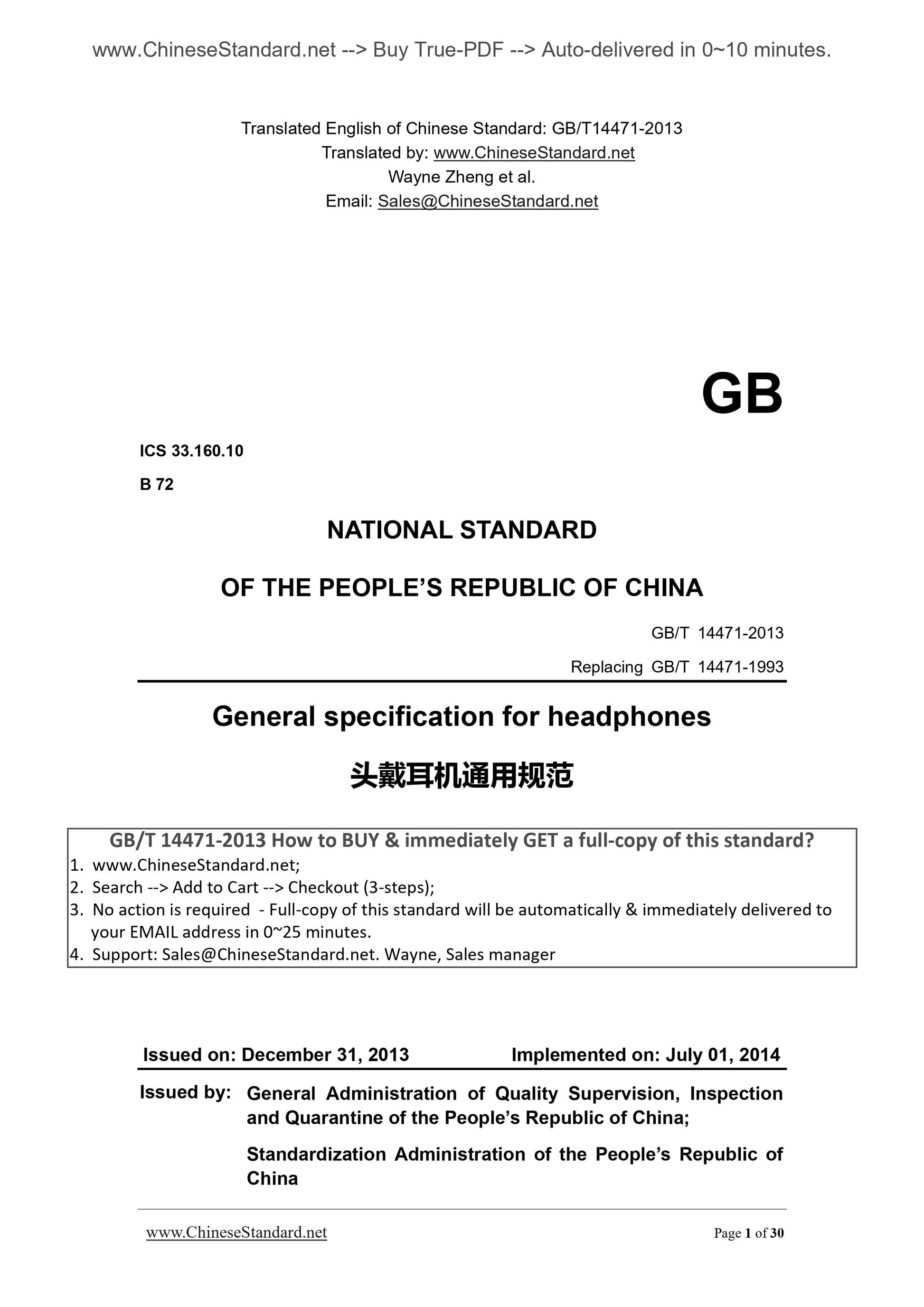

GB/T 14471-2013
GB
ICS 33.160.10
B 72
NATIONAL STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
Replacing GB/T 14471-1993
General specification for headphones
ISSUED ON. DECEMBER 31, 2013
IMPLEMENTED ON. JULY 01, 2014
Issued by.
General Administration of Quality Supervision, Inspection
and Quarantine of the People’s Republic of China;
Standardization Administration of the People’s Republic of
China

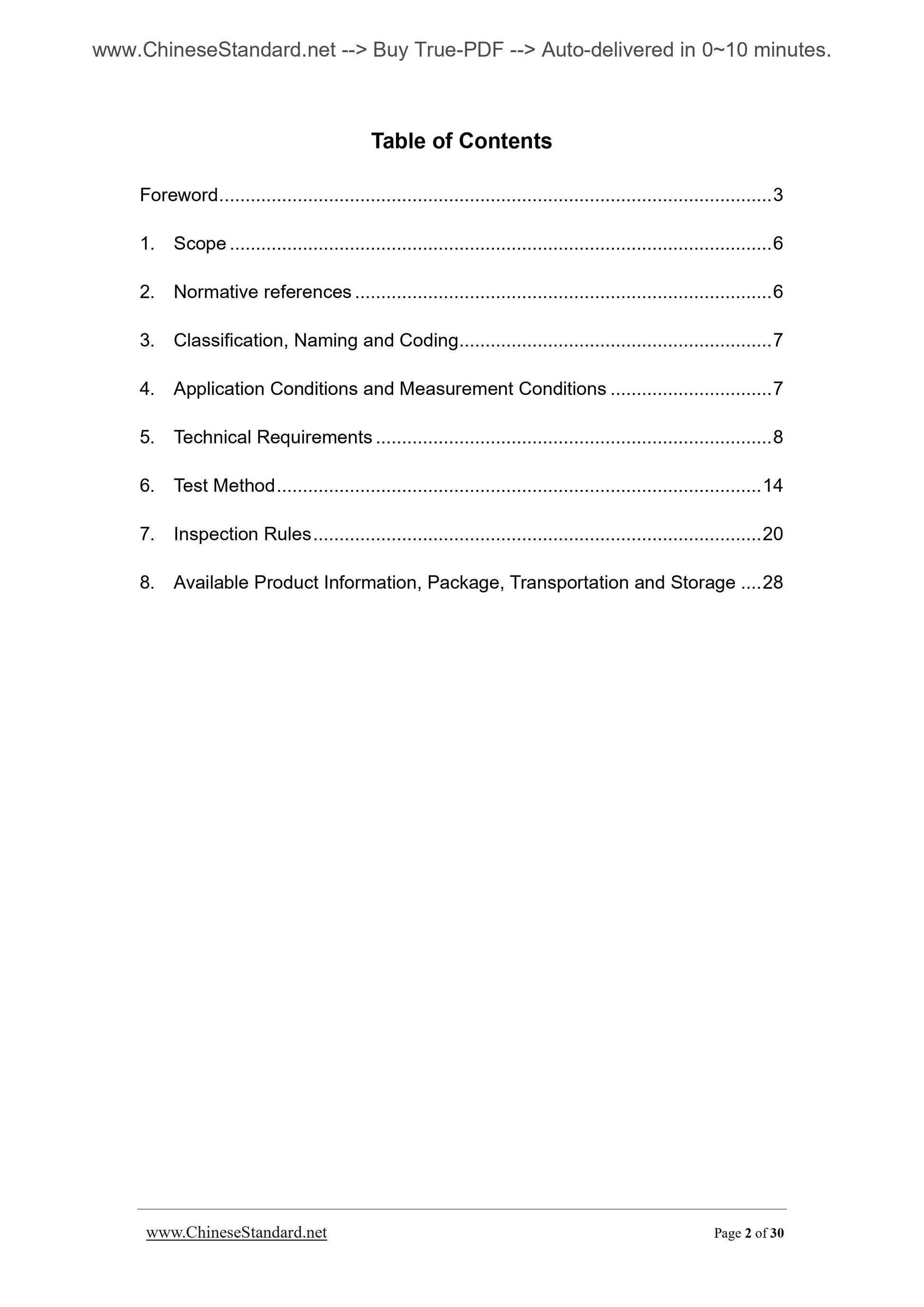

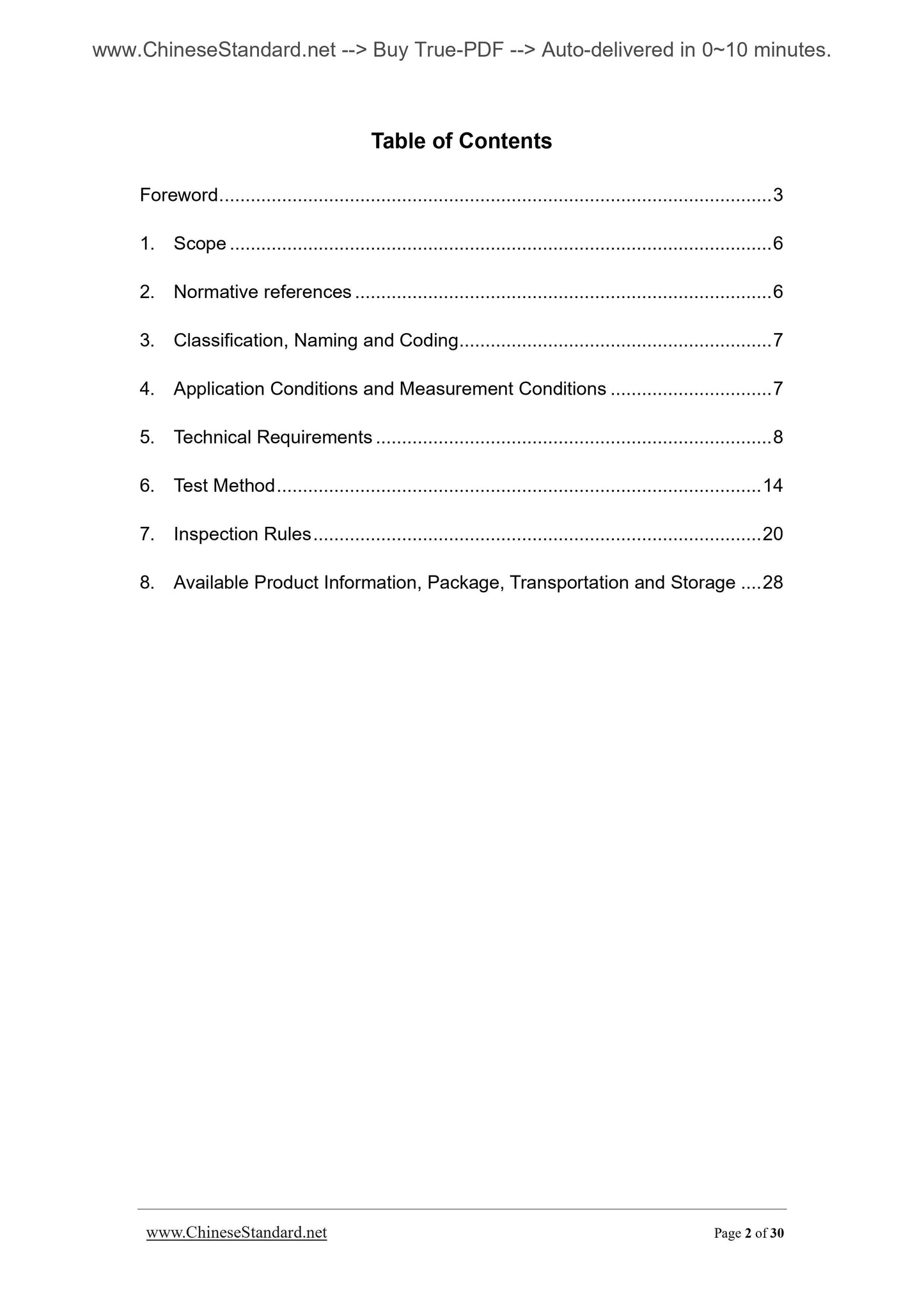

Table of Contents
Foreword ... 3
1. Scope ... 6
2. Normative references ... 6
3. Classification, Naming and Coding ... 7
4. Application Conditions and Measurement Conditions ... 7
5. Technical Requirements ... 8
6. Test Method ... 14
7. Inspection Rules ... 20
8. Available Product Information, Package, Transportation and Storage ... 28

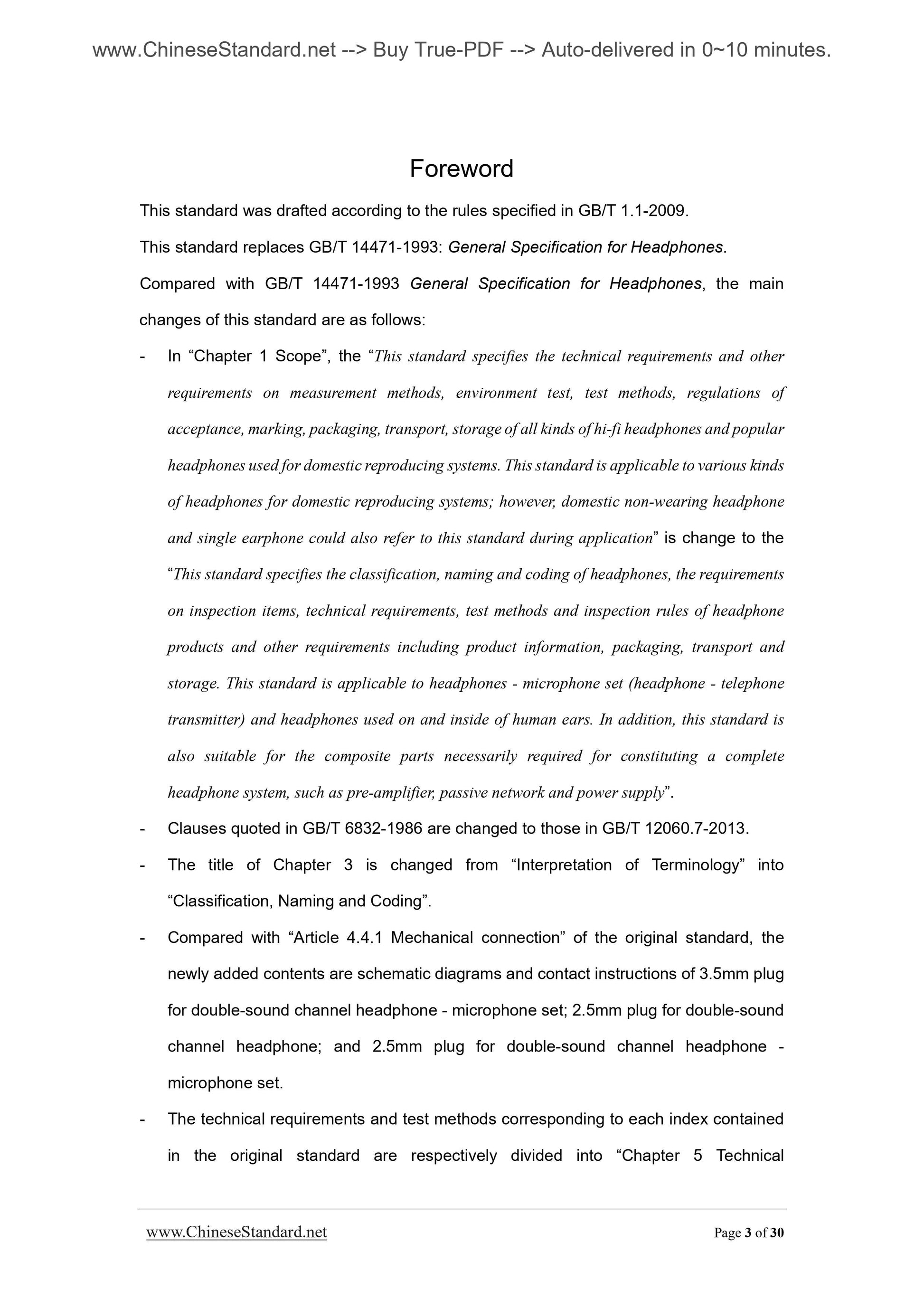

Foreword
This standard was drafted according to the rules specified in GB/T 1.1-2009.
This standard replaces GB/T 14471-1993. General Specification for Headphones.
Compared with GB/T 14471-1993 General Specification for Headphones, the main
changes of this standard are as follows.
- In “Chapter 1 Scope”, the “This standard specifies the technical requirements and other
requirements on measurement methods, environment test, test methods, regulations of
acceptance, marking, packaging, transport, storage of all kinds of hi-fi headphones and popular
headphones used for domestic reproducing systems. This standard is applicable to various kinds
of headphones for domestic reproducing systems; however, domestic non-wearing headphone
and single earphone could also refer to this standard during application” is change to the
“This standard specifies the classification, naming and coding of headphones, the requirements
on inspection items, technical requirements, test methods and inspection rules of headphone
products and other requirements including product information, packaging, transport and
storage. This standard is applicable to headphones - microphone set (headphone - telephone
transmitter) and headphones used on and inside of human ears. In addition, this standard is
also suitable for the composite parts necessarily required for constituting a complete
headphone system, such as pre-amplifier, passive network and power supply”.
- Clauses quoted in GB/T 6832-1986 are changed to those in GB/T 12060.7-2013.
- The title of Chapter 3 is changed from “Interpretation of Terminology” into
“Classification, Naming and Coding”.
- Compared with “Article 4.4.1 Mechanical connection” of the original standard, the
newly added contents are schematic diagrams and contact instructions of 3.5mm plug
for double-sound channel headphone - microphone set; 2.5mm plug for double-sound
channel headphone; and 2.5mm plug for double-sound channel headphone -
microphone set.
- The technical requirements and test methods corresponding to each index contained
in the original standard are respectively divided into “Chapter 5 Technical
Requirements” and “Chapter 6 Test Methods” in this standard, resulting in modification
in serial number, specifically as follows.
— The technical requirements and test methods of boundary dimension,
appearance and mechanical quality contained in Article 4.3 in the original
standard are respectively divided into “Article 5.1 Boundary Dimension,
Appearance and Mechanical Quality” and “Article 6.1 Boundary Dimension,
Appearance and Mechanical Quality” in this standard;
— The technical requirements and test methods of operation test of pure sound in
Article 4.5 contained in the original standard are respectively divided into “Article
5.3 Sound Inspection” and “Article 6.2 Sound Inspection” in this standard;
— The technical requirements and test methods of each index about electronic
sound in Article 4.6 contained in the original standard are respectively divided into
“Article 5.4 Electronic Sound Parameters” and “Article 6.3 Electronic Sound
Parameters” in this standard. And ADD new items such as impedance/ frequency
characteristic; rated source impedance; rated source electromotive force; limit
value of input voltage; characteristics of A- weighted; simulated programme signal
characteristic voltage AND protective voltage index OF free field response
compensation and correction;
— In accordance with the contents in Article 6.9 and 6.10 in GB/T 12060.7-2013, it
is newly added indexes such as external electric filed and / or external magnetic
field, and protective device in “Article 6.4 Other Parameters” in this standard;
— The “Article 4.6.5 Characteristic sound pressure level (sensitivity)” in the original
standard is change to the “Article 5.4.9 Sound pressure level” in this standard;
— The type inspection, acceptance inspection and routine inspection in “Chapter 5
Inspection Rules” in the original standard is replaced by the identification
inspection and the inspection of quality conformity (lot by lot inspection and
periodical inspection) in “Chapter 7 Inspection Rules” in this standard.

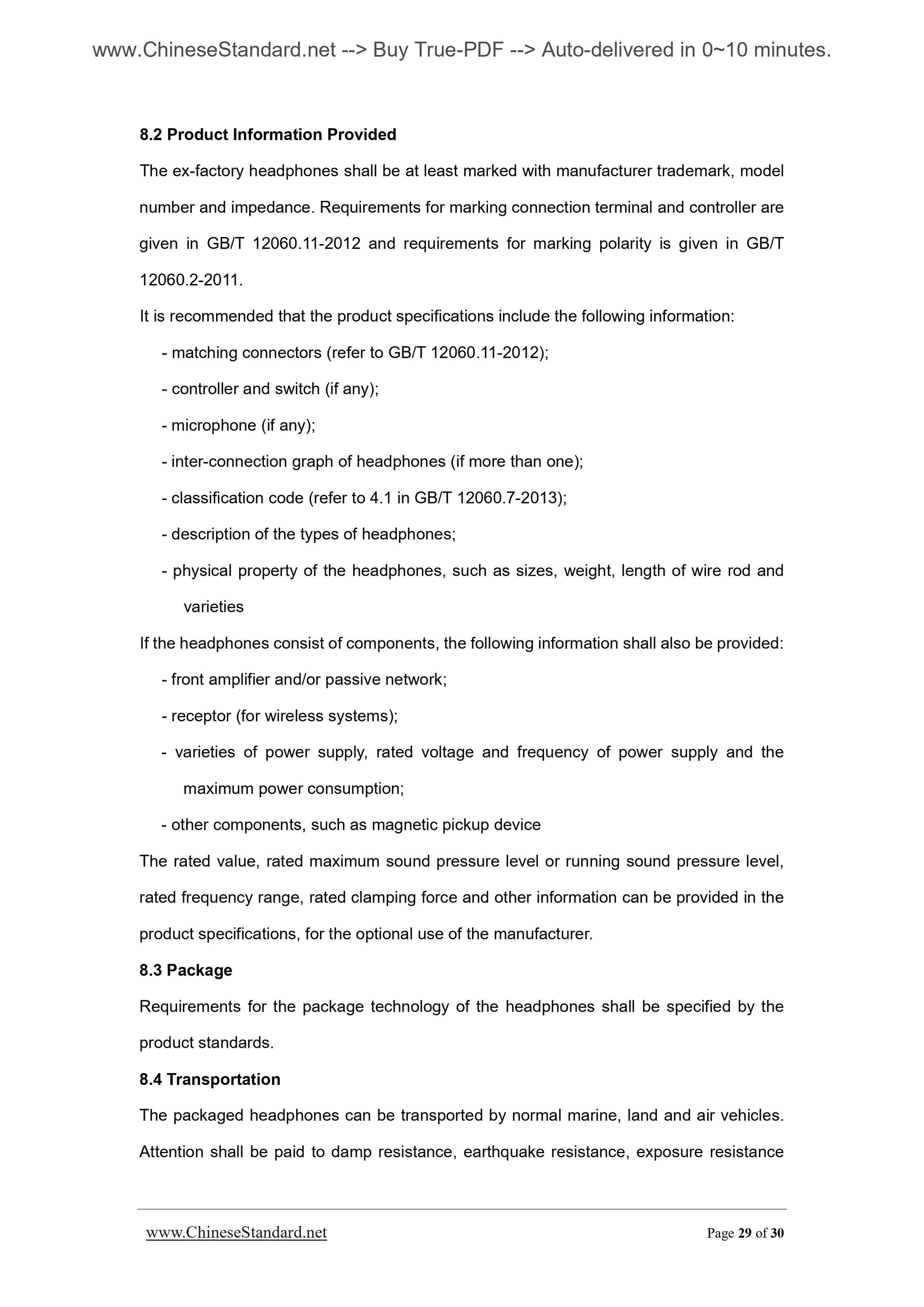

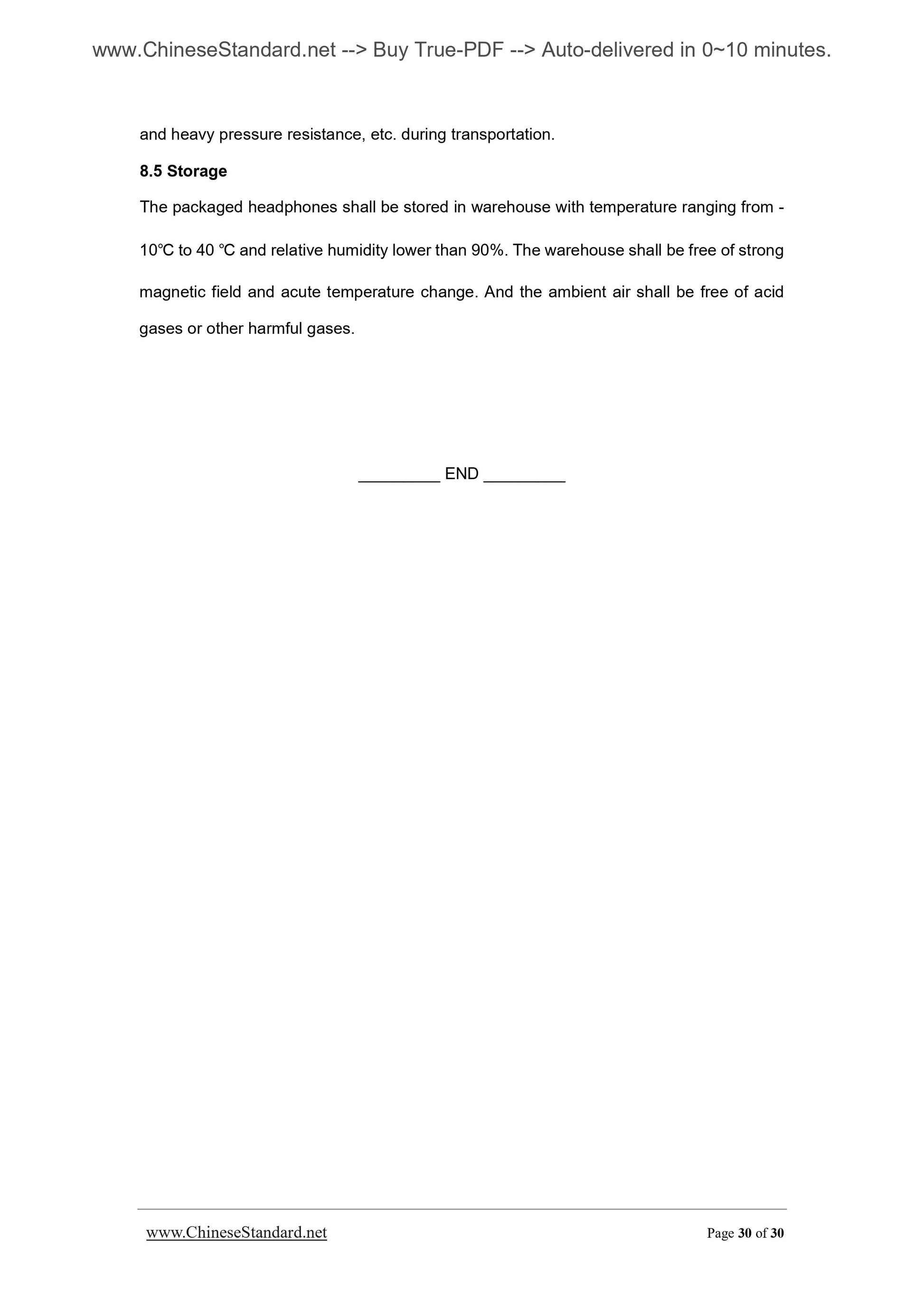

— The “Chapter 6 Marking, Packaging, Transport and Storage” in the original standard
is change to the “Chapter 8 Production Information, Packaging, Transport and Storage” in
this standard; And ADD “At the time of delivery, headphones shall be at least clearly
marked with manufacturer trademark, model number and impedance. The requirements
on the marking of connection terminal and controller shall refer to GB/T12060.11-2012.
The marking of polarity shall be according to the requirements specified in GB/T 12060.2-
2011”. And based on the contents related to “Chapter 7 Characteristic Classification” in
GB/T 12060.7-2013, the requirements to product instructions are added.

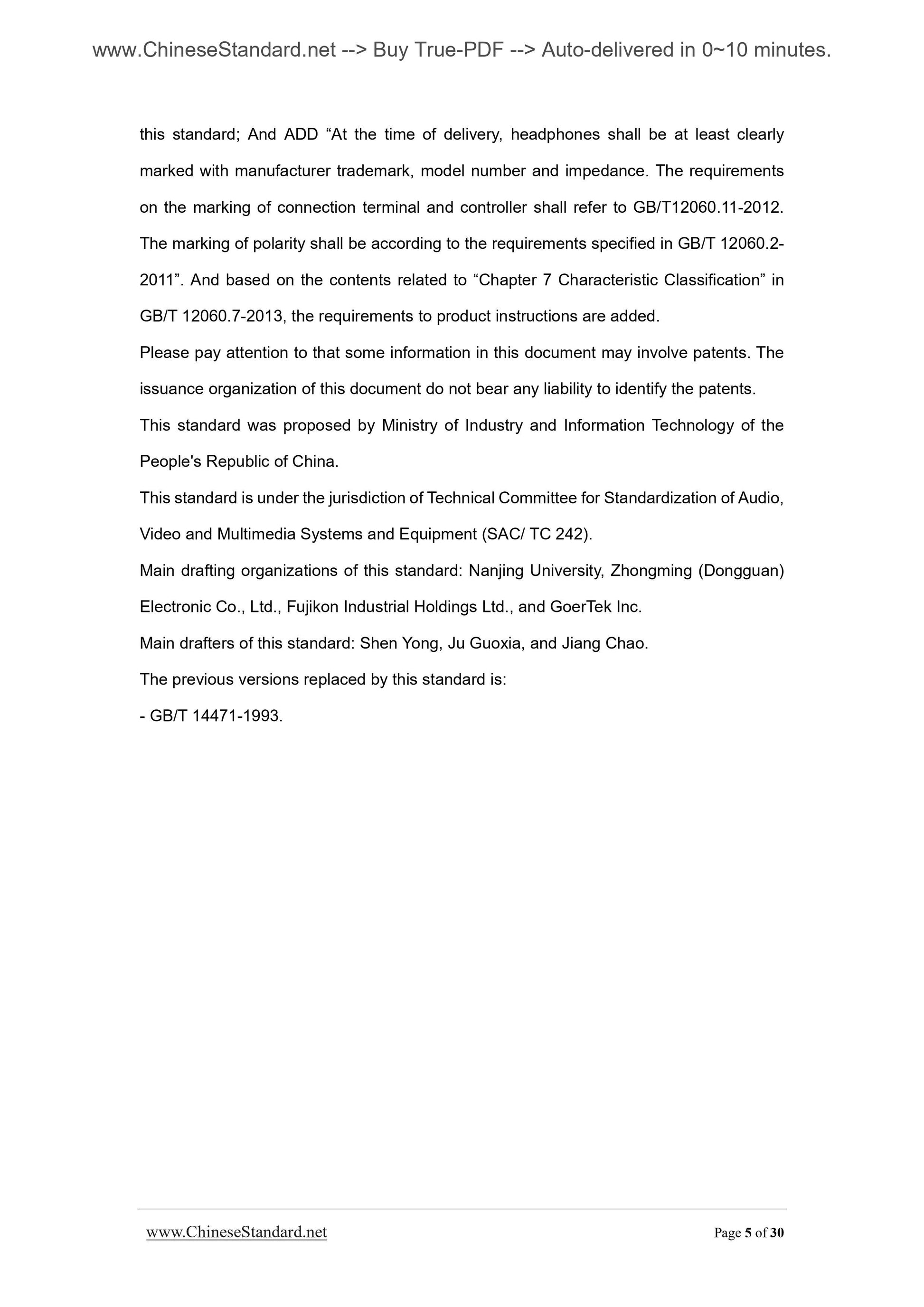

Please pay attention to that some information in this document may involve patents. The
issuance organization of this document do not bear any liability to identify the patents.
This standard was proposed by Ministry of Industry and Information Technology of the
People's Republic of China.
This standard is under the jurisdiction of Technical Committee for Standardization of Audio,
Video and Multimedia Systems and Equipment (SAC/ TC 242).
Main drafting organizations of this standard. Nanjing University, Zhongming (Dongguan)
Electronic Co., Ltd., Fujikon Industrial Holdings Ltd., and GoerTek Inc.
Main drafters of this standard. Shen Yong, Ju Guoxia, and Jiang Chao.
The previous versions replaced by this standard is.
- GB/T 14471-1993.
General Specification for Headphones

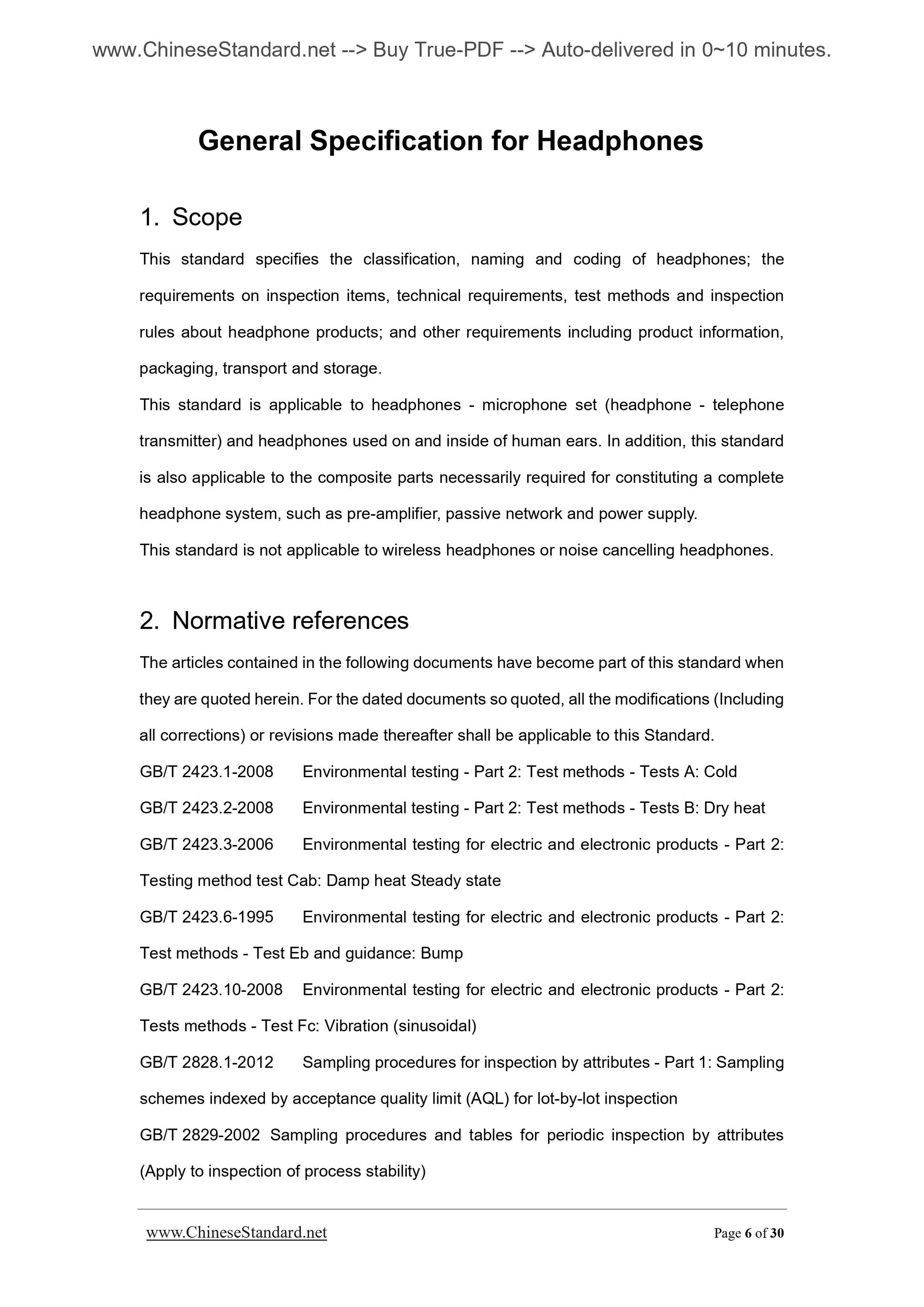

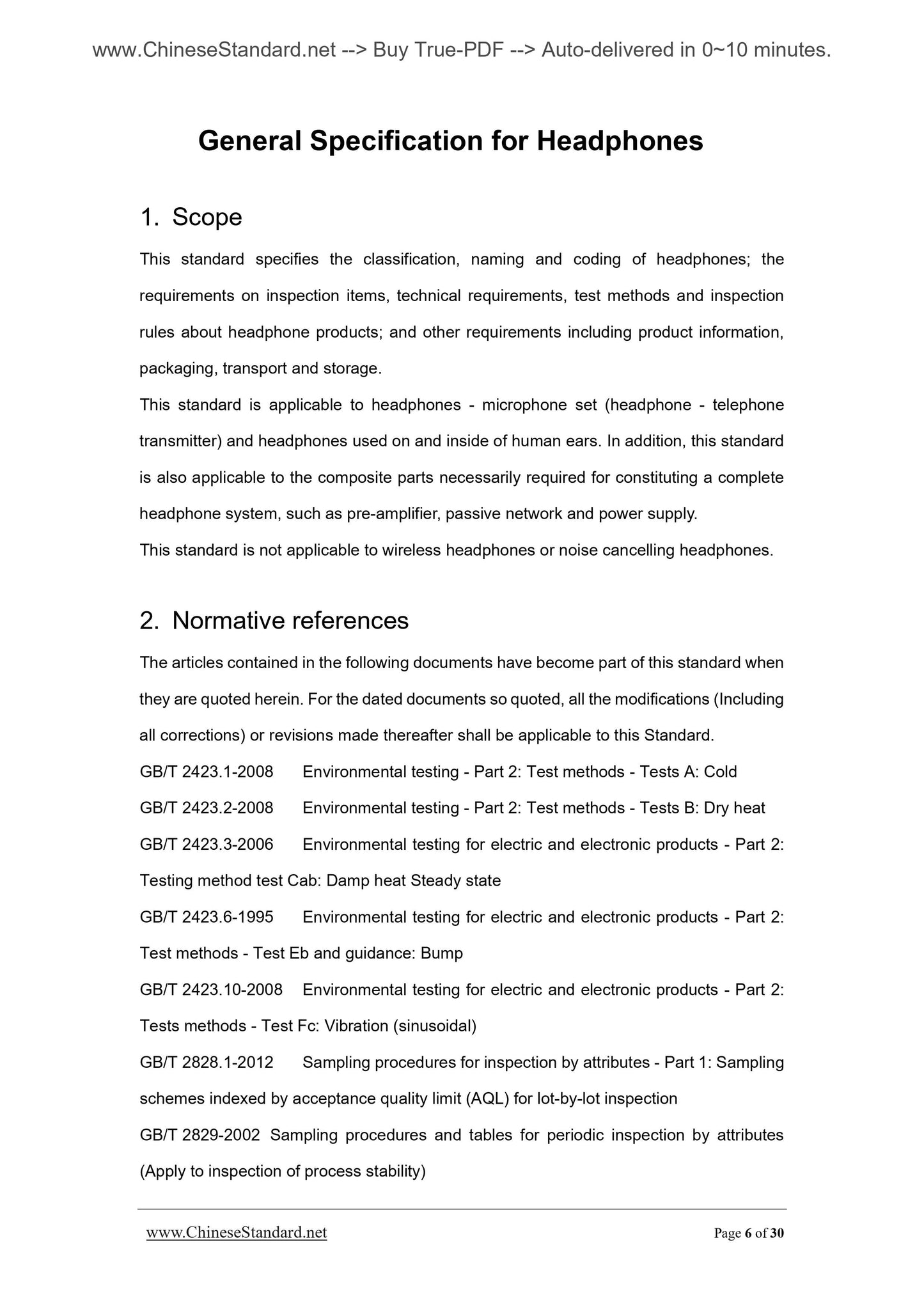

1. Scope
This standard specifies the classification, naming and coding of headphones; the
requirements on inspection items, technical requirements, test methods and inspection
rules about headphone products; and other requirements including product information,
packaging, transport and storage.
This standard is applicable to headphones - microphone set (headphone - telephone
transmitter) and headphones used on and inside of human ears. In addition, this standard
is also applicable to the composite parts necessarily required for constituting a complete
headphone system, such as pre-amplifier, passive network and power supply.
This standard is not applicable to wireless headphones or noise cancelling headphones.
2. Normative references
The articles contained in the following documents have become part of this standard when
they are quoted herein. For the dated documents so quoted, all the modifications (Including
all corrections) or revisions made thereafter shall be applicable to this Standard.
GB/T 2423.1-2008 Environmental testing - Part 2. Test methods - Tests A. Cold
GB/T 2423.2-2008 Environmental testing - Part 2. Test methods - Tests B. Dry heat
GB/T 2423.3-2006 Environmental testing for electric and electronic products - Part 2.
Testing method test Cab. Damp heat Steady state
GB/T 2423.6-1995 Environmental testing for electric and electronic products - Part 2.
Test methods - Test Eb and guidance. Bump
GB/T 2423.10-2008 Environmental testing for electric and electronic products - Part 2.
Tests methods - Test Fc. Vibration (sinusoidal)
GB/T 2828.1-2012 Sampling procedures for inspection by attributes - Part 1. Sampling
schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection
GB/T 2829-2002 Sampling procedures and tables for periodic inspection by attributes
(Apply to inspection of process stability)
GB/T 12060.2-2011 Sound system equipment - Part 2. Explanation of general terms and
calculation methods (IEC 60268-2. 1987, IDT)
GB/T 12060.7-2013 Sound system equipment - Part 7. Methods of measurement on
headphones and earphones (IEC 60268-7. 2010, MOD)
GB/T 12060.11-2012 Sound system equipment - Part 11. Application of connectors for
the interconnection of sound system equipment (IEC 60268-11. 1987, NEQ)
GB/T 13581 Minimm performance requirements on high fidelity head-phones
GB/T 14197 Preferred matching values for the interconnections of audio, video and
audiovisual systems

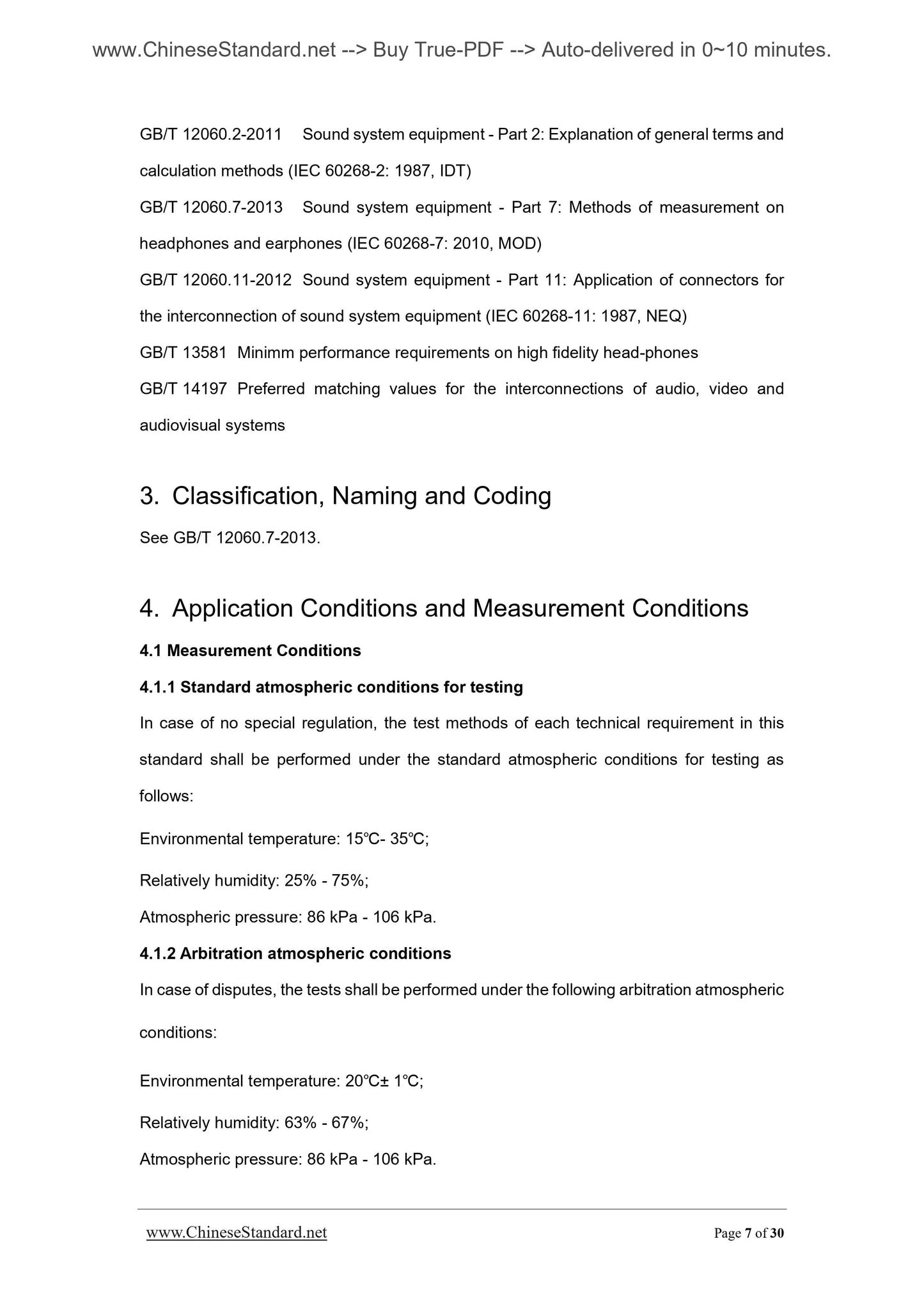

3. Classification, Naming and Coding
See GB/T 12060.7-2013.

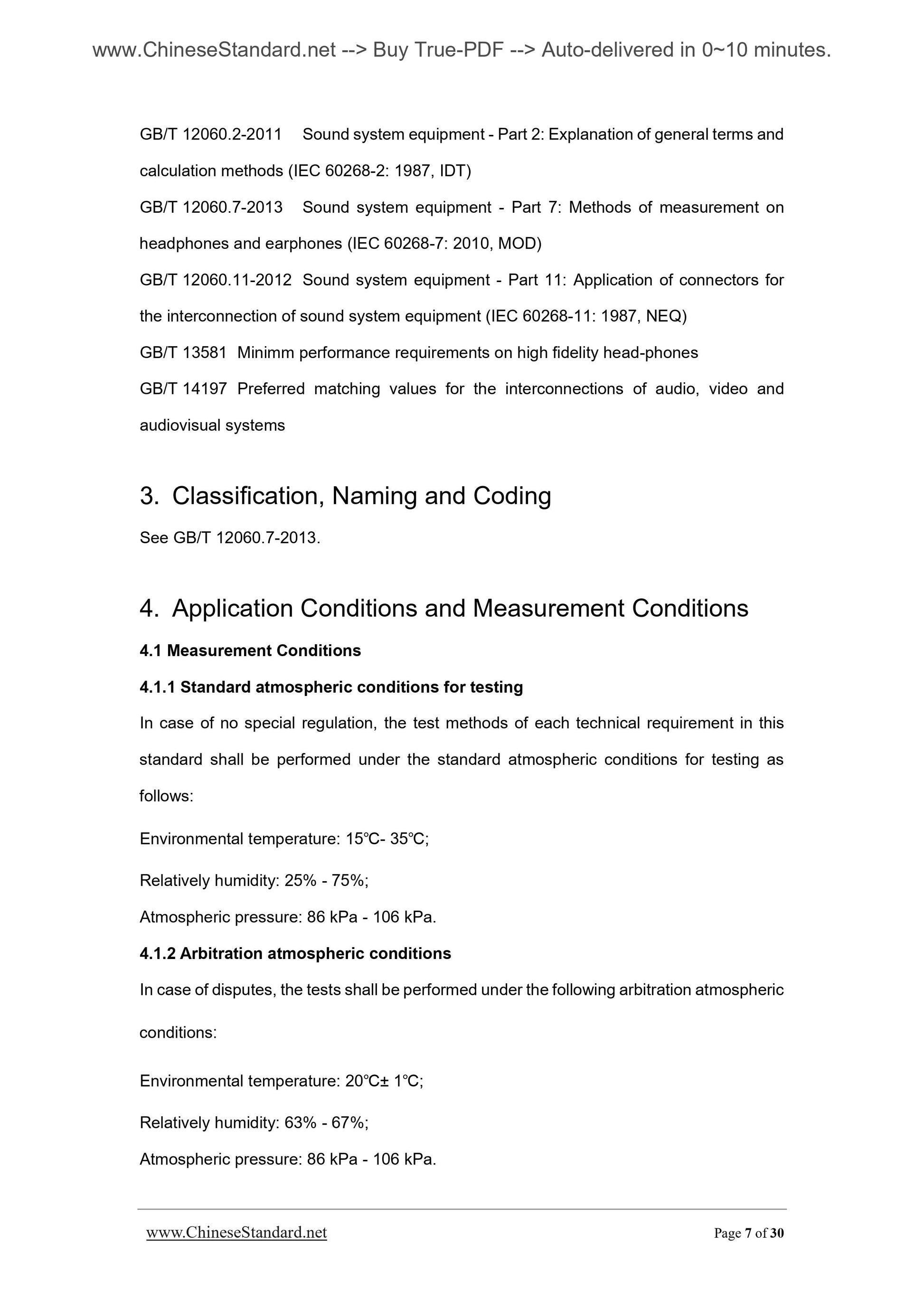

4. Application Conditions and Measurement Conditions
4.1 Measurement Conditions
4.1.1 Standard atmospheric conditions for testing
In case of no special regulation, the test methods of each technical requirement in this
standard shall be perform...
GB/T 14471-2013
GB
ICS 33.160.10
B 72
NATIONAL STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
Replacing GB/T 14471-1993
General specification for headphones
ISSUED ON. DECEMBER 31, 2013
IMPLEMENTED ON. JULY 01, 2014
Issued by.
General Administration of Quality Supervision, Inspection
and Quarantine of the People’s Republic of China;
Standardization Administration of the People’s Republic of
China
Table of Contents
Foreword ... 3
1. Scope ... 6
2. Normative references ... 6
3. Classification, Naming and Coding ... 7
4. Application Conditions and Measurement Conditions ... 7
5. Technical Requirements ... 8
6. Test Method ... 14
7. Inspection Rules ... 20
8. Available Product Information, Package, Transportation and Storage ... 28
Foreword
This standard was drafted according to the rules specified in GB/T 1.1-2009.
This standard replaces GB/T 14471-1993. General Specification for Headphones.
Compared with GB/T 14471-1993 General Specification for Headphones, the main
changes of this standard are as follows.
- In “Chapter 1 Scope”, the “This standard specifies the technical requirements and other
requirements on measurement methods, environment test, test methods, regulations of
acceptance, marking, packaging, transport, storage of all kinds of hi-fi headphones and popular
headphones used for domestic reproducing systems. This standard is applicable to various kinds
of headphones for domestic reproducing systems; however, domestic non-wearing headphone
and single earphone could also refer to this standard during application” is change to the
“This standard specifies the classification, naming and coding of headphones, the requirements
on inspection items, technical requirements, test methods and inspection rules of headphone
products and other requirements including product information, packaging, transport and
storage. This standard is applicable to headphones - microphone set (headphone - telephone
transmitter) and headphones used on and inside of human ears. In addition, this standard is
also suitable for the composite parts necessarily required for constituting a complete
headphone system, such as pre-amplifier, passive network and power supply”.
- Clauses quoted in GB/T 6832-1986 are changed to those in GB/T 12060.7-2013.
- The title of Chapter 3 is changed from “Interpretation of Terminology” into
“Classification, Naming and Coding”.
- Compared with “Article 4.4.1 Mechanical connection” of the original standard, the
newly added contents are schematic diagrams and contact instructions of 3.5mm plug
for double-sound channel headphone - microphone set; 2.5mm plug for double-sound
channel headphone; and 2.5mm plug for double-sound channel headphone -
microphone set.
- The technical requirements and test methods corresponding to each index contained
in the original standard are respectively divided into “Chapter 5 Technical
Requirements” and “Chapter 6 Test Methods” in this standard, resulting in modification
in serial number, specifically as follows.
— The technical requirements and test methods of boundary dimension,
appearance and mechanical quality contained in Article 4.3 in the original
standard are respectively divided into “Article 5.1 Boundary Dimension,
Appearance and Mechanical Quality” and “Article 6.1 Boundary Dimension,

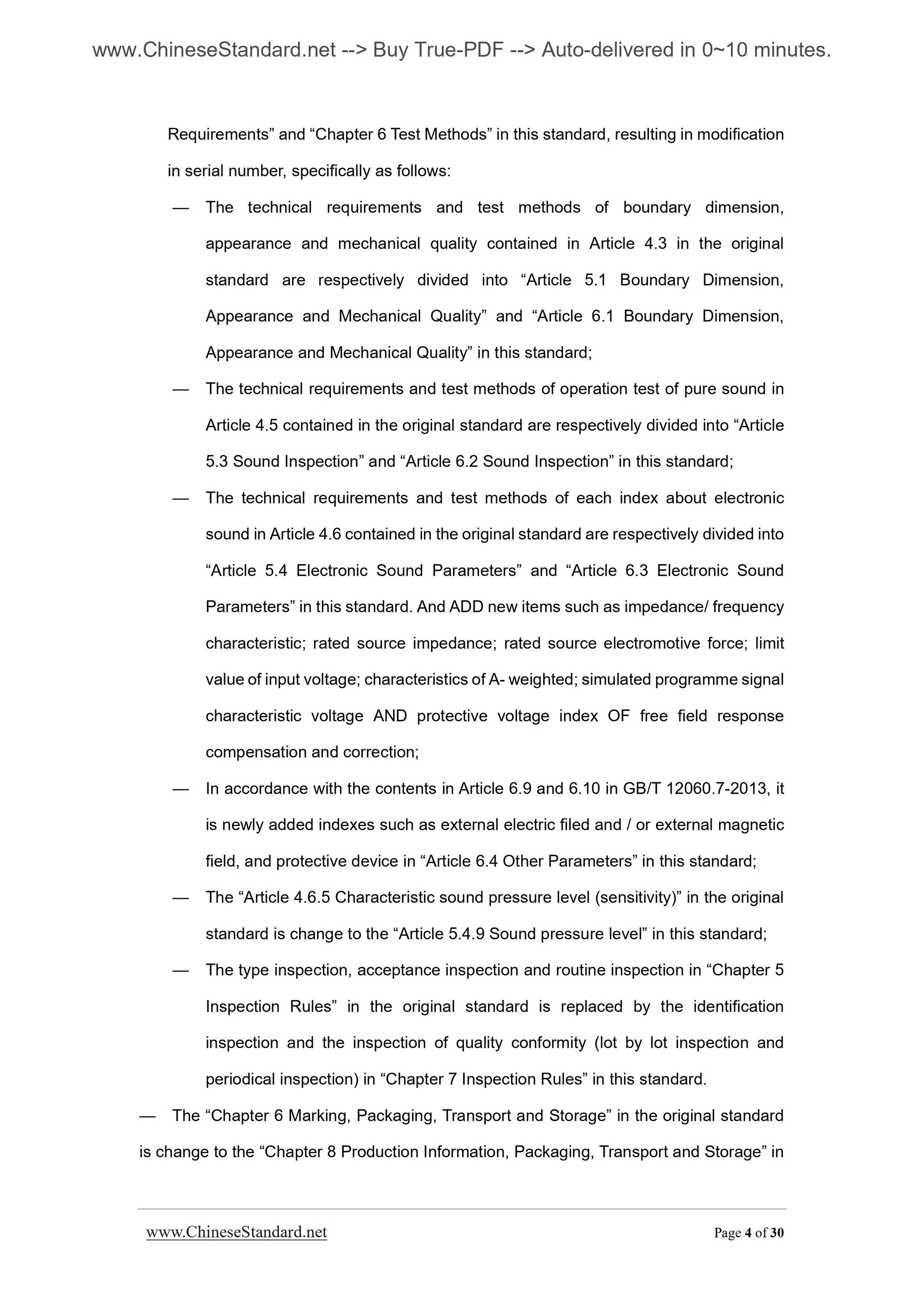

Appearance and Mechanical Quality” in this standard;
— The technical requirements and test methods of operation test of pure sound in
Article 4.5 contained in the original standard are respectively divided into “Article
5.3 Sound Inspection” and “Article 6.2 Sound Inspection” in this standard;
— The technical requirements and test methods of each index about electronic
sound in Article 4.6 contained in the original standard are respectively divided into
“Article 5.4 Electronic Sound Parameters” and “Article 6.3 Electronic Sound
Parameters” in this standard. And ADD new items such as impedance/ frequency
characteristic; rated source impedance; rated source electromotive force; limit
value of input voltage; characteristics of A- weighted; simulated programme signal
characteristic voltage AND protective voltage index OF free field response
compensation and correction;
— In accordance with the contents in Article 6.9 and 6.10 in GB/T 12060.7-2013, it
is newly added indexes such as external electric filed and / or external magnetic
field, and protective device in “Article 6.4 Other Parameters” in this standard;
— The “Article 4.6.5 Characteristic sound pressure level (sensitivity)” in the original
standard is change to the “Article 5.4.9 Sound pressure level” in this standard;
— The type inspection, acceptance inspection and routine inspection in “Chapter 5
Inspection Rules” in the original standard is replaced by the identification
inspection and the inspection of quality conformity (lot by lot i...
