GB/T 1413-2023: Series 1 freight containers -- Classification, dimensions and ratings

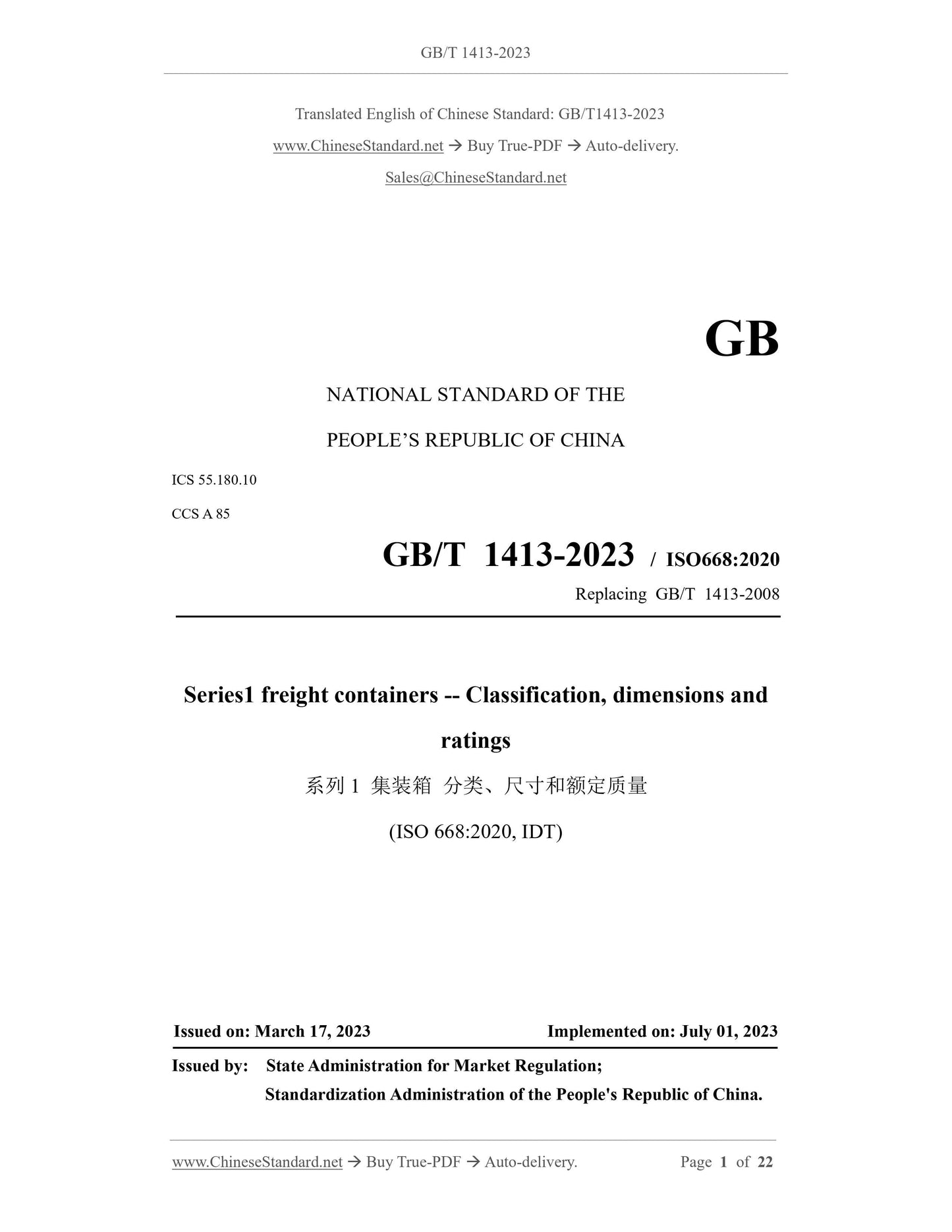

GB/T 1413-2023
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 55.180.10
CCS A 85
GB/T 1413-2023 / ISO668:2020
Replacing GB/T 1413-2008
Series1 freight containers -- Classification, dimensions and
ratings
(ISO 668:2020, IDT)
ISSUED ON: MARCH 17, 2023
IMPLEMENTED ON: JULY 01, 2023
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of China.

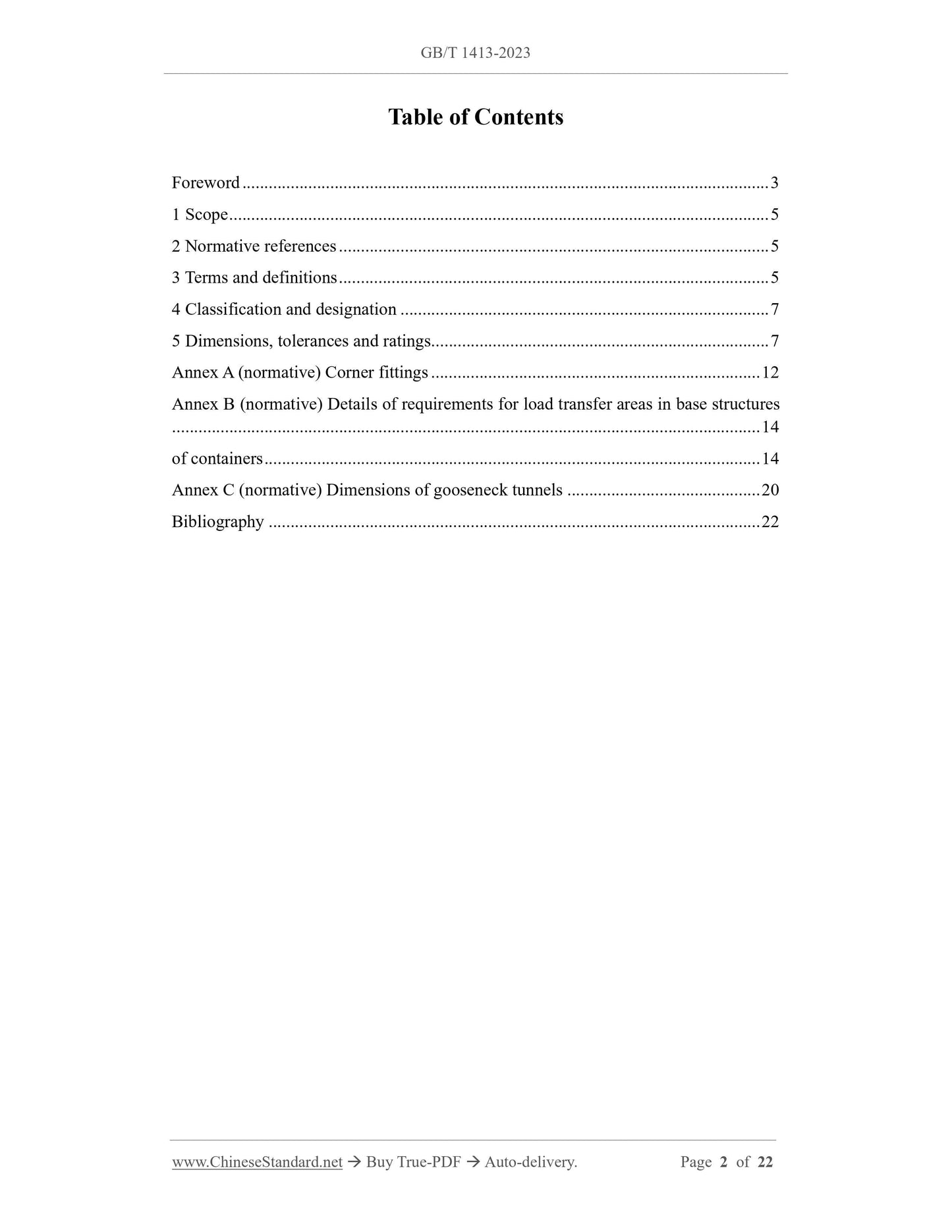

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Classification and designation ... 7
5 Dimensions, tolerances and ratings ... 7
Annex A (normative) Corner fittings ... 12
Annex B (normative) Details of requirements for load transfer areas in base structures
... 14
of containers ... 14
Annex C (normative) Dimensions of gooseneck tunnels ... 20
Bibliography ... 22

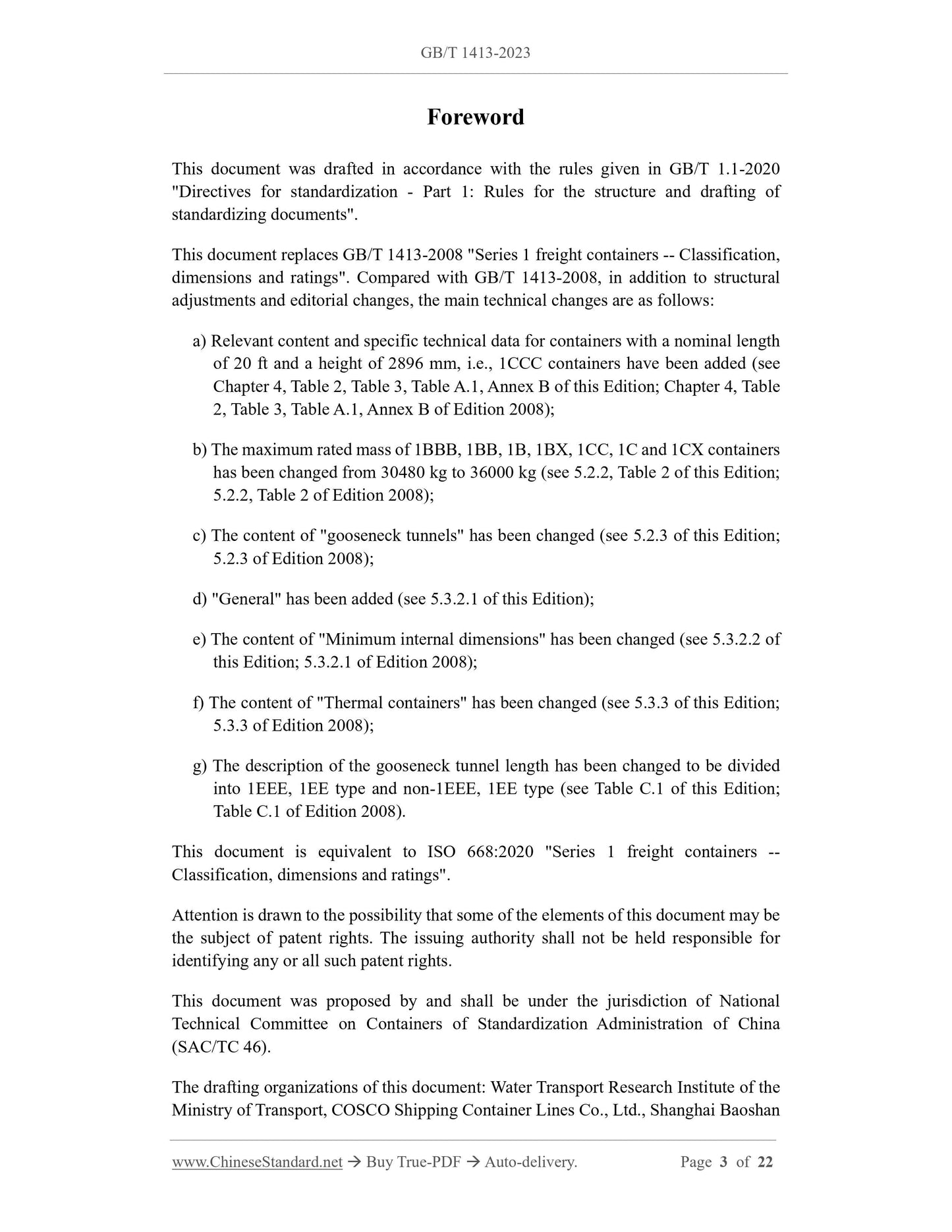

Foreword
This document was drafted in accordance with the rules given in GB/T 1.1-2020
"Directives for standardization - Part 1: Rules for the structure and drafting of
standardizing documents".
This document replaces GB/T 1413-2008 "Series 1 freight containers -- Classification,
dimensions and ratings". Compared with GB/T 1413-2008, in addition to structural
adjustments and editorial changes, the main technical changes are as follows:
a) Relevant content and specific technical data for containers with a nominal length
of 20 ft and a height of 2896 mm, i.e., 1CCC containers have been added (see
Chapter 4, Table 2, Table 3, Table A.1, Annex B of this Edition; Chapter 4, Table
2, Table 3, Table A.1, Annex B of Edition 2008);
b) The maximum rated mass of 1BBB, 1BB, 1B, 1BX, 1CC, 1C and 1CX containers
has been changed from 30480 kg to 36000 kg (see 5.2.2, Table 2 of this Edition;
5.2.2, Table 2 of Edition 2008);
c) The content of "gooseneck tunnels" has been changed (see 5.2.3 of this Edition;
5.2.3 of Edition 2008);
d) "General" has been added (see 5.3.2.1 of this Edition);
e) The content of "Minimum internal dimensions" has been changed (see 5.3.2.2 of
this Edition; 5.3.2.1 of Edition 2008);
f) The content of "Thermal containers" has been changed (see 5.3.3 of this Edition;
5.3.3 of Edition 2008);
g) The description of the gooseneck tunnel length has been changed to be divided
into 1EEE, 1EE type and non-1EEE, 1EE type (see Table C.1 of this Edition;
Table C.1 of Edition 2008).
This document is equivalent to ISO 668:2020 "Series 1 freight containers --
Classification, dimensions and ratings".
Attention is drawn to the possibility that some of the elements of this document may be
the subject of patent rights. The issuing authority shall not be held responsible for
identifying any or all such patent rights.
This document was proposed by and shall be under the jurisdiction of National
Technical Committee on Containers of Standardization Administration of China
(SAC/TC 46).
The drafting organizations of this document: Water Transport Research Institute of the
Ministry of Transport, COSCO Shipping Container Lines Co., Ltd., Shanghai Baoshan

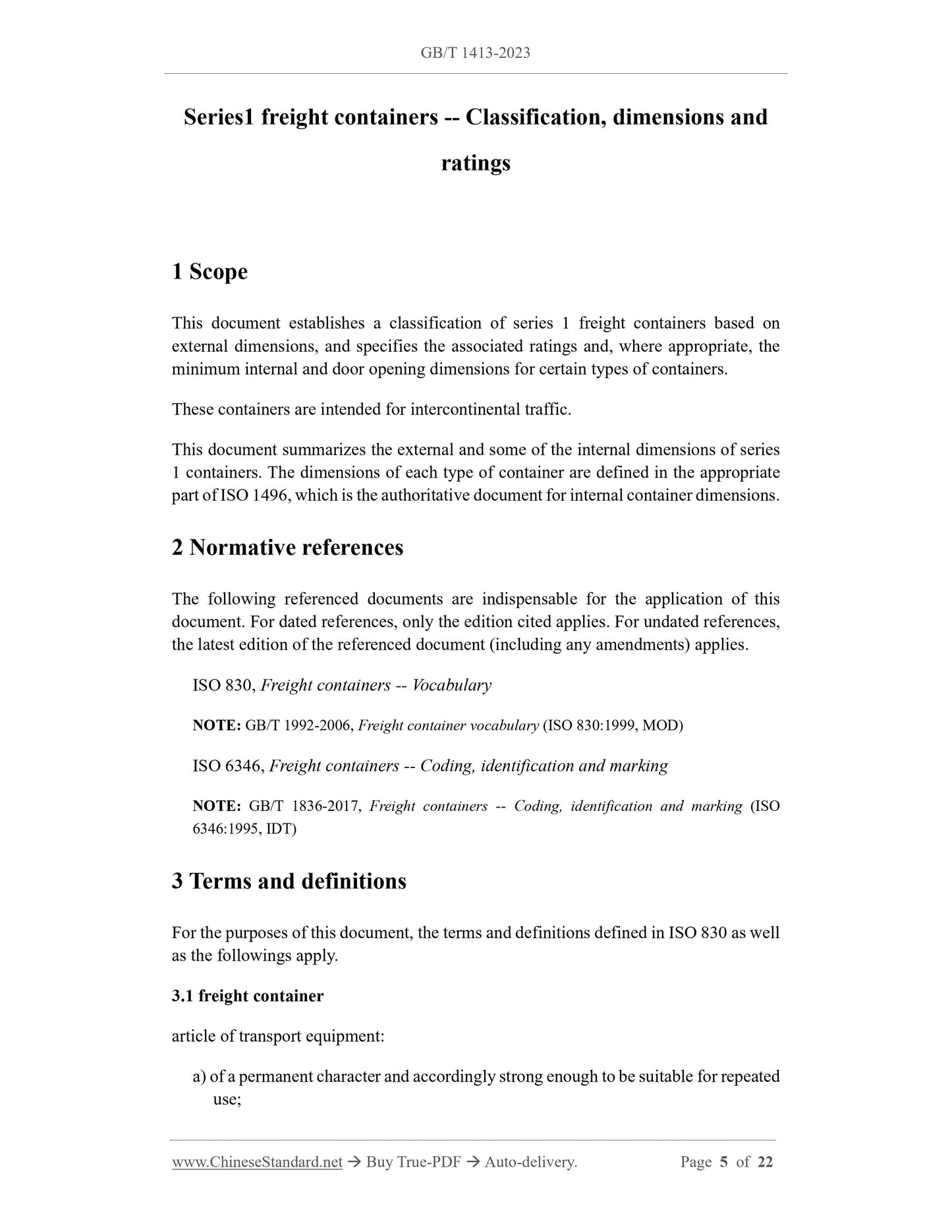

Series1 freight containers -- Classification, dimensions and
ratings
1 Scope
This document establishes a classification of series 1 freight containers based on
external dimensions, and specifies the associated ratings and, where appropriate, the
minimum internal and door opening dimensions for certain types of containers.
These containers are intended for intercontinental traffic.
This document summarizes the external and some of the internal dimensions of series
1 containers. The dimensions of each type of container are defined in the appropriate
part of ISO 1496, which is the authoritative document for internal container dimensions.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 830, Freight containers -- Vocabulary
NOTE: GB/T 1992-2006, Freight container vocabulary (ISO 830:1999, MOD)
ISO 6346, Freight containers -- Coding, identification and marking
NOTE: GB/T 1836-2017, Freight containers -- Coding, identification and marking (ISO
6346:1995, IDT)
3 Terms and definitions
For the purposes of this document, the terms and definitions defined in ISO 830 as well
as the followings apply.
3.1 freight container
article of transport equipment:
a) of a permanent character and accordingly strong enough to be suitable for repeated
use;
