GB/T 13917.10-2009: Laboratory efficacy test methods and criterions of public health insecticides for pesticide registration -- Part 10: Analogous site

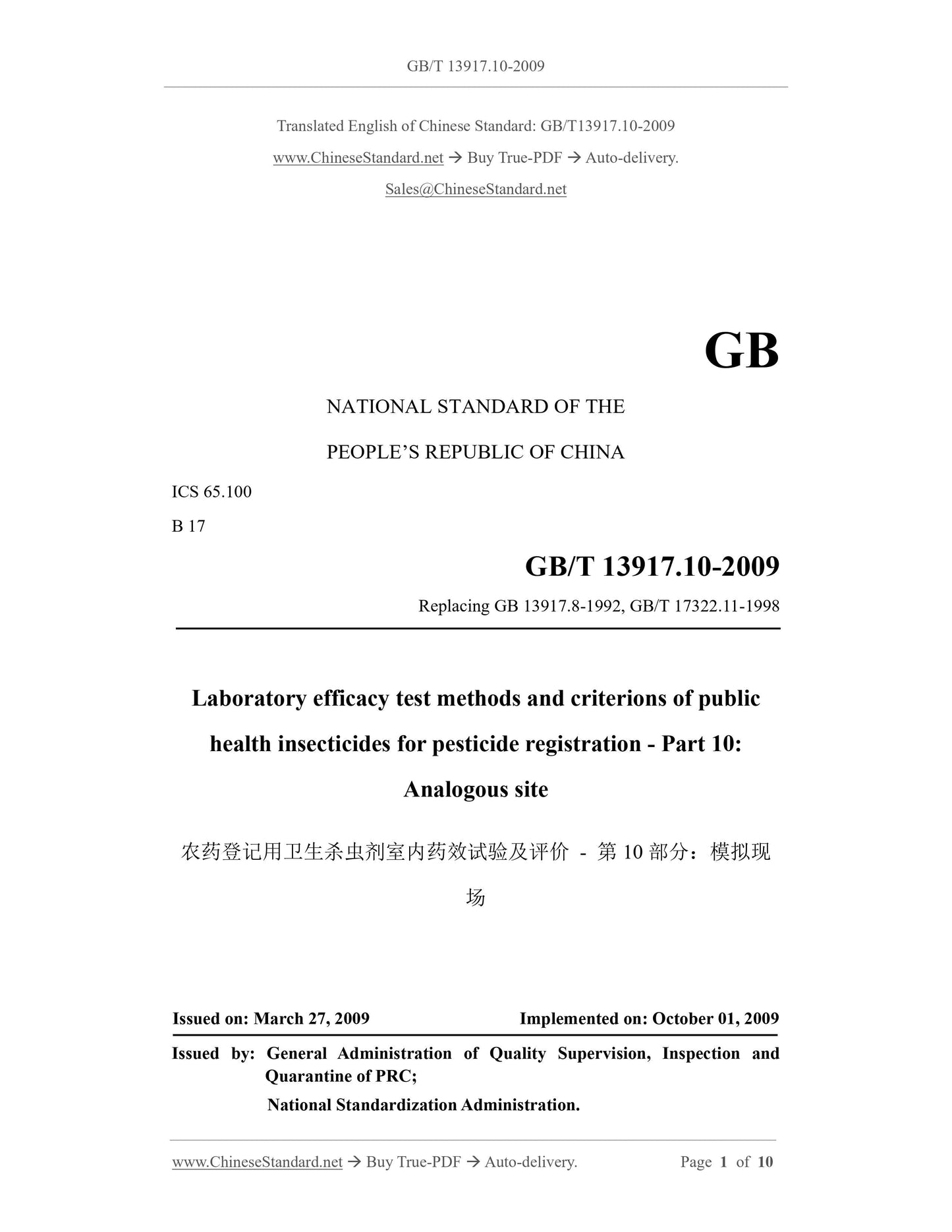

GB/T 13917.10-2009
Laboratory efficacy test methods and criterions of public health insecticides for pesticide registration Part 10. Analogous site
ICS 65.100
B17
National Standards of People's Republic of China
Replacing GB 13917.8-1992, GB/T 17322.11-1998
Health insecticides for pesticide registration
Laboratory efficacy test methods and evaluation
Part 10. Analogue site
Posted 2009-03-27
2009-10-01 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China
Standardization Administration of China released
Foreword
GB/T 13917 "health insecticides for pesticide registration indoor efficacy test and evaluation" in 10 sections.
--- Part 1. propellant;
--- Part 2. Aerosol;
--- Part 3. Smoke and smoke film;
--- Part 4. mosquito coils;
--- Part 5. Electric Coil;
--- Part 6. electric mosquito liquid;
--- Part 7. Bait;
--- Part 8. powders, pencils;
--- Part 9. repellent;
--- Part 10. Analog scene.
This section GB/T Part of 1,013,917.
This Part replaces GB 13917.8-1992 "pesticide registration Health analog field efficacy test side with the indoor insecticide efficacy test methods
Law "and GB/T 17322.11-1998" health insecticides for pesticide registration indoor efficacy evaluation simulation scene. "
This part of GB 13917.8-1992 GB/T 17322.11-1998 and compared to the main changes are as follows.
--- And the GB 13917.8-1992 GB/T 17322.11-1998 merged, so that methods and evaluation obtained in the same standard
To reflect the application more convenient;
--- Increasing the test methods and evaluation criteria ants;
--- Increased evaluation criteria baits;
--- Increasing the specific requirements of the test results and test reports prepared.
This section proposed by the People's Republic of China Ministry of Agriculture.
This part of the jurisdiction of the Ministry of Agriculture.
This section was drafted by. the Ministry of Agriculture, Institute of Microbiology and Epidemiology, Military Medical Sciences, Tianjin Disease Prevention and Control
center.
The main drafters of this section. Zhang Jintong, Taoling Mei, n-octyl, Wang Xiaojun, Jiang Hui, Lin Lifeng, Sun Chenxi.
This part of the standard replaces the previous editions are.
--- GB 13917.8-1992;
--- GB/T 17322.11-1998.
Health insecticides for pesticide registration
Laboratory efficacy test methods and evaluation
Part 10. Analogue site

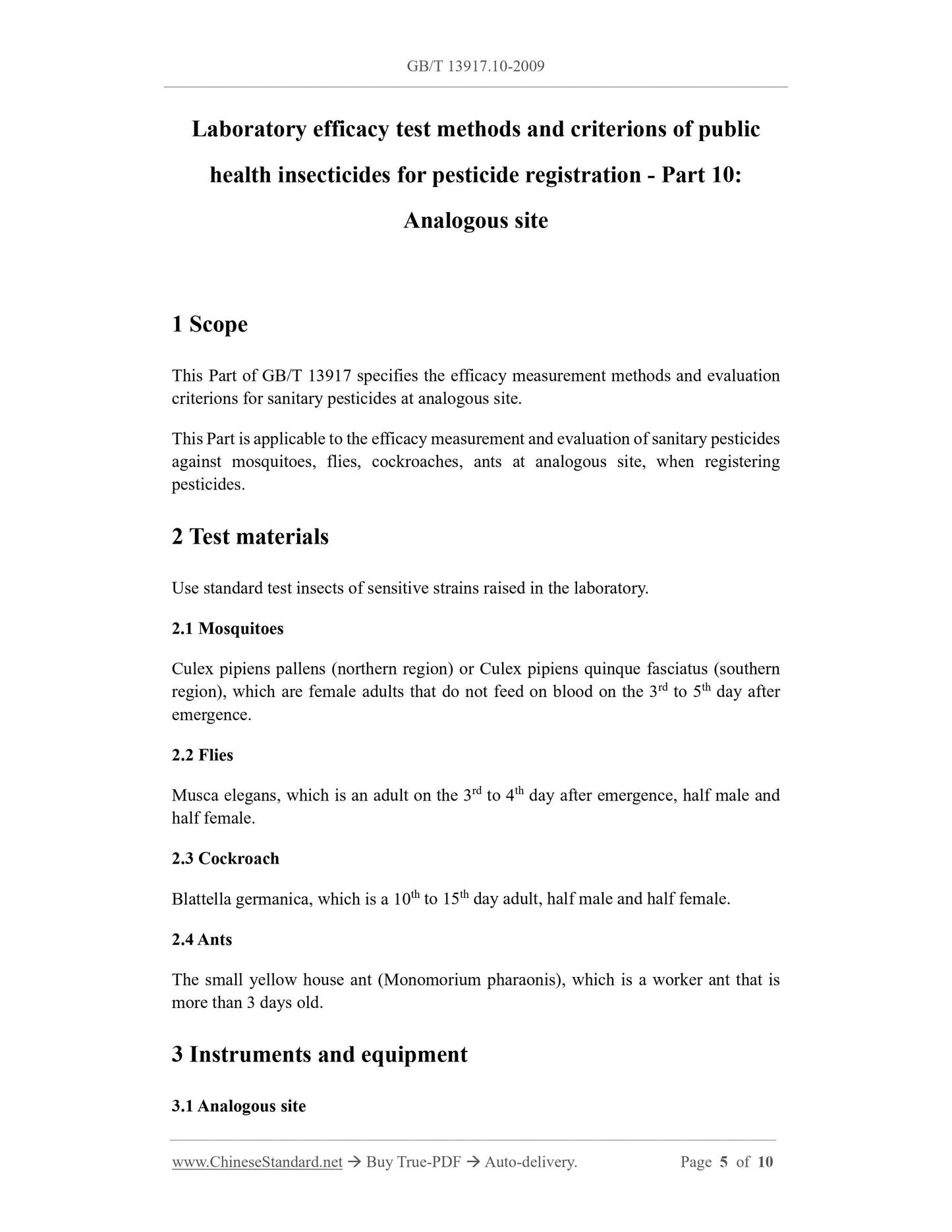

1 Scope
GB/T 13917 provisions of this part of the public health scene simulation Efficacy test methods and evaluation criteria pesticides.
This section applies to public health insecticides for pesticide registration at health pests mosquitoes, flies, cockroaches, ants simulation site efficacy test
And evaluation.
2 for the test material
Using laboratory reared insects susceptible strains of the standard test.
Mosquito 2.1
Region), after the emergence of the first 3 days to 5 days without blood-sucking female adults.
2.2 Flies
2.3 Cockroach
2.4 Ants
3 Equipment
3.1 simulated field

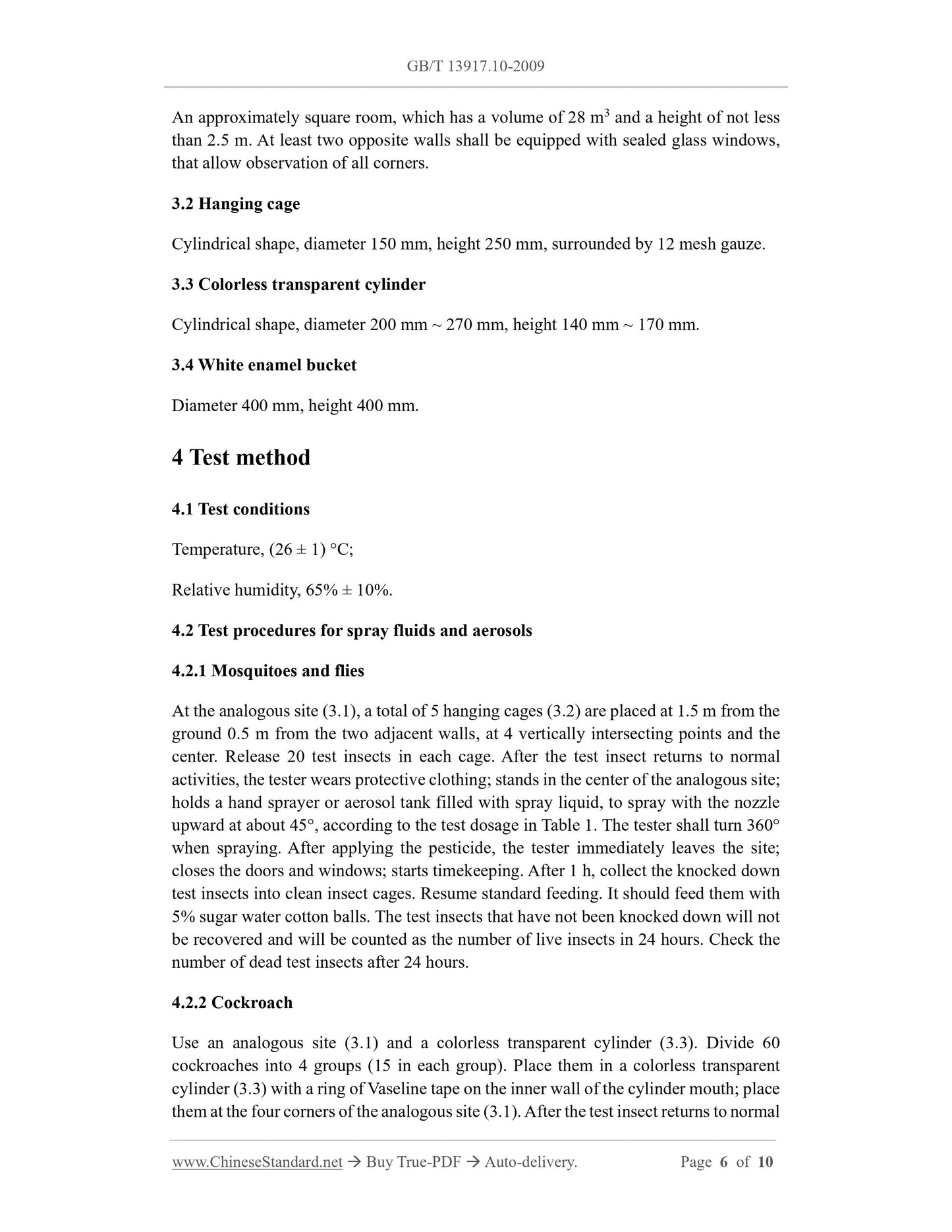

Approximately square room, the volume of 28m3, height not less than 2.5m, should be at least two opposing wall mounted observed every corner
Closed windows.
3.2 Hanging cage
Cylindrical shape, diameter 150mm, height 250mm, enclosed by a 12 mesh gauze.
3.3 colorless, transparent cylinder
Cylindrical shape, the diameter of 200mm ~ 270mm, high 140mm ~ 170mm.
3.4 White enamel bucket
Diameter 400mm, height 400mm.
Test Method 4
4.1 Test conditions
Temperature, (26 ± 1) ℃;
Relative humidity, 65% ± 10%.
4.2 propellant aerosol test procedure
4.2.1 mosquitoes, flies
In the simulated field (3.1) from the ground 1.5m, two adjacent walls 0.5m, 4 points and the central perpendicular totaling hanging on the cage (3.2)
