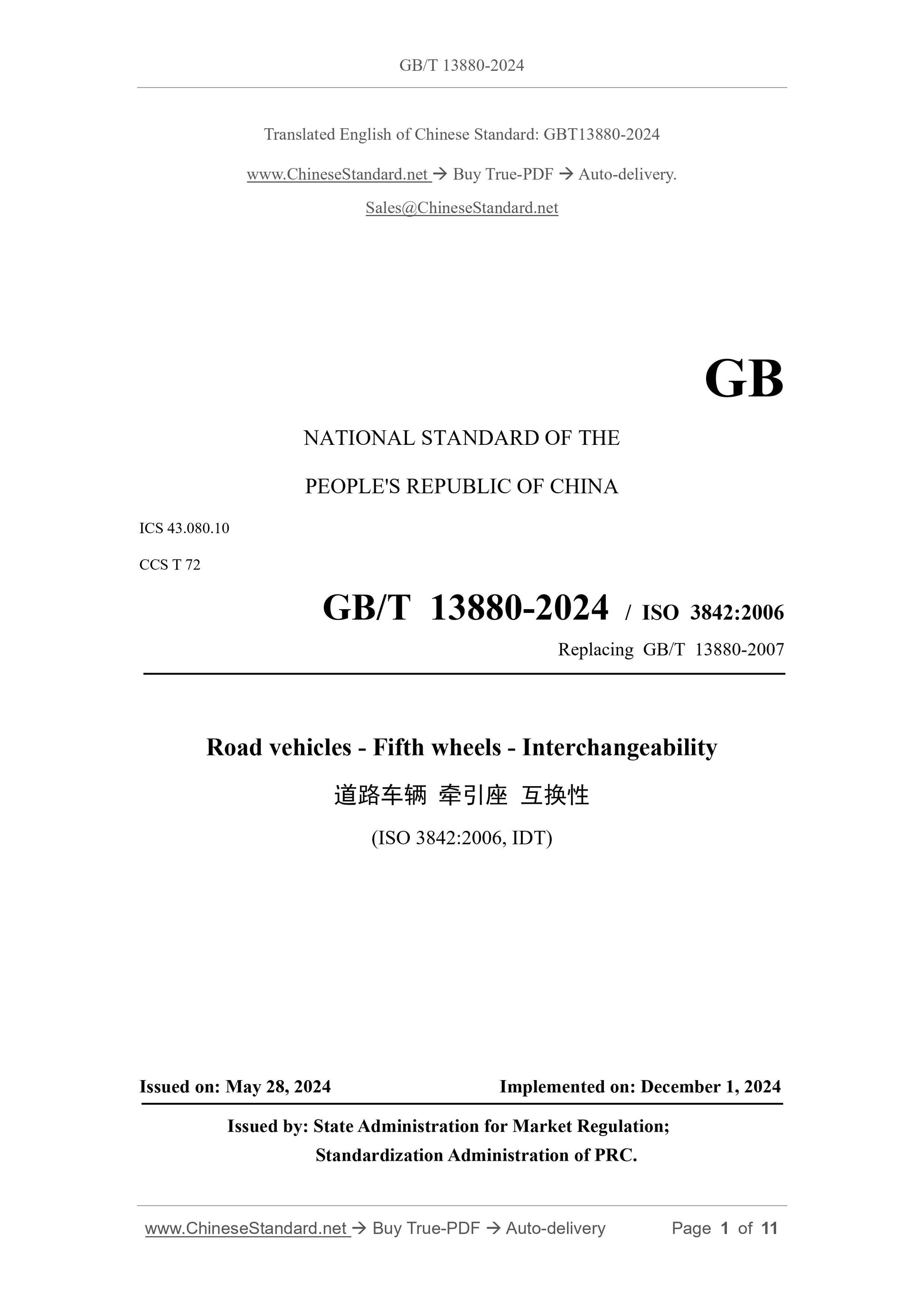

GB/T 13880-2024
GB
NATIONAL STANDARD OF THE
PEOPLE'S REPUBLIC OF CHINA
ICS 43.080.10
CCS T 72
GB/T 13880-2024 / ISO 3842.2006
Replacing GB/T 13880-2007
Road vehicles - Fifth wheels - Interchangeability
(ISO 3842.2006, IDT)
ISSUED ON. MAY 28, 2024
IMPLEMENTED ON. DECEMBER 1, 2024
Issued by. State Administration for Market Regulation;
Standardization Administration of PRC.

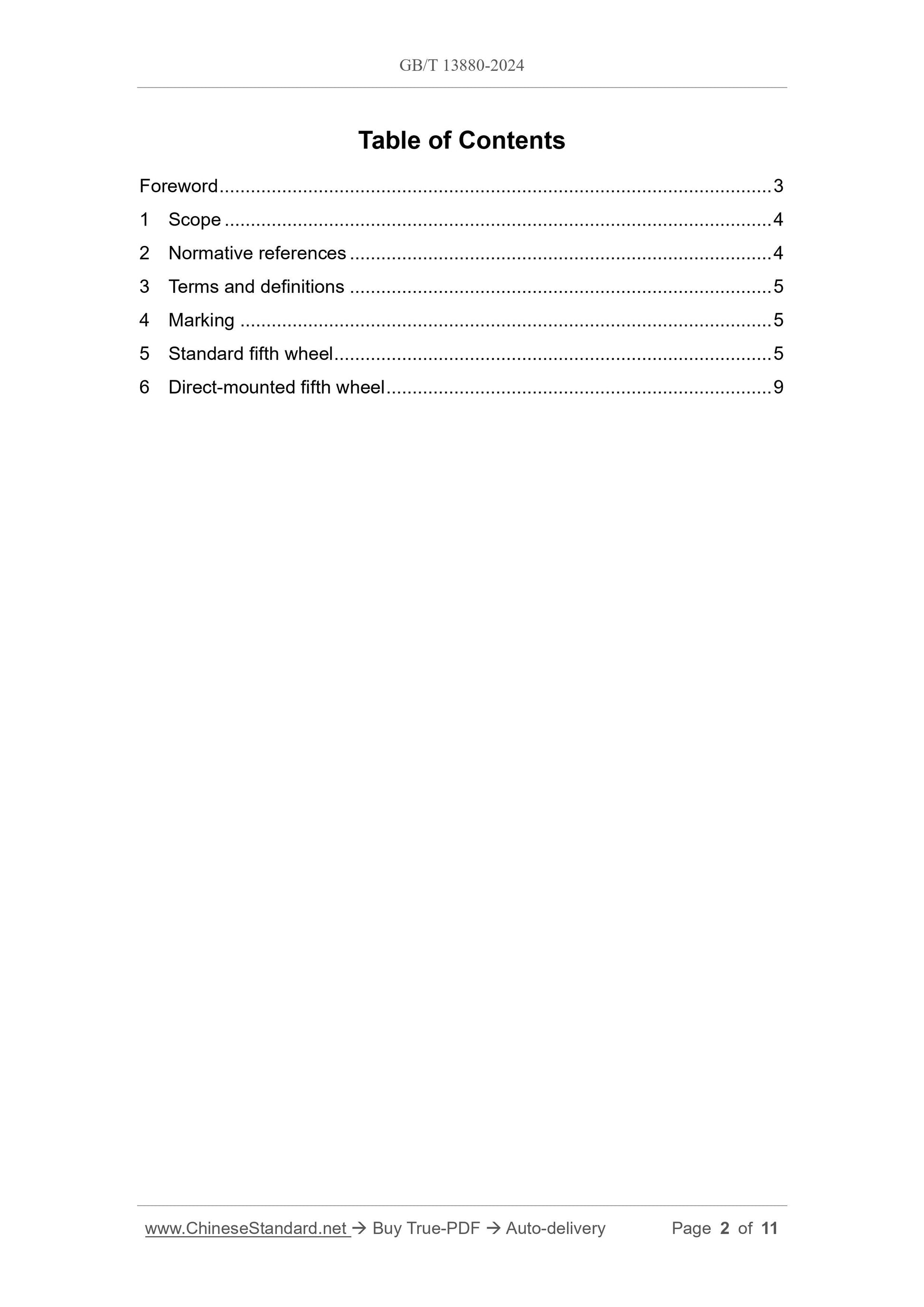

Table of Contents
Foreword... 3
1 Scope... 4
2 Normative references... 4
3 Terms and definitions... 5
4 Marking... 5
5 Standard fifth wheel... 5
6 Direct-mounted fifth wheel... 9

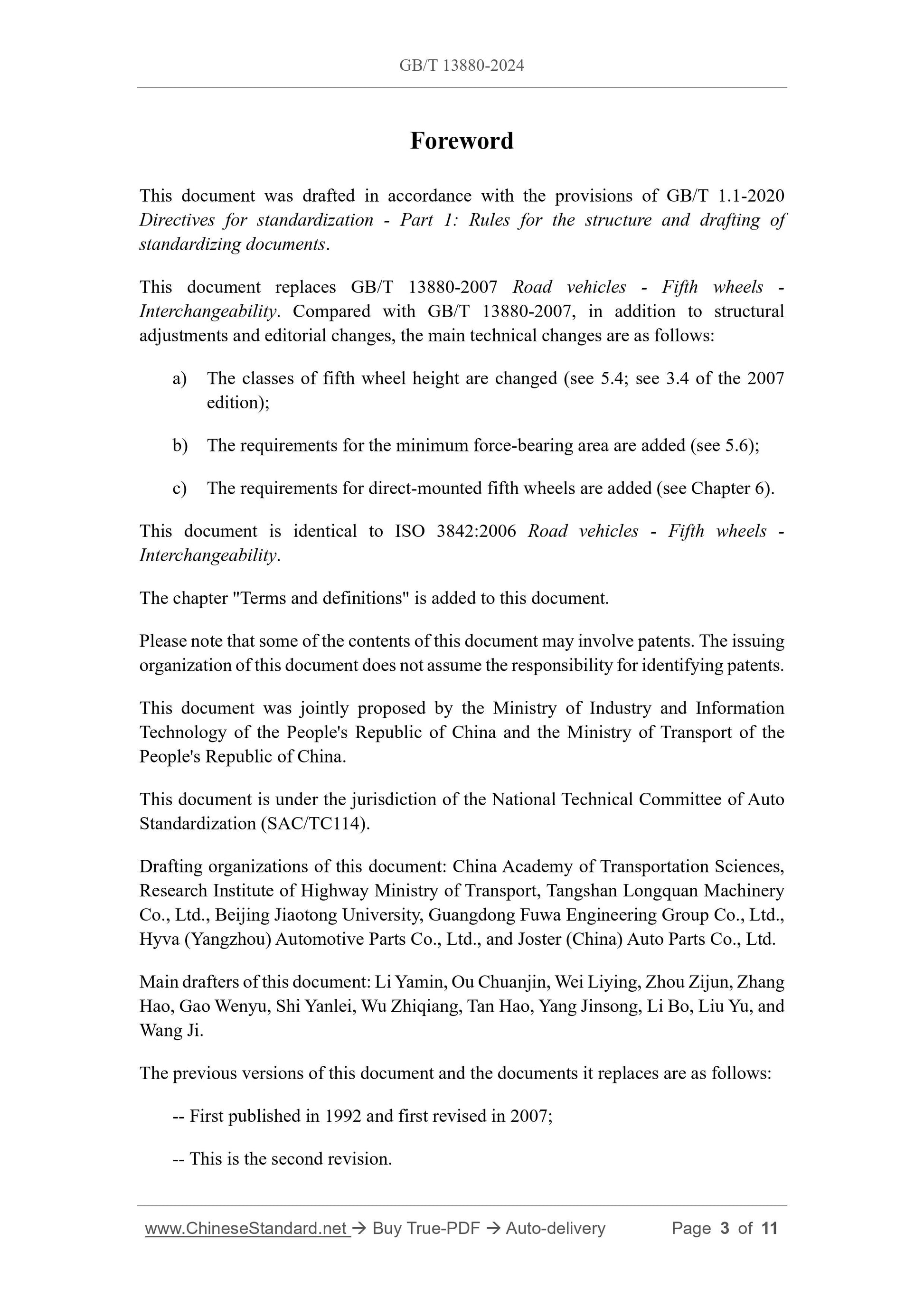

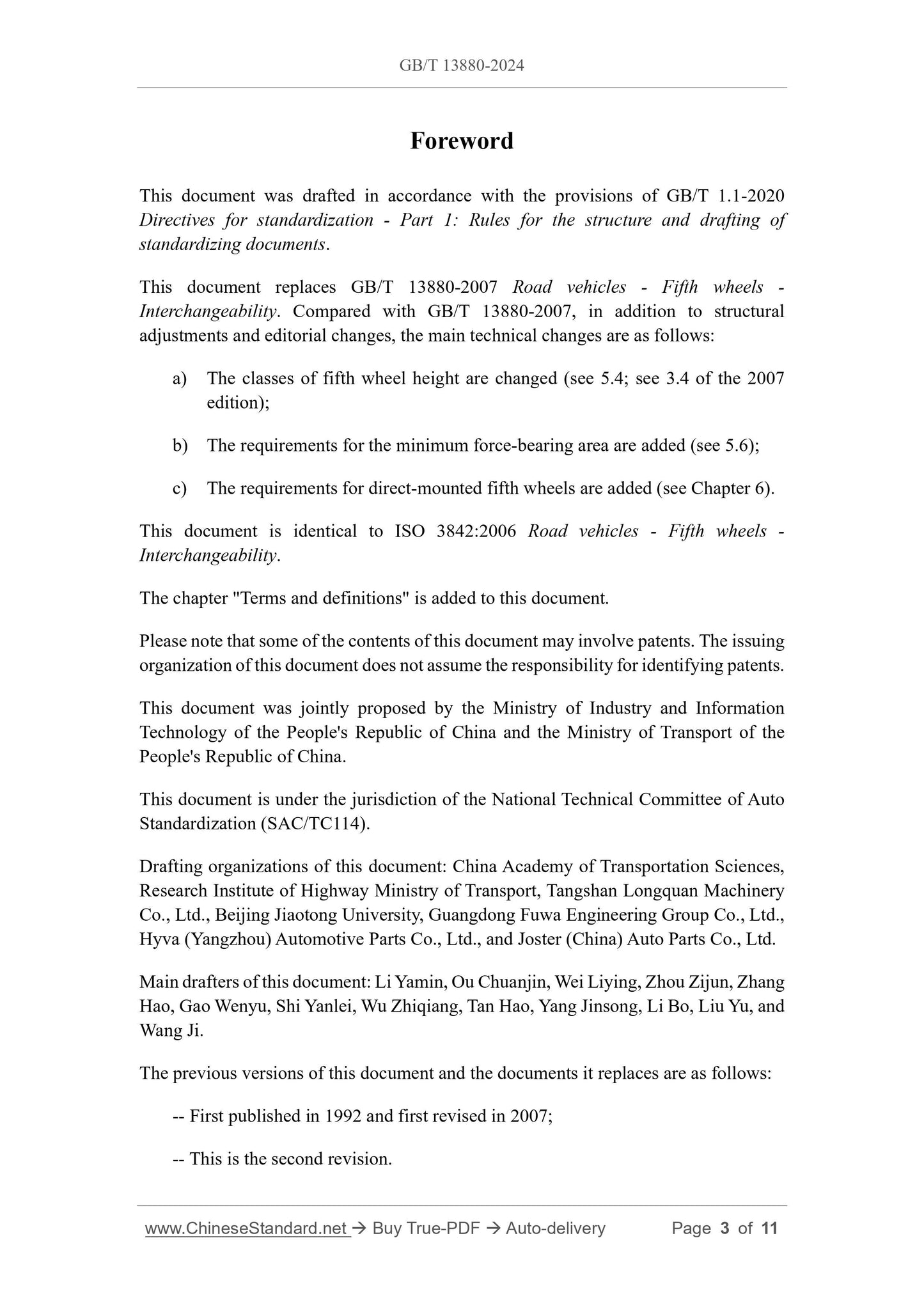

Foreword
This document was drafted in accordance with the provisions of GB/T 1.1-2020
Directives for standardization - Part 1.Rules for the structure and drafting of
standardizing documents.
This document replaces GB/T 13880-2007 Road vehicles - Fifth wheels -
Interchangeability. Compared with GB/T 13880-2007, in addition to structural
adjustments and editorial changes, the main technical changes are as follows.
a) The classes of fifth wheel height are changed (see 5.4; see 3.4 of the 2007
edition);
b) The requirements for the minimum force-bearing area are added (see 5.6);
c) The requirements for direct-mounted fifth wheels are added (see Chapter 6).
This document is identical to ISO 3842.2006 Road vehicles - Fifth wheels -
Interchangeability.
The chapter "Terms and definitions" is added to this document.
Please note that some of the contents of this document may involve patents. The issuing
organization of this document does not assume the responsibility for identifying patents.
This document was jointly proposed by the Ministry of Industry and Information
Technology of the People's Republic of China and the Ministry of Transport of the
People's Republic of China.
This document is under the jurisdiction of the National Technical Committee of Auto
Standardization (SAC/TC114).
Drafting organizations of this document. China Academy of Transportation Sciences,
Research Institute of Highway Ministry of Transport, Tangshan Longquan Machinery
Co., Ltd., Beijing Jiaotong University, Guangdong Fuwa Engineering Group Co., Ltd.,
Hyva (Yangzhou) Automotive Parts Co., Ltd., and Joster (China) Auto Parts Co., Ltd.
Main drafters of this document. Li Yamin, Ou Chuanjin, Wei Liying, Zhou Zijun, Zhang
Hao, Gao Wenyu, Shi Yanlei, Wu Zhiqiang, Tan Hao, Yang Jinsong, Li Bo, Liu Yu, and
Wang Ji.
The previous versions of this document and the documents it replaces are as follows.
-- First published in 1992 and first revised in 2007;
-- This is the second revision.

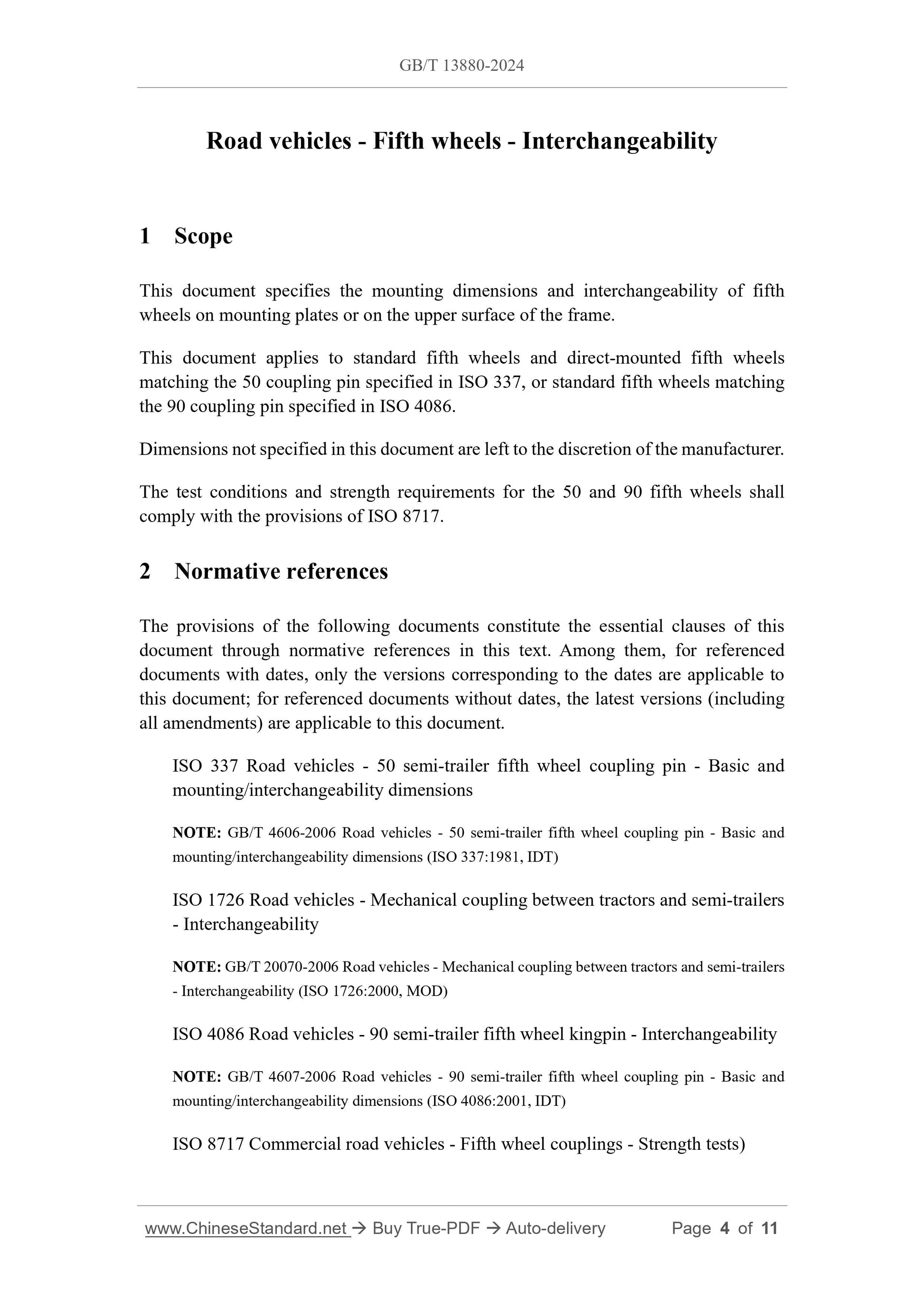

Road vehicles - Fifth wheels - Interchangeability
1 Scope
This document specifies the mounting dimensions and interchangeability of fifth
wheels on mounting plates or on the upper surface of the frame.
This document applies to standard fifth wheels and direct-mounted fifth wheels
matching the 50 coupling pin specified in ISO 337, or standard fifth wheels matching
the 90 coupling pin specified in ISO 4086.
Dimensions not specified in this document are left to the discretion of the manufacturer.
The test conditions and strength requirements for the 50 and 90 fifth wheels shall
comply with the provisions of ISO 8717.
2 Normative references
The provisions of the following documents constitute the essential clauses of this
document through normative references in this text. Among them, for referenced
documents with dates, only the versions corresponding to the dates are applicable to
this document; for referenced documents without dates, the latest versions (including
all amendments) are applicable to this document.
ISO 337 Road vehicles - 50 semi-trailer fifth wheel coupling pin - Basic and
mounting/interchangeability dimensions
NOTE. GB/T 4606-2006 Road vehicles - 50 semi-trailer fifth wheel coupling pin - Basic and
mounting/interchangeability dimensions (ISO 337.1981, IDT)
ISO 1726 Road vehicles - Mechanical coupling between tractors and semi-trailers
- Interchangeability
NOTE. GB/T 20070-2006 Road vehicles - Mechanical coupling between tractors and semi-trailers
- Interchangeability (ISO 1726.2000, MOD)
ISO 4086 Road vehicles - 90 semi-trailer fifth wheel kingpin - Interchangeability
NOTE. GB/T 4607-2006 Road vehicles - 90 semi-trailer fifth wheel coupling pin - Basic and
mounting/interchangeability dimensions (ISO 4086.2001, IDT)
ISO 8717 Commercial road vehicles - Fifth wheel couplings - Strength tests)
NOTE. GB/T 20069-2006 Road vehicles - Fifth wheel couplings strength tests (ISO 8717.2000,
MOD)

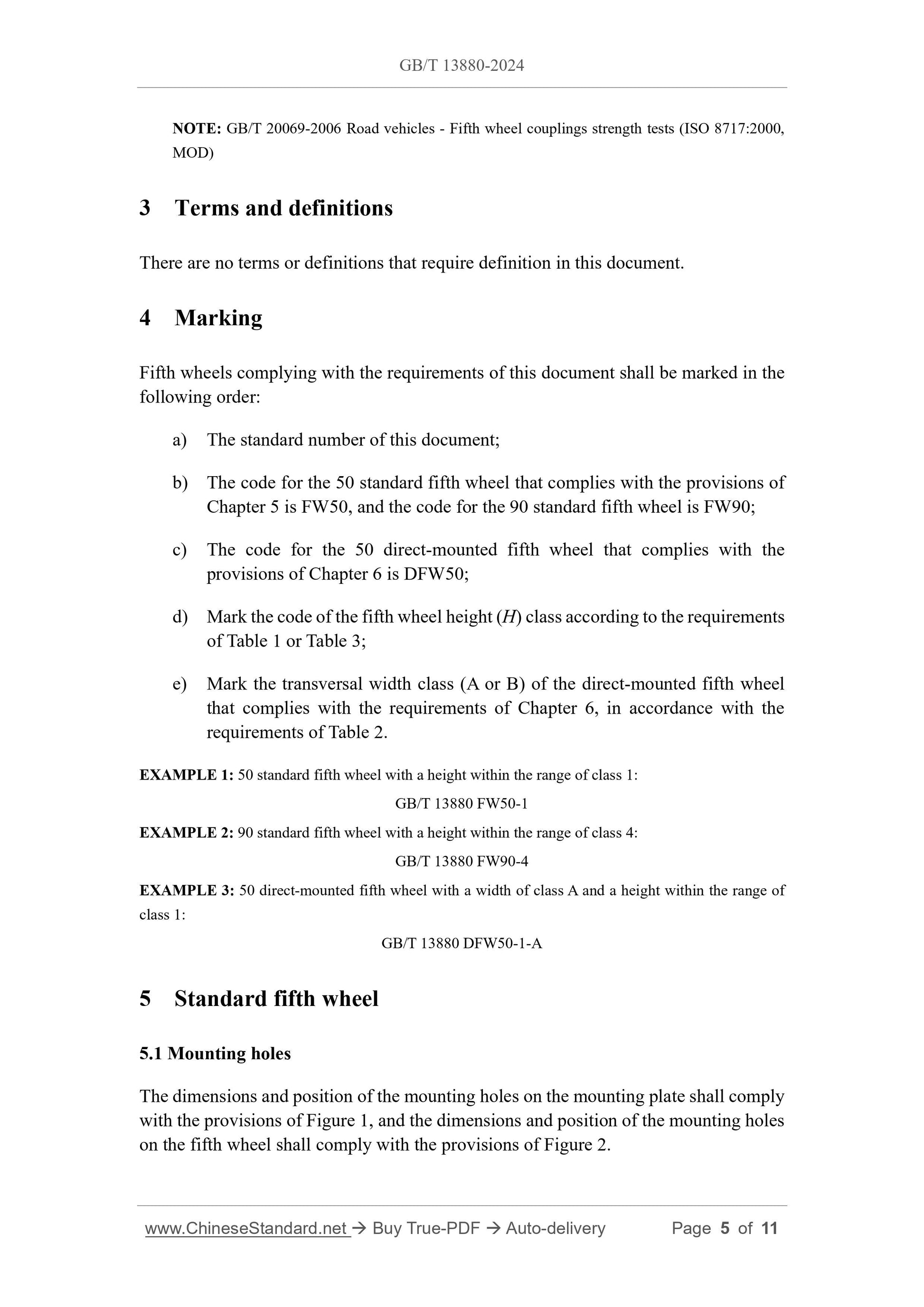

3 Terms and definitions
There are no terms or definitions that require definition in this document.
4 Marking
Fifth wheels complying with the requirements of this document shall be marked in the
following order.
a) The standard number of this document;
b) The code for the 50 standard fifth wheel that complies with the provisions of
Chapter 5 is FW50, and the code for the 90 standard fifth wheel is FW90;
c) The code for the 50 direct-mounted fifth wheel that complies with the
provisions of Chapter 6 is DFW50;
d) Mark the code of the fifth wheel height (H) class according to the requirements
of Table 1 or Table 3;
e) Mark the transversal width class (A or B) of the direct-mounted fifth wheel
that complies with the requirements of Chapter 6, in accordance with the
requirements of Table 2.
EXAMPLE 1.50 standard fifth wheel with a height within the range of class 1.
GB/T 13880 FW50-1
EXAMPLE 2.90 standard fifth wheel with a height within the range of class 4.
GB/T 13880 FW90-4
EXAMPLE 3.50 direct-mounted fifth wheel with a width of class A and a height within the range of
class 1.
GB/T 13880 DFW50-1-A
5 Standard fifth wheel
5.1 Mounting holes
The dimensions and position of the mounting holes on the mounting plate shall comply
with the provisions of Figure 1, and the dimensions and position of the mounting holes
on the fifth wheel shall comply with the provisions of Figure 2.
