GB/T 13871.5-2015: Rotary shaft lip-type seals incorporating elastomeric sealing elements -- Part 5: Identification of visual imperfections

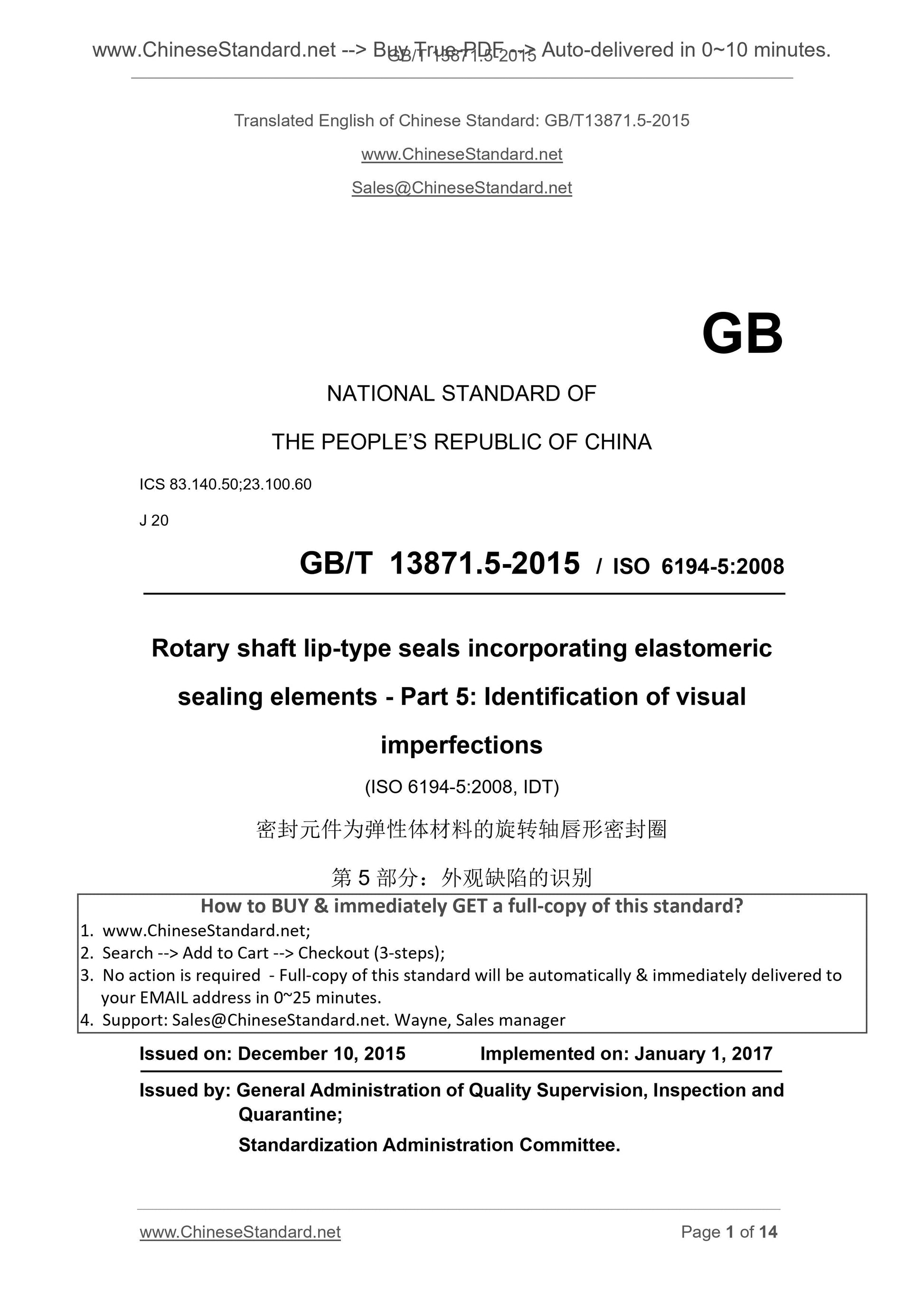

GB/T 13871.5-2015
GB
NATIONAL STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
ICS 83.140.50;23.100.60
J 20
GB/T 13871.5-2015 / ISO 6194-5.2008
Rotary shaft lip-type seals incorporating elastomeric
sealing elements - Part 5. Identification of visual
imperfections
(ISO 6194-5.2008, IDT)
ISSUED ON. DECEMBER 10, 2015
IMPLEMENTED ON. JANUARY 1, 2017
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration Committee.

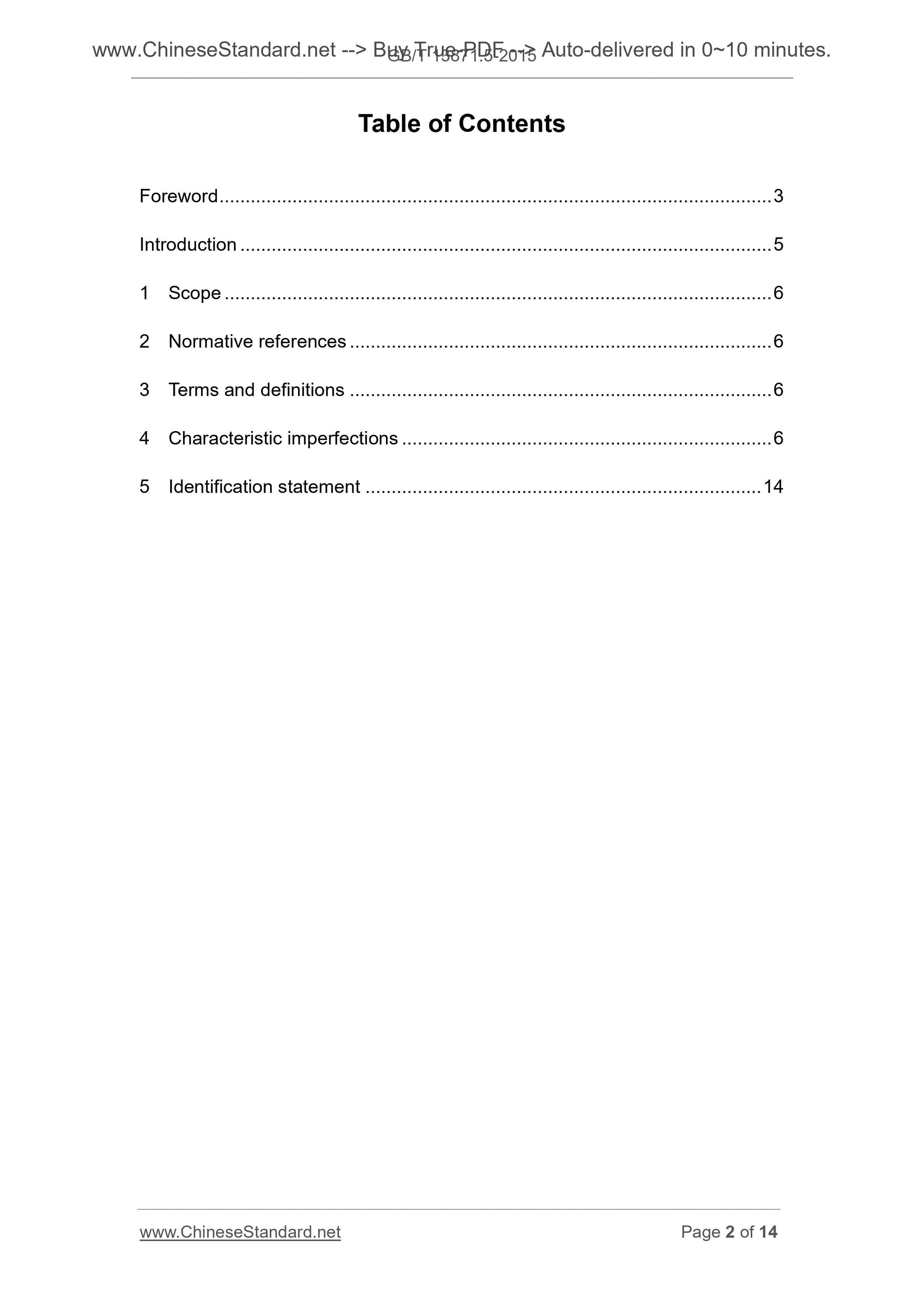

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 6
4 Characteristic imperfections ... 6
5 Identification statement ... 14

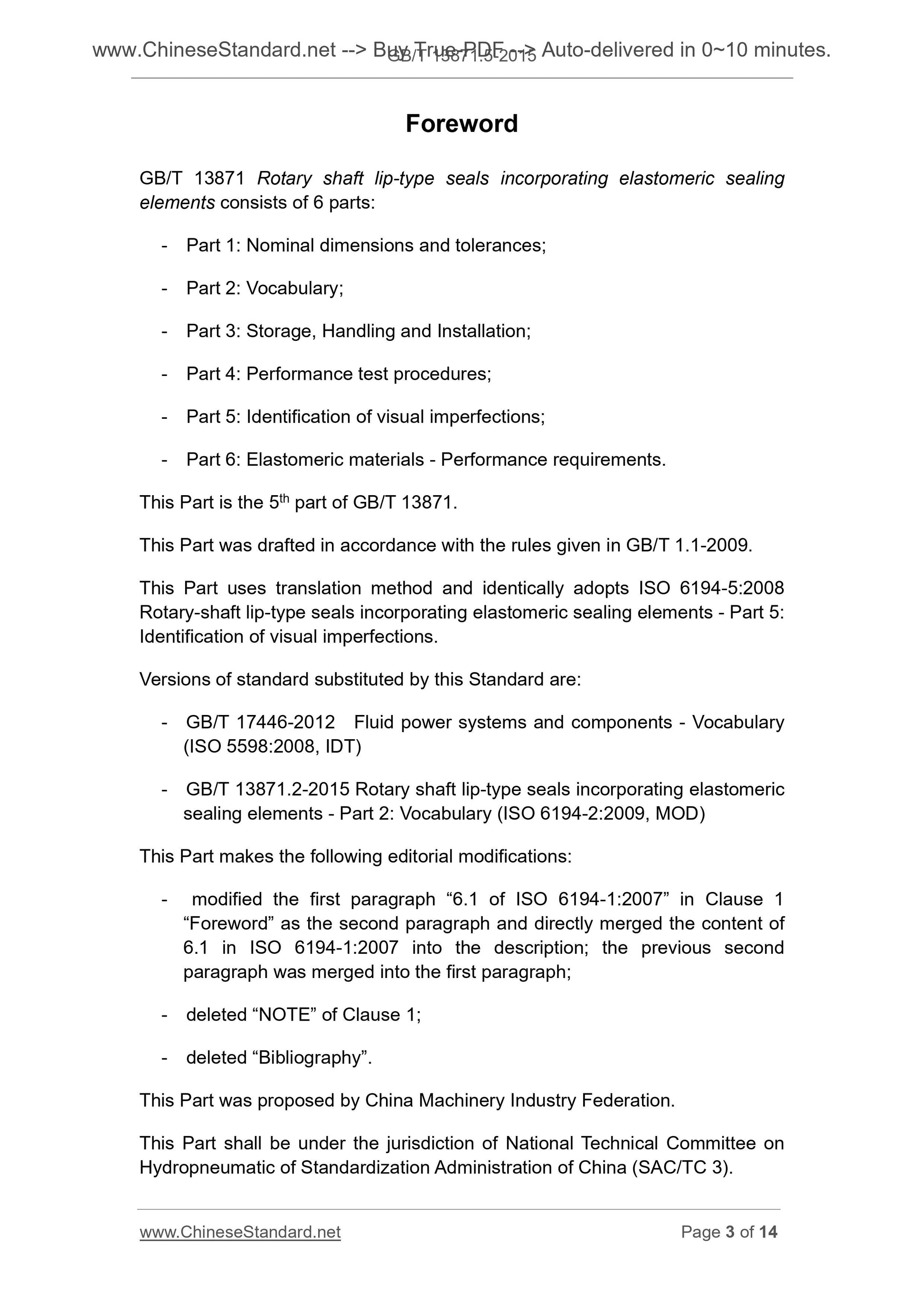

Foreword
GB/T 13871 Rotary shaft lip-type seals incorporating elastomeric sealing
elements consists of 6 parts.
- Part 1. Nominal dimensions and tolerances;
- Part 2. Vocabulary;
- Part 3. Storage, Handling and Installation;
- Part 4. Performance test procedures;
- Part 5. Identification of visual imperfections;
- Part 6. Elastomeric materials - Performance requirements.
This Part is the 5th part of GB/T 13871.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009.
This Part uses translation method and identically adopts ISO 6194-5.2008
Rotary-shaft lip-type seals incorporating elastomeric sealing elements - Part 5.
Identification of visual imperfections.
Versions of standard substituted by this Standard are.
- GB/T 17446-2012 Fluid power systems and components - Vocabulary
(ISO 5598.2008, IDT)
- GB/T 13871.2-2015 Rotary shaft lip-type seals incorporating elastomeric
sealing elements - Part 2. Vocabulary (ISO 6194-2.2009, MOD)
This Part makes the following editorial modifications.
- modified the first paragraph “6.1 of ISO 6194-1.2007” in Clause 1
“Foreword” as the second paragraph and directly merged the content of
6.1 in ISO 6194-1.2007 into the description; the previous second
paragraph was merged into the first paragraph;
- deleted “NOTE” of Clause 1;
- deleted “Bibliography”.
This Part was proposed by China Machinery Industry Federation.
This Part shall be under the jurisdiction of National Technical Committee on
Hydropneumatic of Standardization Administration of China (SAC/TC 3).

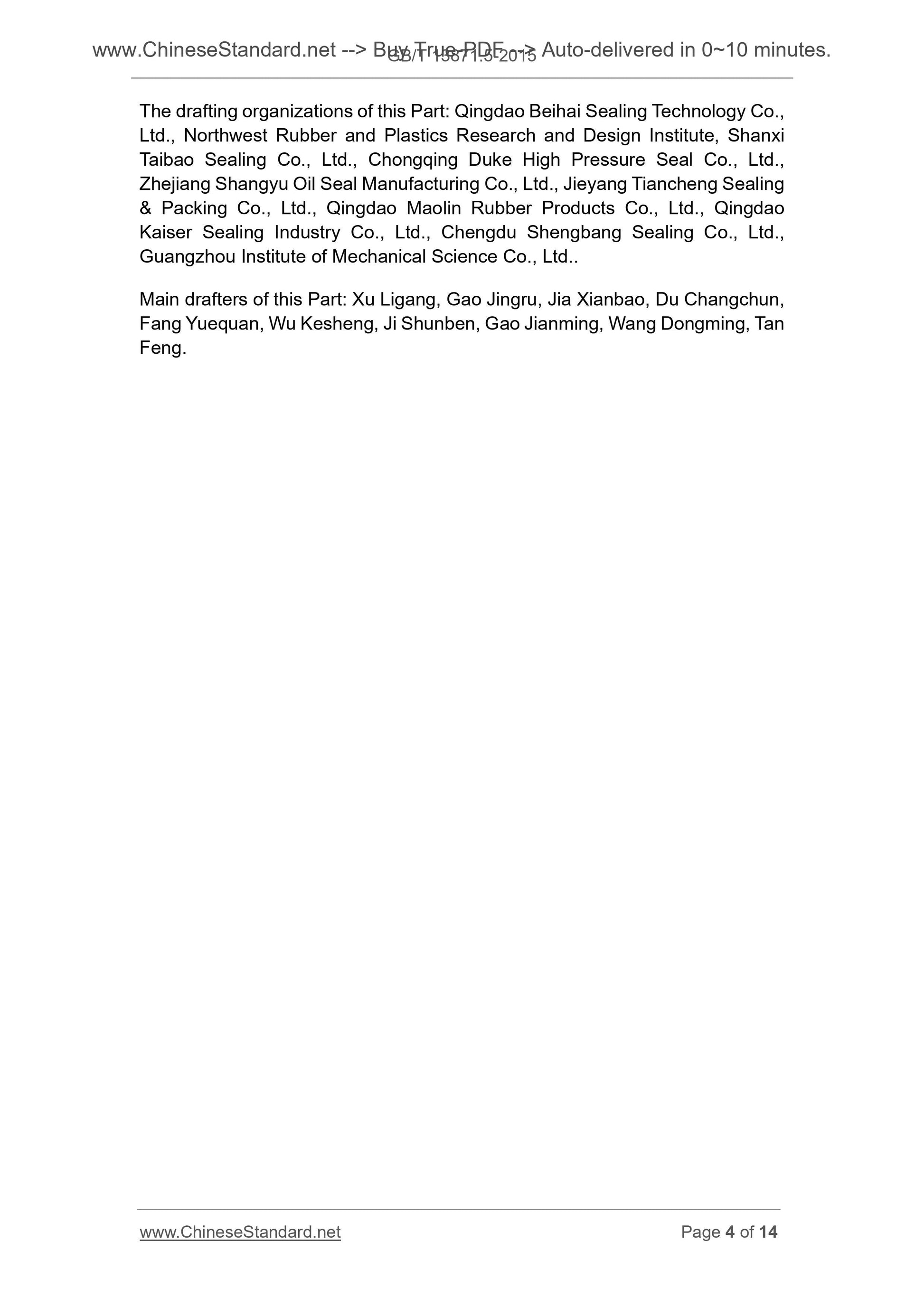

The drafting organizations of this Part. Qingdao Beihai Sealing Technology Co.,
Ltd., Northwest Rubber and Plastics Research and Design Institute, Shanxi
Taibao Sealing Co., Ltd., Chongqing Duke High Pressure Seal Co., Ltd.,
Zhejiang Shangyu Oil Seal Manufacturing Co., Ltd., Jieyang Tiancheng Sealing
and Packing Co., Ltd., Qingdao Maolin Rubber Products Co., Ltd., Qingdao
Kaiser Sealing Industry Co., Ltd., Chengdu Shengbang Sealing Co., Ltd.,
Guangzhou Institute of Mechanical Science Co., Ltd..
Main drafters of this Part. Xu Ligang, Gao Jingru, Jia Xianbao, Du Changchun,
Fang Yuequan, Wu Kesheng, Ji Shunben, Gao Jianming, Wang Dongming, Tan
Feng.

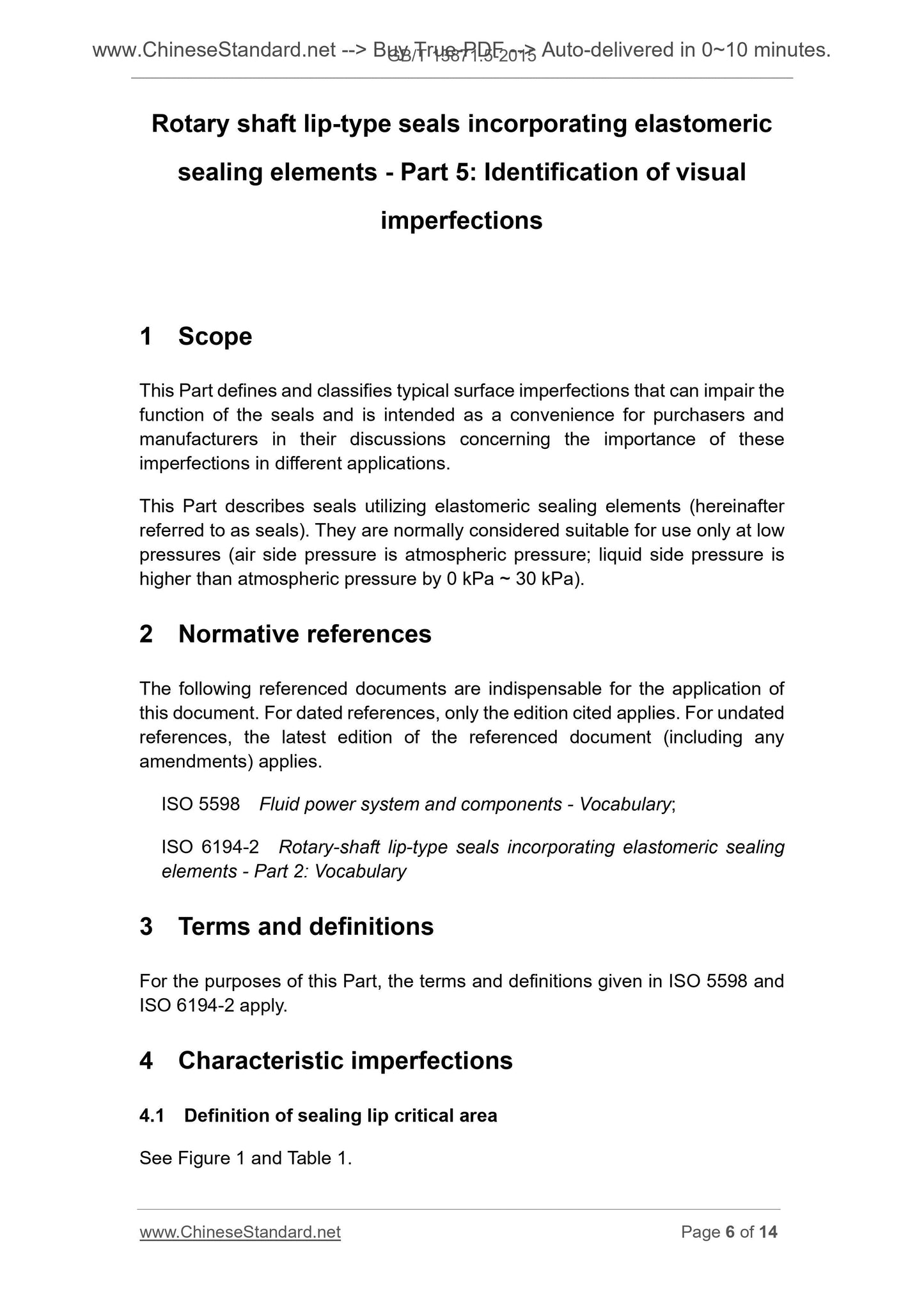

Rotary shaft lip-type seals incorporating elastomeric
sealing elements - Part 5. Identification of visual
imperfections
1 Scope
This Part defines and classifies typical surface imperfections that can impair the
function of the seals and is intended as a convenience for purchasers and
manufacturers in their discussions concerning the importance of these
imperfections in different applications.
This Part describes seals utilizing elastomeric sealing elements (hereinafter
referred to as seals). They are normally considered suitable for use only at low
pressures (air side pressure is atmospheric pressure; liquid side pressure is
higher than atmospheric pressure by 0 kPa ~ 30 kPa).
2 Normative references
The following referenced documents are indispensable for the application of
this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any
amendments) applies.
ISO 5598 Fluid power system and components - Vocabulary;
ISO 6194-2 Rotary-shaft lip-type seals incorporating elastomeric sealing
elements - Part 2. Vocabulary
3 Terms and definitions
For the purposes of this Part, the terms and definitions given in ISO 5598 and
ISO 6194-2 apply.
4 Characteristic imperfections
4.1 Definition of sealing lip critical area
See Figure 1 and Table 1.
