GB/T 13870.2-2016: Effects of current on human beings and livestock -- Part 2: Special aspects

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 13870.2-2016 (Self-service in 1-minute)
Newer / historical versions: GB/T 13870.2-2016

Preview True-PDF

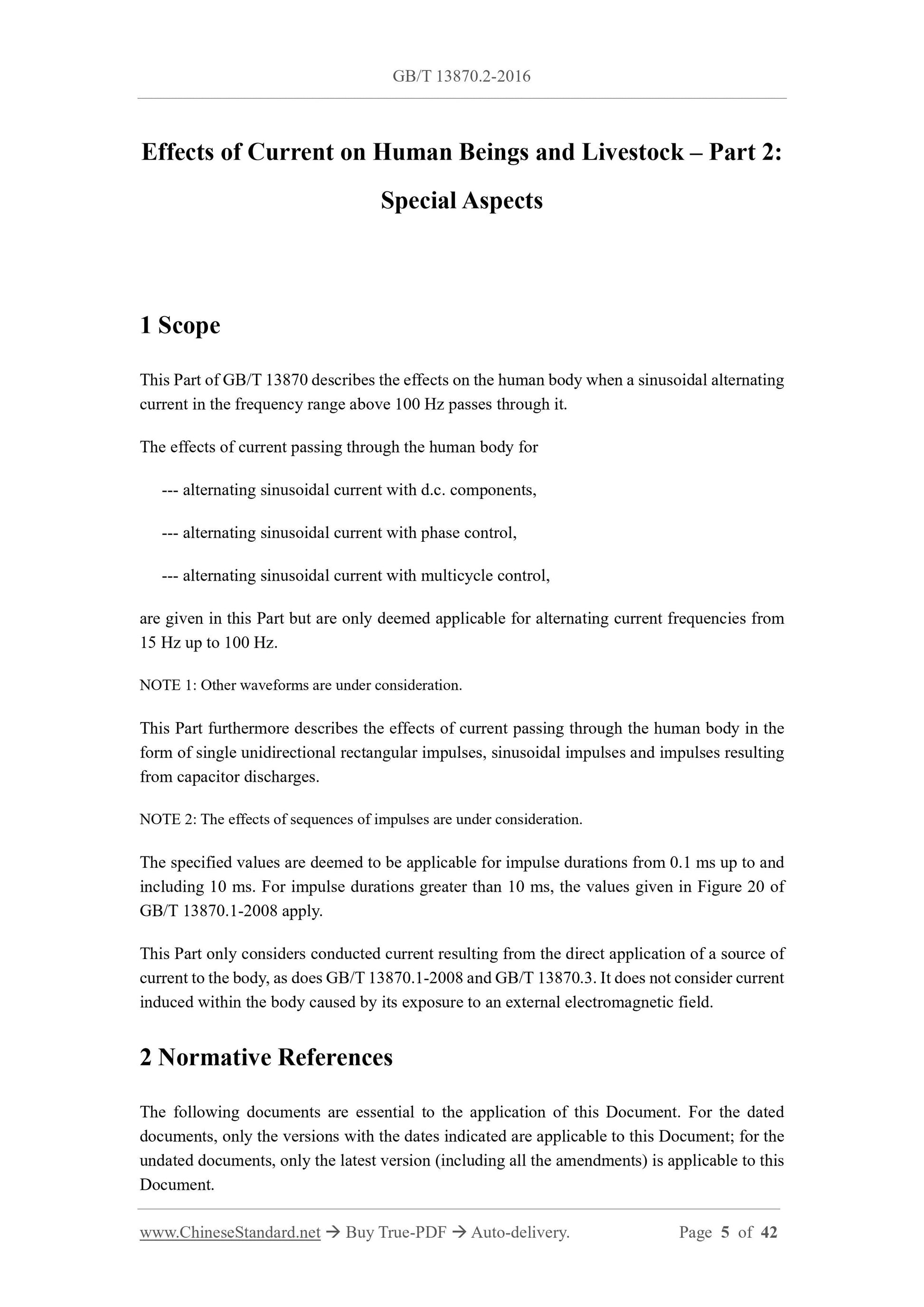

Scope

This Part of GB/T 13870 describes the effects on the human body when a sinusoidal alternating
current in the frequency range above 100 Hz passes through it.
The effects of current passing through the human body for
--- alternating sinusoidal current with d.c. components,
--- alternating sinusoidal current with phase control,
--- alternating sinusoidal current with multicycle control,
are given in this Part but are only deemed applicable for alternating current frequencies from
15 Hz up to 100 Hz.
NOTE 1.Other waveforms are under consideration.
This Part furthermore describes the effects of current passing through the human body in the
form of single unidirectional rectangular impulses, sinusoidal impulses and impulses resulting
from capacitor discharges.
NOTE 2.The effects of sequences of impulses are under consideration.
The specified values are deemed to be applicable for impulse durations from 0.1 ms up to and
including 10 ms. For impulse durations greater than 10 ms, the values given in Figure 20 of
GB/T 13870.1-2008 apply.
This Part only considers conducted current resulting from the direct application of a source of
current to the body, as does GB/T 13870.1-2008 and GB/T 13870.3.It does not consider current
induced within the body caused by its exposure to an external electromagnetic field.

Basic Data

Standard ID	GB/T 13870.2-2016 (GB/T13870.2-2016)
Description (Translated English)	Effects of current on human beings and livestock -- Part 2: Special aspects
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K09
Classification of International Standard	13.260
Word Count Estimation	34,332
Date of Issue	4/25/2016
Date of Implementation	2016-11-01
Older Standard (superseded by this standard)	GB/T 13870.2-1997
Quoted Standard	GB/T 13870.1-2008; GB/T 13870.3; GB/T 12113
Adopted Standard	IEC/TS 60479-2-2007, IDT
Regulation (derived from)	National Standard Announcement No
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the effect of a sinusoidal alternating current at frequencies above 100 Hz through the human body. This standard also specifies the effect of alternating currents through the human body with DC components, phase control and multi-cycle control, but these conclusions apply only to AC currents with frequencies between 15 Hz and 100 Hz. This standard further elaborates the effects of a single unidirectional waveform of rectangular pulses, sinusoidal pulses, and capacitor discharges caused by pulsed currents passing through the human body. The data given applies to pulse currents with a duration between 0.1 ms and 10 ms (inclusive). For pulsed currents with a duration of 10 ms or longer, reference should be made to the data in Figure 20 of ISO/IEC 13870.1-2008. this
