GB/T 13668-2015: General technical requirements for steel book cabinets and information cabinets

This Standard specifies the classification, requirements, test methods, inspection rules, marking, instructions for use, packaging, transportation and storage for steel book cabinets and information cabinets. This Standard applies to steel book cabinets and information cabinets; it also applies, as a reference, to the implementation of other steel cabinet furniture.

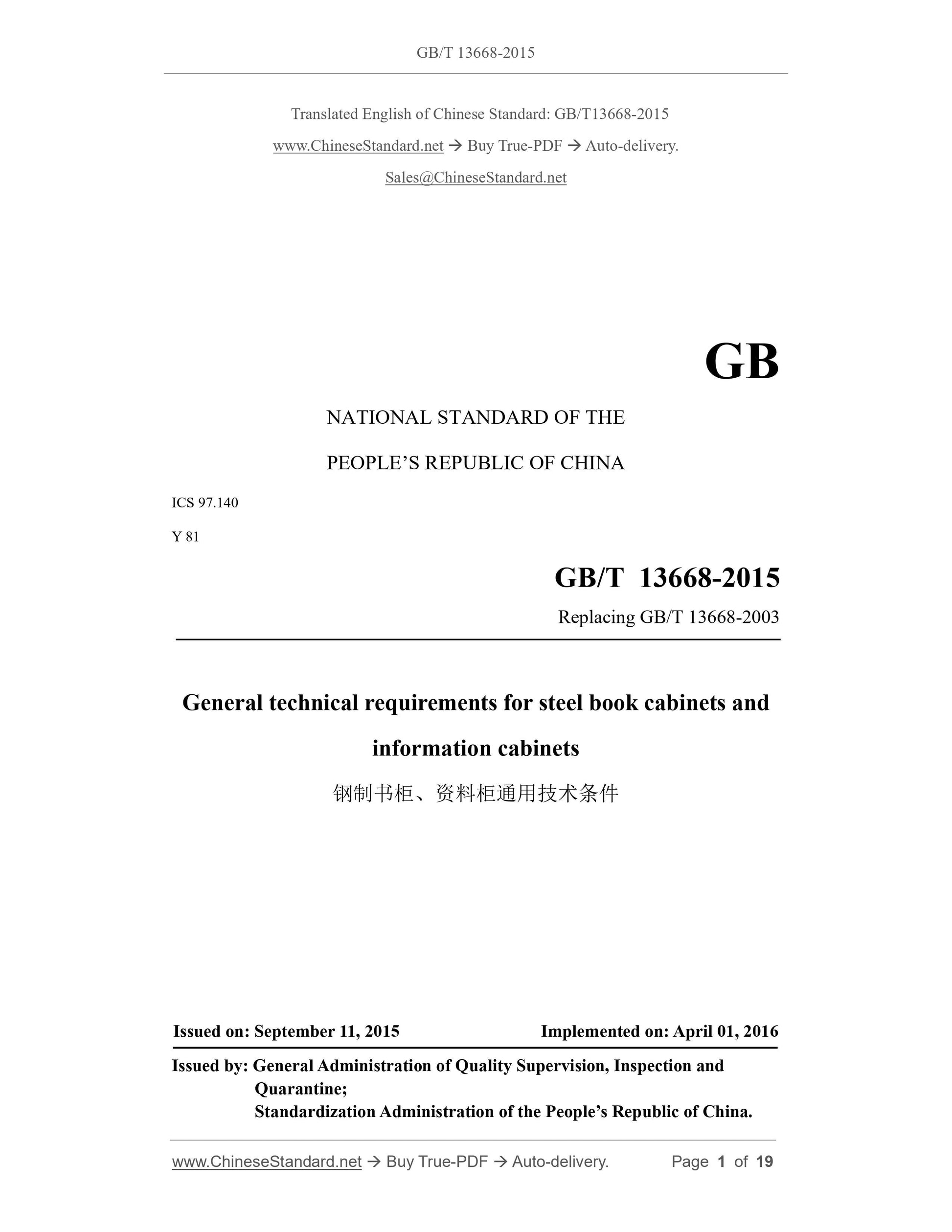

GB/T 13668-2015
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 97.140
Y 81
Replacing GB/T 13668-2003
General technical requirements for steel book cabinets and
information cabinets
ISSUED ON: SEPTEMBER 11, 2015
IMPLEMENTED ON: APRIL 01, 2016
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the PEOPLE Republic of China.

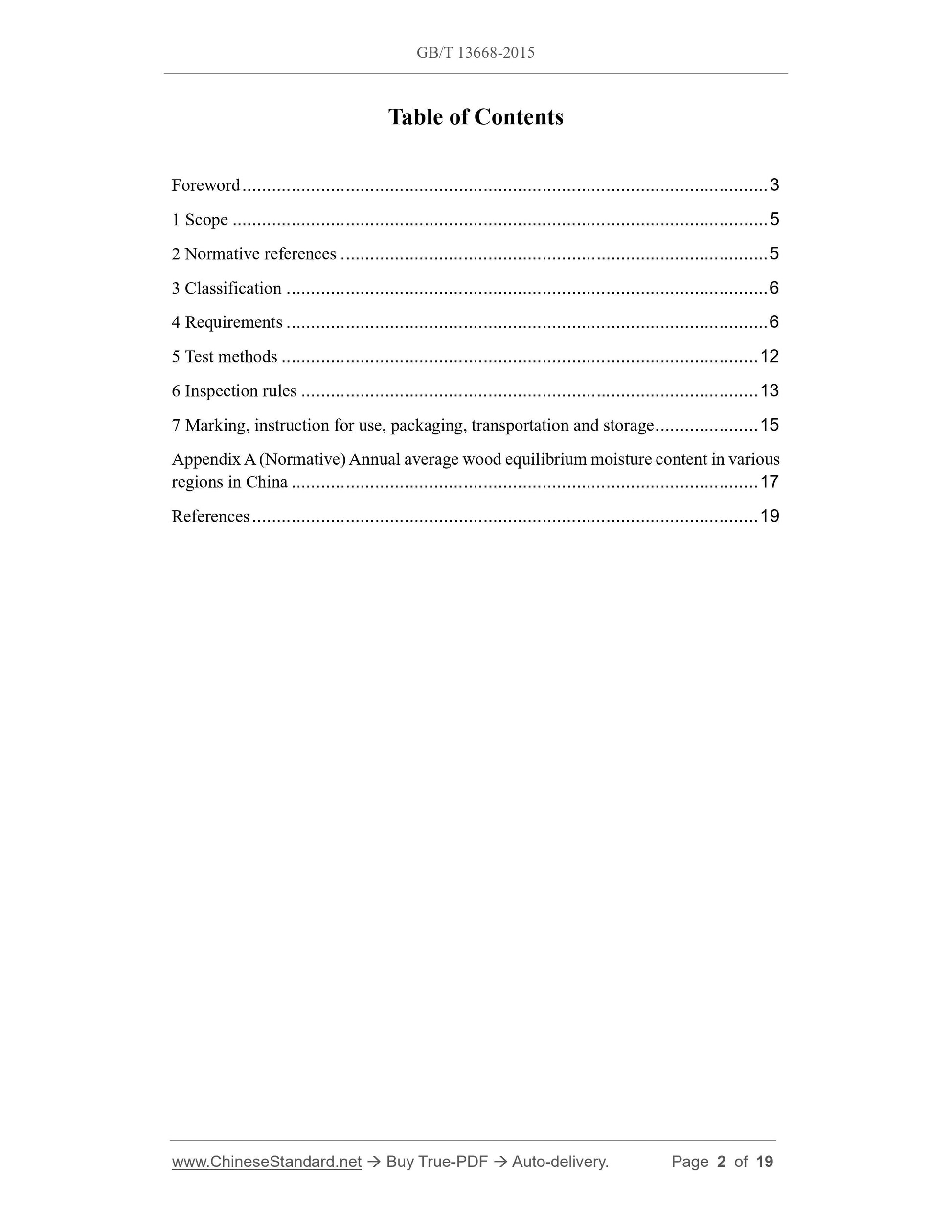

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Classification ... 6
4 Requirements ... 6
5 Test methods ... 12
6 Inspection rules ... 13
7 Marking, instruction for use, packaging, transportation and storage ... 15 Appendix A (Normative) Annual average wood equilibrium moisture content in various regions in China ... 17
References ... 19

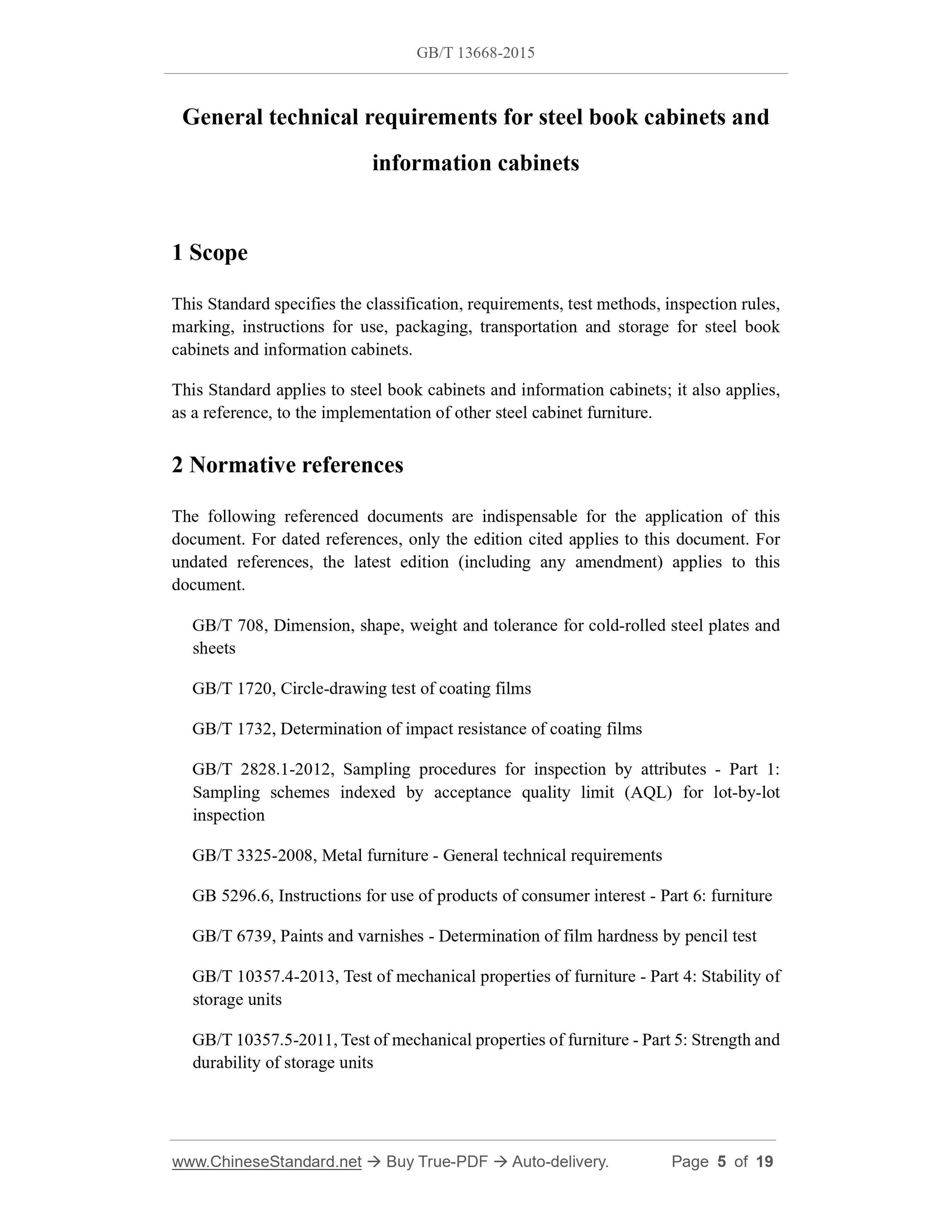

General technical requirements for steel book cabinets and
information cabinets
1 Scope
This Standard specifies the classification, requirements, test methods, inspection rules, marking, instructions for use, packaging, transportation and storage for steel book cabinets and information cabinets.
This Standard applies to steel book cabinets and information cabinets; it also applies, as a reference, to the implementation of other steel cabinet furniture. 2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies to this document. For undated references, the latest edition (including any amendment) applies to this document.
GB/T 708, Dimension, shape, weight and tolerance for cold-rolled steel plates and sheets
GB/T 1720, Circle-drawing test of coating films
GB/T 1732, Determination of impact resistance of coating films
GB/T 2828.1-2012, Sampling procedures for inspection by attributes - Part 1: Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection
GB/T 3325-2008, Metal furniture - General technical requirements
GB 5296.6, Instructions for use of products of consumer interest - Part 6: furniture GB/T 6739, Paints and varnishes - Determination of film hardness by pencil test GB/T 10357.4-2013, Test of mechanical properties of furniture - Part 4: Stability of storage units
GB/T 10357.5-2011, Test of mechanical properties of furniture - Part 5: Strength and durability of storage units

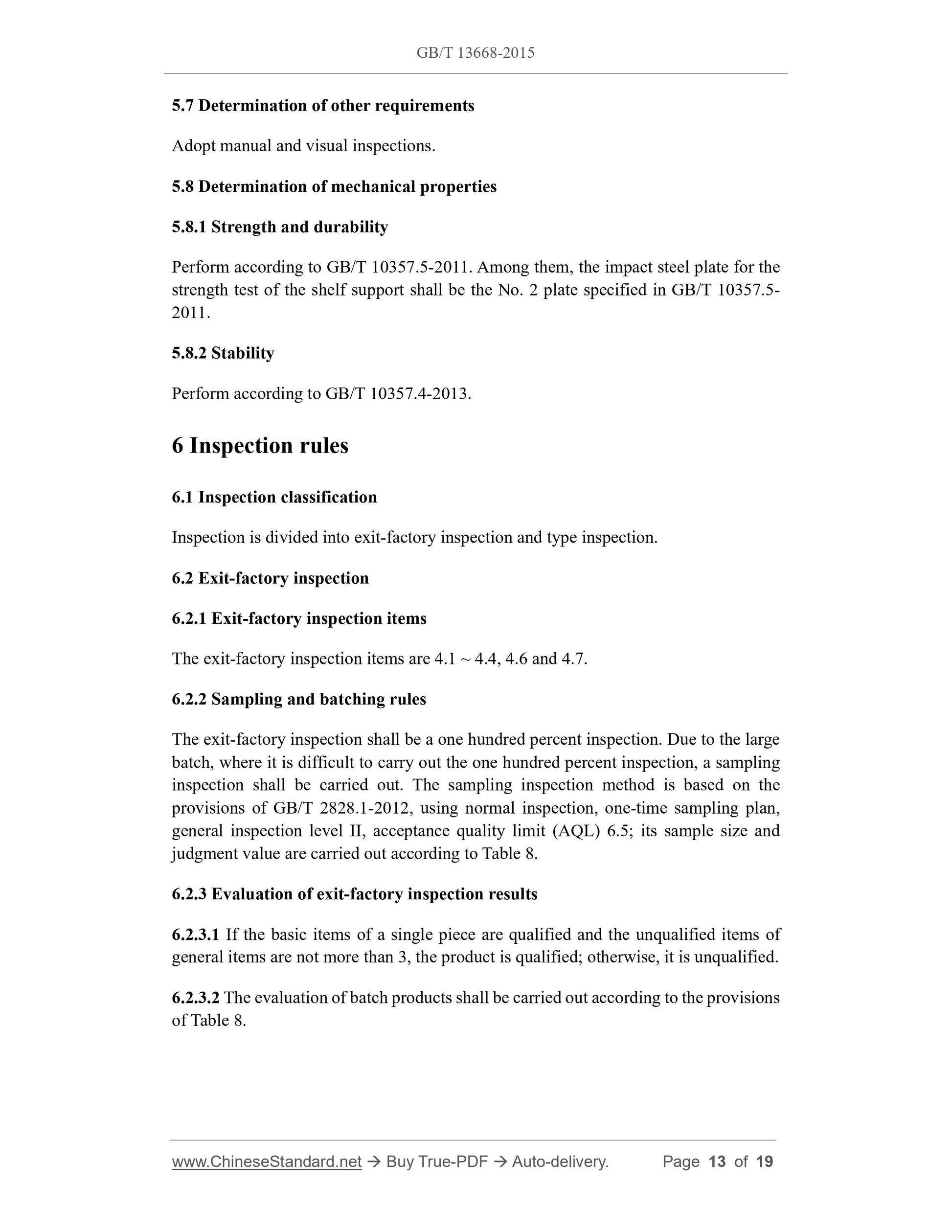

5.7 Determination of other requirements
Adopt manual and visual inspections.
5.8 Determination of mechanical properties
5.8.1 Strength and durability
Perform according to GB/T 10357.5-2011. Among them, the impact steel plate for the strength test of the shelf support shall be the No. 2 plate specified in GB/T 10357.5- 2011.
5.8.2 Stability
Perform according to GB/T 10357.4-2013.
6 Inspection rules
6.1 Inspection classification
Inspection is divided into exit-factory inspection and type inspection. 6.2 Exit-factory inspection
6.2.1 Exit-factory inspection items
The exit-factory inspection items are 4.1 ~ 4.4, 4.6 and 4.7.
6.2.2 Sampling and batching rules
The exit-factory inspection shall be a one hundred percent inspection. Due to the large batch, where it is difficult to carry out the one hundred percent inspection, a sampling inspection shall be carried out. The sampling inspection method is based on the provisions of GB/T 2828.1-2012, using normal inspection, one-time sampling plan, general inspection level II, acceptance quality limit (AQL) 6.5; its sample size and judgment value are carried out according to Table 8.
6.2.3 Evaluation of exit-factory inspection results
6.2.3.1 If the basic items of a single piece are qualified and the unqualified items of general items are not more than 3, the product is qualified; otherwise, it is unqualified. 6.2.3.2 The evaluation of batch products shall be carried out according to the provisions of Table 8.

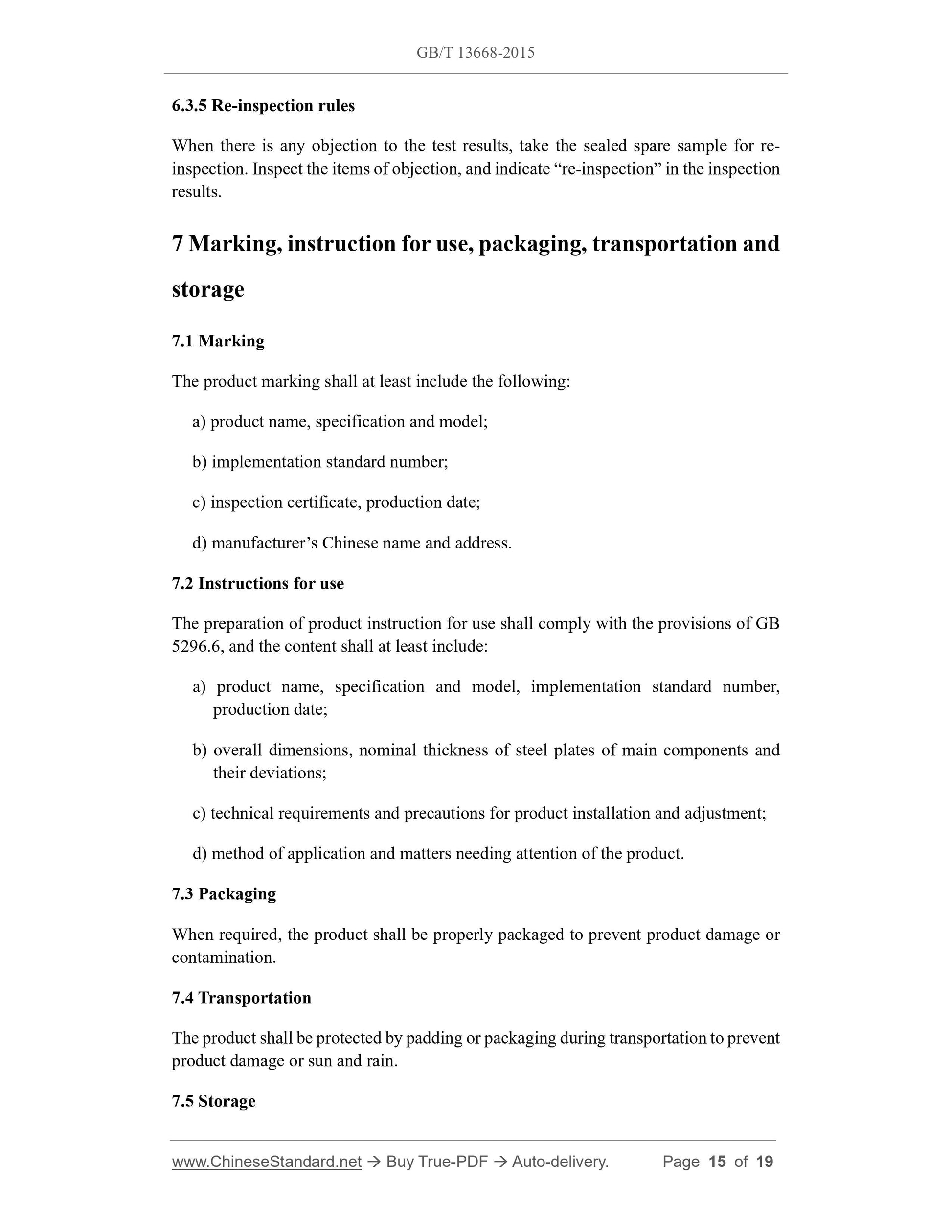

6.3.5 Re-inspection rules
When there is any objection to the test results, take the sealed spare sample for re- inspection. Inspect the items of objection, and indicate ?€?re-inspection?€? in the inspection results.
7 Marking, instruction for use, packaging, transportation and
storage
7.1 Marking
The product marking shall at least include the following:
a) product name, specification and model;
b) implementation standard number;
c) inspection certificate, production date;
d) manufacturer?€?s Chinese name and address.
7.2 Instructions for use
The preparation of product instruction for use shall comply with the provisions of GB 5296.6, and the content shall at least include:
a) product name, specification and model, implementation standard number, production date;
b) overall dimensions, nominal thickness of steel plates of main components and their deviations;
c) technical requirements and precautions for product installation and adjustment; d) method of application and matters needing attention of the product.
7.3 Packaging
When required, the product shall be properly packaged to prevent product damage or contamination.
7.4 Transportation
The product shall be protected by padding or packaging during transportation to prevent product damage or sun and rain.
7.5 Storage
