GB/T 13521-1992 English PDF (GBT13521-1992)

GB/T 13521-1992 English PDF (GBT13521-1992)

Regular price $70.00 USD
Regular price Sale price $70.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click GB/T 13521-1992
See Chinese contents: GB/T 13521-1992

GB/T 13521-1992: Crown cap

This Standard specifies the basic dimension, technical requirements, test methods, inspection rules, marks, packaging, transportation, and storage of bottle caps which are for beverages such as beer and soft drinks, and which are made of electro-tinned (or electro-chromed) tinplate. This Standard applies to the bottle cap for sealing which complies with GB 10809.

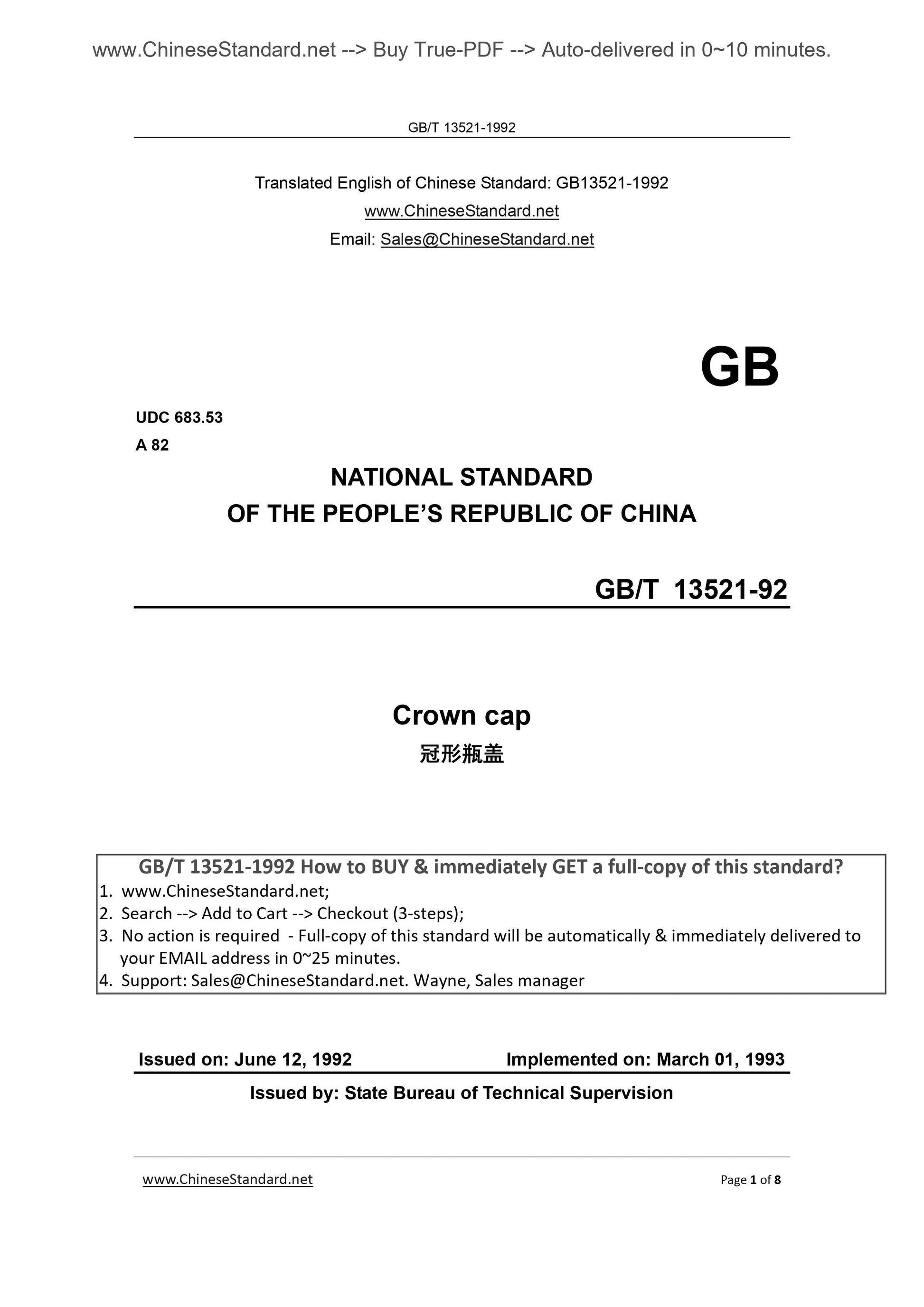

GB/T 13521-1992
GB
UDC 683.53
A 82
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
GB/T 13521-92
Crown cap
????????????
ISSUED ON. JUNE 12, 1992
IMPLEMENTED ON. MARCH 01, 1993
Issued by. State Bureau of Technical Supervision

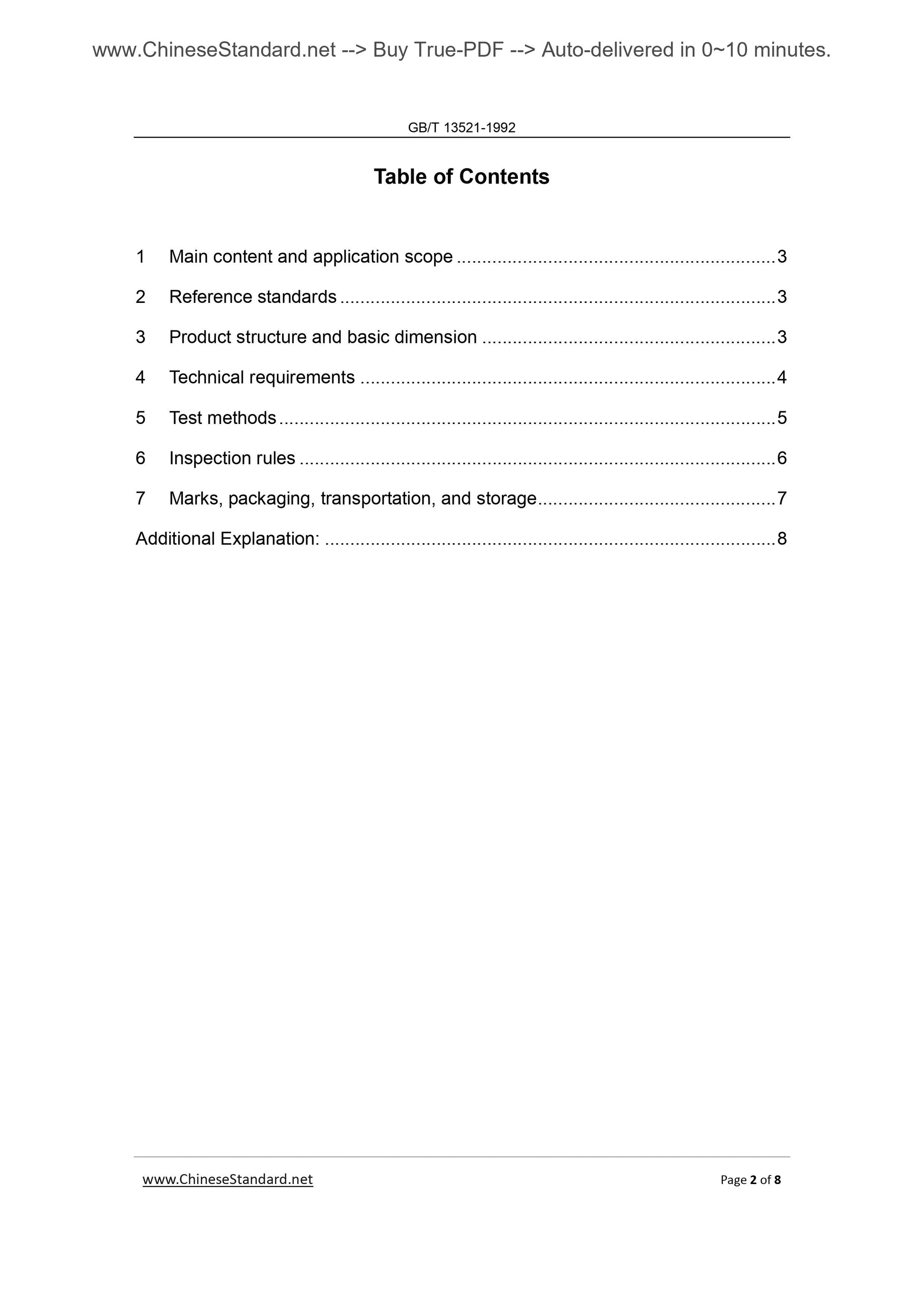

Table of Contents
1 Main content and application scope ... 3
2 Reference standards ... 3
3 Product structure and basic dimension ... 3
4 Technical requirements ... 4
5 Test methods ... 5
6 Inspection rules ... 6
7 Marks, packaging, transportation, and storage ... 7
Additional Explanation... 8

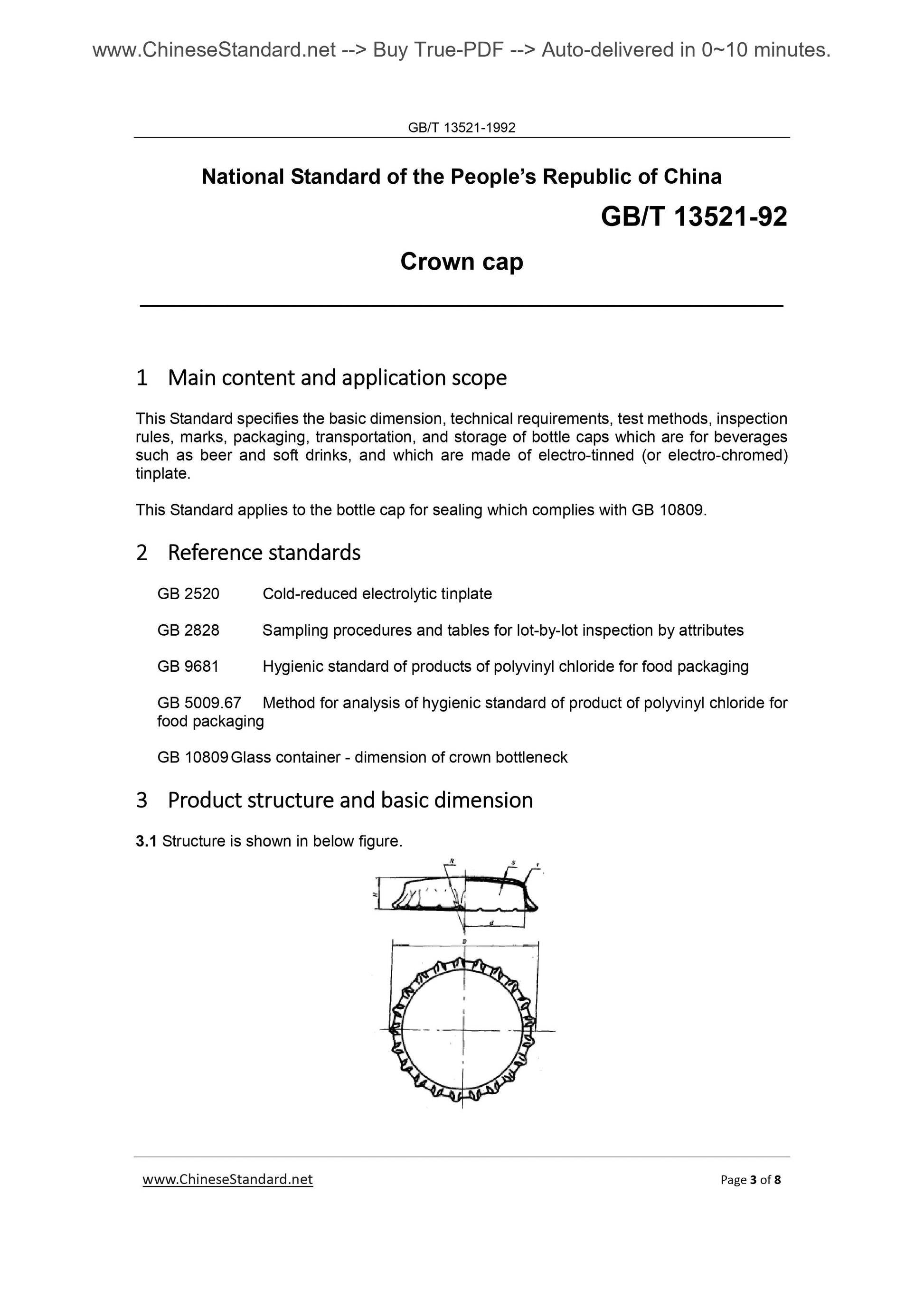

National Standard of the PEOPLE Republic of China
GB/T 13521-92
Crown cap
1 Main??content??and??application??scope
This Standard specifies the basic dimension, technical requirements, test methods, inspection rules, marks, packaging, transportation, and storage of bottle caps which are for beverages such as beer and soft drinks, and which are made of electro-tinned (or electro-chromed) tinplate.
This Standard applies to the bottle cap for sealing which complies with GB 10809. 2 Reference??standards
GB 2520 Cold-reduced electrolytic tinplate
GB 2828 Sampling procedures and tables for lot-by-lot inspection by attributes GB 9681 Hygienic standard of products of polyvinyl chloride for food packaging GB 5009.67 Method for analysis of hygienic standard of product of polyvinyl chloride for food packaging
GB 10809 Glass container - dimension of crown bottleneck
3 Product??structure??and??basic??dimension
3.1 Structure is shown in below figure.
3 4.3.2 5.3.2
Category C
4.1.1 5.1.1
6.5
4.2.1 5.2.1
4.2.2 5.2.2
4.2.3 5.2.2
4.2.4 5.2.2
4.4.2 5.4.2
4.4.3 5.4.3

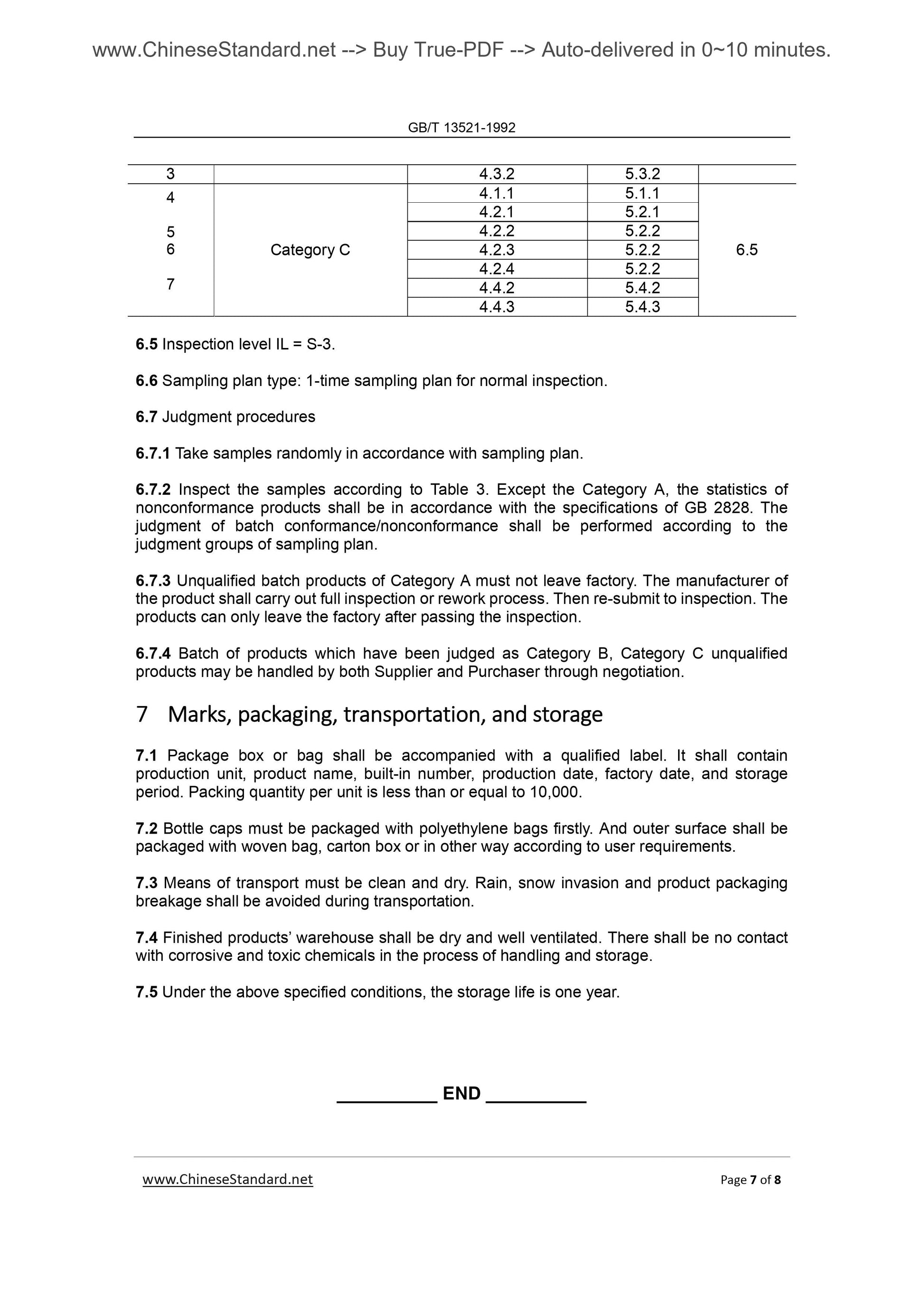

6.5 Inspection level IL = S-3.
6.6 Sampling plan type. 1-time sampling plan for normal inspection.
6.7 Judgment procedures
6.7.1 Take samples randomly in accordance with sampling plan.
6.7.2 Inspect the samples according to Table 3. Except the Category A, the statistics of nonconformance products shall be in accordance with the specifications of GB 2828. The judgment of batch conformance/nonconformance shall be performed according to the judgment groups of sampling plan.
6.7.3 Unqualified batch products of Category A must not leave factory. The manufacturer of the product shall carry out full inspection or rework process. Then re-submit to inspection. The products can only leave the factory after passing the inspection.
6.7.4 Batch of products which have been judged as Category B, Category C unqualified products may be handled by both Supplier and Purchaser through negotiation. 7 Marks,??packaging,??transportation,??and??storage
7.1 Package box or bag shall be accompanied with a qualified label. It shall contain production unit, product name, built-in number, production date, factory date, and storage period. Packing quantity per unit is less than or equal to 10,000.
7.2 Bottle caps must be packaged with polyethylene bags firstly. And outer surface shall be packaged with woven bag, carton box or in other way according to user requirements. 7.3 Means of transport must be clean and dry. Rain, snow invasion and product packaging breakage shall be avoided during transportation.

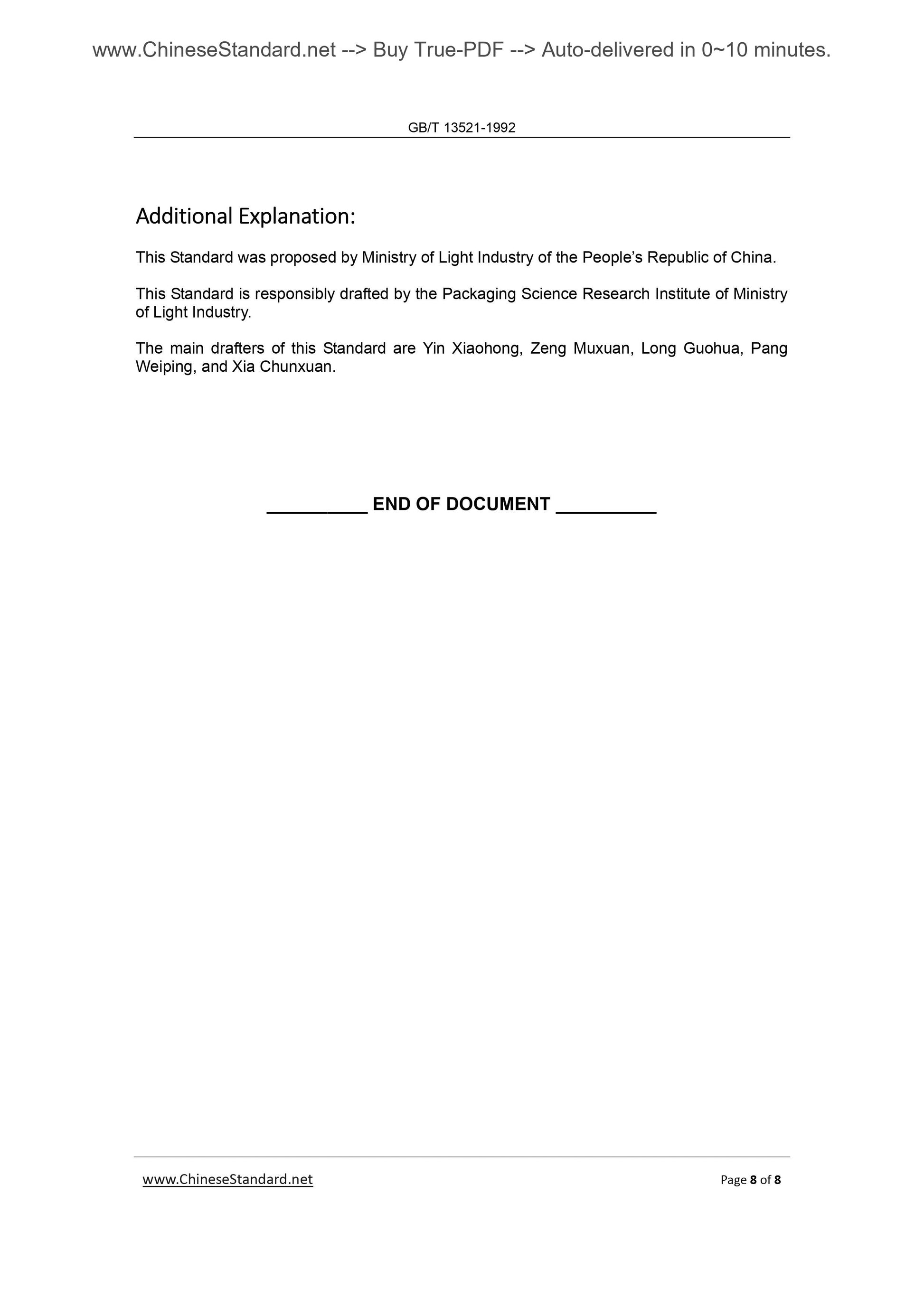

7.4 Finished products?€? warehouse shall be dry and well ventilated. There shall be no contact with corrosive and toxic chemicals in the process of handling and storage. 7.5 Under the above specified conditions, the storage life is one year. Additional??Explanation.
This Standard was proposed by Ministry of Light Industry of the PEOPLE Republic of China. This Standard is responsibly drafted by the Packaging Science Research Institute of Ministry of Light Industry.
The main drafters of this Standard are Yin Xiaohong, Zeng Muxuan, Long Guohua, Pang Weiping, and Xia Chunxuan.
