GB/T 12817-2004: General technical specification of railway passenger car

This Standard specifies the basic requirements, material requirements, part structure and properties, coating, marking, test methods, and inspection rules of standard gauge railway passenger cars.

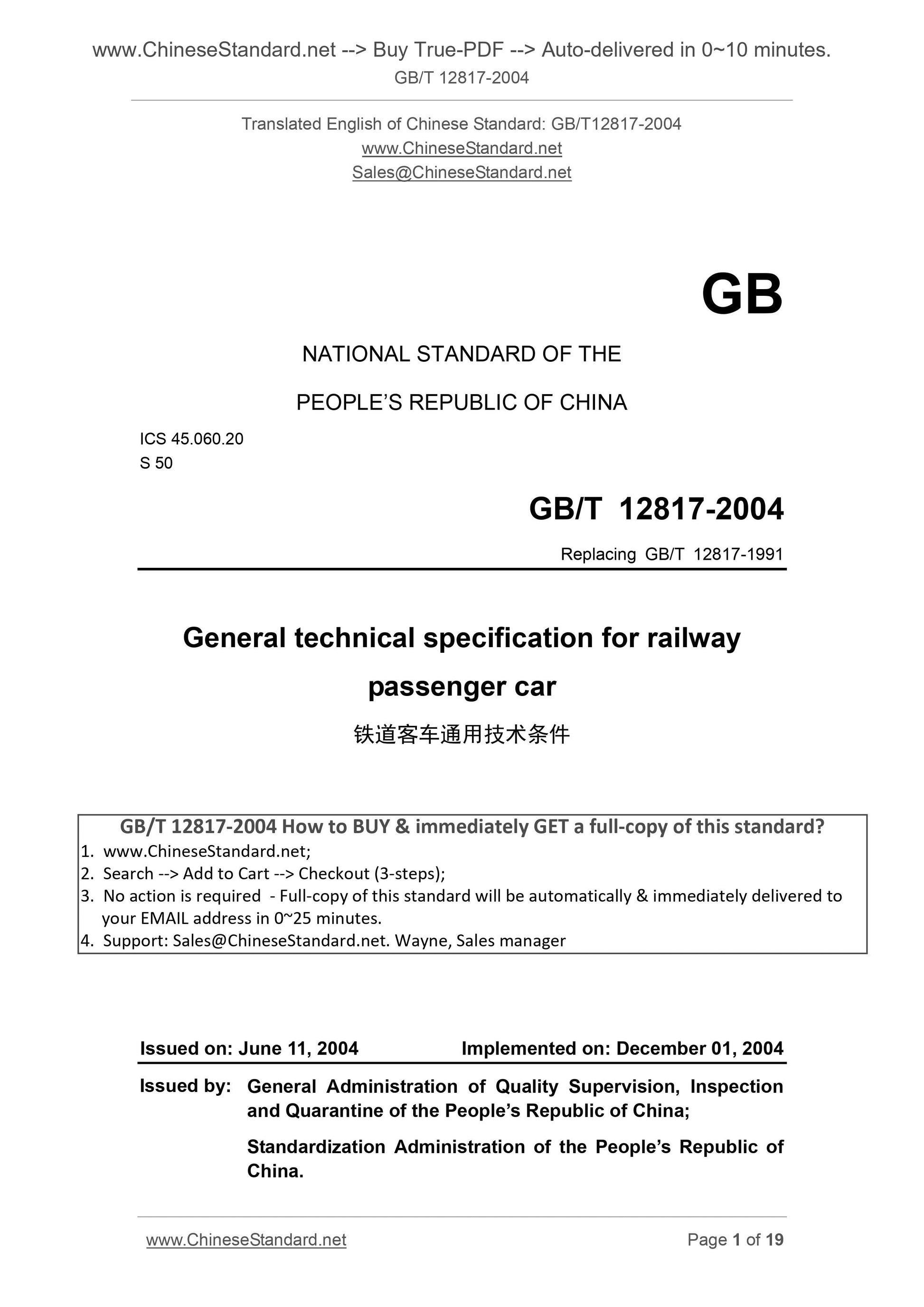

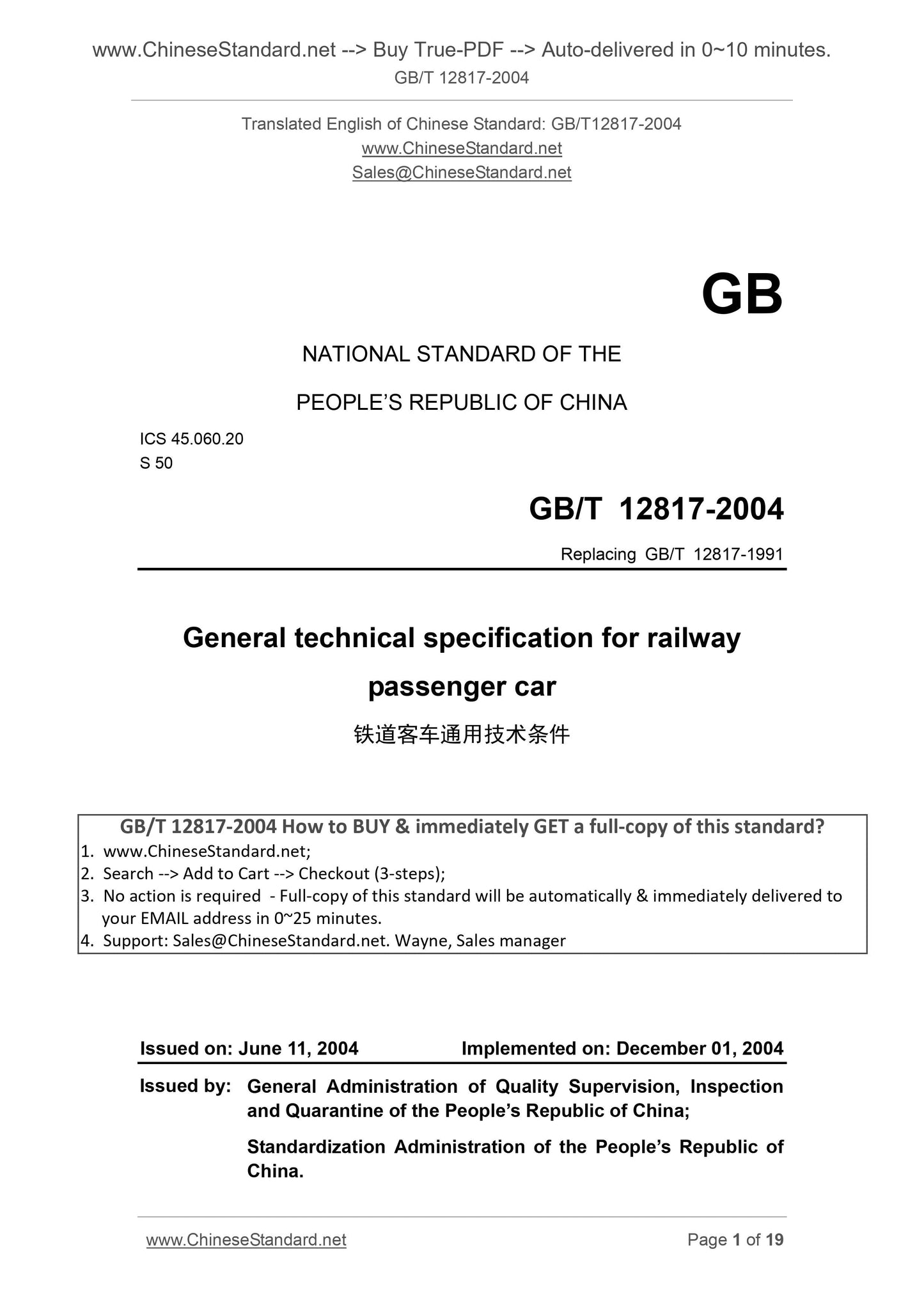

GB/T 12817-2004
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 45.060.20
S 50
Replacing GB/T 12817-1991
General technical specification for railway
passenger car
ISSUED ON. JUNE 11, 2004
IMPLEMENTED ON. DECEMBER 01, 2004
Issued by.
General Administration of Quality Supervision, Inspection
and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

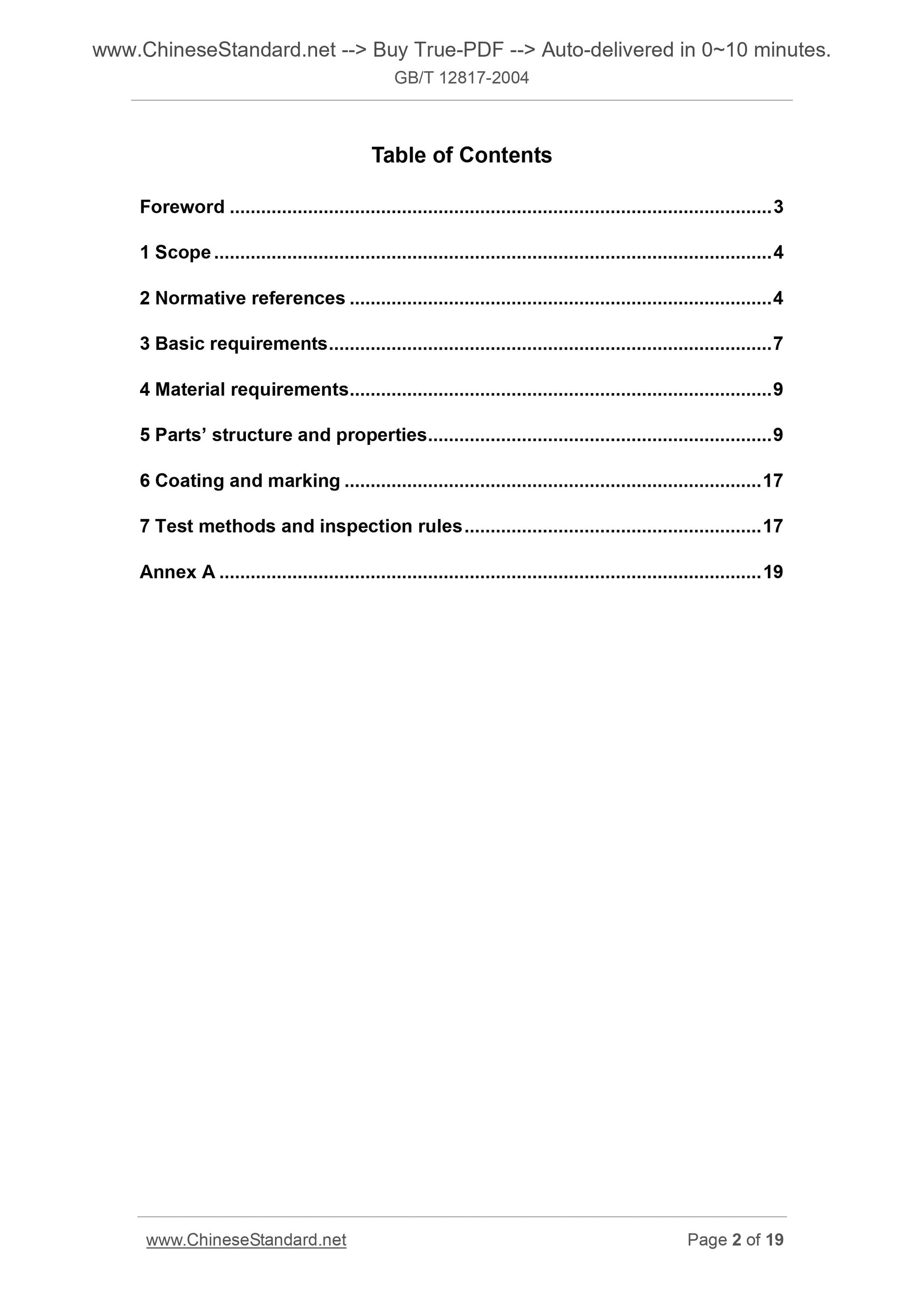

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Basic requirements ... 7
4 Material requirements ... 9

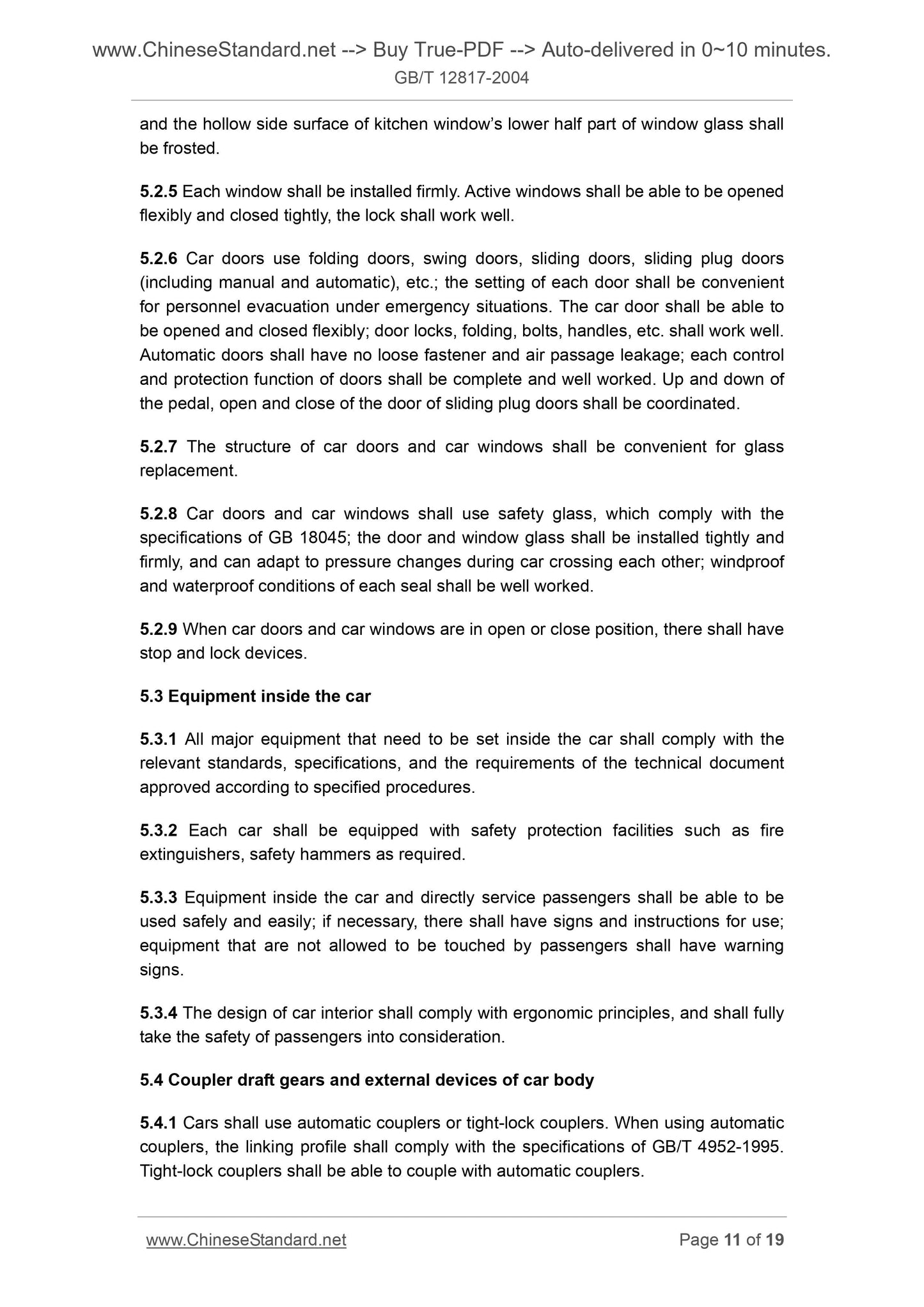

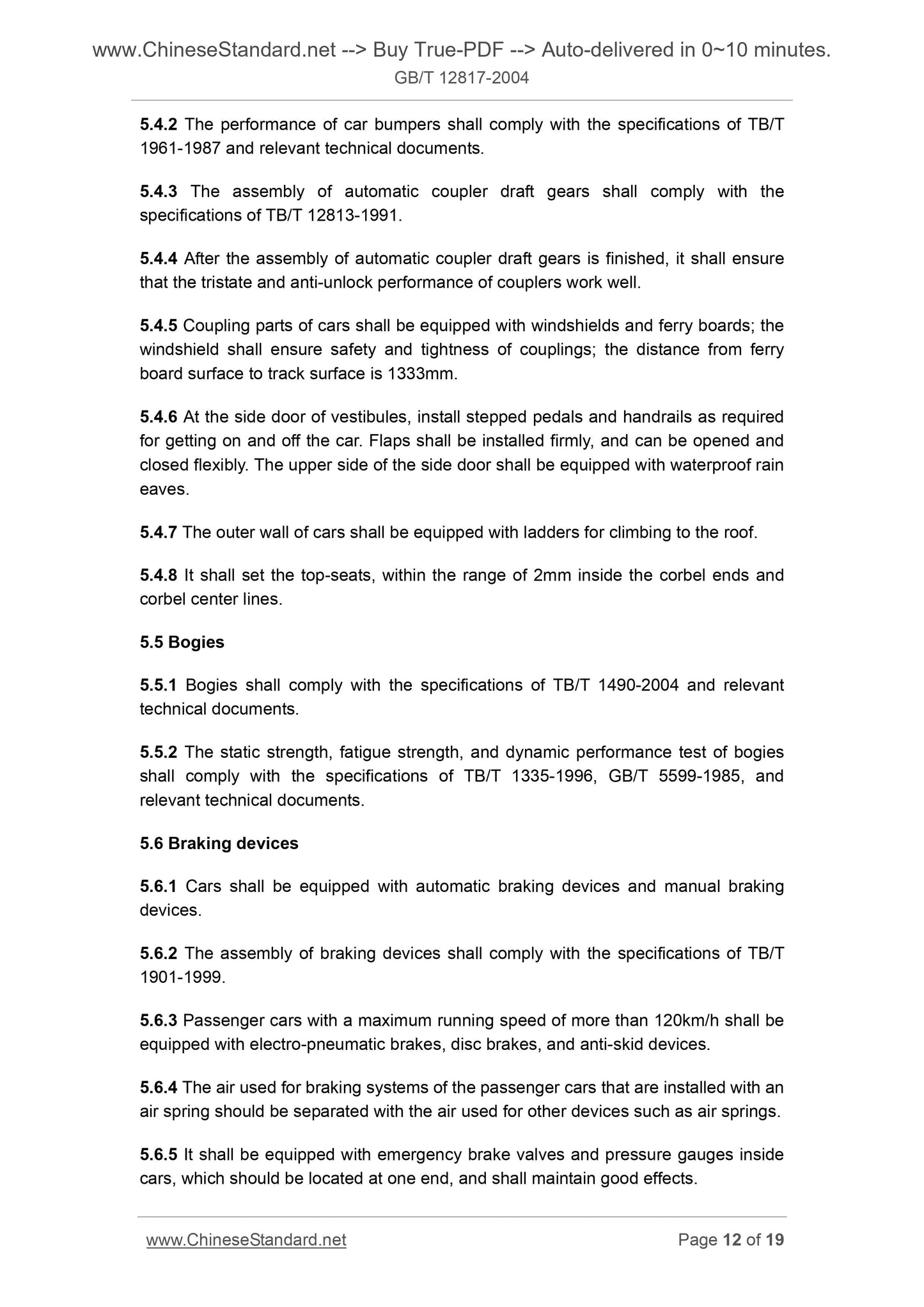

5 Parts?€? structure and properties ... 9

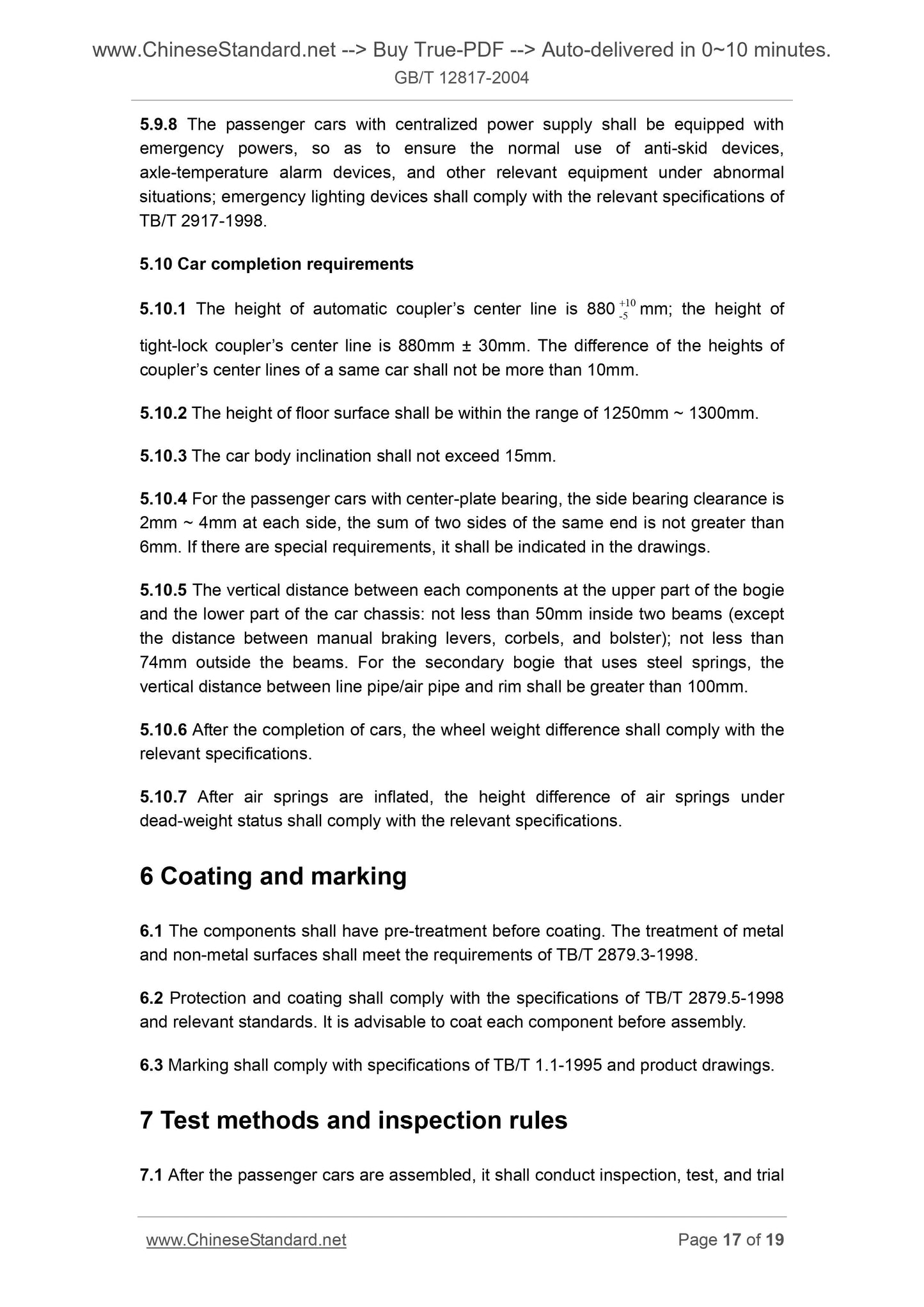

6 Coating and marking ... 17

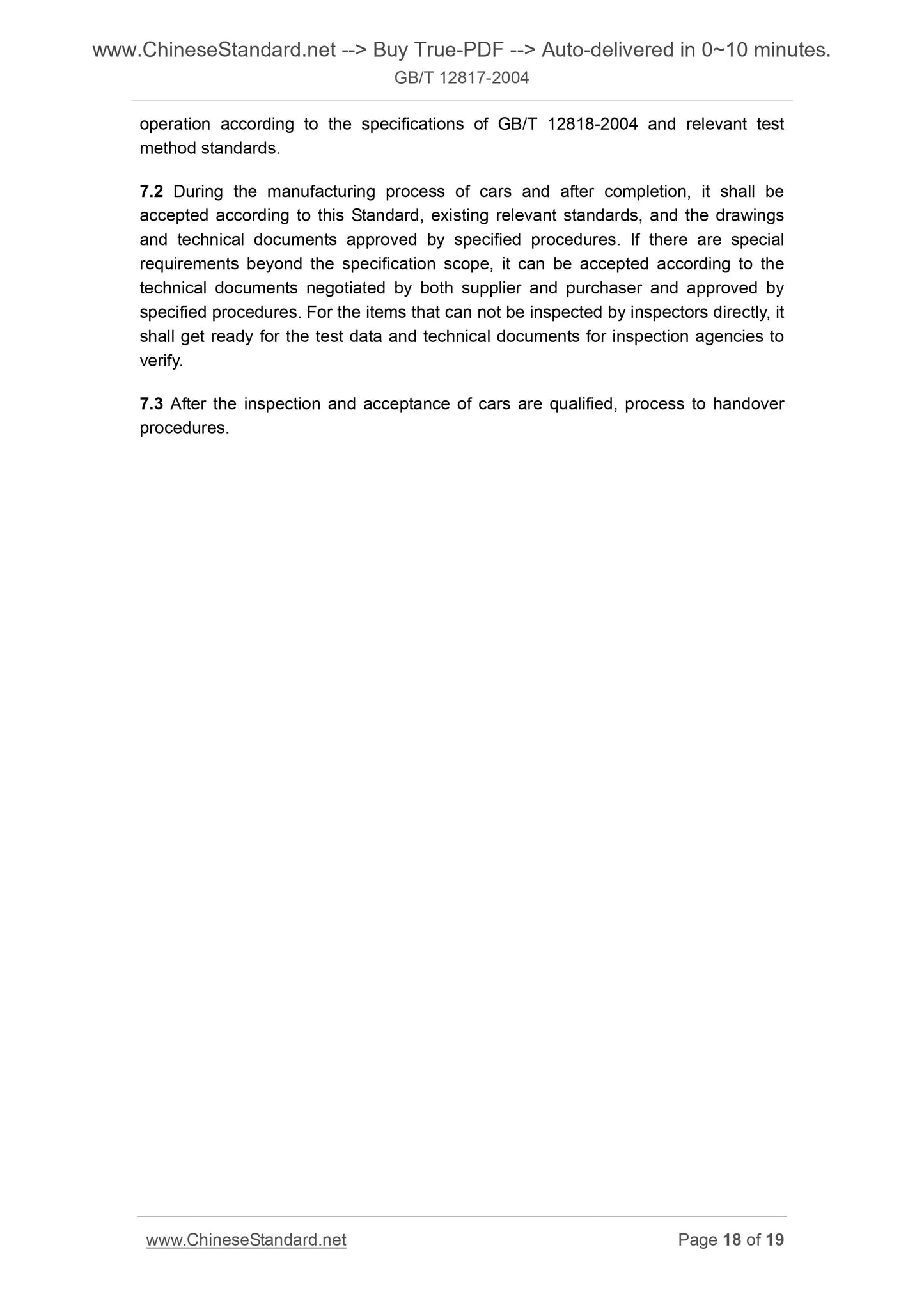

7 Test methods and inspection rules ... 17
Annex A ... 19

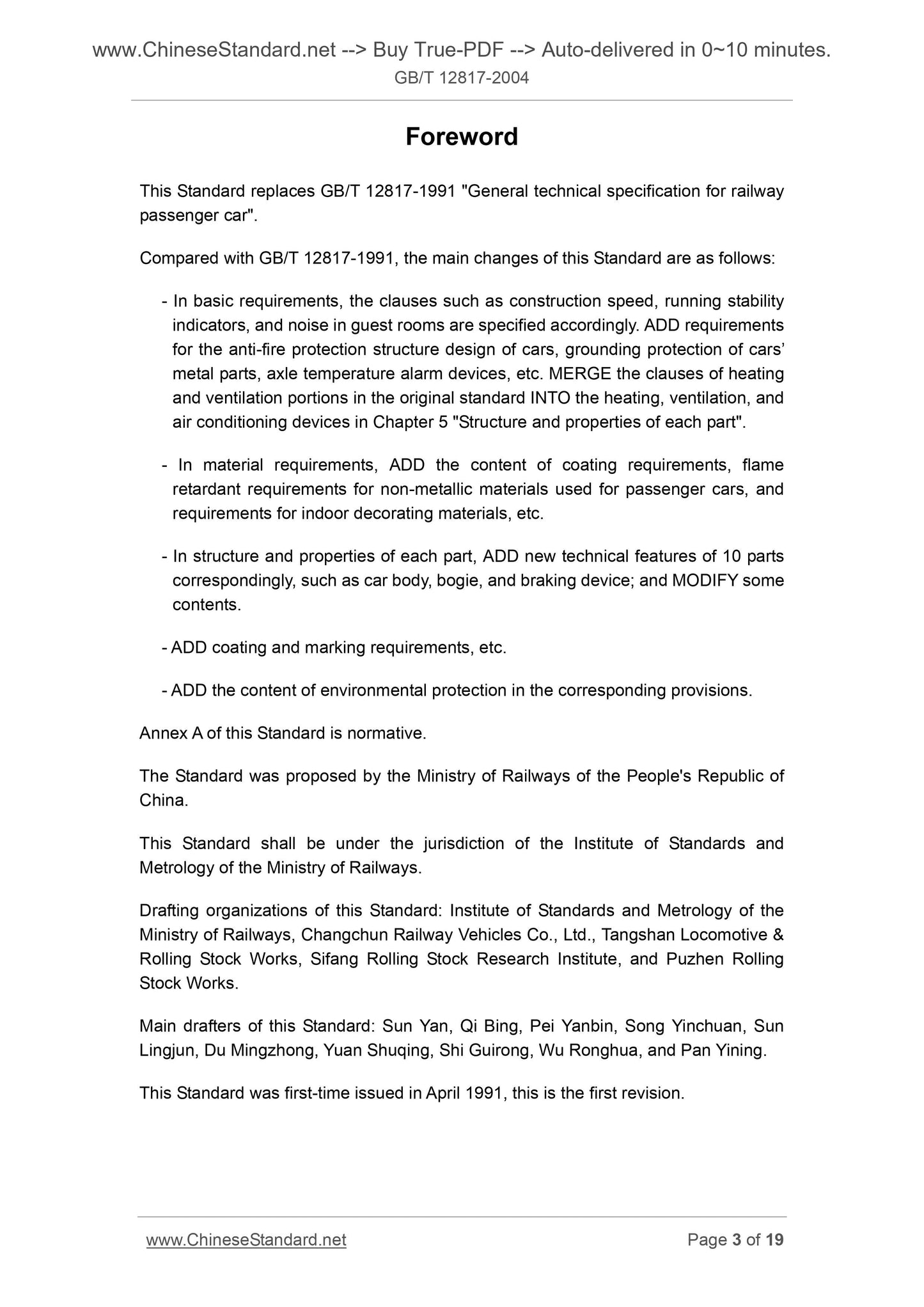

Foreword
This Standard replaces GB/T 12817-1991 "General technical specification for railway passenger car".
Compared with GB/T 12817-1991, the main changes of this Standard are as follows. - In basic requirements, the clauses such as construction speed, running stability indicators, and noise in guest rooms are specified accordingly. ADD requirements for the anti-fire protection structure design of cars, grounding protection of cars?€? metal parts, axle temperature alarm devices, etc. MERGE the clauses of heating and ventilation portions in the original standard INTO the heating, ventilation, and air conditioning devices in Chapter 5 "Structure and properties of each part". - In material requirements, ADD the content of coating requirements, flame retardant requirements for non-metallic materials used for passenger cars, and requirements for indoor decorating materials, etc.
- In structure and properties of each part, ADD new technical features of 10 parts correspondingly, such as car body, bogie, and braking device; and MODIFY some contents.
- ADD coating and marking requirements, etc.
- ADD the content of environmental protection in the corresponding provisions. Annex A of this Standard is normative.
The Standard was proposed by the Ministry of Railways of the People's Republic of China.
This Standard shall be under the jurisdiction of the Institute of Standards and Metrology of the Ministry of Railways.
Drafting organizations of this Standard. Institute of Standards and Metrology of the Ministry of Railways, Changchun Railway Vehicles Co., Ltd., Tangshan Locomotive and Rolling Stock Works, Sifang Rolling Stock Research Institute, and Puzhen Rolling Stock Works.
Main drafters of this Standard. Sun Yan, Qi Bing, Pei Yanbin, Song Yinchuan, Sun Lingjun, Du Mingzhong, Yuan Shuqing, Shi Guirong, Wu Ronghua, and Pan Yining. This Standard was first-time issued in April 1991, this is the first revision. General technical specification for
railway passenger car

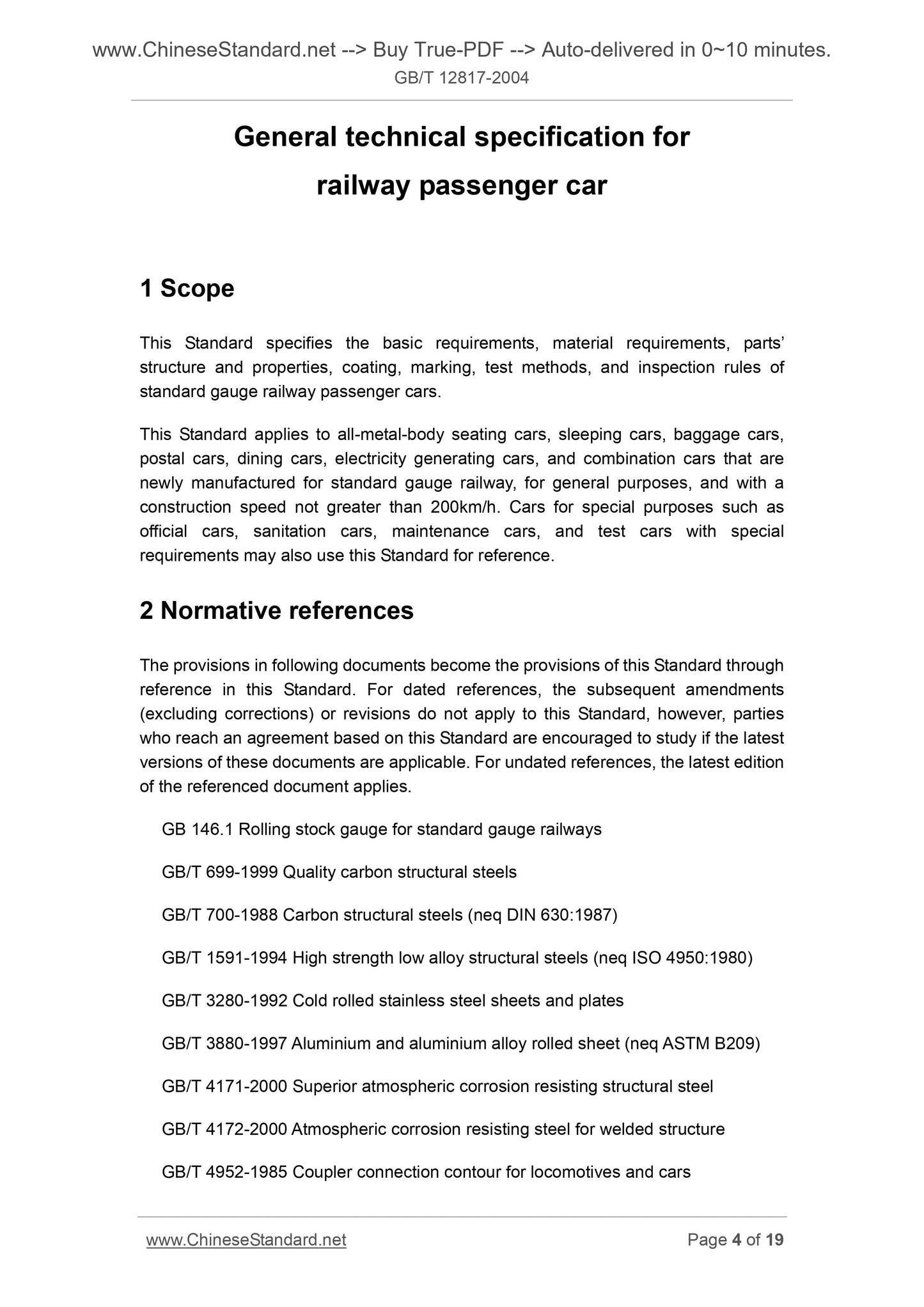

1 Scope
This Standard specifies the basic requirements, material requirements, parts?€? structure and properties, coating, marking, test methods, and inspection rules of standard gauge railway passenger cars.
This Standard applies to all-metal-body seating cars, sleeping cars, baggage cars, postal cars, dining cars, electricity generating cars, and combination cars that are newly manufactured for standard gauge railway, for general purposes, and with a construction speed not greater than 200km/h. Cars for special purposes such as official cars, sanitation cars, maintenance cars, and test cars with special requirements may also use this Standard for reference.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB 146.1 Rolling stock gauge for standard gauge railways
GB/T 699-1999 Quality carbon structural steels
GB/T 700-1988 Carbon structural steels (neq DIN 630.1987)
GB/T 1591-1994 High strength low alloy structural steels (neq ISO 4950.1980) GB/T 3280-1992 Cold rolled stainless steel sheets and plates
GB/T 3880-1997 Aluminium and aluminium alloy rolled sheet (neq ASTM B209) GB/T 4171-2000 Superior atmospheric corrosion resisting structural steel GB/T 4172-2000 Atmospheric corrosion resisting steel for welded structure GB/T 4952-1985 Coupler connection contour for locomotives and cars

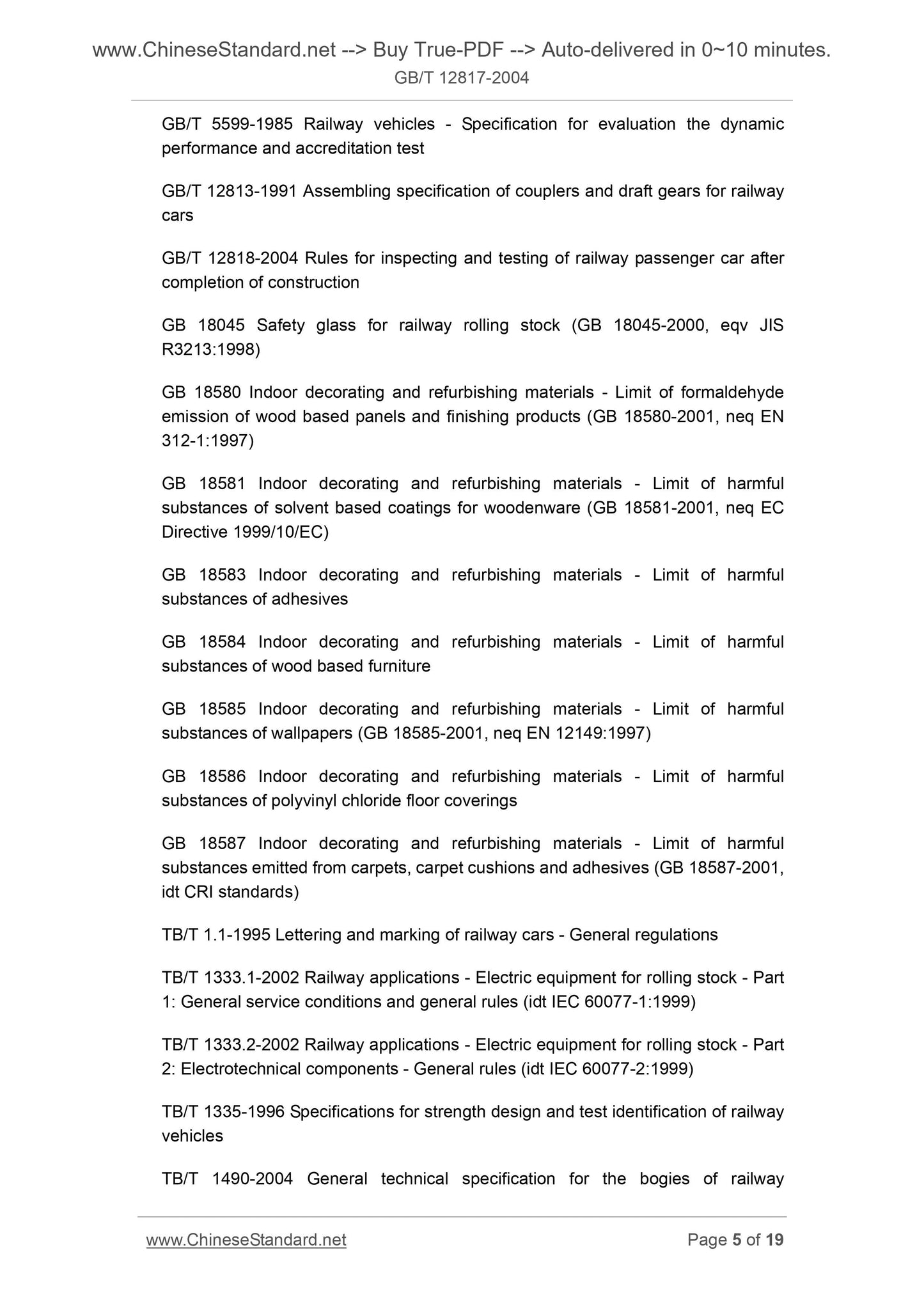

GB/T 5599-1985 Railway vehicles - Specification for evaluation the dynamic performance and accreditation test
GB/T 12813-1991 Assembling specification of couplers and draft gears for railway cars
GB/T 12818-2004 Rules for inspecting and testing of railway passenger car after completion of construction
GB 18045 Safety glass for railway rolling stock (GB 18045-2000, eqv JIS R3213.1998)
GB 18580 Indoor decorating and refurbishing materials - Limit of formaldehyde emission of wood based panels and finishing products (GB 18580-2001, neq EN 312-1.1997)
GB 18581 Indoor decorating and refurbishing materials - Limit of harmful substances of solvent based coatings for woodenware (GB 18581-2001, neq EC Directive 1999/10/EC)
GB 18583 Indoor decorating and refurbishing materials - Limit of harmful substances of adhesives
GB 18584 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture
GB 18585 Indoor decorating and refurbishing materials - Limit of harmful substances of wallpapers (GB 18585-2001, neq EN 12149.1997)
GB 18586 Indoor decorating and refurbishing materials - Limit of harmful substances of polyvinyl chloride floor coverings
GB 18587 Indoor decorating and refurbishing materials - Limit of harmful substances emitted from carpets, carpet cushions and adhesives (GB 18587-2001, idt CRI standards)
TB/T 1.1-1995 Lettering and marking of railway cars - General regulations TB/T 1333.1-2002 Railway applications - Electric equipment for rolling stock - Part 1. General service conditions and general rules (idt IEC 60077-1.1999)
TB/T 1333.2-2002 Railway applications - Electric equipment for rolling stock - Part 2. Electrotechnical components - General rules (idt IEC 60077-2.1999)
TB/T 1335-1996 Specifications for strength design and test identification of railway vehicles
TB/T 1490-2004 General technical specification for the bogies of railway passenger coach
TB/T 1719-1998 General technical specification for the heating devices of railway passenger car (eqv UIC 553.1990)
TB/T 1720-1998 General technical specification for the water supply devices of railway passenger car (eqv UIC 563.1990)
TB/T 1759-2003 Rules for installation of cabling for railway passenger car TB/T 1765-1986 Design parameters of supply voltage of passenger car
TB/T 1802-1996 Rain leakage test method of railway vehicles
TB/T 1901-1999 Assembly technical conditions of vehicle braking system
TB/T 1955-2000 Heating and ventilation design parameters of railway passenger car (eqv UIC 553.1990)
TB/T 1961-1987 Buffer performance and drop-weight test method for vehicles TB/T 2226-2002 Technical specification of centralized hotbox alarm system for railway passenger car
TB/T 2402-1993 Flame retardant requirements for non-mental materials of railway passenger car

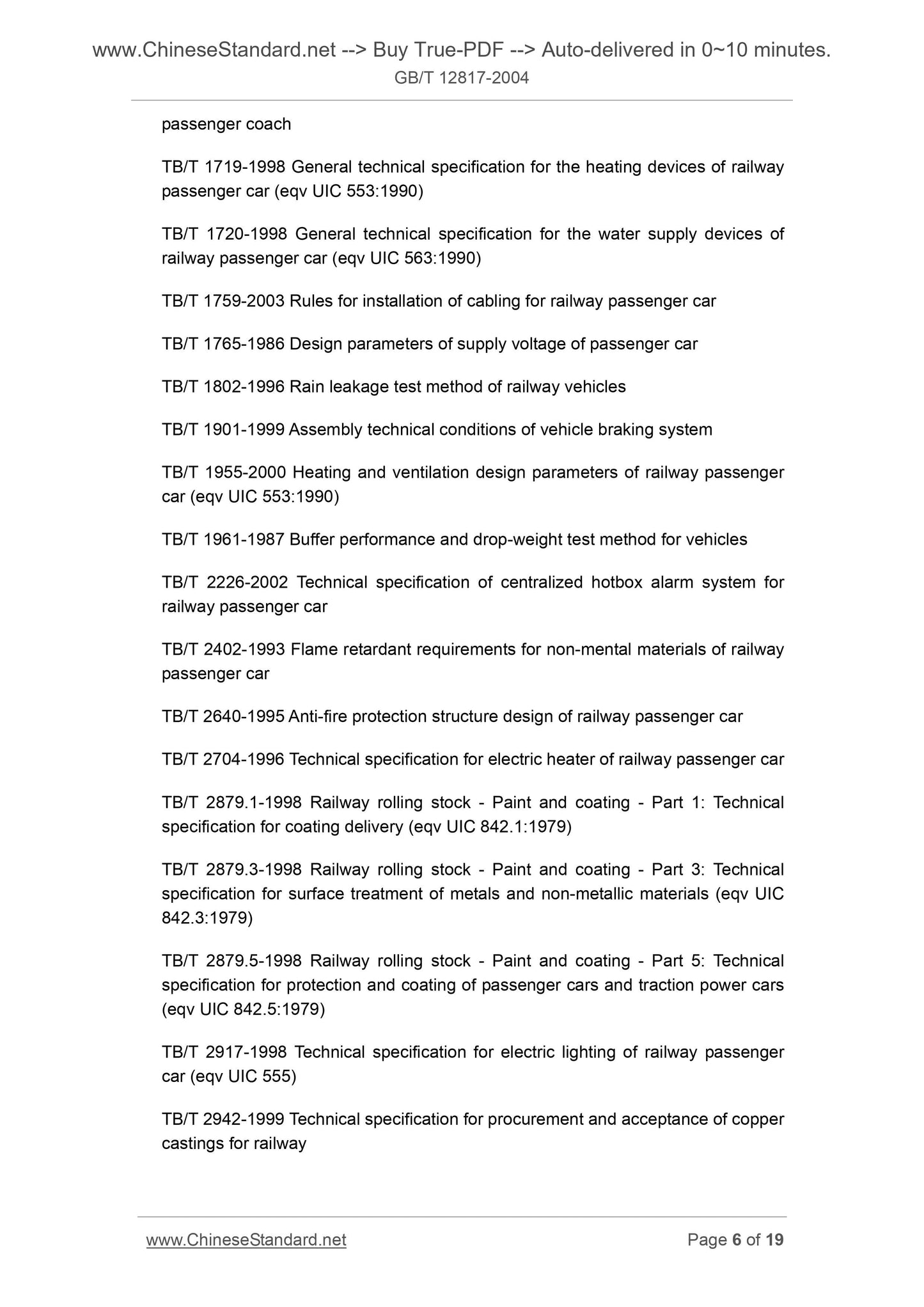

TB/T 2640-1995 Anti-fire protection structure design of railway passenger car TB/T 2704-1996 Technical specification for electric heater of railway passenger car TB/T 2879.1-1998 Railway rolling stock - Paint and coating - Part 1. Technical specification for coating delivery (eqv UIC 842.1.1979)
TB/T 2879.3-1998 Railway rolling stock - Paint and coating - Part 3. Technical specification for surface treatment of metals and non-metallic materials (eqv UIC 842.3.1979)
TB/T 2879.5-1998 Railway rolling stock - Paint and coating - Part 5. Technical specification for protection and coating of passenger cars and traction power cars (eqv UIC 842.5.1979)
TB/T 2917-1998 Technical specification for electric lighting of railway passenger car (eqv UIC 555)
TB/T 2942-1999 Technical specification for procurement and acceptance of copper castings for railway
TB/T 2977-2000 Grounding protection of metal parts of railway vehicles
TB/T 3034-2002 EMC tests and limits for rolling stock apparatus
TB/T 3035-2002 Train communication network
TB/T 3063-2002 The technical specification of supply power system of DC600V in railway passenger train

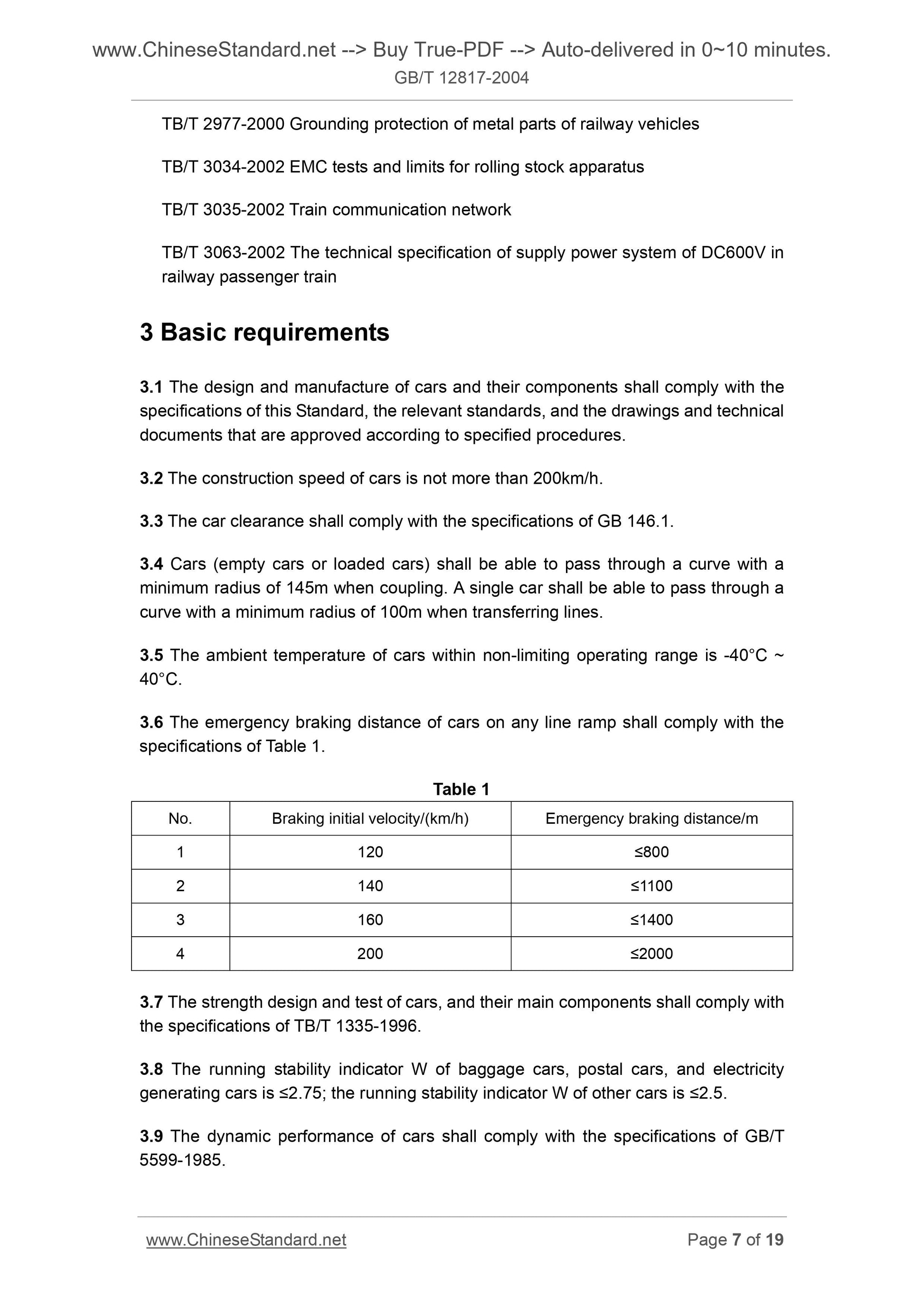

3 Basic requirements
3.1 The design and manufacture of cars and their components shall comply with the specifications of this Standard, the relevant standards, and the drawings and technical documents that are approved according to specified procedures.
3.2 The construction speed of cars is not more than 200km/h.
3.3 The car clearance shall comply with the specifications of GB 146.1. 3.4 Cars (empty cars or loaded cars) shall be able to pass through a curve with a minimum radius of 145m when coupling. A single car shall be able to pass through a curve with a minimum radius of 100m when ...
