GB/T 12670-2008: Polypropylene (PP) resin
This Standard stipulates the classification, naming, requirements, test methods, inspection rules, marking, packaging, transportation and storage of polypropylene (PP) resin. This Standard is applicable to additive-containing granular propylene homopolymer (PP-H), propylene impact copolymer (PP-B) or propylene random copolymer (PP-R) prepared by the polymerization of propylene or propylene and ethylene under the effect of catalyst.

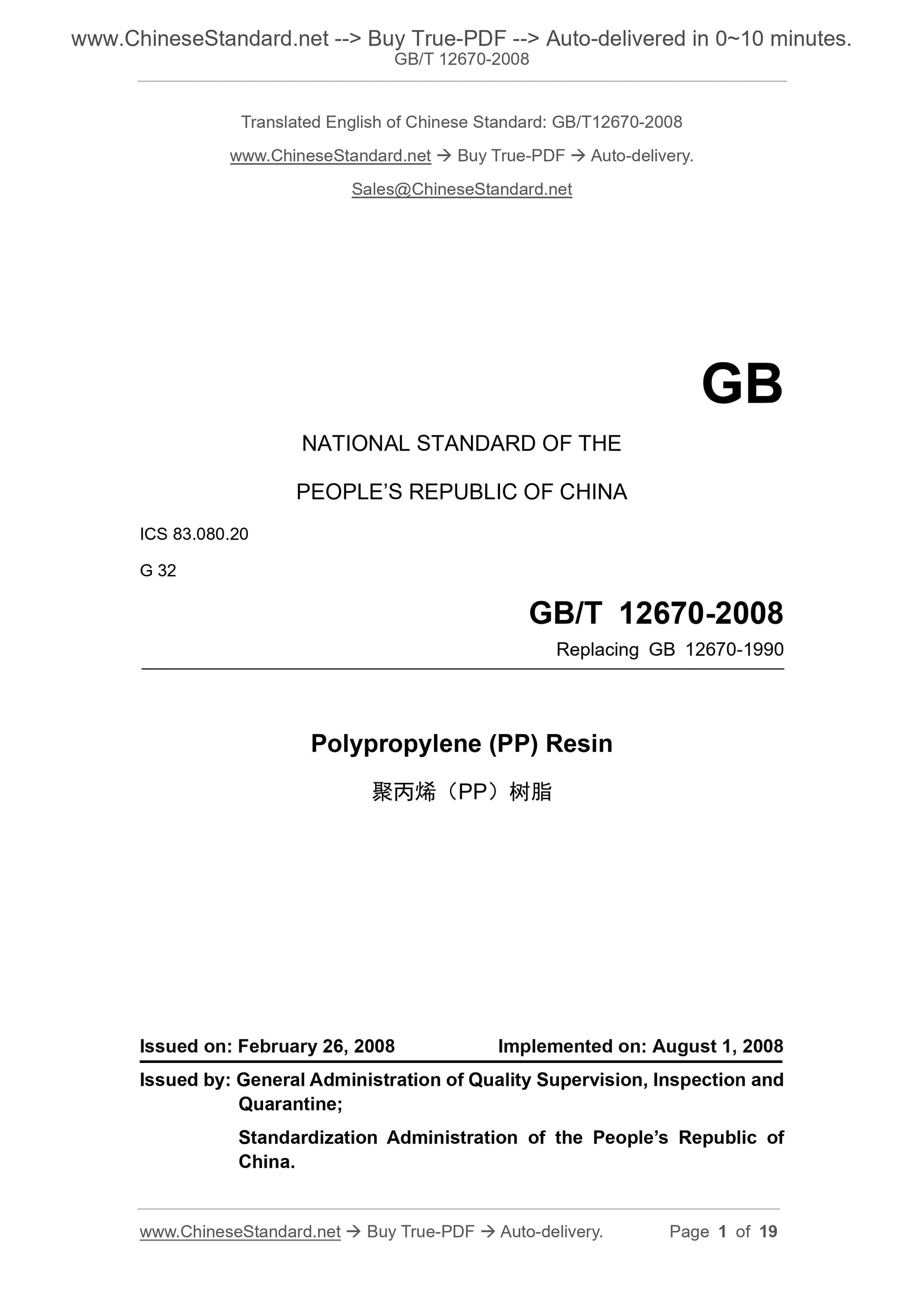

GB/T 12670-2008
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 83.080.20
G 32
Replacing GB 12670-1990
Polypropylene (PP) Resin
聚丙烯(PP)树脂
ISSUED ON: FEBRUARY 26, 2008
IMPLEMENTED ON: AUGUST 1, 2008
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People’s Republic of
China.

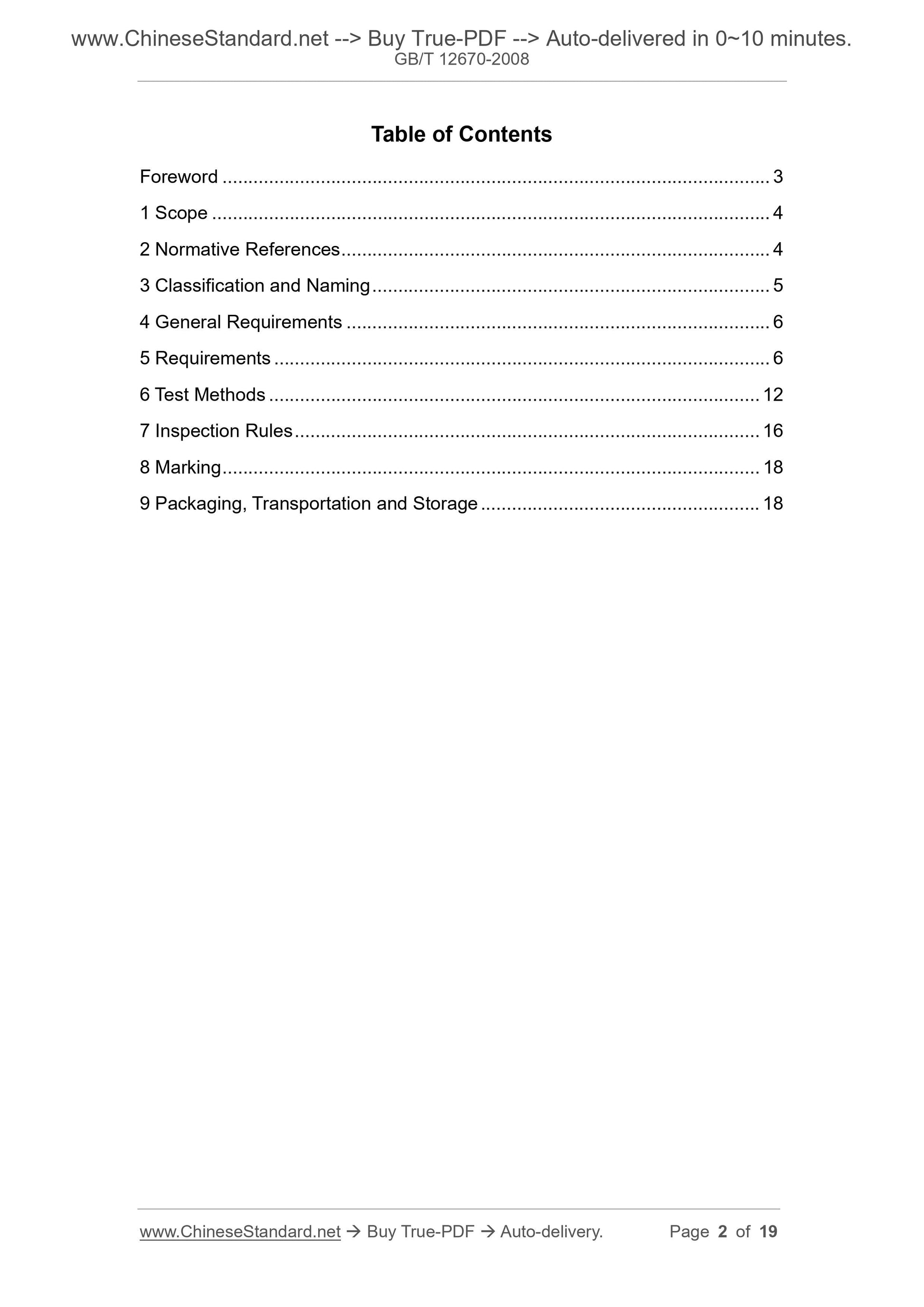

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Classification and Naming ... 5
4 General Requirements ... 6
5 Requirements ... 6
6 Test Methods ... 12
7 Inspection Rules ... 16
8 Marking ... 18
9 Packaging, Transportation and Storage ... 18

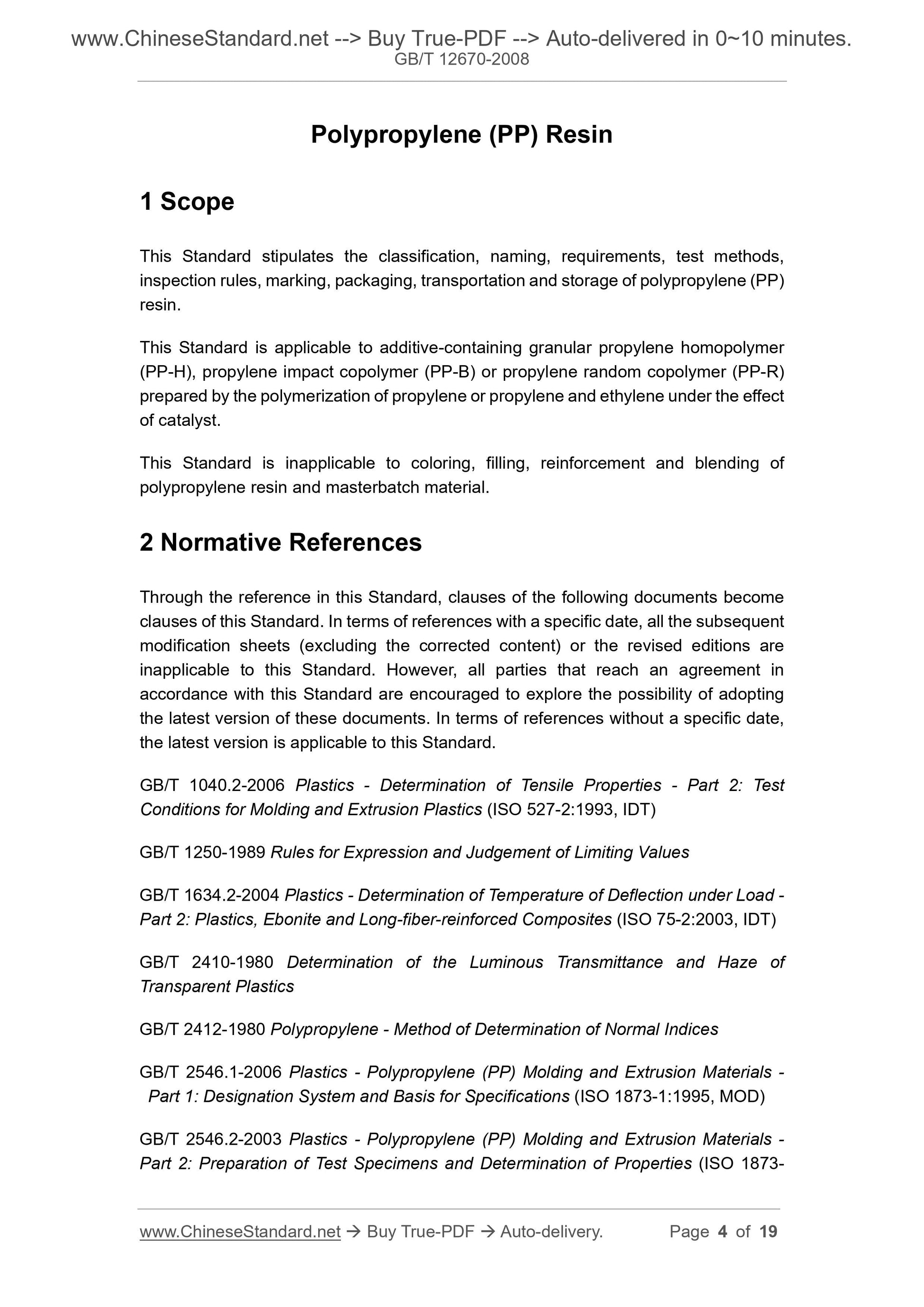

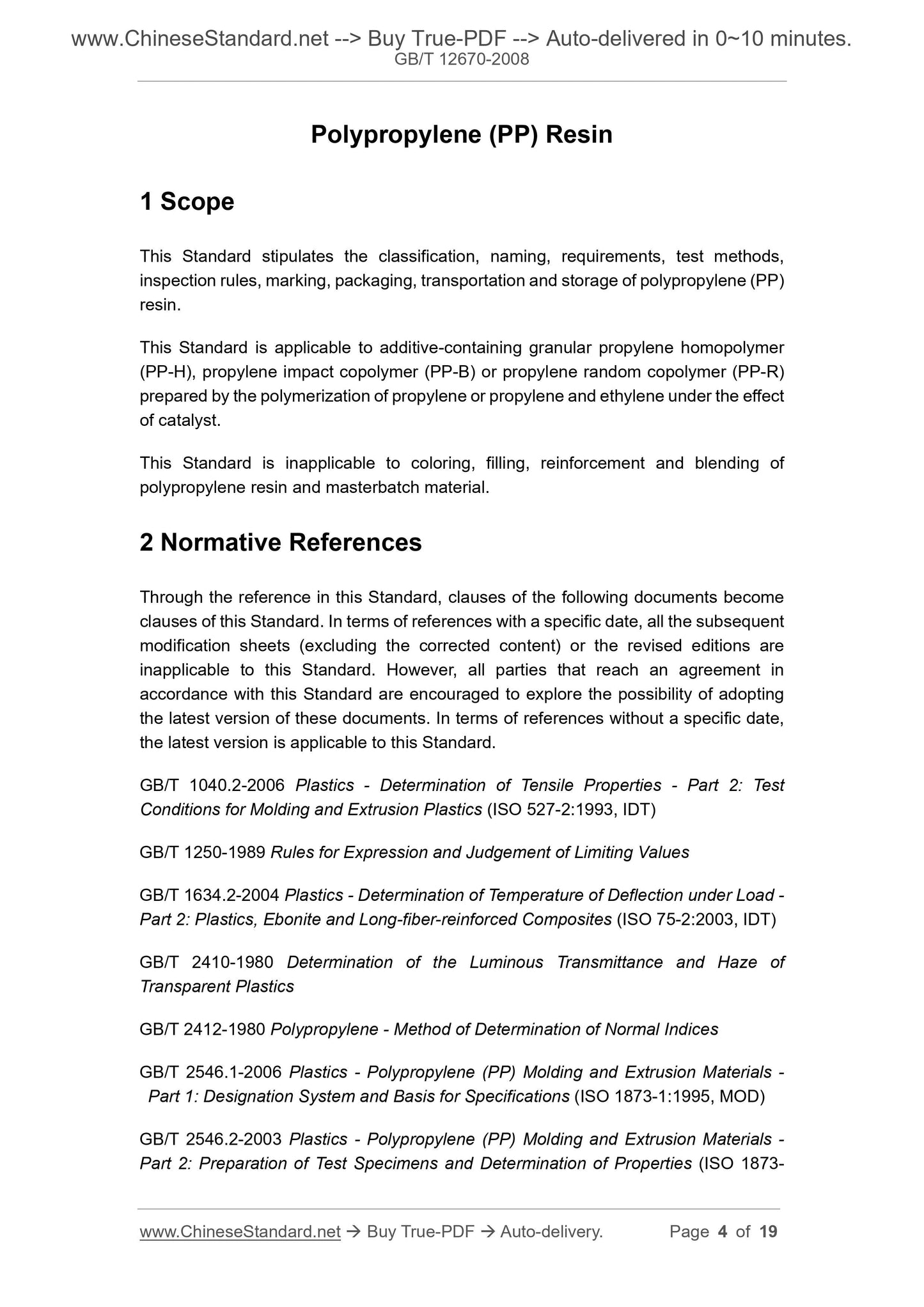

Polypropylene (PP) Resin
1 Scope
This Standard stipulates the classification, naming, requirements, test methods, inspection rules, marking, packaging, transportation and storage of polypropylene (PP) resin.
This Standard is applicable to additive-containing granular propylene homopolymer (PP-H), propylene impact copolymer (PP-B) or propylene random copolymer (PP-R) prepared by the polymerization of propylene or propylene and ethylene under the effect of catalyst.
This Standard is inapplicable to coloring, filling, reinforcement and blending of polypropylene resin and masterbatch material.
2 Normative References
Through the reference in this Standard, clauses of the following documents become clauses of this Standard. In terms of references with a specific date, all the subsequent modification sheets (excluding the corrected content) or the revised editions are inapplicable to this Standard. However, all parties that reach an agreement in accordance with this Standard are encouraged to explore the possibility of adopting the latest version of these documents. In terms of references without a specific date, the latest version is applicable to this Standard.
GB/T 1040.2-2006 Plastics - Determination of Tensile Properties - Part 2: Test Conditions for Molding and Extrusion Plastics (ISO 527-2:1993, IDT)
GB/T 1250-1989 Rules for Expression and Judgement of Limiting Values
GB/T 1634.2-2004 Plastics - Determination of Temperature of Deflection under Load - Part 2: Plastics, Ebonite and Long-fiber-reinforced Composites (ISO 75-2:2003, IDT) GB/T 2410-1980 Determination of the Luminous Transmittance and Haze of
Transparent Plastics
GB/T 2412-1980 Polypropylene - Method of Determination of Normal Indices GB/T 2546.1-2006 Plastics - Polypropylene (PP) Molding and Extrusion Materials - Part 1: Designation System and Basis for Specifications (ISO 1873-1:1995, MOD) GB/T 2546.2-2003 Plastics - Polypropylene (PP) Molding and Extrusion Materials - Part 2: Preparation of Test Specimens and Determination of Properties (ISO 1873- 2:1997, MOD)

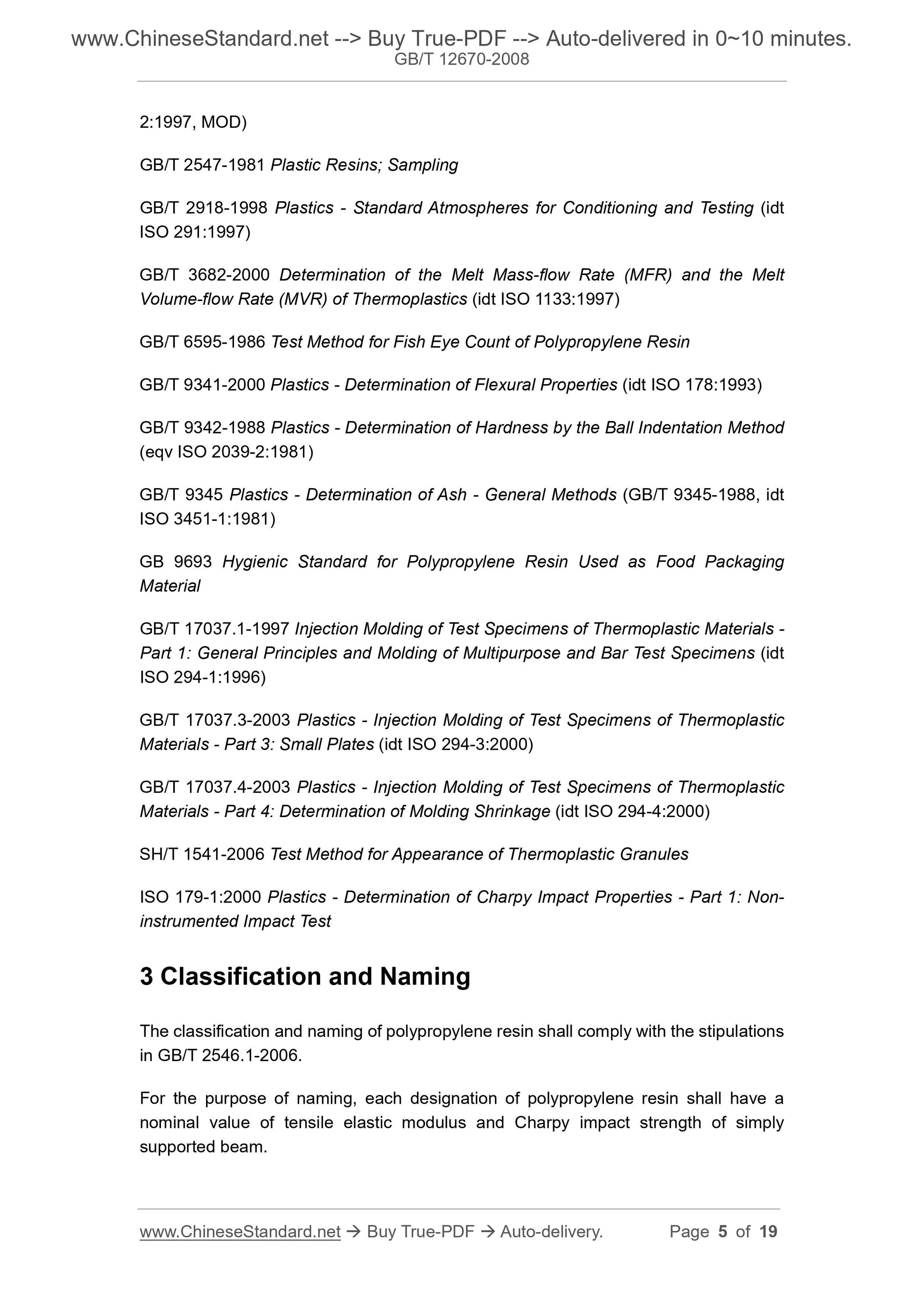

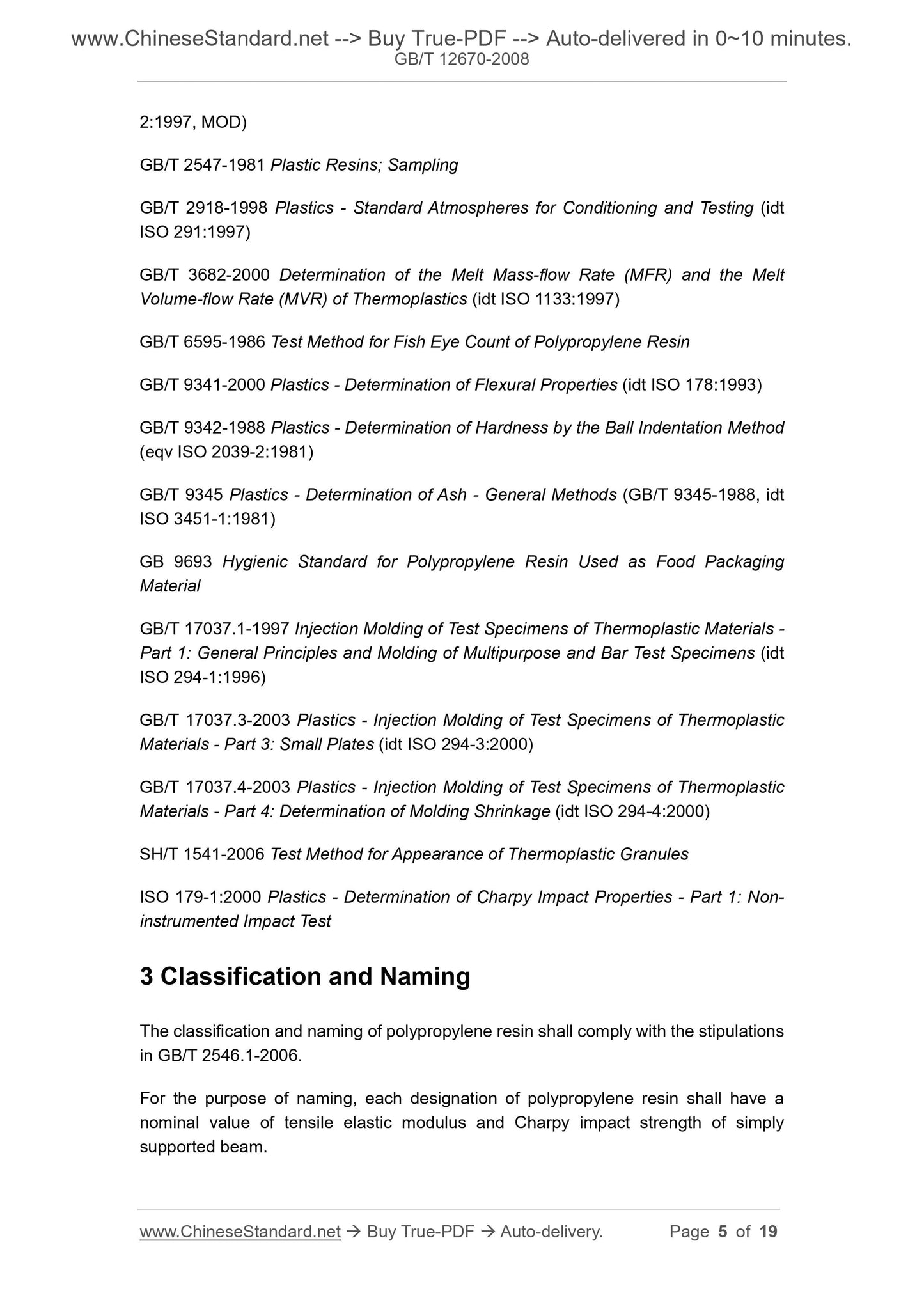

GB/T 2547-1981 Plastic Resins; Sampling
GB/T 2918-1998 Plastics - Standard Atmospheres for Conditioning and Testing (idt ISO 291:1997)
GB/T 3682-2000 Determination of the Melt Mass-flow Rate (MFR) and the Melt Volume-flow Rate (MVR) of Thermoplastics (idt ISO 1133:1997)
GB/T 6595-1986 Test Method for Fish Eye Count of Polypropylene Resin
GB/T 9341-2000 Plastics - Determination of Flexural Properties (idt ISO 178:1993) GB/T 9342-1988 Plastics - Determination of Hardness by the Ball Indentation Method (eqv ISO 2039-2:1981)
GB/T 9345 Plastics - Determination of Ash - General Methods (GB/T 9345-1988, idt ISO 3451-1:1981)
GB 9693 Hygienic Standard for Polypropylene Resin Used as Food Packaging Material
GB/T 17037.1-1997 Injection Molding of Test Specimens of Thermoplastic Materials - Part 1: General Principles and Molding of Multipurpose and Bar Test Specimens (idt ISO 294-1:1996)
GB/T 17037.3-2003 Plastics - Injection Molding of Test Specimens of Thermoplastic Materials - Part 3: Small Plates (idt ISO 294-3:2000)
GB/T 17037.4-2003 Plastics - Injection Molding of Test Specimens of Thermoplastic Materials - Part 4: Determination of Molding Shrinkage (idt ISO 294-4:2000) SH/T 1541-2006 Test Method for Appearance of Thermoplastic Granules
ISO 179-1:2000 Plastics - Determination of Charpy Impact Properties - Part 1: Non- instrumented Impact Test
3 Classification and Naming
The classification and naming of polypropylene resin shall comply with the stipulations in GB/T 2546.1-2006.
For the purpose of naming, each designation of polypropylene resin shall have a nominal value of tensile elastic modulus and Charpy impact strength of simply supported beam.

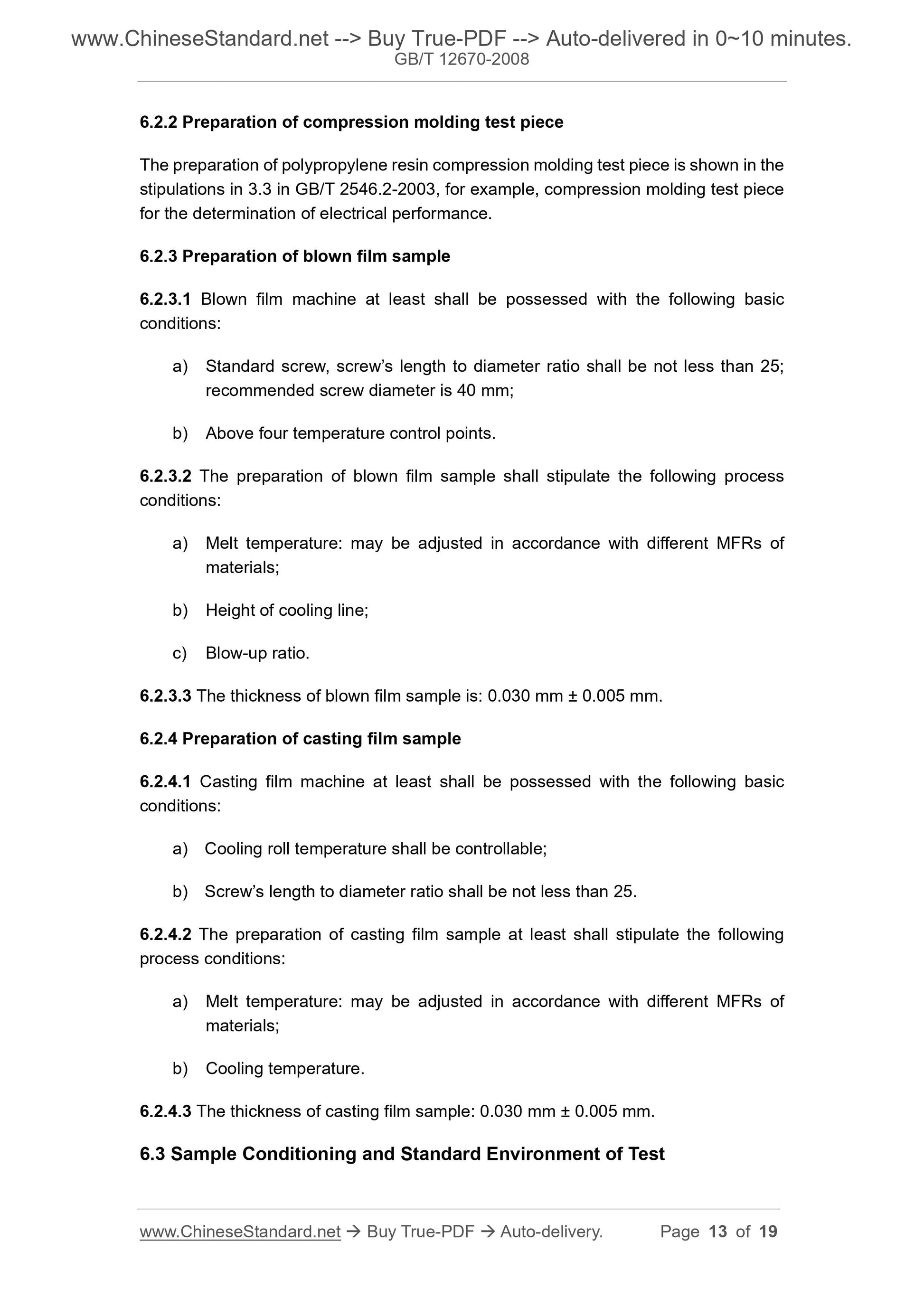

6.2.2 Preparation of compression molding test piece
The preparation of polypropylene resin compression molding test piece is shown in the stipulations in 3.3 in GB/T 2546.2-2003, for example, compression molding test piece for the determination of electrical performance.
6.2.3 Preparation of blown film sample
6.2.3.1 Blown film machine at least shall be possessed with the following basic conditions:
a) Standard screw, screw’s length to diameter ratio shall be not less than 25; recommended screw diameter is 40 mm;
b) Above four temperature control points.
6.2.3.2 The preparation of blown film sample shall stipulate the following process conditions:
a) Melt temperature: may be adjusted in accordance with different MFRs of materials;
b) Height of cooling line;
c) Blow-up ratio.
6.2.3.3 The thickness of blown film sample is: 0.030 mm ± 0.005 mm.
6.2.4 Preparation of casting film sample
6.2.4.1 Casting film machine at least shall be possessed with the following basic conditions:
a) Cooling roll temperature shall be controllable;
b) Screw’s length to diameter ratio shall be not less than 25.
6.2.4.2 The preparation of casting film sample at least shall stipulate the following process conditions:
a) Melt temperature: may be adjusted in accordance with different MFRs of materials;
b) Cooling temperature.
6.2.4.3 The thickness of casting film sample: 0.030 mm ± 0.005 mm.
6.3 Sample Conditioning and Standard Environment of Test

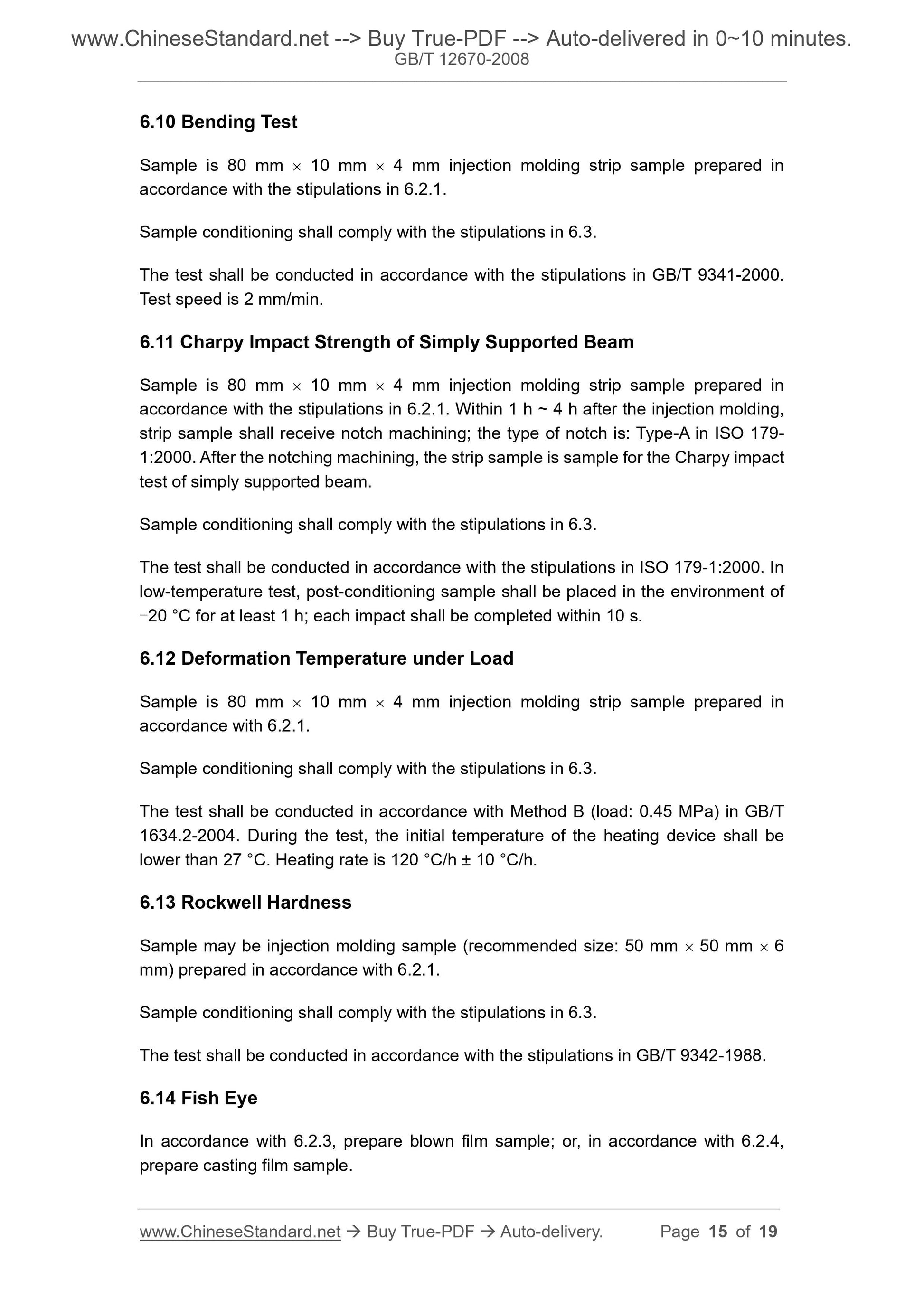

6.10 Bending Test
Sample is 80 mm  10 mm  4 mm injection molding strip sample prepared in accordance with the stipulations in 6.2.1.
Sample conditioning shall comply with the stipulations in 6.3.
The test shall be conducted in accordance with the stipulations in GB/T 9341-2000. Test speed is 2 mm/min.
6.11 Charpy Impact Strength of Simply Supported Beam
Sample is 80 mm  10 mm  4 mm injection molding strip sample prepared in accordance with the stipulations in 6.2.1. Within 1 h ~ 4 h after the injection molding, strip sample shall receive notch machining; the type of notch is: Type-A in ISO 179- 1:2000. After the notching machining, the strip sample is sample for the Charpy impact test of simply supported beam.
Sample conditioning shall comply with the stipulations in 6.3.
The test shall be conducted in accordance with the stipulations in ISO 179-1:2000. In low-temperature test, post-conditioning sample shall be placed in the environment of -20 °C for at least 1 h; each impact shall be completed within 10 s.
6.12 Deformation Temperature under Load
Sample is 80 mm  10 mm  4 mm injection molding strip sample prepared in accordance with 6.2.1.
Sample conditioning shall comply with the stipulations in 6.3.
The test shall be conducted in accordance with Method B (load: 0.45 MPa) in GB/T 1634.2-2004. During the test, the initial temperature of the heating device shall be lower than 27 °C. Heating rate is 120 °C/h ± 10 °C/h.
6.13 Rockwell Hardness
Sample may be injection molding sample (recommended size: 50 mm  50 mm  6 mm) prepared in accordance with 6.2.1.
Sample conditioning shall comply with the stipulations in 6.3.
The test shall be conducted in accordance with the stipulations in GB/T 9342-1988. 6.14 Fish Eye
In accordance with 6.2.3, prepare blown film sample; or, in accordance with 6.2.4, prepare casting film sample.

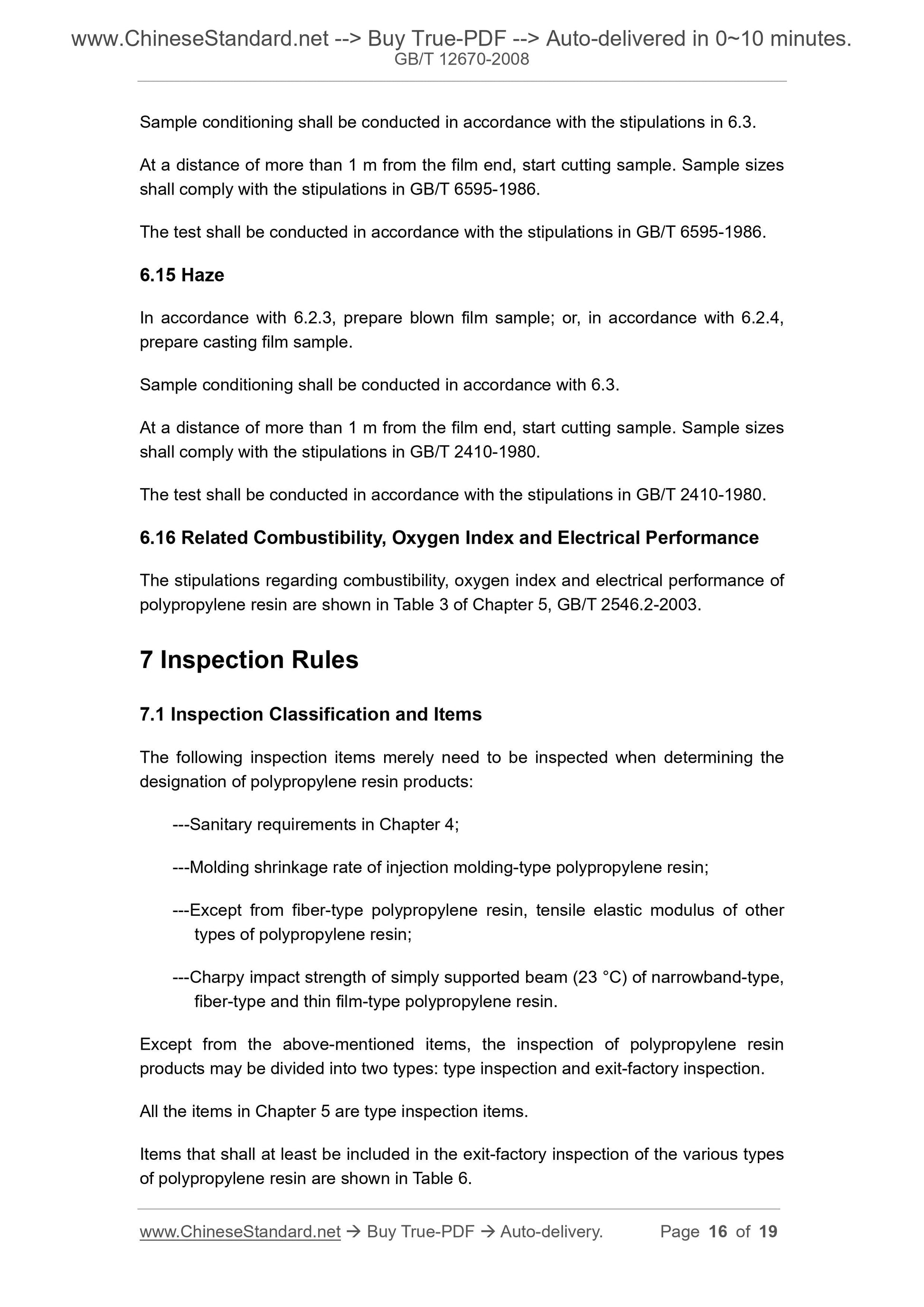

Sample conditioning shall be conducted in accordance with the stipulations in 6.3. At a distance of more than 1 m from the film end, start cutting sample. Sample sizes shall comply with the stipulations in GB/T 6595-1986.
The test shall be conducted in accordance with the stipulations in GB/T 6595-1986. 6.15 Haze
In accordance with 6.2.3, prepare blown film sample; or, in accordance with 6.2.4, prepare casting film sample.
Sample conditioning shall be conducted in accordance with 6.3.
At a distance of more than 1 m from the film end, start cutting sample. Sample sizes shall comply with the stipulations in GB/T 2410-1980.
The test shall be conducted in accordance with the stipulations in GB/T 2410-1980. 6.16 Related Combustibility, Oxygen Index and Electrical Performance
The stipulations regarding combustibility, oxygen index and electrical performance of polypropylene resin are shown in Table 3 of Chapter 5, GB/T 2546.2-2003. 7 Inspection Rules
7.1 Inspection Classification and Items
The following inspection items merely need to be inspected when determining the designation of polypropylene resin products:
---Sanitary requirements in Chapter 4;
---Molding shrinkage rate of injection molding-type polypropylene resin; ---Except from fiber-type polypropylene resin, tensile elastic modulus of other types of polypropylene resin;
---Charpy impact strength of simply supported beam (23 °C) of narrowband-type, fiber-type and thin film-type polypropylene resin.
Except from the above-mentioned items, the inspection of polypropylene resin products may be divided into two types: type inspection and exit-factory inspection. All the items in Chapter 5 are type inspection items.
Items that shall at least be included in the exit-factory inspection of the various types of polypropylene resin are shown in Table 6.

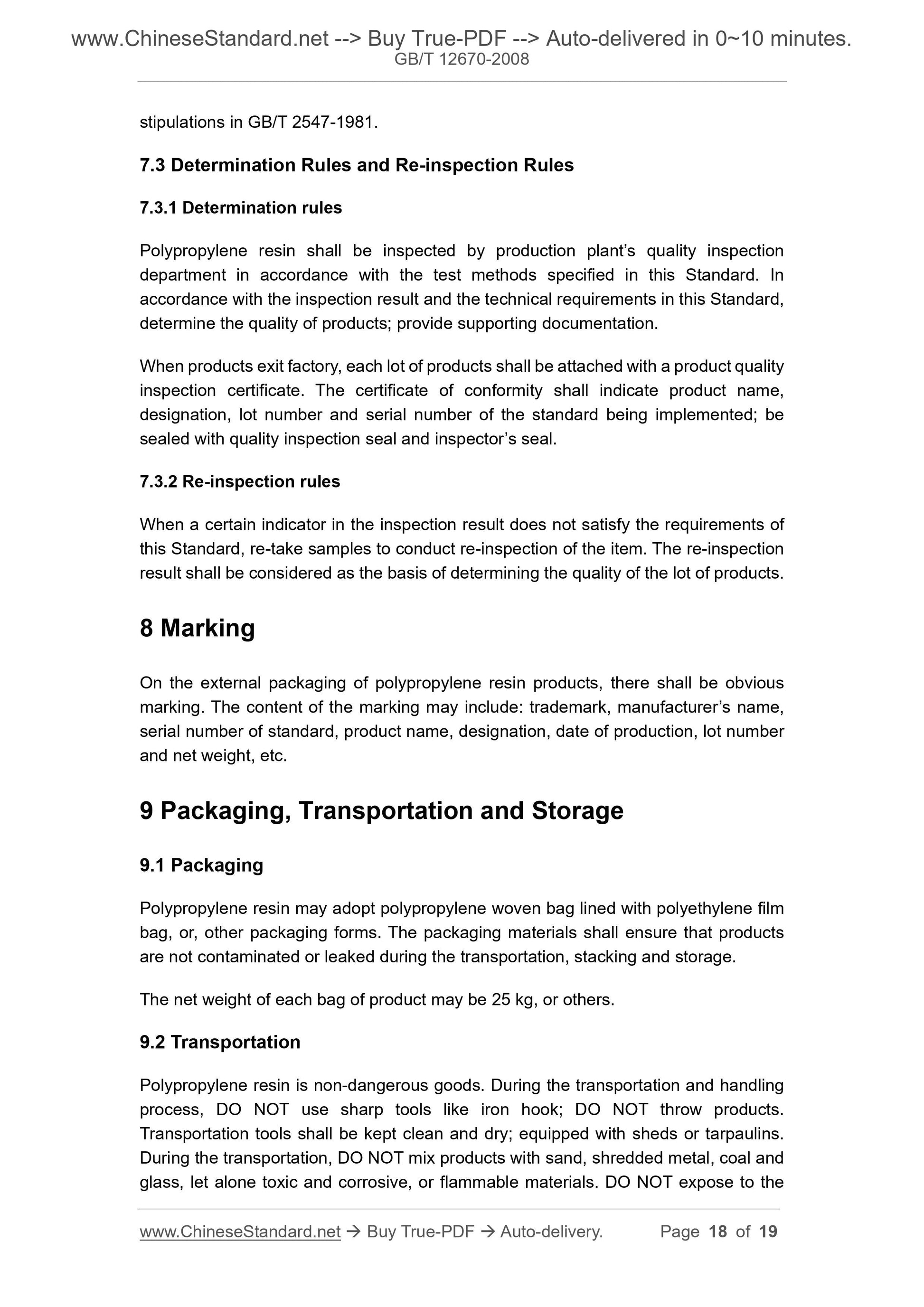

stipulations in GB/T 2547-1981.
7.3 Determination Rules and Re-inspection Rules
7.3.1 Determination rules
Polypropylene resin shall be inspected by production plant’s quality inspection department in accordance with the test methods specified in this Standard. In accordance with the inspection result and the technical requirements in this Standard, determine the quality of products; provide supporting documentation.
When products exit factory, each lot of products shall be attached with a product quality inspection certificate. The certificate of conformity shall indicate product name, designation, lot number and serial number of the standard being implemented; be sealed with quality inspection seal and inspector’s seal.
7.3.2 Re-inspection rules
When a certain indicator in the inspection result does not satisfy the requirements of this Standard, re-take samples to conduct re-inspection of the item. The re-inspection result shall be considered as the basis of determining the quality of the lot of products. 8 Marking
On the external packaging of polypropylene resin products, there shall be obvious marking. The content of the marking may include: trademark, manufacturer’s name, serial number of standard, product name, designation, date of production, lot number and net weight, etc.
9 Packaging, Transportation and Storage
9.1 Packaging
Polypropylene resin may adopt polypropylene woven bag lined with polyethylene film bag, or, other packaging forms. The packaging materials shall ensure that products are not contaminated or leaked during the transportation, stacking and storage. The net weight of each bag of product may be 25 kg, or others.
9.2 Transportation
Polypropylene resin is non-dangerous goods. During the transportation and handling process, DO NOT use sharp tools like iron hook; DO NOT throw products.
Transportation tools shall be kept clean and dry; equipped with sheds or tarpaulins. During the transportation, DO NOT mix products with sand, shredded metal, coal and glass, let alone toxic and corrosive, or flammable materials. DO NOT expose to the
