GB/T 12548-2016: Motor vehicles speedometer and odometer calibration method

This Standard specifies the calibration method for speedometer and odometer mounted on vehicle. This Standard is applicable to all kinds of vehicles.

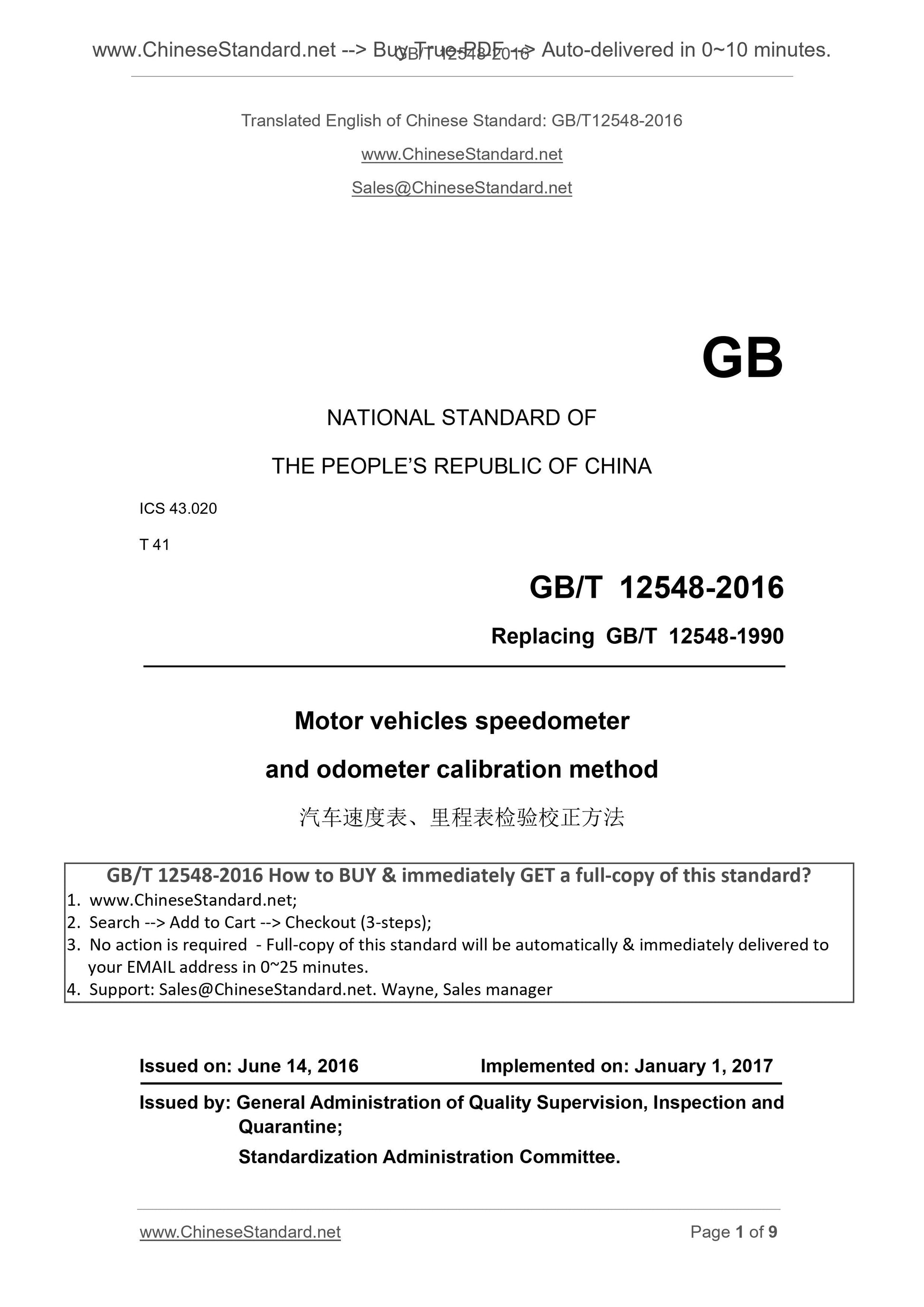

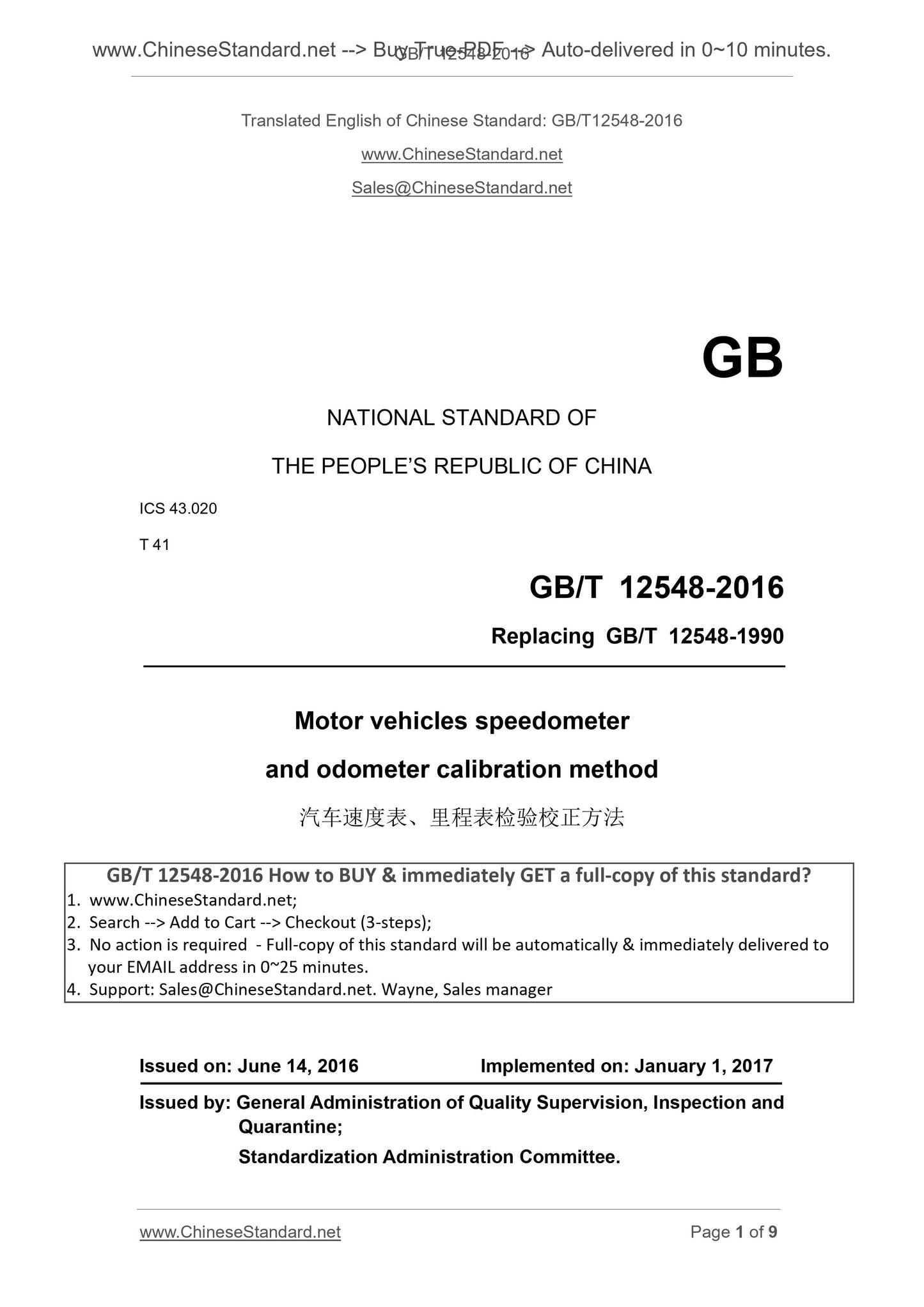

GB/T 12548-2016
GB
NATIONAL STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 43.020
T 41
Replacing GB/T 12548-1990
Motor vehicles speedometer
and odometer calibration method
ISSUED ON. JUNE 14, 2016
IMPLEMENTED ON. JANUARY 1, 2017
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

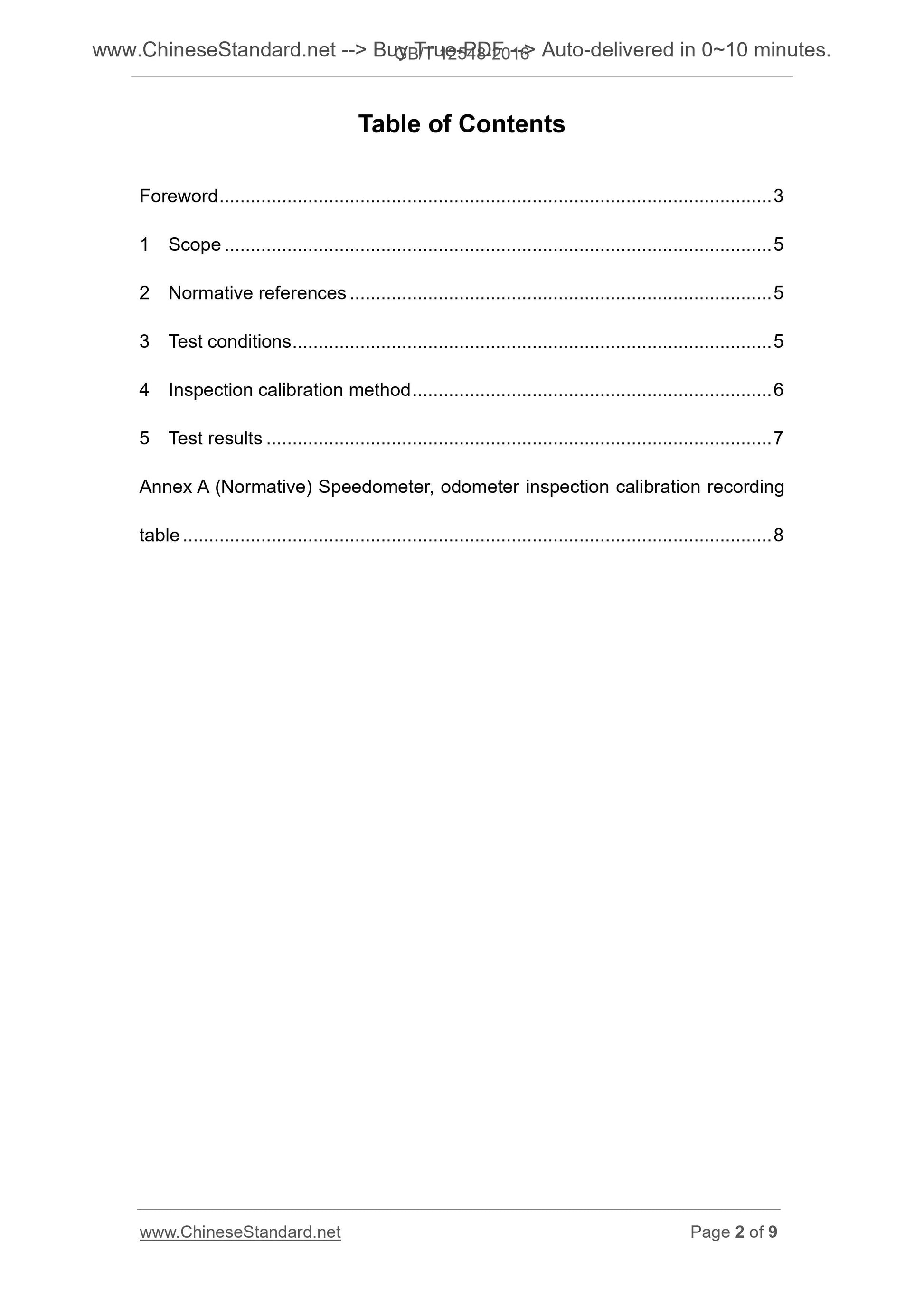

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Test conditions ... 5
4 Inspection calibration method ... 6
5 Test results ... 7
Annex A (Normative) Speedometer, odometer inspection calibration recording table ... 8

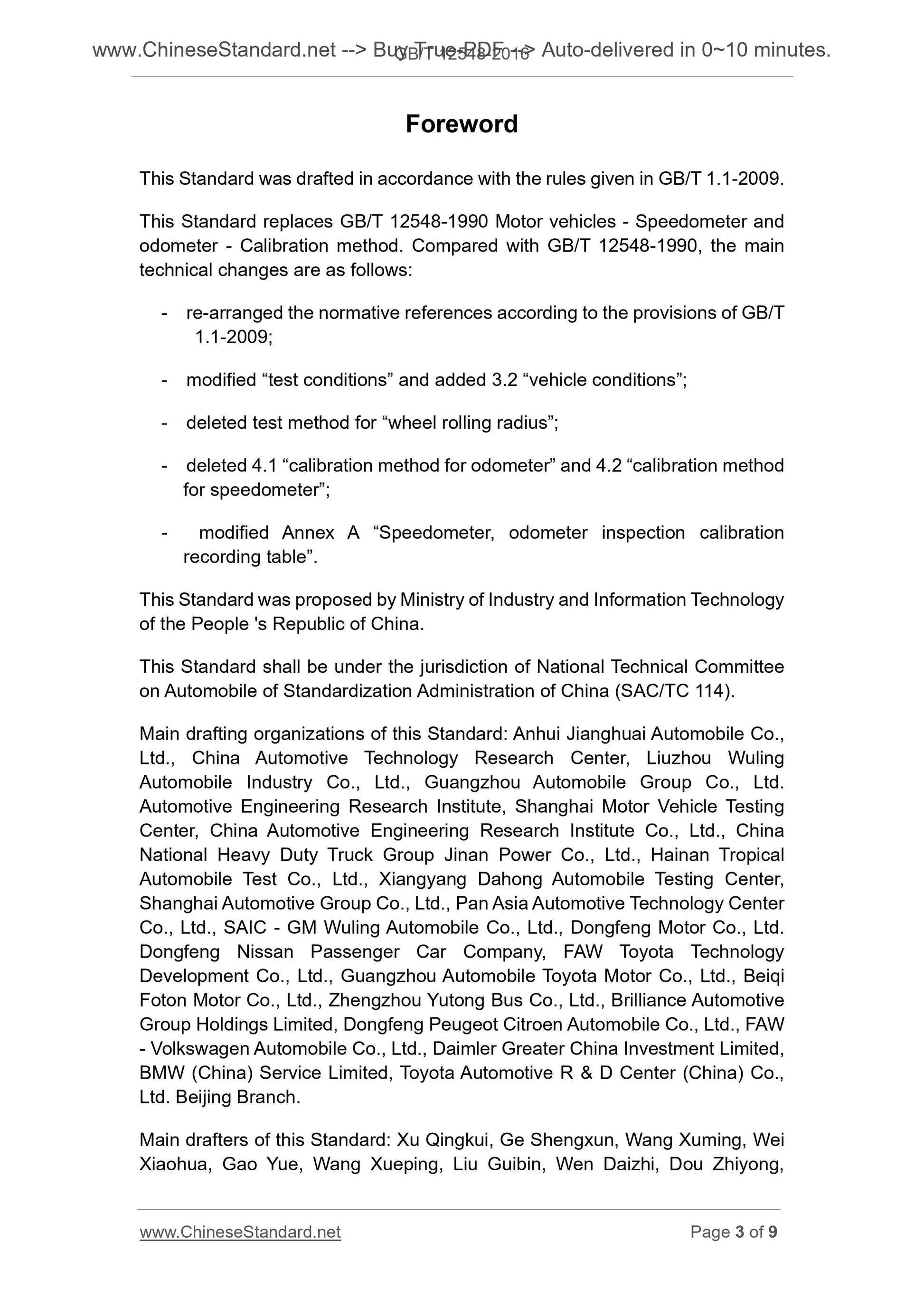

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009. This Standard replaces GB/T 12548-1990 Motor vehicles - Speedometer and odometer - Calibration method. Compared with GB/T 12548-1990, the main
technical changes are as follows.
- re-arranged the normative references according to the provisions of GB/T 1.1-2009;
- modified ?€?test conditions?€? and added 3.2 ?€?vehicle conditions?€?;
- deleted test method for ?€?wheel rolling radius?€?;
- deleted 4.1 ?€?calibration method for odometer?€? and 4.2 ?€?calibration method for speedometer?€?;
- modified Annex A ?€?Speedometer, odometer inspection calibration
recording table?€?.
This Standard was proposed by Ministry of Industry and Information Technology of the People 's Republic of China.
This Standard shall be under the jurisdiction of National Technical Committee on Automobile of Standardization Administration of China (SAC/TC 114).
Main drafting organizations of this Standard. Anhui Jianghuai Automobile Co., Ltd., China Automotive Technology Research Center, Liuzhou Wuling
Automobile Industry Co., Ltd., Guangzhou Automobile Group Co., Ltd.
Automotive Engineering Research Institute, Shanghai Motor Vehicle Testing Center, China Automotive Engineering Research Institute Co., Ltd., China National Heavy Duty Truck Group Jinan Power Co., Ltd., Hainan Tropical
Automobile Test Co., Ltd., Xiangyang Dahong Automobile Testing Center,
Shanghai Automotive Group Co., Ltd., Pan Asia Automotive Technology Center Co., Ltd., SAIC - GM Wuling Automobile Co., Ltd., Dongfeng Motor Co., Ltd. Dongfeng Nissan Passenger Car Company, FAW Toyota Technology
Development Co., Ltd., Guangzhou Automobile Toyota Motor Co., Ltd., Beiqi Foton Motor Co., Ltd., Zhengzhou Yutong Bus Co., Ltd., Brilliance Automotive Group Holdings Limited, Dongfeng Peugeot Citroen Automobile Co., Ltd., FAW - Volkswagen Automobile Co., Ltd., Daimler Greater China Investment Limited, BMW (China) Service Limited, Toyota Automotive R and D Center (China) Co., Ltd. Beijing Branch.
Main drafters of this Standard. Xu Qingkui, Ge Shengxun, Wang Xuming, Wei Xiaohua, Gao Yue, Wang Xueping, Liu Guibin, Wen Daizhi, Dou Zhiyong,

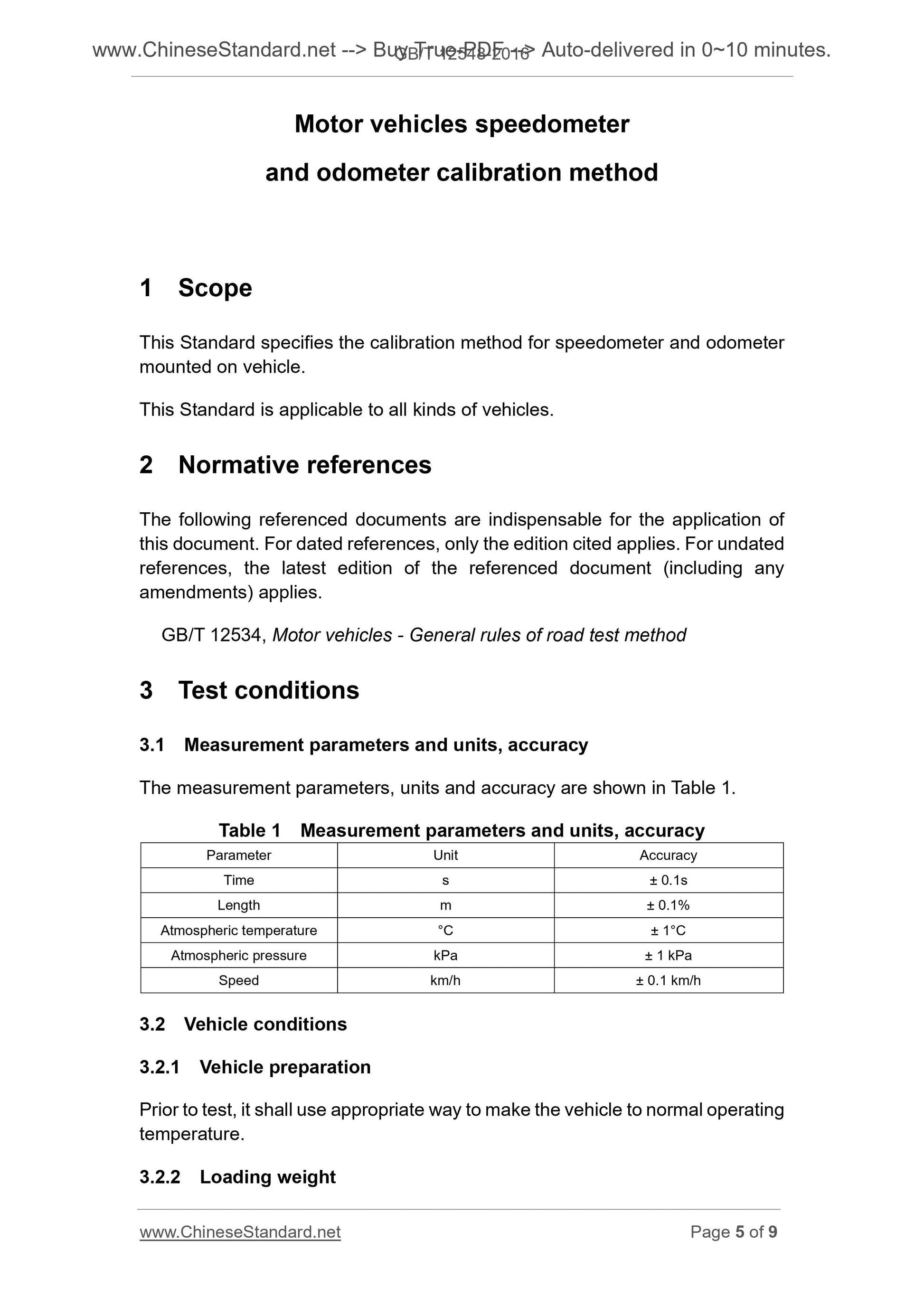

Motor vehicles speedometer
and odometer calibration method
1 Scope
This Standard specifies the calibration method for speedometer and odometer mounted on vehicle.
This Standard is applicable to all kinds of vehicles.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
GB/T 12534, Motor vehicles - General rules of road test method
3 Test conditions
3.1 Measurement parameters and units, accuracy
The measurement parameters, units and accuracy are shown in Table 1.
Table 1 Measurement parameters and units, accuracy
Parameter Unit Accuracy
Time s ?? 0.1s
Length m ?? 0.1%
Atmospheric temperature ??C ?? 1??C
Atmospheric pressure kPa ?? 1 kPa
Speed km/h ?? 0.1 km/h
3.2 Vehicle conditions
3.2.1 Vehicle preparation
Prior to test, it shall use appropriate way to make the vehicle to normal operating temperature.
3.2.2 Loading weight
