GB/T 12467.1-2009: Quality requirements for fusion welding of metallic materials -- Part 1: Criteria for the selection of the appropriate level of quality requirements
GB/T 12467.1-2009
Quality reqirements for fusion welding of metallic materials. Part 1. Criteria for the selection of the appropriate level of quality requirements
ICS 25.160.01
J33
National Standards of People's Republic of China
GB/T 12467.1-2009/ISO 3834-1.2005
Replace GB/T 12467.1-1998
Metal material welding quality requirements
Part 1. Quality requirements corresponding level
Selection criteria
(ISO 3834-1.2005, IDT)
Released on.2009-10-30
2010-04-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China
China National Standardization Administration issued
Foreword
GB/T 12467 "Metal material fusion welding quality requirements" is divided into five parts.
--- Part 1. Selection criteria for the corresponding level of quality requirements;
--- Part 2. Complete quality requirements;
--- Part 3. General quality requirements;
--- Part 4. Basic quality requirements;
--- Part 5. Standard guidelines for meeting quality requirements.
This part is the first part of GB/T 12467.
This part is equivalent to ISO 3834-1.2005 "Quality requirements for fusion welding of metallic materials - Part 1. Selection of corresponding grades of quality requirements
Guidelines (English version).
This section is equivalent to translation ISO 3834-1.2005.
For ease of use, this section has made the following editorial changes.
--- Removed the preface to international standards;
--- Replace the ISO standard referenced in ISO 3834-1.2005 "normative reference documents" with equivalent Chinese standards.
This part replaces GB/T 12467.1-1998 "Welding quality requirements - Fusion welding of metallic materials - Part 1. Selection and use
guide".
The main changes in this section compared with GB/T 12467.1-1998 are as follows.
---Retained the "Selection Guide" section of the quality level, and removed the "Application Guide" section of the original standard;
--- Added "Overall overview of GB/T 12467 standard";
--- Cancel the selection form and flow chart of welding quality requirements.
Appendix A of this section is an informative annex.
This part is proposed and managed by the National Welding Standardization Technical Committee.
This section drafted by. Harbin Welding Research Institute, Harbin Welding Technology Training Center of Machinery Industry.
The main drafters of this section. Pu Dongguang, Jie Yinglong, Wang Lin, Chen Yu, Su Jinhua.
The previous versions of the standards replaced by this section are.
---GB/T 12467.1-1998;
---GB/T 12467-1990, GB/T 12468-1990.
GB/T 12467.1-2009/ISO 3834-1.2005
Metal material welding quality requirements
Part 1. Quality requirements corresponding level
Selection criteria

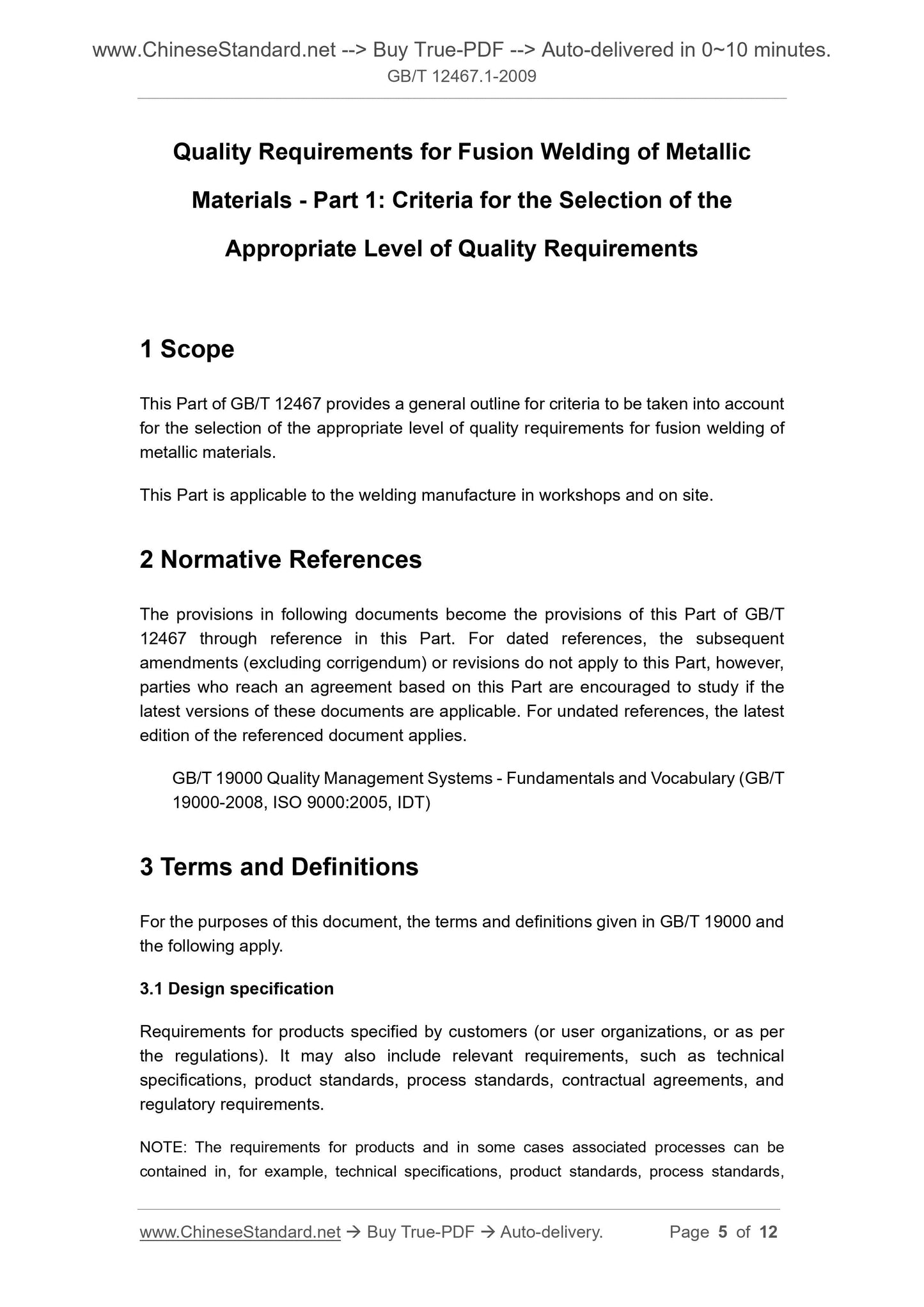

1 range
This part of GB/T 12467 specifies the criteria to be considered when selecting the quality level of fusion welding of metal materials.
This section applies to welding manufacturing in the workshop and on site.
2 Normative references
The provisions in the following documents become the provisions of this part by reference to this part of GB/T 12467. Quotations with dated
, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouragement is achieved under this section
The parties to the agreement study whether the latest versions of these documents can be used. For undated references, the latest edition applies to this
section.
GB/T 19000 Quality Management System Foundation and Terminology (GB/T 19000-2008, ISO 9000.2005, IDT)
3 Terms and definitions
The following terms and definitions established by GB/T 19000 apply to this section.
3.1
Product requirements as specified by the user (or user organization, or by rules). Design technical conditions may also include relevant requirements such as.
Technical specifications, product standards, process standards, contractual agreements and regulatory requirements.
Note. Products and certain process-related requirements may also be included, such as. technical specifications, product standards, process standards, contractual agreements and rules.
Claim.
3.2
People who have acquired sufficient skills and knowledge through education, training, and or related practices.
Note. In order to demonstrate their abilities and knowledge, a qualification exam may be required.
3.3
Product, component or all welded parts.
3.4
The person or organization responsible for the welding manufacturing.
3.5
Suppliers of products, services and/or activities are provided to manufacturers under contractual conditions.
3.6
A person who performs mechanized or automated fusion welding operations.
GB/T 12467.1-2009/ISO 3834-1.2005
Overall overview of 4 GB/T 12467
GB/T 12467 specifies the quality requirements for fusion welding of metal materials. These quality requirements contained in this section may also apply to other
Welding method. These quality requirements relate only to those aspects of product quality that are affected by fusion welding and are not limited by product type.
GB/T 12467 provides a means for manufacturers to demonstrate their ability to manufacture specific quality products.
The development of standards is based on the following considerations.
a) the standard is not limited by the type of manufacturing structure;
b) the standard specifies the quality requirements for the workshop and or on-site welding;
c) standards provide guidance for describing the ability of manufacturers to produce structures that meet specified requirements;
d) The standard provides the basis for evaluating the manufacturer's welding capabilities.
Manufacturers are required to demonstrate their ability to produce welded structures and to meet certain quality requirements in one or more of the following documents
When using GB/T 12467.
---specification;
---Product Standards;
--- Normative requirements.
Manufacturers may fully adopt the requirements contained in this section and may also selectively screen when the structure involved is not suitable.
use. The standard provides an alternative framework for welding control in the following applications.
--- The first case. special requirements for manufacturers that meet the GB/T 19001 quality management system specifications;
--- The second case. special requirements for manufacturers that meet the different quality management system specifications than GB/T 19001;
--- The third case. provide a special guide for manufacturers to develop a quality management system for fusion welding;
--- Fourth case. Provide detailed requirements for those specifications, rules or product standards that have control requirements for fusion welding activities.
5 Quality requirements corresponding level selection
The corresponding part of GB/T 12467 should be selected according to product standards, specifications, rules or contracts for the quality requirements.
GB/T 12467 is applicable to different situations and occasions. This chapter does not specify the specific rules for the quality requirements used under each condition.
Make regulations.
GB/T 12467 can be used in different situations. The manufacturer shall have quality at three different levels based on the following product-related content.
Select a level in the requirement.
--- The scope and importance of products that involve safety;
--- Manufacturing complexity;
---The scope of manufacturing products;
---The range of different materials used;
---The range of possible metallurgical problems;
--- Manufacturing defects that affect product performance, such as misalignment, deformation or weld defects.
When a manufacturer meets a certain quality level, it can be considered that it also meets all lower quality level requirements without
Further verification (eg. Manufacturers meeting the complete quality requirements of GB/T 12467.2 also meet the general quality requirements of GB/T 12467.3
Seek the basic quality requirements of GB/T 12467.4).
Appendix A lists the guidelines that will help you select the appropriate part of GB/T 12467.
6 Elements to be considered in implementing GB/T 12467 in a quality management system
GB/T 12467 contains many elements for building a quality management system (QMS). GB/T 19001-2000 provides quality
Detailed requirements for the various elements of the system. In order to ensure the quality of the weld, the manufacturer should consider these in accordance with the quality requirements of GB/T 12467.
Implementation of the elements. These elements include.
GB/T 12467.1-2009/ISO 3834-1.2005
a) Document control and record control (see 4.2.3 and 4.2.4 of GB/T 19001-2000);
b) Management responsibilities (see Chapter 5 of GB/T 19001-2000);
c) resource provision (see 6.1 of GB/T 19001-2000);
d) the competence, awareness and training of the operator (see 6.2.2 and 7.5.2b of GB/T 19001-2000);
e) Planning of product realization (see 7.1 of GB/T 19001-2000);
f) determination of requirements related to the product (see 7.2.1 of GB/T 19001-2000);
g) Review of product-related requirements (see 7.2.2 of GB/T 19001-2000);
h) Procurement (see 7.4 of GB/T 19001-2000);
i) Confirmation of the process (see 7.5.2 of GB/T 19001-2000);
j) Customer property (see 7.5.4 of GB/T 19001-2000);
k) Internal audit (see 8.2.2 of GB/T 19001-2000);
l) Monitoring and measurement of the product (see 8.2.4 of GB/T 19001-2000).
GB/T 19004-2000 provides guidance on the establishment and implementation of a quality management system.
GB/T 12467.1-2009/ISO 3834-1.2005
Appendix A
(informative appendix)
Select the criteria of GB/T 12467.2, GB/T 12467.3 or GB/T 12467.4
Serial number element GB/T 12467.2 GB/T 12467.3 GB/T 12467.4
1 Request for review
There are written reports that may have written reports without reporting requirements
2 Technical review
There are written reports that may have written reports without reporting requirements
3 subcontractors
The manufacturer is treated as a specific subcontracted product, service and/or activity, but the manufacturer ultimately determines the quality
Responsible
4 welders and welding operators have assessment requirements
5 Welding personnel are required to have no specific requirements
6 Test and inspection personnel have assessment requirements
7 Production and test equipment
Equipped with appropriate preparation, process implementation, testing, transportation, lifting equipment as required, and with safety and protection
Features
8 Equipment maintenance
Request to provide and maintain equipment availability
Request for written plans and report recommendations
No specific requirements
9 Device description has detailed requirements without specific requirements
10 Production plan
request
Request written plans and report recommendations for written plans and reports
No specific requirements
11 Welding procedure specifications are required without specific requirements
12 Welding procedure qualification requirements have no specific requirements
13 Batch testing of welding materials has no specific requirements as required
14 The storage requirements of the welding materials are in accordance with the supplier's recommended procedures according to the supplier's specifications.
15 The storage of the base metal requires protection from the environment; the label should be kept without specific requirements during storage.
16 post weld heat treatment
Confirm that product standards or specifications are met
Request procedures, reports and
Report relative product
Traceability
Request procedures and reports
No specific requirements
Before welding, during welding, and
Post-weld test
If required, if required
18 Non-conformities and corrective actions taken to require repairs or corrective actions to take control measures
Measuring and testing equipment
Calibration
There are requirements if there are no specific requirements
20 Process identification, if required, no specific requirements
21 traceability, if required, no specific requirements
22 Quality report if required
GB/T 12467.1-2009/ISO 3834-1.2005
references
[1] GB/T 19001-2000 Quality Management System Requirements (ISO 9001.2000, IDT)
[2] GB/T 19004-2000 Quality Management System Performance Improvement Guide (idt ISO 9004.2000)
[3] GB/T 12467.2-2009 Welding quality requirements for metallic materials - Part 2. Complete quality requirements (ISO 3834-2.
2005, IDT)
[4] GB/T 12467.3-2009 Metallic materials - Welding quality requirements - Part 3. General quality requirements (ISO 3834-3.
2005, IDT)
[5] GB/T 12467.4-2009 Welding quality requirements for metallic materials - Part 4. Basic quality requirements (ISO 3834-4.
2005, IDT)
