GB/T 12428-2005 English PDF (GBT12428-2005)

GB/T 12428-2005 English PDF (GBT12428-2005)

Regular price $70.00 USD
Regular price Sale price $70.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 12428-2005 to get it for Purchase Approval, Bank TT...

GB/T 12428-2005: Laden mass calculating method for buses

This Standard specifies the average calculating mass of every member of the bus as well as his/her hand baggage and carry-on baggage, the calculating methods for the effective area occupied by each standing passenger, allowable baggage mass per unit of baggage compartment volume and per unit of roof rack area, as well as the number of occupants and passenger baggage laden mass and the maximum design laden mass of bus.

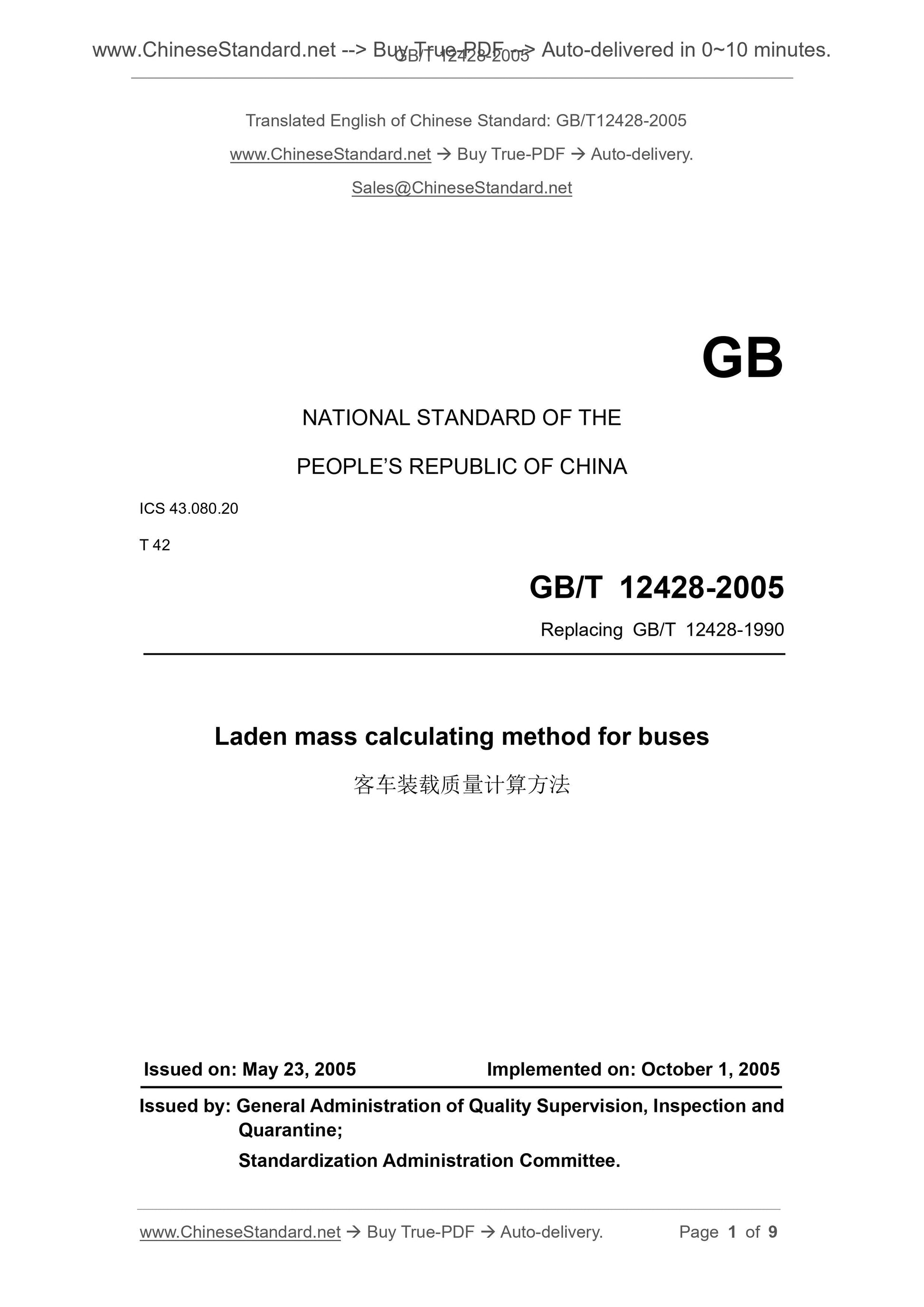

GB/T 12428-2005
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.080.20
T 42
Replacing GB/T 12428-1990
Laden mass calculating method for buses
ISSUED ON. MAY 23, 2005
IMPLEMENTED ON. OCTOBER 1, 2005
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

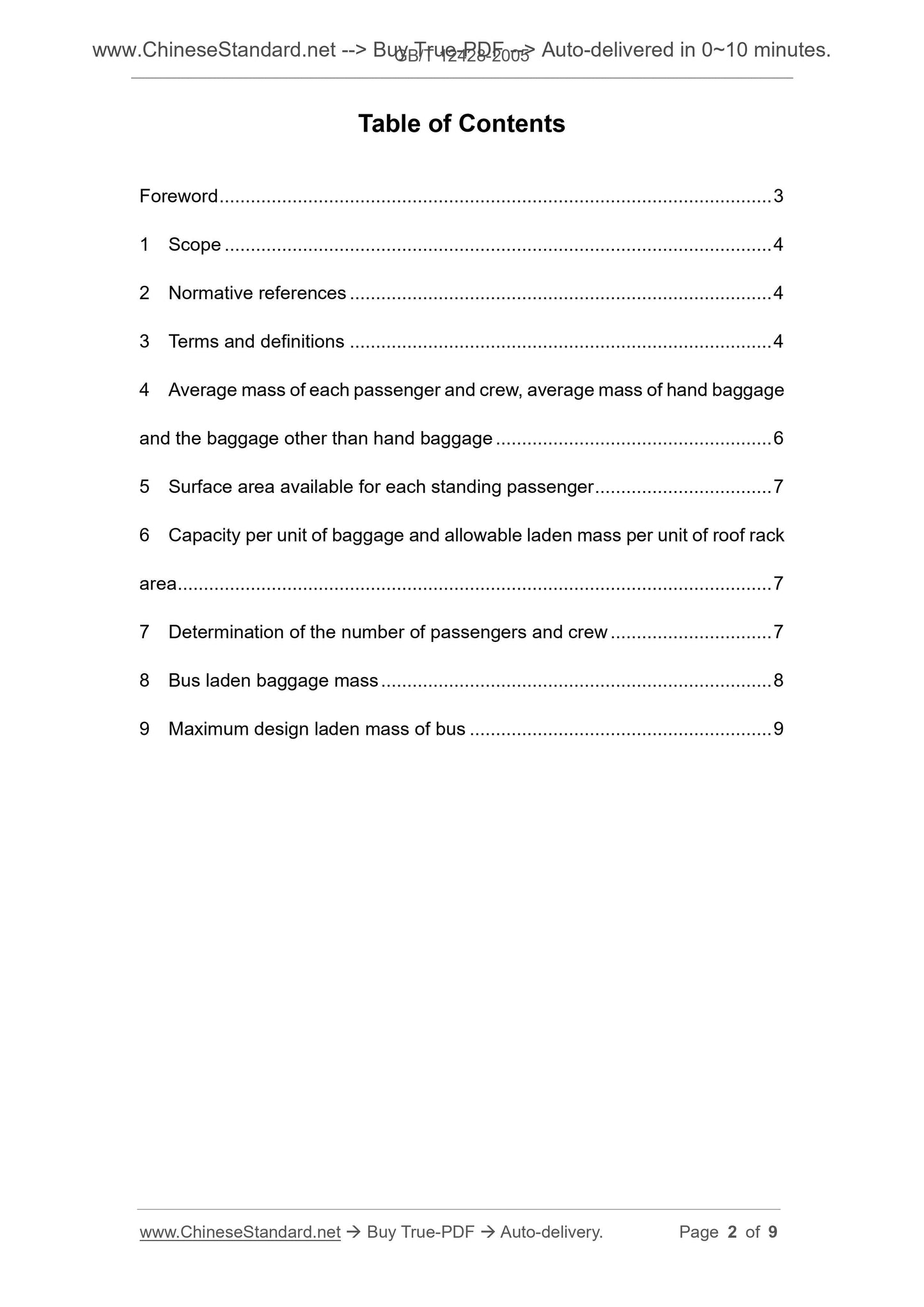

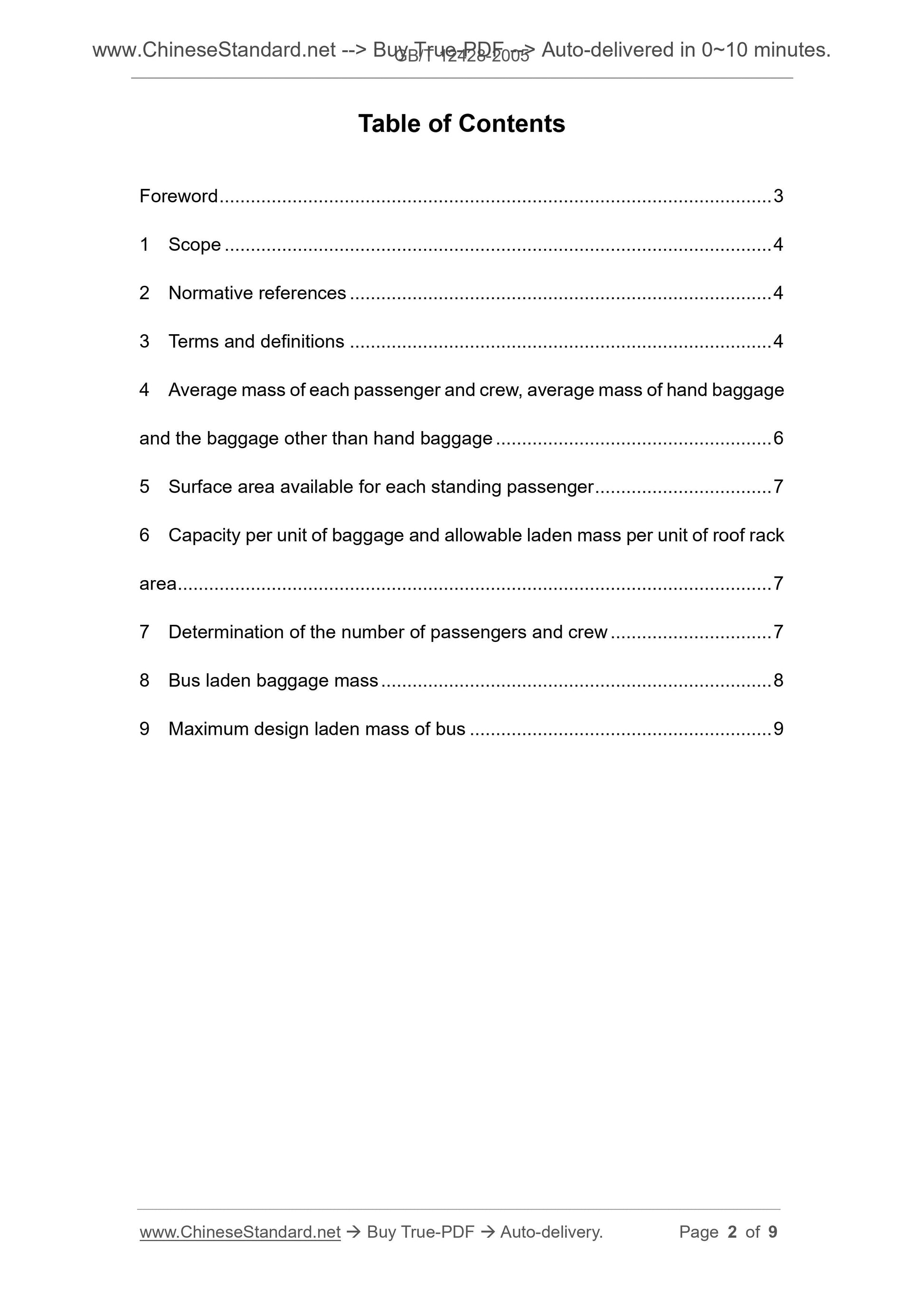

Table of Contents
Foreword . 3
1 Scope .. 4
2 Normative references .. 4
3 Terms and definitions .. 4
4 Average mass of each passenger and crew, average mass of hand baggage and the baggage other than hand baggage .. 6
5 Surface area available for each standing passenger .. 7
6 Capacity per unit of baggage and allowable laden mass per unit of roof rack area .. 7
7 Determination of the number of passengers and crew .. 7
8 Bus laden baggage mass . 8
9 Maximum design laden mass of bus . 9

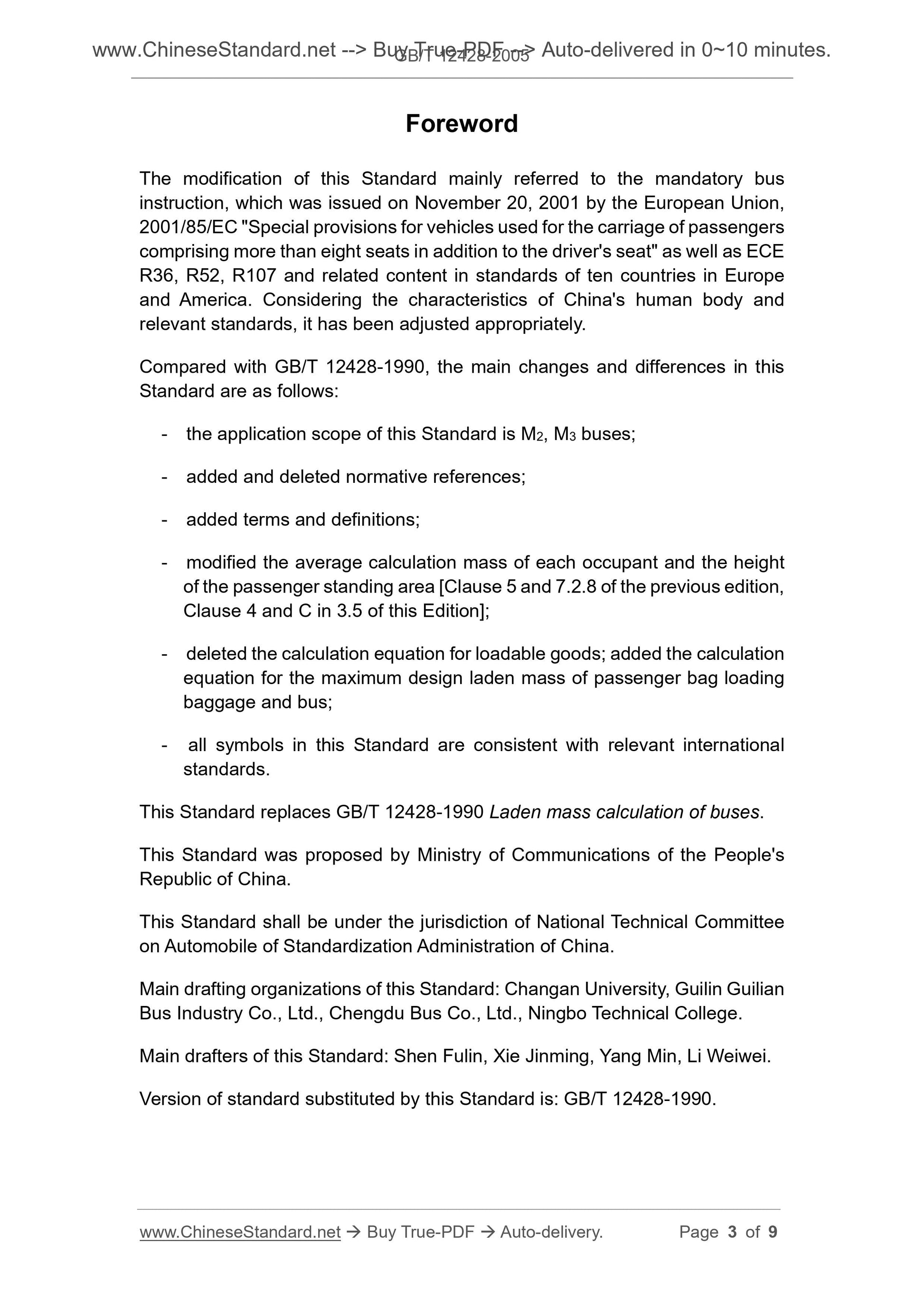

Foreword
The modification of this Standard mainly referred to the mandatory bus
instruction, which was issued on November 20, 2001 by the European Union, 2001/85/EC "Special provisions for vehicles used for the carriage of passengers comprising more than eight seats in addition to the driver's seat" as well as ECE R36, R52, R107 and related content in standards of ten countries in Europe and America. Considering the characteristics of China's human body and
relevant standards, it has been adjusted appropriately.
Compared with GB/T 12428-1990, the main changes and differences in this Standard are as follows.
- the application scope of this Standard is M2, M3 buses;
- added and deleted normative references;
- added terms and definitions;
- modified the average calculation mass of each occupant and the height of the passenger standing area [Clause 5 and 7.2.8 of the previous edition, Clause 4 and C in 3.5 of this Edition];
- deleted the calculation equation for loadable goods; added the calculation equation for the maximum design laden mass of passenger bag loading
baggage and bus;
- all symbols in this Standard are consistent with relevant international standards.
This Standard replaces GB/T 12428-1990 Laden mass calculation of buses. This Standard was proposed by Ministry of Communications of the People's Republic of China.
This Standard shall be under the jurisdiction of National Technical Committee on Automobile of Standardization Administration of China.
Main drafting organizations of this Standard. Changan University, Guilin Guilian Bus Industry Co., Ltd., Chengdu Bus Co., Ltd., Ningbo Technical College. Main drafters of this Standard. Shen Fulin, Xie Jinming, Yang Min, Li Weiwei. Version of standard substituted by this Standard is. GB/T 12428-1990.

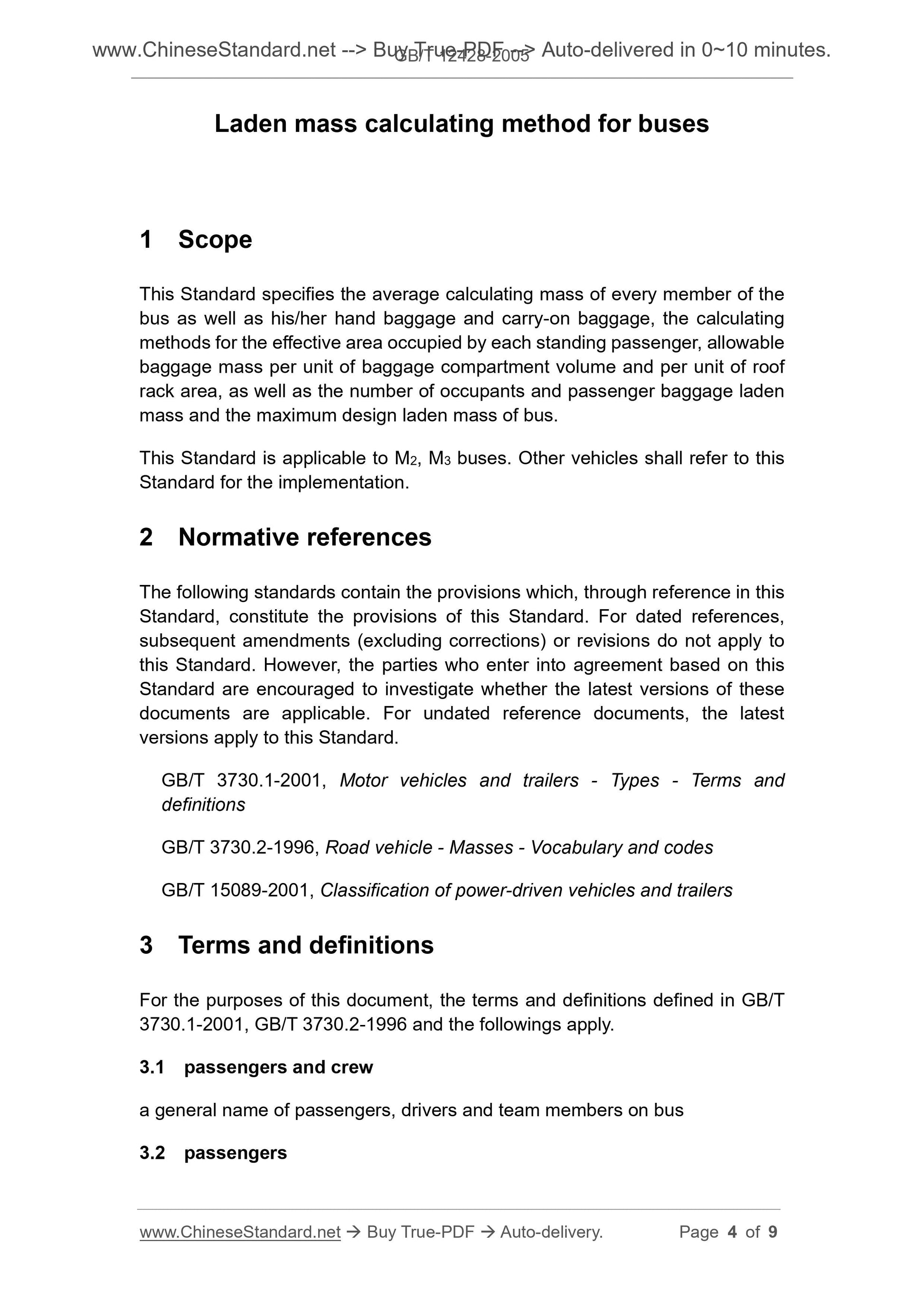

Laden mass calculating method for buses
1 Scope
This Standard specifies the average calculating mass of every member of the bus as well as his/her hand baggage and carry-on baggage, the calculating methods for the effective area occupied by each standing passenger, allowable baggage mass per unit of baggage compartment volume and per unit of roof rack area, as well as the number of occupants and passenger baggage laden mass and the maximum design laden mass of bus.
This Standard is applicable to M2, M3 buses. Other vehicles shall refer to this Standard for the implementation.
2 Normative references
The following standards contain the provisions which, through reference in this Standard, constitute the provisions of this Standard. For dated references, subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest
versions apply to this Standard.
GB/T 3730.1-2001, Motor vehicles and trailers - Types - Terms and
definitions
GB/T 3730.2-1996, Road vehicle - Masses - Vocabulary and codes
GB/T 15089-2001, Classification of power-driven vehicles and trailers
3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T 3730.1-2001, GB/T 3730.2-1996 and the followings apply.
3.1 passengers and crew
a general name of passengers, drivers and team members on bus
3.2 passengers

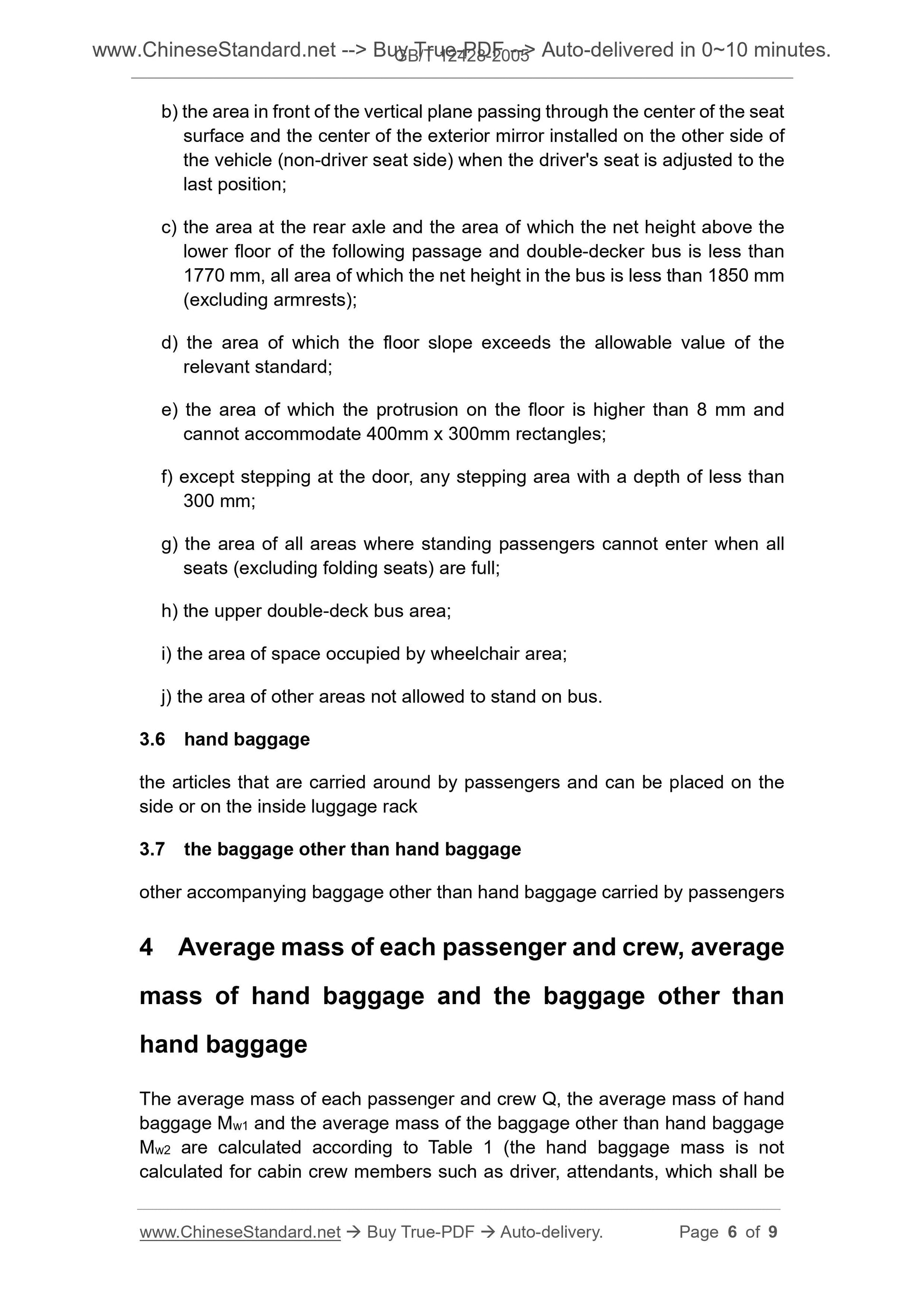

b) the area in front of the vertical plane passing through the center of the seat surface and the center of the exterior mirror installed on the other side of the vehicle (non-driver seat side) when the driver's seat is adjusted to the last position;
c) the area at the rear axle and the area of which the net height above the lower floor of the following passage and double-decker bus is less than 1770 mm, all area of which the net height in the bus is less than 1850 mm (excluding armrests);
d) the area of which the floor slope exceeds the allowable value of the relevant standard;
e) the area of which the protrusion on the floor is higher than 8 mm and cannot accommodate 400mm x 300mm rectangles;
f) except stepping at the door, any stepping area with a depth of less than 300 mm;
g) the area of all areas where standing passengers cannot enter when all seats (excluding folding seats) are full;
h) the upper double-deck bus area;
i) the area of space occupied by wheelchair area;
j) the area of other areas not allowed to stand on bus.
3.6 hand baggage
the articles that are carried around by passengers and can be placed on the side or on the inside luggage rack
3.7 the baggage other than hand baggage
other accompanying baggage other than hand baggage carried by passengers 4 Average mass of each passenger and crew, average
mass of hand baggage and the baggage other than
hand baggage
The average mass of each passenger and crew Q, the average mass of hand baggage Mw1 and the average mass of the baggage other than hand baggage Mw2 are calculated according to Table 1 (the hand baggage mass is not
calculated for cabin crew members such as driver, attendants, which shall be
