GB/T 12243-2005: Spring loaded safety valves

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 12243-2005 (Self-service in 1-minute)
Newer / historical versions: GB/T 12243-2005

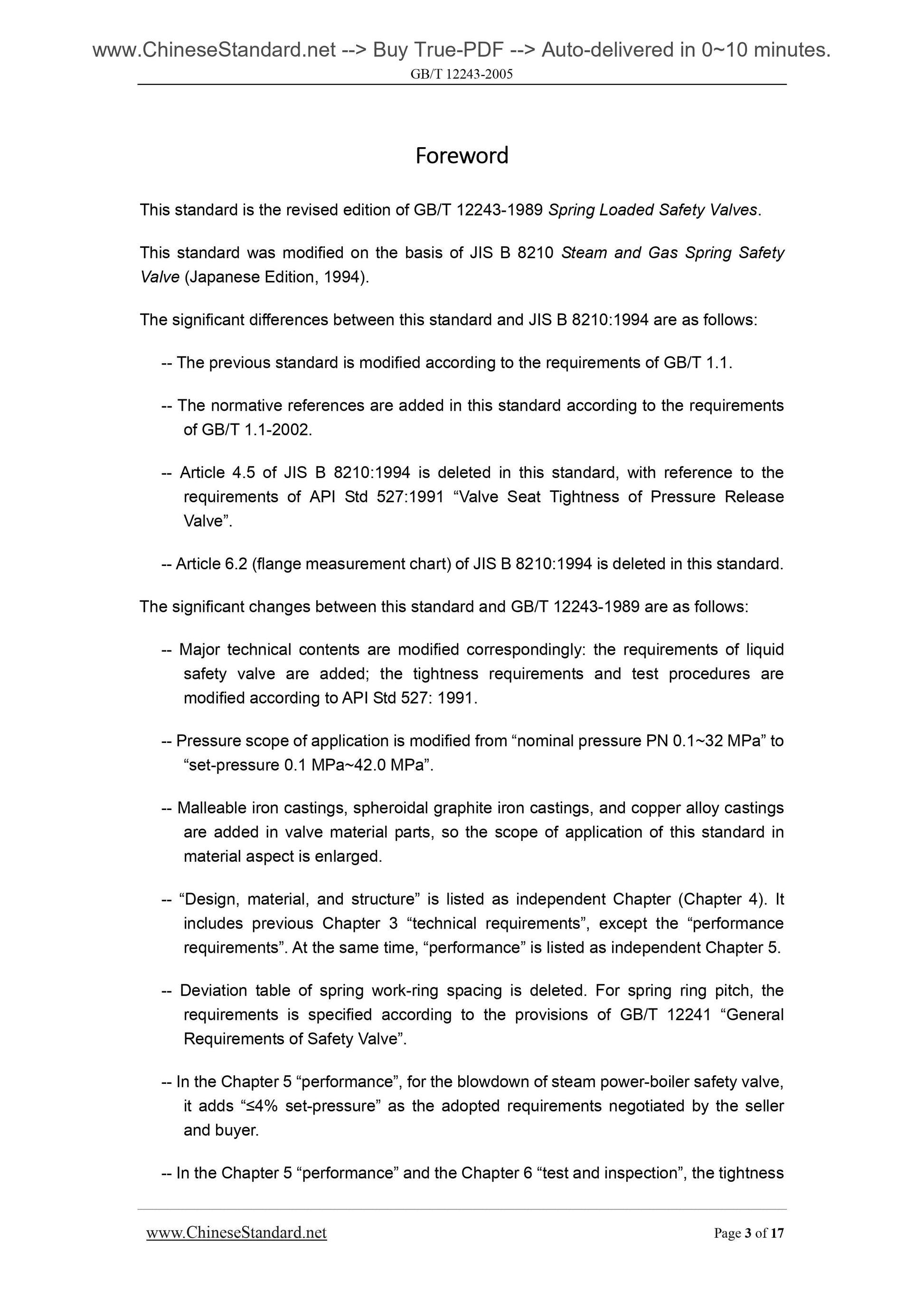

Preview True-PDF

Scope

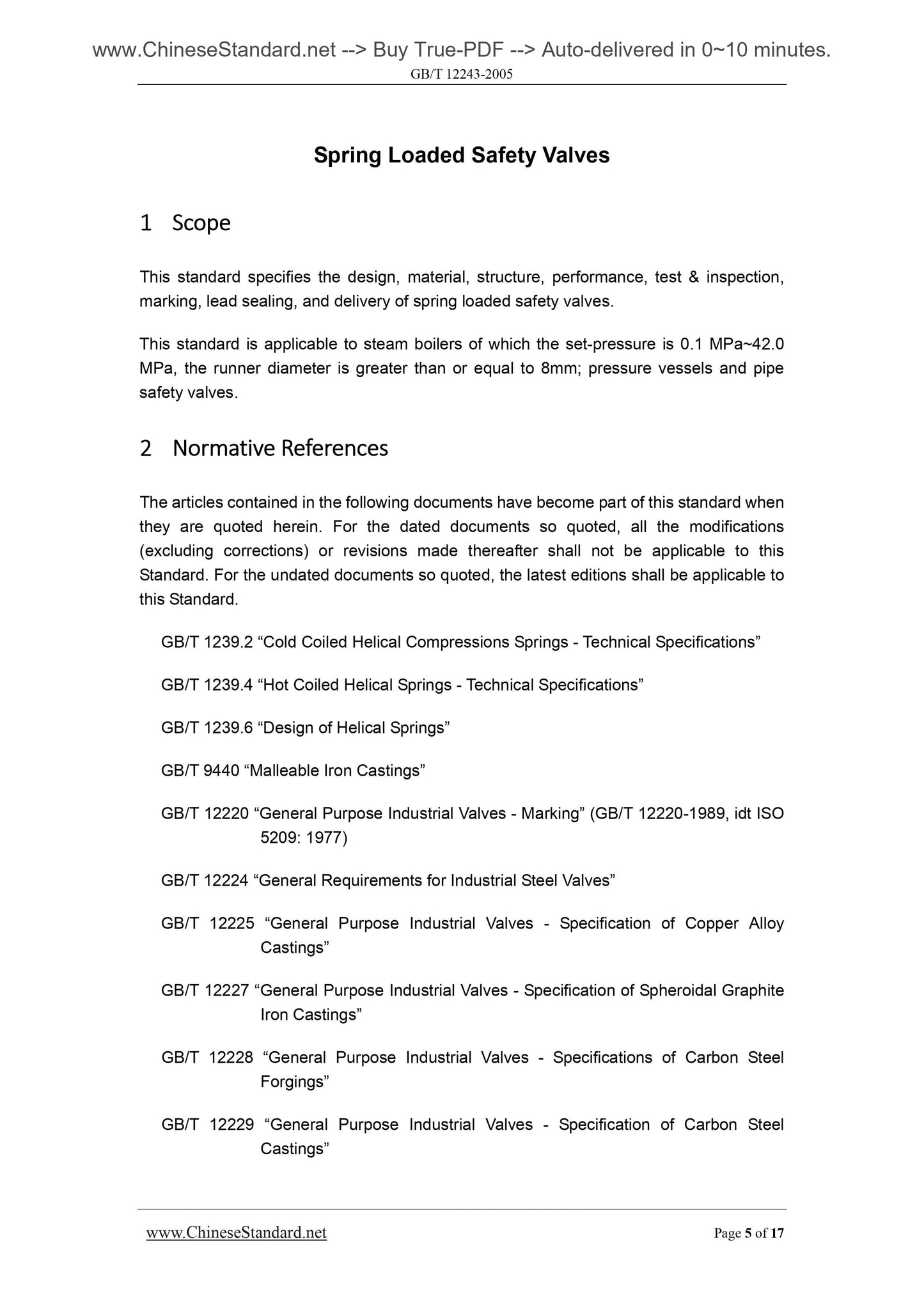

This standard specifies the design, material, structure, performance, test and inspection,
marking, lead sealing, and delivery of spring loaded safety valves.
This standard is applicable to steam boilers of which the set-pressure is 0.1 MPa~42.0
MPa, the runner diameter is greater than or equal to 8mm; pressure vessels and pipe
safety valves.
2  Normative References
The articles contained in the following documents have become part of this standard when
they are quoted herein. For the dated documents so quoted, all the modifications
(excluding corrections) or revisions made thereafter shall not be applicable to this
Standard. For the undated documents so quoted, the latest editions shall be applicable to
this Standard.
GB/T 1239.2 “Cold Coiled Helical Compressions Springs - Technical Specifications”
GB/T 1239.4 “Hot Coiled Helical Springs - Technical Specifications”
GB/T 1239.6 “Design of Helical Springs”
GB/T 9440 “Malleable Iron Castings”
GB/T 12220 “General Purpose Industrial Valves - Marking” (GB/T 12220-1989, idt ISO
5209. 1977)
GB/T 12224 “General Requirements for Industrial Steel Valves”
GB/T 12225 “General Purpose Industrial Valves - Specification of Copper Alloy
Castings”
GB/T 12227 “General Purpose Industrial Valves - Specification of Spheroidal Graphite
Iron Castings”
GB/T 12228 “General Purpose Industrial Valves - Specifications of Carbon Steel
Forgings”
GB/T 12229 “General Purpose Industrial Valves - Specification of Carbon Steel
Castings”
GB/T 12230 “General Purpose Industrial Valves - Specifications of Austenitic Steel
Castings”
GB/T 12241 “Safety Valve - General Requirements” (GB/T 12241-2005, ISO
4126-1.1991, MOD)
GB/T 12242 “Performance Test Code Pressure Relief Devices”
JB/T 7928 “General Purpose Industrial Valves Delivery Specification”

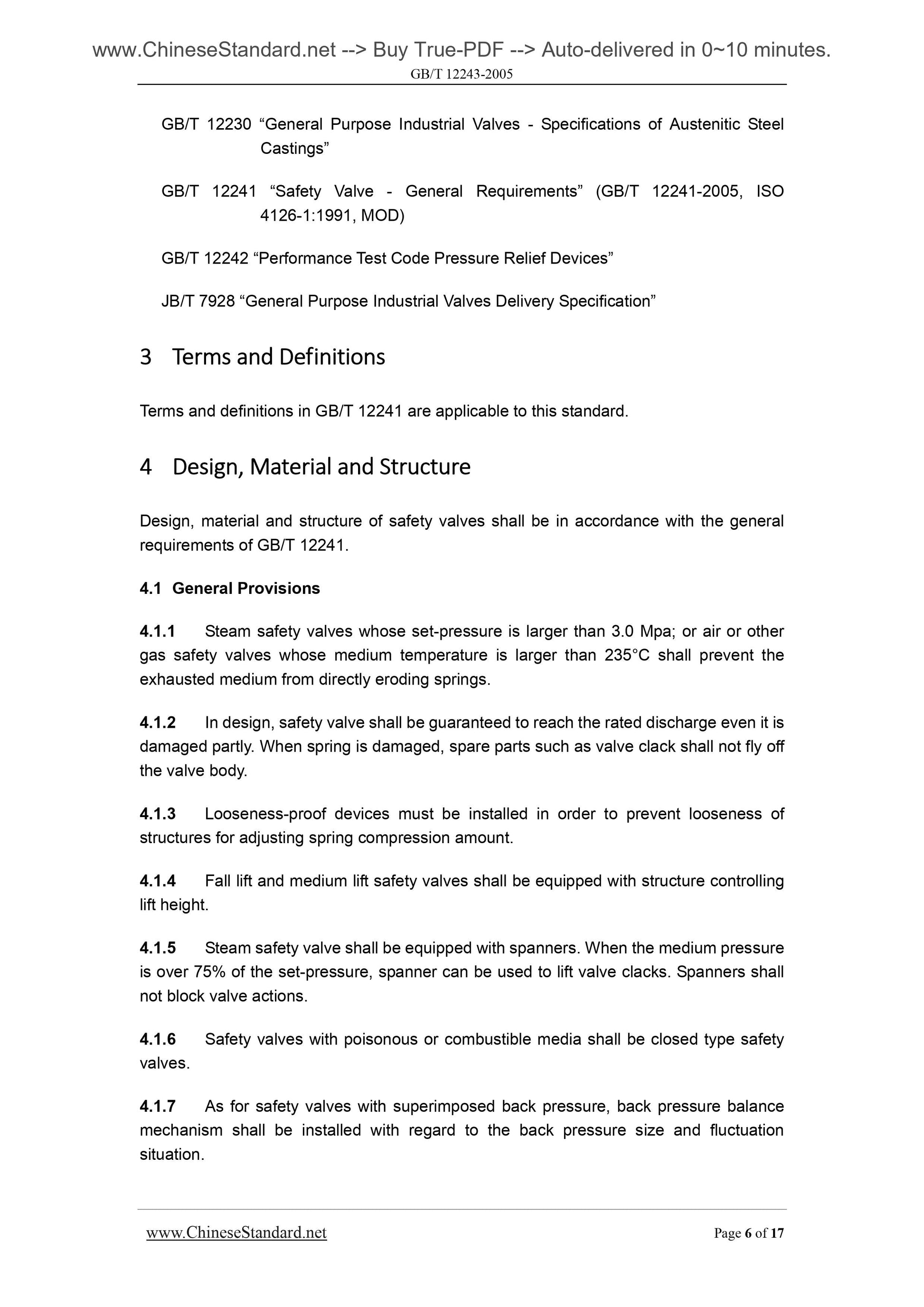

3  Terms and Definitions
Terms and definitions in GB/T 12241 are applicable to this standard.
4  Design, Material and Structure
Design, material and structure of safety valves shall be in accordance with the general
requirements of GB/T 12241.
4.1 General Provisions
4.1.1 Steam safety valves whose set-pressure is larger than 3.0 Mpa; or air or other
gas safety valves whose medium temperature is larger than 235°C shall prevent the
exhausted medium from directly eroding springs.
4.1.2 In design, safety valve shall be guaranteed to reach the rated discharge even it is
damaged partly. When spring is damaged, spare parts such as valve clack shall not fly off
the valve body.
4.1.3 Looseness-proof devices must be installed in order to prevent looseness of
structures for adjusting spring compression amount.
4.1.4 Fall lift and medium lift safety valves shall be equipped with structure controlling
lift height.
4.1.5 Steam safety valve shall be equipped with spanners. When the medium pressure
is over 75% of the set-pressure, spanner can be used to lift valve clacks. Spanners shall
not block valve actions.
4.1.6 Safety valves with poisonous or combustible media shall be closed type safety
valves.
4.1.7 As for safety valves with superimposed back pressure, back pressure balance
mechanism shall be installed with regard to the back pressure size and fluctuation
situation.
h -- Designed lift height (mm).
4.6.13 The spring deformation amount under the maximum working load shall be less
than or equal to 80% of that under the testing load.
4.6.14 The spring deformation amount under the maximum working load shall be less
than or equal to 80% of that when the spring rings fold together.
4.7 Material Requirements

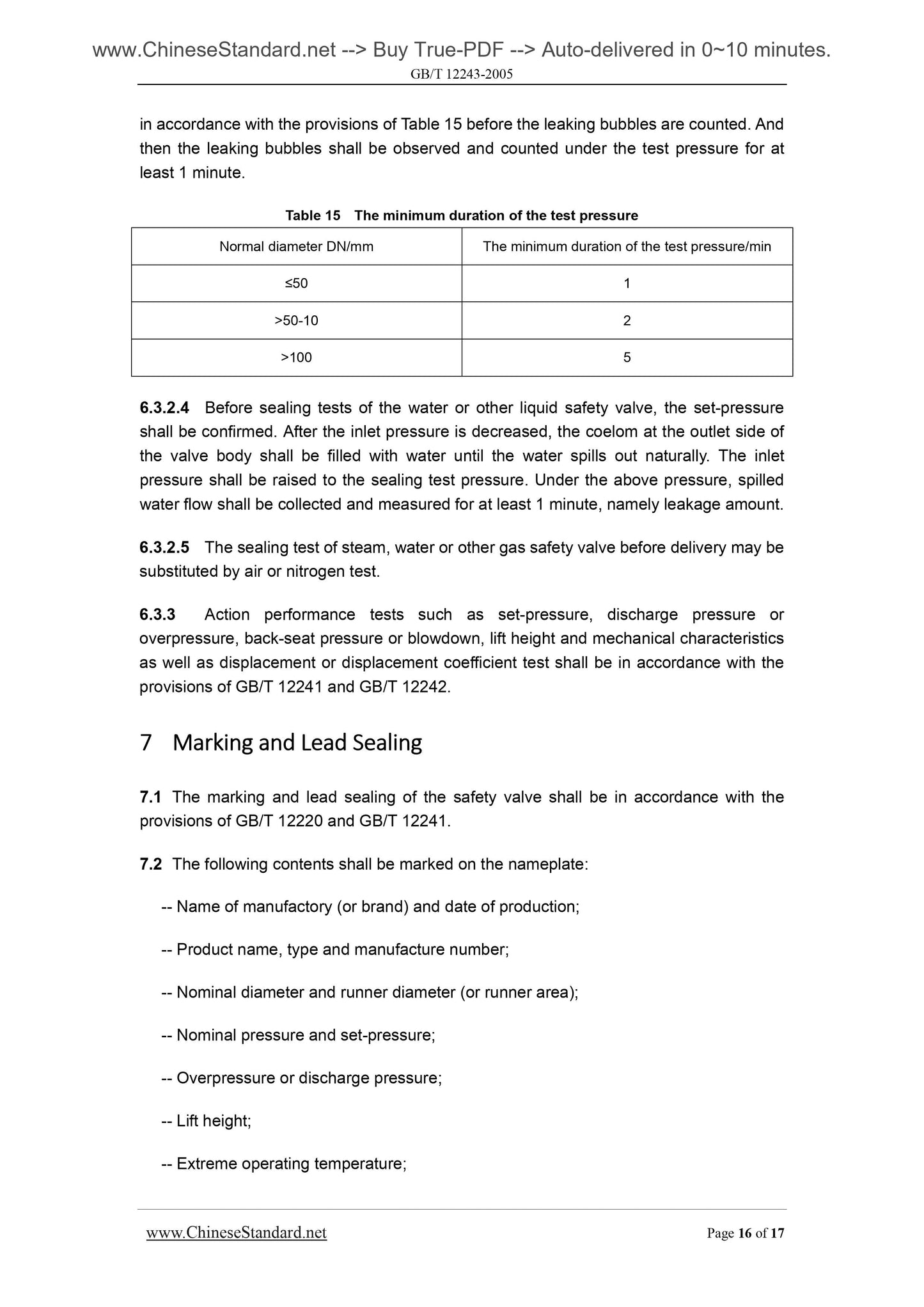

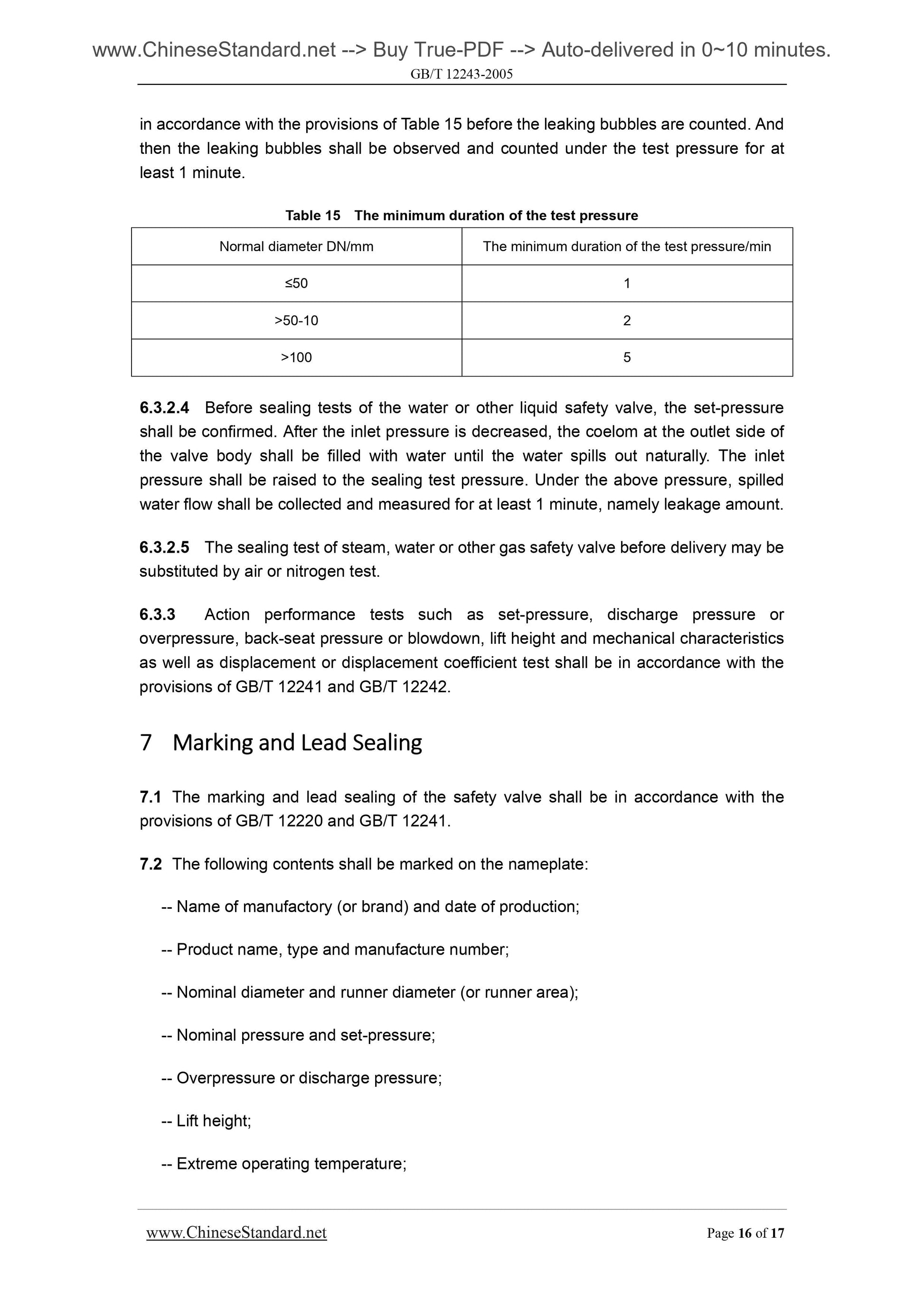

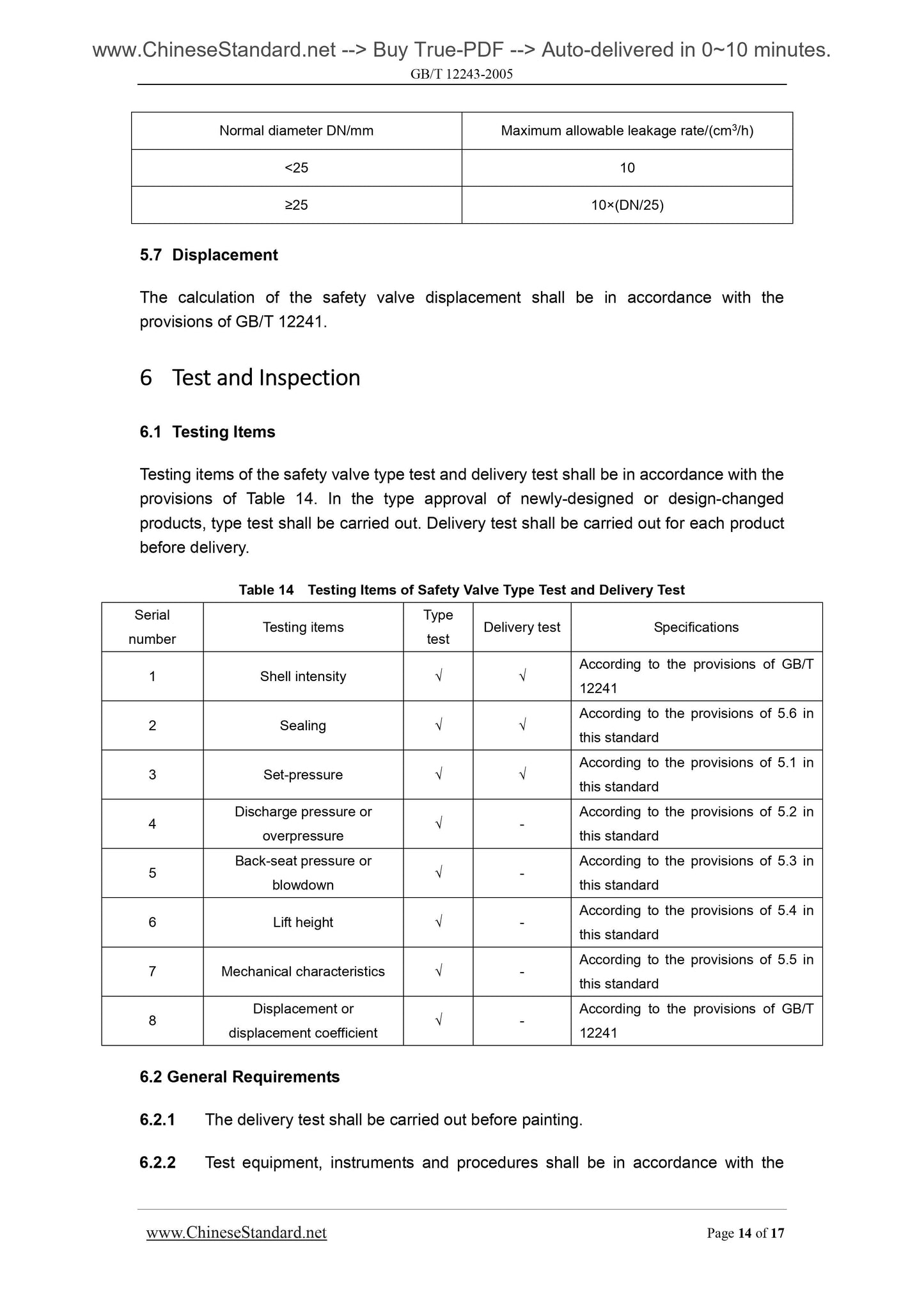

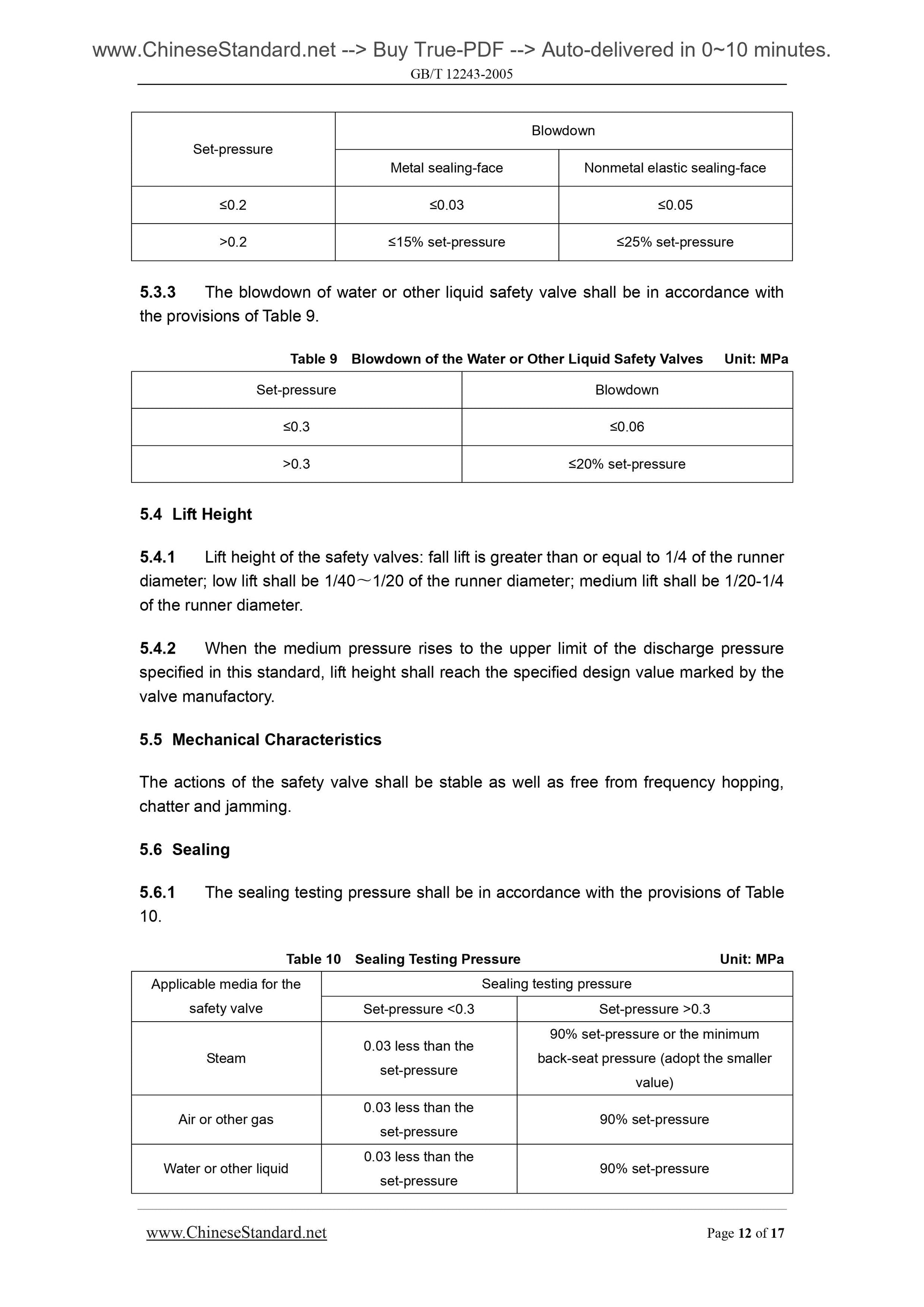

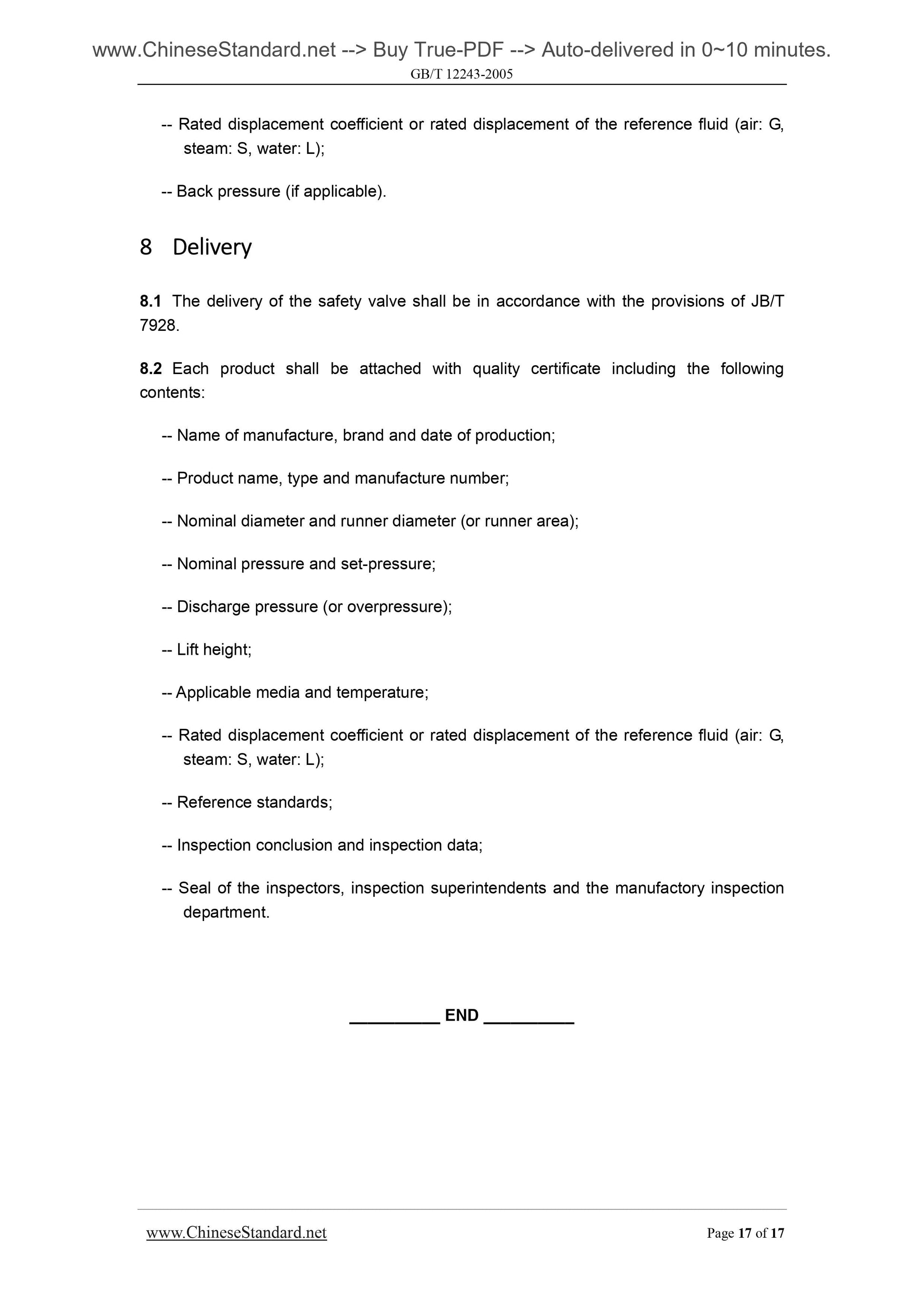

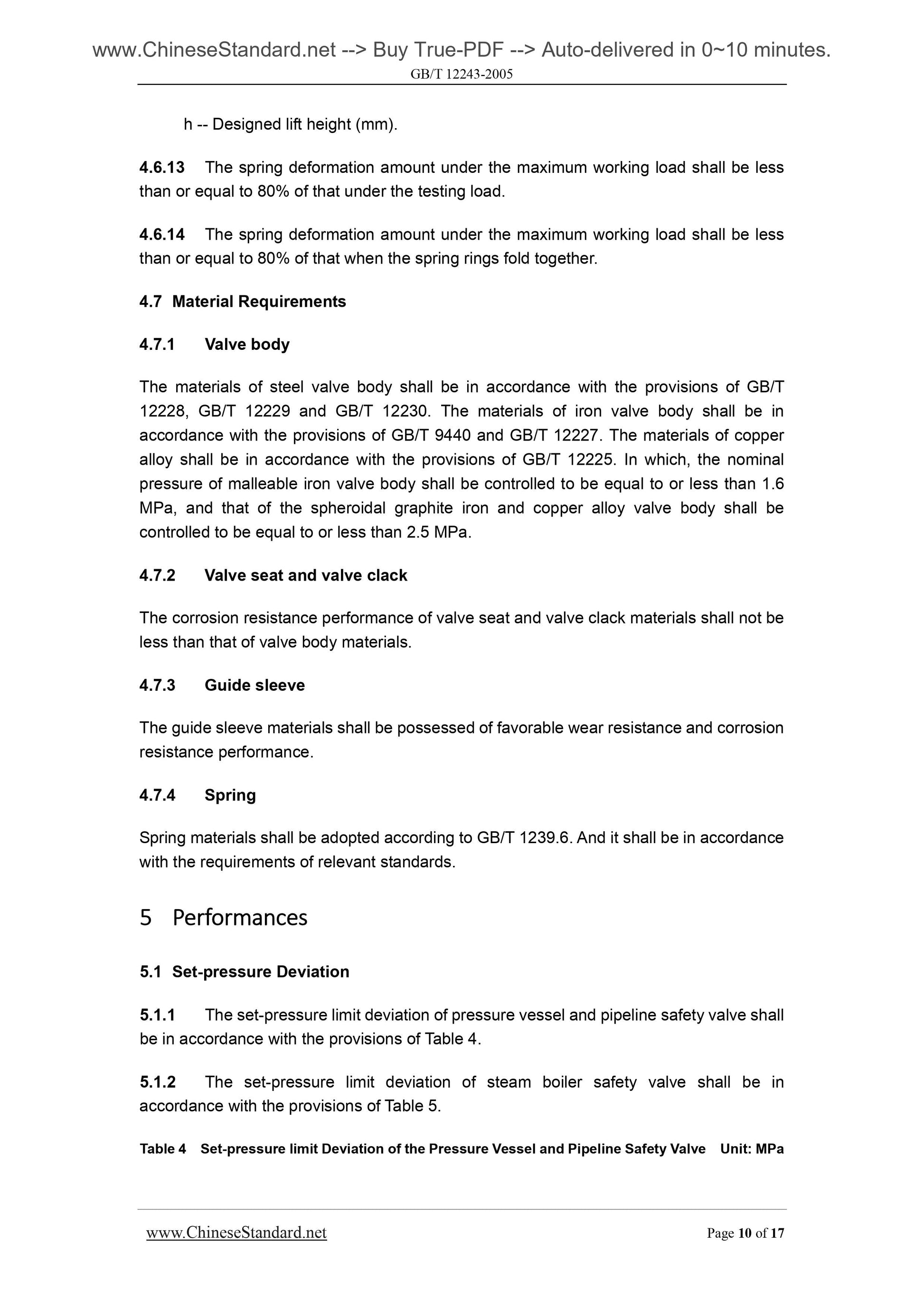

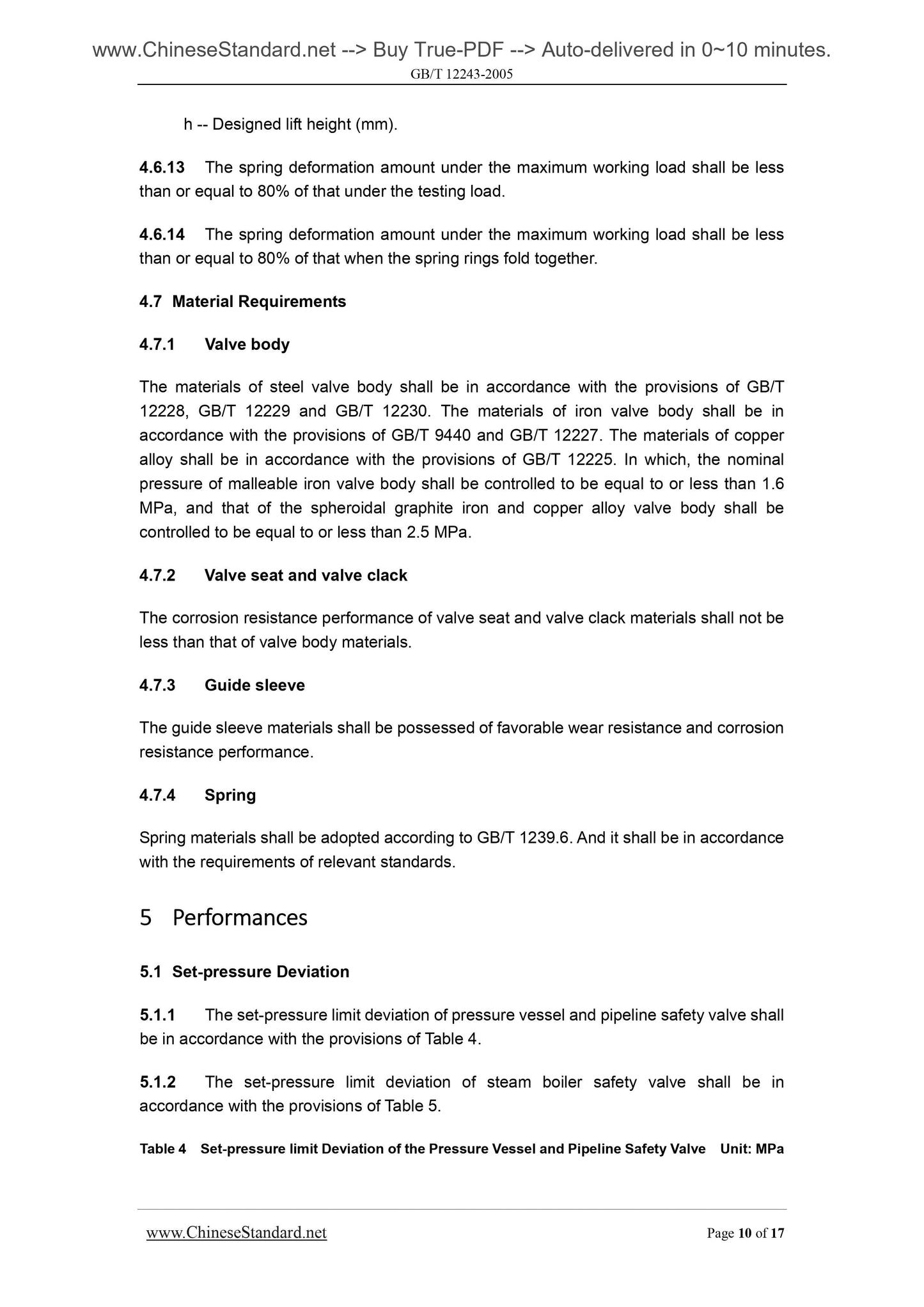

4.7.1 Valve body
