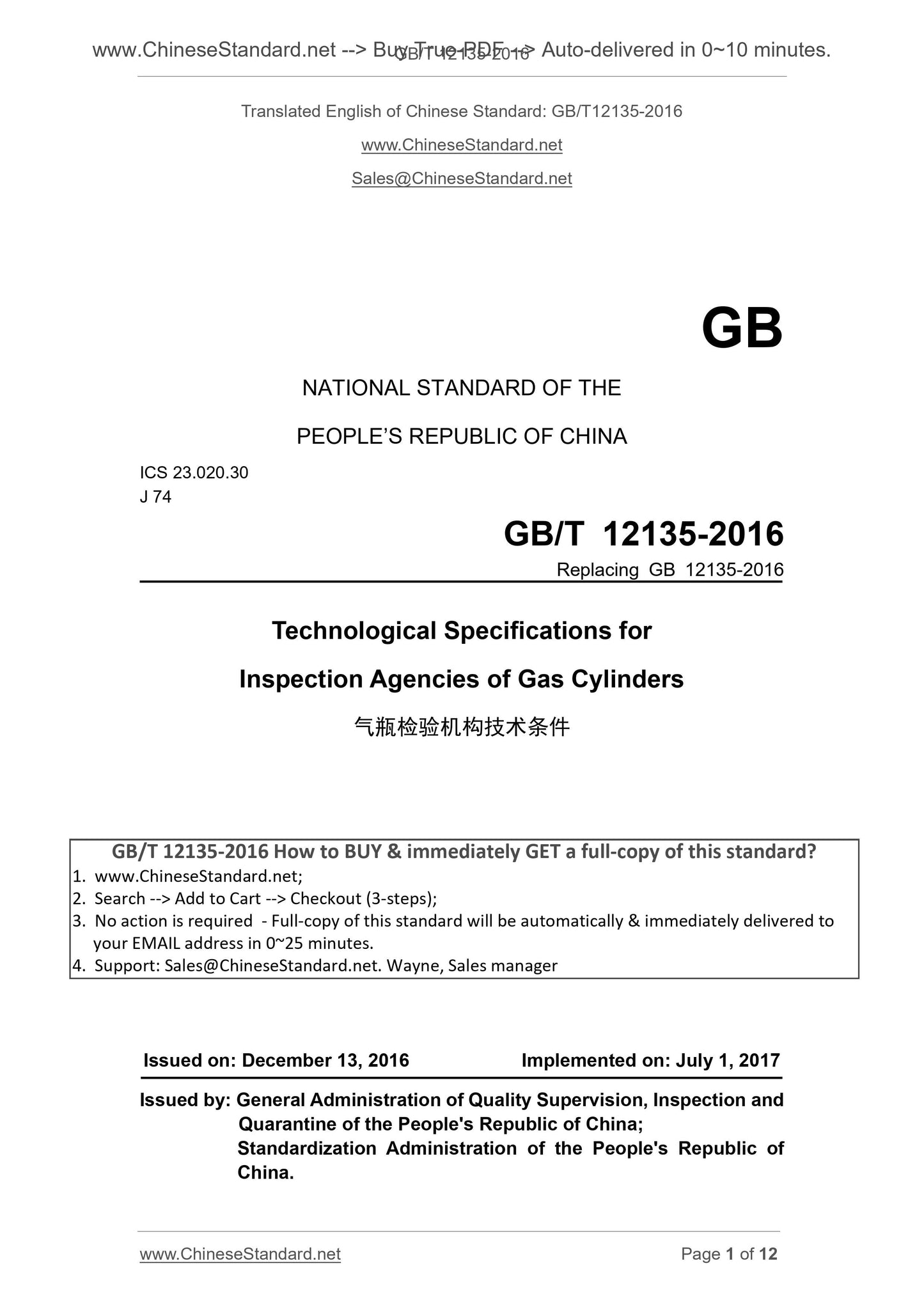

GB/T 12135-2016
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 23.020.30
J 74
Replacing GB 12135-2016
Technological Specifications for
Inspection Agencies of Gas Cylinders
ISSUED ON. DECEMBER 13, 2016
IMPLEMENTED ON. JULY 1, 2017
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

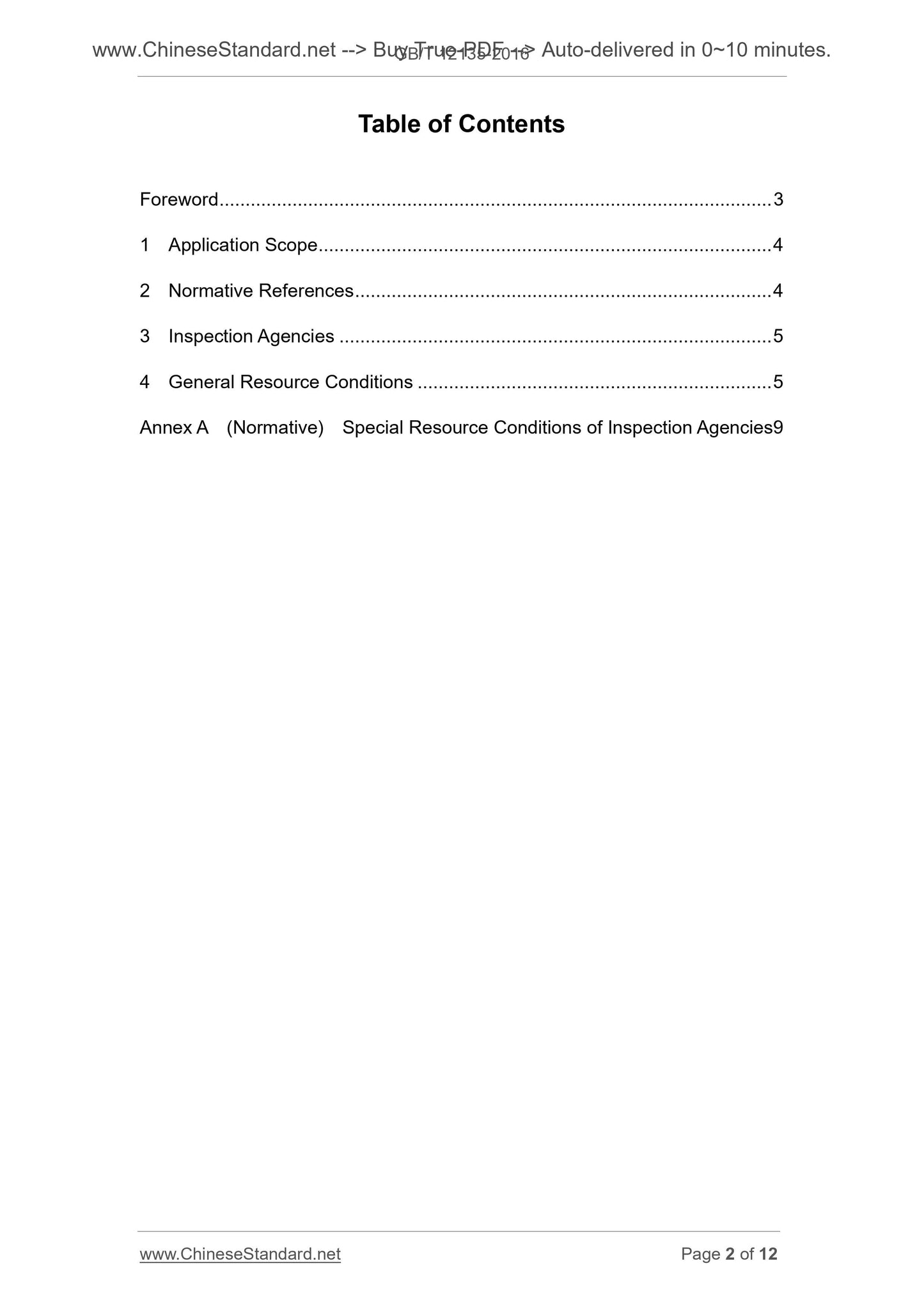

Table of Contents
Foreword ... 3
1 Application Scope ... 4
2 Normative References ... 4
3 Inspection Agencies ... 5
4 General Resource Conditions ... 5
Annex A (Normative) Special Resource Conditions of Inspection Agencies9
Technological Specifications for
Inspection Agencies of Gas Cylinders

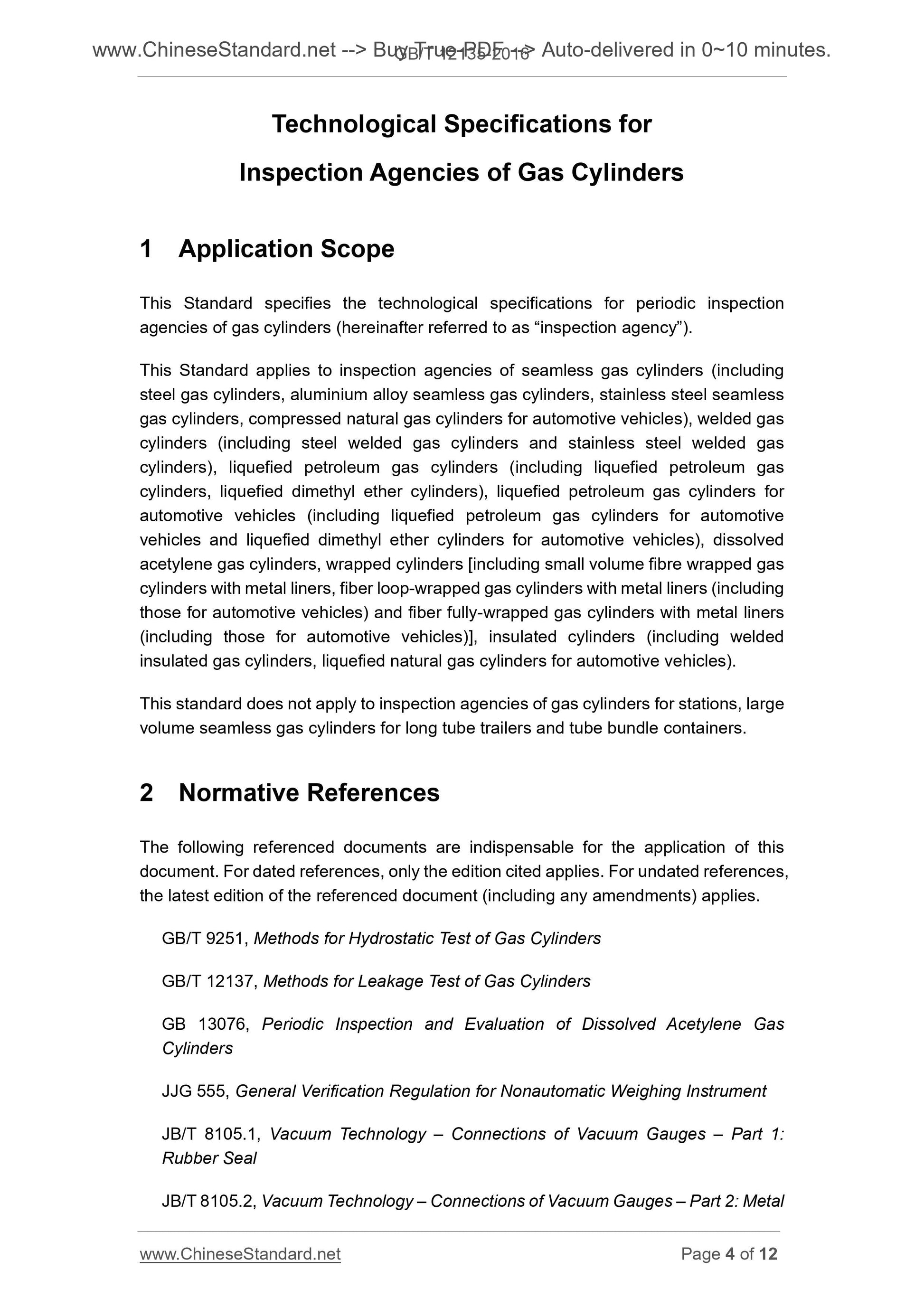

1 Application Scope
This Standard specifies the technological specifications for periodic inspection
agencies of gas cylinders (hereinafter referred to as “inspection agency”).
This Standard applies to inspection agencies of seamless gas cylinders (including
steel gas cylinders, aluminium alloy seamless gas cylinders, stainless steel seamless
gas cylinders, compressed natural gas cylinders for automotive vehicles), welded gas
cylinders (including steel welded gas cylinders and stainless steel welded gas
cylinders), liquefied petroleum gas cylinders (including liquefied petroleum gas
cylinders, liquefied dimethyl ether cylinders), liquefied petroleum gas cylinders for
automotive vehicles (including liquefied petroleum gas cylinders for automotive
vehicles and liquefied dimethyl ether cylinders for automotive vehicles), dissolved
acetylene gas cylinders, wrapped cylinders [including small volume fibre wrapped gas
cylinders with metal liners, fiber loop-wrapped gas cylinders with metal liners (including
those for automotive vehicles) and fiber fully-wrapped gas cylinders with metal liners
(including those for automotive vehicles)], insulated cylinders (including welded
insulated gas cylinders, liquefied natural gas cylinders for automotive vehicles).
This standard does not apply to inspection agencies of gas cylinders for stations, large
volume seamless gas cylinders for long tube trailers and tube bundle containers.
2 Normative References
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 9251, Methods for Hydrostatic Test of Gas Cylinders
GB/T 12137, Methods for Leakage Test of Gas Cylinders
GB 13076, Periodic Inspection and Evaluation of Dissolved Acetylene Gas
Cylinders
JJG 555, General Verification Regulation for Nonautomatic Weighing Instrument
JB/T 8105.1, Vacuum Technology – Connections of Vacuum Gauges – Part 1.
Rubber Seal
JB/T 8105.2, Vacuum Technology – Connections of Vacuum Gauges – Part 2. Metal

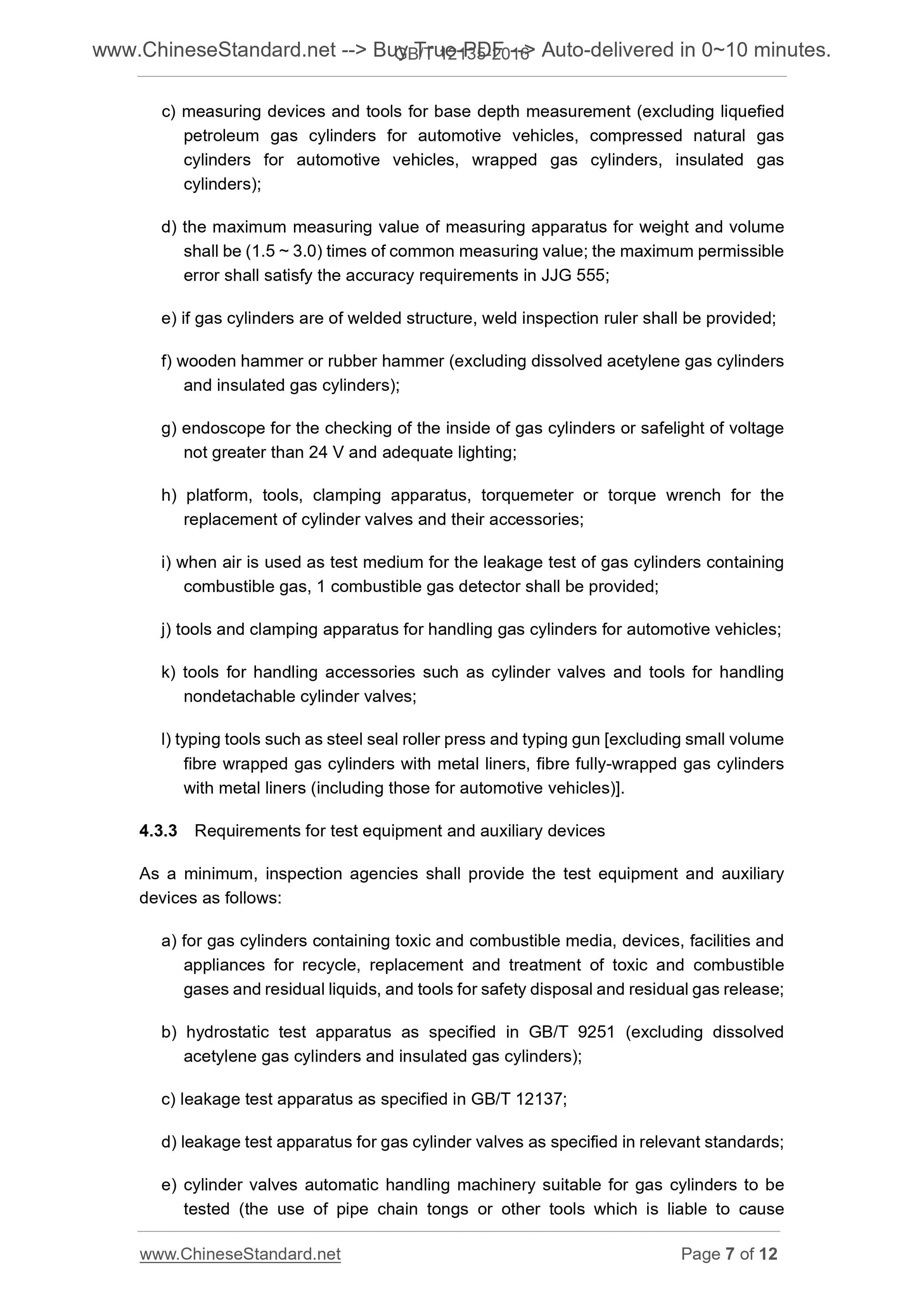

c) measuring devices and tools for base depth measurement (excluding liquefied
petroleum gas cylinders for automotive vehicles, compressed natural gas
cylinders for automotive vehicles, wrapped gas cylinders, insulated gas
cylinders);
d) the maximum measuring value of measuring apparatus for weight and volume
shall be (1.5 ~ 3.0) times of common measuring value; the maximum permissible
error shall satisfy the accuracy requirements in JJG 555;
e) if gas cylinders are of welded structure, weld inspection ruler shall be provided;
f) wooden hammer or rubber hammer (excluding dissolved acetylene gas cylinders
and insulated gas cylinders);
g) endoscope for the checking of the inside of gas cylinders or safelight of voltage
not greater than 24 V and adequate lighting;
h) platform, tools, clamping apparatus, torquemeter or torque wrench for the
replacement of cylinder valves and their accessories;
i) when air is used as test medium for the leakage test of gas cylinders containing
combustible gas, 1 combustible gas detector shall be provided;
j) tools and clamping apparatus for handling gas cylinders for automotive vehicles;
k) tools for handling accessories such as cylinder valves and tools for handling
nondetachable cylinder valves;
l) typing tools such as steel seal roller press and typing gun [excluding small volume
fibre wrapped gas cylinders with metal liners, fibre fully-wrapped gas cylinders
with metal liners (including those for automotive vehicles)].
4.3.3 Requirements for test equipment and auxiliary devices
As a minimum, inspection agencies shall provide the test equipment and auxiliary
devices as follows.
a) for gas cylinders containing toxic and combustible media, devices, facilities and
appliances for recycle, replacement and treatment of toxic and combustible
gases and residual liquids, and tools for safety disposal and residual gas release;
b) hydrostatic test apparatus as specified in GB/T 9251 (excluding dissolved
acetylene gas cylinders and insulated gas cylinders);
c) leakage test apparatus as specified in GB/T 12137;
d) leakage test apparatus for gas cylinder valves as specified in relevant standards;
e) cylinder valves automatic handling machinery suitable for gas cylinders to be
tested (the use of pipe chain tongs or other tools which is liable to cause
Annex A
(Normative)
Special Resource Conditions of Inspection Agencies

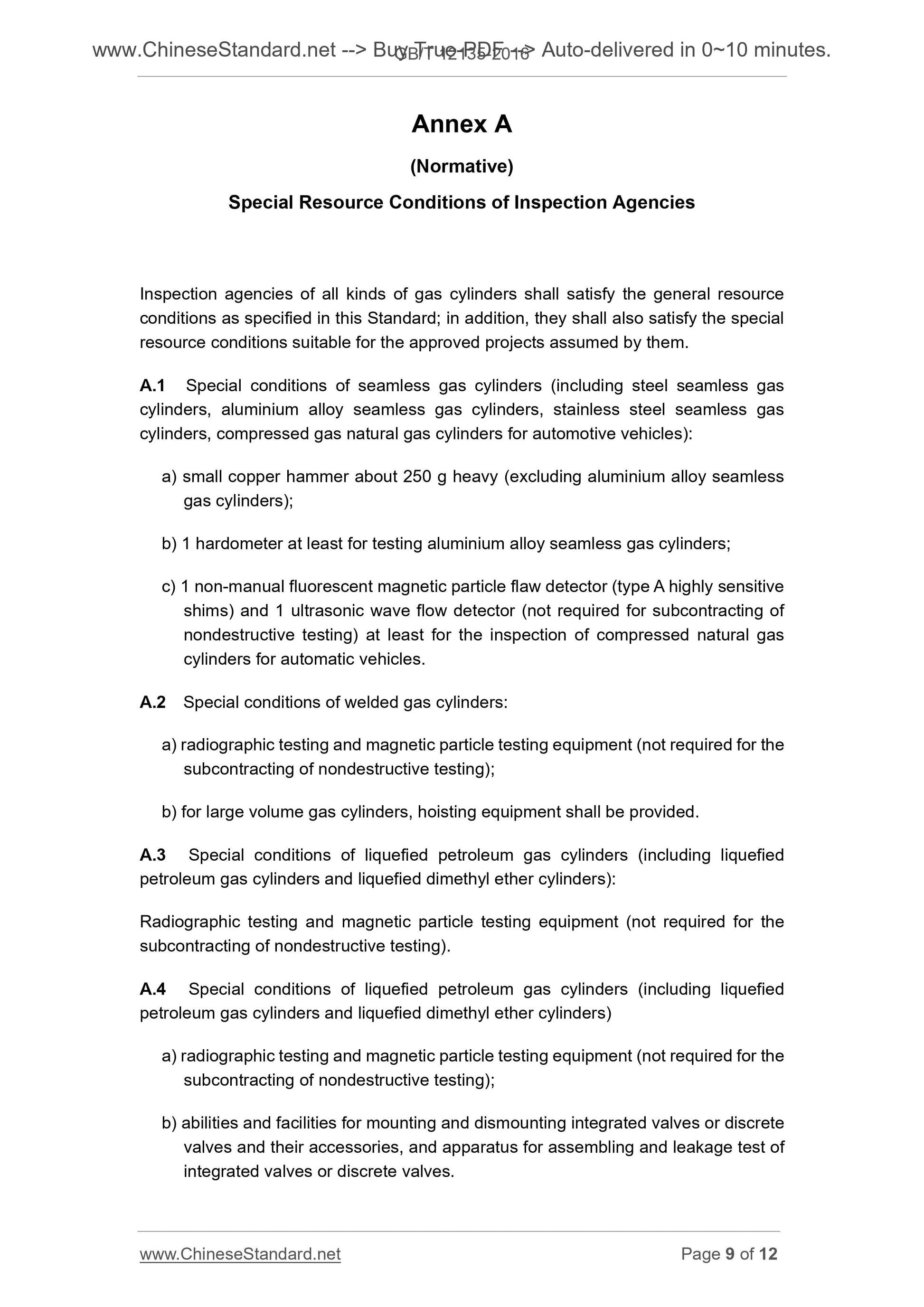

Inspection agencies of all kinds of gas cylinders shall satisfy the general resource
conditions as specified in this Standard; in addition, they shall also satisfy the special
resource conditions suitable for the approved projects assumed by them.
A.1 Special conditions of seamless gas cylinders (including steel seamless gas
cylinders, aluminium alloy seamless gas cylinders, stainless steel seamless gas
cylinders, compressed gas natural gas cylinders for automotive vehicles).
a) small copper hammer about 250 g heavy (excluding aluminium alloy seamless
gas cylinders);
b) 1 hardometer at least for testing aluminium alloy seamless gas cylinders;
c) 1 non-manual fluorescent magnetic particle flaw detector (type A highly sensitive
shims) and 1 ultrasonic wave flow detector (not required for subcontracting of
nondestructive testing) at least for the inspection of compressed natural gas
cylinders for automatic vehicles.
A.2 Special conditions of welded gas cylinders.
a) radiographic testing and magnetic particle testing equipment (not required for the
subcontracting of nondestructive testing);
b) for large volume gas cylinders, hoisting equipment shall be provided.
A.3 Special conditions of liquefied petroleum gas cylinders (including liquefied
petroleum gas cylinders and liquefied dimethyl ether cylinders).
Radiographic testing and magnetic particle testing equipment (not required for the
subcontracting of nondestructive testing).
A.4 Special conditions of liquefied petroleum gas cylinders (including liquefied
petroleum gas cylinders and liquefied dimethyl ether cylinders)
a) radiographic testing and magnetic particle testing equipment (not required for the
subcontracting of nondestructive testing);
b) abilities and facilities for mounting and dismounting integrated valves or discrete
valves and their accessories, and apparatus for assembling and leakage test of
integrated valves or discrete valves.

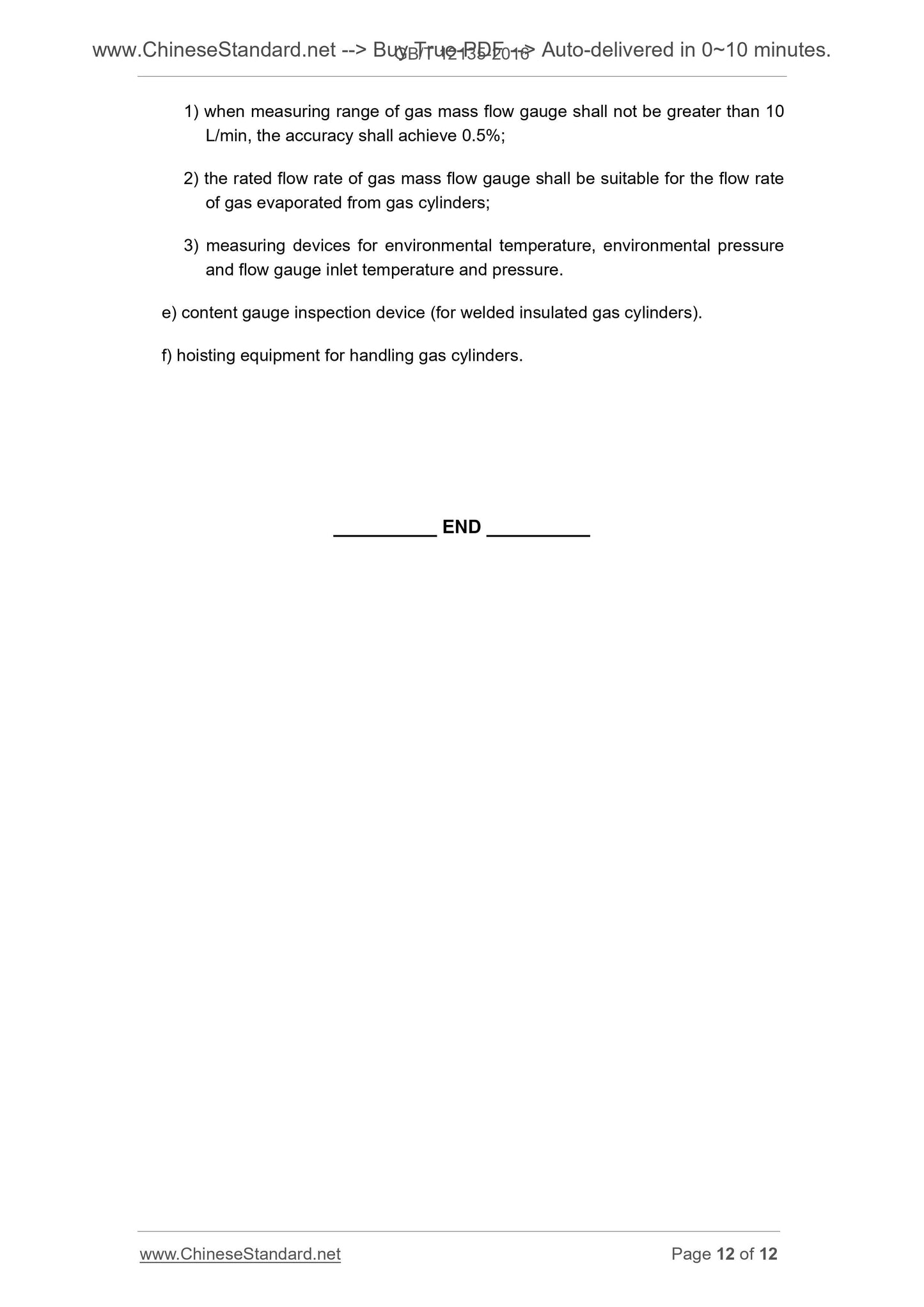

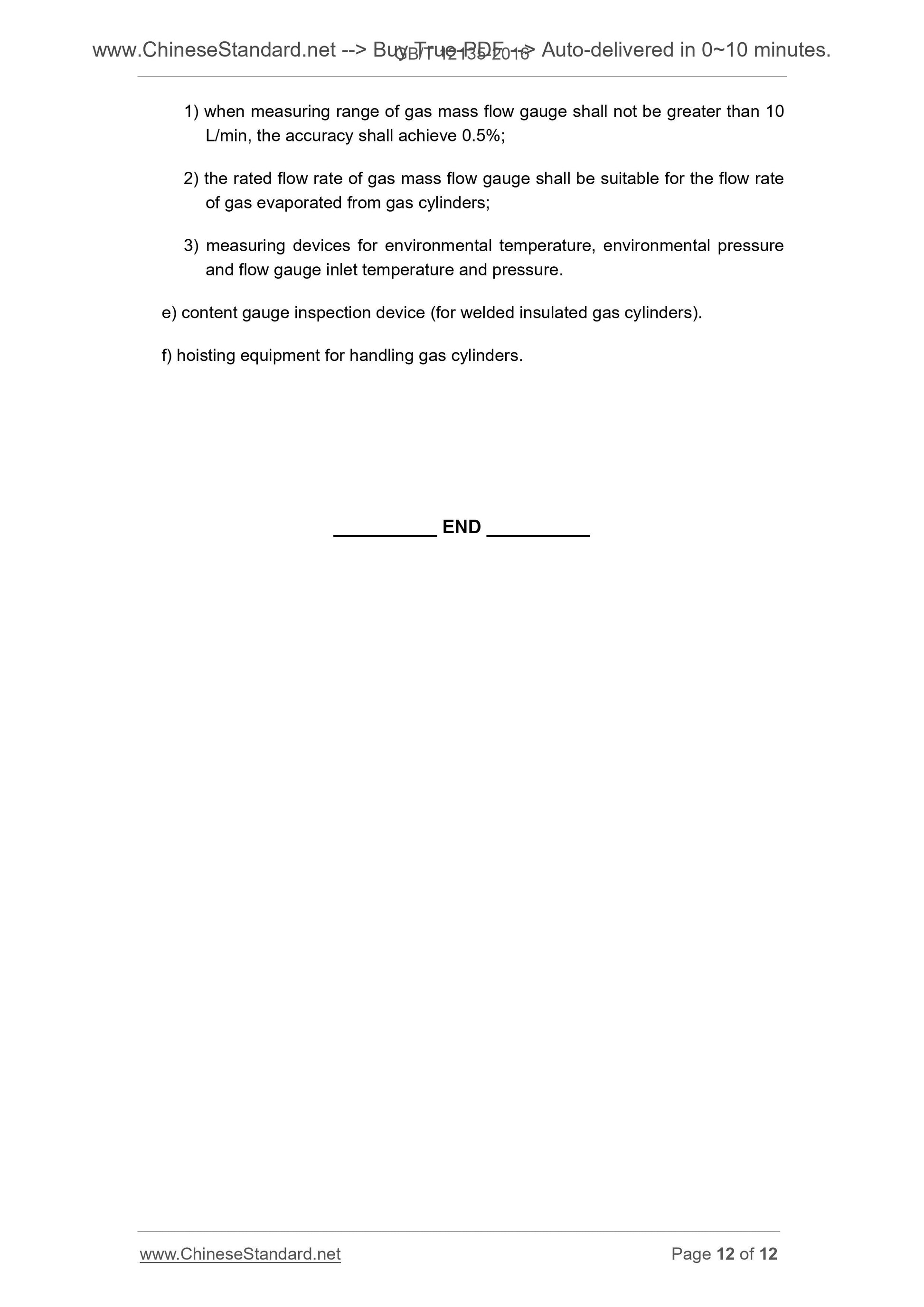

1) when measuring range of gas mass flow gauge shall not be greater than 10
L/min, the accuracy shall achieve 0.5%;
2) the rated flow rate of gas mass flow gauge shall be suitable for the flow rate
of gas evapor...
