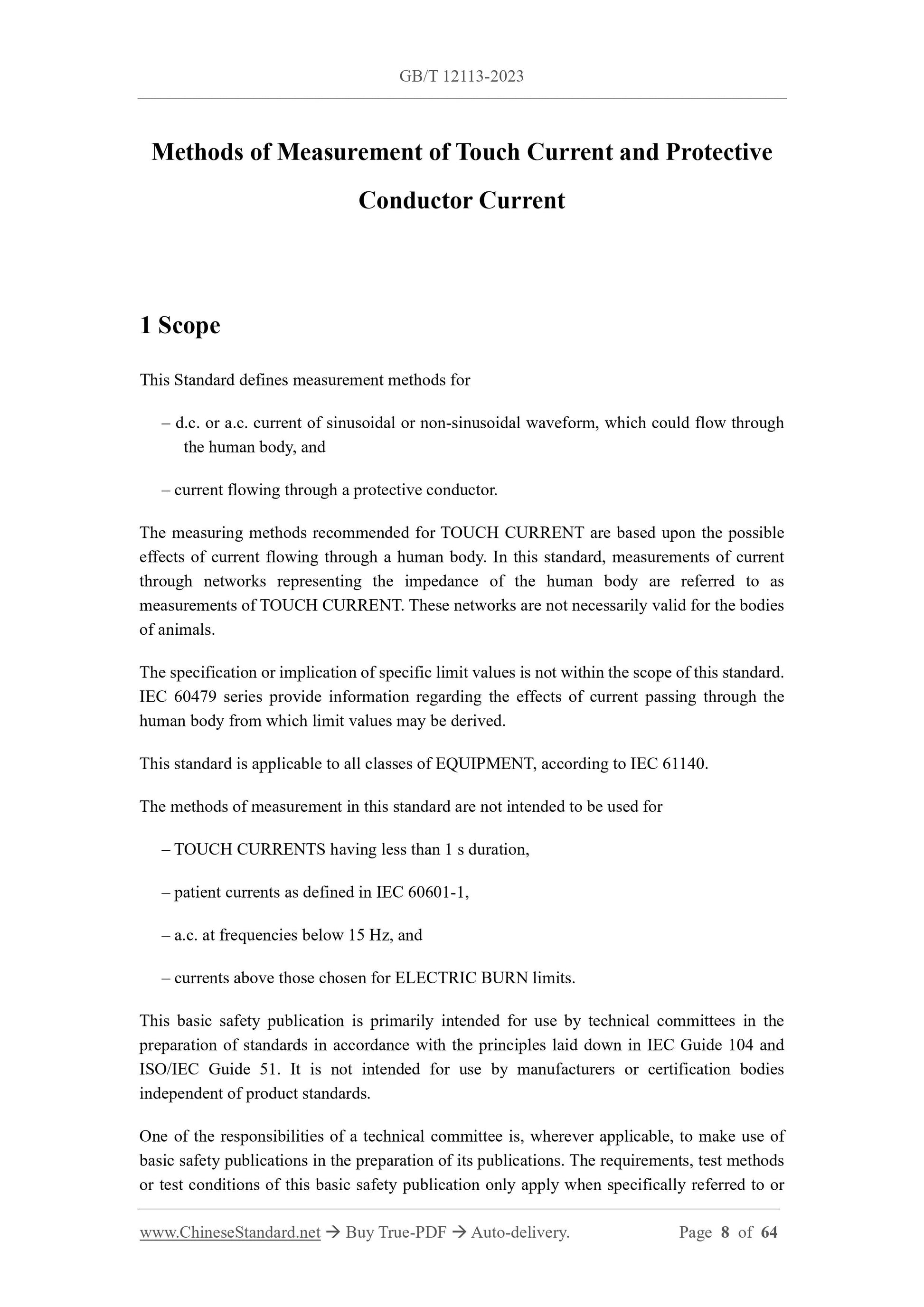

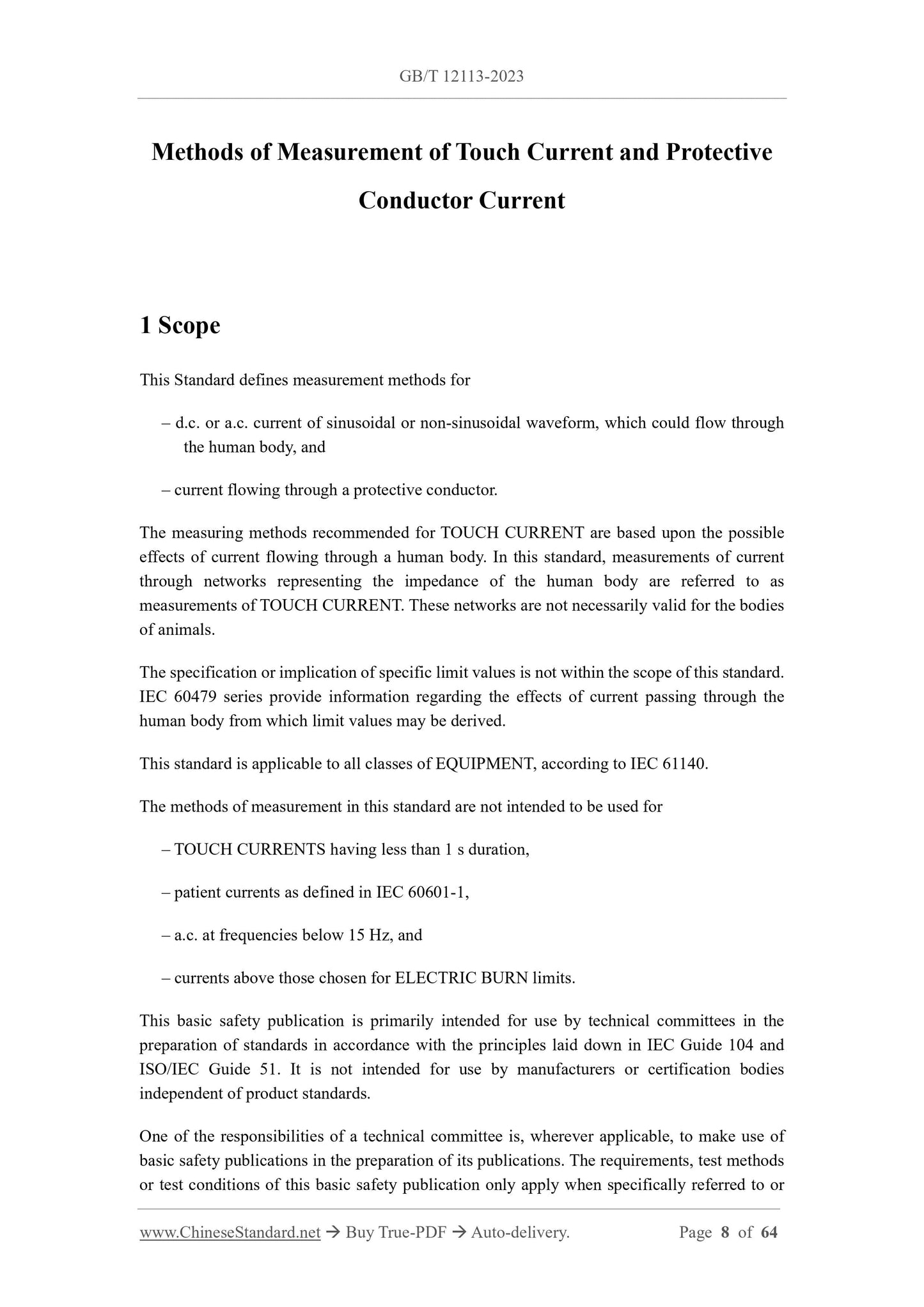

Scope

This Standard defines measurement methods for
– d.c. or a.c. current of sinusoidal or non-sinusoidal waveform, which could flow through
the human body, and
– current flowing through a protective conductor.
The measuring methods recommended for TOUCH CURRENT are based upon the possible
effects of current flowing through a human body. In this standard, measurements of current
through networks representing the impedance of the human body are referred to as
measurements of TOUCH CURRENT. These networks are not necessarily valid for the bodies
of animals.
The specification or implication of specific limit values is not within the scope of this standard.
IEC 60479 series provide information regarding the effects of current passing through the
human body from which limit values may be derived.
This standard is applicable to all classes of EQUIPMENT, according to IEC 61140.
The methods of measurement in this standard are not intended to be used for
– TOUCH CURRENTS having less than 1 s duration,
– patient currents as defined in IEC 60601-1,
– a.c. at frequencies below 15 Hz, and
– currents above those chosen for ELECTRIC BURN limits.
This basic safety publication is primarily intended for use by technical committees in the
preparation of standards in accordance with the principles laid down in IEC Guide 104 and
ISO/IEC Guide 51.It is not intended for use by manufacturers or certification bodies
independent of product standards.
One of the responsibilities of a technical committee is, wherever applicable, to make use of
basic safety publications in the preparation of its publications. The requirements, test methods
or test conditions of this basic safety publication only apply when specifically referred to or

Basic Data

Standard ID	GB/T 12113-2023 (GB/T12113-2023)
Description (Translated English)	Methods of measurement of touch current and protective conductor current
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	L09
Classification of International Standard	35.020
Word Count Estimation	54,512
Date of Issue	2023-09-07
Date of Implementation	2024-04-01
Older Standard (superseded by this standard)	GB/T 12113-2003
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
