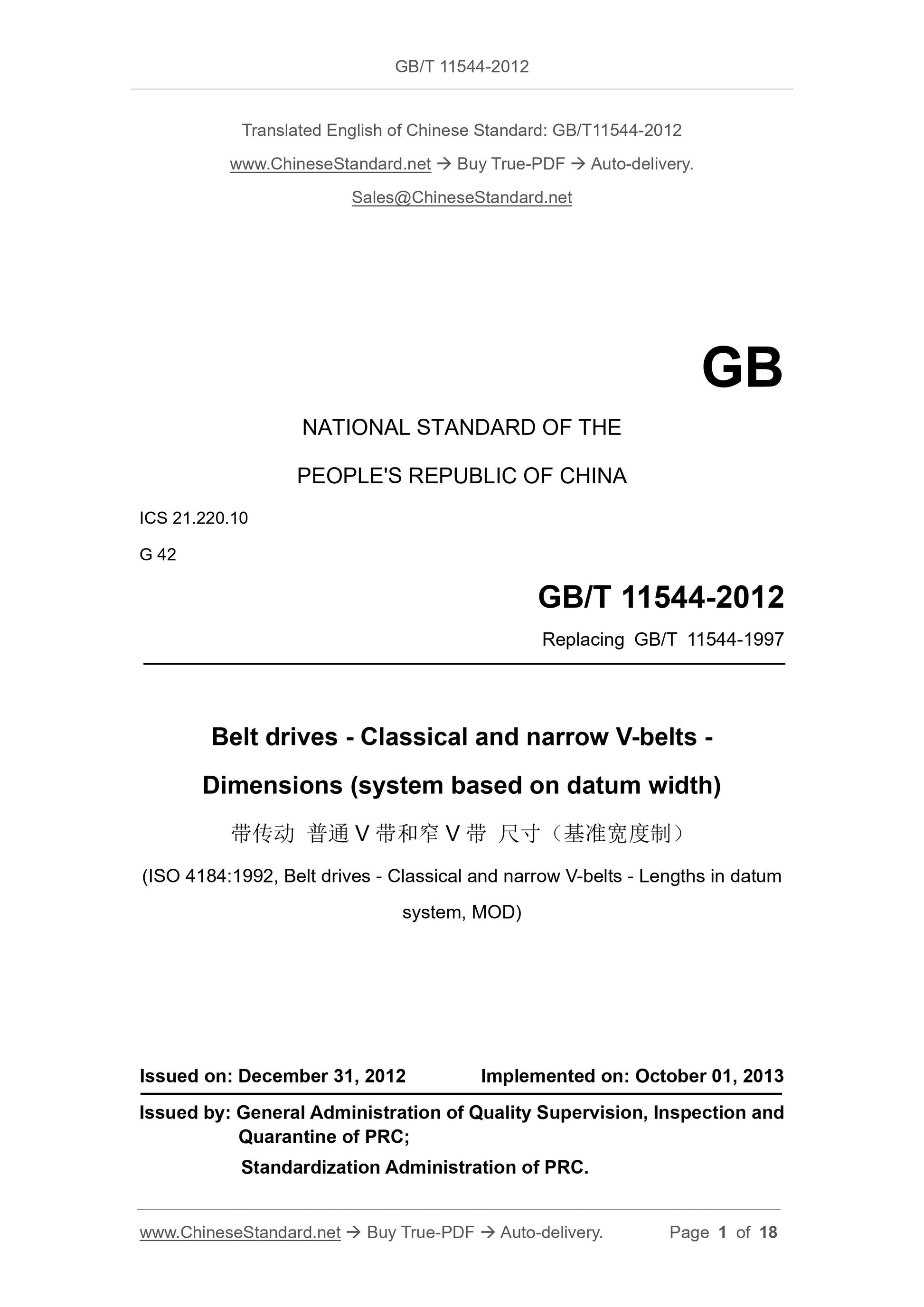

GB/T 11544-2012: Belt drives -- Classical and narrow V-belts -- Dimensions (system based on datum width)

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 11544-2012 (Self-service in 1-minute)
Newer / historical versions: GB/T 11544-2012

Preview True-PDF

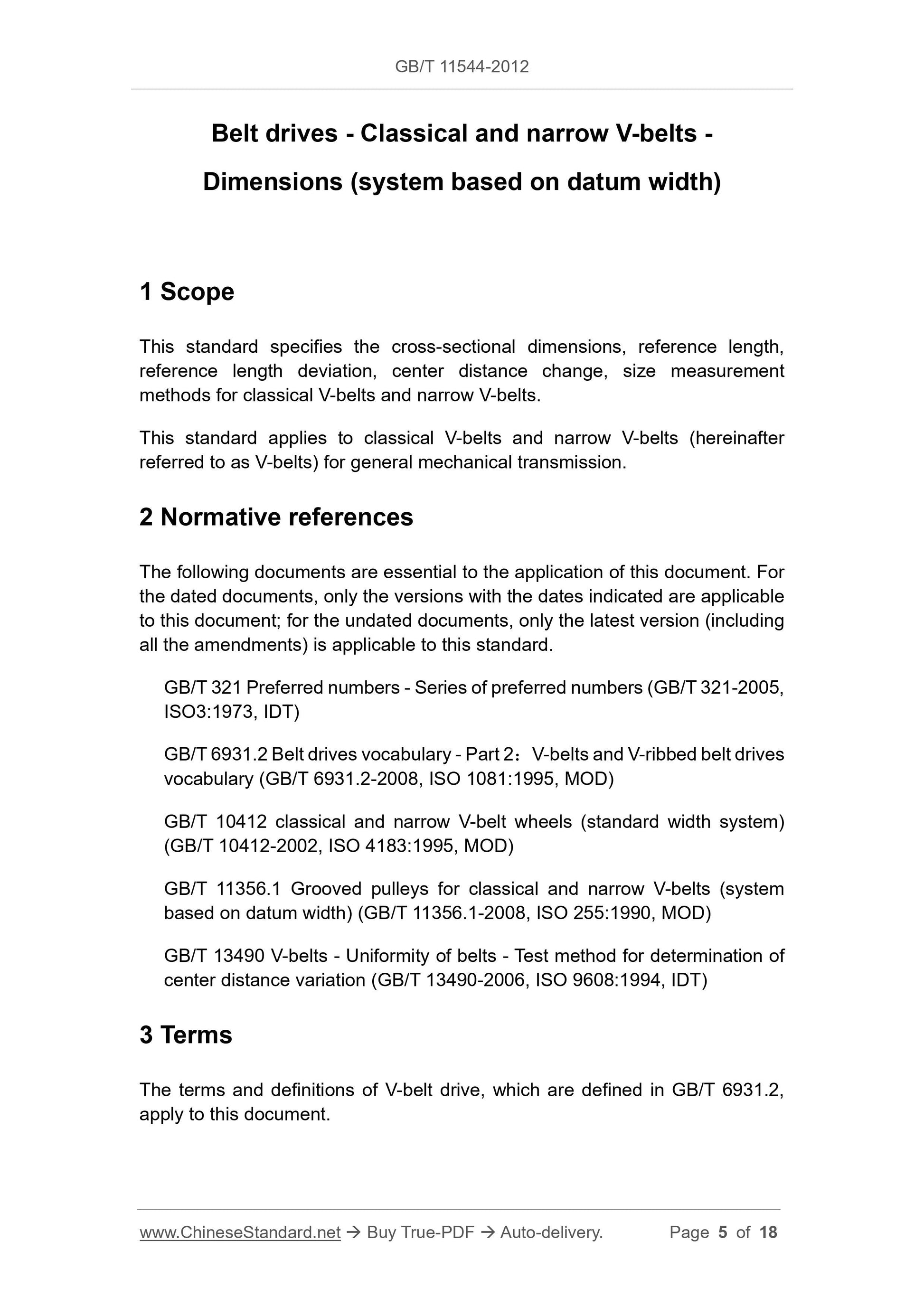

Scope

This standard specifies the cross-sectional dimensions, reference length,
reference length deviation, center distance change, size measurement
methods for classical V-belts and narrow V-belts.
This standard applies to classical V-belts and narrow V-belts (hereinafter
referred to as V-belts) for general mechanical transmission.

Basic Data

Standard ID	GB/T 11544-2012 (GB/T11544-2012)
Description (Translated English)	Belt drives -- Classical and narrow V-belts -- Dimensions (system based on datum width)
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	G42
Classification of International Standard	21.220.10
Word Count Estimation	15,124
Older Standard (superseded by this standard)	GB/T 11544-1997
Quoted Standard	GB/T 321; GB/T 6931.2; GB/T 10412; GB/T 11356.1; GB/T 13490
Adopted Standard	ISO 4184-1992, MOD
Regulation (derived from)	National Standards Bulletin No. 41 of 2012
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the common V belt and narrow V-belt cross-sectional dimension, the reference length, the reference length deviation, the center distance variation, measurement methods. This standard applies to general mechanical transmission with
