GB/T 11363-2008: Test method of the strength for brazed and soldered joint

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 11363-2008 (Self-service in 1-minute)
Newer / historical versions: GB/T 11363-2008

Preview True-PDF

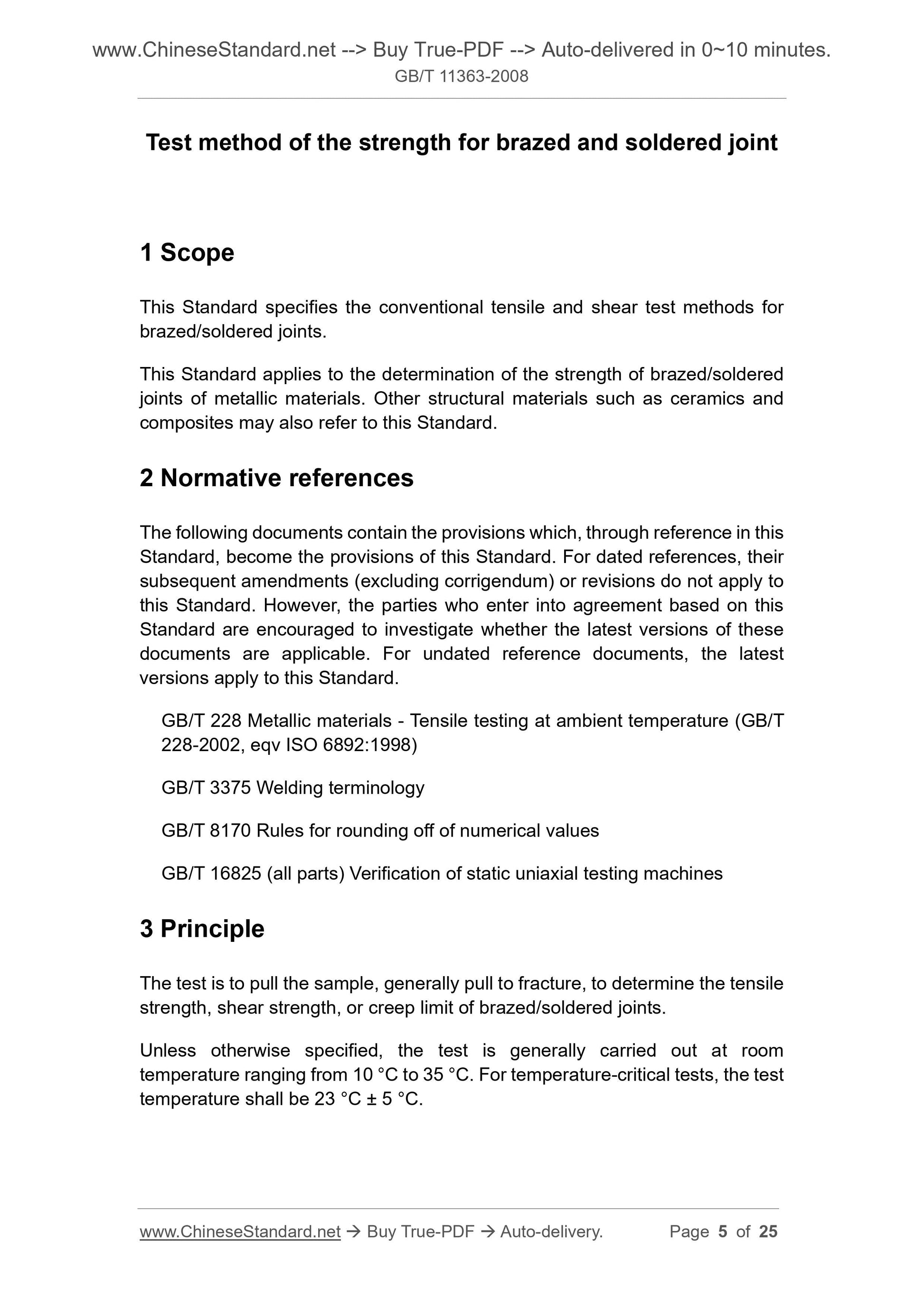

Scope

This Standard specifies the conventional tensile and shear test methods for
brazed/soldered joints.
This Standard applies to the determination of the strength of brazed/soldered
joints of metallic materials. Other structural materials such as ceramics and
composites may also refer to this Standard.

Basic Data

Standard ID	GB/T 11363-2008 (GB/T11363-2008)
Description (Translated English)	Test method of the strength for brazed and soldered joint
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J33
Classification of International Standard	25.160.50
Word Count Estimation	17,130
Date of Issue	2008-05-06
Date of Implementation	2008-11-01
Older Standard (superseded by this standard)	GB/T 8619-1988; GB/T 11363-1989
Quoted Standard	GB/T 228; GB/T 3375; GB/T 8170; GB/T 16825
Adopted Standard	ISO 5187-1985, NEQ
Regulation (derived from)	National Standard Approval Announcement 2008 No.7 (Total No.120)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the brazed joints of conventional tensile and shear test methods. This standard applies to the determination of the brazed joint strength metallic materials. Other ceramic, composites may also refer to a structural material (reference) used.
