GB/T 10807-2006: Flexible cellular polymeric materials -- Determination of hardness (indentation technique)

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 10807-2006 (Self-service in 1-minute)
Newer / historical versions: GB/T 10807-2006

Preview True-PDF

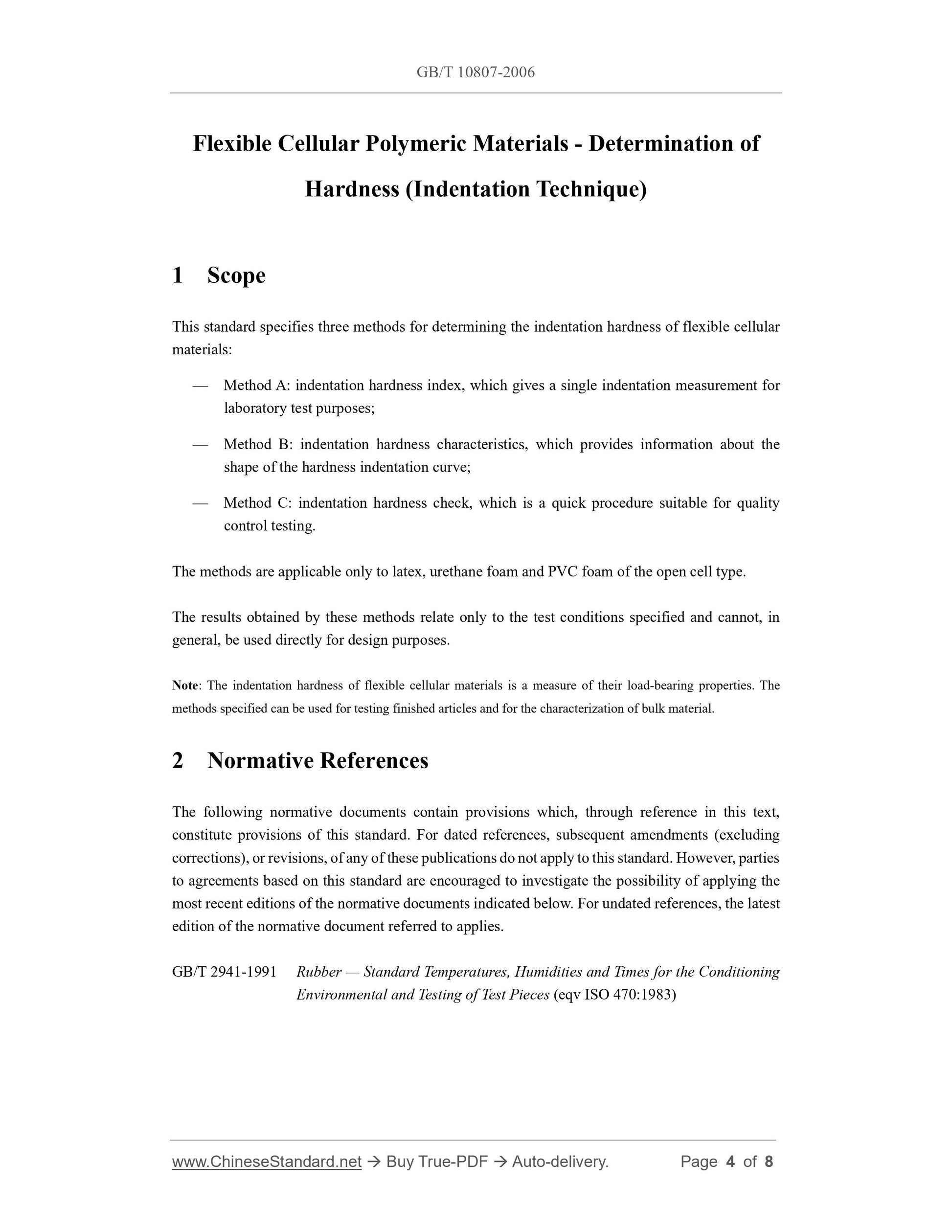

Scope

This standard specifies three methods for determining the indentation hardness of flexible cellular
materials:
— Method A: indentation hardness index, which gives a single indentation measurement for
laboratory test purposes;
— Method B: indentation hardness characteristics, which provides information about the
shape of the hardness indentation curve;
— Method C: indentation hardness check, which is a quick procedure suitable for quality
control testing.
The methods are applicable only to latex, urethane foam and PVC foam of the open cell type.
The results obtained by these methods relate only to the test conditions specified and cannot, in
general, be used directly for design purposes.
Note: The indentation hardness of flexible cellular materials is a measure of their load-bearing properties. The
methods specified can be used for testing finished articles and for the characterization of bulk material.

Basic Data

Standard ID	GB/T 10807-2006 (GB/T10807-2006)
Description (Translated English)	Flexible cellular polymeric materials -- Determination of hardness (indentation technique)
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	G32
Classification of International Standard	83.100
Word Count Estimation	6,662
Date of Issue	2006-03-10
Date of Implementation	2006-10-01
Older Standard (superseded by this standard)	GB/T 10807-1989
Quoted Standard	GB/T 2941-1991
Adopted Standard	ISO 2439-1997, IDT
Regulation (derived from)	National Standard Approval Announcement 2006 No.6 (Total No.93)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the three assays soft foam polymeric material indentation hardness methods. Method A: indentation hardness index, gives the indentation measurements laboratory. Method B: indentation hardness characteristics. Curve gives the hardness measurement method. Method C
