GB/T 10609.1-2008: Technical drawings -- Title blocks

This part of GB/T 10609 specifies the basic requirements, content, size, format of the title blocks in the technical drawings. This part applies to the title blocks in the technical drawings.

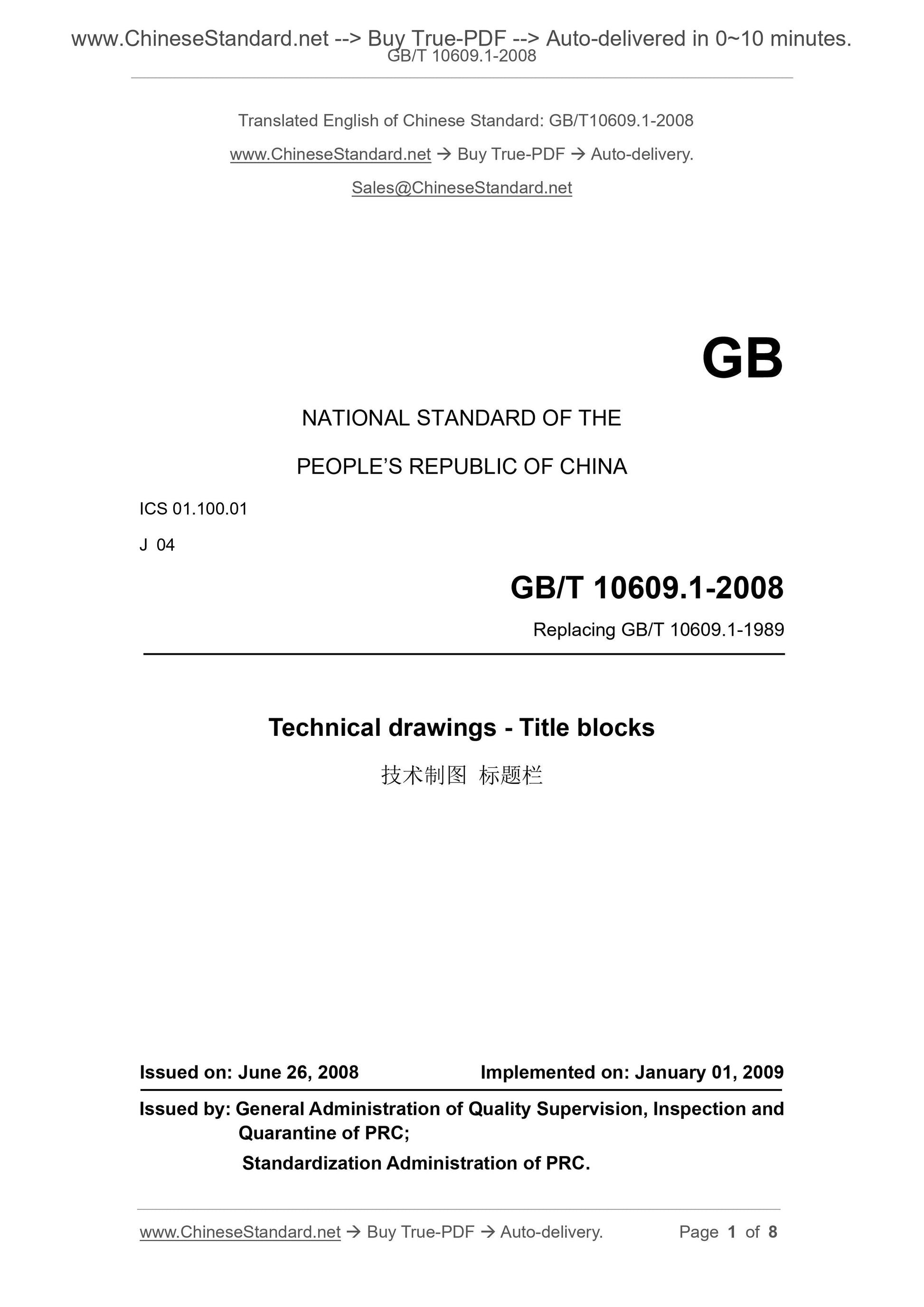

GB/T 10609.1-2008
ICS 01.100.01
J 04
Replacing GB/T 10609.1-1989
Technical drawings - Title blocks
ISSUED ON: JUNE 26, 2008
Issued by: General Administration of Quality Supervision, Inspection and Quarantine of PRC;
Standardization Administration of PRC.

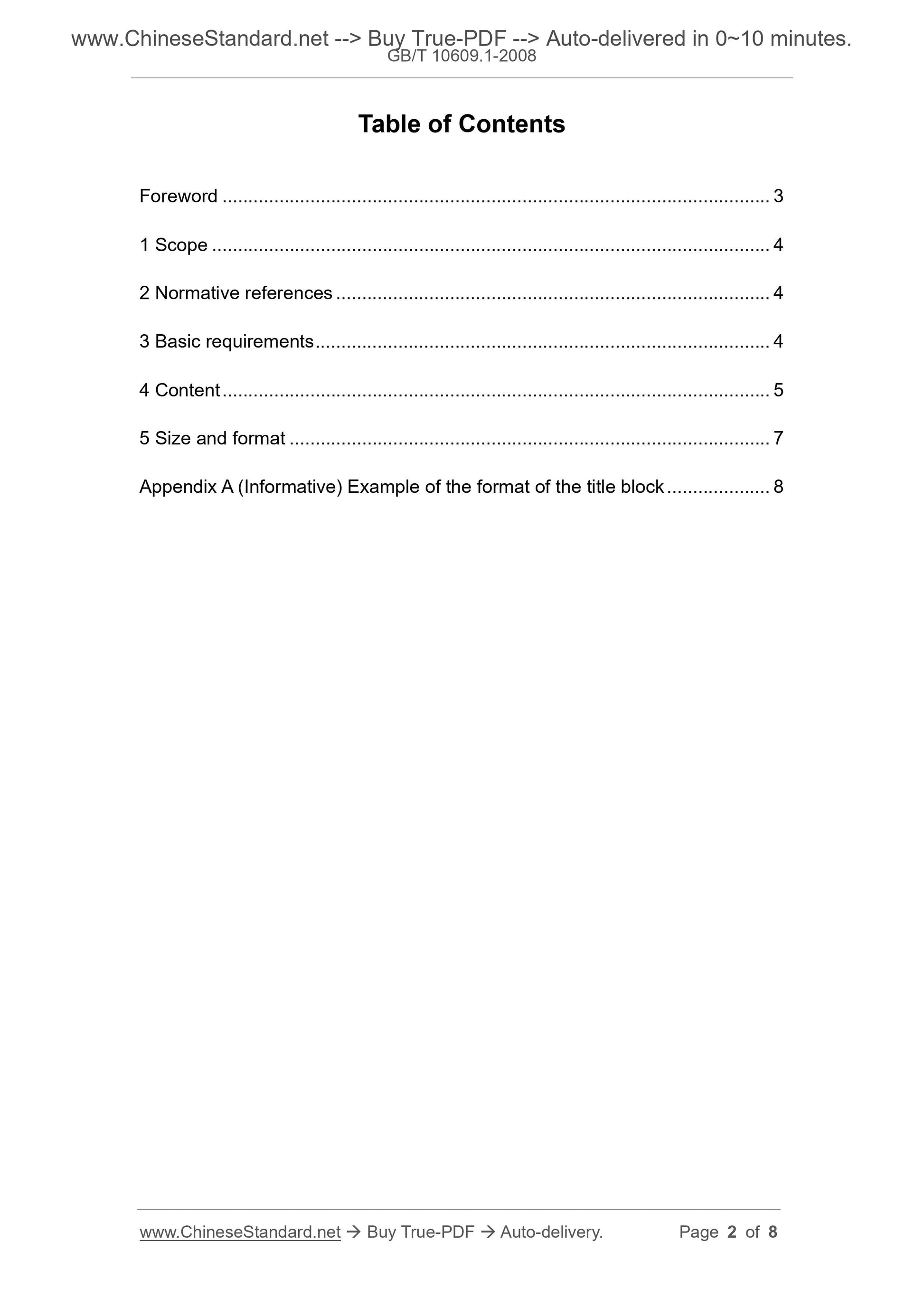

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Basic requirements ... 4
4 Content ... 5
5 Size and format ... 7
Appendix A (Informative) Example of the format of the title block ... 8 Technical drawings - Title blocks

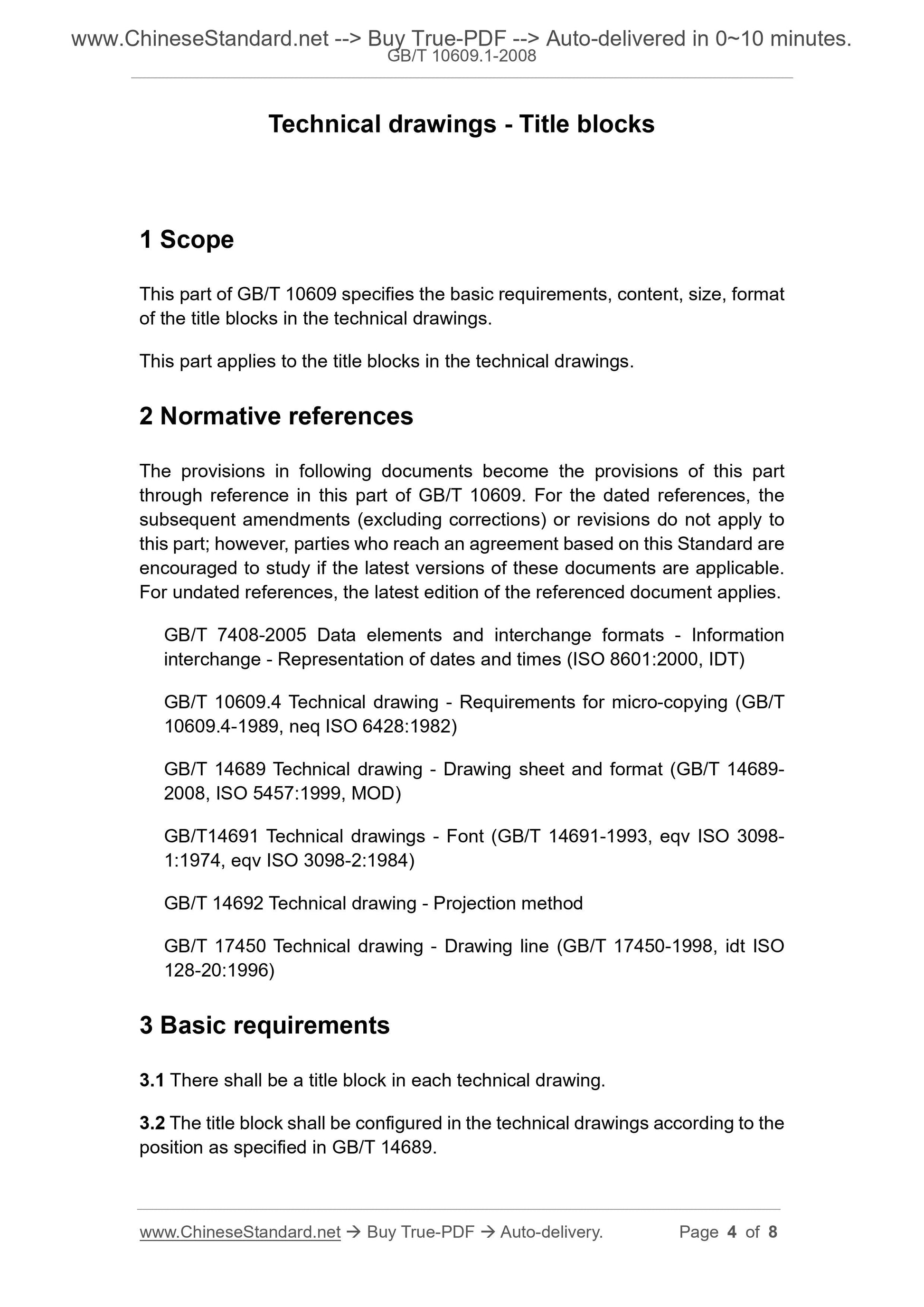

1 Scope
This part of GB/T 10609 specifies the basic requirements, content, size, format of the title blocks in the technical drawings.
This part applies to the title blocks in the technical drawings.
2 Normative references
The provisions in following documents become the provisions of this part through reference in this part of GB/T 10609. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this part; however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 7408-2005 Data elements and interchange formats - Information
interchange - Representation of dates and times (ISO 8601:2000, IDT)
GB/T 10609.4 Technical drawing - Requirements for micro-copying (GB/T
10609.4-1989, neq ISO 6428:1982)
GB/T 14689 Technical drawing - Drawing sheet and format (GB/T 14689-
2008, ISO 5457:1999, MOD)
GB/T14691 Technical drawings - Font (GB/T 14691-1993, eqv ISO 3098-
1:1974, eqv ISO 3098-2:1984)
GB/T 14692 Technical drawing - Projection method
GB/T 17450 Technical drawing - Drawing line (GB/T 17450-1998, idt ISO
3 Basic requirements
3.1 There shall be a title block in each technical drawing.
3.2 The title block shall be configured in the technical drawings according to the position as specified in GB/T 14689. Signature and year month day: Fill in the name of the changer and the time of the change.

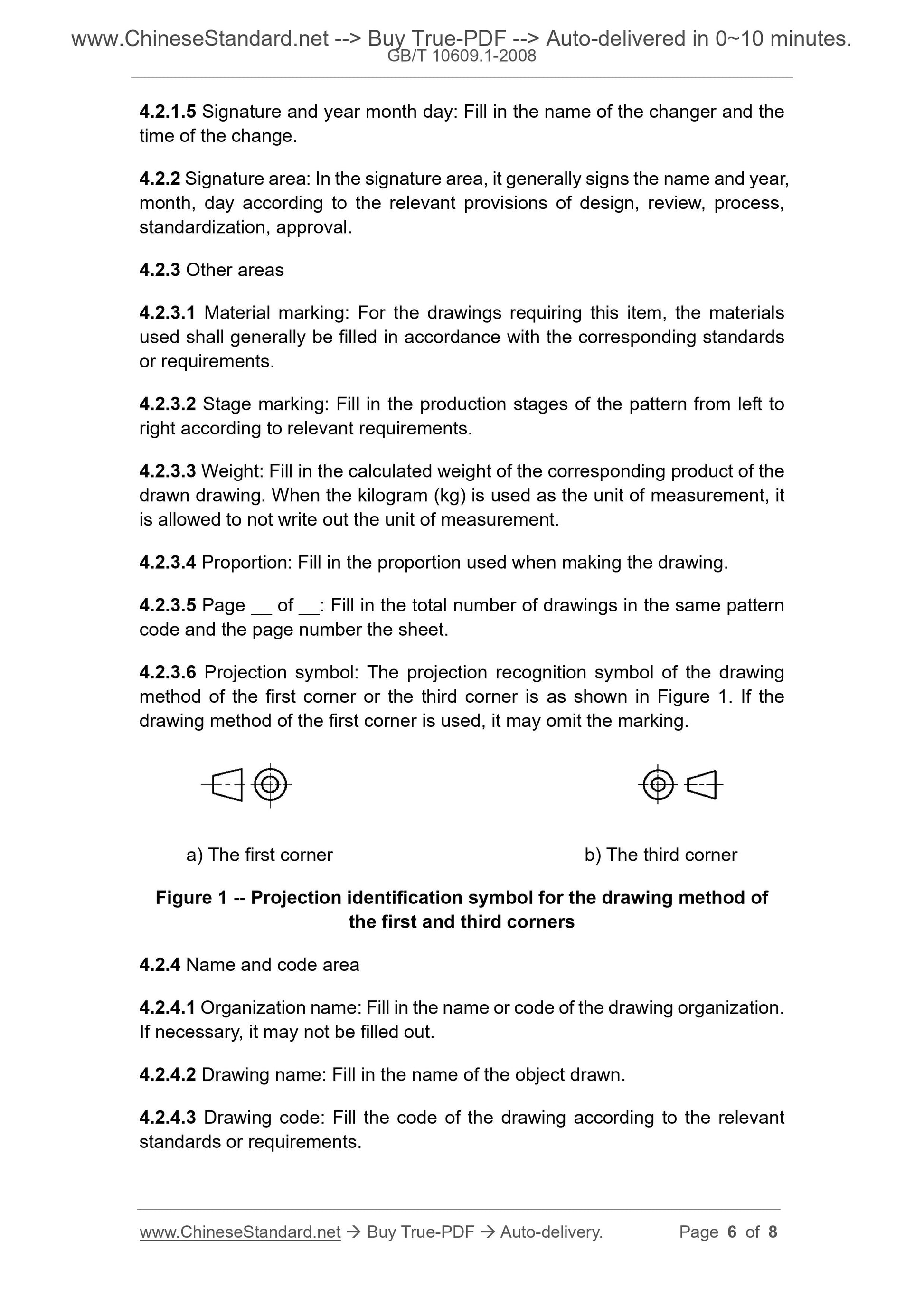

4.2.2 Signature area: In the signature area, it generally signs the name and year, month, day according to the relevant provisions of design, review, process, standardization, approval.
4.2.3 Other areas Material marking: For the drawings requiring this item, the materials used shall generally be filled in accordance with the corresponding standards or requirements. Stage marking: Fill in the production stages of the pattern from left to right according to relevant requirements. Weight: Fill in the calculated weight of the corresponding product of the drawn drawing. When the kilogram (kg) is used as the unit of measurement, it is allowed to not write out the unit of measurement. Proportion: Fill in the proportion used when making the drawing. Page __ of __: Fill in the total number of drawings in the same pattern code and the page number the sheet. Projection symbol: The projection recognition symbol of the drawing method of the first corner or the third corner is as shown in Figure 1. If the drawing method of the first corner is used, it may omit the marking.
a) The first corner b) The third corner
Figure 1 -- Projection identification symbol for the drawing method of
the first and third corners
4.2.4 Name and code area Organization name: Fill in the name or code of the drawing organization. If necessary, it may not be filled out. Drawing name: Fill in the name of the object drawn. Drawing code: Fill the code of the drawing according to the relevant standards or requirements.
