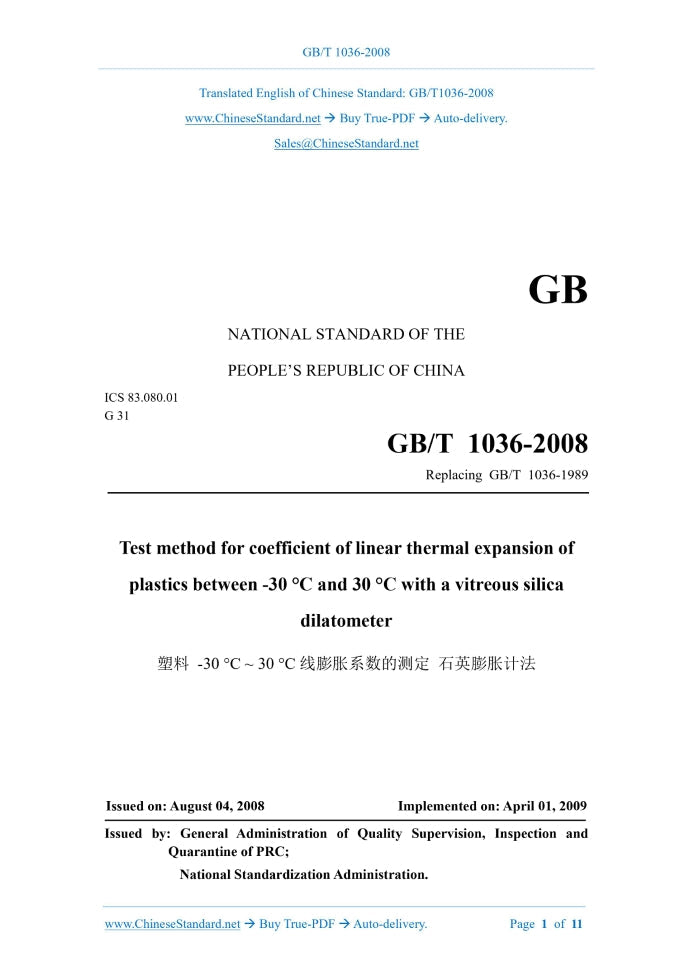

GB/T 1036-2008: Test method for coefficient of linear thermal expansion of plastics between 30 Celsius and 30 Celsius with a vitreous silica dilatometer

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 1036-2008 (Self-service in 1-minute)
Newer / historical versions: GB/T 1036-2008

Preview True-PDF

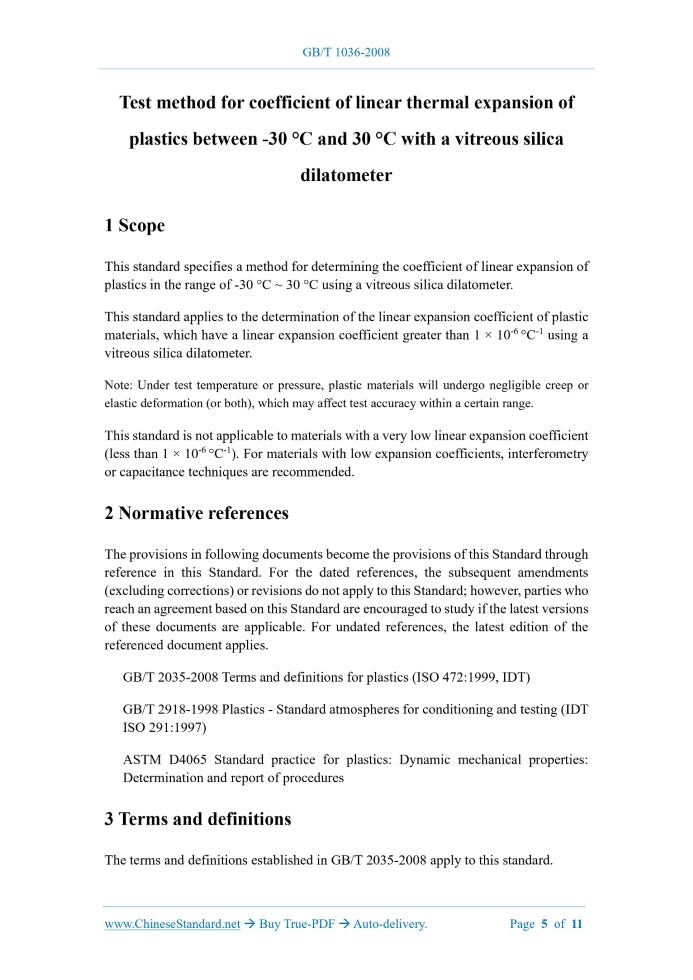

Scope

This standard specifies a method for determining the coefficient of linear expansion of
plastics in the range of -30 °C ~ 30 °C using a vitreous silica dilatometer.
This standard applies to the determination of the linear expansion coefficient of plastic
materials, which have a linear expansion coefficient greater than 1 × 10-6 °C-1 using a
vitreous silica dilatometer.
Note. Under test temperature or pressure, plastic materials will undergo negligible creep or
elastic deformation (or both), which may affect test accuracy within a certain range.
This standard is not applicable to materials with a very low linear expansion coefficient
(less than 1 × 10-6 °C-1). For materials with low expansion coefficients, interferometry
or capacitance techniques are recommended.

Basic Data

Standard ID	GB/T 1036-2008 (GB/T1036-2008)
Description (Translated English)	Test method for coefficient of linear thermal expansion of plastics between 30 Celsius and 30 Celsius with a vitreous silica dilatometer
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	G31
Classification of International Standard	83.080.01
Word Count Estimation	7,711
Date of Issue	2008-08-04
Date of Implementation	2009-04-01
Older Standard (superseded by this standard)	GB/T 1036-1989
Quoted Standard	GB/T 2035-2008; GB/T 2918-1998; ASTM D4065
Adopted Standard	ASTM D696-2003, MOD
Regulation (derived from)	National Standard Approval Announcement 2008 No.14 (Total No.127)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the expansion of plastic quartz was measured approach in -30��C ~ 30��C linear expansion coefficient. This standard applies to the use of quartz dilatometer for linear expansion coefficient greater than 1X10-6��C -1 plastic material linear expansion coefficient was measured.
