GB/T 10357.7-2013: Test of mechanical properties of furniture -- Part 7: Stability of tables
GB/T 10357.7-2013
ICS 97.140
Y 80
National Standard
of the People’s Republic of China
Replacing GB/T 10357.7-1995
Test of mechanical properties of furniture
- Part 7. Stability of tables
家具力学性能试验 第 7部分. 桌类稳定性
ISSUED ON. OCTOBER 10, 2013
IMPLEMENTED ON. MAY 1, 2014
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China (AQSIQ);
Standardization Administration Committee of the People's
Republic of China (SAC).

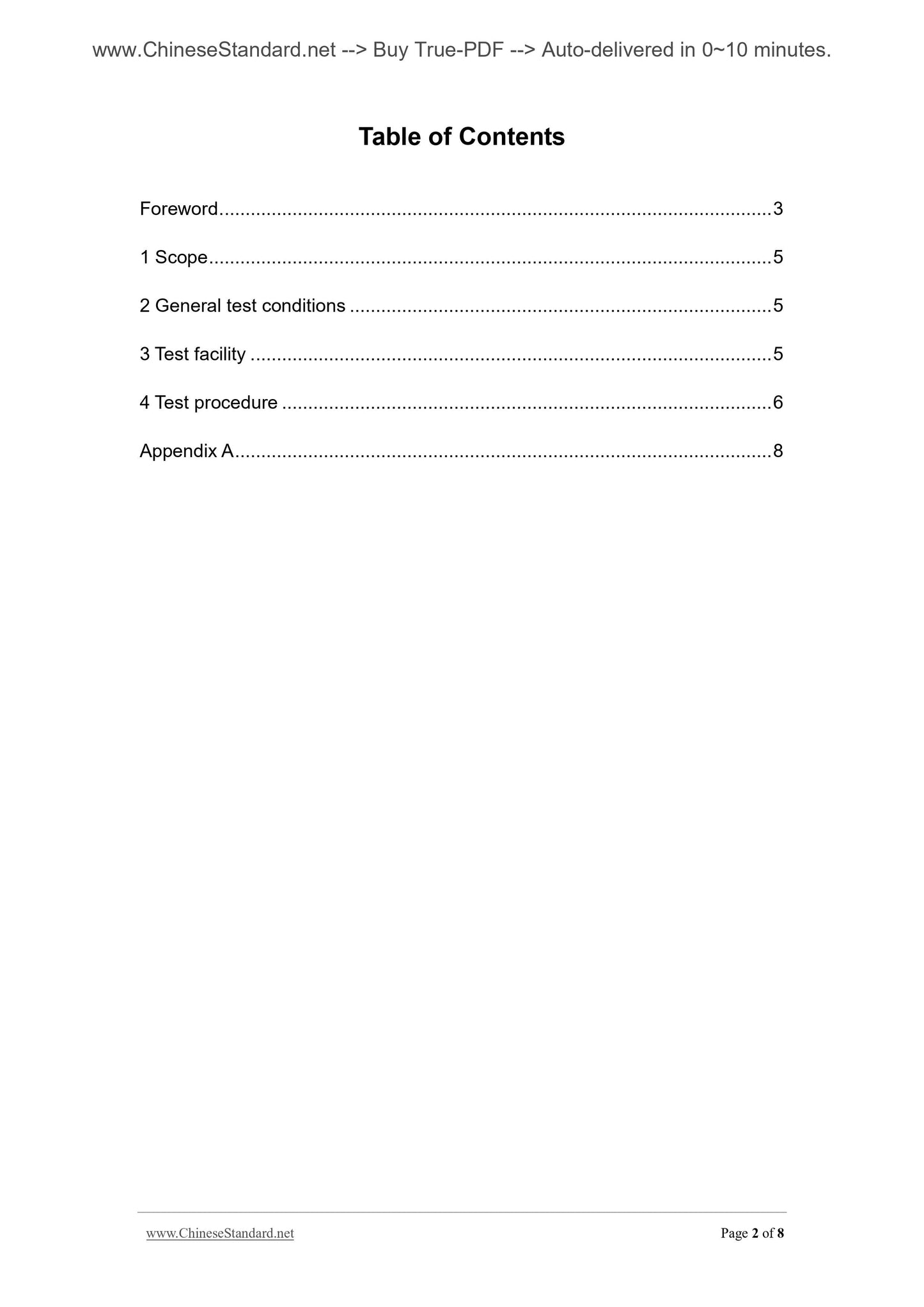

Table of Contents
Foreword ... 3
1 Scope ... 5
2 General test conditions ... 5
3 Test facility ... 5
4 Test procedure ... 6
Appendix A ... 8
Foreword
GB/T 10357 "Test of mechanical properties of furniture" is divided into eight
parts.
- Part 1. Strength and durability of tables;
- Part 2. Stability of stools;
- Part 3. Strength and durability of stools;
- Part 4. Stability of cabinets;
- Part 5. Strength and durability of cabinets;
- Part 6. Strength and durability of beds;
- Part 7. Stability of tables;
- Part 8. Stability of chairs and rocking chairs which have inclining and reclining
mechanical properties when they are fully leaned backward.
This Part is Part 7 of GB/T 10357.
This Part is drafted in accordance with the given rules of GB/T 1.1-2009.
This Part replaces GB/T 10357.7-1995 "Test of mechanical properties of
furniture - Stability of tables."
Compared with GB/T 10357.7-1995, main technical changes of this Part are as
follows.
- MODIFY the scope;
- “This Standard” is revised to “this Part”;
- ADD requirements of loading equipment;
- MODIFY the test tolerance;
- ADD the test requirements when the table has drawers;
- DELETE the last chapter of test report;
- The Appendix is revised to be normative Appendix.
Please note that some of the contents of this document may involve patents.
The issuing organizations of this document do not assume responsibility for
the identification of these patents.
This Part was proposed by China Light Industry Federation.
This Part shall be administered by National Furniture Standardization
Technical Committee (SAC/TC 480).
Drafting organizations of this Part. Hangzhou Juri Furniture Industry Co., Ltd.,
Zhejiang Yasha Industrial Park Development Co., Ltd., Zhejiang Luo Danni
Furniture Co., Ltd., Shanghai Quality Supervision and Inspection Technology
Institute (National Furniture Quality Supervision and Inspection Center),
Zhejiang Forestry University, and Wenzhou Vocational and Technical College.
Main drafters of this Part. Li Guanyiao, Zhou Guansong, Xu Ting, Luo Jufen,
Dong Caihong, Dai Zhong, Li Song, and Liu Min.
The previous standard replaced by this Part is as follows.
- GB/T 10357.7-1995.
Test of mechanical properties of furniture
- Part 7 . Stability of tables
1 Scope
This Part of GB/T 10357 specifies the test method of loading stability of tables.
This Part applies to the tables which have no fixed connection with ground,
buildings, and furniture etc.
2 General test conditions
2.1 Specimen
Specimens shall be finished product, all connections and fasteners shall be
securely mounted in accordance with using state before testing.
Specimen shall be tested at the most unstable edge of the table, if the edge is
not obvious, it shall be determined by experiment.
For specimen with movable table board, it shall be tested under the most
unstable using state. When movable table board has multiple connectivity
methods, it shall choose the most unstable connection method. If the table is
installed with drawer, the drawer shall be closed and shall not be loaded when
testing.
2.2 Test tolerance
Except that there are other specific provisions, measurement error of all
loading force is ± 5%; measurement error of all dimensions is ± 1 mm; error of
withstanding position shall be controlled within ± 2 mm.
3 Test facility
3.1 Loading equipment
The equipment that can be ensured to be loaded correctly according to the
provisions of this Part can be used. Loading equipment can provide a vertical
or horizontal loading force, this force may be fixed or gradually increasing.

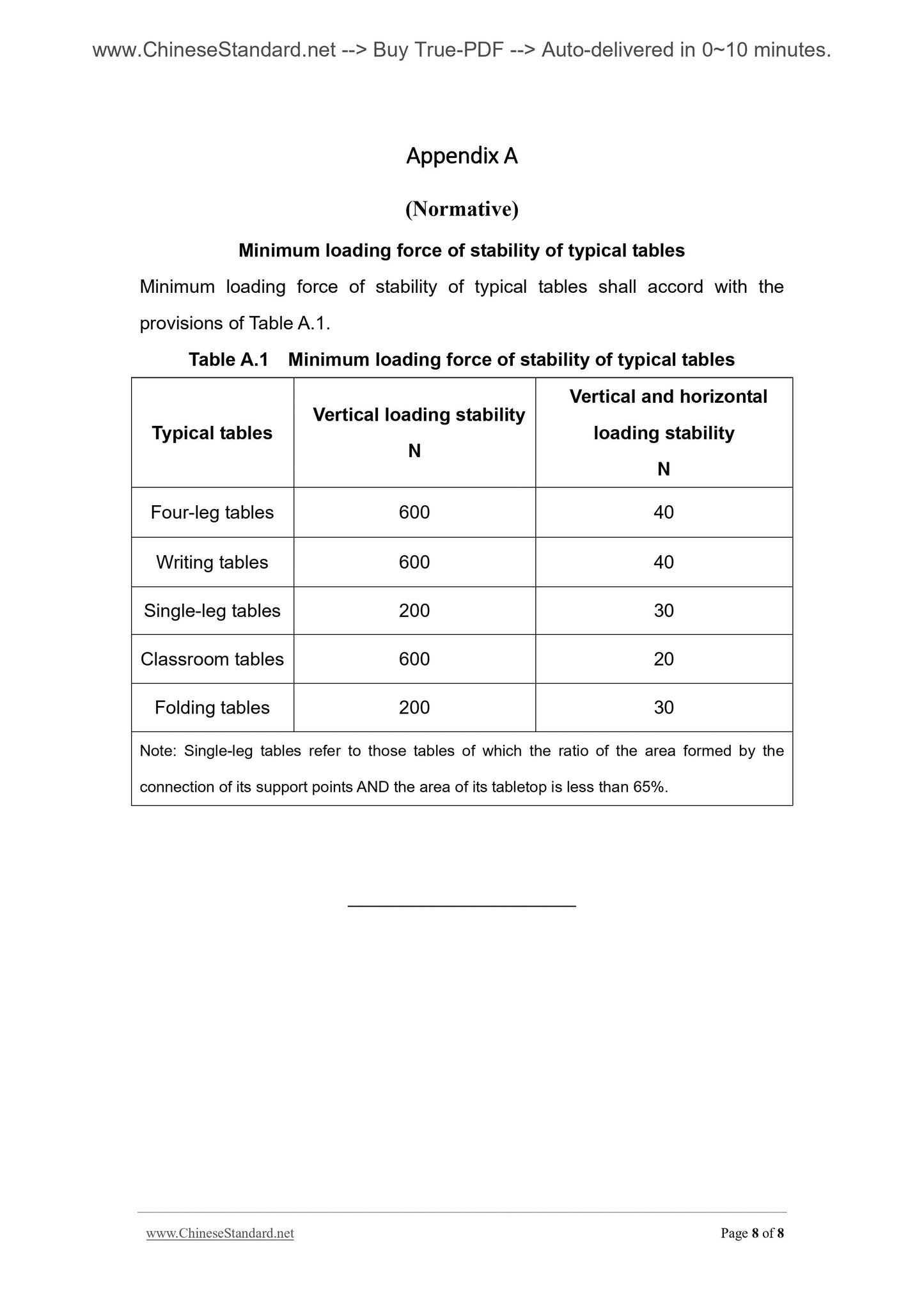

Appendix A
(Normative)
Minimum loading force of stability of typical tables
Minimum loading force of stability of typical tables shall accord with the
provisions of Table A.1.
Table A.1 Minimum loading force of stability of typical tables
Typical tables
Vertical loading stability
Vertical and horizontal
loading stability
Four-leg tables 600 40
Writing tables 600 40
Single-leg tables 200 30
Classroom tables 600 20
Folding tables 200 30
Note. Single-leg tables refer to those tables of which the ratio of the area formed by the
connection of its support points AND the area of its tabletop is less than 65%.
