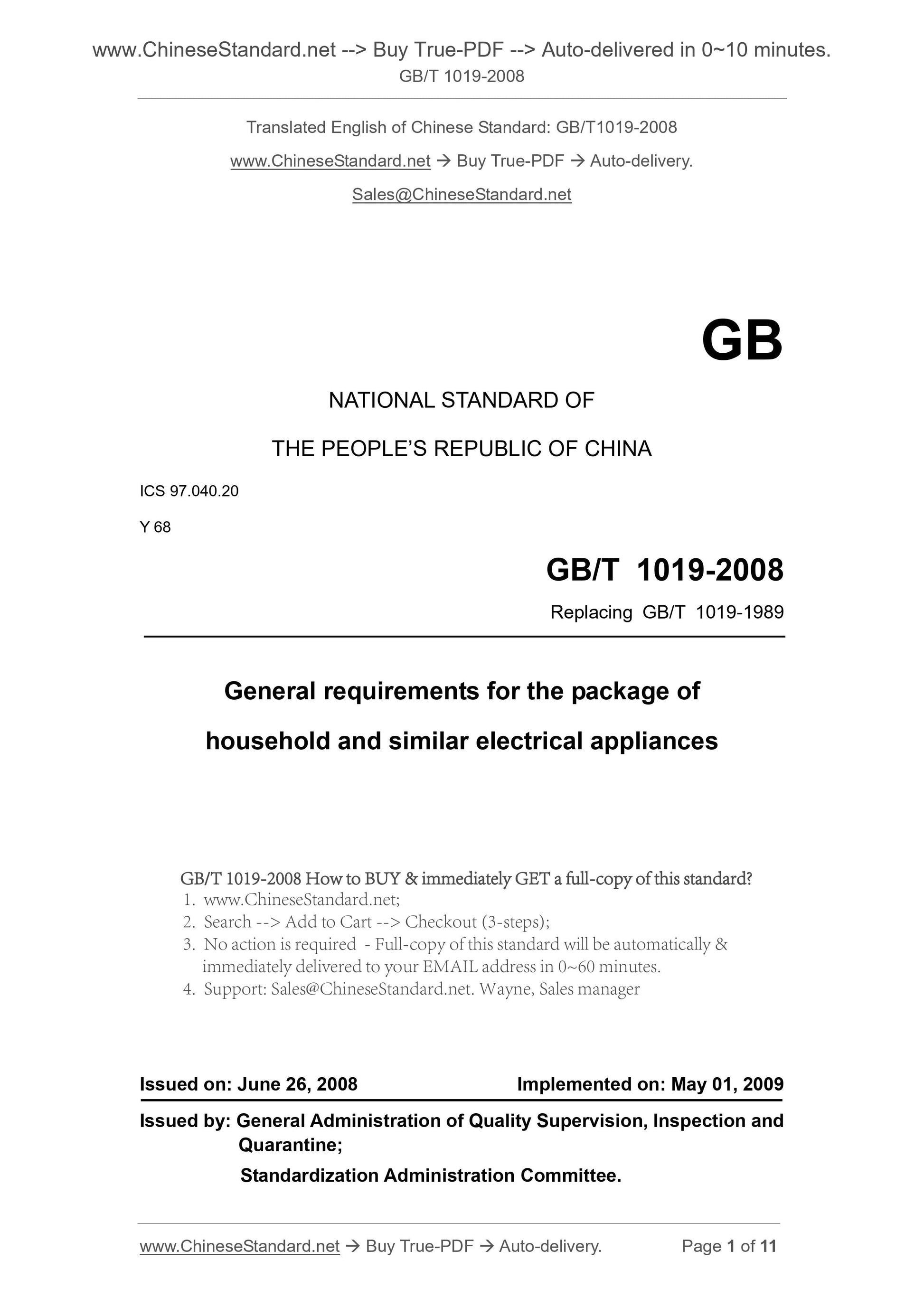

GB/T 1019-2008
GB
NATIONAL STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
ICS 97.040.20
Y 68
Replacing GB/T 1019-1989
General requirements for the package of
household and similar electrical appliances
ISSUED ON. JUNE 26, 2008
IMPLEMENTED ON. MAY 01, 2009
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration Committee.

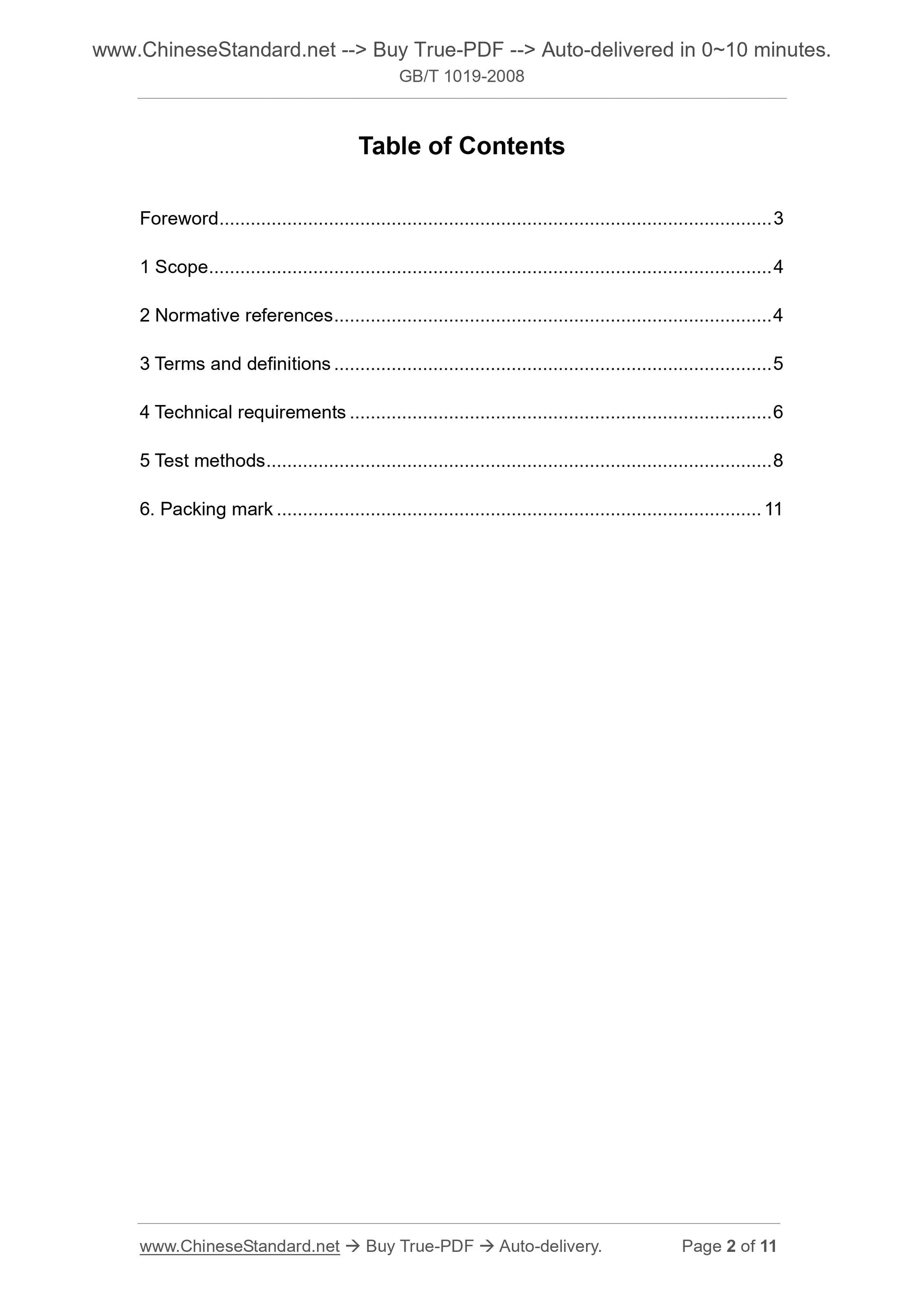

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 5
4 Technical requirements ... 6
5 Test methods ... 8
6. Packing mark ... 11

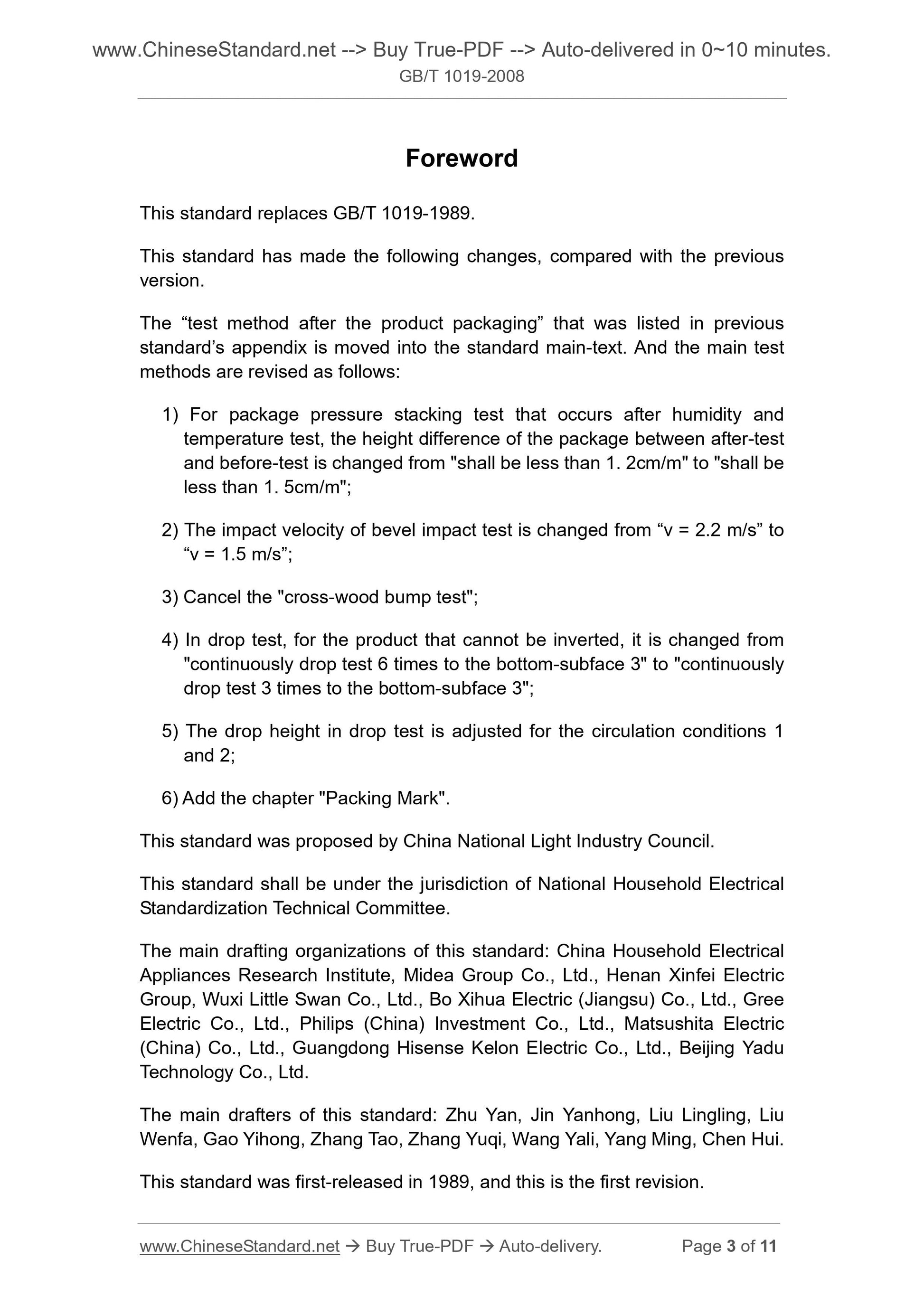

Foreword
This standard replaces GB/T 1019-1989.
This standard has made the following changes, compared with the previous
version.
The “test method after the product packaging” that was listed in previous
standard’s appendix is moved into the standard main-text. And the main test
methods are revised as follows.
1) For package pressure stacking test that occurs after humidity and
temperature test, the height difference of the package between after-test
and before-test is changed from "shall be less than 1. 2cm/m" to "shall be
less than 1. 5cm/m";
2) The impact velocity of bevel impact test is changed from “v = 2.2 m/s” to
“v = 1.5 m/s”;
3) Cancel the "cross-wood bump test";
4) In drop test, for the product that cannot be inverted, it is changed from
"continuously drop test 6 times to the bottom-subface 3" to "continuously
drop test 3 times to the bottom-subface 3";
5) The drop height in drop test is adjusted for the circulation conditions 1
and 2;
6) Add the chapter "Packing Mark".
This standard was proposed by China National Light Industry Council.
This standard shall be under the jurisdiction of National Household Electrical
Standardization Technical Committee.
The main drafting organizations of this standard. China Household Electrical
Appliances Research Institute, Midea Group Co., Ltd., Henan Xinfei Electric
Group, Wuxi Little Swan Co., Ltd., Bo Xihua Electric (Jiangsu) Co., Ltd., Gree
Electric Co., Ltd., Philips (China) Investment Co., Ltd., Matsushita Electric
(China) Co., Ltd., Guangdong Hisense Kelon Electric Co., Ltd., Beijing Yadu
Technology Co., Ltd.
The main drafters of this standard. Zhu Yan, Jin Yanhong, Liu Lingling, Liu
Wenfa, Gao Yihong, Zhang Tao, Zhang Yuqi, Wang Yali, Yang Ming, Chen Hui.
This standard was first-released in 1989, and this is the first revision.

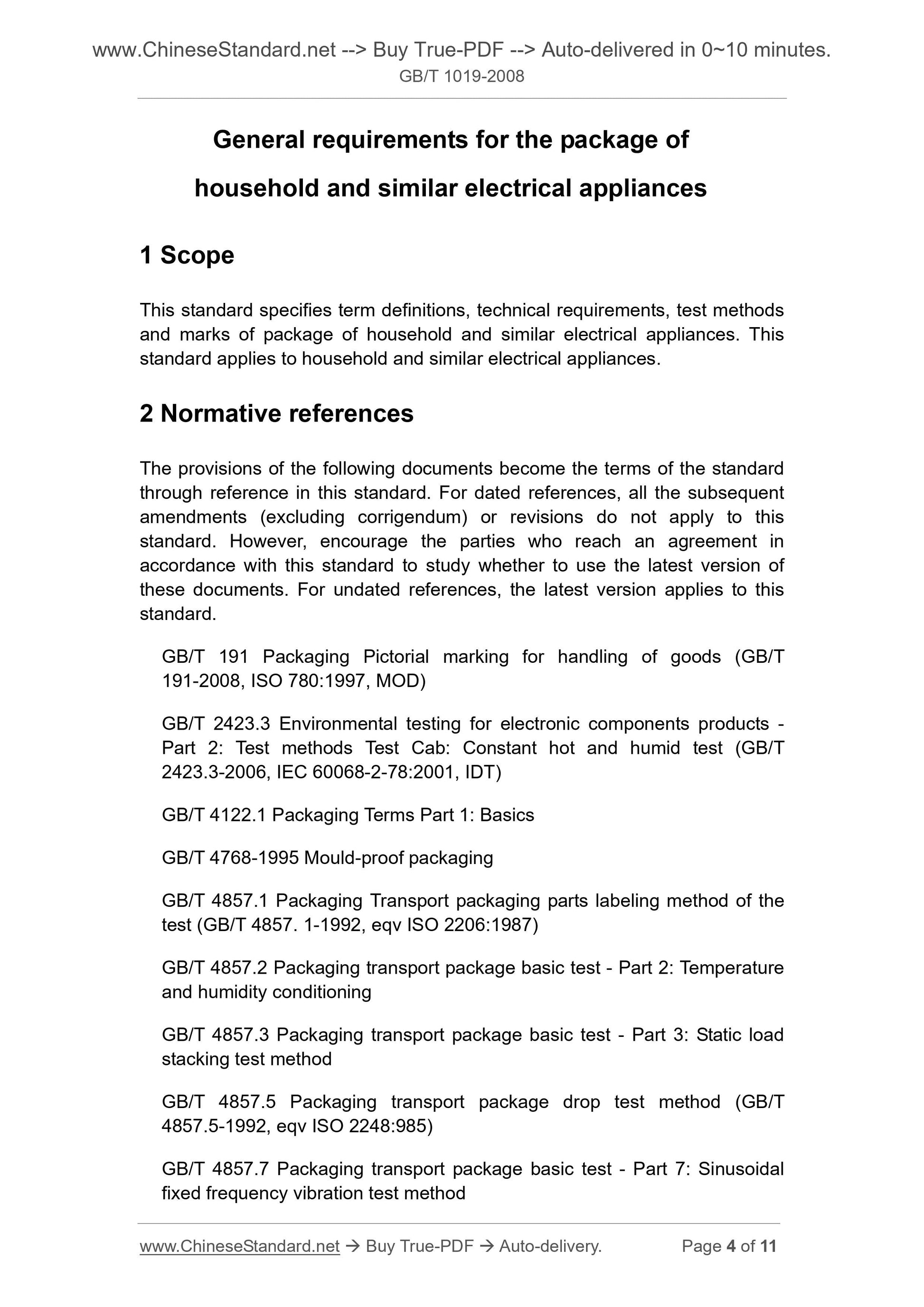

General requirements for the package of
household and similar electrical appliances
1 Scope
This standard specifies term definitions, technical requirements, test methods
and marks of package of household and similar electrical appliances. This
standard applies to household and similar electrical appliances.
2 Normative references
The provisions of the following documents become the terms of the standard
through reference in this standard. For dated references, all the subsequent
amendments (excluding corrigendum) or revisions do not apply to this
standard. However, encourage the parties who reach an agreement in
accordance with this standard to study whether to use the latest version of
these documents. For undated references, the latest version applies to this
standard.
GB/T 191 Packaging Pictorial marking for handling of goods (GB/T
191-2008, ISO 780.1997, MOD)
GB/T 2423.3 Environmental testing for electronic components products -
Part 2. Test methods Test Cab. Constant hot and humid test (GB/T
2423.3-2006, IEC 60068-2-78.2001, IDT)
GB/T 4122.1 Packaging Terms Part 1. Basics
GB/T 4768-1995 Mould-proof packaging
GB/T 4857.1 Packaging Transport packaging parts labeling method of the
test (GB/T 4857. 1-1992, eqv ISO 2206.1987)
GB/T 4857.2 Packaging transport package basic test - Part 2. Temperature
and humidity conditioning
GB/T 4857.3 Packaging transport package basic test - Part 3. Static load
stacking test method
GB/T 4857.5 Packaging transport package drop test method (GB/T
4857.5-1992, eqv ISO 2248.985)
GB/T 4857.7 Packaging transport package basic test - Part 7. Sinusoidal
fixed frequency vibration test method

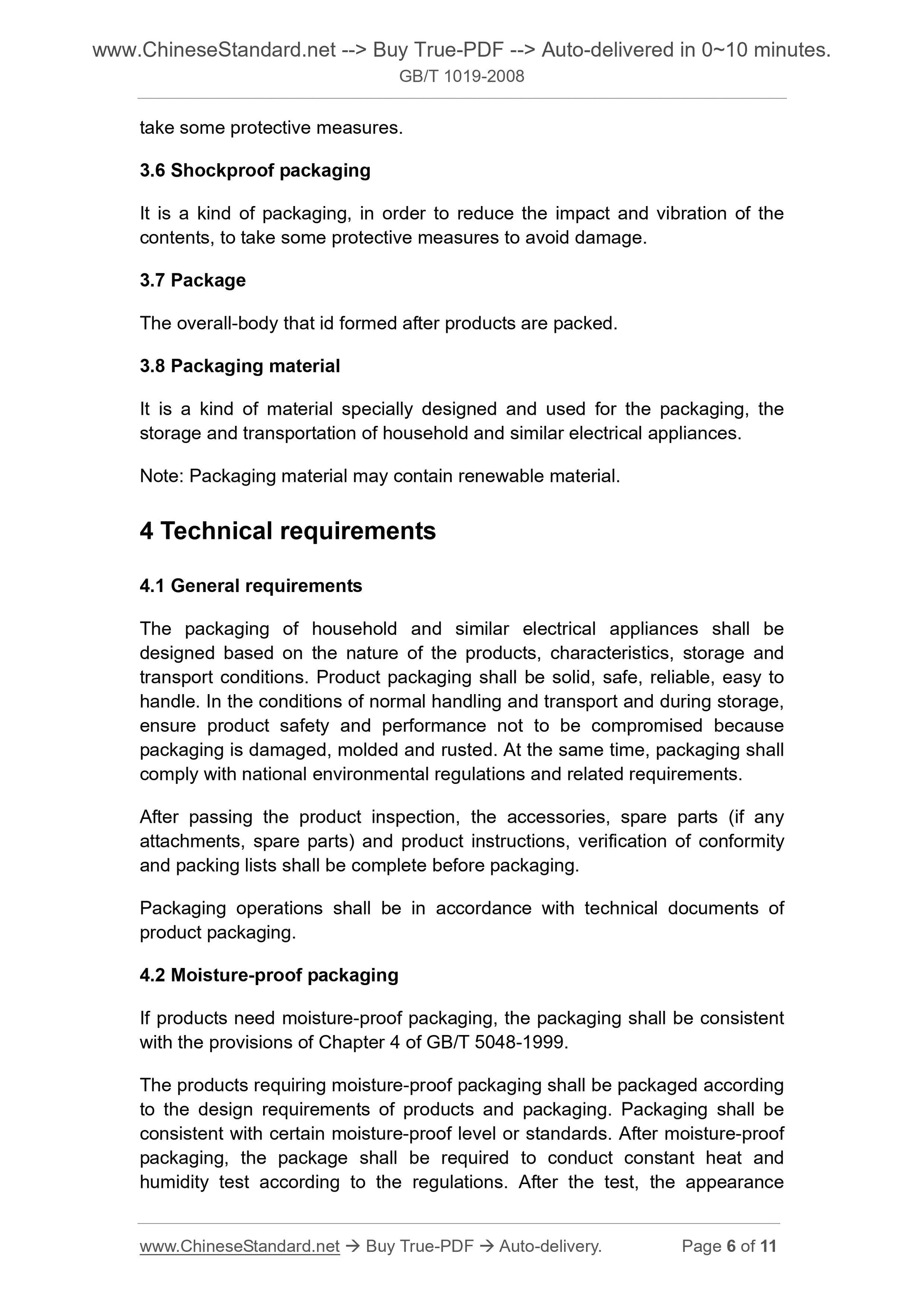

take some protective measures.
3.6 Shockproof packaging
It is a kind of packaging, in order to reduce the impact and vibration of the
contents, to take some protective measures to avoid damage.
3.7 Package
The overall-body that id formed after products are packed.
3.8 Packaging material
It is a kind of material specially designed and used for the packaging, the
storage and transportation of household and similar electrical appliances.
Note. Packaging material may contain renewable material.
4 Technical requirements
4.1 General requirements
The packaging of household and similar electrical appliances shall be
designed based on the nature of the products, characteristics, storage and
transport conditions. Product packaging shall be solid, safe, reliable, easy to
handle. In the conditions of normal handling and transport and during storage,
ensure product safety and performance not to be compromised because
packaging is damaged, molded and rusted. At the same time, packaging shall
comply with national environmental regulations and related requirements.
After passing the product inspection, the accessories, spare parts (if any
attachments, spare parts) and product instructions, verification of conformity
and packing lists shall be complete before packaging.
Packaging operations shall be in accordance with technical documents of
product packaging.
4.2 Moisture-proof packaging
If products need moisture-proof packaging, the packaging shall be consistent
with the provisions of Chapter 4 of GB/T 5048-1999.
The products requiring moisture-proof packaging shall be packaged according
to the design requirements of products and packaging. Packaging shall be
consistent with certain moisture-proof level or standards. After moisture-proof
packaging, the package shall be required to conduct constant heat and
humidity test according to the regulations. After the test, the appearance
