GB/T 10069.1-2006: Measurement of airborne noise emitted by rotating electrical machines and the noise limits -- Part 1: Method for the measurement of airborne noise emitted by rotating electrical machines

This part specifies all the information necessary to carry out efficiently and under standardized conditions the determination, declaration, and verification of the noise emission characteristics of rotating electrical machines. It specifies noise measurement methods that can be used, AND specifies the operating and mounting conditions required for the test.

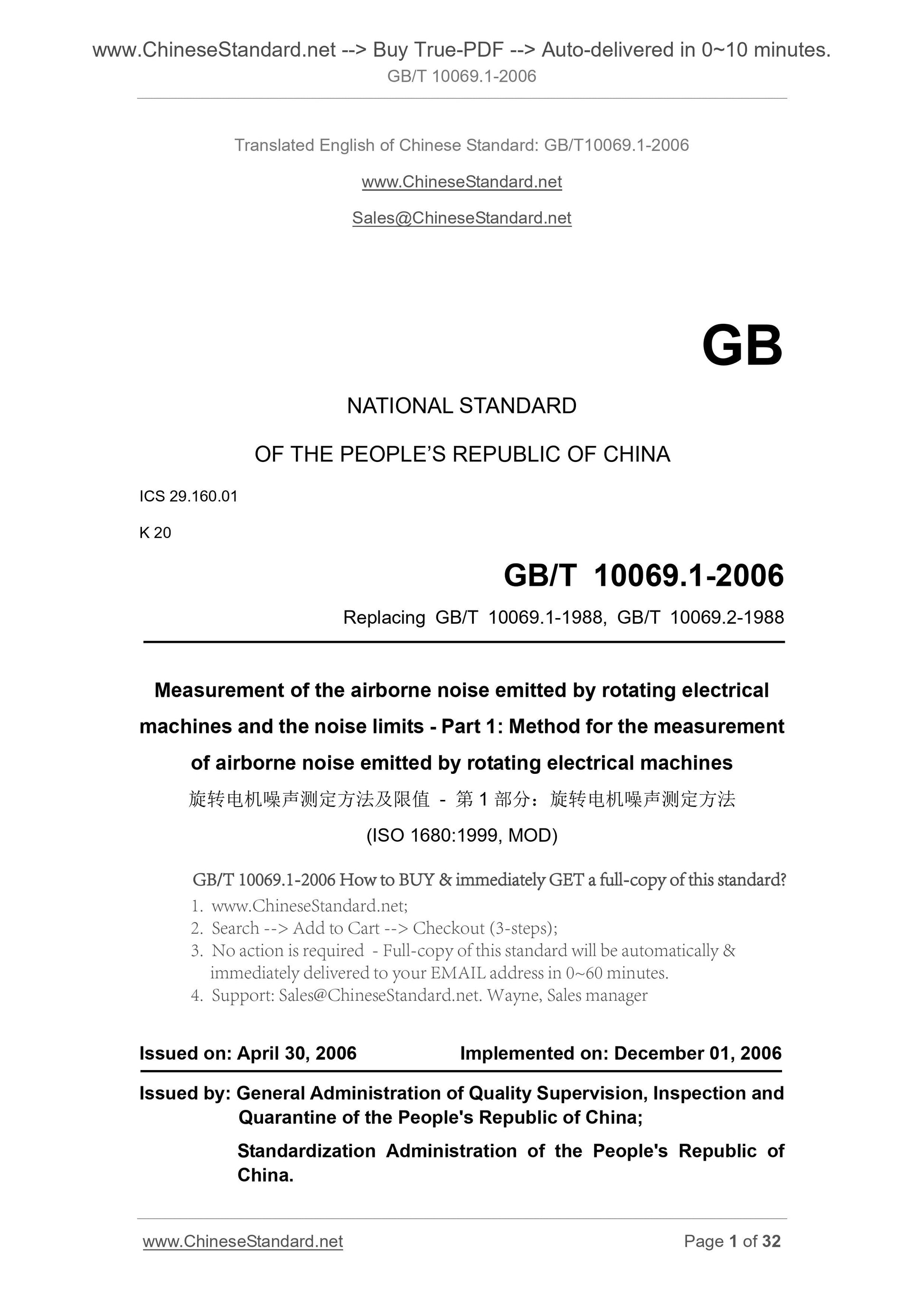

GB/T 10069.1-2006
GB
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 29.160.01
K 20
Replacing GB/T 10069.1-1988, GB/T 10069.2-1988
Measurement of the airborne noise emitted by rotating electrical
machines and the noise limits - Part 1. Method for the measurement
of airborne noise emitted by rotating electrical machines
(ISO 1680.1999, MOD)
ISSUED ON. APRIL 30, 2006
IMPLEMENTED ON. DECEMBER 01, 2006
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

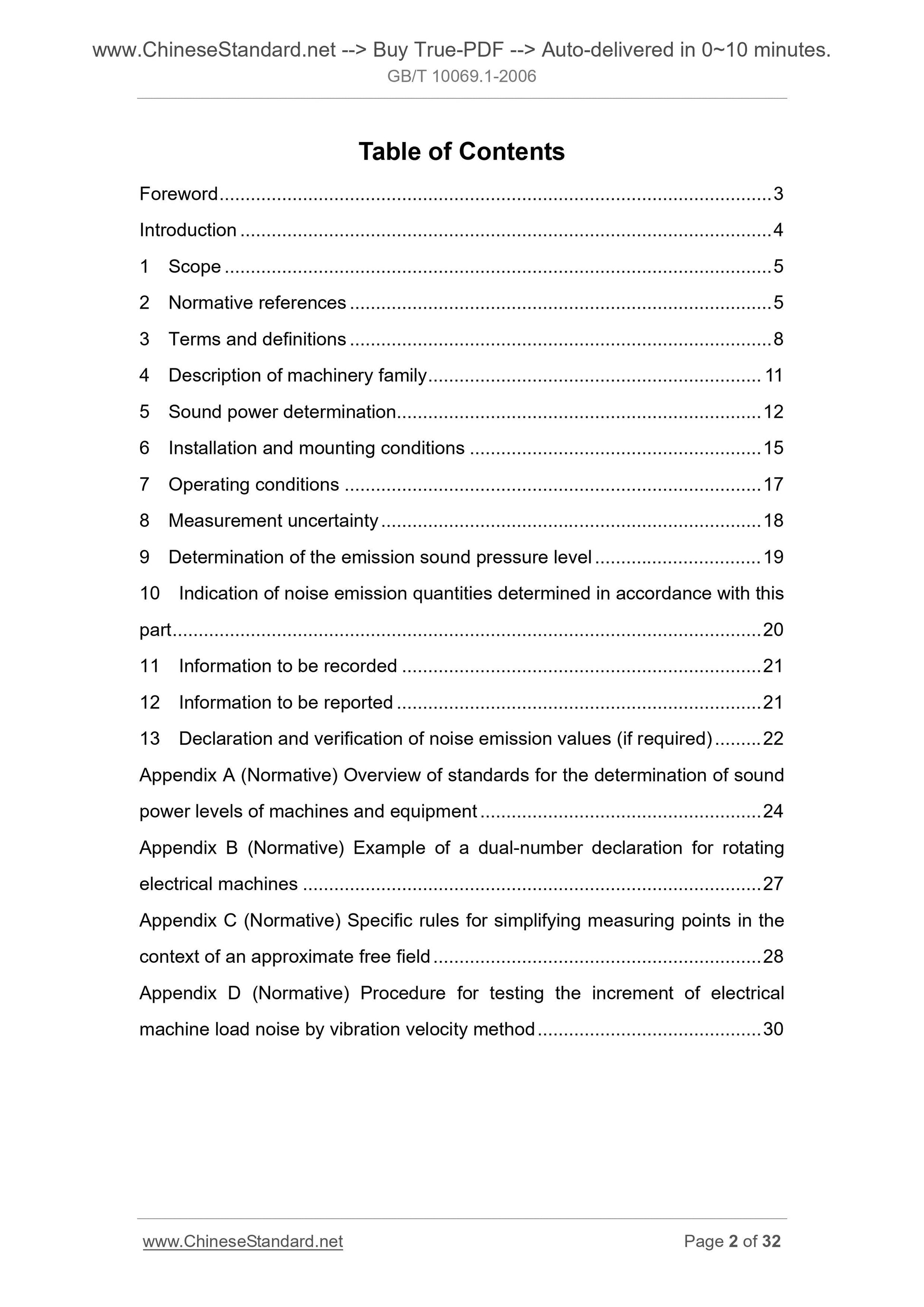

Table of Contents
Foreword ... 3
Introduction ... 4
1 Scope ... 5
2 Normative references ... 5

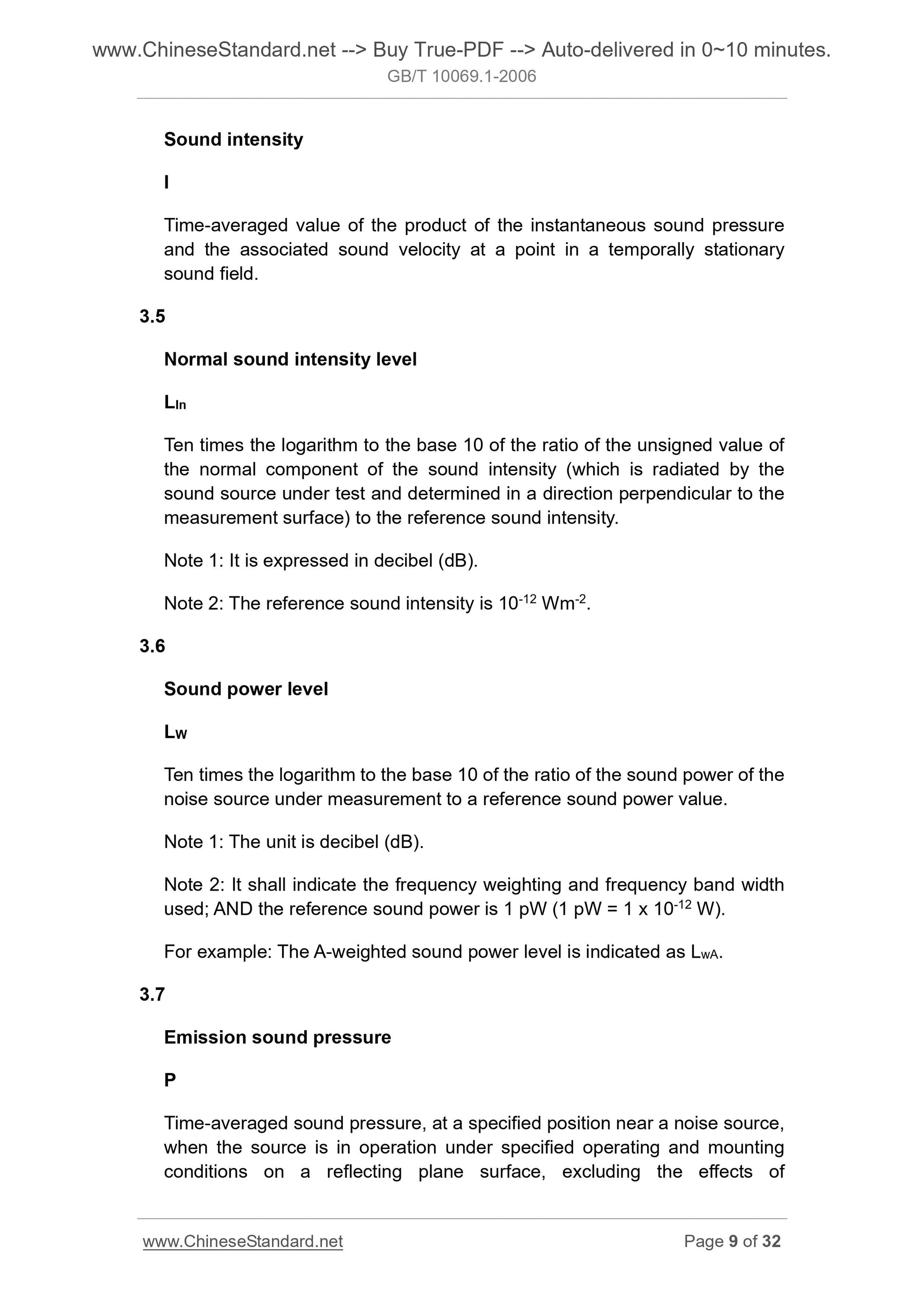

3 Terms and definitions ... 8
4 Description of machinery family ... 11

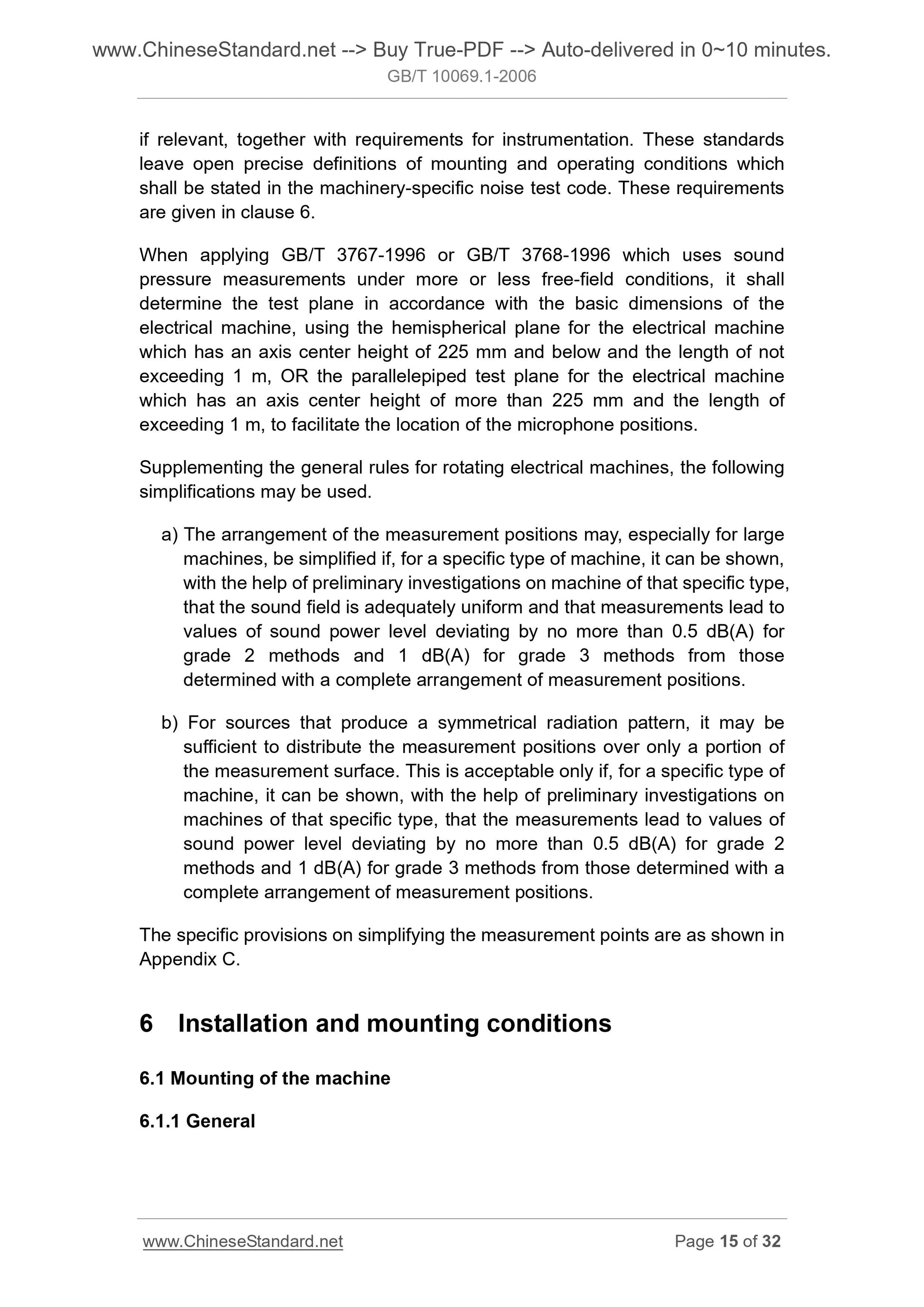

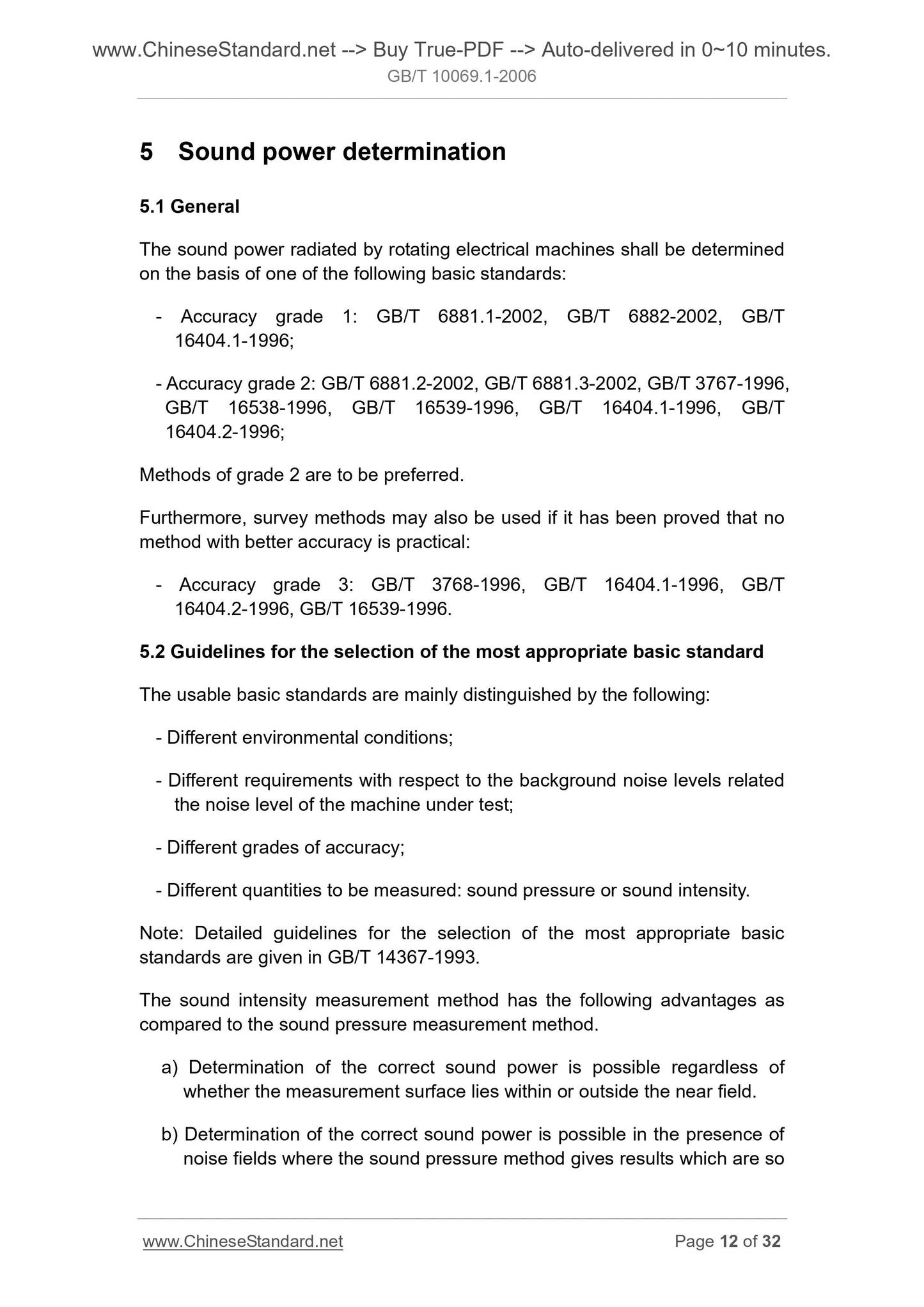

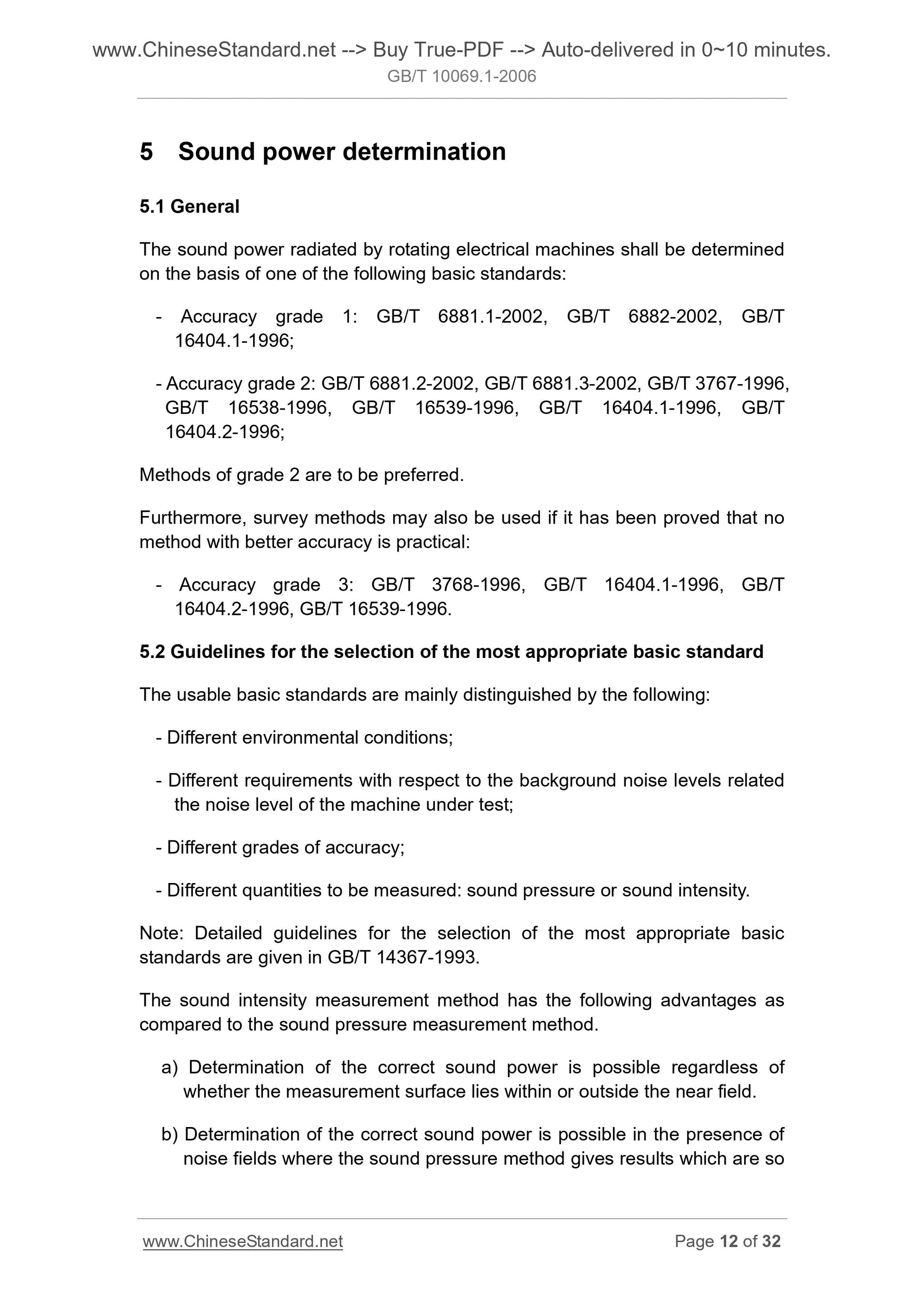

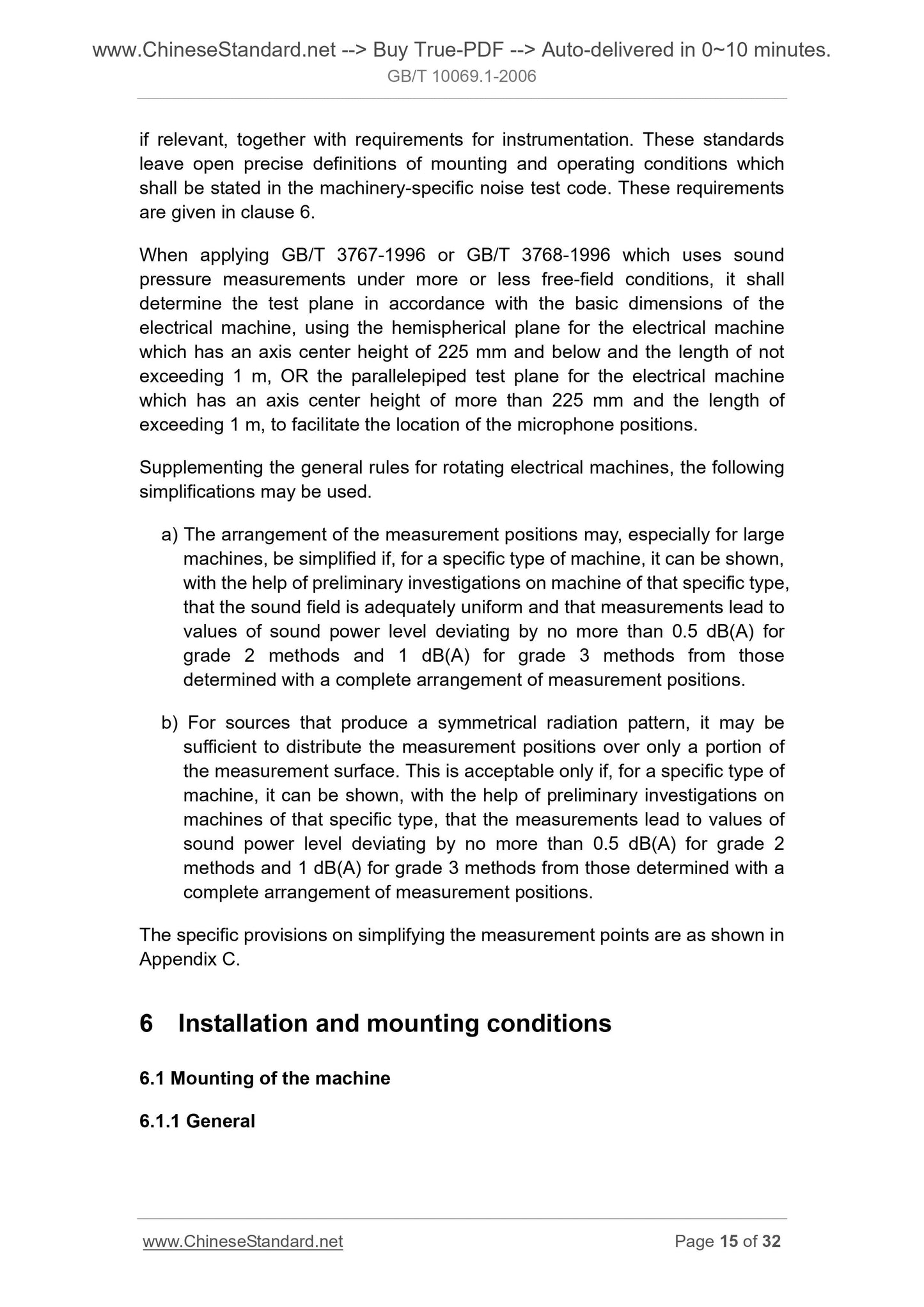

5 Sound power determination... 12
6 Installation and mounting conditions ... 15

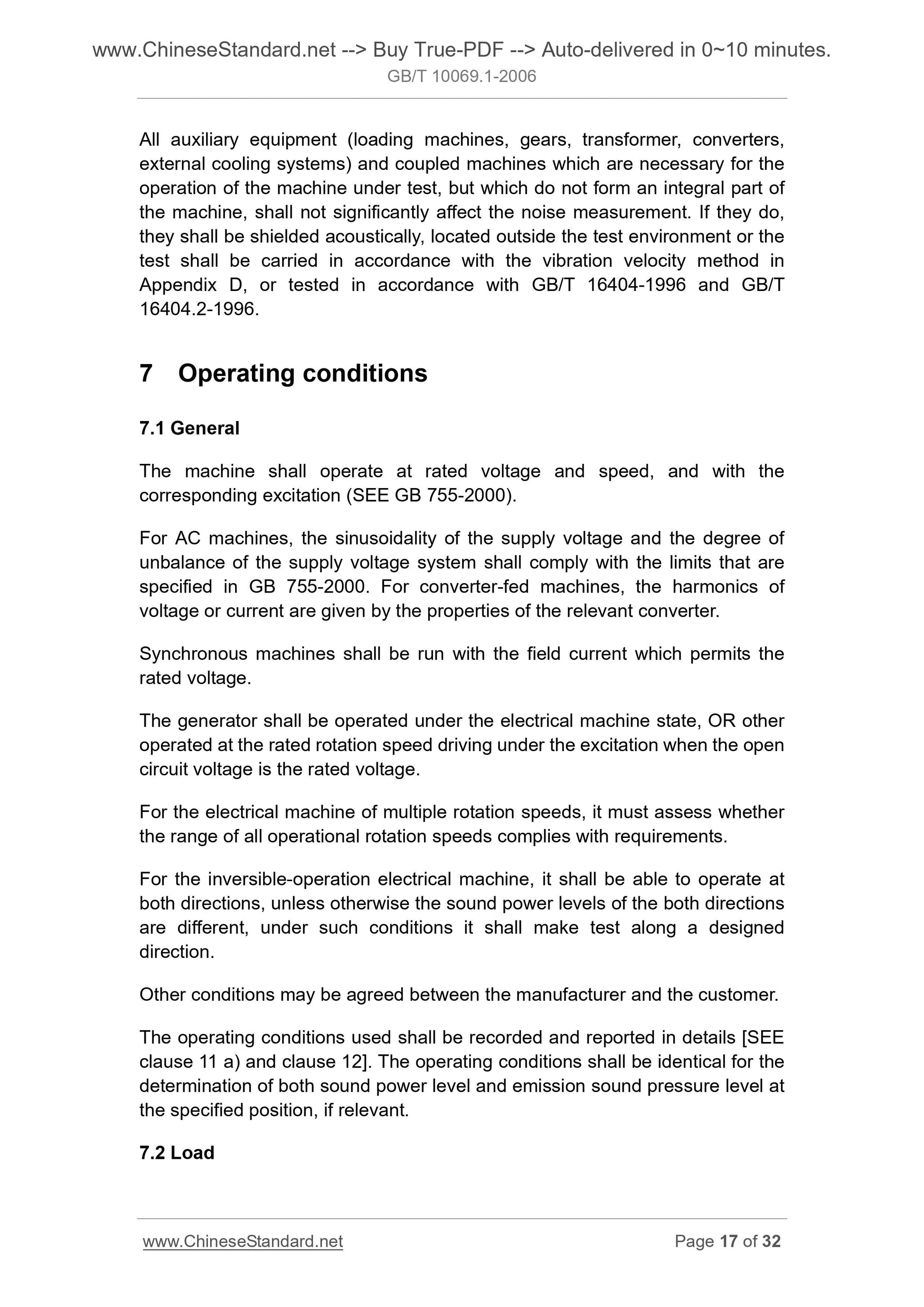

7 Operating conditions ... 17
8 Measurement uncertainty ... 18

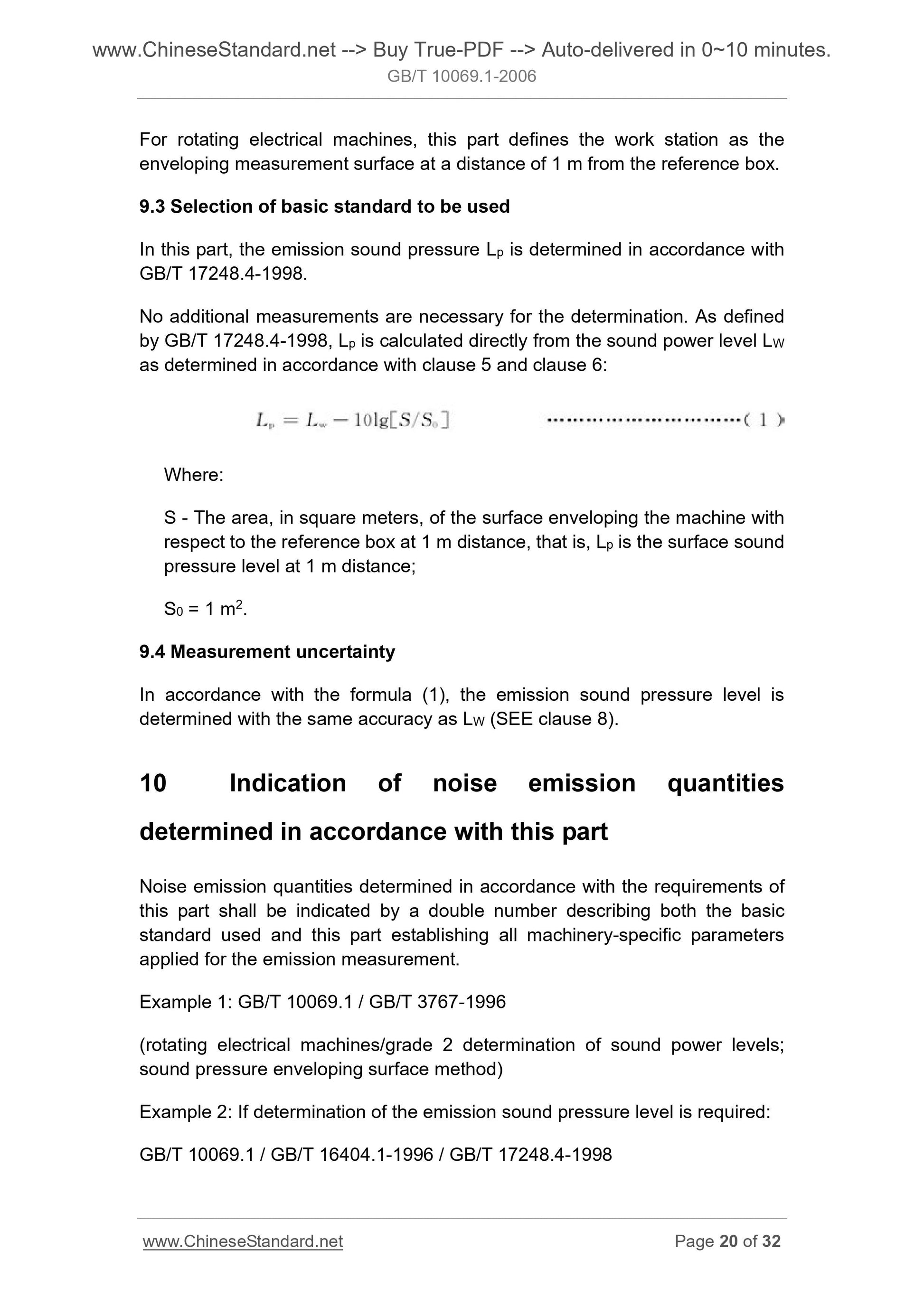

9 Determination of the emission sound pressure level ... 19
10 Indication of noise emission quantities determined in accordance with this part ... 20
11 Information to be recorded ... 21
12 Information to be reported ... 21

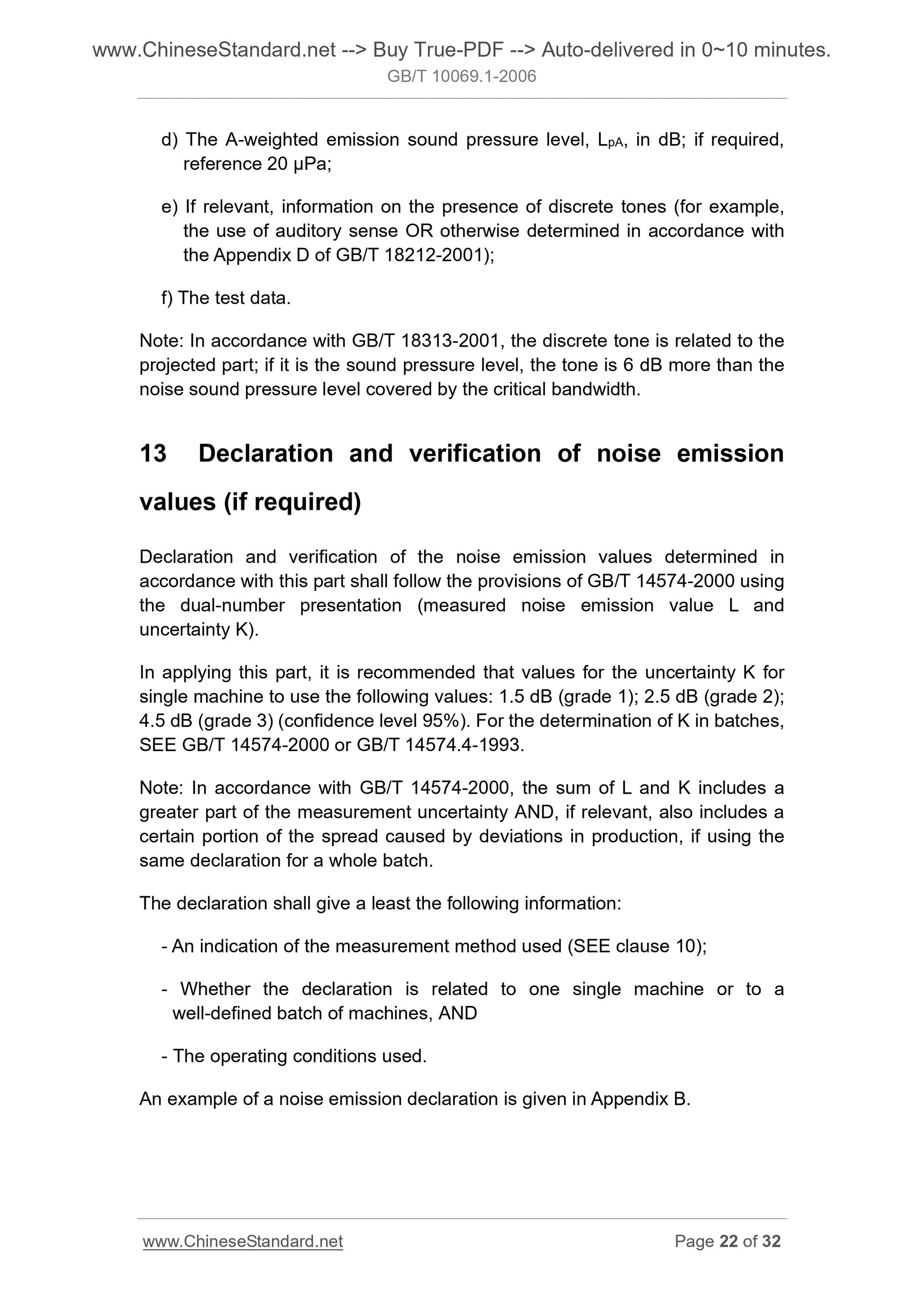

13 Declaration and verification of noise emission values (if required) ... 22 Appendix A (Normative) Overview of standards for the determination of sound power levels of machines and equipment ... 24
Appendix B (Normative) Example of a dual-number declaration for rotating electrical machines ... 27
Appendix C (Normative) Specific rules for simplifying measuring points in the context of an approximate free field ... 28
Appendix D (Normative) Procedure for testing the increment of electrical machine load noise by vibration velocity method ... 30

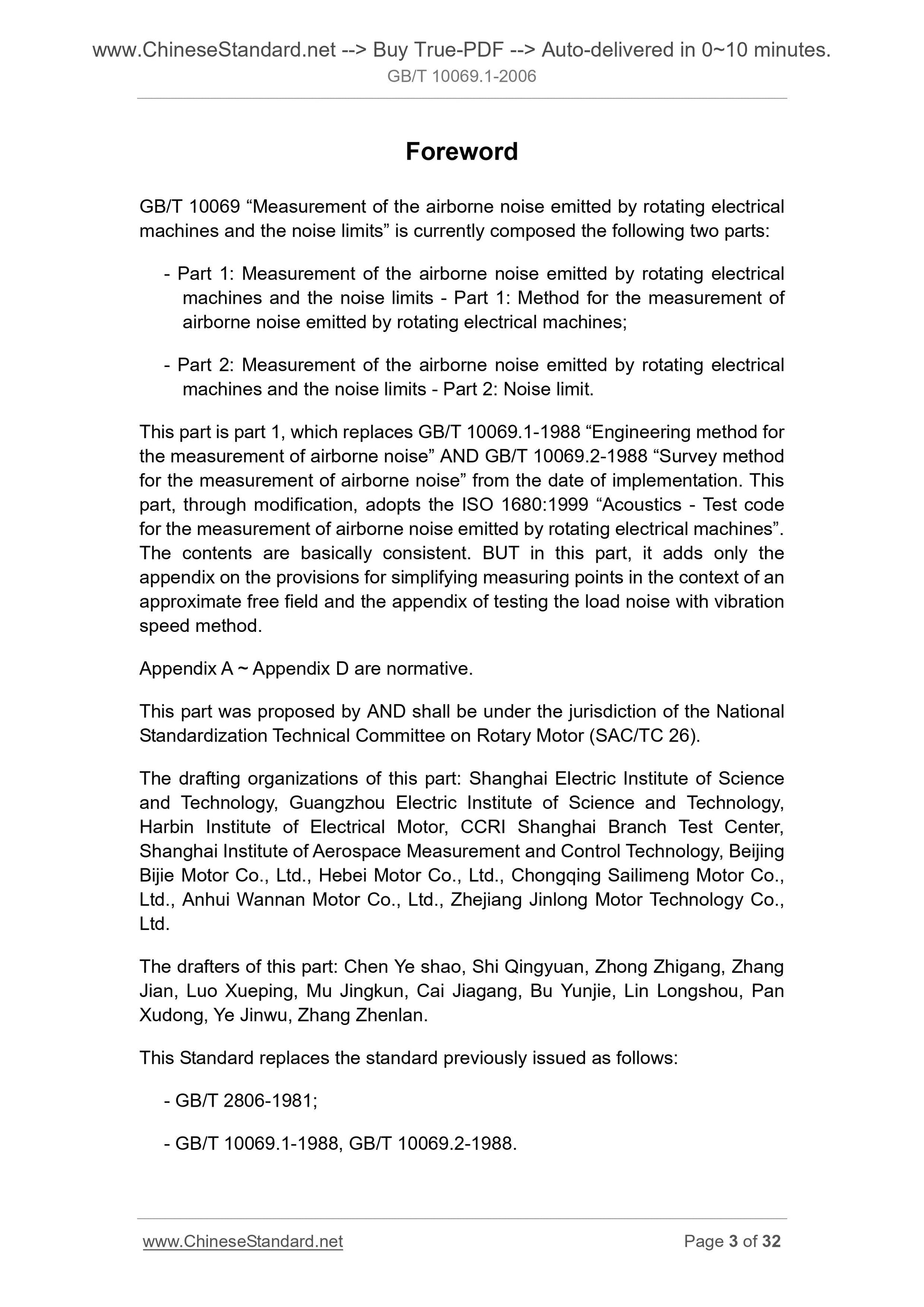

Foreword
GB/T 10069 ?€?Measurement of the airborne noise emitted by rotating electrical machines and the noise limits?€? is currently composed the following two parts. - Part 1. Measurement of the airborne noise emitted by rotating electrical machines and the noise limits - Part 1. Method for the measurement of
airborne noise emitted by rotating electrical machines;
- Part 2. Measurement of the airborne noise emitted by rotating electrical machines and the noise limits - Part 2. Noise limit.
This part is part 1, which replaces GB/T 10069.1-1988 ?€?Engineering method for the measurement of airborne noise?€? AND GB/T 10069.2-1988 ?€?Survey method for the measurement of airborne noise?€? from the date of implementation. This part, through modification, adopts the ISO 1680.1999 ?€?Acoustics - Test code for the measurement of airborne noise emitted by rotating electrical machines?€?. The contents are basically consistent. BUT in this part, it adds only the appendix on the provisions for simplifying measuring points in the context of an approximate free field and the appendix of testing the load noise with vibration speed method.
Appendix A ~ Appendix D are normative.
This part was proposed by AND shall be under the jurisdiction of the National Standardization Technical Committee on Rotary Motor (SAC/TC 26).
The drafting organizations of this part. Shanghai Electric Institute of Science and Technology, Guangzhou Electric Institute of Science and Technology, Harbin Institute of Electrical Motor, CCRI Shanghai Branch Test Center, Shanghai Institute of Aerospace Measurement and Control Technology, Beijing Bijie Motor Co., Ltd., Hebei Motor Co., Ltd., Chongqing Sailimeng Motor Co., Ltd., Anhui Wannan Motor Co., Ltd., Zhejiang Jinlong Motor Technology Co., Ltd.
The drafters of this part. Chen Ye shao, Shi Qingyuan, Zhong Zhigang, Zhang Jian, Luo Xueping, Mu Jingkun, Cai Jiagang, Bu Yunjie, Lin Longshou, Pan Xudong, Ye Jinwu, Zhang Zhenlan.
This Standard replaces the standard previously issued as follows.
- GB/T 2806-1981;
- GB/T 10069.1-1988, GB/T 10069.2-1988.
Measurement of the airborne noise emitted by rotating
electrical machines and the noise limits - Part 1. Method for
the measurement of airborne noise emitted by rotating
electrical machines

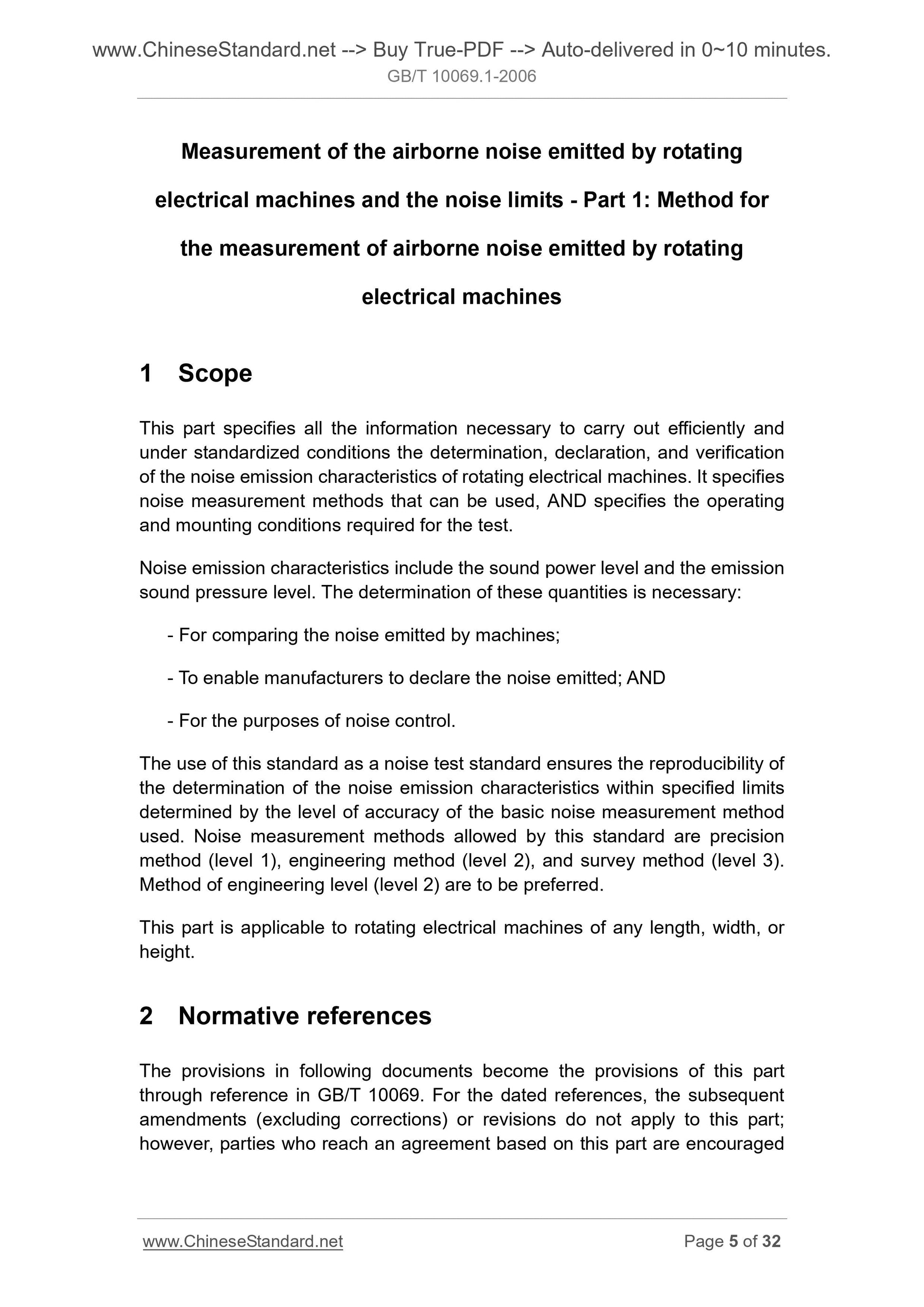

1 Scope
This part specifies all the information necessary to carry out efficiently and under standardized conditions the determination, declaration, and verification of the noise emission characteristics of rotating electrical machines. It specifies noise measurement methods that can be used, AND specifies the operating and mounting conditions required for the test.
Noise emission characteristics include the sound power level and the emission sound pressure level. The determination of these quantities is necessary. - For comparing the noise emitted by machines;
- To enable manufacturers to declare the noise emitted; AND
- For the purposes of noise control.
The use of this standard as a noise test standard ensures the reproducibility of the determination of the noise emission characteristics within specified limits determined by the level of accuracy of the basic noise measurement method used. Noise measurement methods allowed by this standard are precision
method (level 1), engineering method (level 2), and survey method (level 3). Method of engineering level (level 2) are to be preferred.
This part is applicable to rotating electrical machines of any length, width, or height.

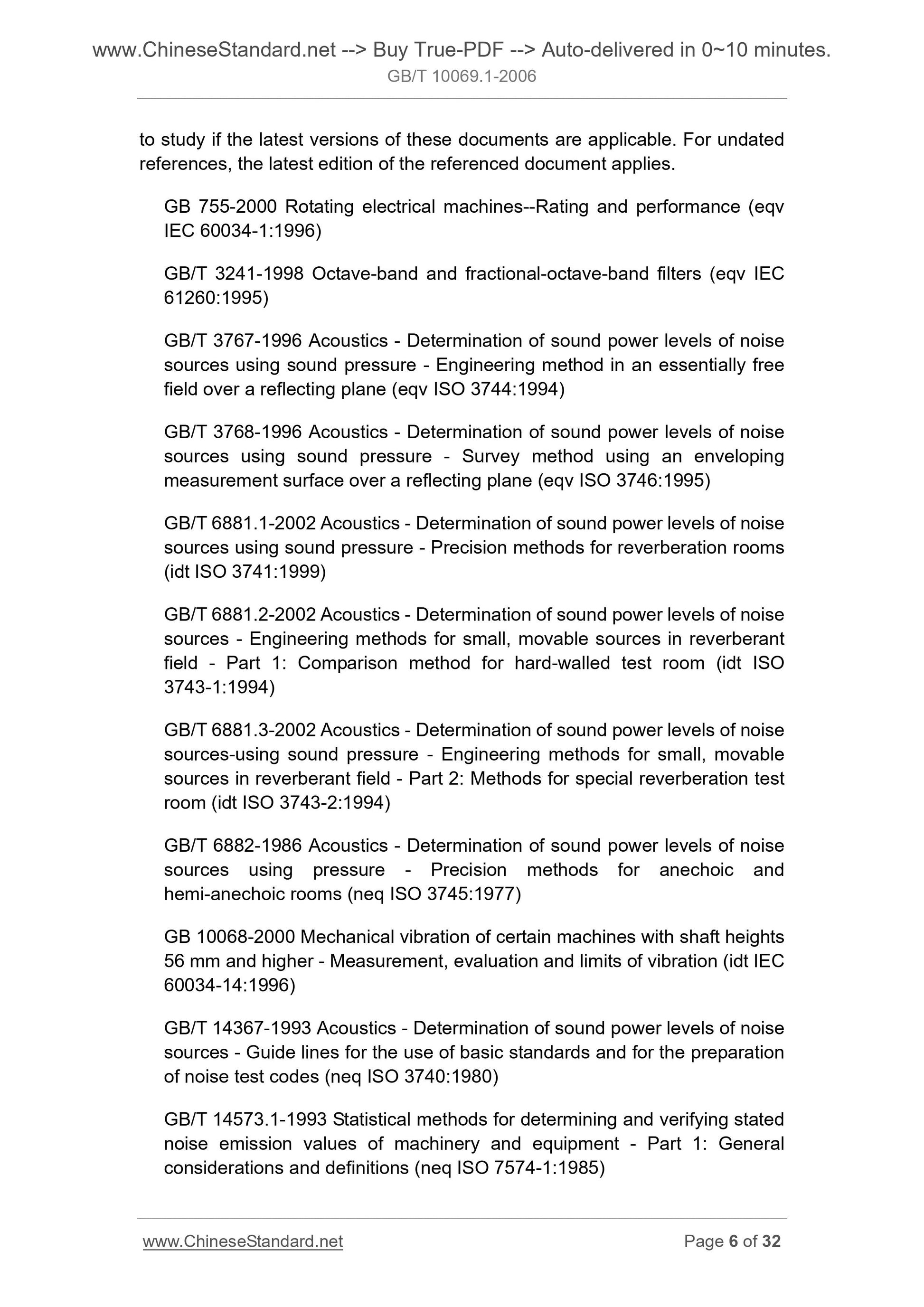

2 Normative references
The provisions in following documents become the provisions of this part through reference in GB/T 10069. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this part; however, parties who reach an agreement based on this part are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB 755-2000 Rotating electrical machines--Rating and performance (eqv
IEC 60034-1.1996)
GB/T 3241-1998 Octave-band and fractional-octave-band filters (eqv IEC
61260.1995)
GB/T 3767-1996 Acoustics - Determination of sound power levels of noise sources using sound pressure - Engineering method in an essentially free field over a reflecting plane (eqv ISO 3744.1994)
GB/T 3768-1996 Acoustics - Determination of sound power levels of noise sources using sound pressure - Survey method using an enveloping
measurement surface over a reflecting plane (eqv ISO 3746.1995)
GB/T 6881.1-2002 Acoustics - Determination of sound power levels of noise sources using sound pressure - Precision methods for reverberation rooms (idt ISO 3741.1999)
GB/T 6881.2-2002 Acoustics - Determination of sound power levels of noise sources - Engineering methods for small, movable sources in reverberant field - Part 1. Comparison method for hard-walled test room (idt ISO
3743-1.1994)
GB/T 6881.3-2002 Acoustics - Determination of sound power levels of noise sources-using sound pressure - Engineering methods for small, movable
sources in reverberant field - Part 2. Methods for special reverberation test room (idt ISO 3743-2.1994)
GB/T 6882-1986 Acoustics - Determination of sound power levels of noise sources using pressure - Precision methods for anechoic and
hemi-anechoic rooms (neq ISO 3745.1977)
GB 10068-2000 Mechanical vibration of certain machines with shaft heights 56 mm and higher - Measurement, evaluation and limits of vibration (idt IEC 60034-14.1996)
GB/T 14367-1993 Acoustics - Determination of sound power levels of noise sources - Guide lines for the use of basic standards and for the preparation of noise test codes (neq ISO 3740.1980)
GB/T 14573.1-1993 Statistical methods for determining and verifying stated noise emission values of machinery and equipment - Part 1. General
considerations and definitions (neq ISO 7574-1.1985)

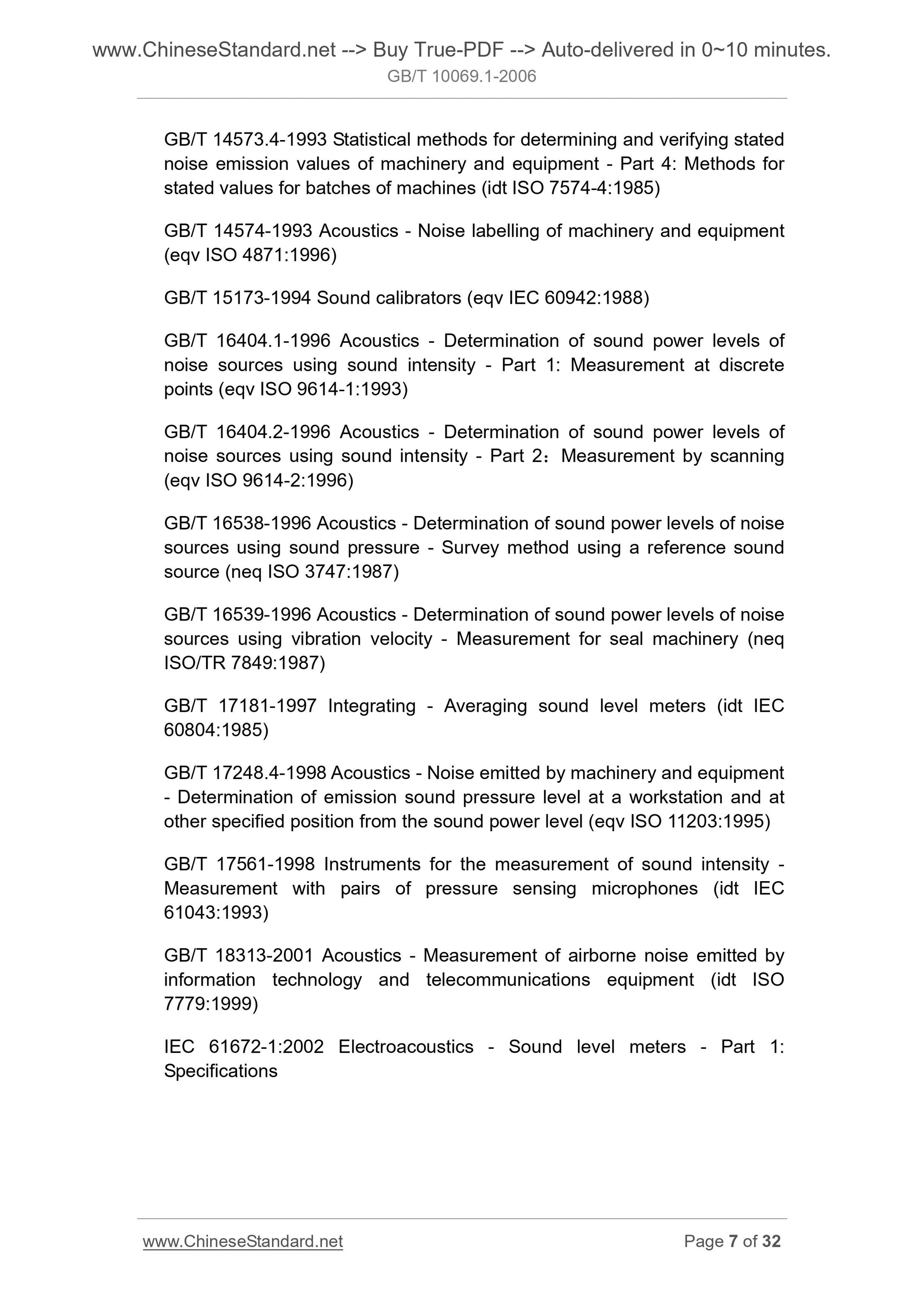

GB/T 14573.4-1993 Statistical methods for determining and verifying stated noise emission values of machinery and equipment - Part 4. Methods for
