GB/T 10058-2009: Specification for electric lifts

This Standard specifies the technical requirements, inspection rules, marking, packing, transportation, and storage requirements of the passenger lifts and freight lifts. This Standard is applicable to electrically-driven traction type passenger lifts and freight lifts of which the rated speed is not larger than 6.0m/s, and those electrically-driven positive type passenger lifts and freight lifts of which the rated speed is not larger than 0.63m/s. For the electrically-driven traction type passenger lifts and freight lifts of which the rated speed is greater than 6.0m/s, it may reference to this Standard; the inapplicable part shall be determined by the manufacturer and the client through negotiation.

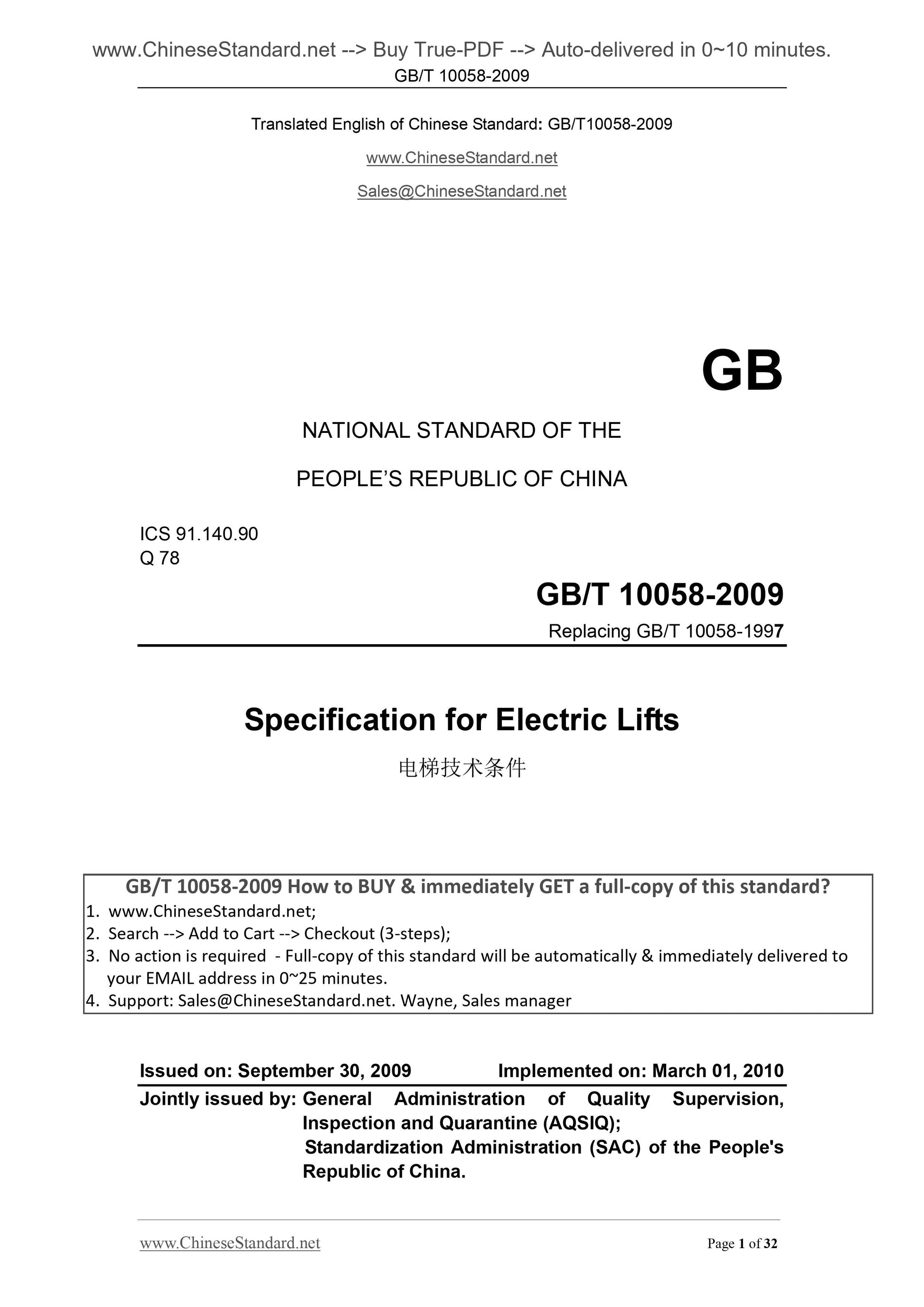

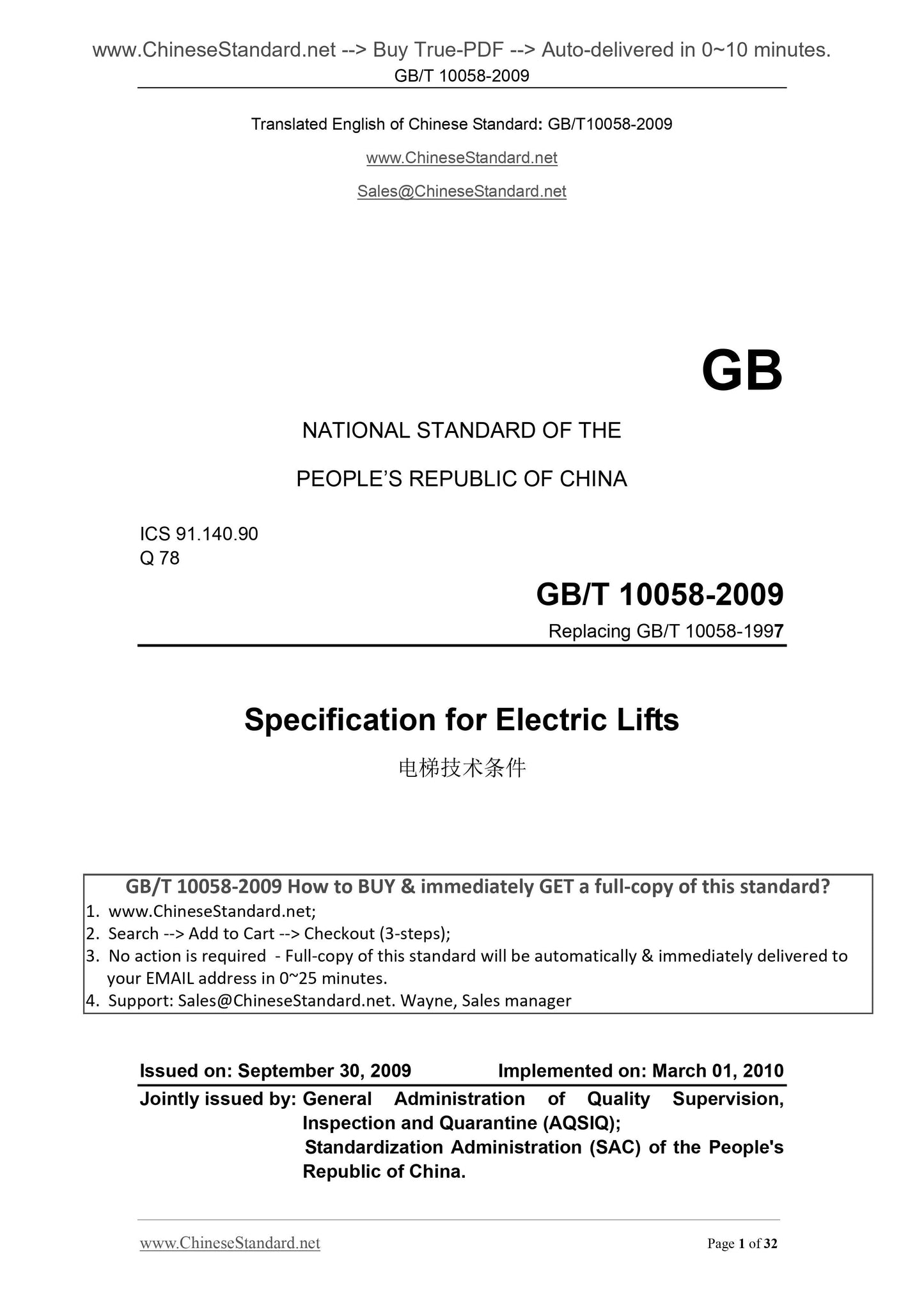

GB/T 10058-2009
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 91.140.90
Q 78
Replacing GB/T 10058-1997
Specification for Electric Lifts
ISSUED ON. SEPTEMBER 30, 2009
IMPLEMENTED ON. MARCH 01, 2010
Jointly issued by. General Administration of Quality Supervision,
Inspection and Quarantine (AQSIQ);
Standardization Administration (SAC) of the People's
Republic of China.

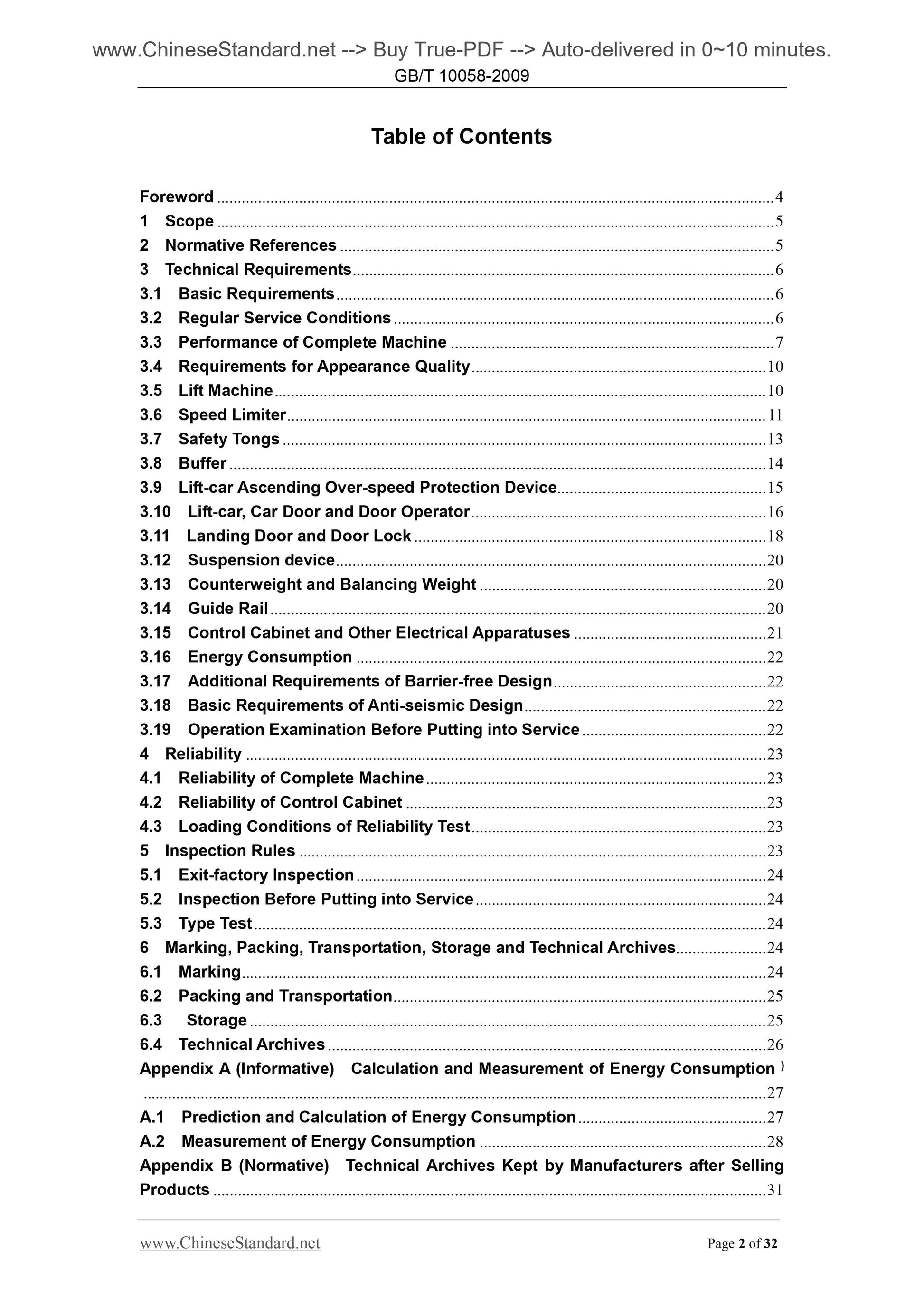

Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative References ... 5
3 Technical Requirements ... 6
3.1 Basic Requirements ... 6
3.2 Regular Service Conditions ... 6

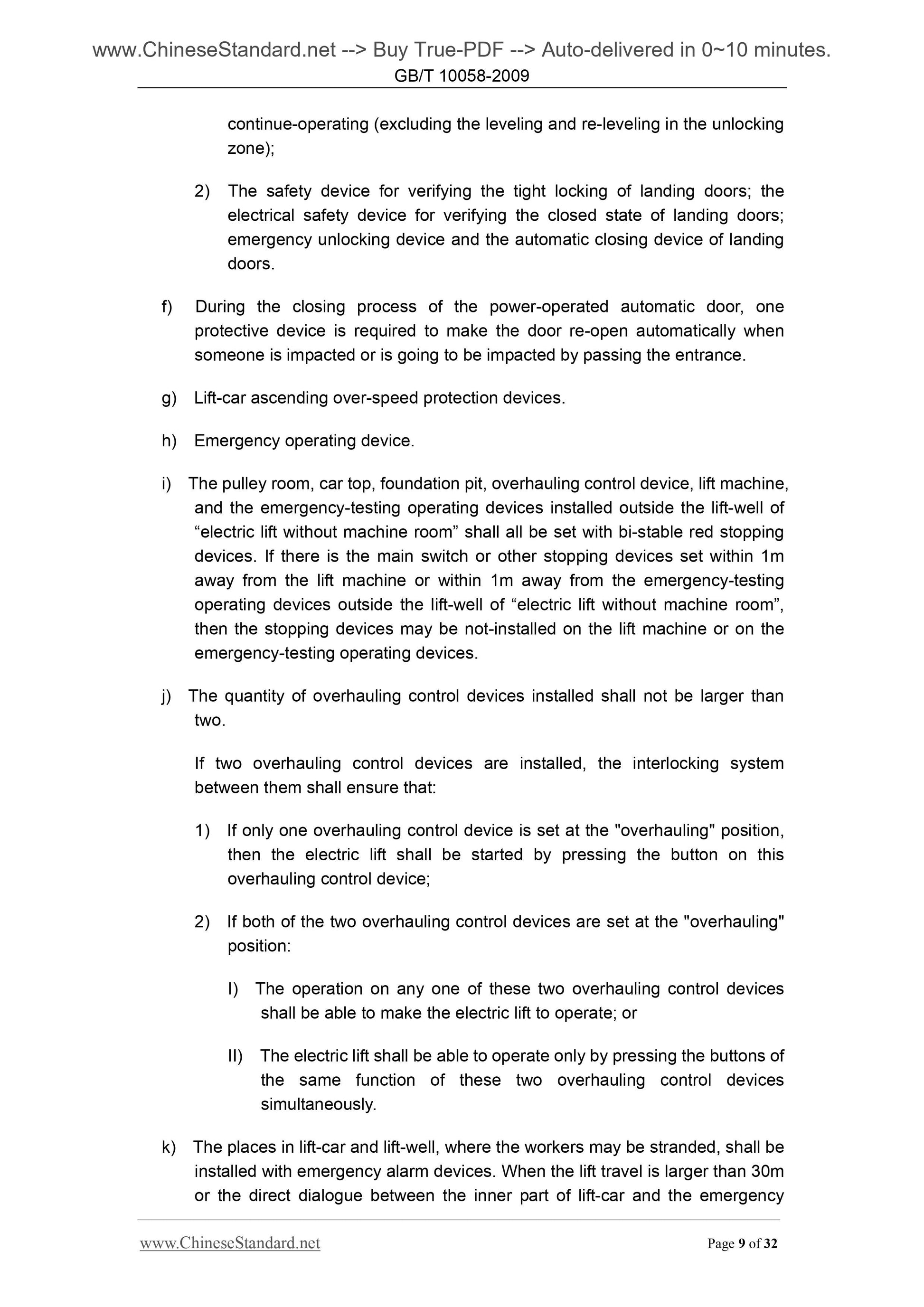

3.3 Performance of Complete Machine ... 7
3.4 Requirements for Appearance Quality ... 10

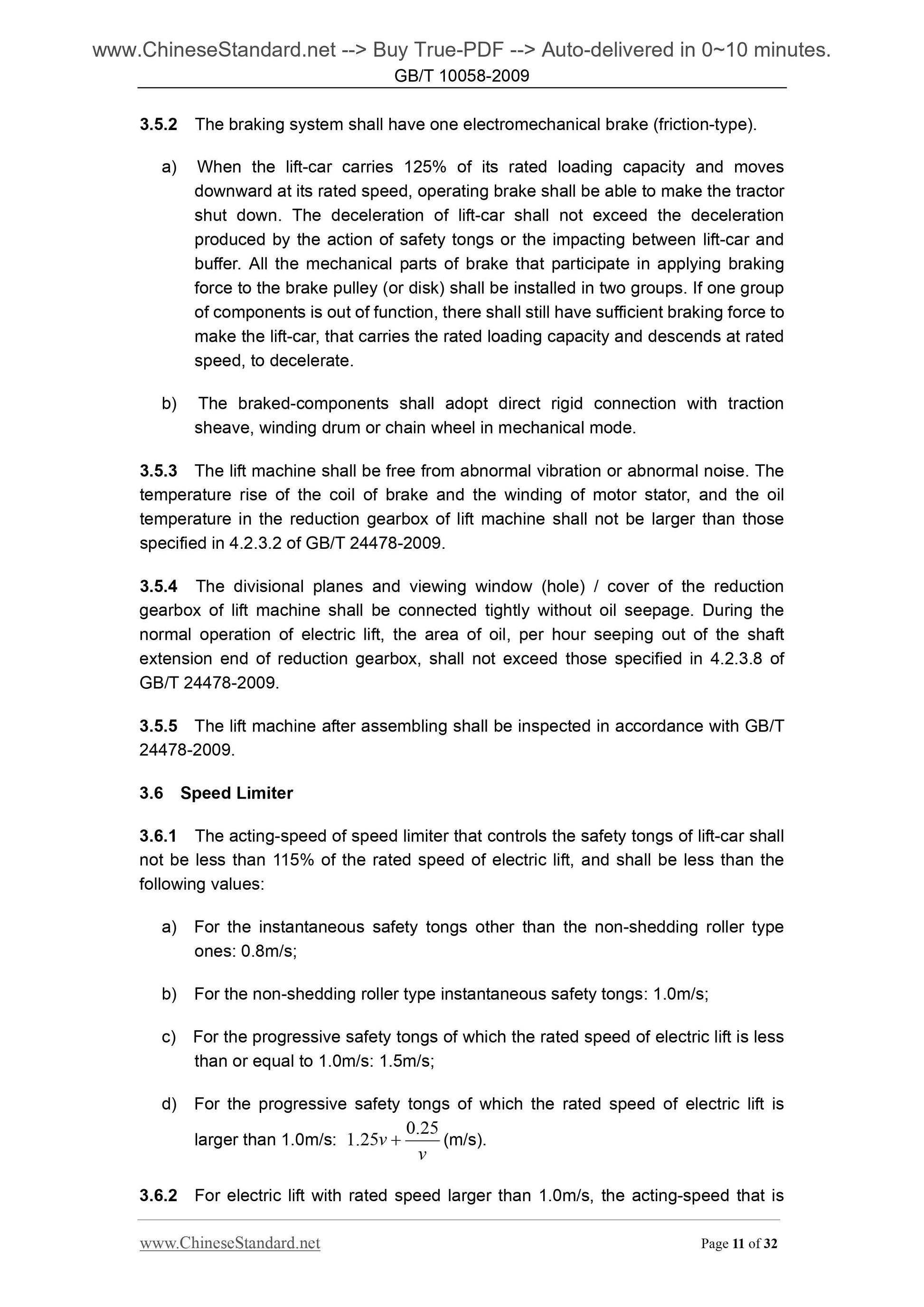

3.5 Lift Machine ... 10
3.6 Speed Limiter ... 11

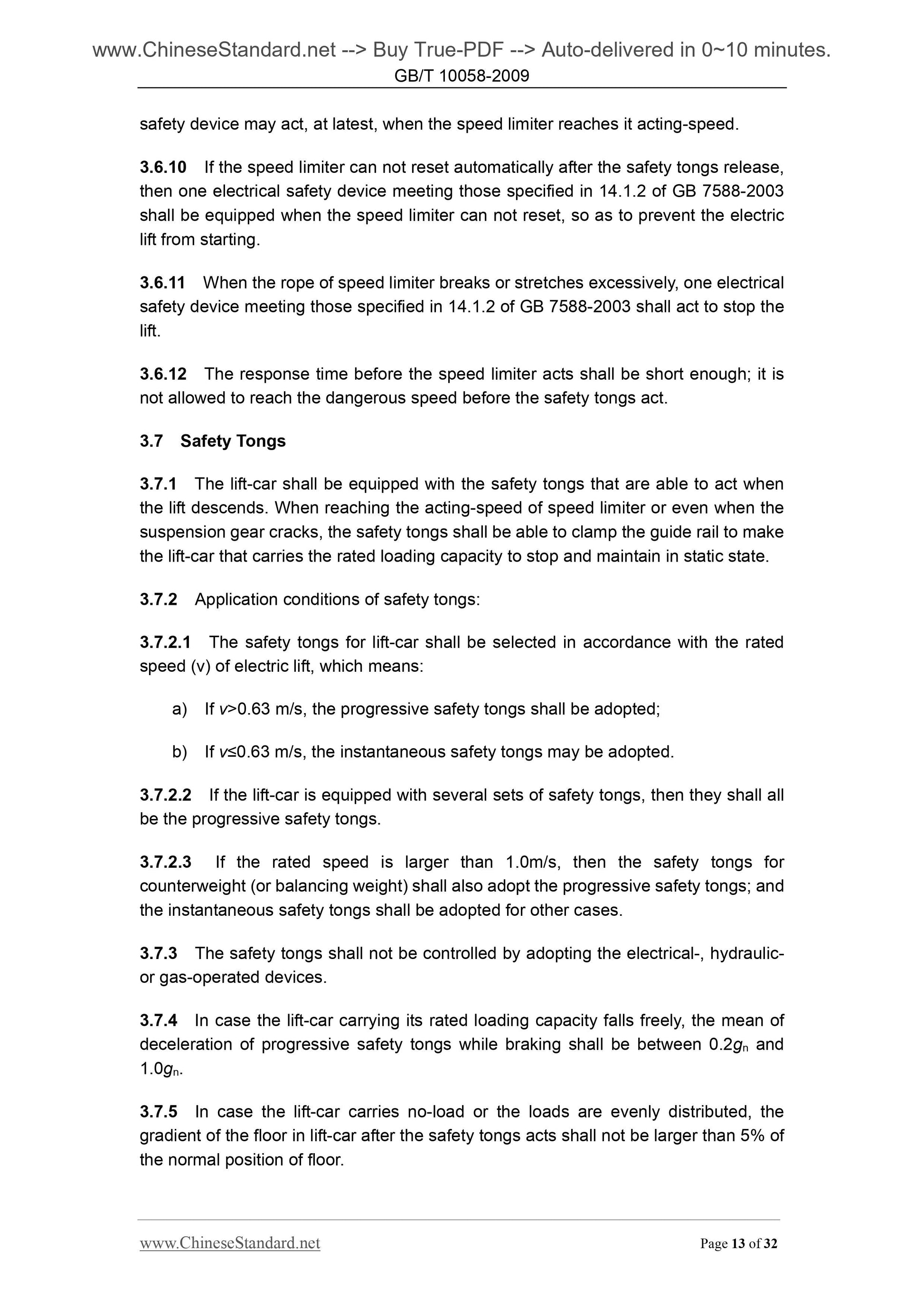

3.7 Safety Tongs ... 13

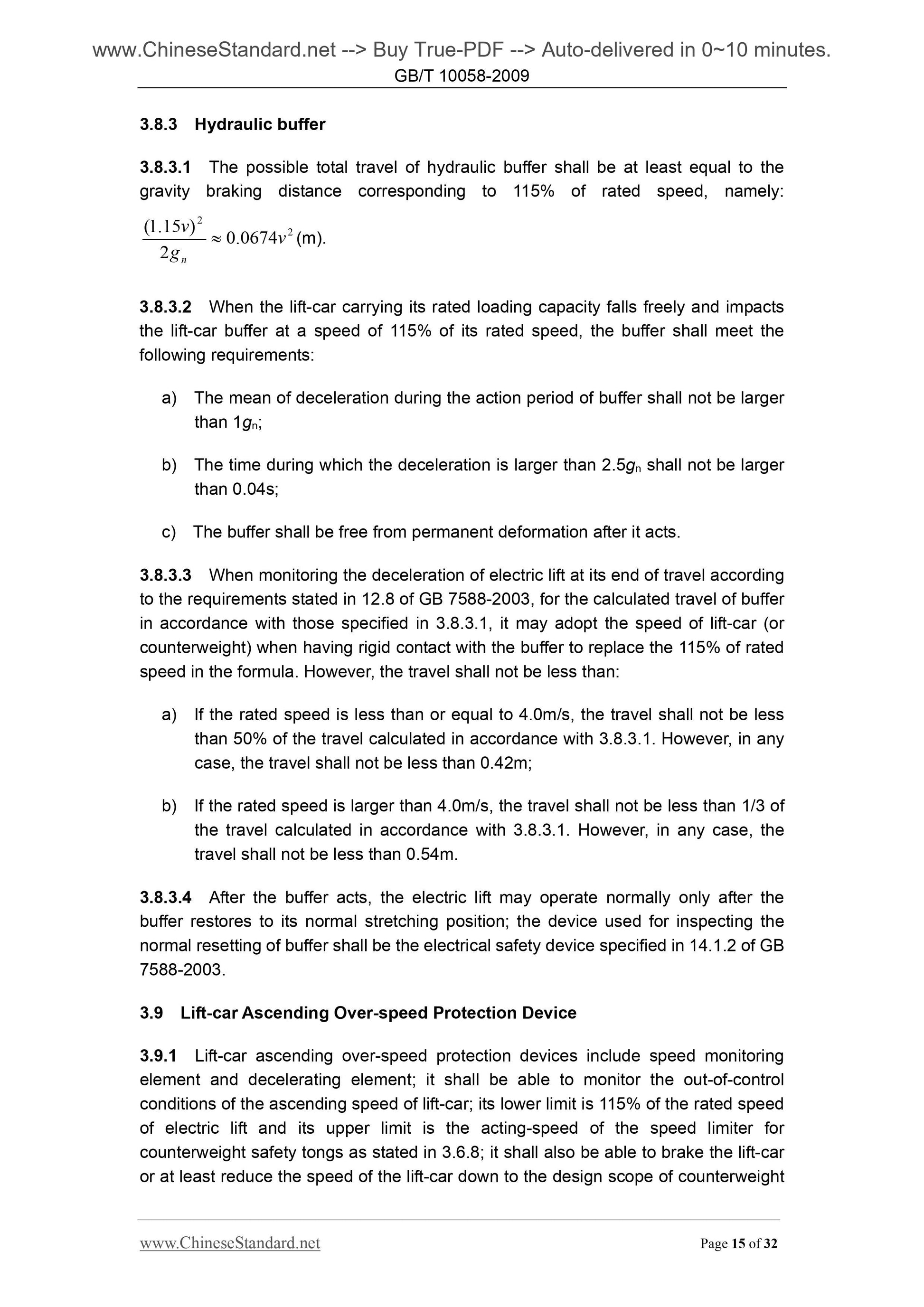

3.8 Buffer ... 14
3.9 Lift-car Ascending Over-speed Protection Device ... 15

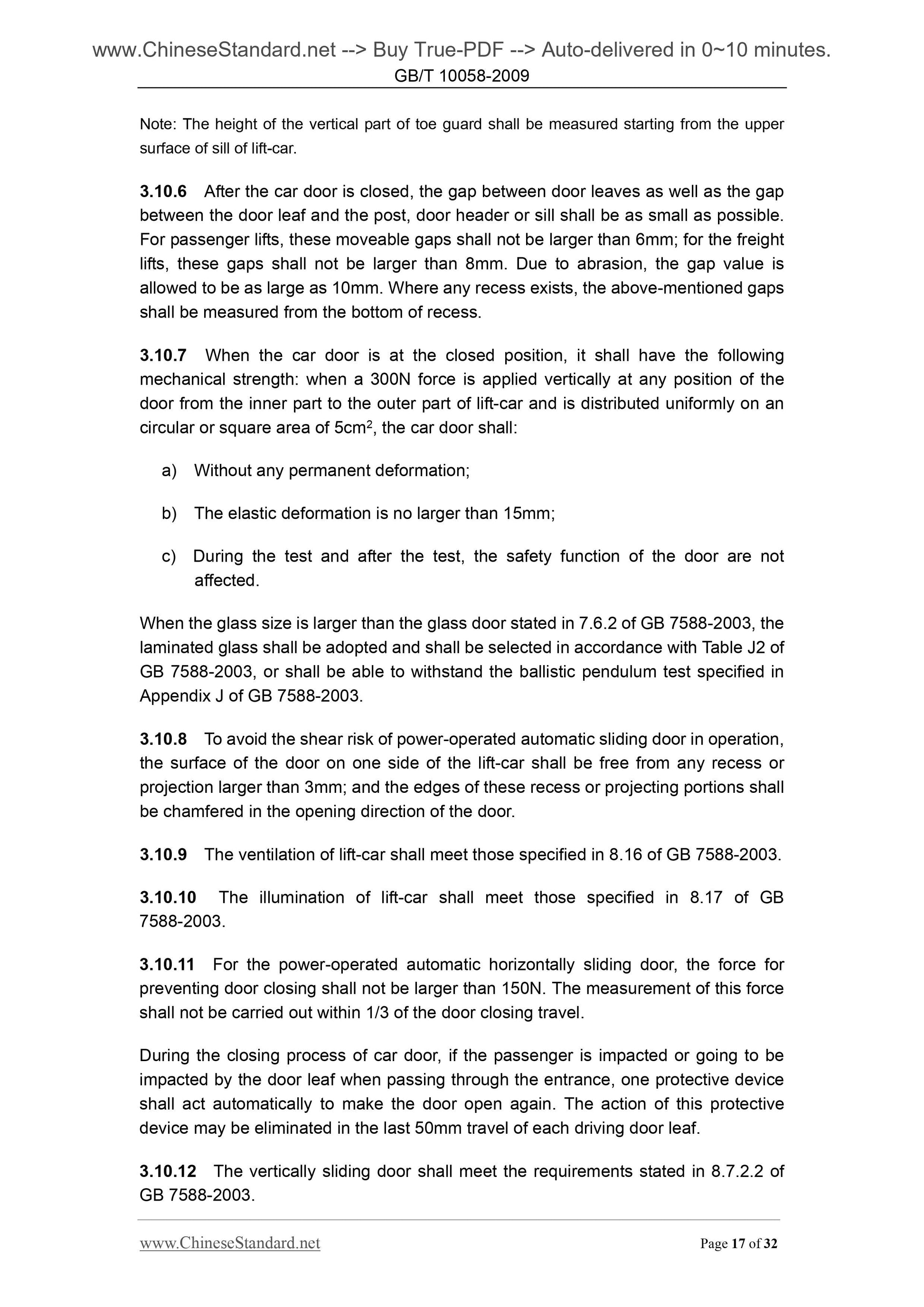

3.10 Lift-car, Car Door and Door Operator ... 16

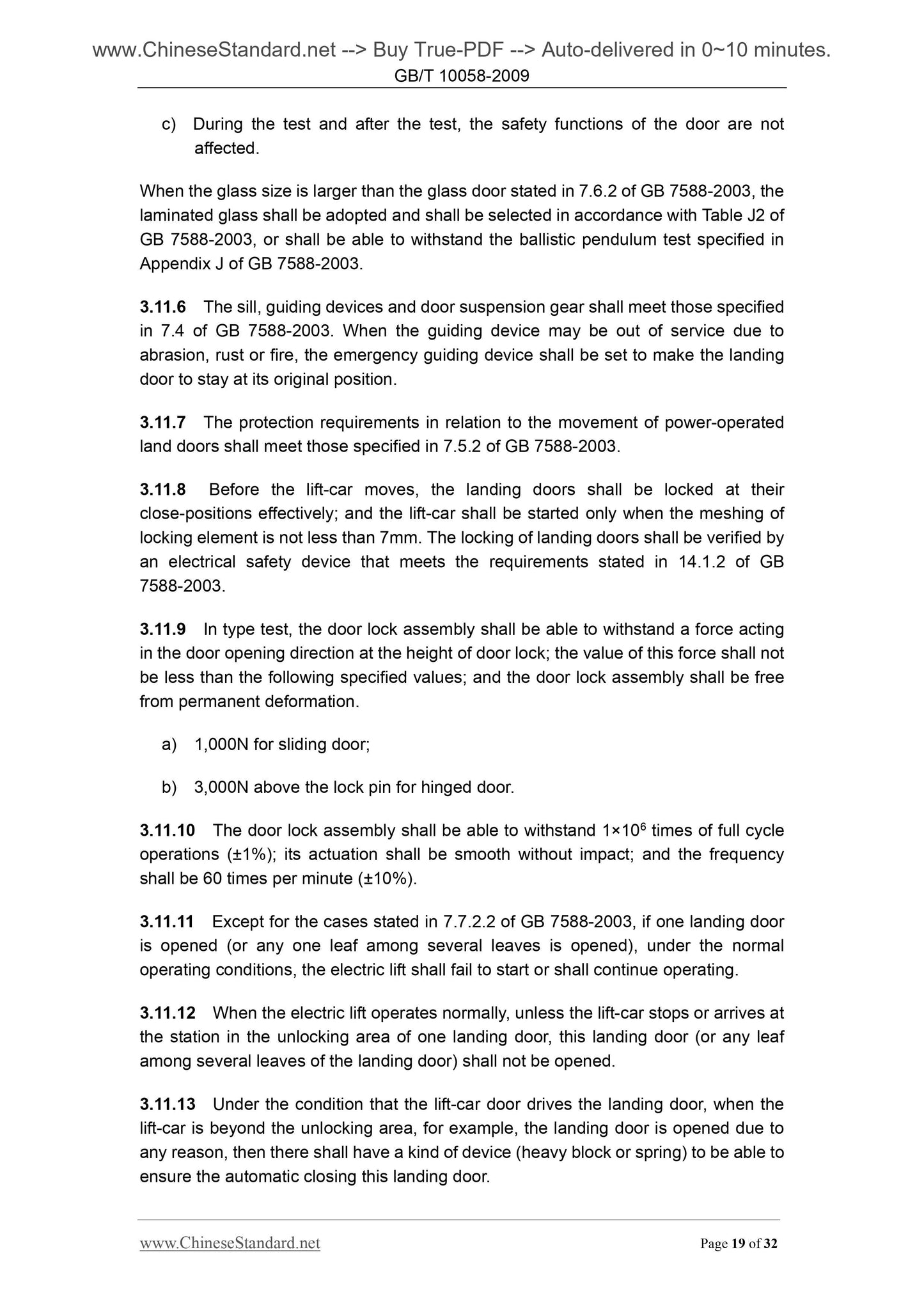

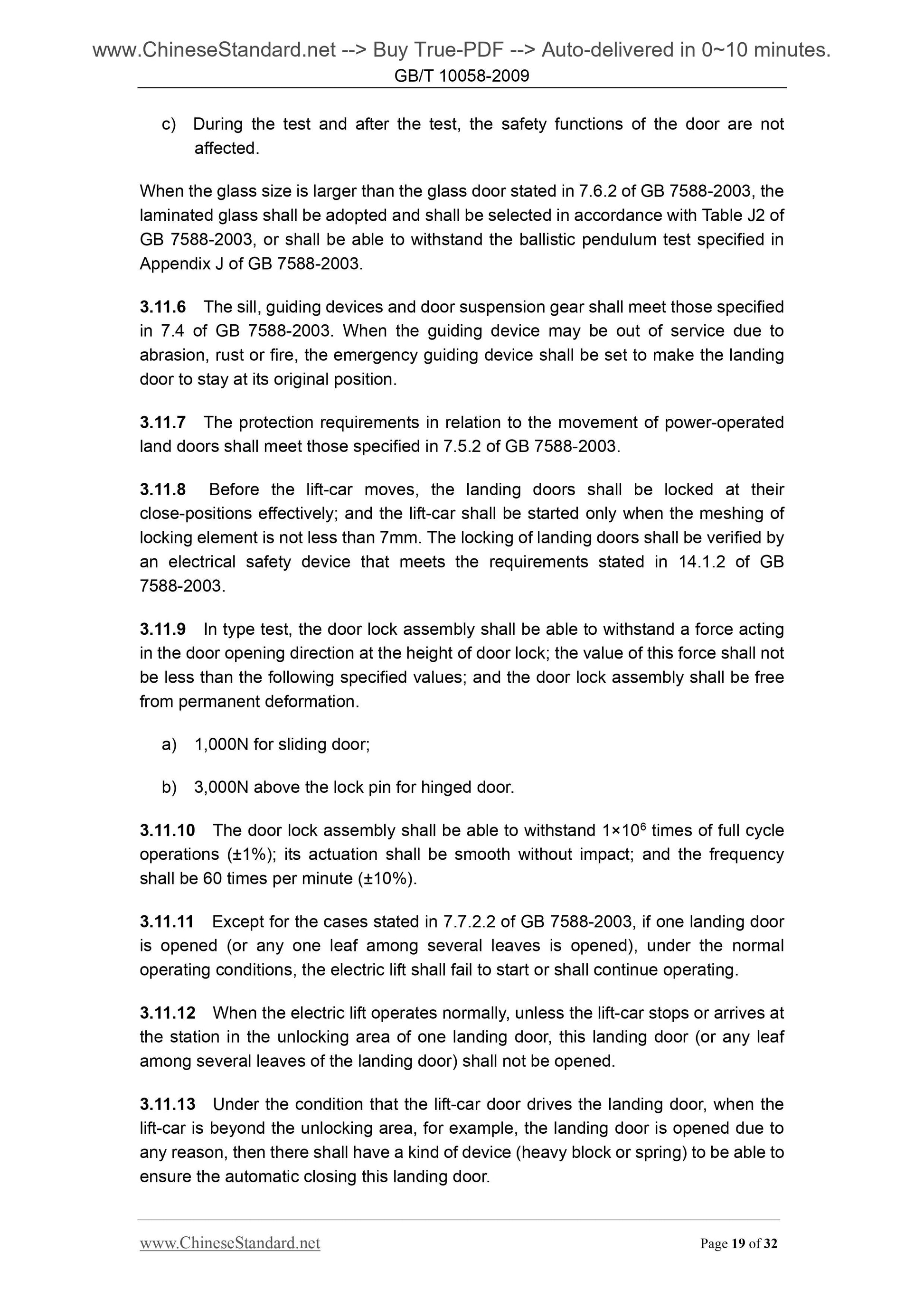

3.11 Landing Door and Door Lock ... 18

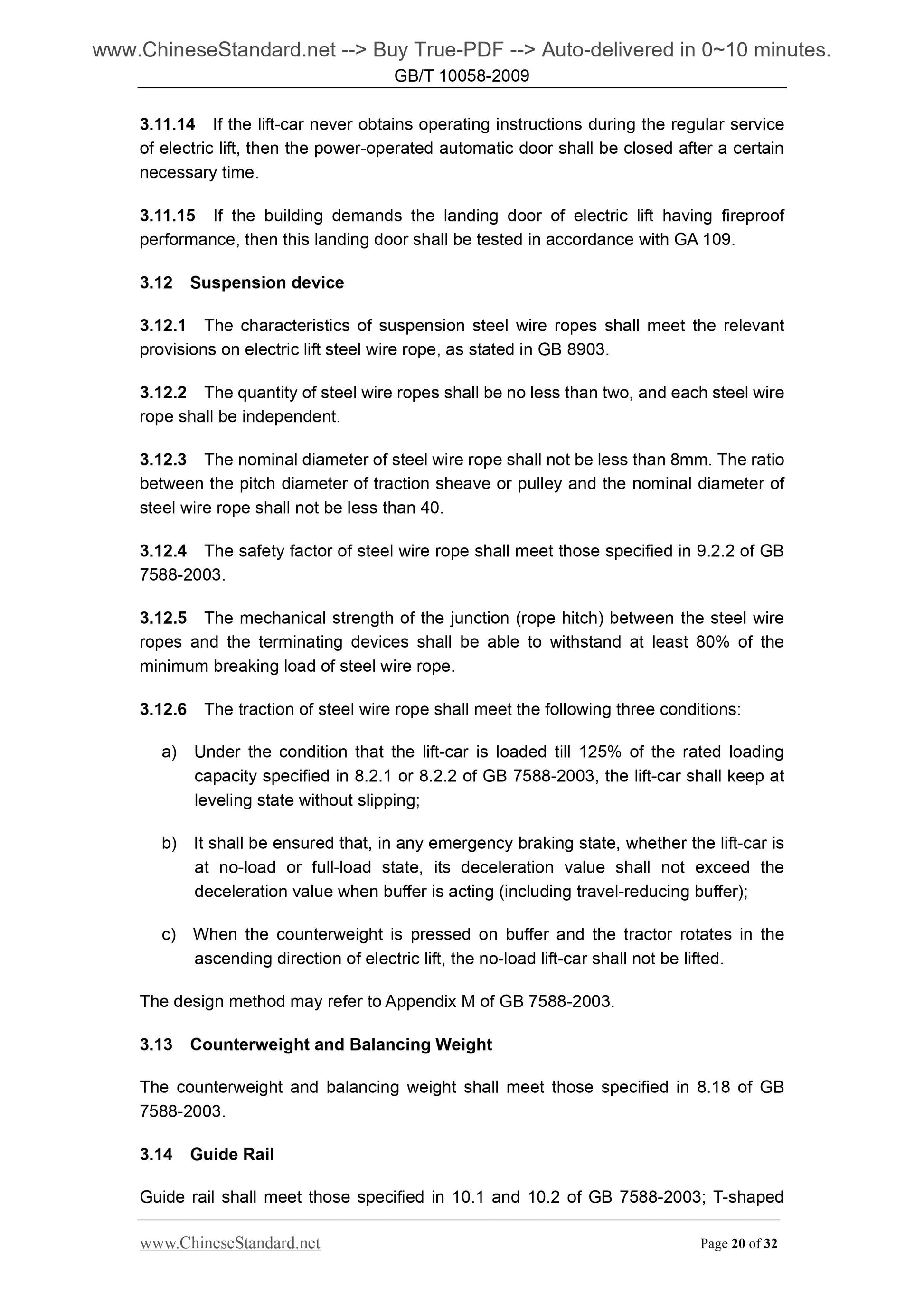

3.12 Suspension device ... 20
3.13 Counterweight and Balancing Weight ... 20
3.14 Guide Rail ... 20
3.15 Control Cabinet and Other Electrical Apparatuses ... 21
3.16 Energy Consumption ... 22
3.17 Additional Requirements of Barrier-free Design ... 22
3.18 Basic Requirements of Anti-seismic Design ... 22
3.19 Operation Examination Before Putting into Service ... 22
4 Reliability ... 23
4.1 Reliability of Complete Machine ... 23
4.2 Reliability of Control Cabinet ... 23
4.3 Loading Conditions of Reliability Test ... 23
5 Inspection Rules ... 23
5.1 Exit-factory Inspection ... 24
5.2 Inspection Before Putting into Service ... 24
5.3 Type Test ... 24
6 Marking, Packing, Transportation, Storage and Technical Archives... 24 6.1 Marking ... 24
6.2 Packing and Transportation ... 25
6.3 Storage ... 25
6.4 Technical Archives ... 26
Appendix A (Informative) Calculation and Measurement of Energy Consumption ) ... 27
A.1 Prediction and Calculation of Energy Consumption ... 27
A.2 Measurement of Energy Consumption ... 28
Appendix B (Normative) Technical Archives Kept by Manufacturers after Selling Products ... 31
B.1 Essential Information ... 31
B.2 Technical Parameters of Suspension Device ... 31
B.3 Guide Rail ... 31
B.4 Components ... 31
B.5 Electrical Drawings ... 31

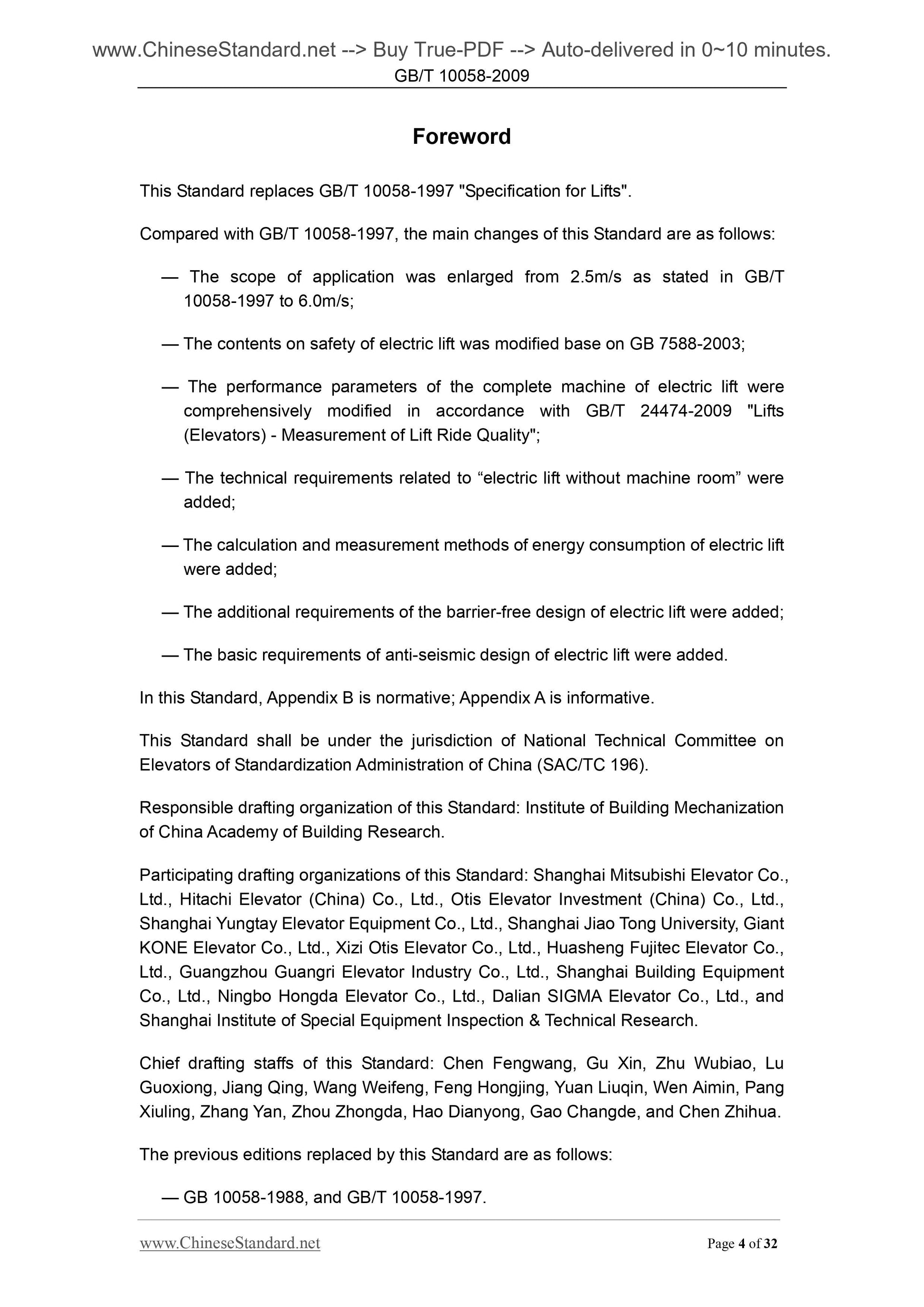

Foreword
This Standard replaces GB/T 10058-1997 "Specification for Lifts".
Compared with GB/T 10058-1997, the main changes of this Standard are as follows. ?€? The scope of application was enlarged from 2.5m/s as stated in GB/T
10058-1997 to 6.0m/s;
?€? The contents on safety of electric lift was modified base on GB 7588-2003; ?€? The performance parameters of the complete machine of electric lift were comprehensively modified in accordance with GB/T 24474-2009 "Lifts
(Elevators) - Measurement of Lift Ride Quality";
?€? The technical requirements related to ?€?electric lift without machine room?€? were added;
?€? The calculation and measurement methods of energy consumption of electric lift were added;
?€? The additional requirements of the barrier-free design of electric lift were added; ?€? The basic requirements of anti-seismic design of electric lift were added. In this Standard, Appendix B is normative; Appendix A is informative.
This Standard shall be under the jurisdiction of National Technical Committee on Elevators of Standardization Administration of China (SAC/TC 196).
Responsible drafting organization of this Standard. Institute of Building Mechanization of China Academy of Building Research.
Participating drafting organizations of this Standard. Shanghai Mitsubishi Elevator Co., Ltd., Hitachi Elevator (China) Co., Ltd., Otis Elevator Investment (China) Co., Ltd., Shanghai Yungtay Elevator Equipment Co., Ltd., Shanghai Jiao Tong University, Giant KONE Elevator Co., Ltd., Xizi Otis Elevator Co., Ltd., Huasheng Fujitec Elevator Co., Ltd., Guangzhou Guangri Elevator Industry Co., Ltd., Shanghai Building Equipment Co., Ltd., Ningbo Hongda Elevator Co., Ltd., Dalian SIGMA Elevator Co., Ltd., and Shanghai Institute of Special Equipment Inspection and Technical Research. Chief drafting staffs of this Standard. Chen Fengwang, Gu Xin, Zhu Wubiao, Lu Guoxiong, Jiang Qing, Wang Weifeng, Feng Hongjing, Yuan Liuqin, Wen Aimin, Pang Xiuling, Zhang Yan, Zhou Zhongda, Hao Dianyong, Gao Changde, and Chen Zhihua. The previous editions replaced by this Standard are as follows.
?€? GB 10058-1988, and GB/T 10058-1997.

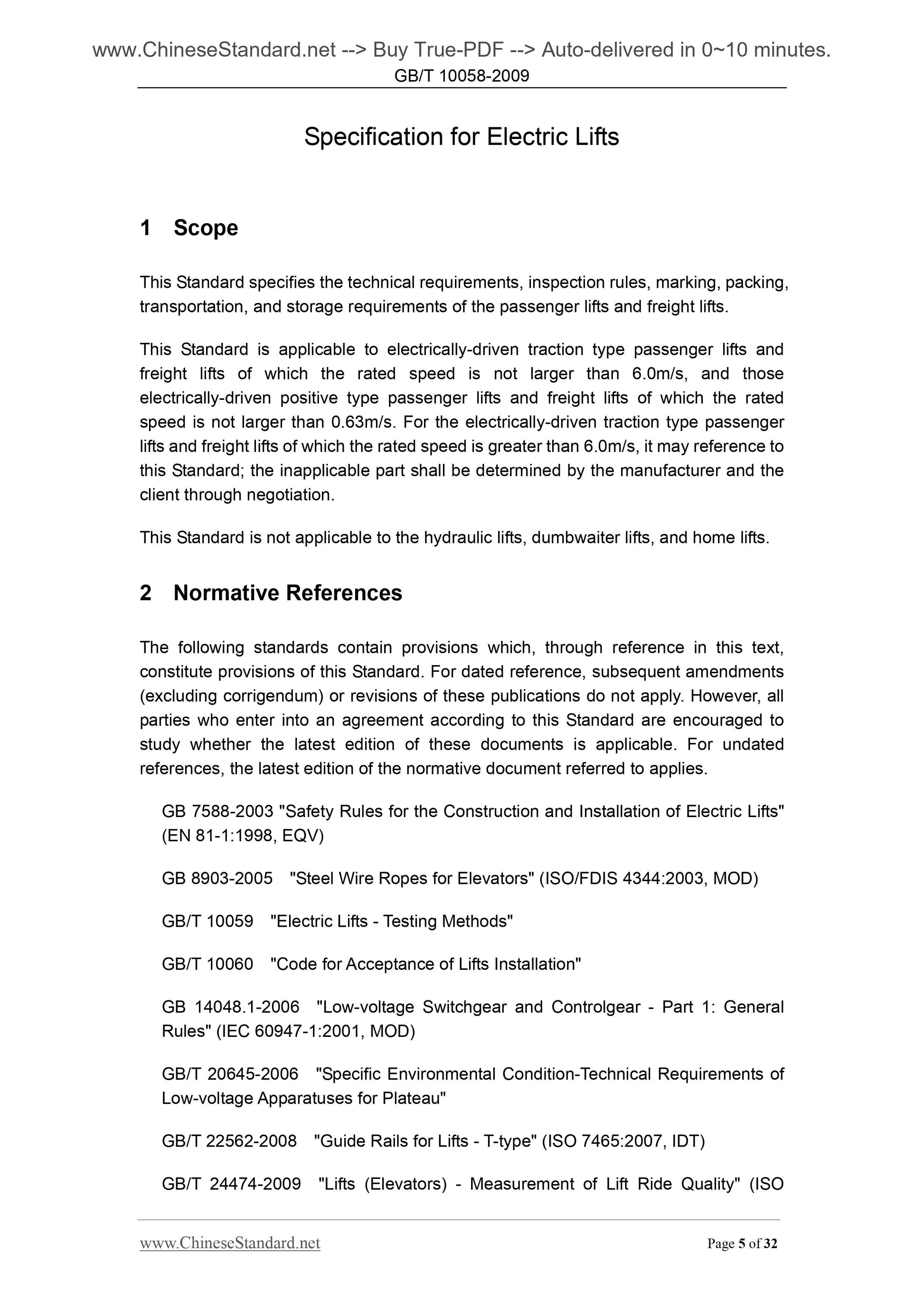

Specification for Electric Lifts
1 Scope
This Standard specifies the technical requirements, inspection rules, marking, packing, transportation, and storage requirements of the passenger lifts and freight lifts. This Standard is applicable to electrically-driven traction type passenger lifts and freight lifts of which the rated speed is not larger than 6.0m/s, and those electrically-driven positive type passenger lifts and freight lifts of which the rated speed is not larger than 0.63m/s. For the electrically-driven traction type passenger lifts and freight lifts of which the rated speed is greater than 6.0m/s, it may reference to this Standard; the inapplicable part shall be determined by the manufacturer and the client through negotiation.
This Standard is not applicable to the hydraulic lifts, dumbwaiter lifts, and home lifts. 2 Normative References
The following standards contain provisions which, through reference in this text, constitute provisions of this Standard. For dated reference, subsequent amendments (excluding corrigendum) or revisions of these publications do not apply. However, all parties who enter into an agreement according to this Standard are encouraged to study whether the latest edition of these documents is applicable. For undated references, the latest edition of the normati...
