GB/T 10004-2008: Plastic laminated films and pouches for packaging -- Dry lamination and extrusion lamination

This standard specifies the classification, requirements, test methods, inspection rules, marks, packaging, transportation and storage of the laminated films and pouches for packaging which is produced by dry lamination and extrusion lamination process of different plastic materials. This standard is applicable to the plastic, plastic laminated films and pouches used for food and non-food packaging. This standard is not applicable to the plastic films and pouches which are made of plastic material and paper base (or aluminum foil). It is also not applicable to the plastic films and pouches which are made of wet lamination and direct coextru-lamination process.

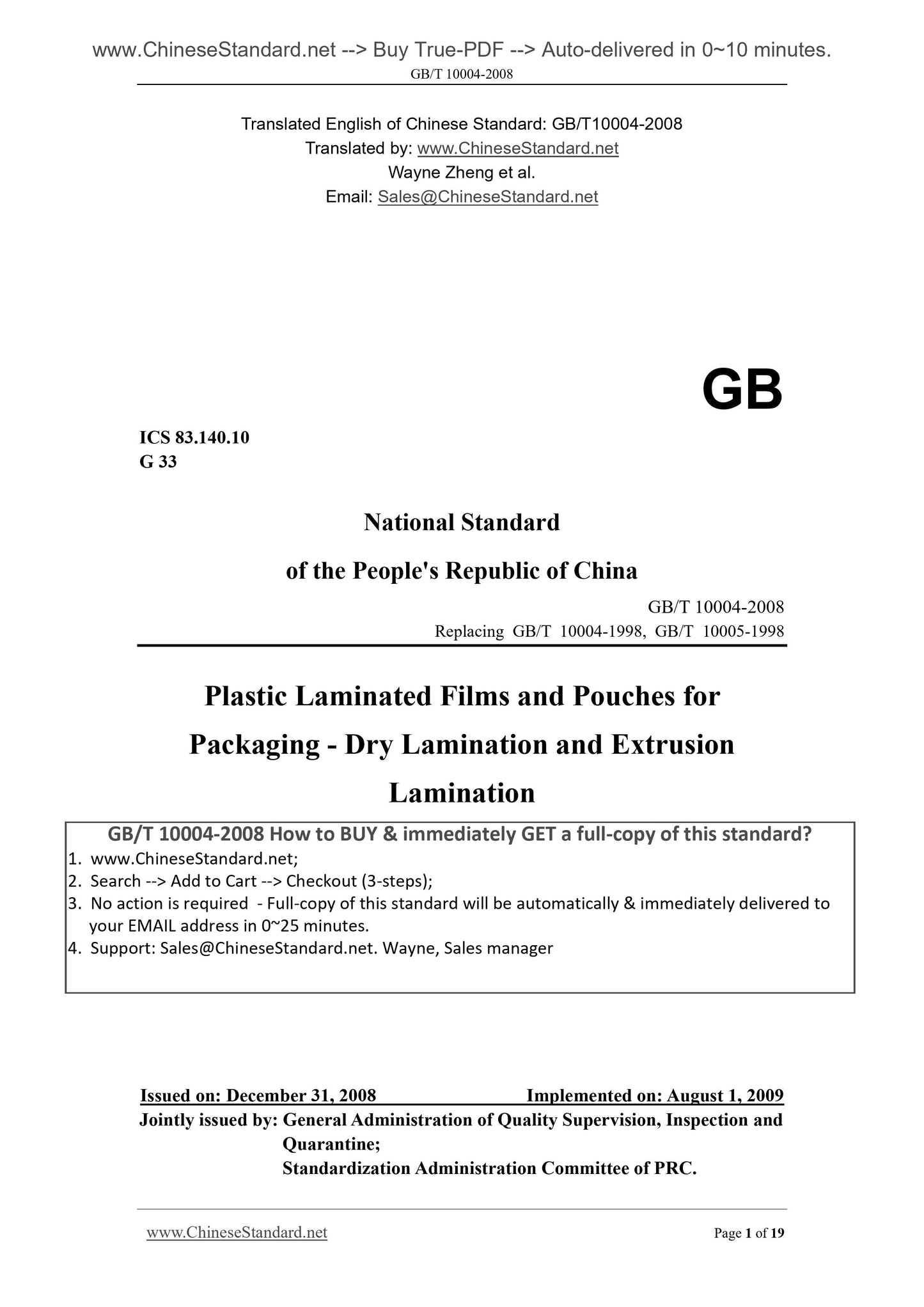

GB/T 10004-2008
GB
ICS 83.140.10
G 33
National Standard
of the People's Republic of China
Replacing GB/T 10004-1998, GB/T 10005-1998
Plastic Laminated Films and Pouches for
Packaging - Dry Lamination and Extrusion
Lamination
ISSUED ON. DECEMBER 31, 2008
IMPLEMENTED ON. AUGUST 1, 2009
Jointly issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee of PRC.

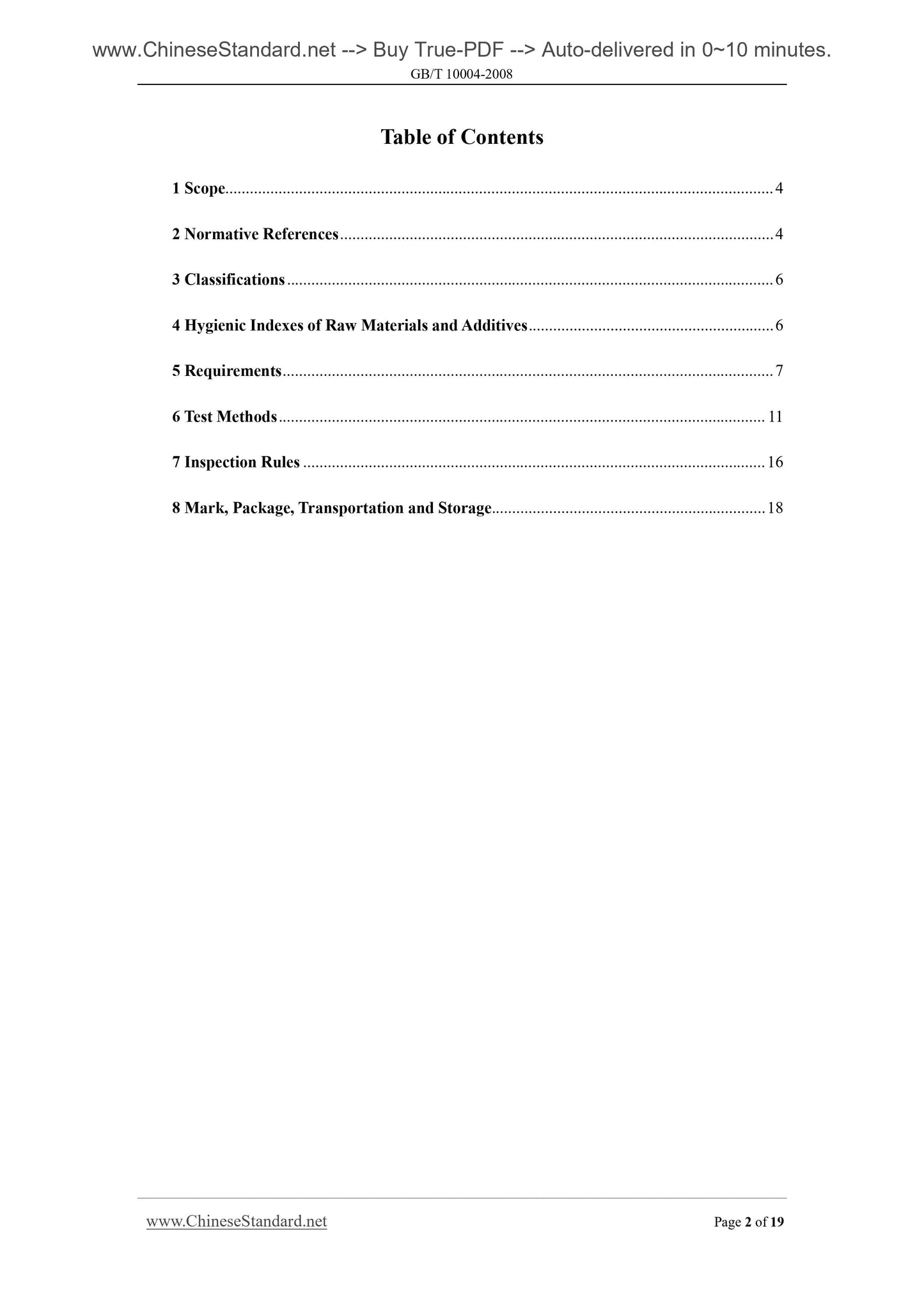

Table of Contents
1 Scope ... 4
2 Normative References ... 4
3 Classifications ... 6
4 Hygienic Indexes of Raw Materials and Additives ... 6
5 Requirements ... 7
6 Test Methods ... 11
7 Inspection Rules ... 16
8 Mark, Package, Transportation and Storage... 18

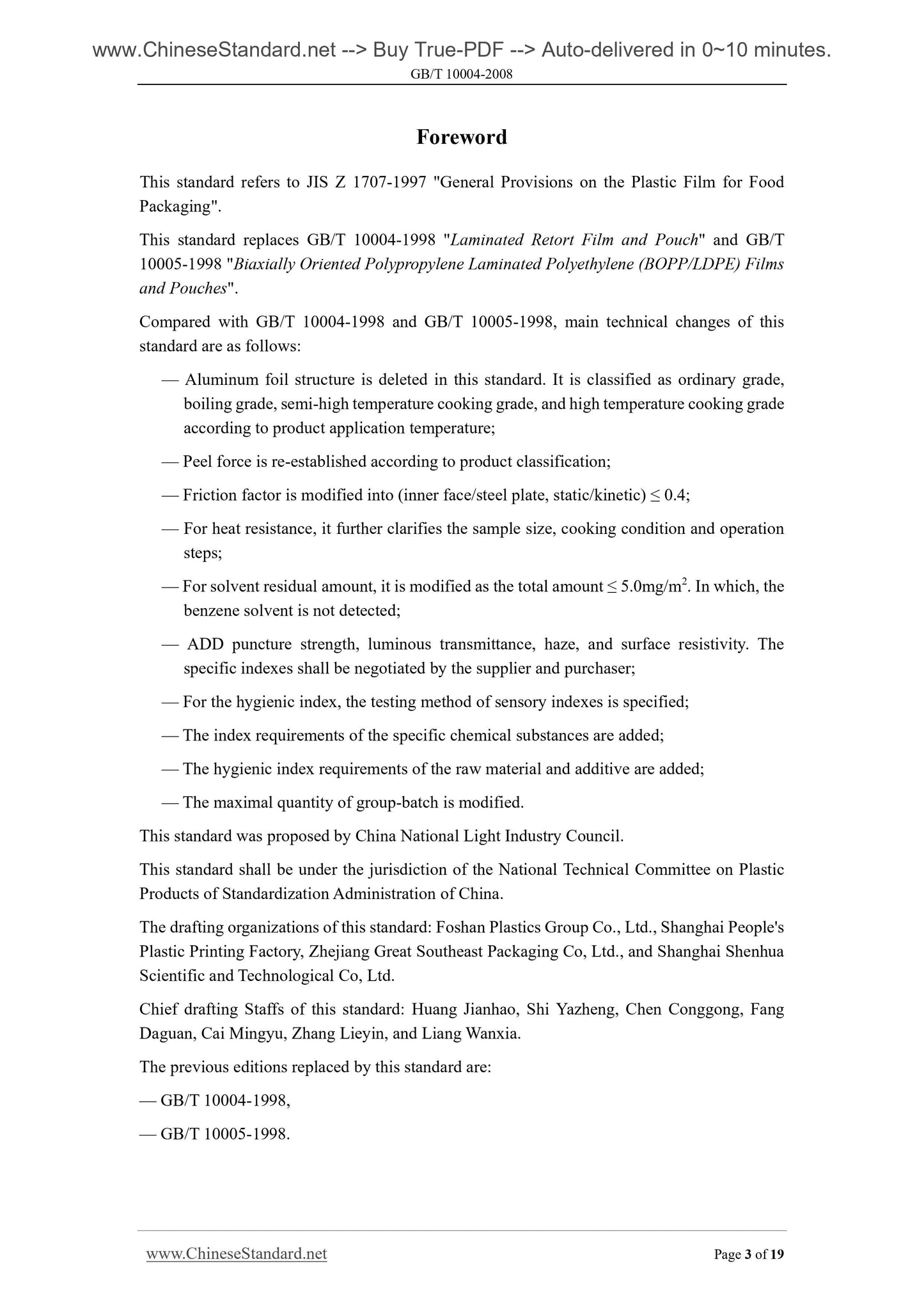

Foreword
This standard refers to JIS Z 1707-1997 "General Provisions on the Plastic Film for Food Packaging".
This standard replaces GB/T 10004-1998 "Laminated Retort Film and Pouch" and GB/T 10005-1998 "Biaxially Oriented Polypropylene Laminated Polyethylene (BOPP/LDPE) Films and Pouches".
Compared with GB/T 10004-1998 and GB/T 10005-1998, main technical changes of this standard are as follows.
?€? Aluminum foil structure is deleted in this standard. It is classified as ordinary grade, boiling grade, semi-high temperature cooking grade, and high temperature cooking grade according to product application temperature;
?€? Peel force is re-established according to product classification;
?€? Friction factor is modified into (inner face/steel plate, static/kinetic) ??? 0.4; ?€? For heat resistance, it further clarifies the sample size, cooking condition and operation steps;
?€? For solvent residual amount, it is modified as the total amount ??? 5.0mg/m2. In which, the benzene solvent is not detected;
?€? ADD puncture strength, luminous transmittance, haze, and surface resistivity. The specific indexes shall be negotiated by the supplier and purchaser;
?€? For the hygienic index, the testing method of sensory indexes is specified; ?€? The index requirements of the specific chemical substances are added; ?€? The hygienic index requirements of the raw material and additive are added; ?€? The maximal quantity of group-batch is modified.
This standard was proposed by China National Light Industry Council.
This standard shall be under the jurisdiction of the National Technical Committee on Plastic Products of Standardization Administration of China.
The drafting organizations of this standard. Foshan Plastics Group Co., Ltd., Shanghai People's Plastic Printing Factory, Zhejiang Great Southeast Packaging Co, Ltd., and Shanghai Shenhua Scientific and Technological Co, Ltd.
Chief drafting Staffs of this standard. Huang Jianhao, Shi Yazheng, Chen Conggong, Fang Daguan, Cai Mingyu, Zhang Lieyin, and Liang Wanxia.
The previous editions replaced by this standard are.
?€? GB/T 10004-1998,
?€? GB/T 10005-1998.
Plastic Laminated Films and Pouches for Packaging ?€?
Dry Lamination and Extrusion Lamination

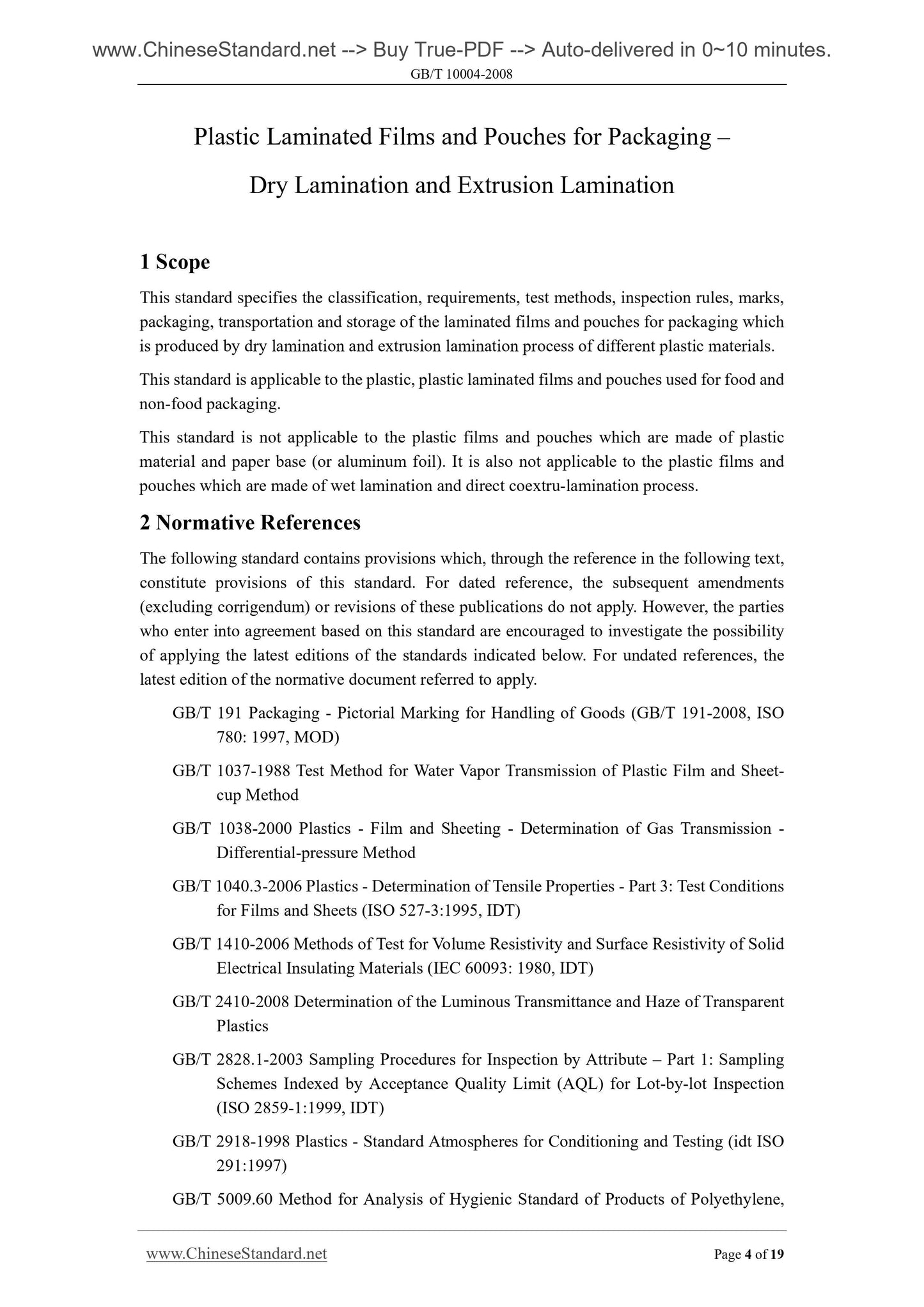

1 Scope
This standard specifies the classification, requirements, test methods, inspection rules, marks, packaging, transportation and storage of the laminated films and pouches for packaging which is produced by dry lamination and extrusion lamination process of different plastic materials. This standard is applicable to the plastic, plastic laminated films and pouches used for food and non-food packaging.
This standard is not applicable to the plastic films and pouches which are made of plastic material and paper base (or aluminum foil). It is also not applicable to the plastic films and pouches which are made of wet lamination and direct coextru-lamination process. 2 Normative References
The following standard contains provisions which, through the reference in the following text, constitute provisions of this standard. For dated reference, the subsequent amendments (excluding corrigendum) or revisions of these publications do not apply. However, the parties who enter into agreement based on this standard are encouraged to investigate the possibility of applying the latest editions of the standards indicated below. For undated references, the latest edition of the normative document referred to apply.
GB/T 191 Packaging - Pictorial Marking for Handling of Goods (GB/T 191-2008, ISO 780. 1997, MOD)
GB/T 1037-1988 Test Method for Water Vapor Transmission of Plastic Film and Sheet- cup Method
GB/T 1038-2000 Plastics - Film and Sheeting - Determination of Gas Transmission - Differential-pressure Method
GB/T 1040.3-2006 Plastics - Determination of Tensile Properties - Part 3. Test Conditions for Films and Sheets (ISO 527-3.1995, IDT)
GB/T 1410-2006 Methods of Test for Volume Resistivity and Surface Resistivity of Solid Electrical Insulating Materials (IEC 60093. 1980, IDT)
GB/T 2410-2008 Determination of the Luminous Transmittance and Haze of Transparent Plastics
GB/T 2828.1-2003 Sampling Procedures for Inspection by Attribute ?€? Part 1. Sampling Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-lot Inspection (ISO 2859-1.1999, IDT)
GB/T 2918-1998 Plastics - Standard Atmospheres for Conditioning and Testing (idt ISO 291.1997)

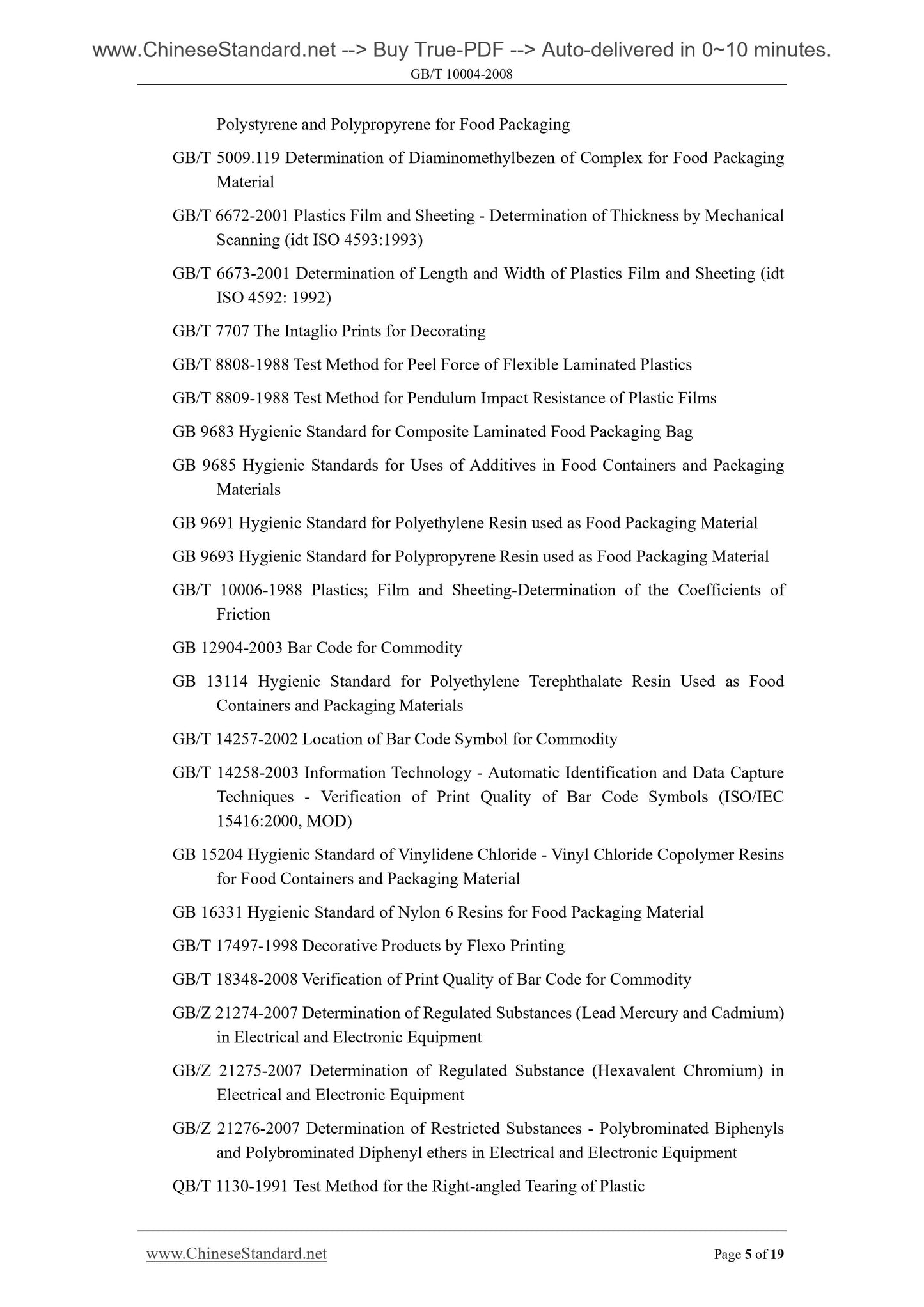

GB/T 5009.60 Method for Analysis of Hygienic Standard of Products of Polyethylene, Polystyrene and Polypropyrene for Food Packaging
GB/T 5009.119 Determination of Diaminomethylbezen of Complex for Food Packaging Material
GB/T 6672-2001 Plastics Film and Sheeting - Determination of Thickness by Mechanical Scanning (idt ISO 4593.1993)
GB/T 6673-2001 Determination of Length and Width of Plastics Film and Sheeting (idt ISO 4592. 1992)
GB/T 7707 The Intaglio Prints for Decorating
GB/T 8808-1988 Test Method for Peel Force of Flexible Laminated Plastics GB/T 8809-1988 Test Method for Pendulum Impact Resistance of Plastic Films GB 9683 Hygienic Standard for Composite Laminated Food Packaging Bag
GB 9685 Hygienic Standards for Uses of Additives in Food Containers and Packaging Materials
GB 9691 Hygienic Standard for Polyethylene Resin used as Food Packaging Material GB 9693 Hygienic Standard for Polypropyrene Resin used as Food Packaging Material GB/T 10006-1988 Plastics; Film and Sheeting-Determination of the Coefficients of Friction
GB 12904-2003 Bar Code for Commodity
GB 13114 Hygienic Standard for Polyethylene Terephthalate Resin Used as Food Containers and Packaging Materials
GB/T 14257-2002 Location of Bar Code Symbol for Commodity
GB/T 14258-2003 Information Technology - Automatic Identification and Data Capture Techniques - Verification of Print Quality of Bar Code Symbols (ISO/IEC 15416.2000, MOD)
GB 15204 Hygienic Standard of Vinylidene Chloride - Vinyl Chloride Copolymer Resins for Food Containers and Packaging Material
GB 16331 Hygienic Standard of Nylon 6 Resins for Food Packaging Material GB/T 17497-1998 Decorative Products by Flexo Printing
GB/T 18348-2008 Verification of Print Quality of Bar Code for Commodity GB/Z 21274-2007 Determination of Regulated Substances (Lead Mercury and Cadmium) in Electrical and Electronic Equipment
GB/Z 21275-2007 Determination of Regulated Substance (Hexavalent Chromium) in Electrical and Electronic Equipment
GB/Z 21276-2007 Determination of Restricted Substances - Polybrominated Biphenyls and Polybrominated Diphenyl ethers in Electrical and Electronic Equipment QB/T 1130-1991 Test Method for the Right-angled Tearing of Plastic

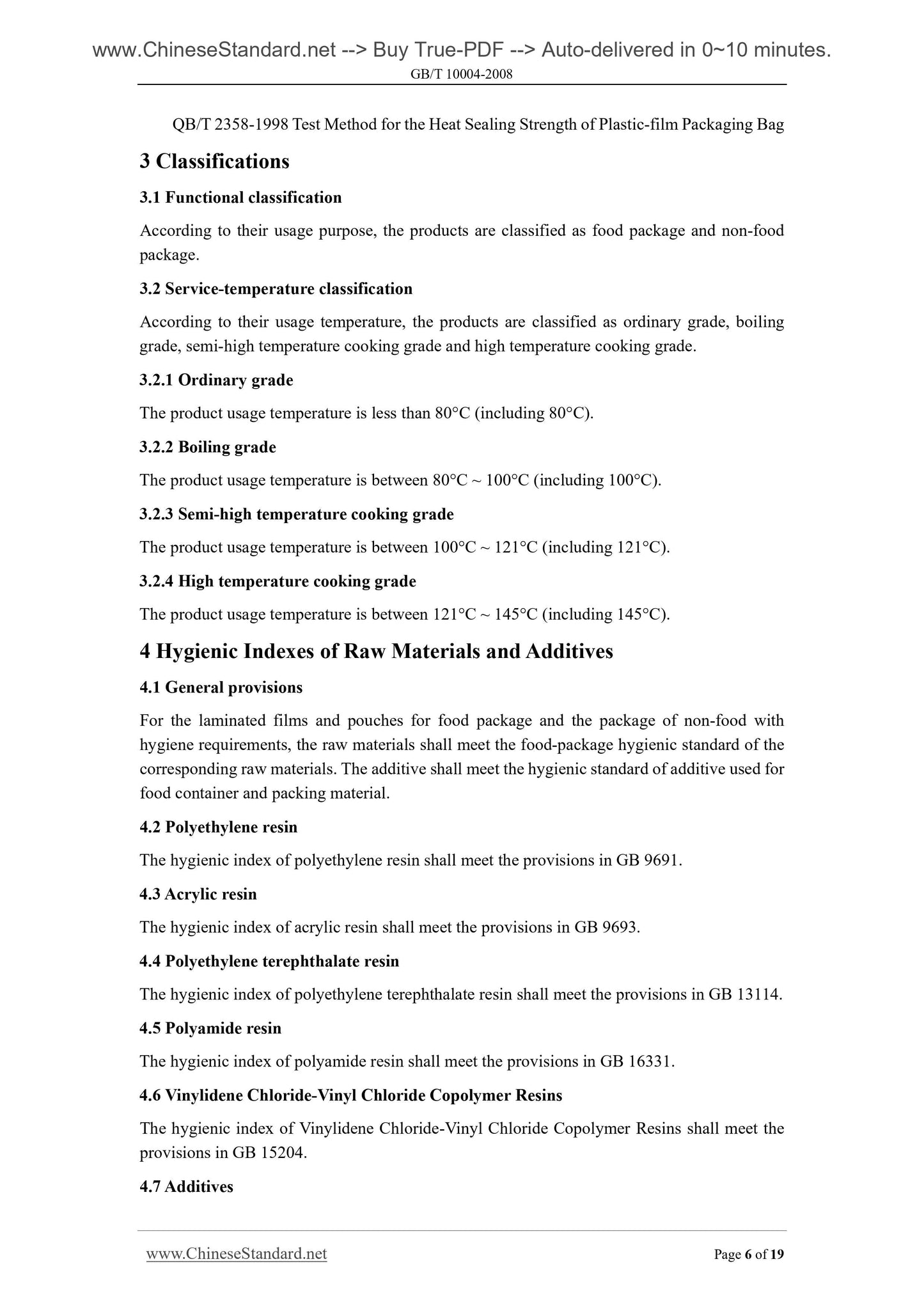

QB/T 2358-1998 Test Method for the Heat Sealing Strength of Plastic-film Packaging Bag 3 Classifications
3.1 Functional classification
According to their usage purpose, the products are classified as food package and non-food package.
3.2 Service-temperature classification
According to their usage temperature, the products are classified as ordinary grade, boiling grade, semi-high temperature cooking grade and high temperature cooking grade. 3.2.1 Ordinary grade
The product usage temperature is less than 80??C (including 80??C).
3.2.2 Boiling grade
The product usage temperature is between 80??C ~ 100??C (including 100??C). 3.2.3 Semi-high temperature cooking grade
The product usage temperature is between 100??C ~ 121??C (including 121??C). 3.2.4 High temperature cooking grade
The product usage temperature is between 121??C ~ 145??C (including 145??C). 4 Hygienic Indexes of Raw Materials and Additives
4.1 General provisions
For the laminated films and pouches for food package and the package of non-food with hygiene requirements, the raw materials shall meet the food-package hygienic standard of the corresponding raw materials. The additive shall meet the hygienic standard of additive used for food container and packing material.
4.2 Polyethylene resin
The hygienic index of polyethylene resin shall meet the provisions in GB 9691. 4.3 Acrylic resin
The hygienic index of acrylic resin shall meet the provisions in GB 9693. 4.4 Polyethylene terephthalate resin
The hygienic index of polyethylene terephthalate resin shall meet the provisions in GB 13114. 4.5 Polyamide resin
Th...
