GB/T 10001.1-2023: Public information graphical symbols - Part 1: General symbols

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 10001.1-2023 (Self-service in 1-minute)
Newer / historical versions: GB/T 10001.1-2023

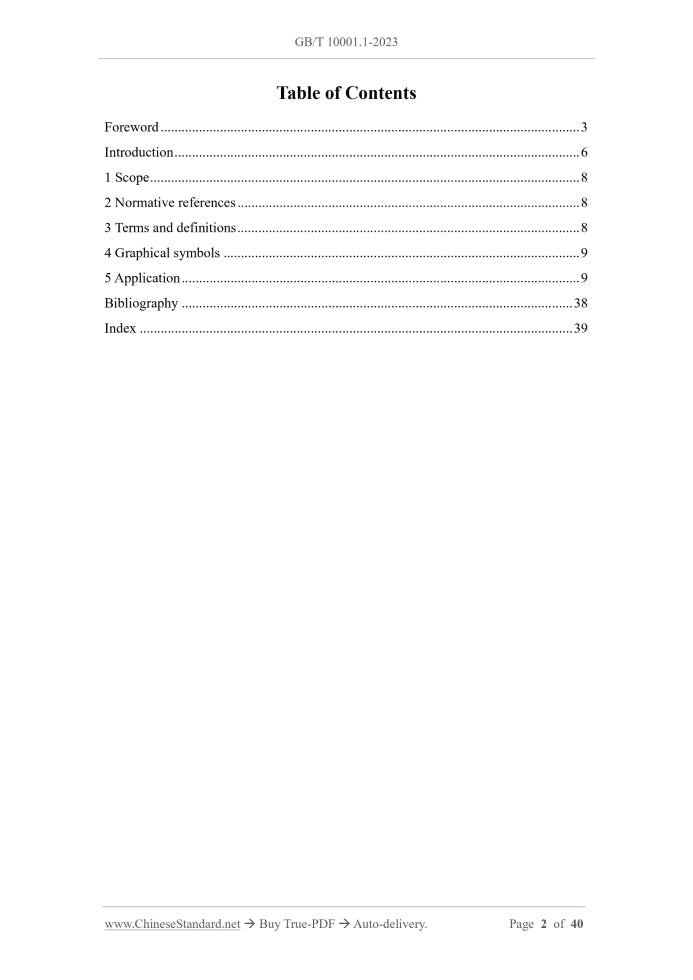

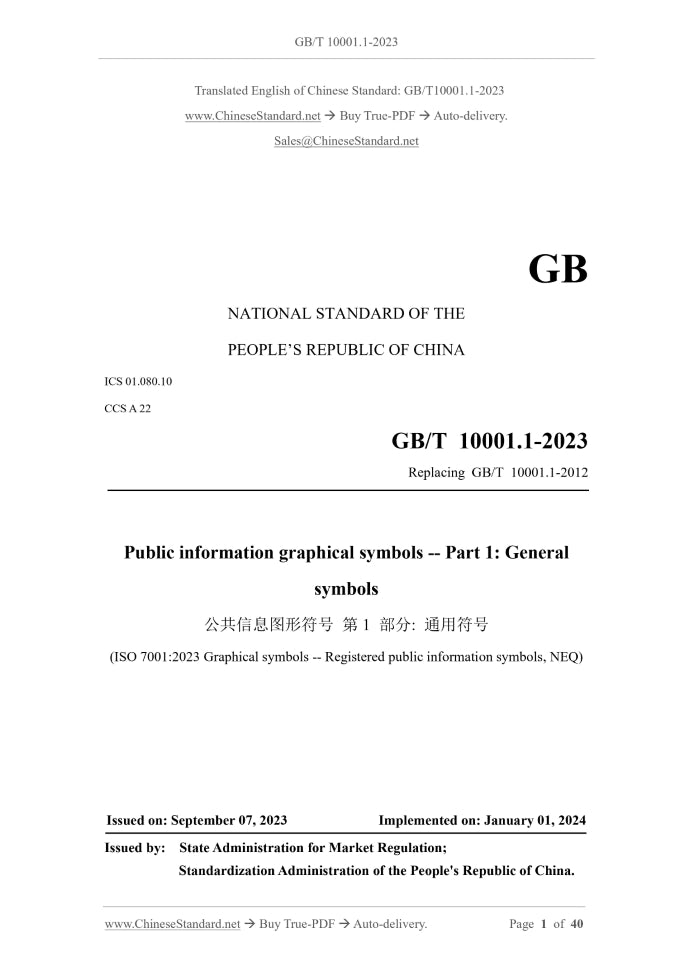

Preview True-PDF

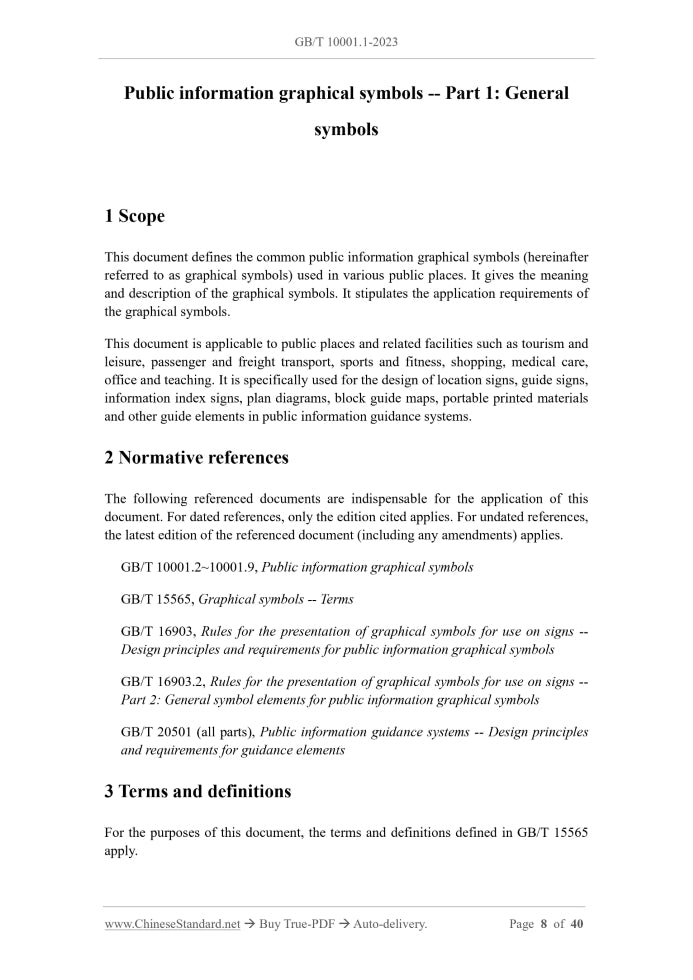

Scope

This document defines the common public information graphical symbols (hereinafter
referred to as graphical symbols) used in various public places. It gives the meaning
and description of the graphical symbols. It stipulates the application requirements of
the graphical symbols.
This document is applicable to public places and related facilities such as tourism and
leisure, passenger and freight transport, sports and fitness, shopping, medical care,
office and teaching. It is specifically used for the design of location signs, guide signs,
information index signs, plan diagrams, block guide maps, portable printed materials
and other guide elements in public information guidance systems.

Basic Data

Standard ID	GB/T 10001.1-2023 (GB/T10001.1-2023)
Description (Translated English)	Public information graphical symbols - Part 1: General symbols
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	A22
Classification of International Standard	01.080.10
Word Count Estimation	42,414
Date of Issue	2023-09-07
Date of Implementation	2024-01-01
Older Standard (superseded by this standard)	GB/T 10001.1-2012
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
