GB/T 10000-1988: [GB 10000-88] Human dimensions of Chinese adults

According to the human ergonomics, this Standard provides the base values of human dimensions of Chinese adults. It is applicable to industrial products, architectural design, military industries, industrial technical reformation and equipment upgrade, and labor safety protection.

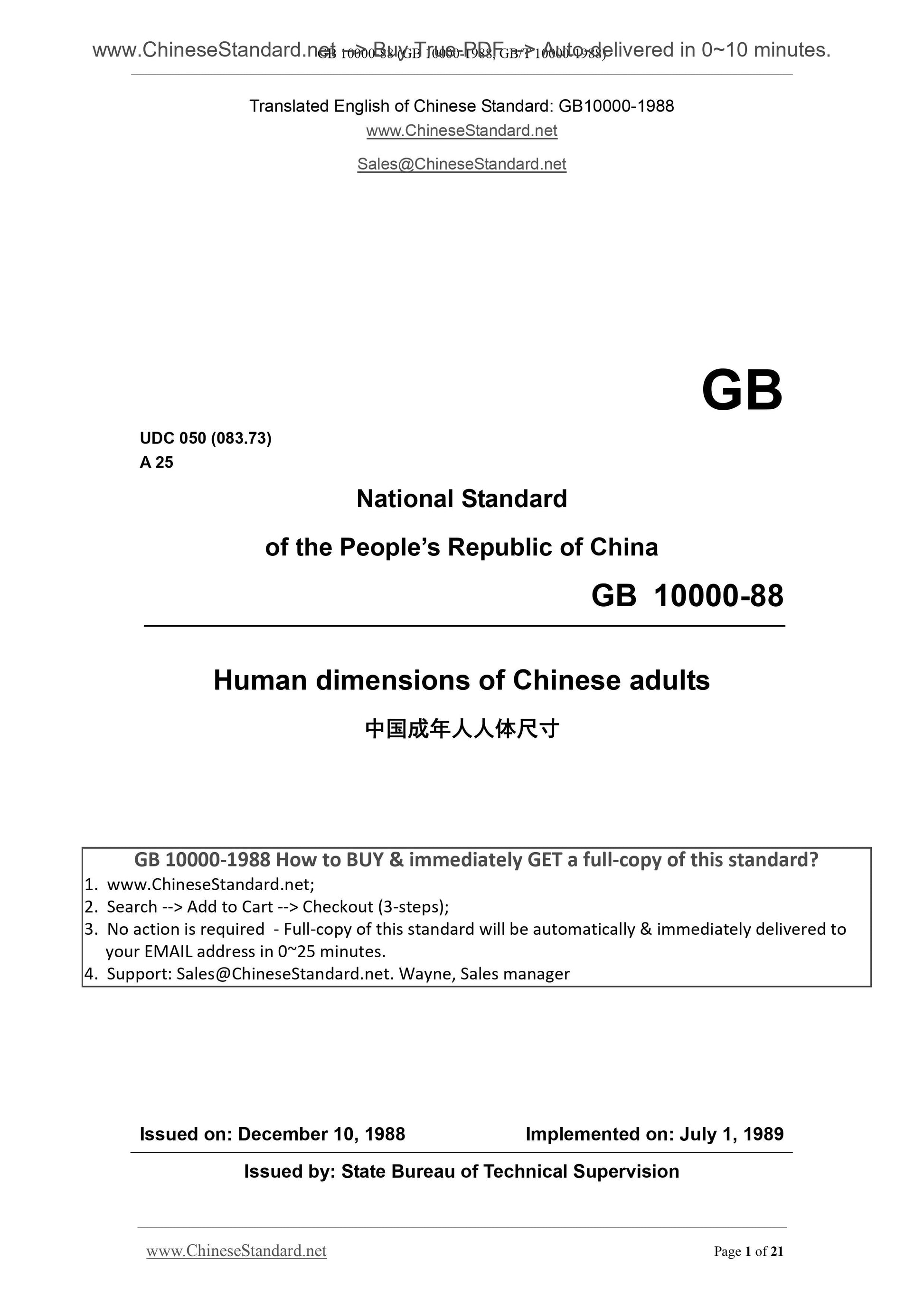

GB 10000-88 (GB 10000-1988, GB/T 10000-1988)
GB
UDC 050 (083.73)
A 25
National Standard
of the PEOPLE Republic of China
GB 10000-88
Human dimensions of Chinese adults
ISSUED ON. DECEMBER 10, 1988
IMPLEMENTED ON. JULY 1, 1989
Issued by. State Bureau of Technical Supervision

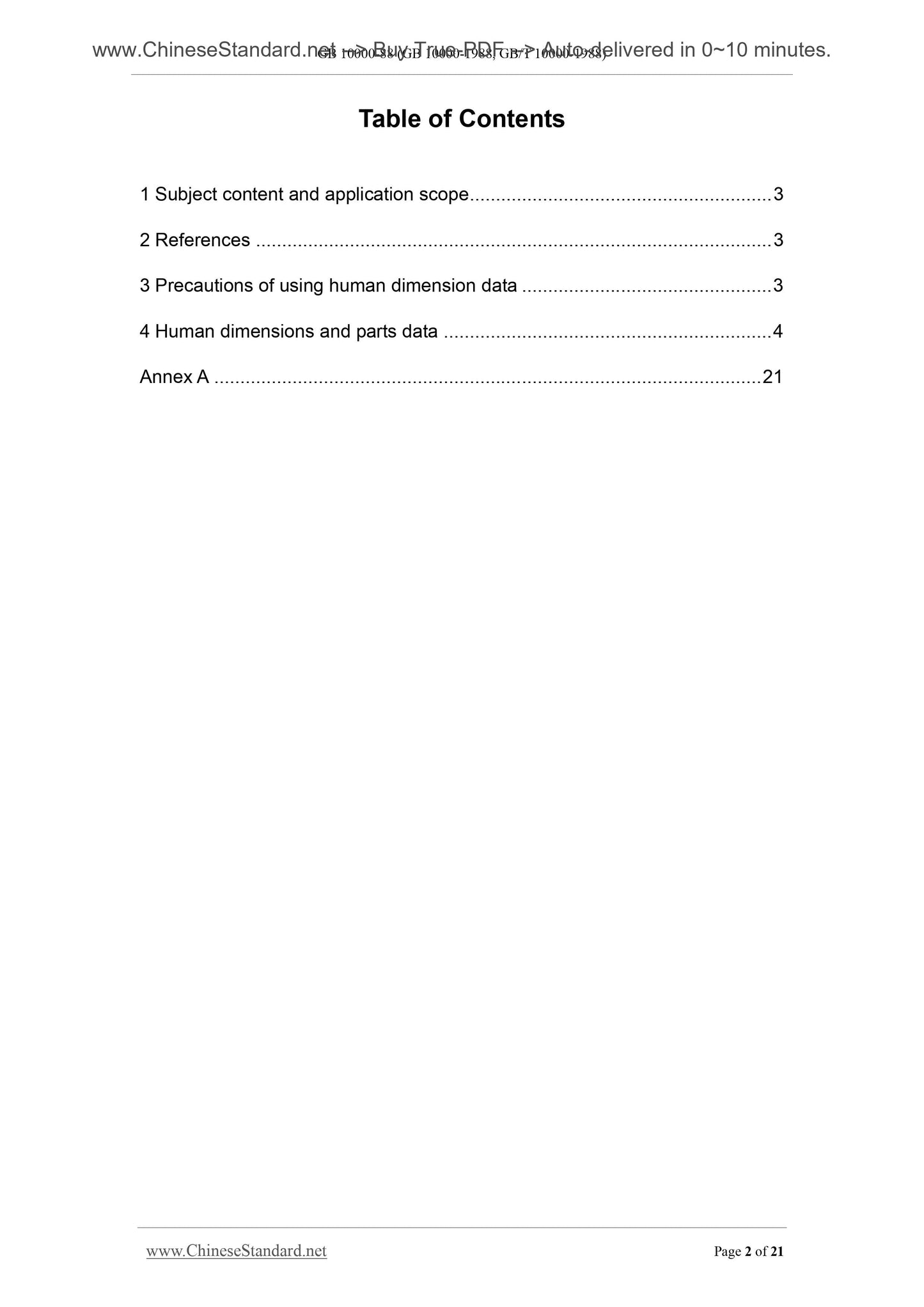

Table of Contents
1 Subject content and application scope ... 3
2 References ... 3
3 Precautions of using human dimension data ... 3
4 Human dimensions and parts data ... 4
Annex A ... 21

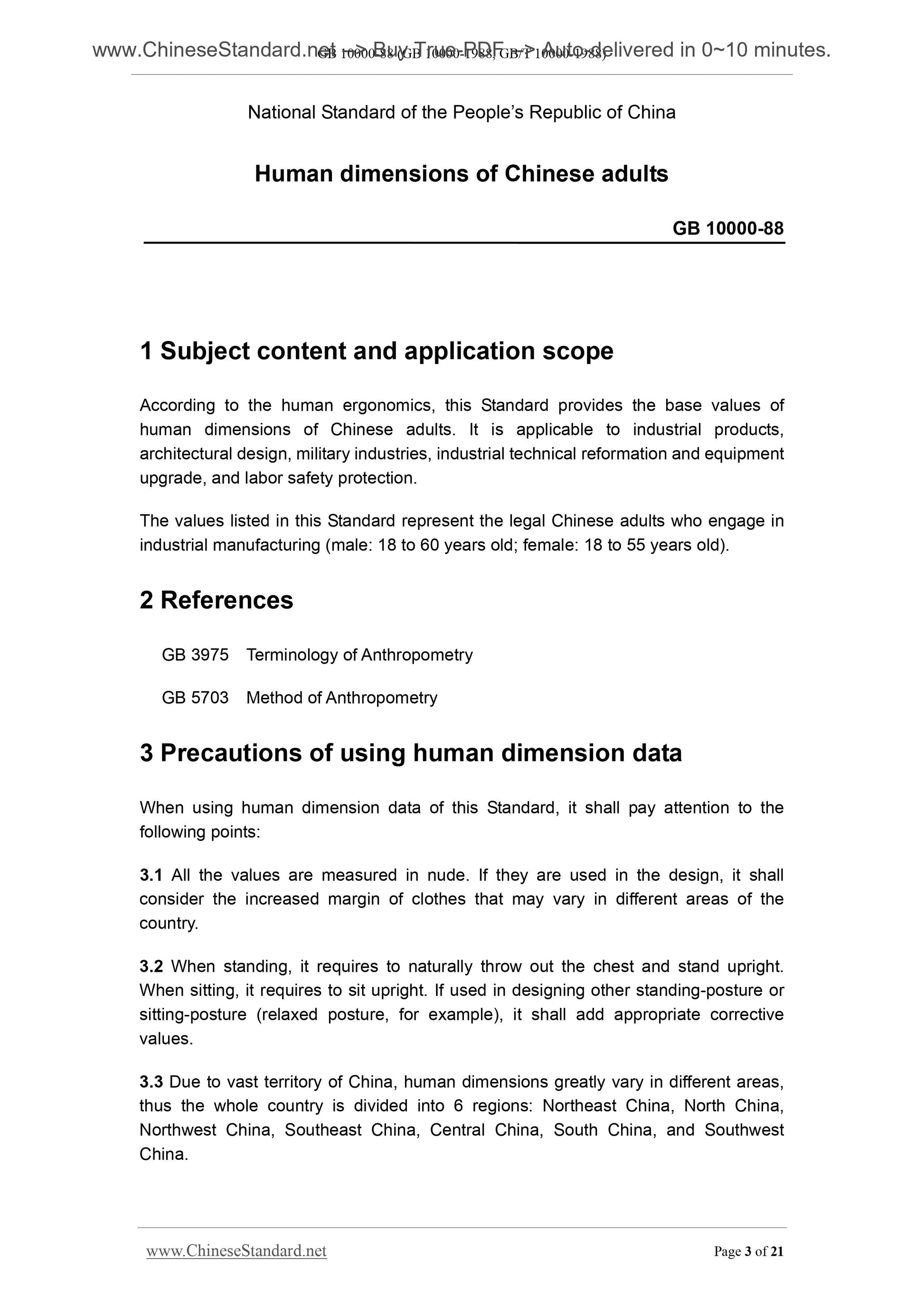

National Standard of the PEOPLE Republic of China
Human dimensions of Chinese adults
GB 10000-88
1 Subject content and application scope
According to the human ergonomics, this Standard provides the base values of human dimensions of Chinese adults. It is applicable to industrial products, architectural design, military industries, industrial technical reformation and equipment upgrade, and labor safety protection.
The values listed in this Standard represent the legal Chinese adults who engage in industrial manufacturing (male. 18 to 60 years old; female. 18 to 55 years old). 2 References
GB 3975 Terminology of Anthropometry
GB 5703 Method of Anthropometry
3 Precautions of using human dimension data
When using human dimension data of this Standard, it shall pay attention to the following points.
3.1 All the values are measured in nude. If they are used in the design, it shall consider the increased margin of clothes that may vary in different areas of the country.
3.2 When standing, it requires to naturally throw out the chest and stand upright. When sitting, it requires to sit upright. If used in designing other standing-posture or sitting-posture (relaxed posture, for example), it shall add appropriate corrective values.
3.3 Due to vast territory of China, human dimensions greatly vary in different areas, thus the whole country is divided into 6 regions. Northeast China, North China, Northwest China, Southeast China, Central China, South China, and Southwest China.

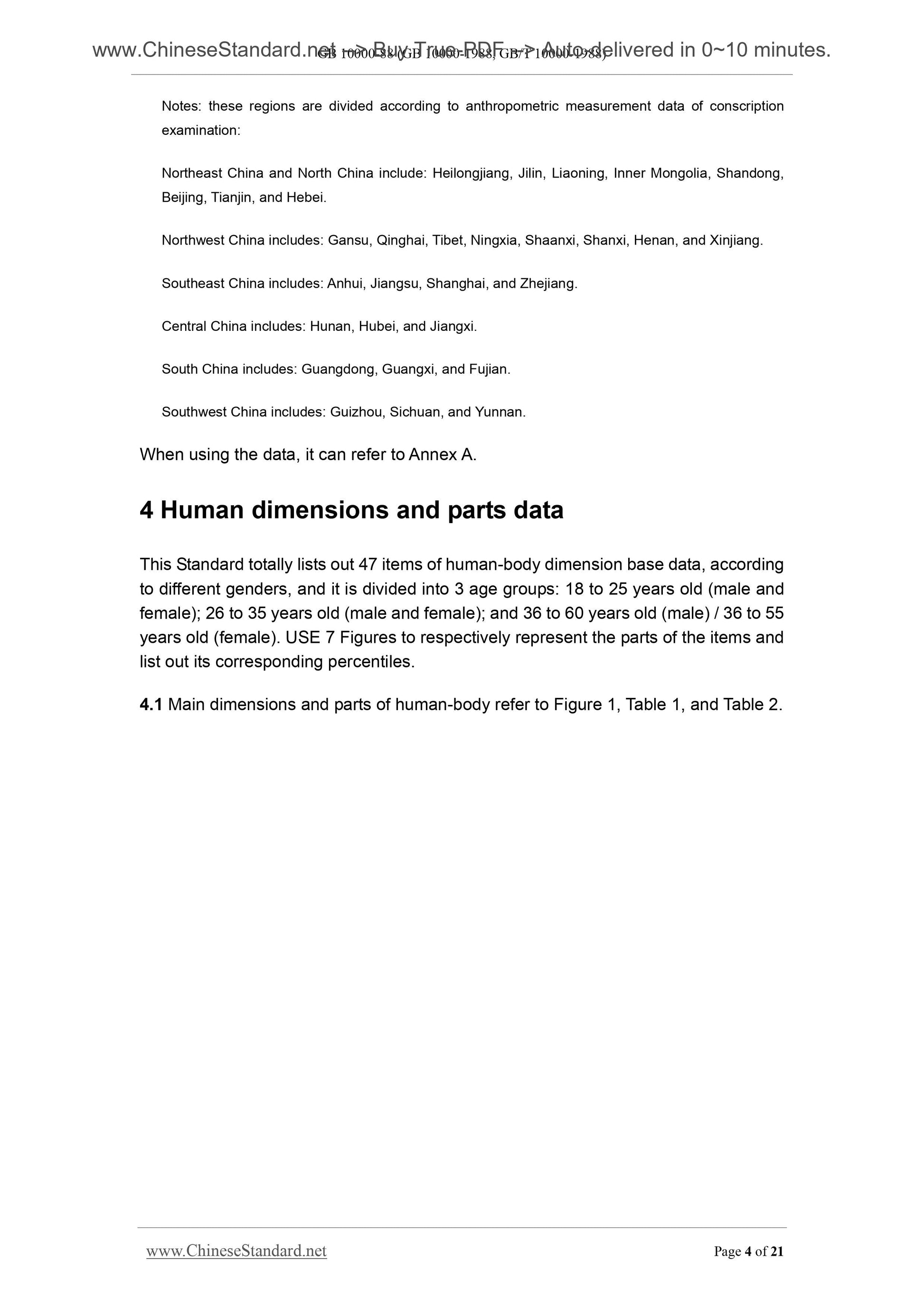

Notes. these regions are divided according to anthropometric measurement data of conscription examination.
Northeast China and North China include. Heilongjiang, Jilin, Liaoning, Inner Mongolia, Shandong, Beijing, Tianjin, and Hebei.
Northwest China includes. Gansu, Qinghai, Tibet, Ningxia, Shaanxi, Shanxi, Henan, and Xinjiang. Southeast China includes. Anhui, Jiangsu, Shanghai, and Zhejiang.
Central China includes. Hunan, Hubei, and Jiangxi.
South China includes. Guangdong, Guangxi, and Fujian.
Southwest China includes. Guizhou, Sichuan, and Yunnan.
When using the data, it can refer to Annex A.
4 Human dimensions and parts data
This Standard totally lists out 47 items of human-body dimension base data, according to different genders, and it is divided into 3 age groups. 18 to 25 years old (male and female); 26 to 35 years old (male and female); and 36 to 60 years old (male) / 36 to 55 years old (female). USE 7 Figures to respectively represent the parts of the items and list out its corresponding percentiles.
4.1 Main dimensions and parts of human-body refer to Figure 1, Table 1, and Table 2. Annex A
(Informative)
Mean M and standard deviation SD of height, chest circumference, and
weight in 6 regions
Table A1 Ages. 18 to 60 years old (male) mm
Items
Northeast
China and
North China
Northwest
China
Southeast
China Central China South China
Southwest
China
M SD M SD M SD M SD M SD M SD
Weight,
kg 64 8.2 60 7.6 59 7.7 57 6.9 56 6.9 55 6.8
Height 1693 56.6 1684 53.7 1686 55.2 1669 56.3 1650 57.1 1647 56.7
Chest
circumfe
rence
888 55.5 880 51.5 865 52.0 853 49.2 851 48.9 855 48.3
Table A2 Ages. 18 to 55 years old (female) mm
Items
Northeast
China and
North China
Northwest
China
Southeast
China Central China South China
Southwest
China
M SD M SD M SD M SD M SD M SD
Weight,
kg 55 7.7 52 7.1 51 7.2 50 6.8 49 6.5 50 6.9
Height 1586 51.8 1575 51.9 1575 50.8 1560 50.7 1549 49.7 1546 53.9
Chest
circumfe
rence
848 66.4 837 55.9 831 59.8 820 55.8 819 57.6 809 58.8
Additional explanation.
This Standard is responsibly drafted by China Institute of Standardization and Information Classification and Coding. Institute of Vertebrate Paleontology and Paleoanthropology of Chinese Academy of Sciences, and Biology Department of Fudan University participate in the drafting.
