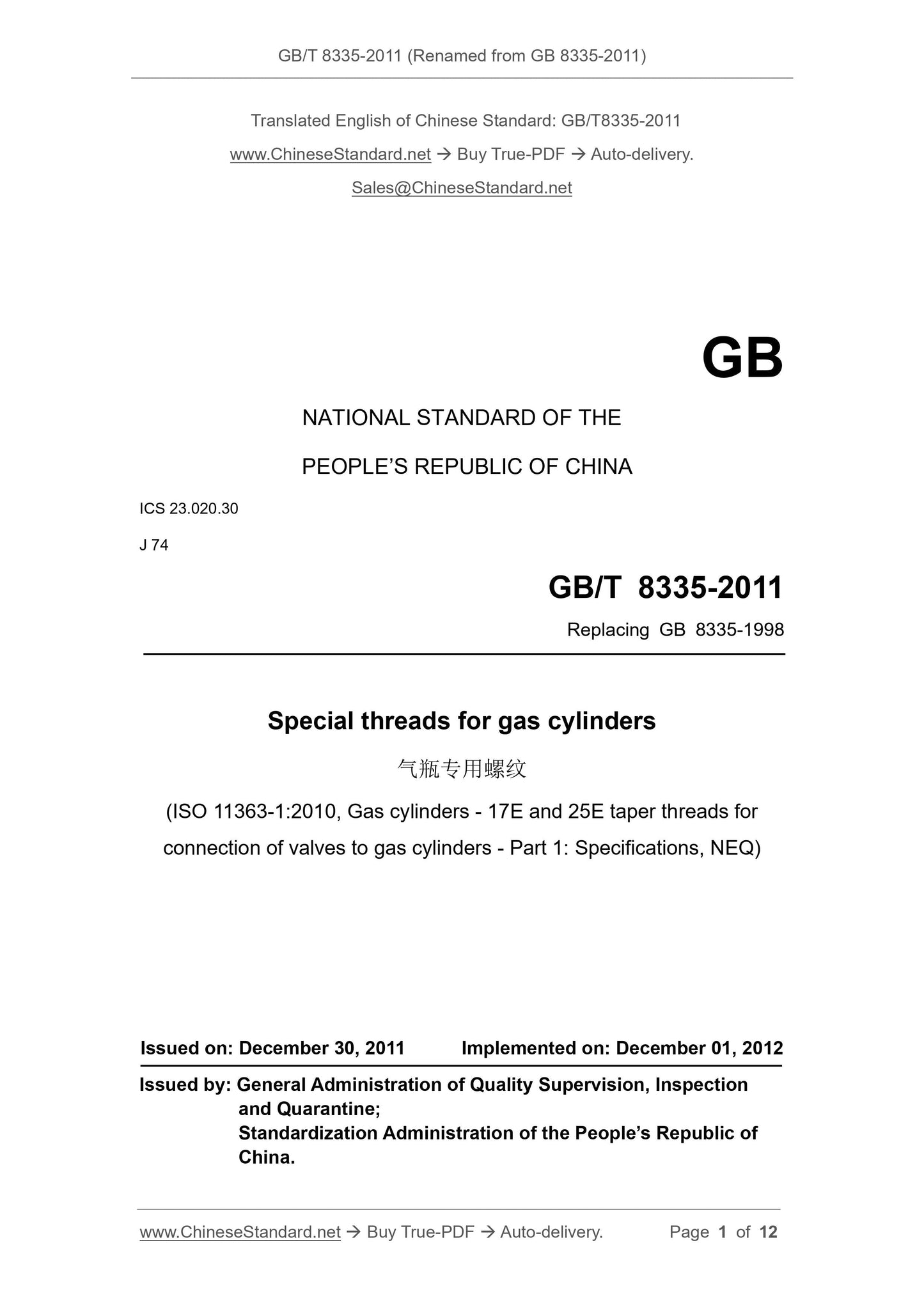

GB/T 8335-2011 (Renamed from GB 8335-2011)
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 23.020.30
J 74
GB/T 8335-2011
Replacing GB 8335-1998
Special threads for gas cylinders
(ISO 11363-1:2010, Gas cylinders - 17E and 25E taper threads for
connection of valves to gas cylinders - Part 1: Specifications, NEQ)
ISSUED ON: DECEMBER 30, 2011
IMPLEMENTED ON: DECEMBER 01, 2012
Issued by: General Administration of Quality Supervision, Inspection
and Quarantine;
Standardization Administration of the People’s Republic of
China.

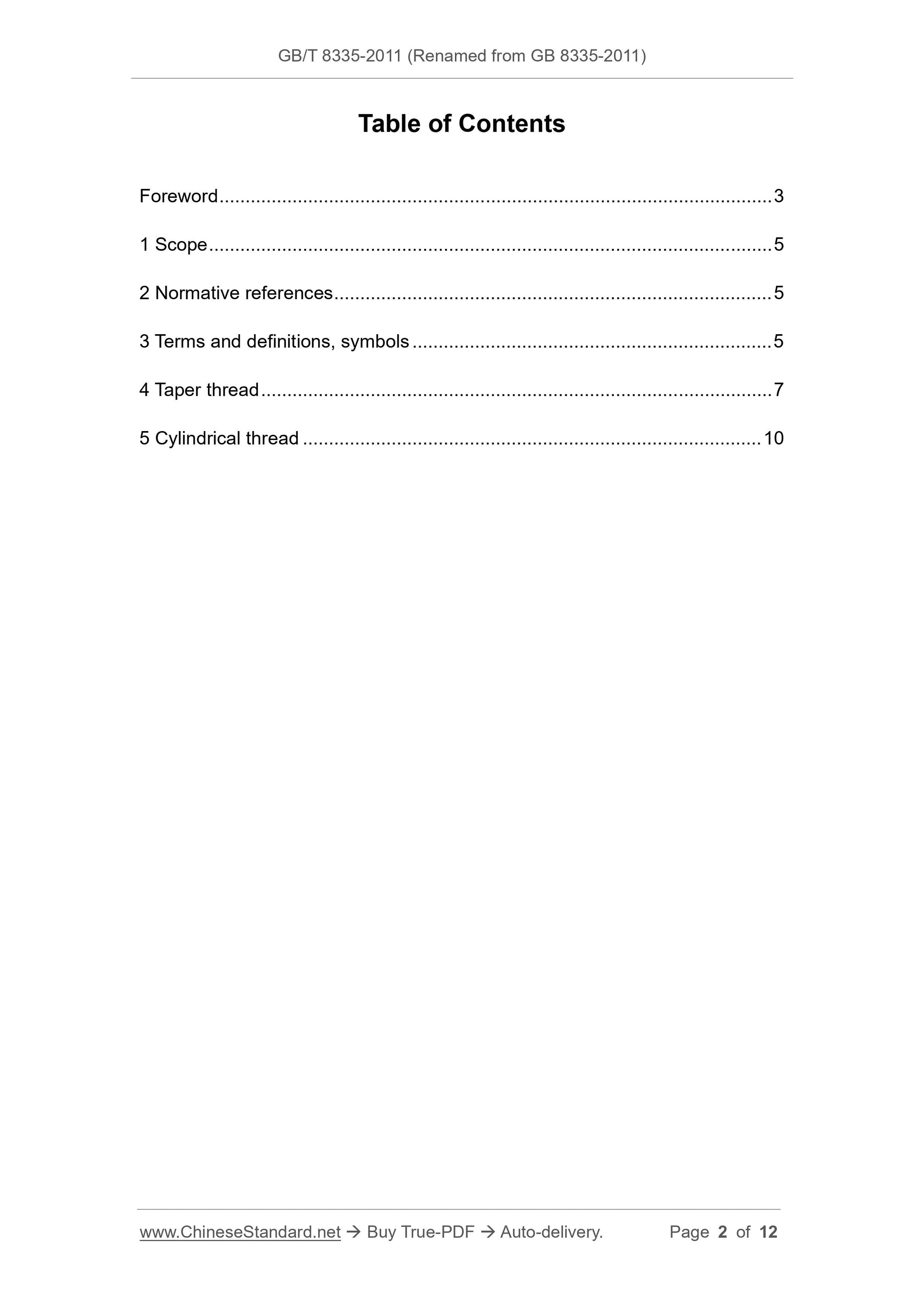

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions, symbols ... 5
4 Taper thread ... 7
5 Cylindrical thread ... 10

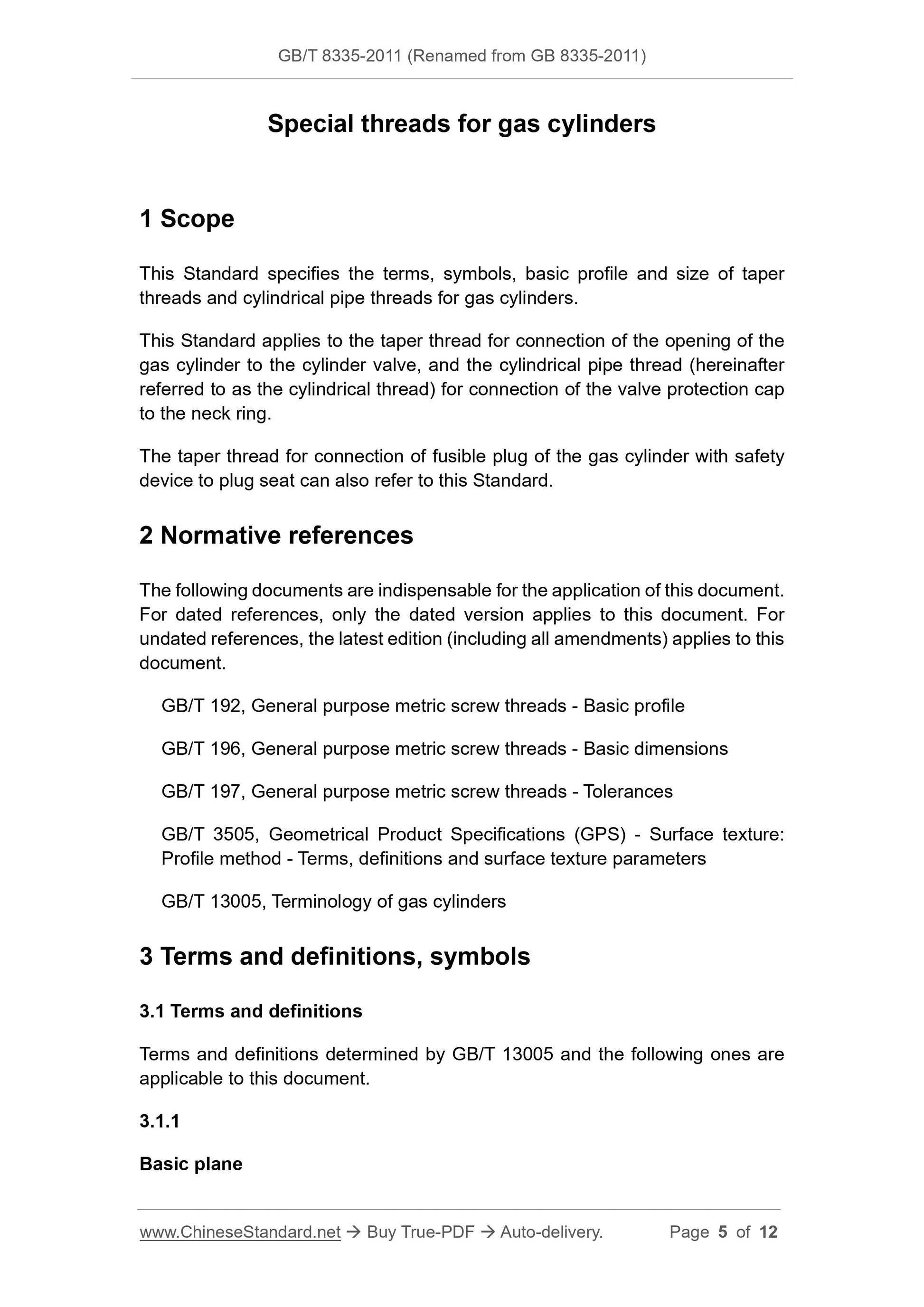

Special threads for gas cylinders
1 Scope
This Standard specifies the terms, symbols, basic profile and size of taper
threads and cylindrical pipe threads for gas cylinders.
This Standard applies to the taper thread for connection of the opening of the
gas cylinder to the cylinder valve, and the cylindrical pipe thread (hereinafter
referred to as the cylindrical thread) for connection of the valve protection cap
to the neck ring.
The taper thread for connection of fusible plug of the gas cylinder with safety
device to plug seat can also refer to this Standard.
2 Normative references
The following documents are indispensable for the application of this document.
For dated references, only the dated version applies to this document. For
undated references, the latest edition (including all amendments) applies to this
document.
GB/T 192, General purpose metric screw threads - Basic profile
GB/T 196, General purpose metric screw threads - Basic dimensions
GB/T 197, General purpose metric screw threads - Tolerances
GB/T 3505, Geometrical Product Specifications (GPS) - Surface texture:
Profile method - Terms, definitions and surface texture parameters
GB/T 13005, Terminology of gas cylinders
3 Terms and definitions, symbols
3.1 Terms and definitions
Terms and definitions determined by GB/T 13005 and the following ones are
applicable to this document.
3.1.1
Basic plane

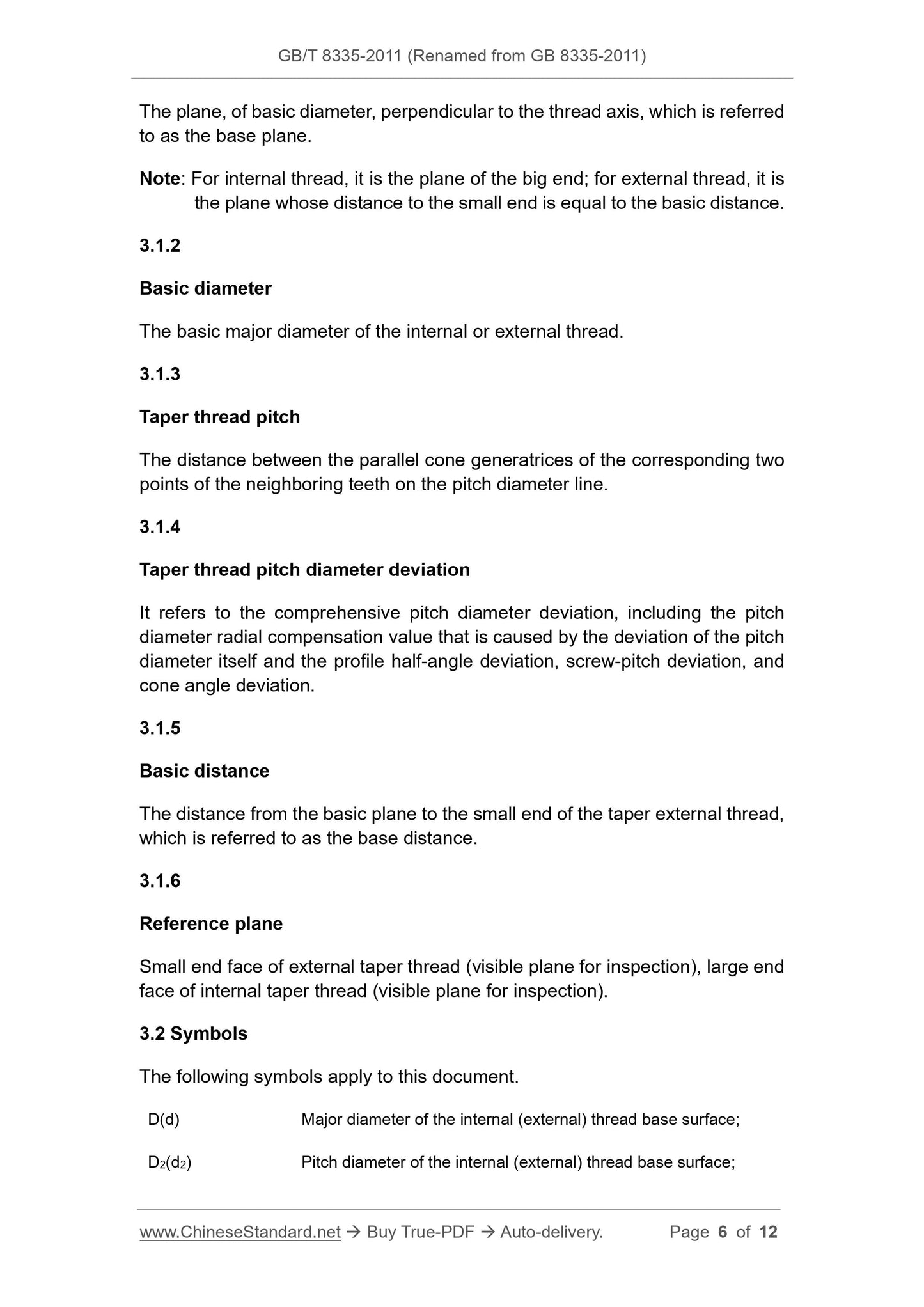

The plane, of basic diameter, perpendicular to the thread axis, which is referred
to as the base plane.
Note: For internal thread, it is the plane of the big end; for external thread, it is
the plane whose distance to the small end is equal to the basic distance.
3.1.2
Basic diameter
The basic major diameter of the internal or external thread.
3.1.3
Taper thread pitch
The distance between the parallel cone generatrices of the corresponding two
points of the neighboring teeth on the pitch diameter line.
3.1.4
Taper thread pitch diameter deviation
It refers to the comprehensive pitch diameter deviation, including the pitch
diameter radial compensation value that is caused by the deviation of the pitch
diameter itself and the profile half-angle deviation, screw-pitch deviation, and
cone angle deviation.
3.1.5
Basic distance
The distance from the basic plane to the small end of the taper external thread,
which is referred to as the base distance.
3.1.6
Reference plane
Small end face of external taper thread (visible plane for inspection), large end
face of internal taper thread (visible plane for inspection).
3.2 Symbols
The following symbols apply to this document.
D(d) Major diameter of the internal (external) thread base surface;
D2(d2) Pitch diameter of the internal (external) thread base surface;
