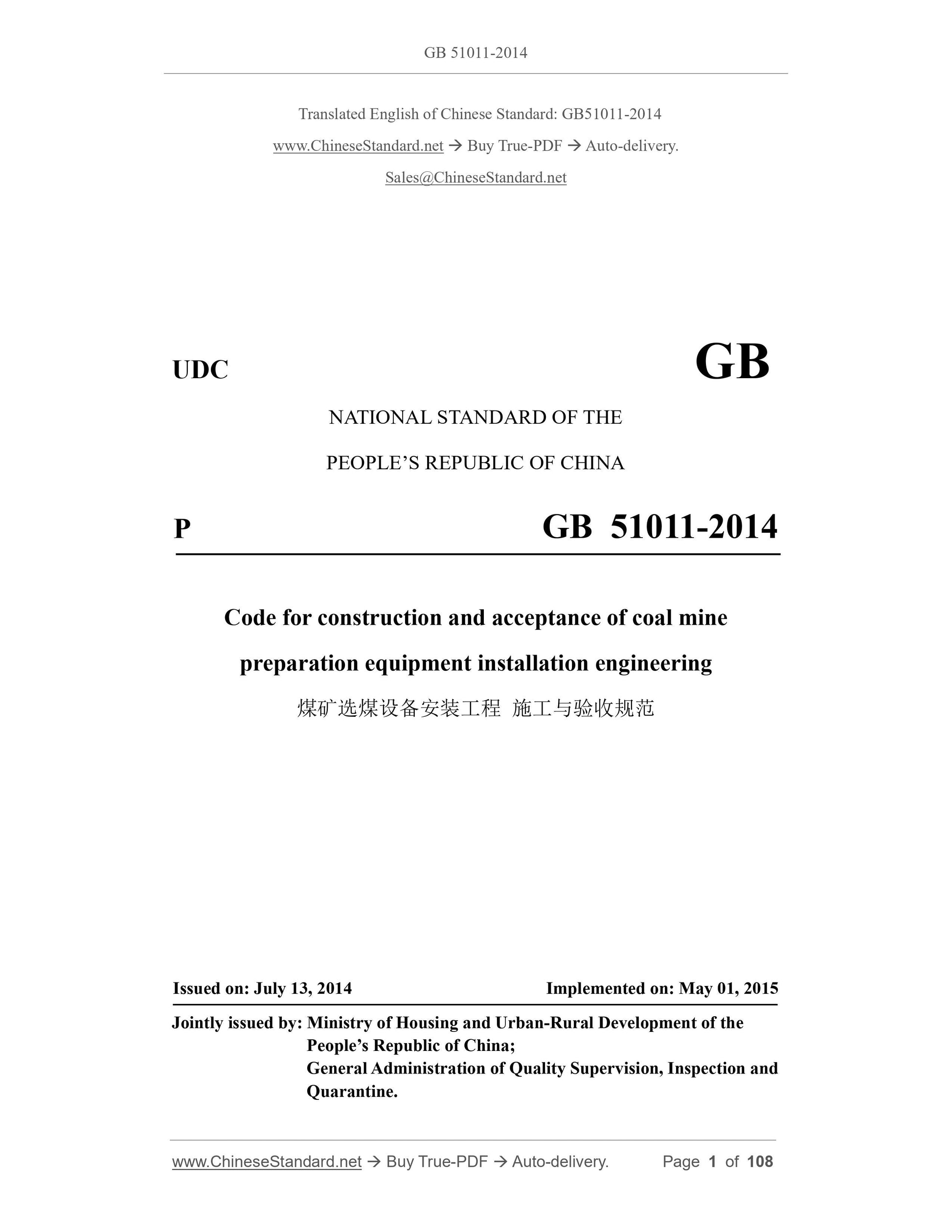

GB 51011-2014
UDC GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
P GB 51011-2014
Code for construction and acceptance of coal mine
preparation equipment installation engineering
ISSUED ON: JULY 13, 2014
IMPLEMENTED ON: MAY 01, 2015
Jointly issued by: Ministry of Housing and Urban-Rural Development of the
People’s Republic of China;
General Administration of Quality Supervision, Inspection and
Quarantine.

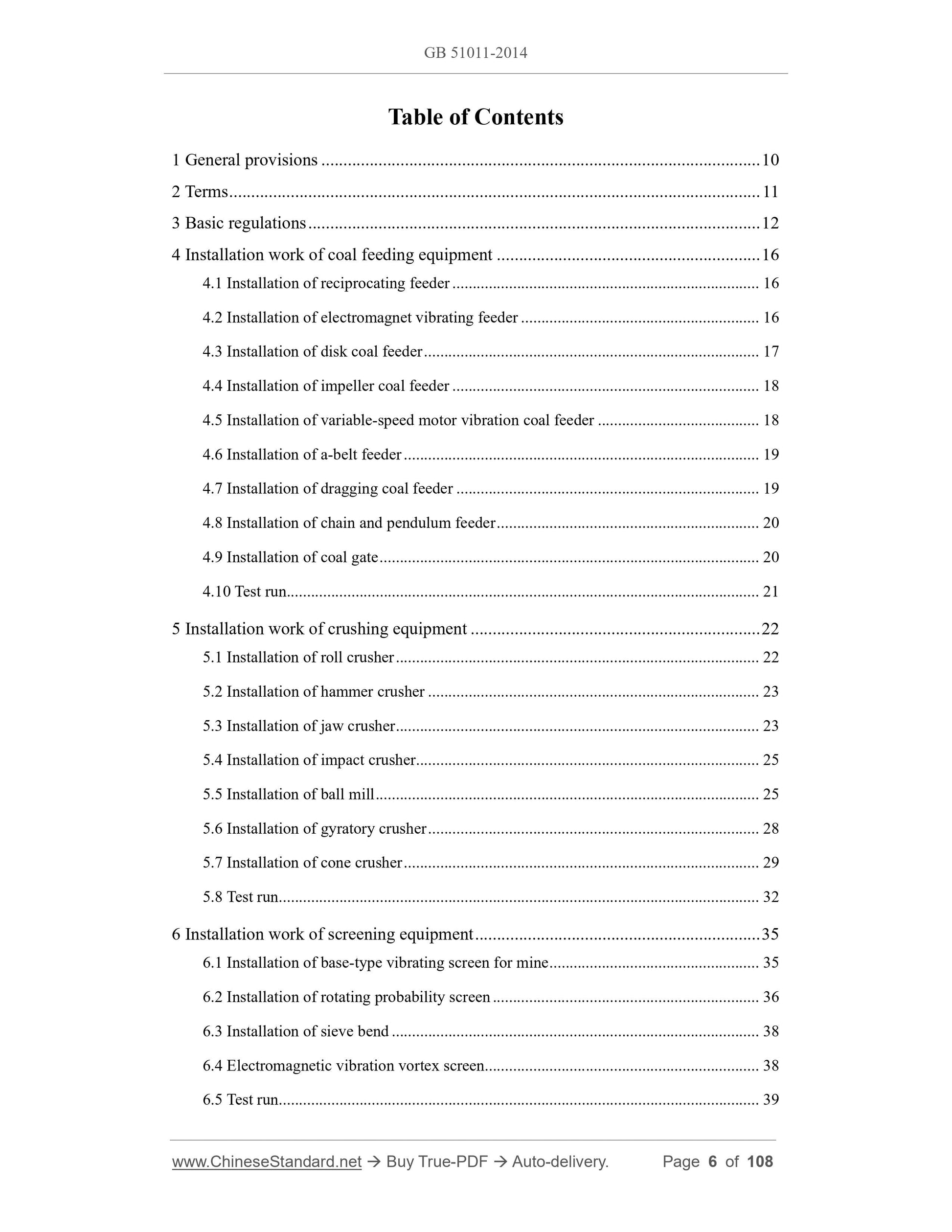

Table of Contents
1 General provisions ... 10
2 Terms ... 11
3 Basic regulations ... 12
4 Installation work of coal feeding equipment ... 16
4.1 Installation of reciprocating feeder ... 16
4.2 Installation of electromagnet vibrating feeder ... 16
4.3 Installation of disk coal feeder ... 17
4.4 Installation of impeller coal feeder ... 18
4.5 Installation of variable-speed motor vibration coal feeder ... 18
4.6 Installation of a-belt feeder ... 19
4.7 Installation of dragging coal feeder ... 19
4.8 Installation of chain and pendulum feeder ... 20
4.9 Installation of coal gate ... 20
4.10 Test run ... 21
5 Installation work of crushing equipment ... 22
5.1 Installation of roll crusher ... 22
5.2 Installation of hammer crusher ... 23
5.3 Installation of jaw crusher ... 23
5.4 Installation of impact crusher ... 25
5.5 Installation of ball mill ... 25
5.6 Installation of gyratory crusher ... 28
5.7 Installation of cone crusher ... 29
5.8 Test run ... 32
6 Installation work of screening equipment ... 35
6.1 Installation of base-type vibrating screen for mine ... 35
6.2 Installation of rotating probability screen ... 36
6.3 Installation of sieve bend ... 38
6.4 Electromagnetic vibration vortex screen... 38
6.5 Test run ... 39

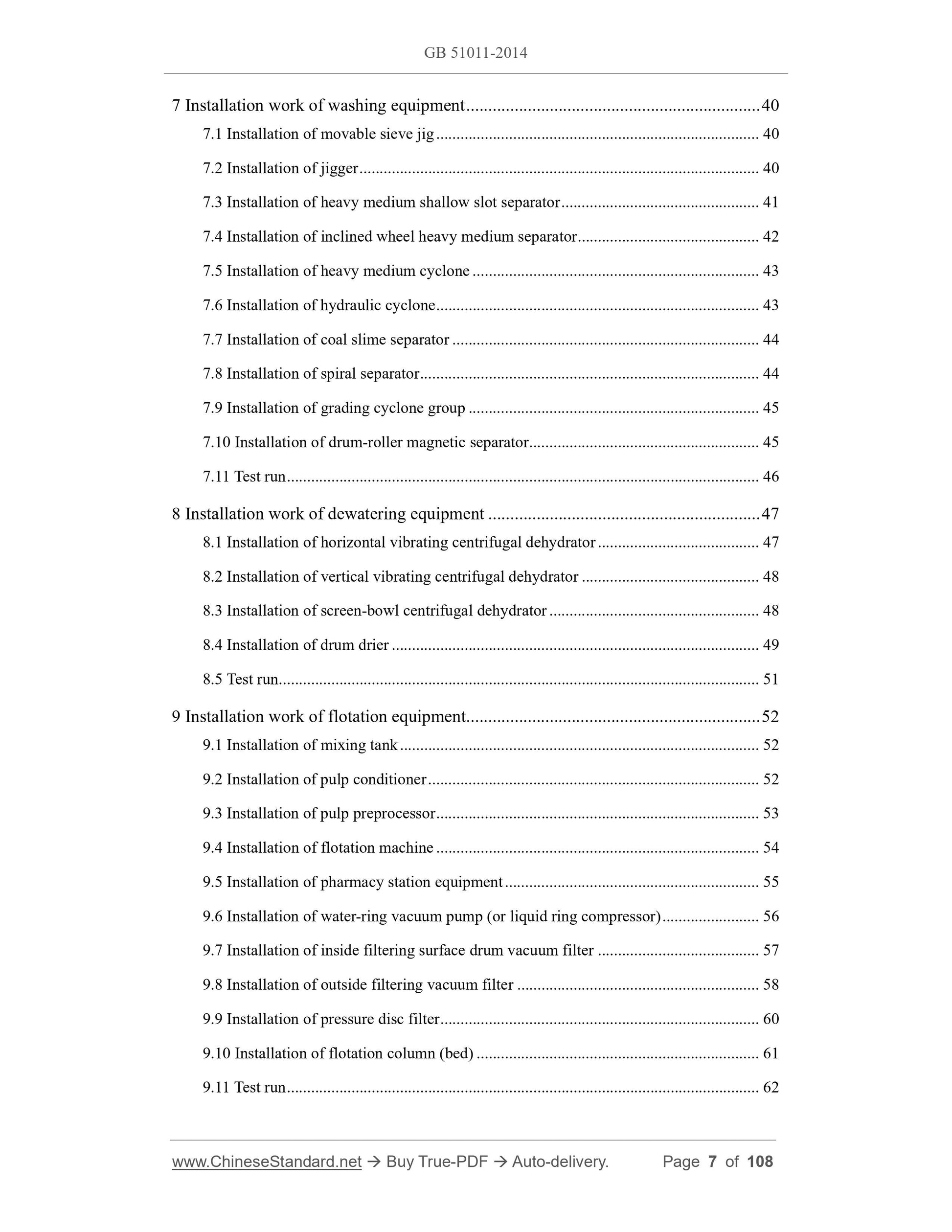

7 Installation work of washing equipment ... 40
7.1 Installation of movable sieve jig ... 40
7.2 Installation of jigger ... 40
7.3 Installation of heavy medium shallow slot separator ... 41
7.4 Installation of inclined wheel heavy medium separator ... 42
7.5 Installation of heavy medium cyclone ... 43
7.6 Installation of hydraulic cyclone ... 43
7.7 Installation of coal slime separator ... 44
7.8 Installation of spiral separator ... 44
7.9 Installation of grading cyclone group ... 45
7.10 Installation of drum-roller magnetic separator ... 45
7.11 Test run ... 46
8 Installation work of dewatering equipment ... 47
8.1 Installation of horizontal vibrating centrifugal dehydrator ... 47
8.2 Installation of vertical vibrating centrifugal dehydrator ... 48
8.3 Installation of screen-bowl centrifugal dehydrator ... 48
8.4 Installation of drum drier ... 49
8.5 Test run ... 51
9 Installation work of flotation equipment ... 52
9.1 Installation of mixing tank ... 52
9.2 Installation of pulp conditioner ... 52
9.3 Installation of pulp preprocessor ... 53
9.4 Installation of flotation machine ... 54
9.5 Installation of pharmacy station equipment ... 55
9.6 Installation of water-ring vacuum pump (or liquid ring compressor) ... 56
9.7 Installation of inside filtering surface drum vacuum filter ... 57
9.8 Installation of outside filtering vacuum filter ... 58
9.9 Installation of pressure disc filter ... 60
9.10 Installation of flotation column (bed) ... 61
9.11 Test run ... 62

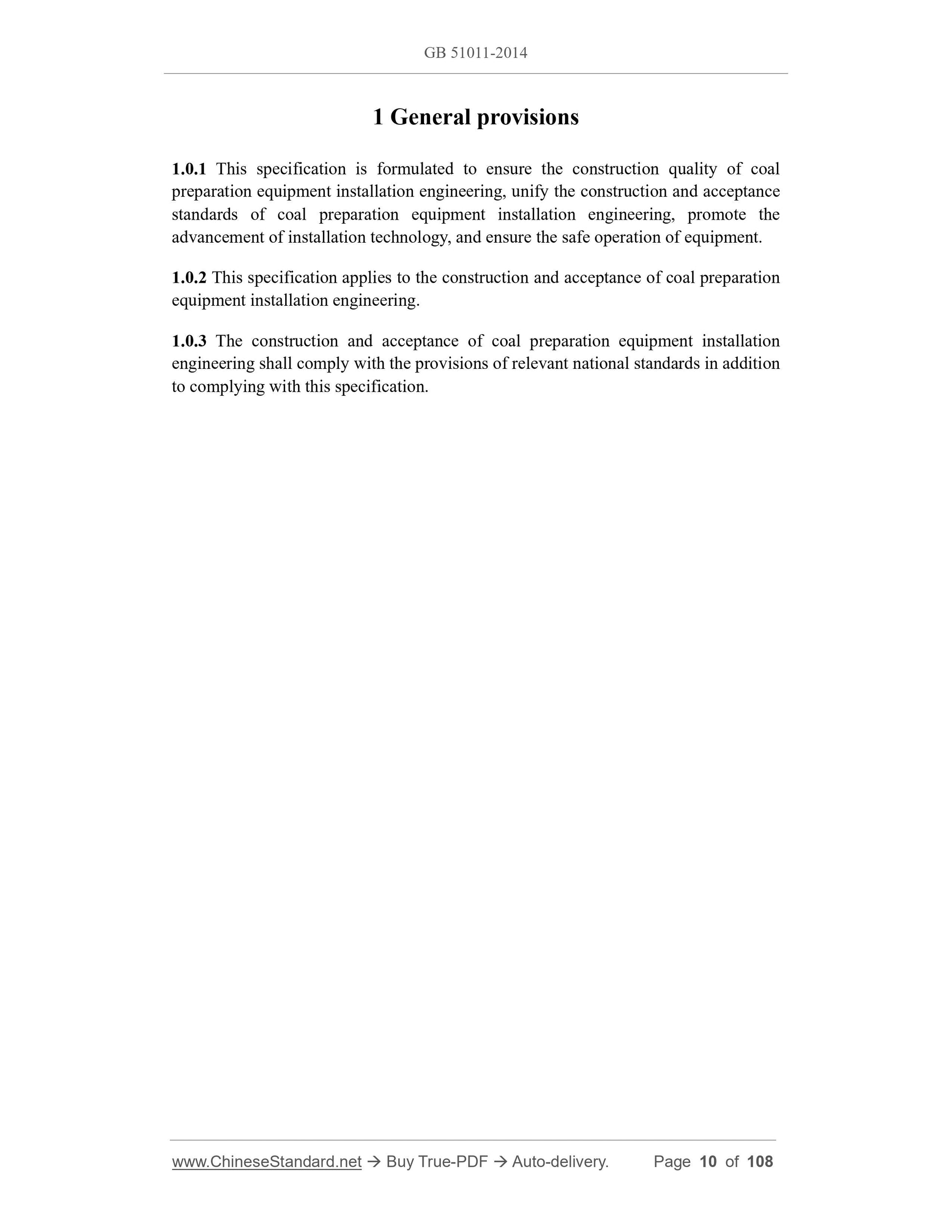

1 General provisions
1.0.1 This specification is formulated to ensure the construction quality of coal
preparation equipment installation engineering, unify the construction and acceptance
standards of coal preparation equipment installation engineering, promote the
advancement of installation technology, and ensure the safe operation of equipment.
1.0.2 This specification applies to the construction and acceptance of coal preparation
equipment installation engineering.
1.0.3 The construction and acceptance of coal preparation equipment installation
engineering shall comply with the provisions of relevant national standards in addition
to complying with this specification.

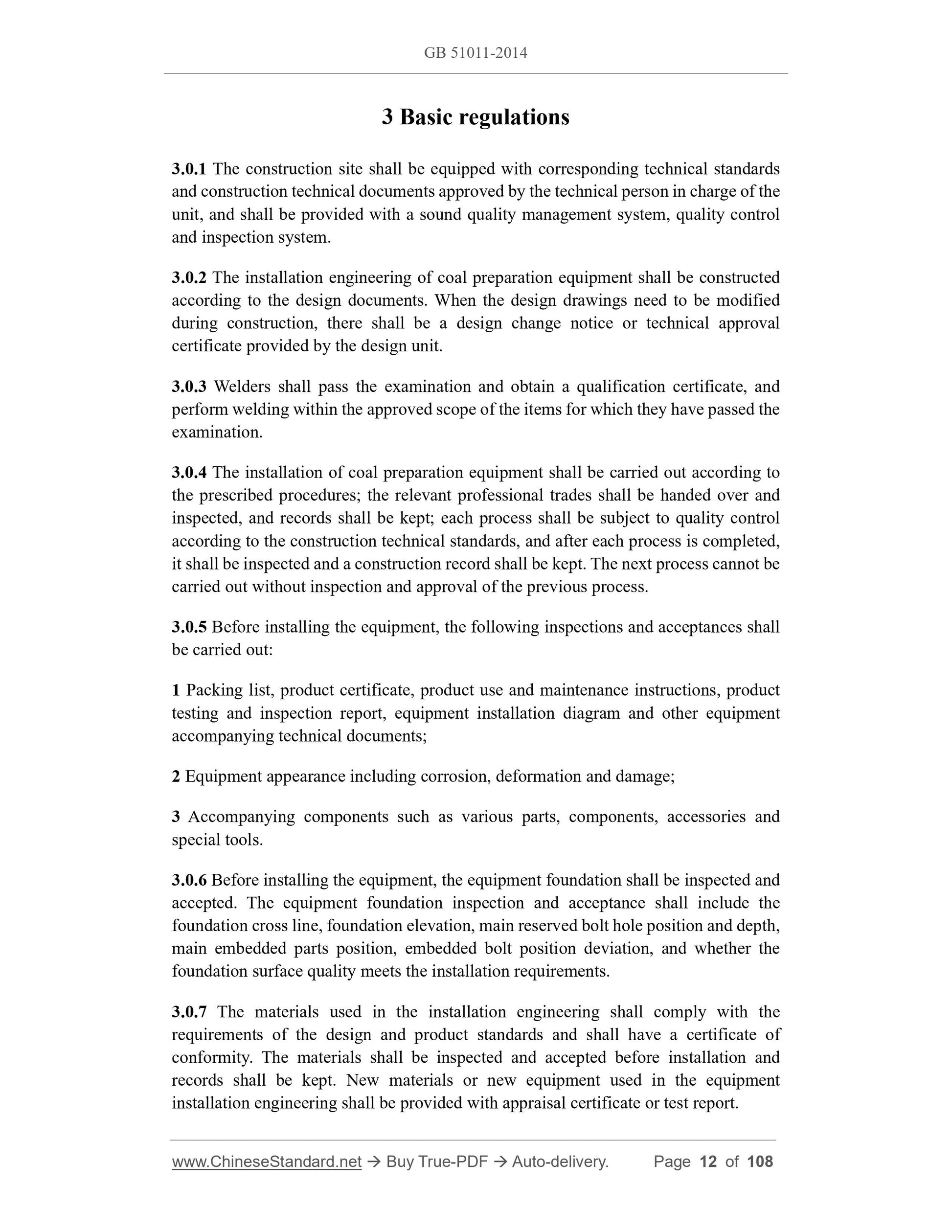

3 Basic regulations
3.0.1 The construction site shall be equipped with corresponding technical standards
and construction technical documents approved by the technical person in charge of the
unit, and shall be provided with a sound quality management system, quality control
and inspection system.
3.0.2 The installation engineering of coal preparation equipment shall be constructed
according to the design documents. When the design drawings need to be modified
during construction, there shall be a design change notice or technical approval
certificate provided by the design unit.
3.0.3 Welders shall pass the examination and obtain a qualification certificate, and
perform welding within the approved scope of the items for which they have passed the
examination.
3.0.4 The installation of coal preparation equipment shall be carried out according to
the prescribed procedures; the relevant professional trades shall be handed over and
inspected, and records shall be kept; each process shall be subject to quality control
according to the construction technical standards, and after each process is completed,
it shall be inspected and a construction record shall be kept. The next process cannot be
carried out without inspection and approval of the previous process.
3.0.5 Before installing the equipment, the following inspections and acceptances shall
be carried out:
1 Packing list, product certificate, product use and maintenance instructions, product
testing and inspection report, equipment installation diagram and other equipment
accompanying technical documents;
2 Equipment appearance including corrosion, deformation and damage;
3 Accompanying components such as various parts, components, accessories and
special tools.
3.0.6 Before installing the equipment, the equipment foundation shall be inspected and
accepted. The equipment foundation inspection and acceptance shall include the
foundation cross line, foundation elevation, main reserved bolt hole position and depth,
main embedded parts position, embedded bolt position deviation, and whether the
foundation surface quality meets the installation requirements.
3.0.7 The materials used in the installation engineering shall comply with the
requirements of the design and product standards and shall have a certificate of
conformity. The materials shall be inspected and accepted before installation and
records shall be kept. New materials or new equipment used in the equipment
installation engineering shall be provided with appraisal certificate or test report.

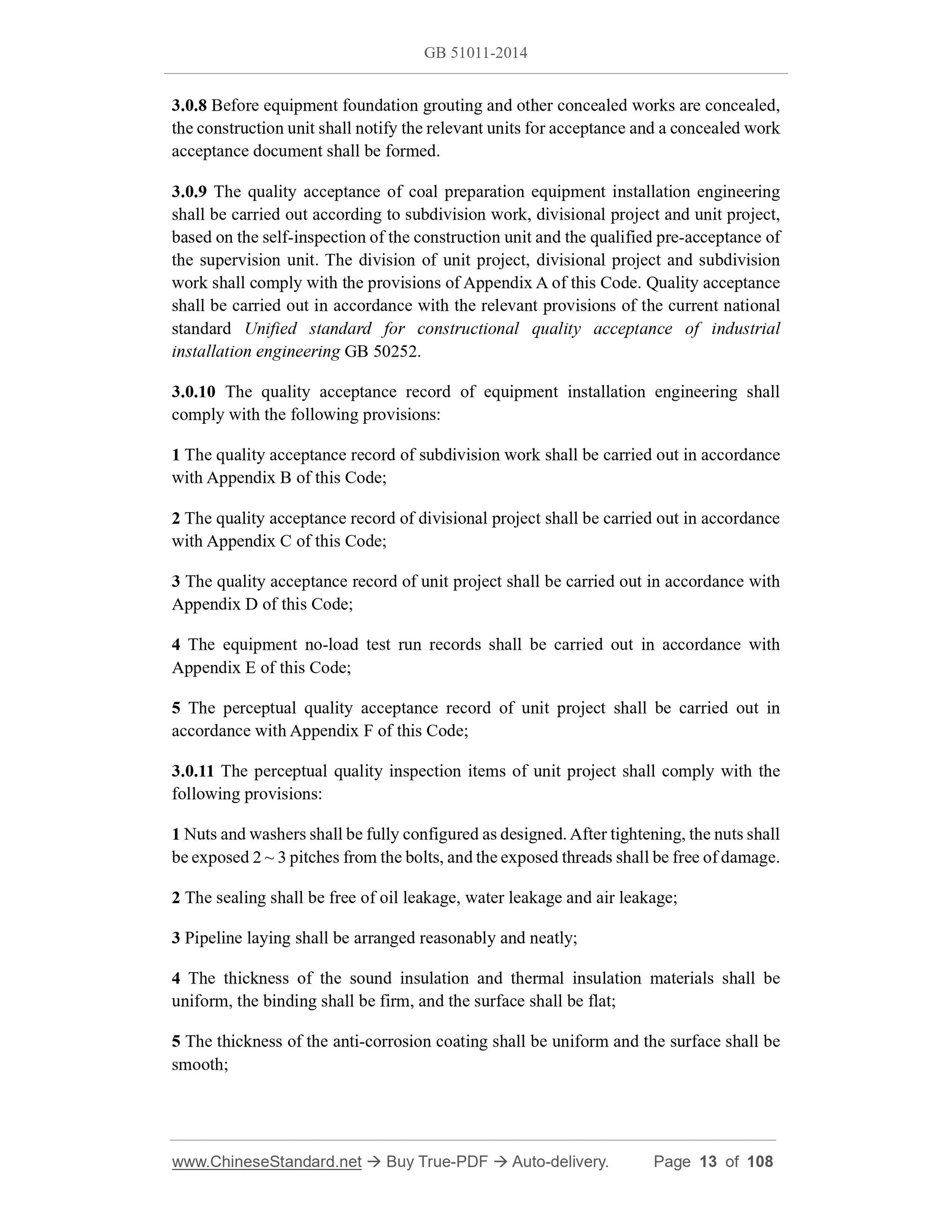

3.0.8 Before equipment foundation grouting and other concealed works are concealed,
the construction unit shall notify the relevant units for acceptance and a concealed work
acceptance document shall be formed.
3.0.9 The quality acceptance of coal preparation equipment installation engineering
shall be carried out according to subdivision work, divisional project and unit project,
based on the self-inspection of the construction unit and the qualified pre-acceptance of
the supervision unit. The division of unit project, divisional project and subdivision
work shall comply with the provisions of Appendix A of this Code. Quality acceptance
shall be carried out in accordance with the relevant provisions of the current national
standard Unified standard for constructional quality acceptance of industrial
installation engineering GB 50252.
3.0.10 The quality acceptance record of equipment installation engineering shall
comply with the following provisions:
1 The quality acceptance record of subdivision work shall be carried out in accordance
with Appendix B of this Code;
2 The quality acceptance record of divisional project shall be carried out in accordance
with Appendix C of this Code;
3 The quality acceptance record of unit project shall be carried out in accordance with
Appendix D of this Code;
4 The equipment no-load test run records shall be carried out in accordance with
Appendix E of this Code;
5 The perceptual quality acceptance record of unit project shall be carried out in
accordance with Appendix F of this Code;
3.0.11 The perceptual quality inspection items of unit project shall comply with the
following provisions:
1 Nuts and washers shall be fully configured as designed. After tightening, the nuts shall
be exposed 2 ~ 3 pitches from the bolts, and the exposed threads shall be free of damage.
2 The sealing shall be free of oil leakage, water leakage and air leakage;
3 Pipeline laying shall be arranged reasonably and neatly;
4 The thickness of the sound insulation and thermal insulation materials shall be
uniform, the binding shall be firm, and the surface shall be flat;
5 The thickness of the anti-corrosion coating shall be uniform and the surface shall be
smooth;

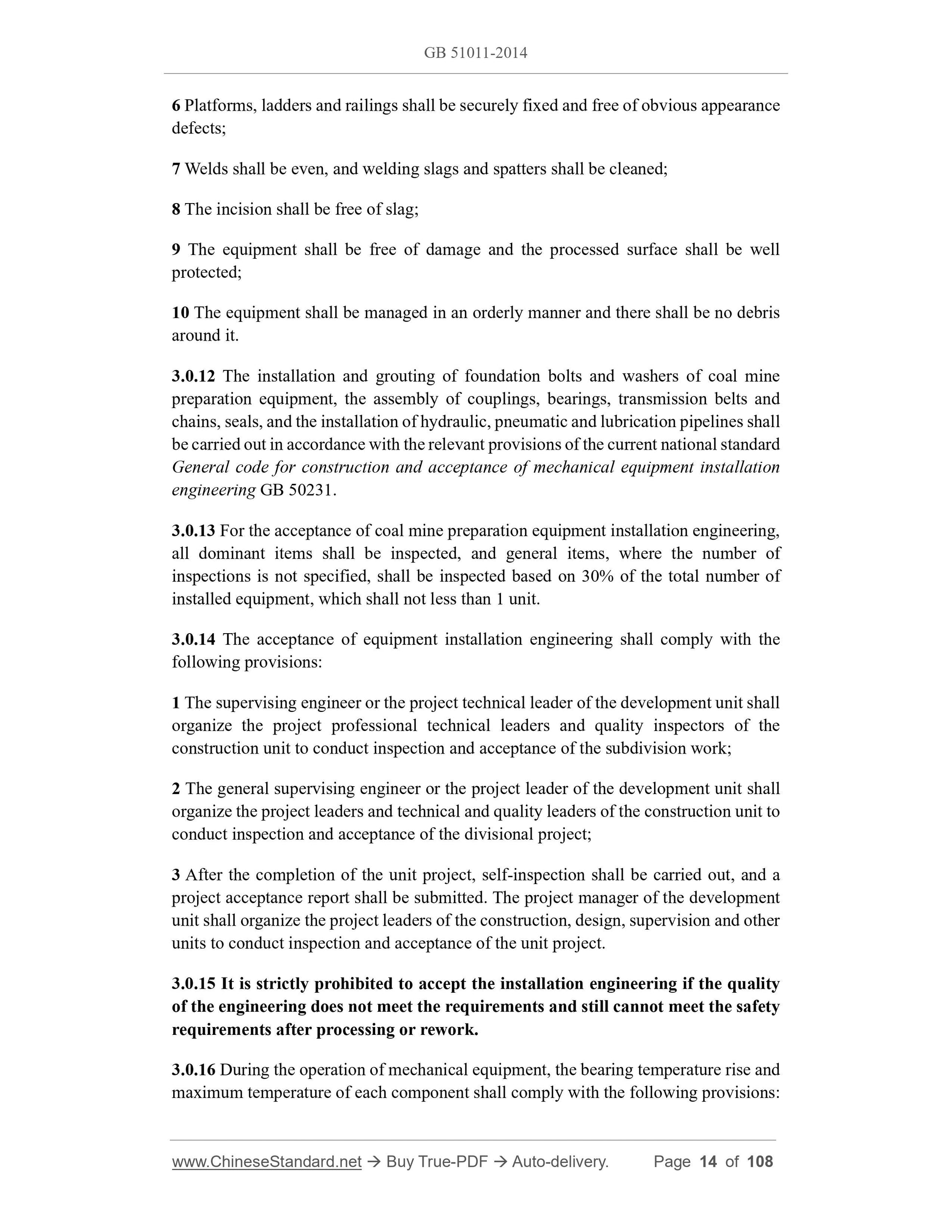

6 Platforms, ladders and railings shall be securely fixed and free of obvious appearance
defects;
7 Welds shall be even, and welding slags and spatters shall be cleaned;
8 The incision shall be free of slag;
9 The equipment shall be free of damage and the processed surface shall be well
protected;
10 The equipment shall be managed in an orderly manner and there shall be no debris
around it.
3.0.12 The installation and grouting of foundation bolts and washers of coal mine
preparation equipment, the assembly of couplings, bearings, transmission belts and
chains, seals, and the installation of hydraulic, pneumatic and lubrication pipelines shall
be carried out in accordance with the relevant provisions of the current national standard
General code for construction and acceptance of mechanical equipment installation
engineering GB 50231.
3.0.13 For the acceptance of coal mine preparation equipment installation engineering,
all dominant items shall be inspected, and general items, where the number of
inspections is not specified, shall be inspected based on 30% of the total number of
installed equipment, which shall not less than 1 unit.
3.0.14 The acceptance of equipment installation engineering shall comply with the
following provisions:
1 The supervising engineer or the project technical leader of the development unit shall
organize the project professional technical leaders and quality inspectors of the
construction unit to conduct inspection and acceptance of the subdivision work;
2 The general supervising engineer or the project leader of the development unit shall
organize the project leaders and technical and quality leaders of the construction unit to
conduct inspection and acceptance of the divisional project;
3 After the completion of the unit project, self-inspection shall be carried out, and a
project acceptance report shall be submitted. The project manager of the development
unit shall organize the project leaders of the construction, design, supervision and other
units to conduct inspection and acceptance of the unit project.
3.0.15 It is strictly prohibited to accept the installation engineering if the quality
of the engineering does not meet the requirements and still cannot meet the safety
requirements after processing or rework.
3.0.16 During the operation of mechanical equipment, the bearing temperature rise and
maximum temperature of each component shall comply with the following provisions:

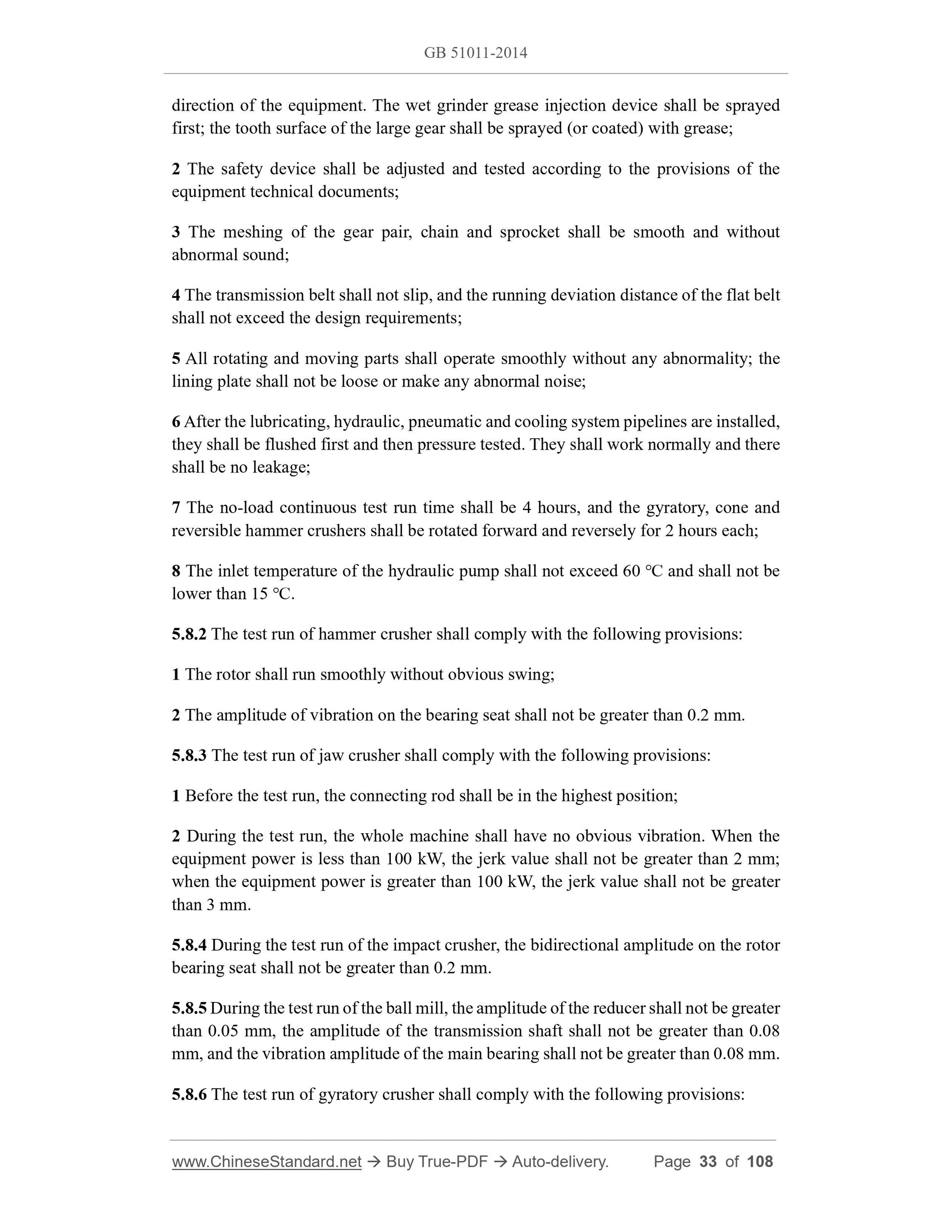

direction of the equipment. The wet grinder grease injection device shall be sprayed
first; the tooth surface of the large gear shall be sprayed (or coated) with grease;
2 The safety device shall be adjusted and tested according to the provisions of the
equipment technical documents;
3 The meshing of the gear pair, chain and sprocket shall be smooth and without
abnormal sound;
4 The transmission belt shall not slip, and the running deviation distance of the flat belt
shall not exceed the design requirements;
5 All rotating and moving parts shall operate smoothly without any abnormality; the
lining plate shall not be loose or make any abnormal noise;
6 After the lubricating, hydraulic, pneumatic and cooling system pipelines are installed,
they shall be flushed first and then pressure tested. They shall work normally and there
shall be no leakage;
7 The no-load continuous test run time shall be 4 hours, and the gyratory, cone and
reversible hammer crushers shall be rotated forward and reversely for 2 hours each;
8 The inlet temperature of the hydraulic pump shall not exceed 60 ℃ and shall not be
lower than 15 ℃.
5.8.2 The test run of hammer crusher shall comply with the following provisions:
1 The rotor shall run smoothly without obvious swing;
2 The amplitude of vibration on the bearing seat shall not be greater than 0.2 mm.
5.8.3 The test run of jaw crusher shall comply with the following provisions:
1 Before the test run, the connecting rod shall be in the highest position;
2 During the test run, the whole machine shall have no obvious vibration. When the
equipment power is less than 100 kW, the jerk value shall not be greater than 2 mm;
when the equipment power is greater than 100 kW, the jerk value shall not be greater
than 3 mm.
5.8.4 During the test run of the impact crusher, the bidirectional amplitude on the rotor
bearing seat shall not be greater than 0.2 mm.
5.8.5 During the test run of the ball mill, the amplitude of the reducer shall not be greater
than 0.05 mm, the amplitude of the transmission shaft shall not be greater than 0.08
mm, and the vibration amplitude of the main bearing shall not be greater than 0.08 mm.
5.8.6 The test run of gyratory crusher shall comply with the following provisions:

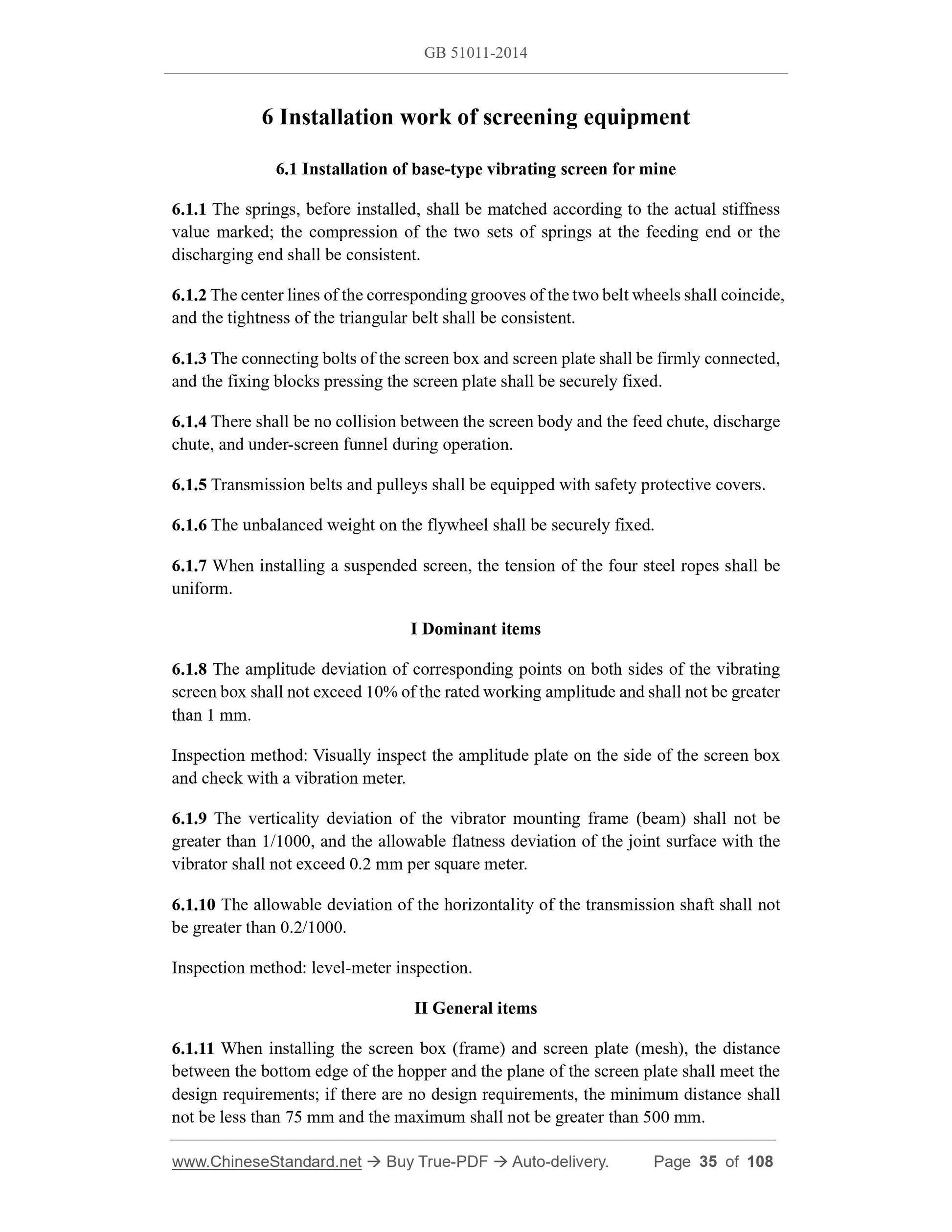

6 Installation work of screening equipment
6.1 Installation of base-type vibrating screen for mine
6.1.1 The springs, before installed, shall be matched according to the actual stiffness
value marked; the compression of the two sets of springs at the feeding end or the
discharging end shall be consistent.
6.1.2 The center lines of the corresponding grooves of the two belt wheels shall coincide,
and the tightness of the triangular belt shall be consistent.
6.1.3 The connecting bolts of the screen box and screen plate shall be firmly connected,
and the fixing blocks pressing the s...
