GB 50339-2013: Cade for acceptance of quality of intelligent building systems

This code is applicable to the quality acceptance of intelligent building systems in constructed, renovated and extended engineering. The quality acceptance of intelligent building systems shall not only meet those specified in this code, but also meet those specified in the relevant current standards of the nation.

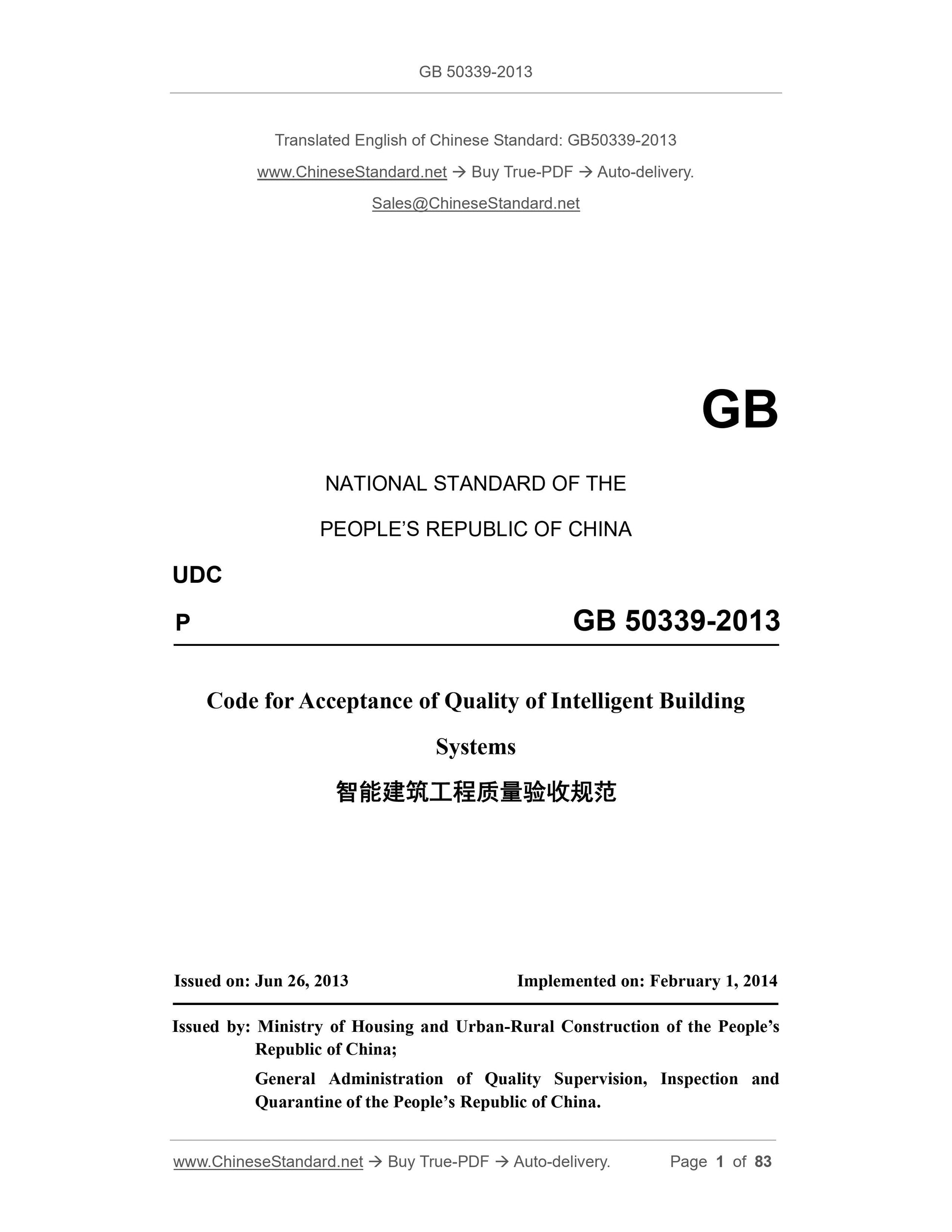

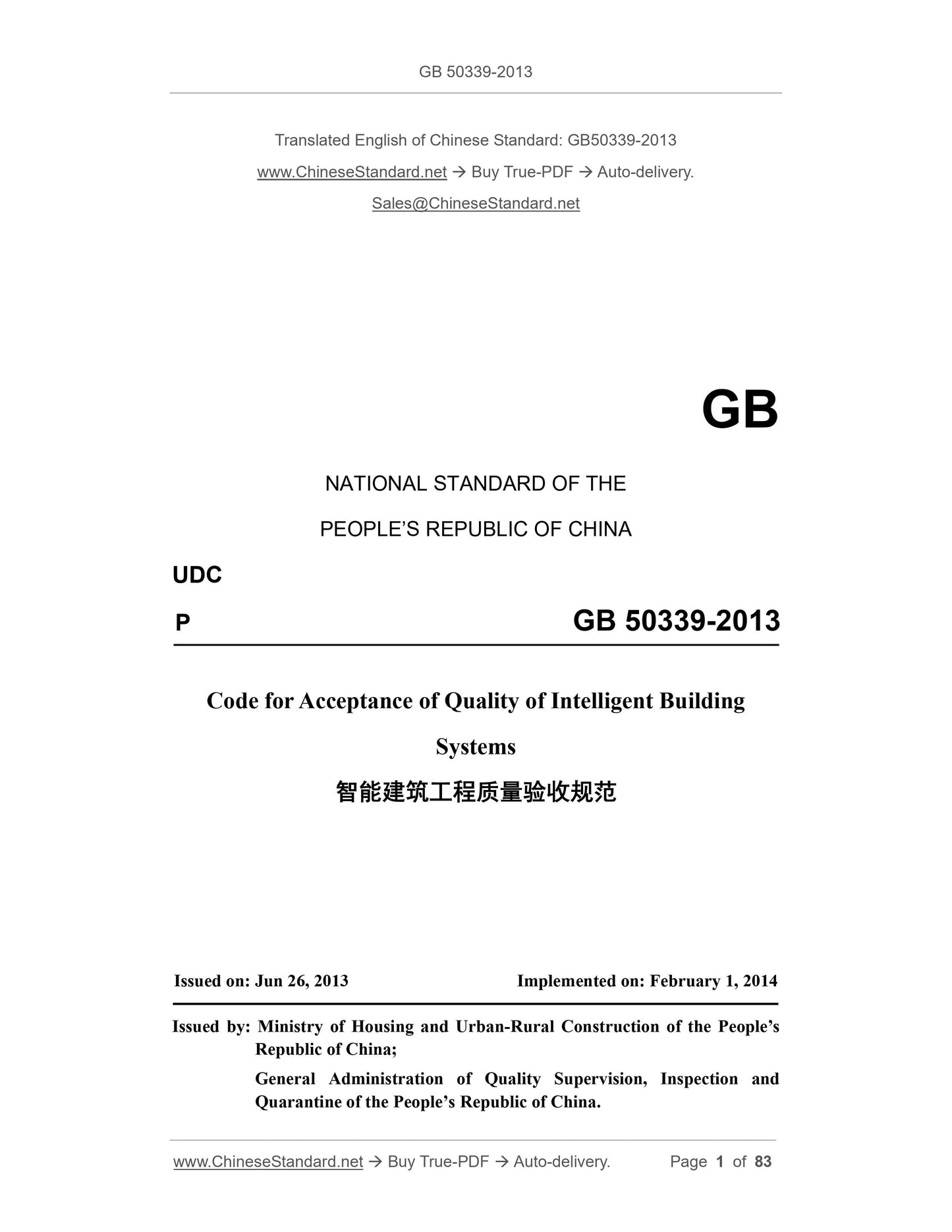

GB 50339-2013
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
UDC
P GB 50339-2013
Code for Acceptance of Quality of Intelligent Building
Systems
ISSUED ON: JUN 26, 2013
IMPLEMENTED ON: FEBRUARY 1, 2014
Issued by: Ministry of Housing and Urban-Rural Construction of the PEOPLE Republic of China;
General Administration of Quality Supervision, Inspection and
Quarantine of the PEOPLE Republic of China.

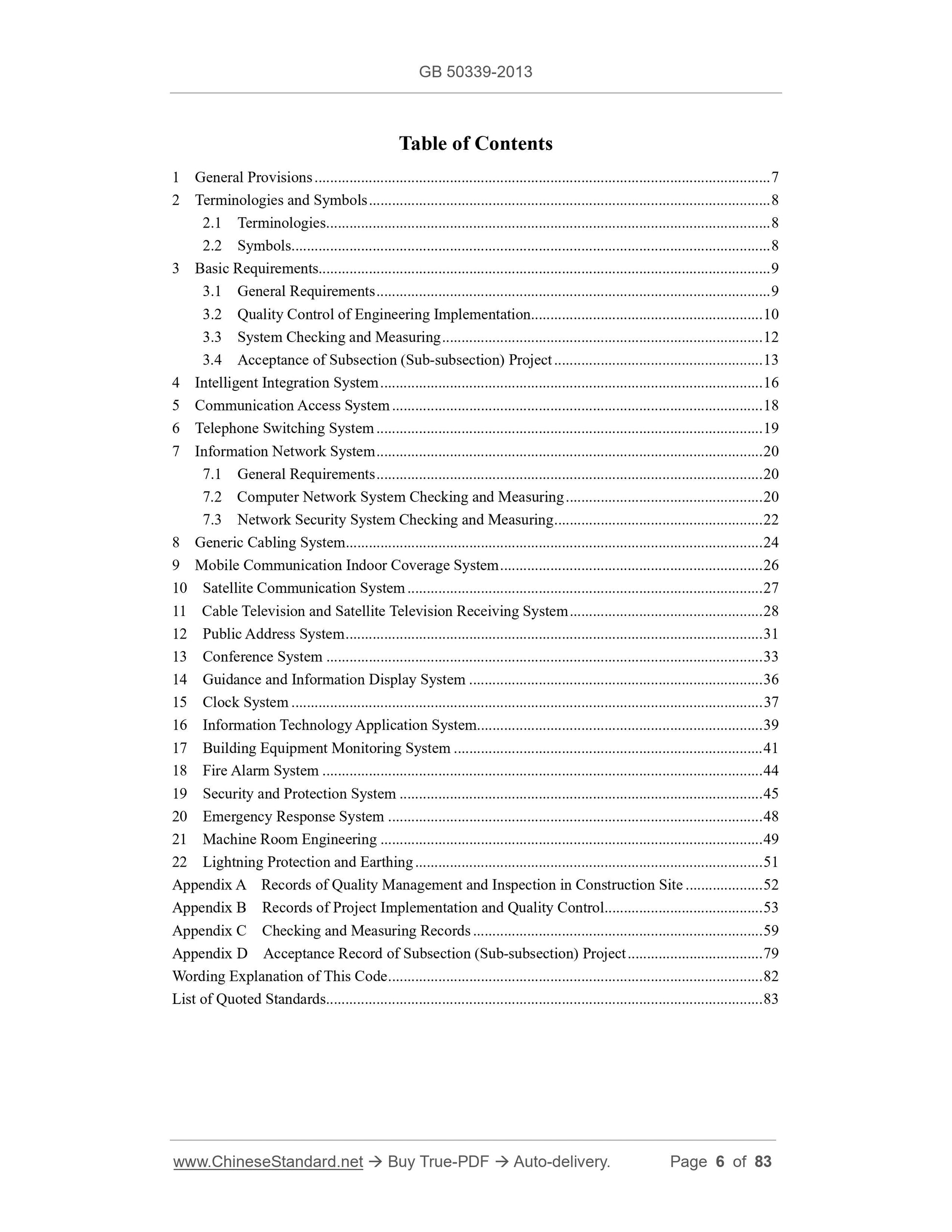

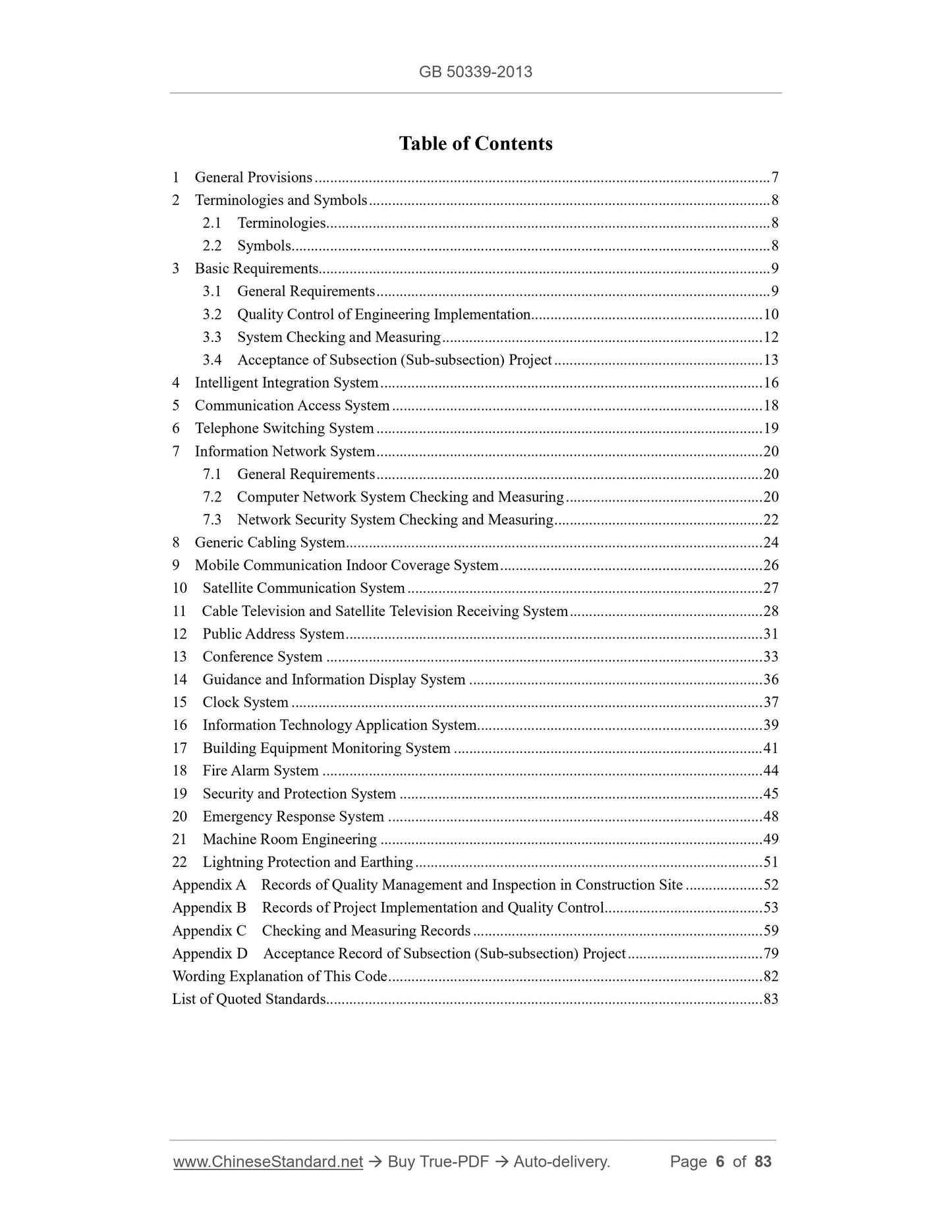

Table of Contents
1 General Provisions ... 7
2 Terminologies and Symbols ... 8
2.1 Terminologies ... 8
2.2 Symbols ... 8
3 Basic Requirements ... 9
3.1 General Requirements ... 9
3.2 Quality Control of Engineering Implementation ... 10
3.3 System Checking and Measuring ... 12
3.4 Acceptance of Subsection (Sub-subsection) Project ... 13
4 Intelligent Integration System ... 16
5 Communication Access System ... 18
6 Telephone Switching System ... 19
7 Information Network System ... 20
7.1 General Requirements ... 20
7.2 Computer Network System Checking and Measuring ... 20
7.3 Network Security System Checking and Measuring ... 22

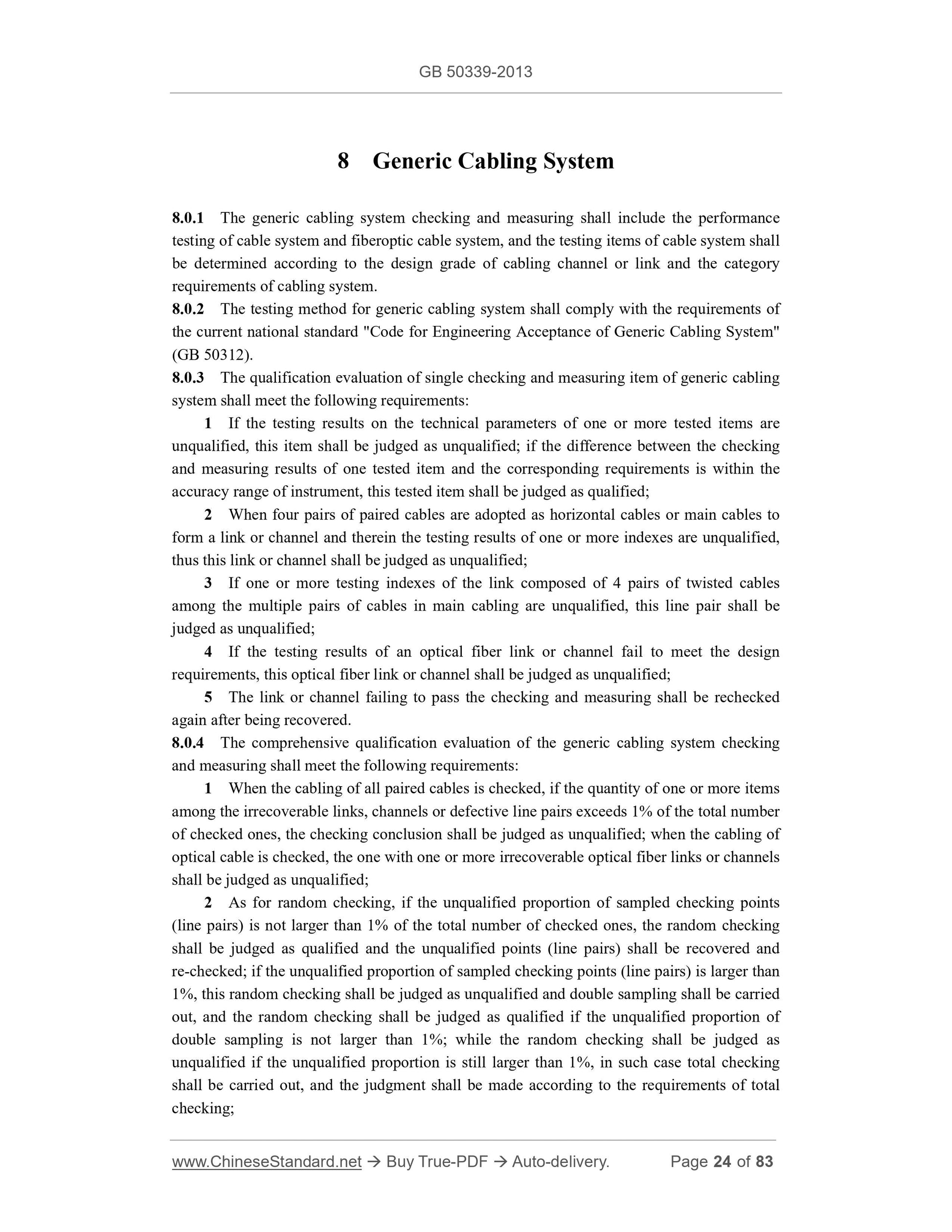

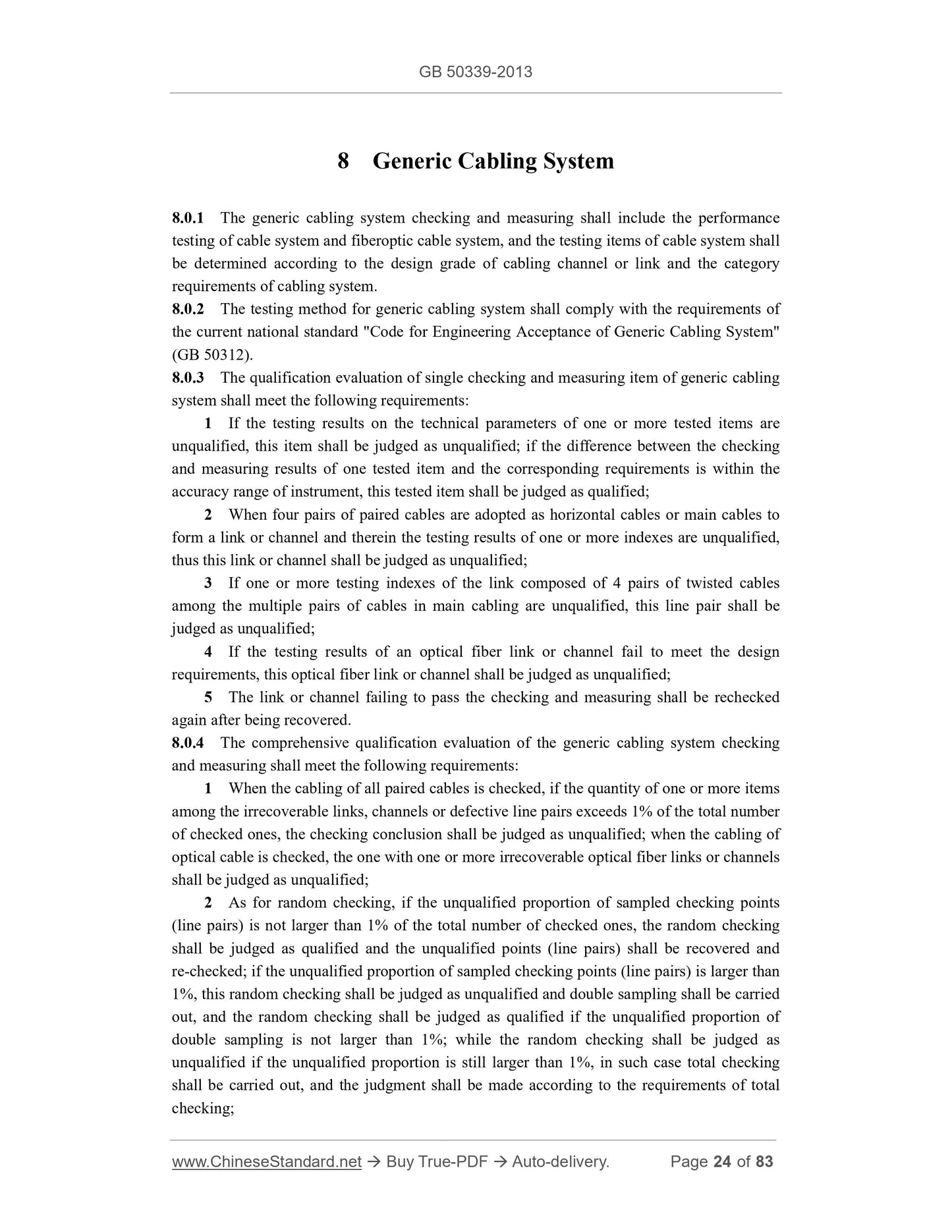

8 Generic Cabling System ... 24
9 Mobile Communication Indoor Coverage System ... 26
10 Satellite Communication System ... 27
11 Cable Television and Satellite Television Receiving System ... 28
12 Public Address System ... 31

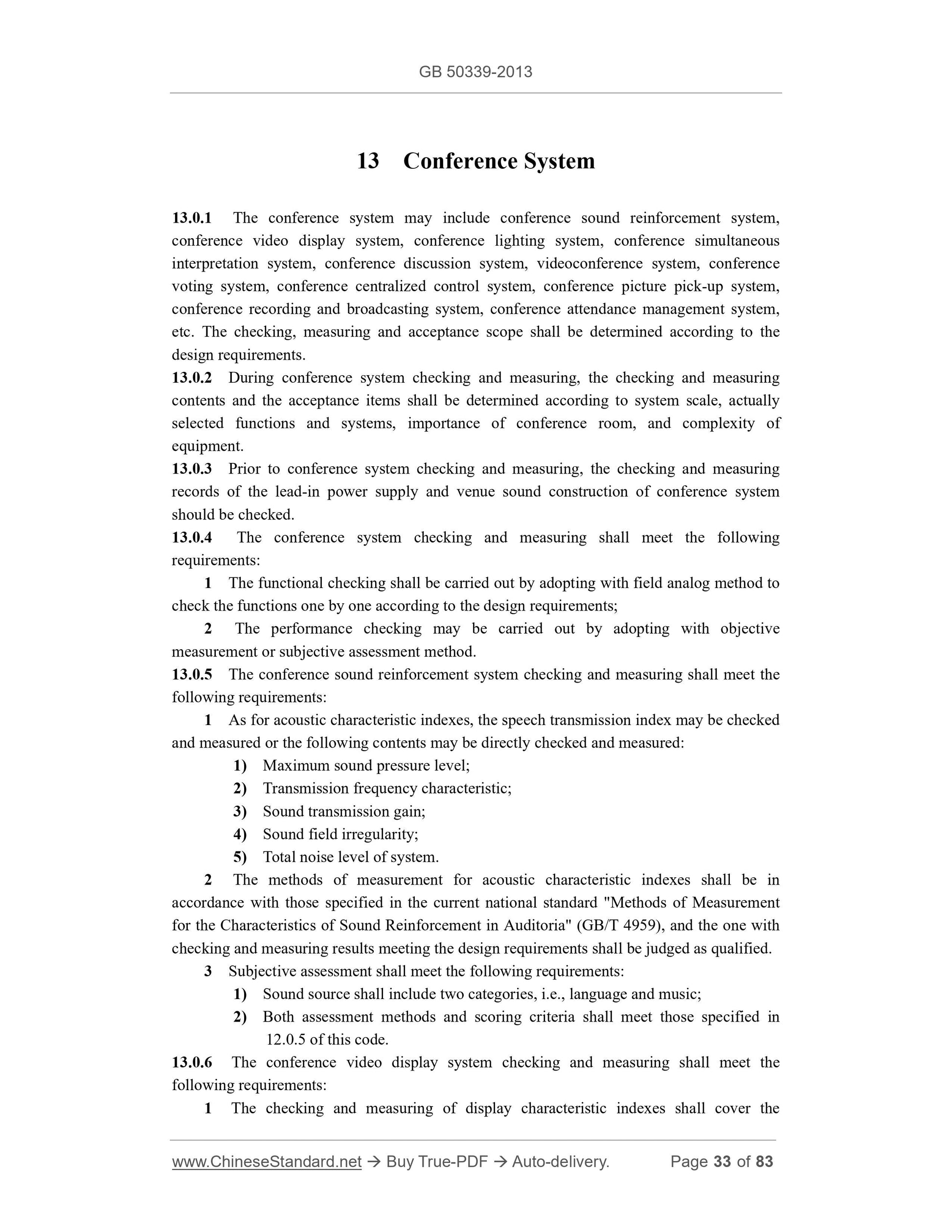

13 Conference System ... 33
14 Guidance and Information Display System ... 36
15 Clock System ... 37
16 Information Technology Application System ... 39
17 Building Equipment Monitoring System ... 41
18 Fire Alarm System ... 44
19 Security and Protection System ... 45
20 Emergency Response System ... 48
21 Machine Room Engineering ... 49
22 Lightning Protection and Earthing ... 51
Appendix A Records of Quality Management and Inspection in Construction Site ... 52 Appendix B Records of Project Implementation and Quality Control ... 53 Appendix C Checking and Measuring Records ... 59
Appendix D Acceptance Record of Subsection (Sub-subsection) Project ... 79 Wording Explanation of This Code ... 82
List of Quoted Standards ... 83
Code for Acceptance of Quality of Intelligent Building
Systems

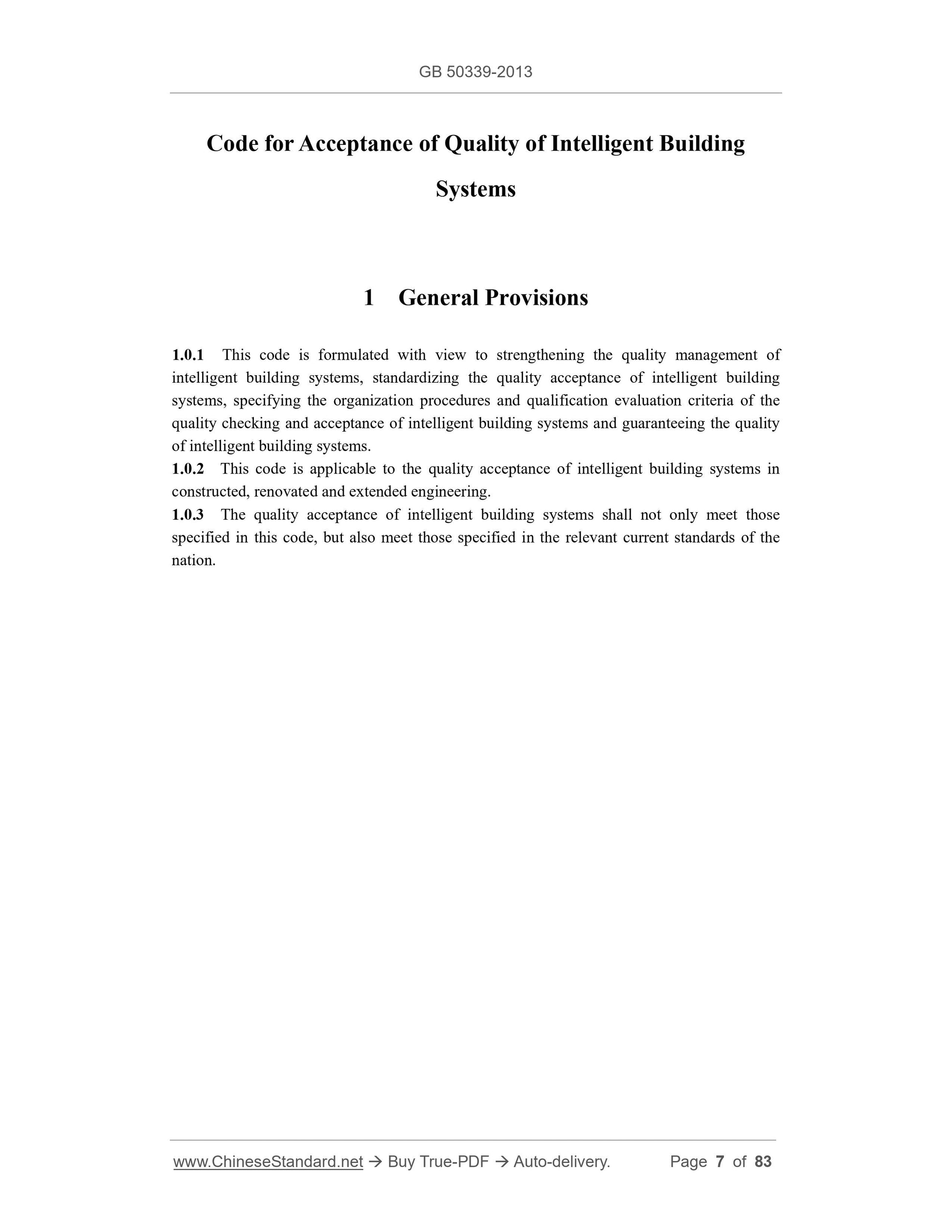

1 General Provisions
1.0.1 This code is formulated with view to strengthening the quality management of intelligent building systems, standardizing the quality acceptance of intelligent building systems, specifying the organization procedures and qualification evaluation criteria of the quality checking and acceptance of intelligent building systems and guaranteeing the quality of intelligent building systems.
1.0.2 This code is applicable to the quality acceptance of intelligent building systems in constructed, renovated and extended engineering.
1.0.3 The quality acceptance of intelligent building systems shall not only meet those specified in this code, but also meet those specified in the relevant current standards of the nation.

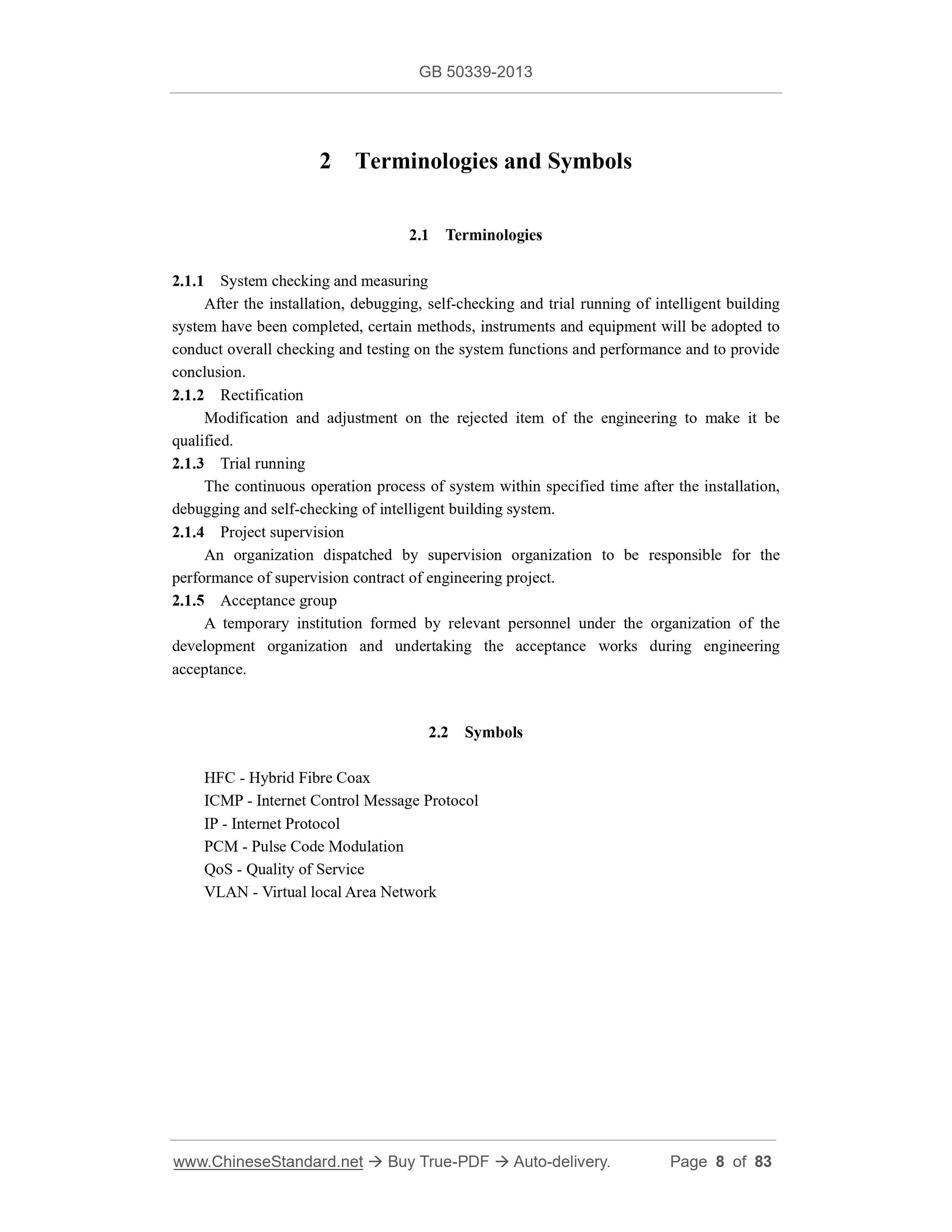

2 Terminologies and Symbols
2.1 Terminologies
2.1.1 System checking and measuring
After the installation, debugging, self-checking and trial running of intelligent building system have been completed, certain methods, instruments and equipment will be adopted to conduct overall checking and testing on the system functions and performance and to provide conclusion.
2.1.2 Rectification
Modification and adjustment on the rejected item of the engineering to make it be qualified.
2.1.3 Trial running
The continuous operation process of system within specified time after the installation, debugging and self-checking of intelligent building system.
2.1.4 Project supervision
An organization dispatched by supervision organization to be responsible for the performance of supervision contract of engineering project.
2.1.5 Acceptance group
A temporary institution formed by relevant personnel under the organization of the development organization and undertaking the acceptance works during engineering acceptance.
2.2 Symbols
HFC - Hybrid Fibre Coax
ICMP - Internet Control Message Protocol
IP - Internet Protocol
PCM - Pulse Code Modulation
QoS - Quality of Service
VLAN - Virtual local Area Network

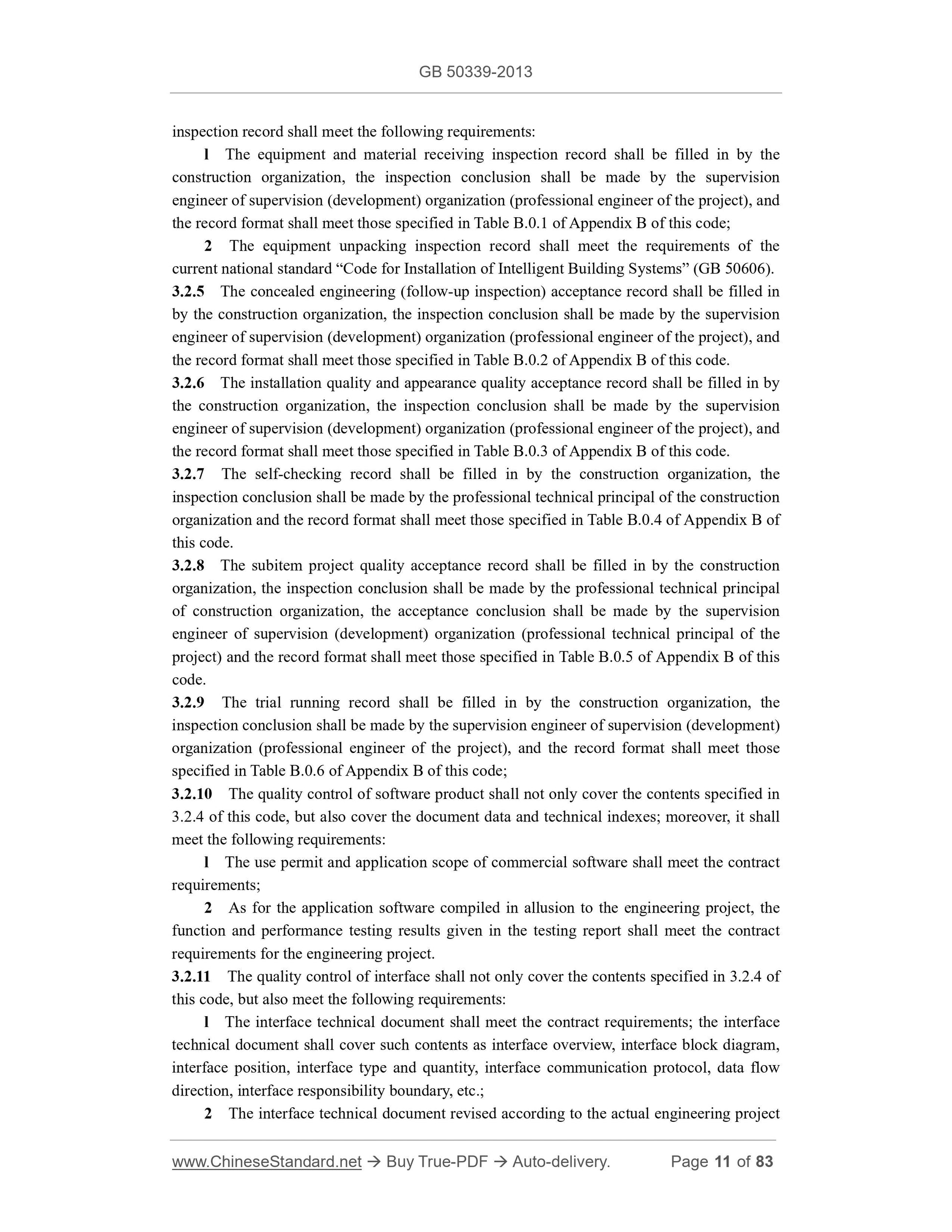

inspection record shall meet the following requirements:
l The equipment and material receiving inspection record shall be filled in by the construction organization, the inspection conclusion shall be made by the supervision engineer of supervision (development) organization (professional engineer of the project), and the record format shall meet those specified in Table B.0.1 of Appendix B of this code; 2 The equipment unpacking inspection record shall meet the requirements of the current national standard ?€?Code for Installation of Intelligent Building Systems?€? (GB 50606). 3.2.5 The concealed engineering (follow-up inspection) acceptance record shall be filled in by the construction organization, the inspection conclusion shall be made by the supervision engineer of supervision (development) organization (professional engineer of the project), and the record format shall meet those specified in Table B.0.2 of Appendix B of this code. 3.2.6 The installation quality and appearance quality acceptance record shall be filled in by the construction organization, the inspection conclusion shall be made by the supervision engineer of supervision (development) organization (professional engineer of the project), and the record format shall meet those specified in Table B.0.3 of Appendix B of this code. 3.2.7 The self-checking record shall be filled in by the construction organization, the inspection conclusion shall be made by the professional technical principal of the construction organization and the record format shall meet those specified in Table B.0.4 of Appendix B of this code.
3.2.8 The subitem project quality acceptance record shall be filled in by the construction organization, the inspection conclusion shall be made by the professional technical principal of construction organization, the acceptance conclusion shall be made by the supervision engineer of supervision (development) organization (professional technical principal of the project) and the record format shall meet those specified in Table B.0.5 of Appendix B of this code.
3.2.9 The trial running record shall be filled in by the construction organization, the inspection conclusion shall be made by the supervision engineer of supervision (development) organization (professional engineer of the project), and the record format shall meet those specified in Table B.0.6 of Appendix B of this code;
3.2.10 The quality control of software product shall not only cover the contents specified in 3.2.4 of this code, but also cover the document data and technical indexes; moreover, it shall meet the following requirements:
l The use permit and application scope of commercial software shall meet the contract requirements;
2 As for the application software compiled in allusion to the engineering project, the function and performance testing results given in the testing report shall meet the contract requirements for the engineering project.
3.2.11 The quality control of interface shall not only cover the contents specified in 3.2.4 of this code, but also meet the following requirements:
l The interface technical document shall meet the contract requirements; the interface technical document shall cover such contents as interface overview, interface block diagram, interface position, interface type and quantity, interface communication protocol, data flow direction, interface responsibility boundary, etc.;
2 The interface technical document revised according to the actual engineering project conditions shall be confirmed with the signatures of development organization, design organization, interface provision organization and construction organization; 3 The interface testing document shall meet the design requirements; the interface testing document shall cover such contents as construction of testing link, apparatuses and instruments for testing, testing methods, testing contents and testing result judgment, etc.; 4 The interface testing shall meet the requirements of interface testing document, and the testing result record shall be confirmed with the signatures of interface provision organization, construction organization, development organization and project supervision organization.

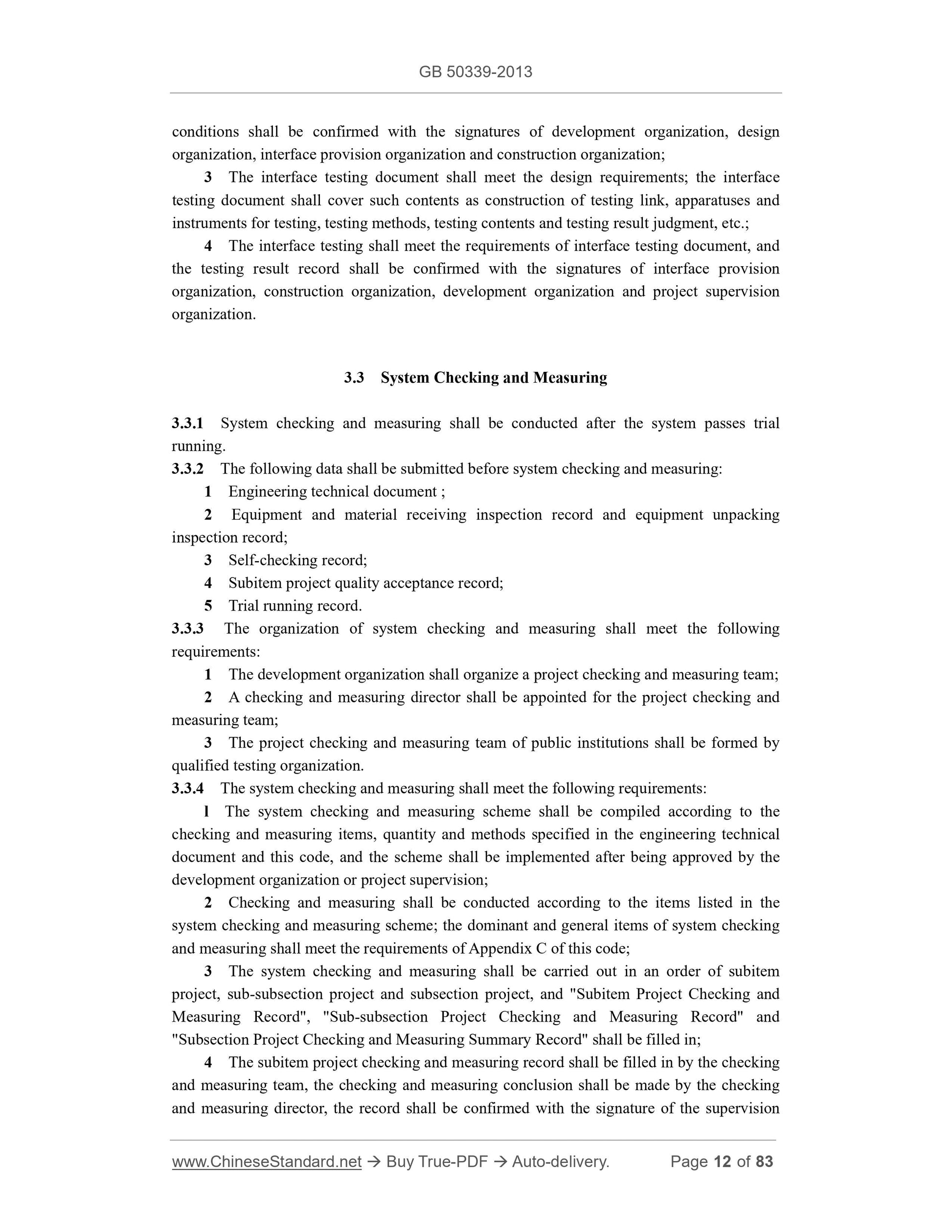

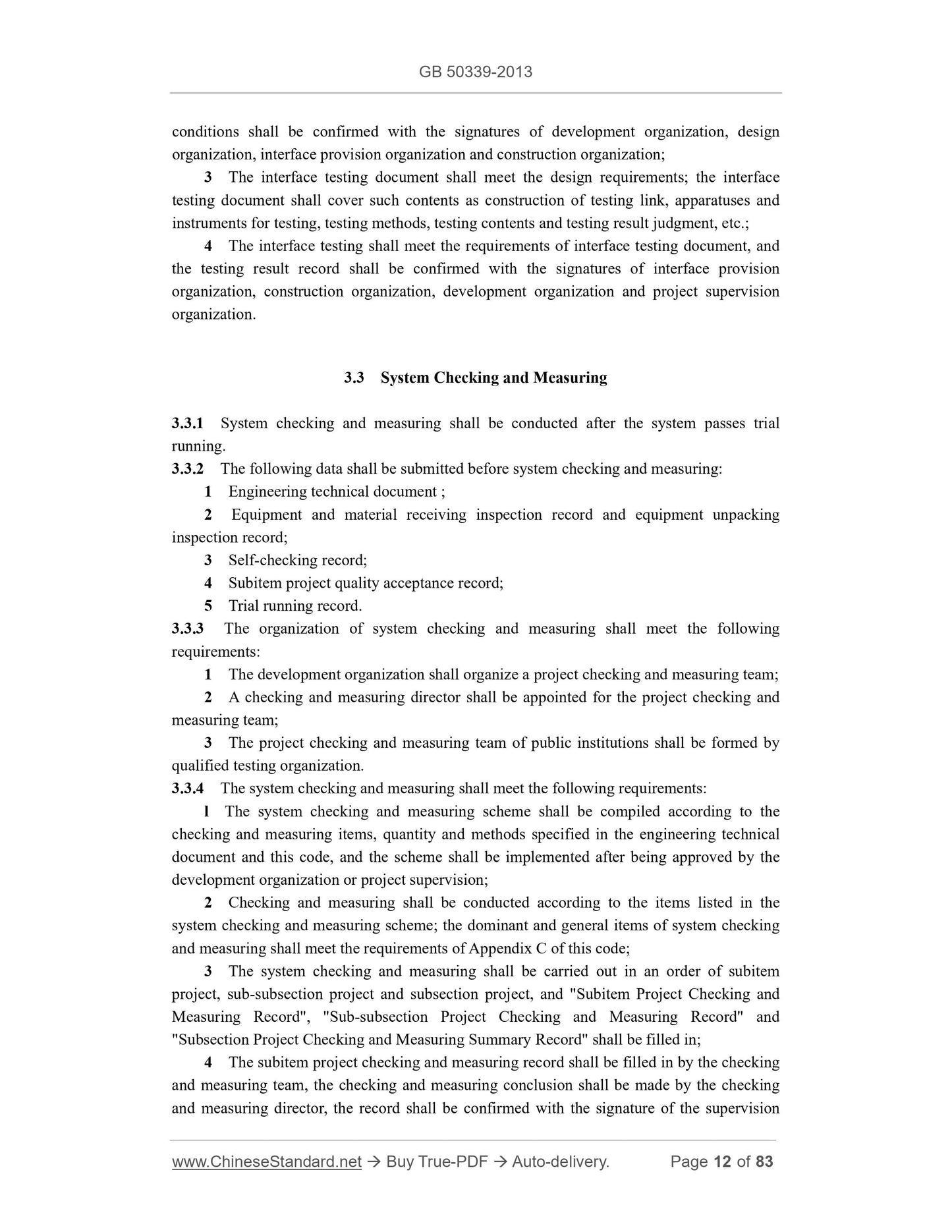

3.3 System Checking and Measuring
3.3.1 System checking and measuring shall be conducted after the system passes trial running.
3.3.2 The following data shall be submitted before system checking and measuring: 1 Engineering technical document ;
2 Equipment and material receiving inspection record and equipment unpacking inspection record;
3 Self-checking record;
4 Subitem project quality acceptance record;
5 Trial running record.
3.3.3 The organization of system checking and measuring shall meet the following requirements:
1 The development organization shall organize a project checking and measuring team; 2 A checking and measuring director shall be appointed for the project checking and measuring team;
3 The project checking and measuring team of public institutions shall be formed by qualified testing organization.
3.3.4 The system checking and measuring shall meet the following requirements: l The system checking and measuring scheme shall be compiled according to the checking and measuring items, quantity and methods specified in the engineering technical document and this code, and the scheme shall be implemented after being approved by the development organization or project supervision;
2 Checking and measuring shall be conducted according to the items listed in the system checking and measuring scheme; the dominant and general items of system checking and measuring shall meet the requirements of Appendix C of this code;
3 The system checking and measuring shall be carried out in an order of subitem project, sub-subsection project and subsection project, and "Subitem Project Checking and Measuring Record", "Sub-subsection Project Checking and Measuring Record" and "Subsection Project Checking and Measuring Summary Record" shall be filled in; 4 The subitem project checking and measuring record shall be filled in by the checking and measuring team, the checking and measuring conclusion shall be made by the checking and measuring director, the record shall be confirmed with the signature of the supervision record is provided;

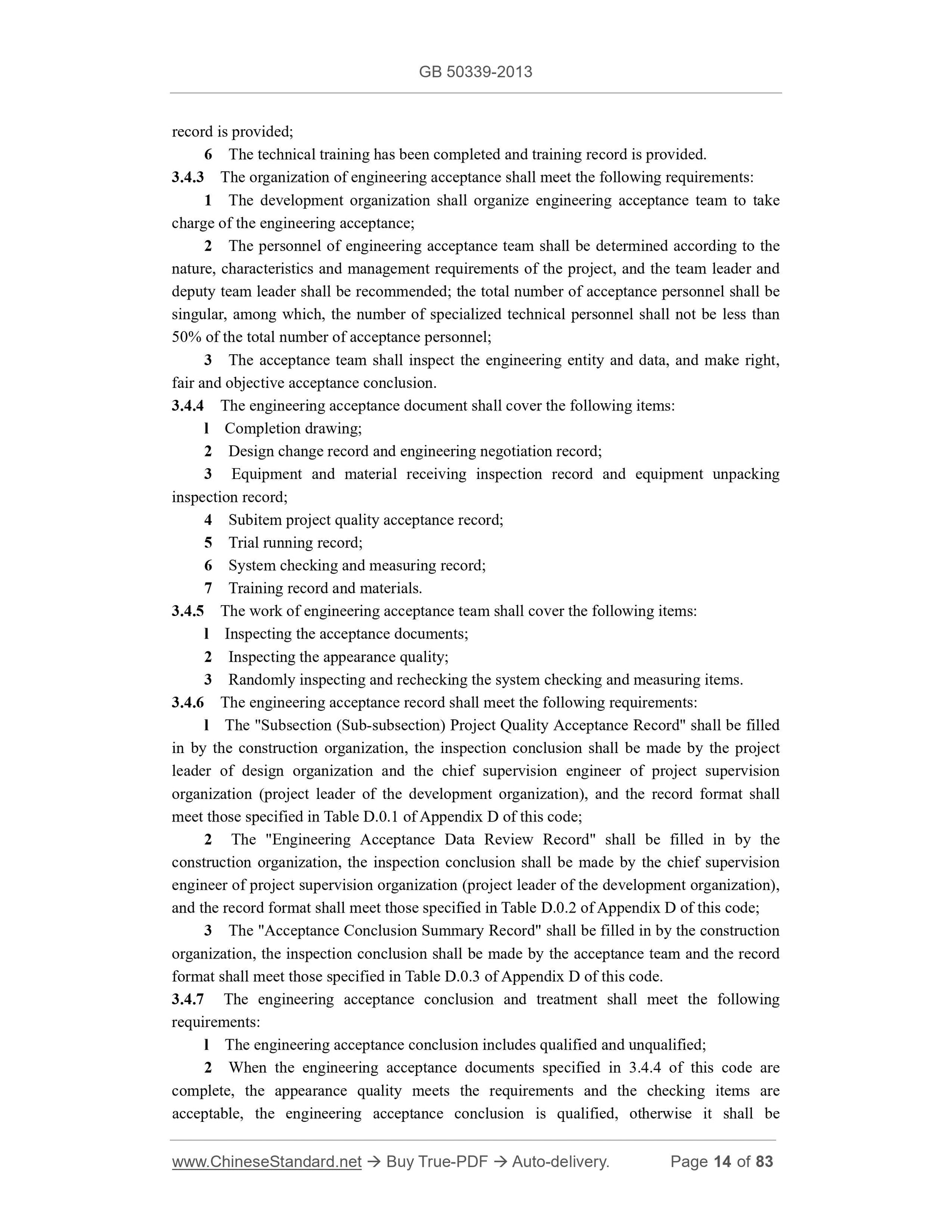

6 The technical training has been completed and training record is provided. 3.4.3 The organization of engineering acceptance shall meet the following requirements: 1 The development organization shall organize engineering acceptance team to take charge of the engineering acceptance;
2 The personnel of engineering acceptance team shall be determined according to the nature, characteristics and management requirements of the project, and the team leader and deputy team leader shall be recommended; the total number of acceptance personnel shall be singular, among which, the number of specialized technical personnel shall not be less than 50% of the total number of acceptance personnel;
3 The acceptance team shall inspect the engineering entity and data, and make right, fair and objective acceptance conclusion.
3.4.4 The engineering acceptance document shall cover the following items: l Completion drawing;
2 Design change record and engineering negotiation record;
3 Equipment and material receiving inspection record and equipment unpacking inspection record;
4 Subitem project quality acceptance record;
5 Trial running record;
6 System checking and measuring record;
7 Training record and materials.
3.4.5 The work of engineering acceptance team shall cover the following items: l Inspecting the acceptance documents;
2 Inspecting the appearance quality;
3 Randomly inspecting and rechecking the system checking and measuring items. 3.4.6 The engineering acceptance record shall meet the following requirements: l The "Subsection (Sub-subsection) Project Quality Acceptance Record" shall be filled in by the construction organization, the inspection conclusion shall be made by the project leader of design organization and the chief supervision engineer of project supervision organization (project leader of the development organization), and the record format shall meet those specified in Table D.0.1 of Appendix D of this code;
2 The "Engineering Acceptance Data Review Record" shall be filled in by the construction organization, the inspection conclusion shall be made by the chief supervision engineer of project supervision organization (project leader of the development organization), and the record format shall meet those specified in Table D.0.2 of Appendix D of this code; 3 The "Acceptance Conclusion Summary Record" shall be filled in by the construction organization, the inspection conclusion shall be made by the acceptance team and the record format shall meet those specified in Table D.0.3 of Appendix D of this code. 3.4.7 The engineering acceptance conclusion and treatment shall meet the following requirements:
l The engineering acceptance conclusion includes qualified and unqualified; 2 When the engineering acceptance documents specified in 3.4.4 of this code are complete, the appearance quality meets the requirements and the checking items are acceptable, the engineering acceptance conclusion is qualified, otherwise it shall be 4 Intelligent Integration System

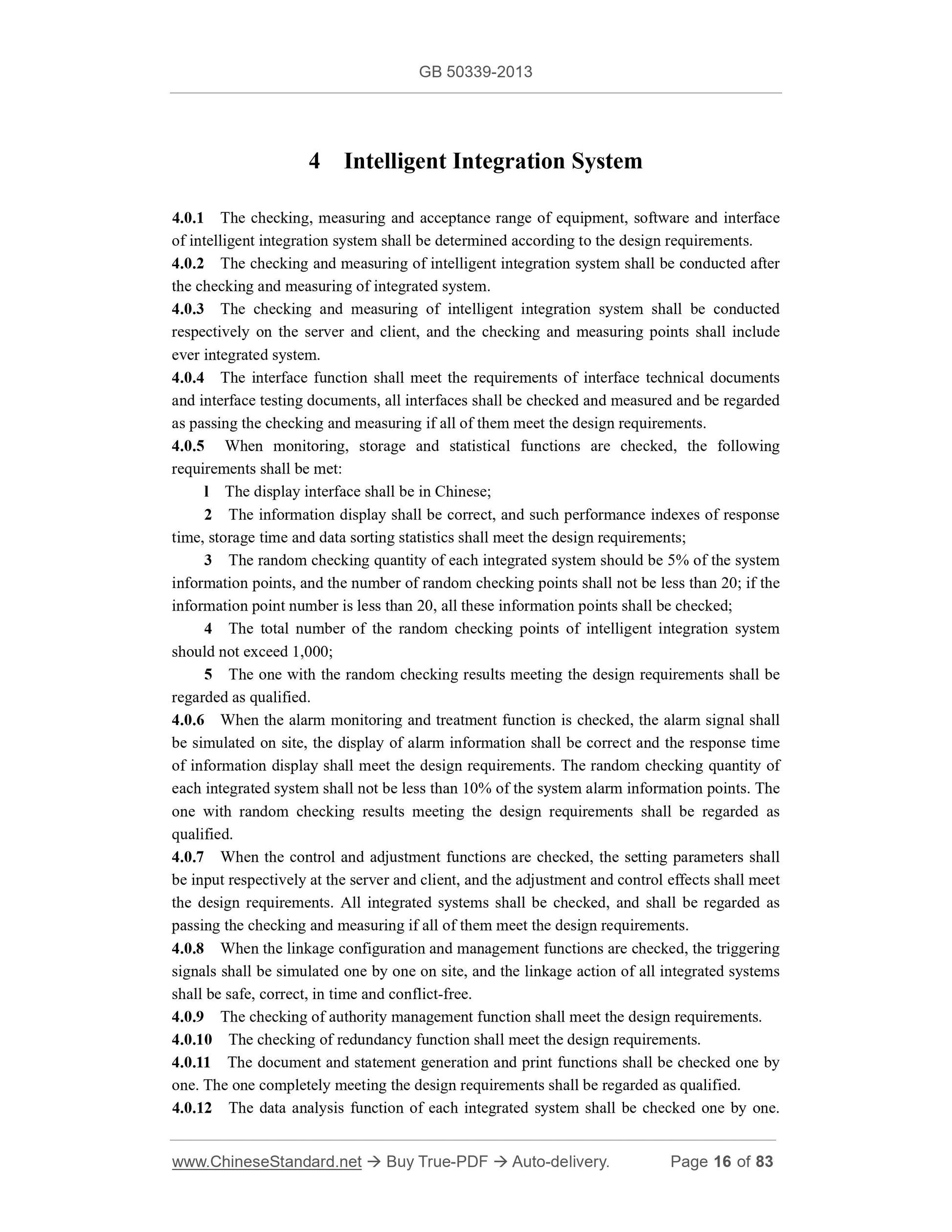

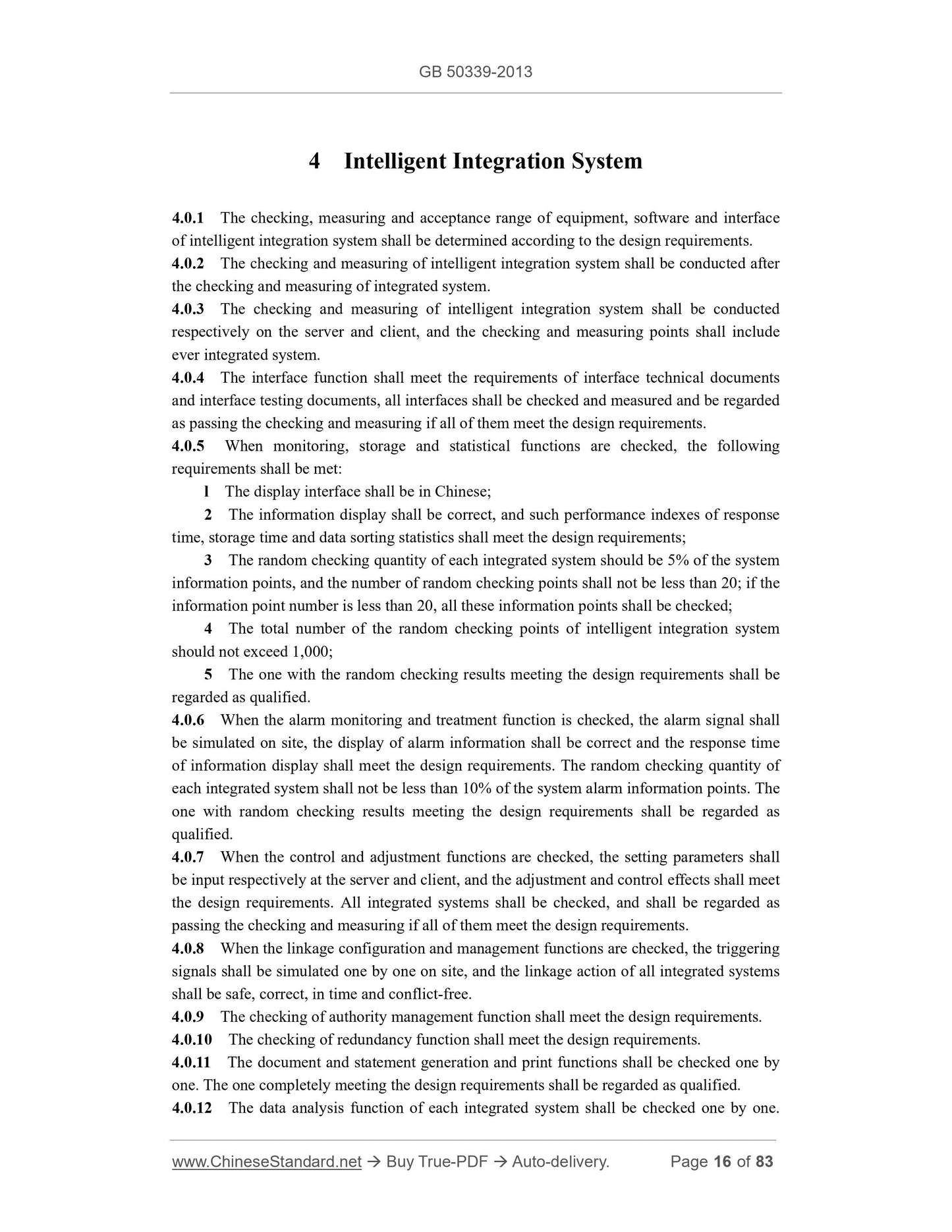

4.0.1 The checking, measuring and acceptance range of equipment, software and interface of intelligent integration system shall be determined according to the design requirements. 4.0.2 The checking and measuring of intelligent integration system shall be conducted after the checking and measuring of integrated system.
4.0.3 The checking and measuring of intelligent integration system shall be conducted respectively on the server and client, and the checking and measuring points shall include ever integrated system.
4.0.4 The interface function shall meet the requirements of interface technical documents and interface testing documents, all interfaces shall be checked and measured and be regarded as passing the checking and measuring if all of them meet the design requirements. 4.0.5 When monitoring, storage and statistical functions are checked, the following requirements shall be met:
l The display interface shall be in Chinese;
2 The information display shall be correct, and such performance indexes of response time, storage time and data sorting statistics shall meet the design requirements; 3 The random checking quantity of each integrated system should be 5% of the system information points, and the number of random checking points shall not be less than 20; if the information point number is less than 20, all these information points shall be checked; 4 The total number of the random checking points of intelligent integration system should not exceed 1,000;
5 The one with the random checking results meeting the design requirements shall be regarded as qualified.
4.0.6 When the alarm monitoring and treatment function is checked, the alarm signal shall be simulated on site, the display of alarm information shall be correct and the response time of information display shall meet the design requirements. The random checking quantity of each integrated system shall not be less than 10% of the system alarm information points. The one with random checking results meeting the design requirements shall be regarded as qualified.
4.0.7 When the control and adjustment functions are checked, the setting parameters shall be input respectively at the server and client, and the adjustment and control effects shall meet the design requirements. All integrated systems shall be checked, and shall be regarded as passing the checking and measuring if all of them meet the design requirements. 4.0.8 When the linkage configuration and management functions are checked, the triggering signals shall be simulated one by one on site, and the linkage action of all integrated systems shall be safe, correct, in time and conflict-free.
4.0.9 The checking of authority management function shall meet the design requirements. 4.0.10 The checking of redundancy function shall meet the design requirements. 4.0.11 The document and statement generation and print functions shall be checked one by one. The one completely meeting the design requirements shall be regarded as qualified. 4.0.12 The data analysis function of each integrated system shall be checked one by one. 7 Information Network System

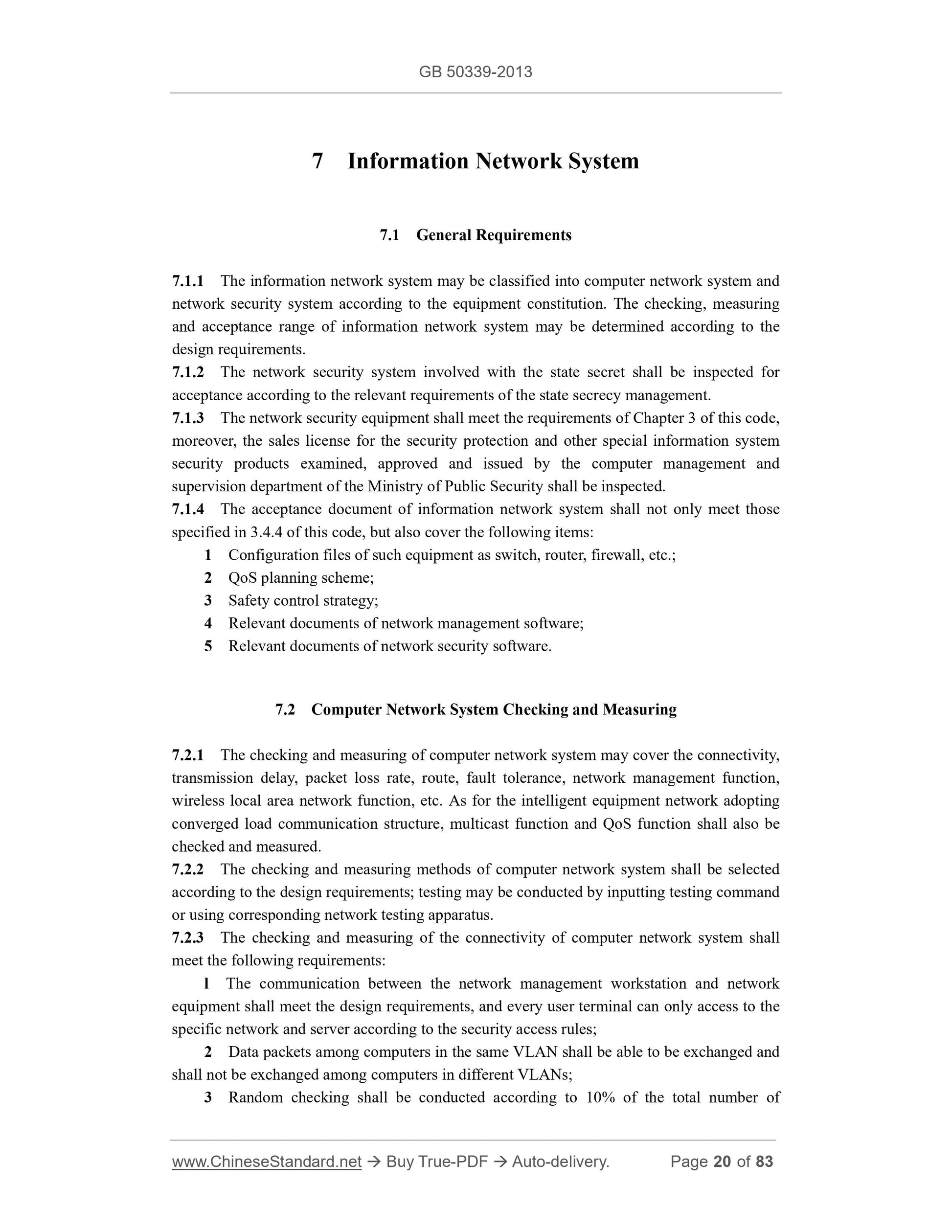

7.1 General Requirements
7.1.1 The information network system may be classified into computer network system and network security system according to the equipment constitution. The checking, measuring and acceptance range of information network system may be determined according to the design requirements.
7.1.2 The network security system involved with the state secret shall be inspected for acceptance according to the relevant requirements of the state secrecy management. 7.1.3 The network security equipment shall meet the requirements of Chapter 3 of this code, moreover, the sales license for the security protection and other special information system security products examined, approved and issued by the computer management and supervision department of the Ministry of Public Security shall be inspected. 7.1.4 The acceptance document of information network system shall not only meet those specified in 3.4.4 of this code, but also cover the following items:
1 Configuration files of such equipment as switch, router, firewall, etc.; 2 QoS planning scheme;
3 Safety control strategy;
4 Relevant documents of network management software;
5 Relevant documents of network security software.
7.2 Computer Network System Checking and Measuring

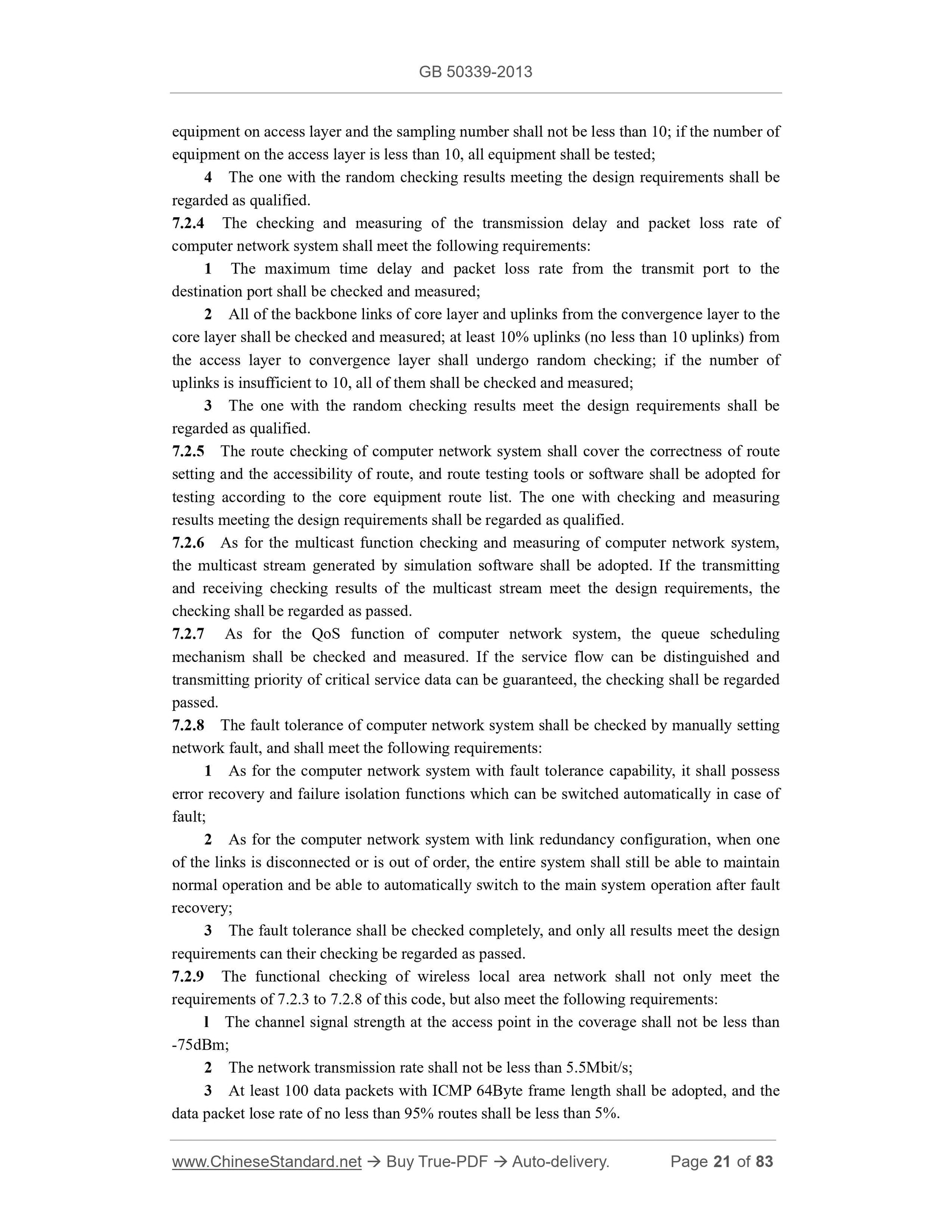

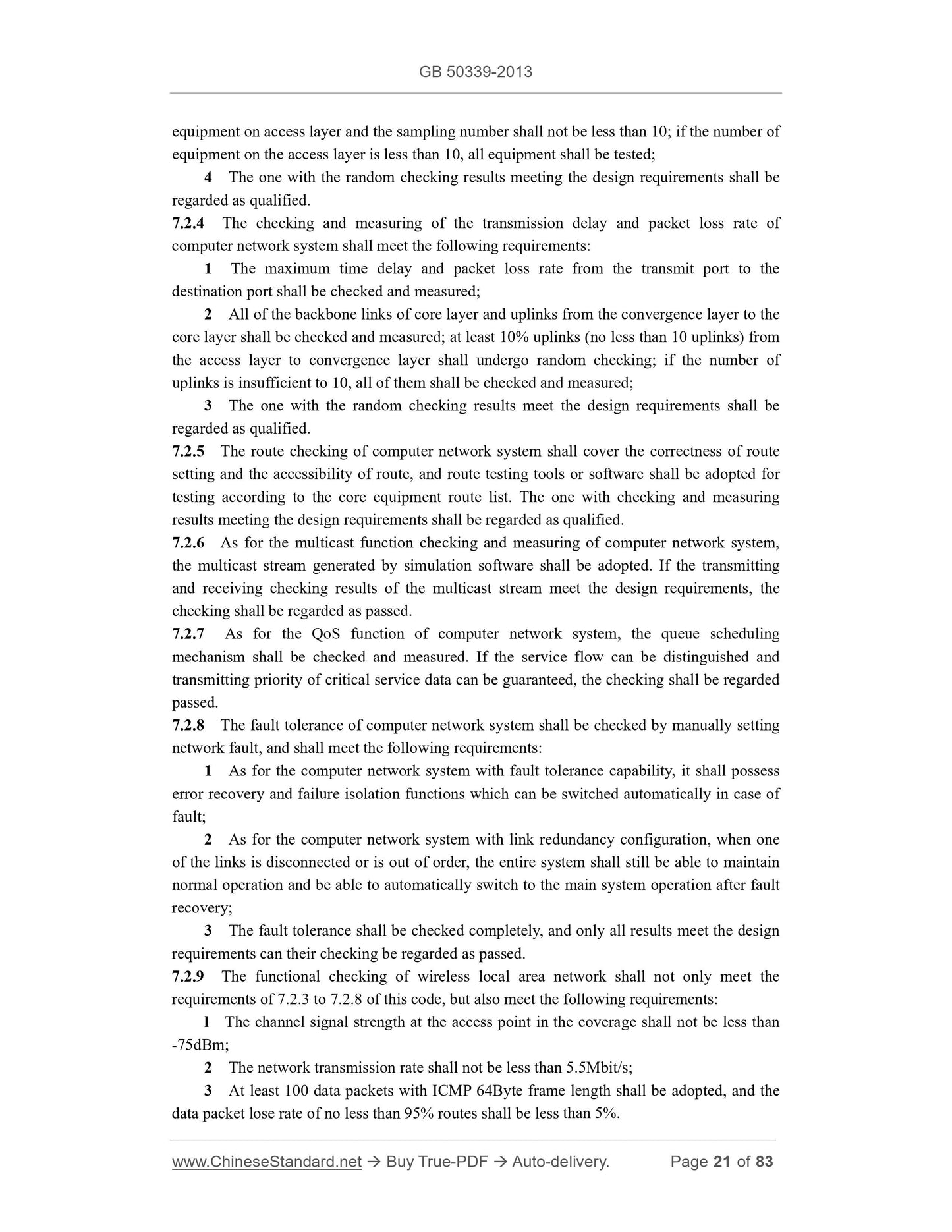

7.2.1 The checking and measuring of computer network system may cover the connectivity, transmission delay, packet loss rate, route, fault tolerance, network management function, wireless local area network function, etc. As for the intelligent equipment network adopting converged load communication structure, multicast function and QoS function shall also be checked and measured.
7.2.2 The checking and measuring methods of computer network system shall be selected according to the design requirements; testing may be conducted by inputting testing command or using corresponding network testing apparatus.
7.2.3 The checking and measuring of the connectivity of computer network system shall meet the following requirements:
l The communication between the network management workstation and network equipment shall meet the design requirements, and every user terminal can only access to the specific network and server according to the security access rules;
2 Data packets among computers in the same VLAN shall be able to be exchanged and shall not be exchanged among computers in different VLANs;
3 Random checking shall be conducted according to 10% of the total number of equipment on access layer and the sampling number shall not be less than 10; if the number of equipment on the access layer is less than 10, all equipment shall be tested; 4 The one with the random checking results meeting the design requirements shall be regarded as qualified.
7.2.4 The checking and measuring of the transmission delay and packet loss rate of computer network system shall meet the following requirements:
1 The maximum time delay a...
