GB 50313-2013: Code for design of fire communication and command system

This Code is stipulated so as to standardize design of fire communication and command system, to construct a complete supporting system for fire communication and command technology, to improve firefighting and rescue capability of fire brigade, to meet needs of fire control responsibility area at every level and cross-zone operational command communication, to protect citizens lives, property and social public security.

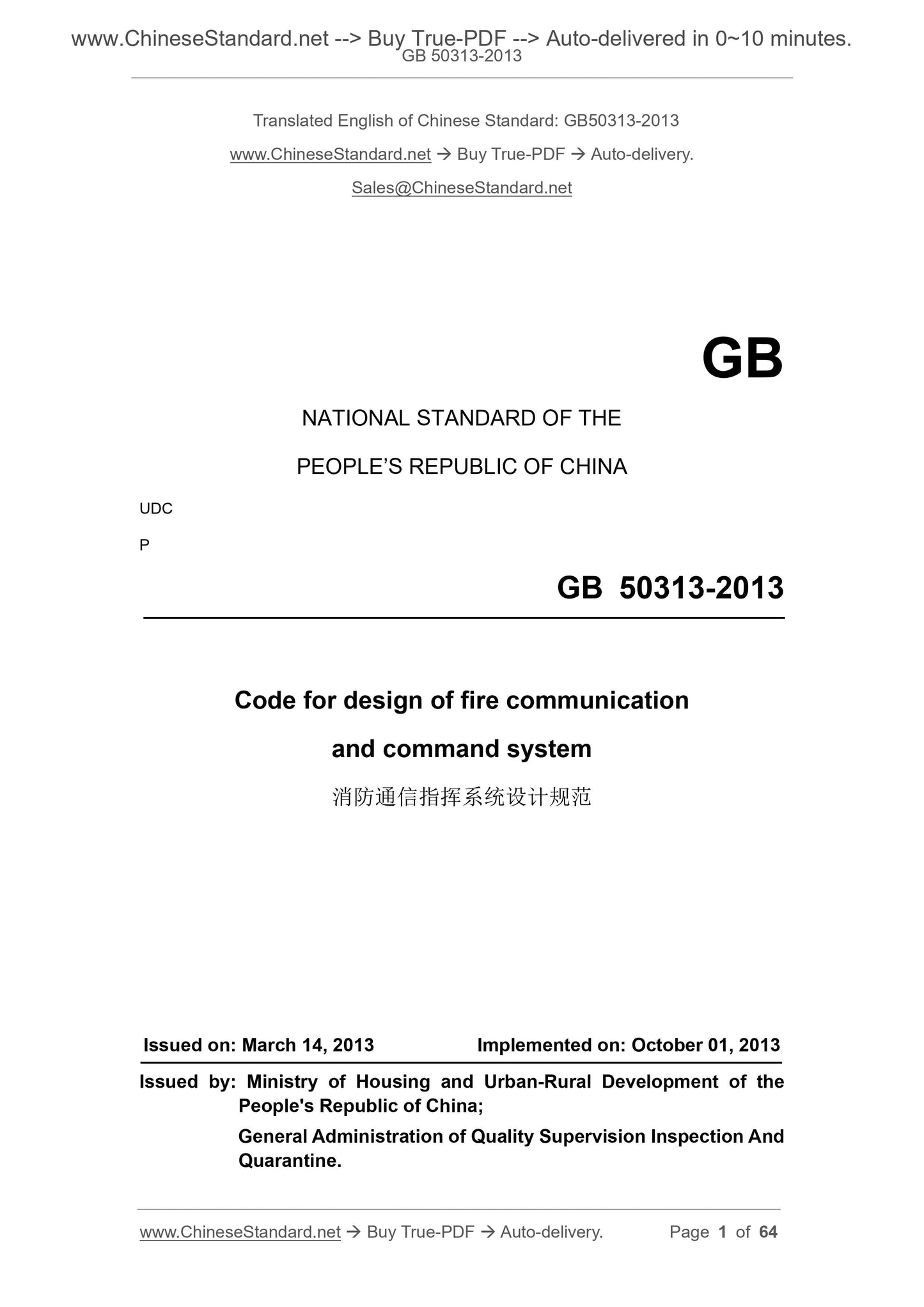

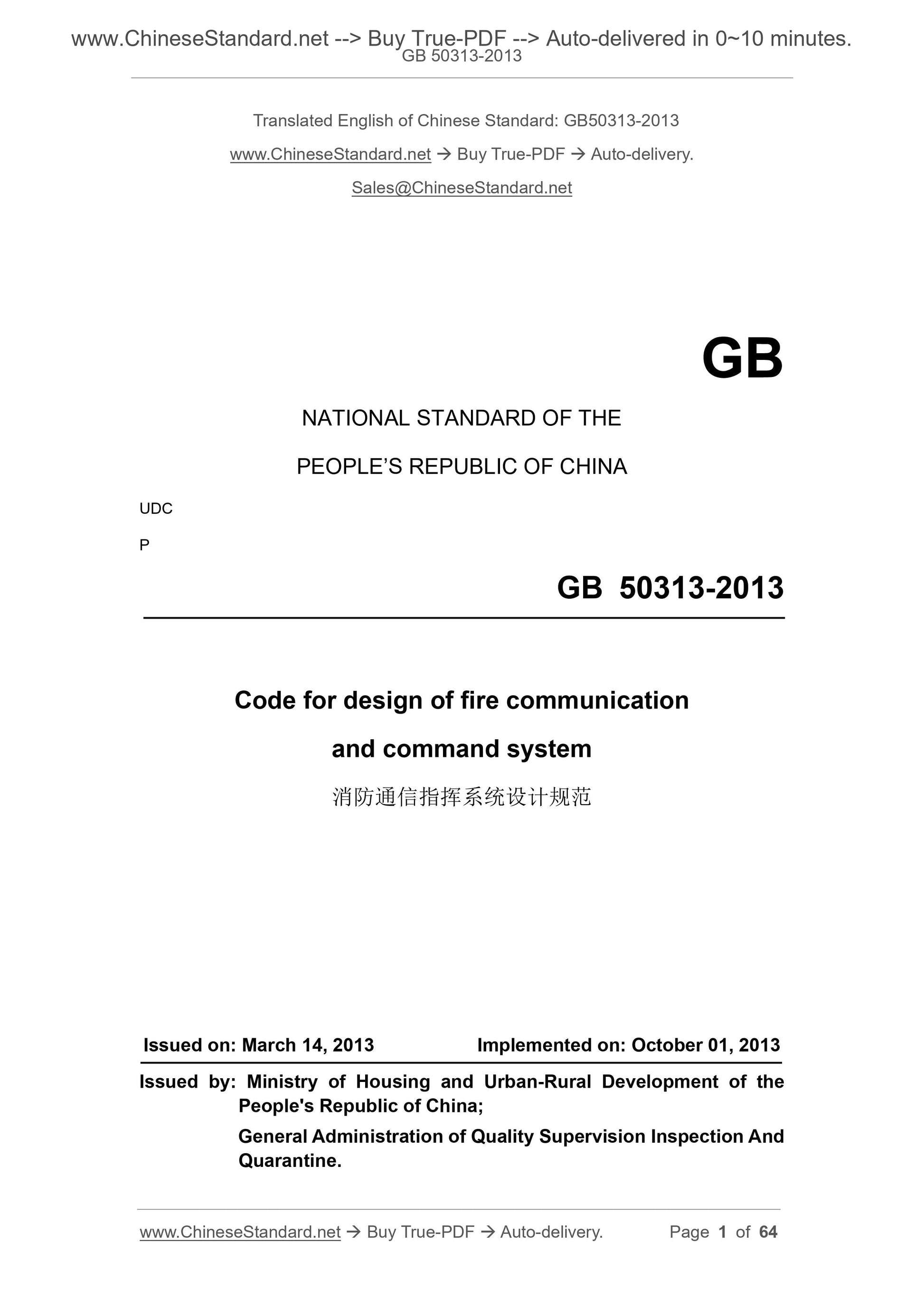

GB 50313-2013
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
UDC
Code for design of fire communication
and command system
ISSUED ON: MARCH 14, 2013
IMPLEMENTED ON: OCTOBER 01, 2013
Issued by: Ministry of Housing and Urban-Rural Development of the
People's Republic of China;
General Administration of Quality Supervision Inspection And
Quarantine.

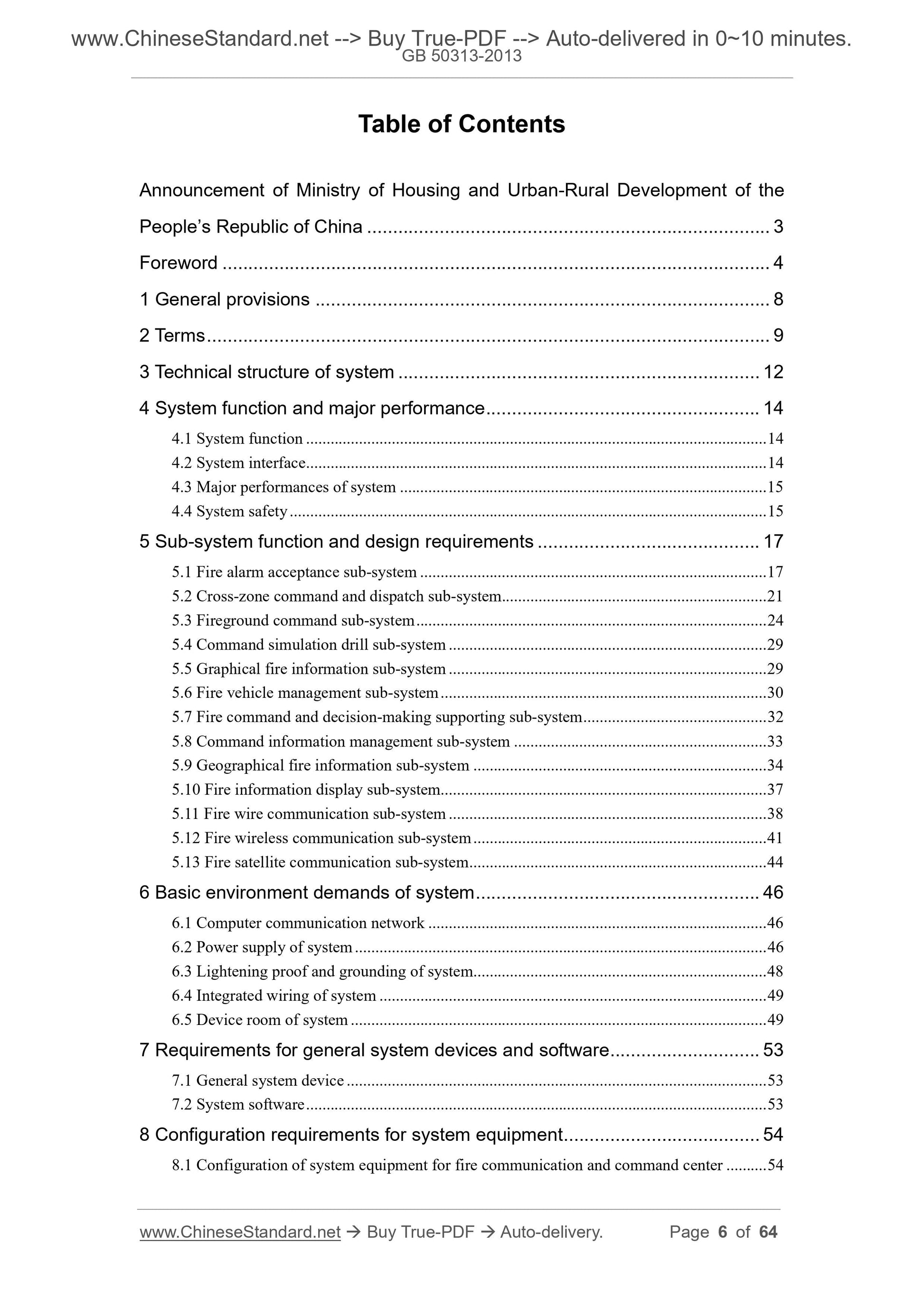

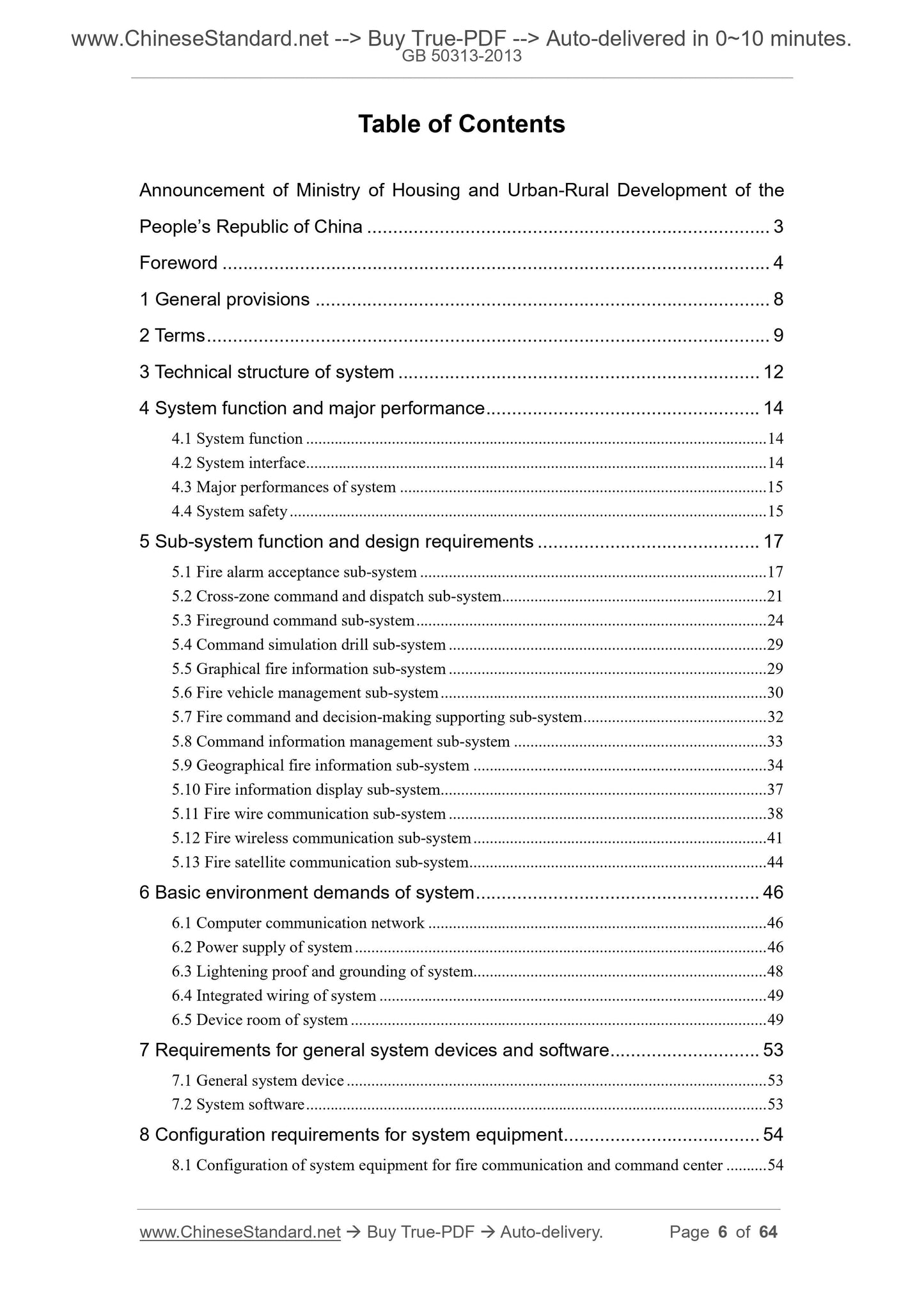

Table of Contents
Announcement of Ministry of Housing and Urban-Rural Development of the
PEOPLE Republic of China ... 3
Foreword ... 4
1 General provisions ... 8
2 Terms ... 9
3 Technical structure of system ... 12
4 System function and major performance ... 14
4.1 System function ... 14
4.2 System interface ... 14
4.3 Major performances of system ... 15
4.4 System safety ... 15
5 Sub-system function and design requirements ... 17
5.1 Fire alarm acceptance sub-system ... 17
5.2 Cross-zone command and dispatch sub-system ... 21
5.3 Fireground command sub-system ... 24
5.4 Command simulation drill sub-system ... 29
5.5 Graphical fire information sub-system ... 29
5.6 Fire vehicle management sub-system ... 30
5.7 Fire command and decision-making supporting sub-system ... 32
5.8 Command information management sub-system ... 33
5.9 Geographical fire information sub-system ... 34
5.10 Fire information display sub-system ... 37
5.11 Fire wire communication sub-system ... 38
5.12 Fire wireless communication sub-system ... 41
5.13 Fire satellite communication sub-system ... 44
6 Basic environment demands of system ... 46
6.1 Computer communication network ... 46
6.2 Power supply of system ... 46
6.3 Lightening proof and grounding of system ... 48
6.4 Integrated wiring of system ... 49
6.5 Device room of system ... 49
7 Requirements for general system devices and software ... 53
7.1 General system device ... 53
7.2 System software ... 53
8 Configuration requirements for system equipment ... 54
8.1 Configuration of system equipment for fire communication and command center ... 54 8.2 Configuration of system equipment for mobile fire command center ... 58 8.3 Configuration of fire station?€?s system device ... 61

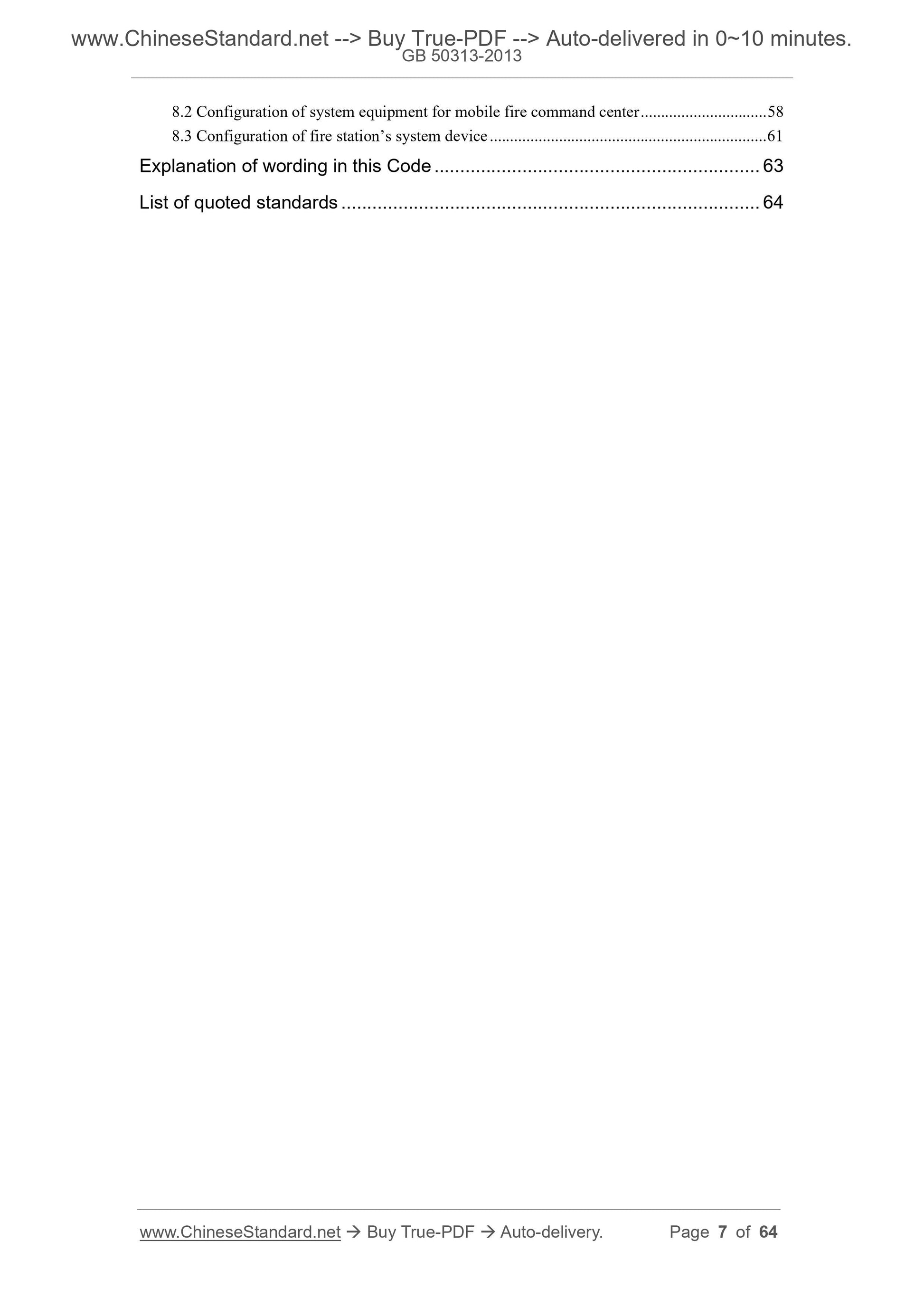

Explanation of wording in this Code ... 63
List of quoted standards ... 64
Code for design of fire communication
and command system

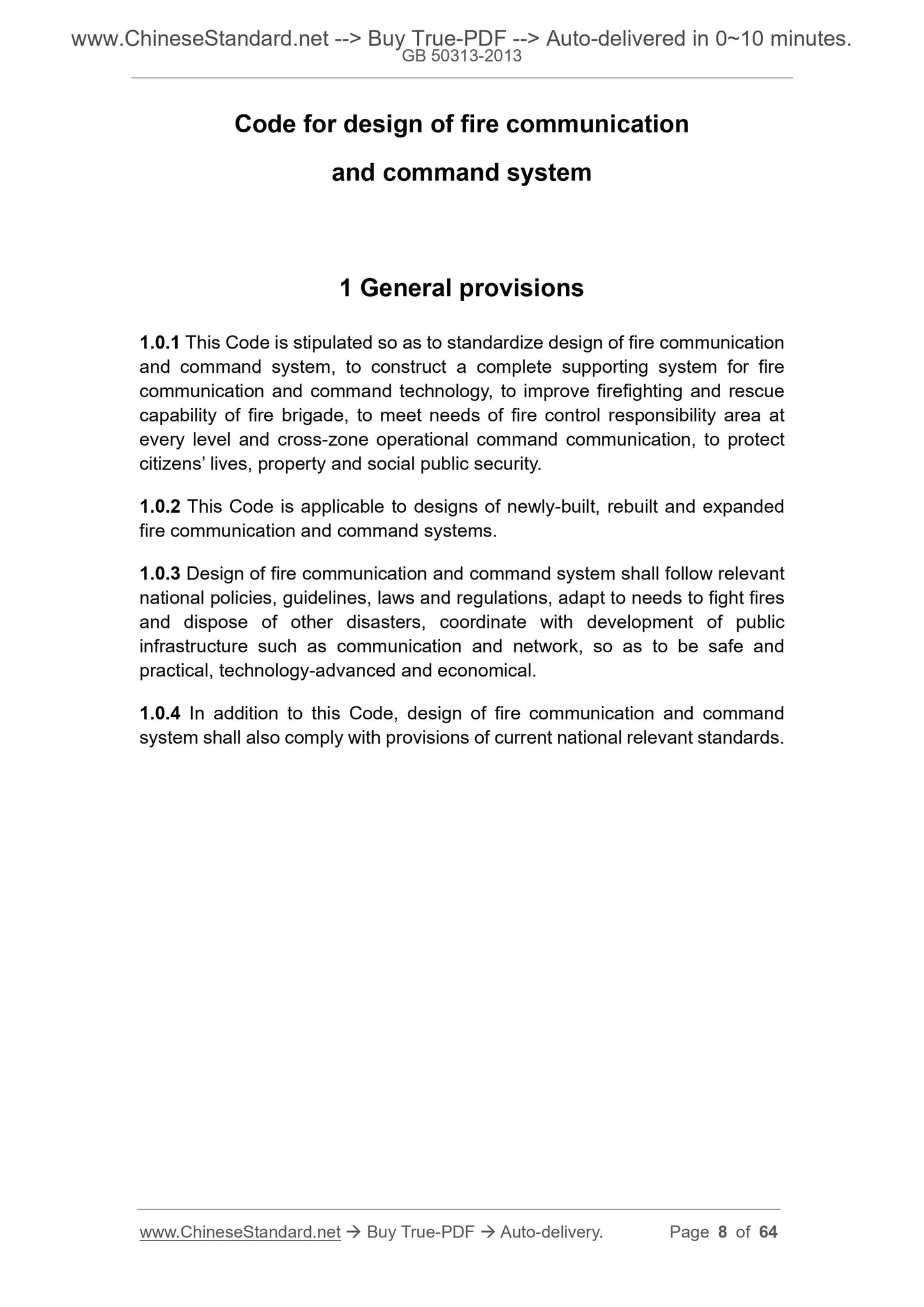

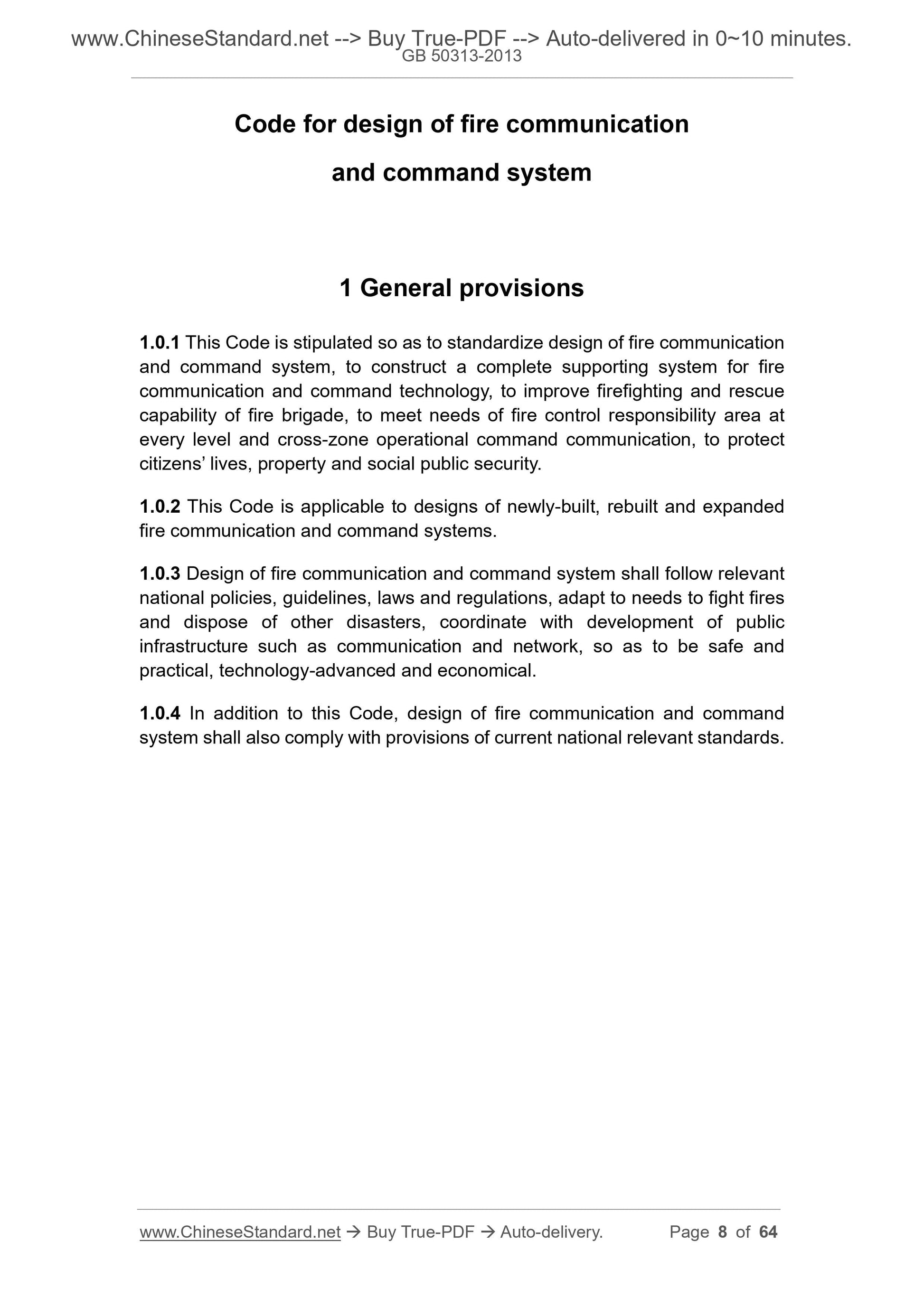

1 General provisions
1.0.1 This Code is stipulated so as to standardize design of fire communication and command system, to construct a complete supporting system for fire
communication and command technology, to improve firefighting and rescue capability of fire brigade, to meet needs of fire control responsibility area at every level and cross-zone operational command communication, to protect citizens?€? lives, property and social public security.
1.0.2 This Code is applicable to designs of newly-built, rebuilt and expanded fire communication and command systems.
1.0.3 Design of fire communication and command system shall follow relevant national policies, guidelines, laws and regulations, adapt to needs to fight fires and dispose of other disasters, coordinate with development of public
infrastructure such as communication and network, so as to be safe and
practical, technology-advanced and economical.
1.0.4 In addition to this Code, design of fire communication and command system shall also comply with provisions of current national relevant standards. 2 Terms

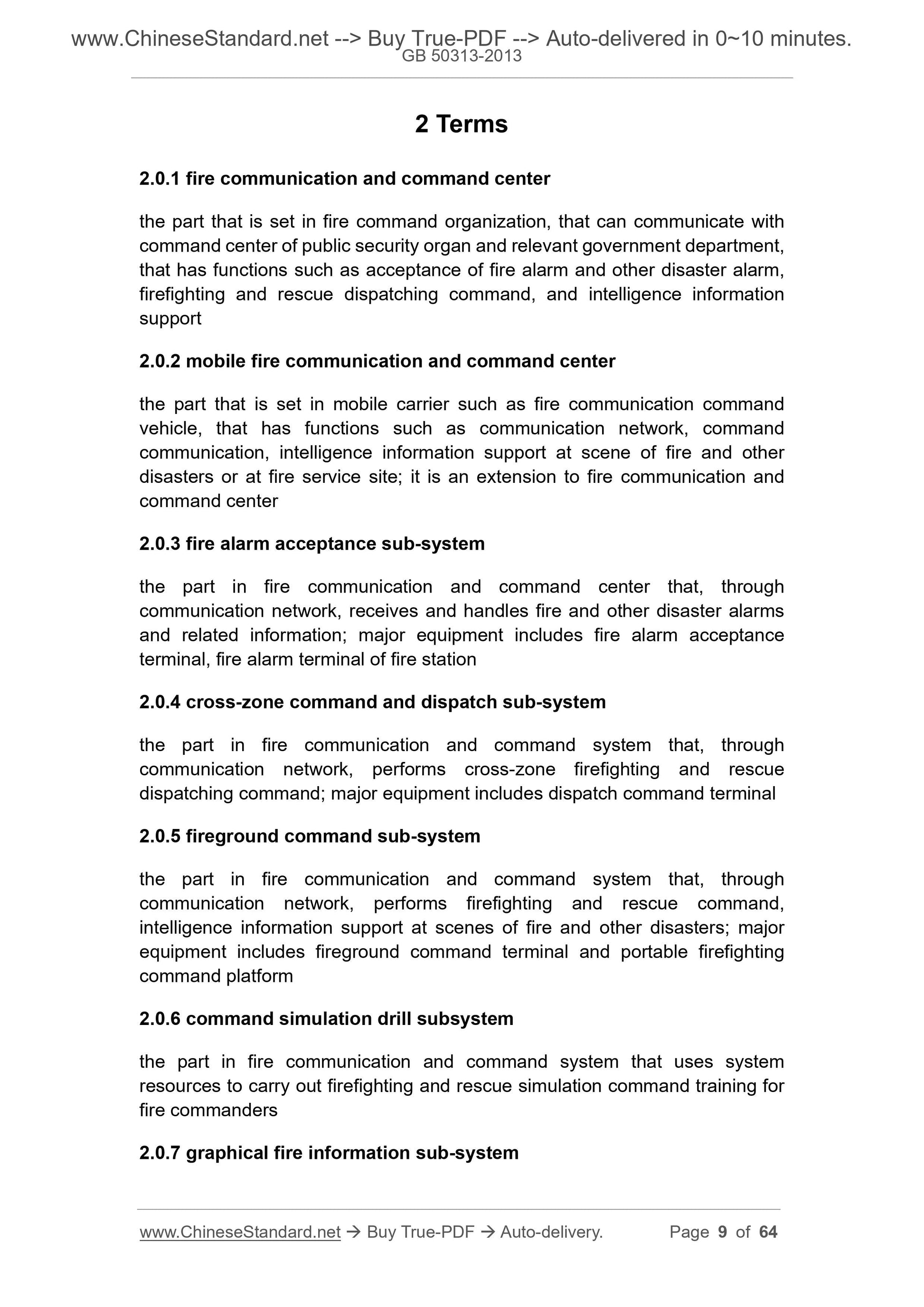

2.0.1 fire communication and command center
the part that is set in fire command organization, that can communicate with command center of public security organ and relevant government department, that has functions such as acceptance of fire alarm and other disaster alarm, firefighting and rescue dispatching command, and intelligence information support
2.0.2 mobile fire communication and command center
the part that is set in mobile carrier such as fire communication command vehicle, that has functions such as communication network, command
communication, intelligence information support at scene of fire and other disasters or at fire service site; it is an extension to fire communication and command center
2.0.3 fire alarm acceptance sub-system
the part in fire communication and command center that, through
communication network, receives and handles fire and other disaster alarms and related information; major equipment includes fire alarm acceptance terminal, fire alarm terminal of fire station
2.0.4 cross-zone command and dispatch sub-system
the part in fire communication and command system that, through
communication network, performs cross-zone firefighting and rescue
dispatching command; major equipment includes dispatch command terminal 2.0.5 fireground command sub-system
the part in fire communication and command system that, through
communication network, performs firefighting and rescue command,
intelligence information support at scenes of fire and other disasters; major equipment includes fireground command terminal and portable firefighting command platform
2.0.6 command simulation drill subsystem
the part in fire communication and command system that uses system
resources to carry out firefighting and rescue simulation command training for fire commanders
2.0.7 graphical fire information sub-system

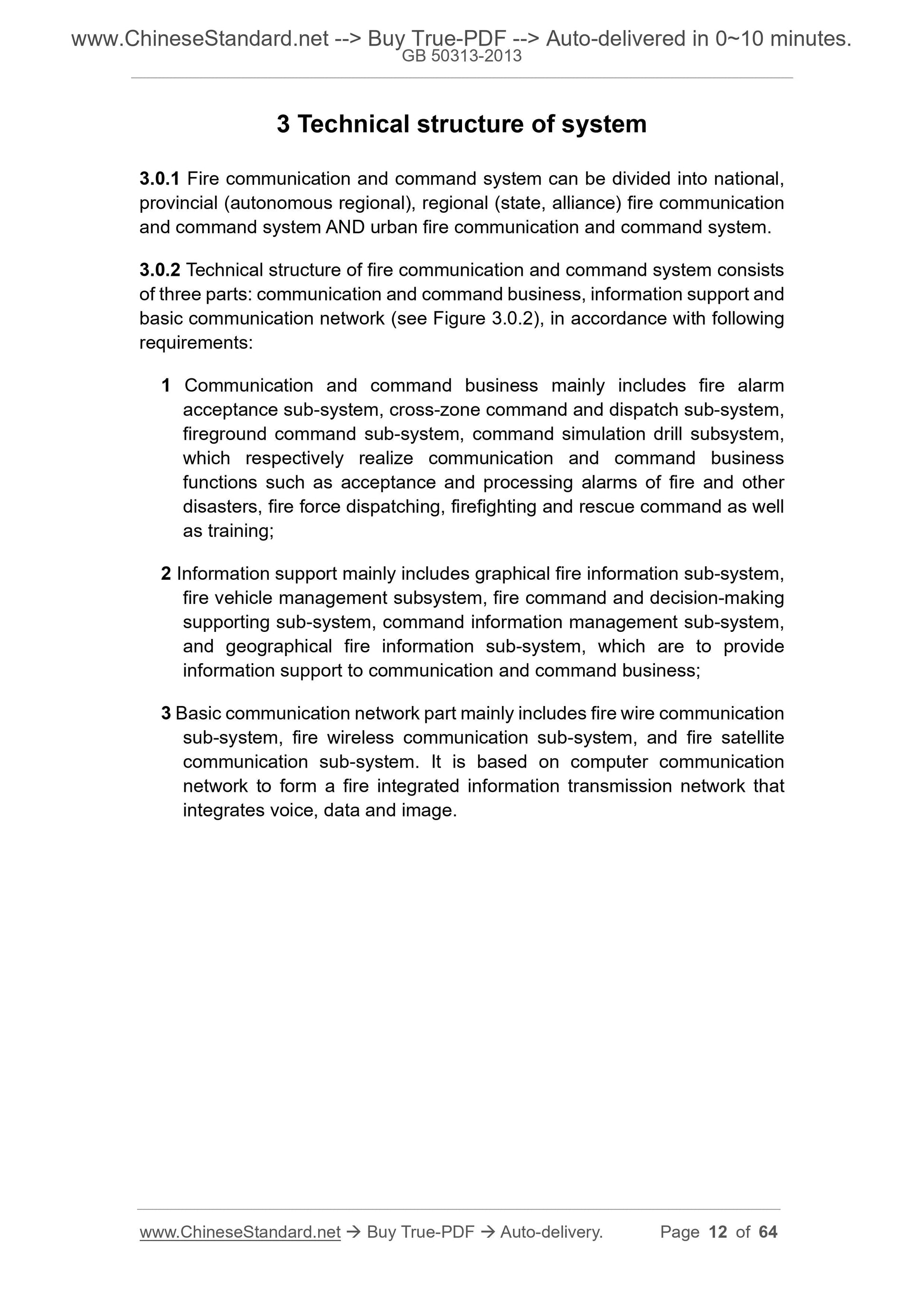

3 Technical structure of system
3.0.1 Fire communication and command system can be divided into national, provincial (autonomous regional), regional (state, alliance) fire communication and command system AND urban fire communication and command system.
3.0.2 Technical structure of fire communication and command system consists of three parts: communication and command business, information support and basic communication network (see Figure 3.0.2), in accordance with following requirements:
1 Communication and command business mainly includes fire alarm
acceptance sub-system, cross-zone command and dispatch sub-system,
fireground command sub-system, command simulation drill subsystem,
which respectively realize communication and command business
functions such as acceptance and processing alarms of fire and other
disasters, fire force dispatching, firefighting and rescue command as well as training;
2 Information support mainly includes graphical fire information sub-system, fire vehicle management subsystem, fire command and decision-making
supporting sub-system, command information management sub-system,
and geographical fire information sub-system, which are to provide
information support to communication and command business;
3 Basic communication network part mainly includes fire wire communication sub-system, fire wireless communication sub-system, and fire satellite
communication sub-system. It is based on computer communication
network to form a fire integrated information transmission network that integrates voice, data and image.

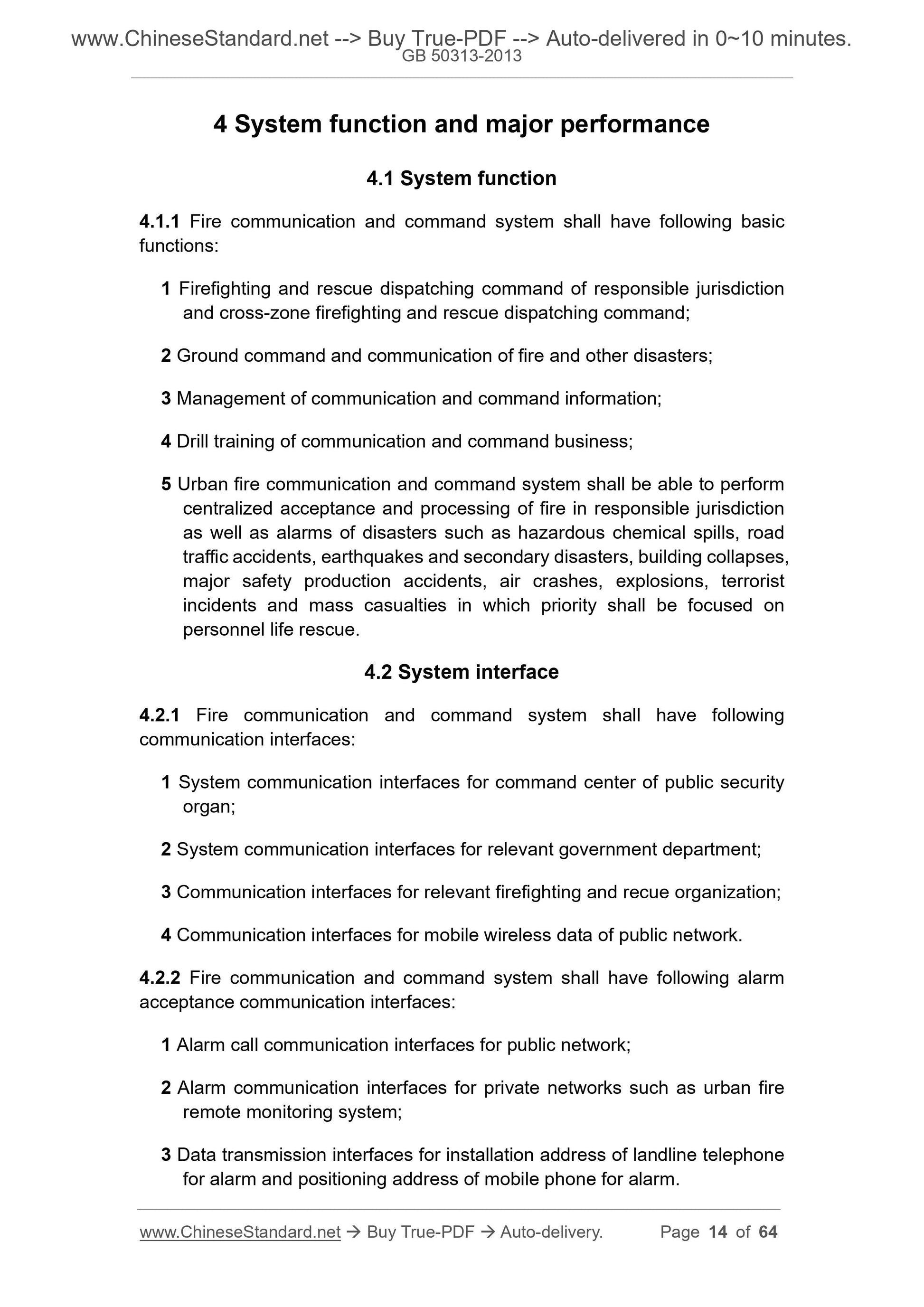

4 System function and major performance
4.1 System function
4.1.1 Fire communication and command system shall have following basic
functions:
1 Firefighting and rescue dispatching command of responsible jurisdiction and cross-zone firefighting and rescue dispatching command;
2 Ground command and communication of fire and other disasters;
3 Management of communication and command information;
4 Drill training of communication and command business;
5 Urban fire communication and command system shall be able to perform
centralized acceptance and processing of fire in responsible jurisdiction as well as alarms of disasters such as hazardous chemical spills, road
traffic accidents, earthquakes and secondary disasters, building collapses, major safety production accidents, air crashes, explosions, terrorist
incidents and mass casualties in which priority shall be focused on
personnel life rescue.
4.2 System interface
4.2.1 Fire communication and command system shall have following
communication interfaces:
1 System communication interfaces for command center of public security organ;
2 System communication interfaces for relevant government department;
3 Communication interfaces for relevant firefighting and recue organization; 4 Communication interfaces for mobile wireless data of public network.
4.2.2 Fire communication and command system shall have following alarm
acceptance communication interfaces:
1 Alarm call communication interfaces for public network;
2 Alarm communication interfaces for private networks such as urban fire remote monitoring system;
3 Data transmission interfaces for installation address of landline telephone for alarm and positioning address of mobile phone for alarm.
fire and other disasters.
2 Identify authenticity of fire. Position fire and other disaster sites. Determine type and level of fire and other disasters.
3 Automatically or manually prepare dispatch plan for firefighting and rescue force.
4 Give dispatch command of first dispatch force to fire station. Give disaster notification and joint operation requirements to organizations related to firefighting and rescue.
5 Establish files for fire and other disasters. Generate reports.

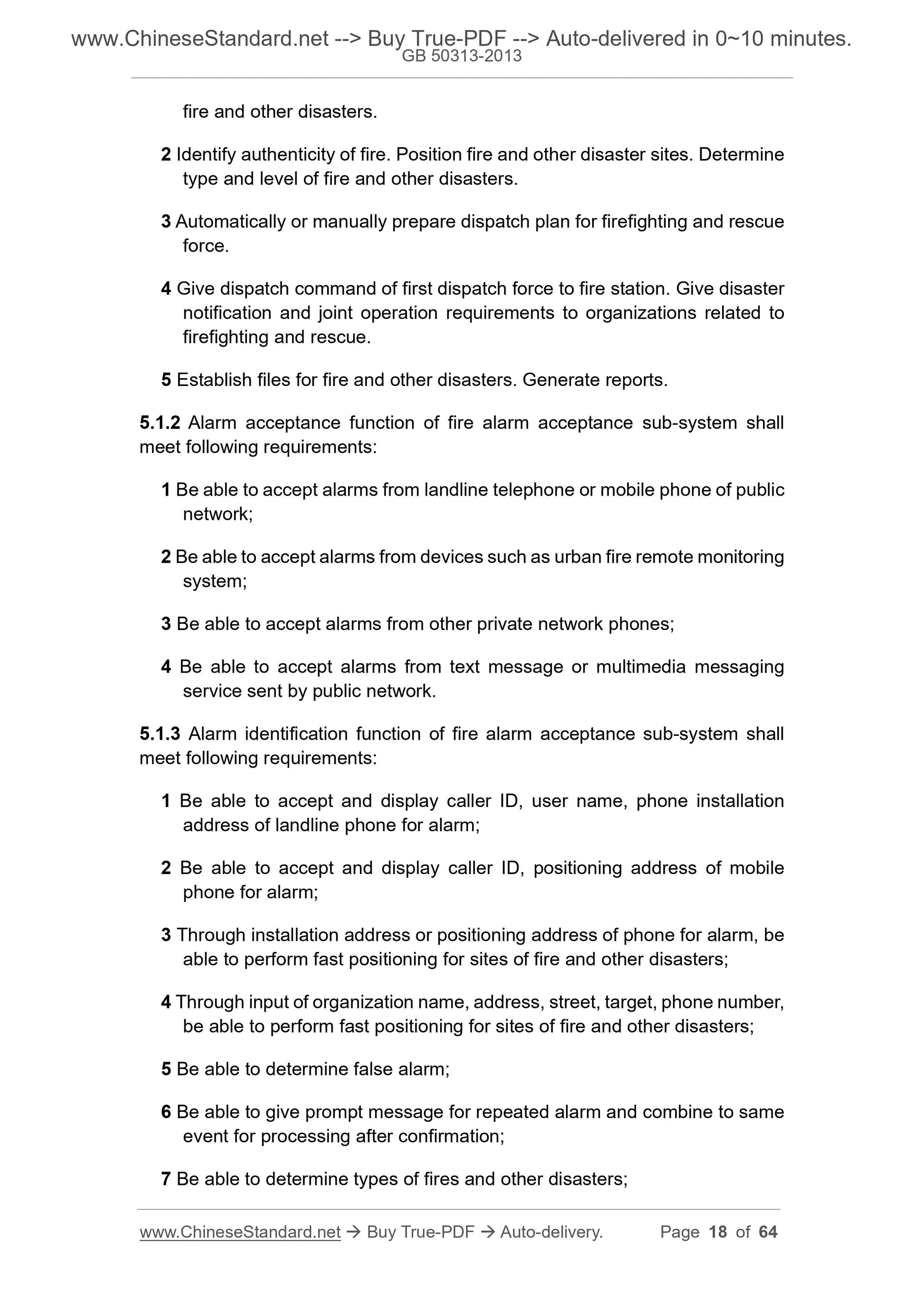

5.1.2 Alarm acceptance function of fire alarm acceptance sub-system shall meet following requirements:
1 Be able to accept alarms from landline telephone or mobile phone of public network;
2 Be able to accept alarms from devices such as urban fire remote monitoring system;
3 Be able to accept alarms from other private network phones;
4 Be able to accept alarms from text message or multimedia messaging
service sent by public network.
5.1.3 Alarm identification function of fire alarm acceptance sub-system shall meet following requirements:
1 Be able to accept and display caller ID, user name, phone installation address of landline phone for alarm;
2 Be able to accept and display caller ID, positioning address of mobile phone for alarm;
3 Through installation address or positioning address of phone for alarm, be able to perform fast positioning for sites of fire and other disasters; 4 Through input of organization name, address, street, target, phone number, be able to perform fast positioning for sites of fire and other disasters; 5 Be able to determine false alarm;
6 Be able to give prompt message for repeated alarm and combine to same event for processing after confirmation;
7 Be able to determine types of fires and other disasters;

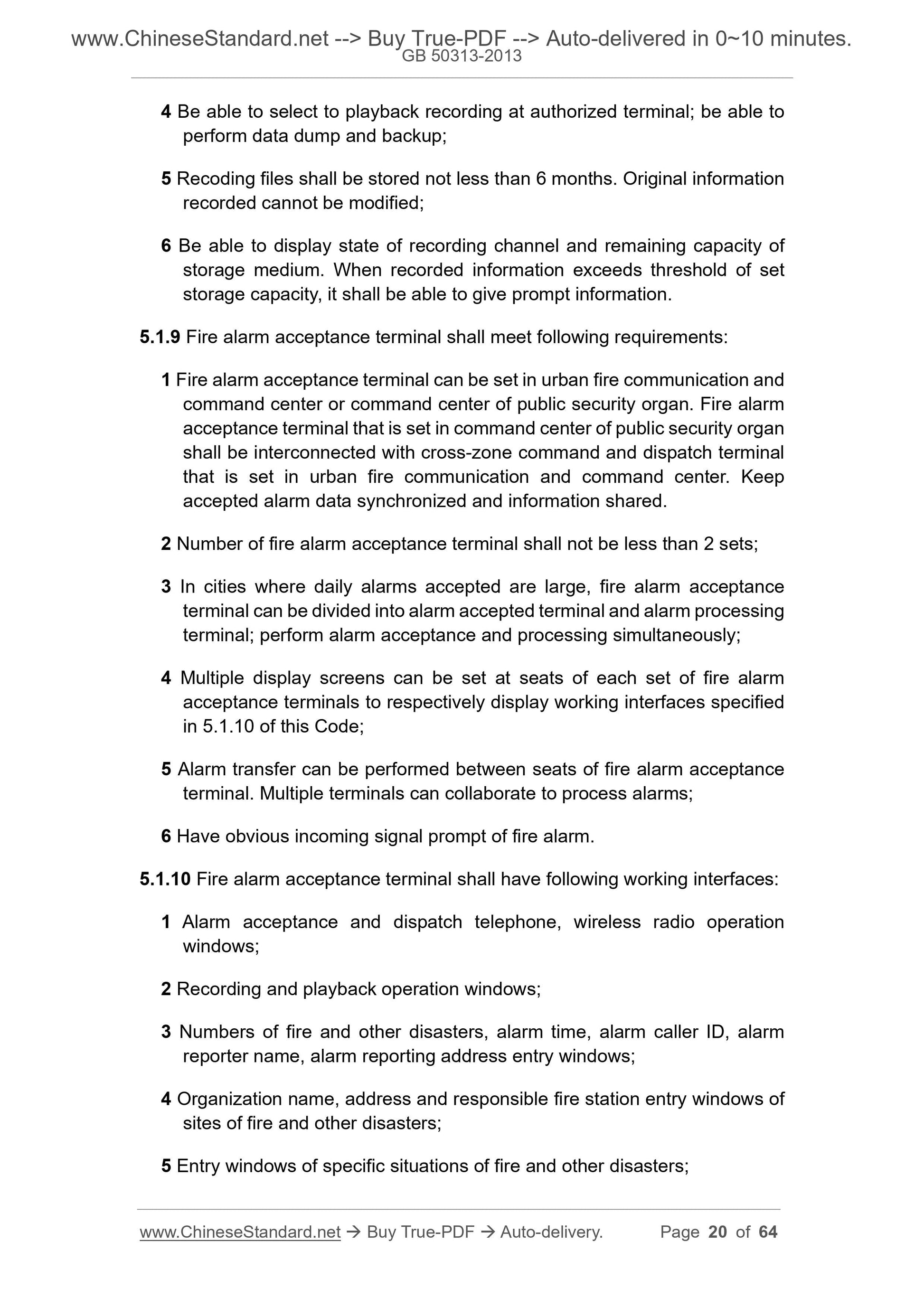

4 Be able to select to playback recording at authorized terminal; be able to perform data dump and backup;
5 Recoding files shall be stored not less than 6 months. Original information recorded cannot be modified;
6 Be able to display state of recording channel and remaining capacity of storage medium. When recorded information exceeds threshold of set
storage capacity, it shall be able to give prompt information.
5.1.9 Fire alarm acceptance terminal shall meet following requirements: 1 Fire alarm acceptance terminal can be set in urban fire communication and command center or command center of public security organ. Fire alarm
acceptance terminal that is set in command center of public security organ shall be interconnected with cross-zone command and dispatch terminal
that is set in urban fire communication and command center. Keep
accepted alarm data synchronized and information shared.
2 Number of fire alarm acceptance terminal shall not be less than 2 sets; 3 In cities where daily alarms accepted are large, fire alarm acceptance terminal can be divided into alarm accepted terminal and alarm processing terminal; perform alarm acceptance and processing simultaneously;
4 Multiple display screens can be set at seats of each set of fire alarm acceptance terminals to respectively display working interfaces specified in 5.1.10 of this Code;
5 Alarm transfer can be performed between seats of fire alarm acceptance terminal. Multiple terminals can collaborate to process alarms;
6 Have obvious incoming signal prompt of fire alarm.
5.1.10 Fire alarm acceptance terminal shall have following working interfaces: 1 Alarm acceptance and dispatch telephone, wireless radio operation
windows;
2 Recording and playback operation windows;
3 Numbers of fire and other disasters, alarm time, alarm caller ID, alarm reporter name, alarm reporting address entry windows;
4 Organization name, address and responsible fire station entry windows of sites of fire and other disasters;
5 Entry windows of specific situations of fire and other disasters;
sub-system

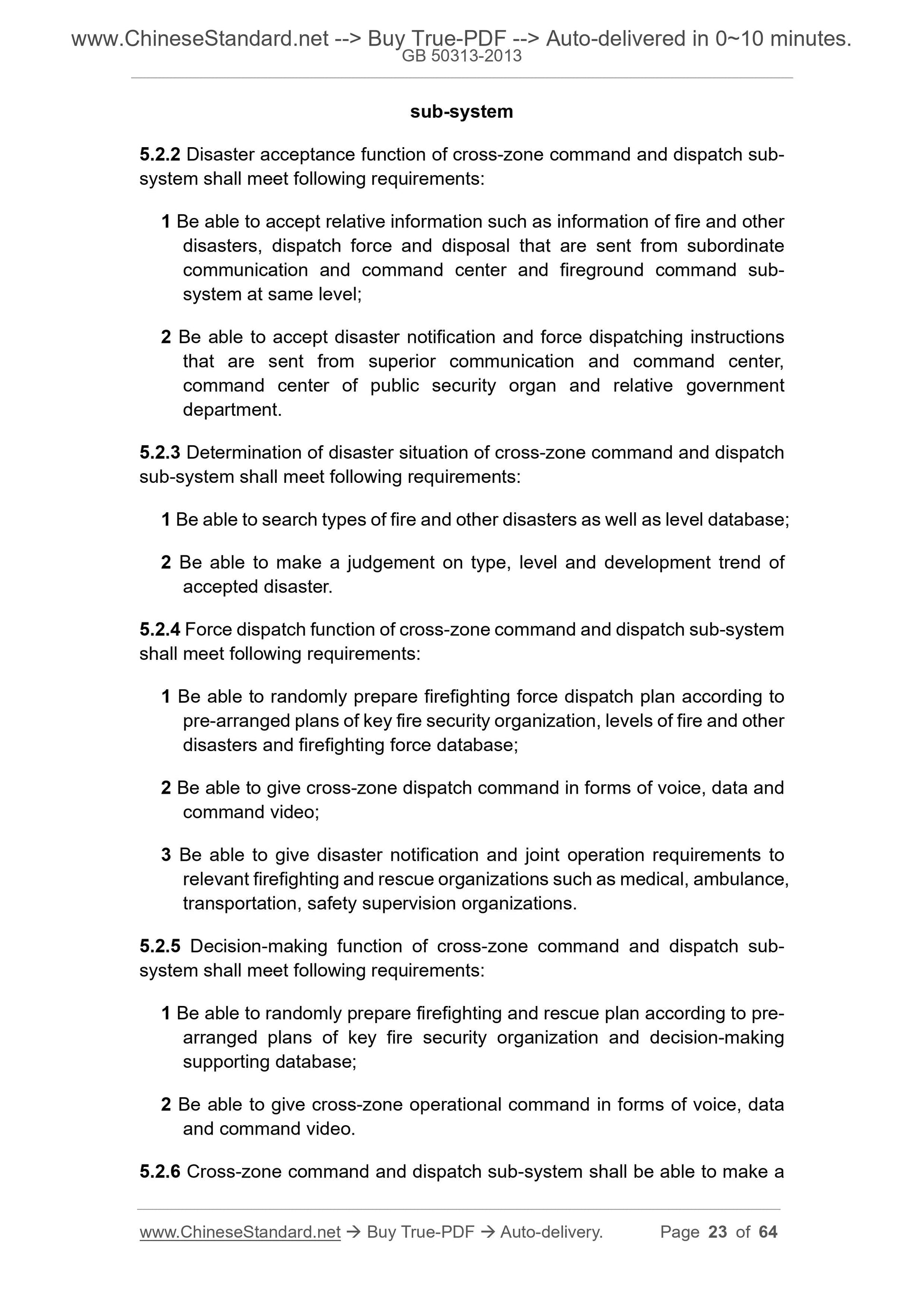

5.2.2 Disaster acceptance function of cross-zone command and dispatch sub- system shall meet following requirements:
1 Be able to accept relative information such as information of fire and other disasters, dispatch force and disposal that are sent from subordinate
communication and command center and fireground command sub-
system at same level;
2 Be able to accept disaster notification and force dispatching instructions that are sent from superior communication and command center,
command center of public security organ and relative government
department.
5.2.3 Determination of disaster situation of cross-zone command and dispatch sub-system shall meet following requirements:
1 Be able to search types of fire and other disasters as well as level database; 2 Be able to make a judgement on type, level and development trend of
accepted disaster.
5.2.4 Force dispatch function of cross-zone command and dispatch sub-system shall meet following requirements:
1 Be able to randomly prepare firefighting force dispatch plan according to pre-arranged plans of key fire security organization, levels of fire and other disasters and firefighting force database;
2 Be able to give cross-zone dispatch command in forms of voice, data and command video;
3 Be able to give disaster notification and joint operation requirements to relevant firefighting and rescue organizations such as medical, ambulance, transportation, safety supervision organizations.
5.2.5 Decision-making function of cross-zone command and dispatch sub-
system shall meet following requirements:
1 Be able to randomly prepare firefighting and rescue plan according to pre- arranged plans of key fire security organization and decision-making
supporting database;
2 Be able to give cross-zone operational command in forms of voice, data and command video.
5.2.6 Cross-zone command and dispatch sub-system shall be able to make a 2 Information of fire vehicle, personnel, firefighting and rescue equipment, extinguishing agent at the scene;
3 Environment information such as ground meteorology, roads, fire water sources, buildings (structures);
4 Information of live fireground image.

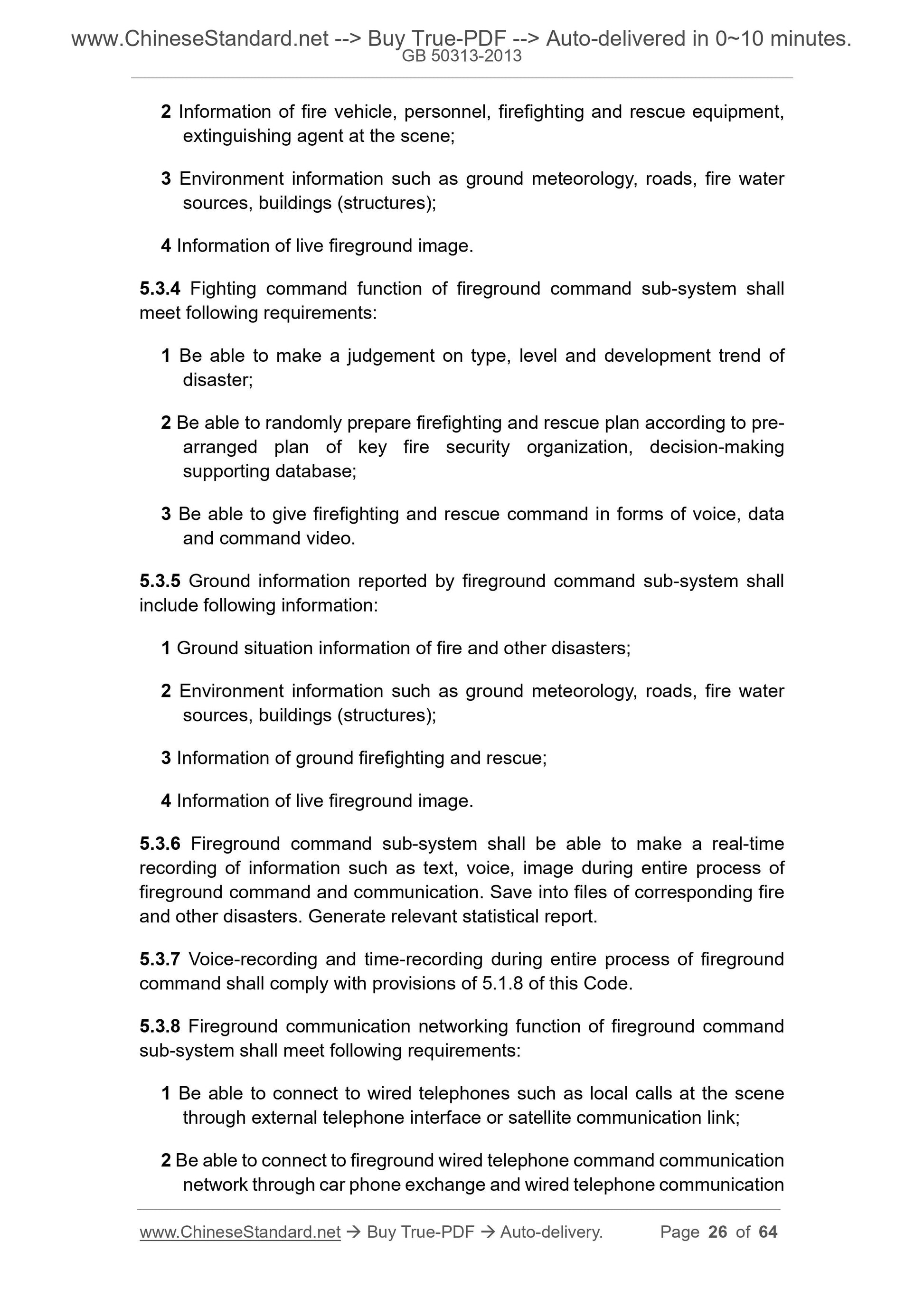

5.3.4 Fighting command function of fireground command sub-system shall
meet following requirements:
1 Be able to make a judgement on type, level and development trend of
disaster;
2 Be able to randomly prepare firefighting and rescue plan according to pre- arranged plan of key fire security organization, decision-making
supporting database;
3 Be able to give firefighting and rescue command in forms of voice, data and command video.
5.3.5 Ground information reported by fireground command sub-system shall include following information:
1 Ground situation information of fire and other disasters;
2 Environment information such as ground meteorology, roads, fire water sources, buildings (structures);
3 Information of ground firefighting and rescue;
4 Information of live fireground image.
5.3.6 Fireground command sub-system shall be able to make a real-time
recording of information such as text, voice, image during entire process of fireground command and communication. Save into files of corresponding fire and other disasters. Generate relevant statistical report.
5.3.7 Voice-recording and time-recording during entire process of fireground command shall comply with provisions of 5.1.8 of this Code.
5.3.8 Fireground communication networking function of fireground command sub-system shall meet following requirements:
1 Be able to connect to wired telephones such as local calls at the scene through external telephone interface or satellite communication link;
2 Be able to connect to fireground wired telephone command communication network through car phone exchange and wired telephone communication
communication links;
7 Be able to perform switch display of live graphic information;
8 Be able to perform interactive multimedia combating conference operation; 9 Have sending function of emergency call signals such as retreat and
distress;
10 Be able to perform fireground command broadcast amplification operation; 11 Be able to perform centralized control and monitoring of various electrical equipment.
5.3.11 Devices such as fireground command terminal shall have following working interfaces:
1 Information display and function operation windows specified in
5.3.2~5.3.10 of this Code;
2 Display windows of firefighting geographical information;
3 Display windows of various electrical equipment control operations and condition monitoring.
5.3.12 Portable firefighting command platform shall meet following
requirements:
1 Have positioning, navigation functions;
2 Have display windows for live firefighting geographical information;
3 Have operation windows for firefighting command decision-making
supporting function specified in 5.7.3 of this Code;
4 Have windows for fireground operational command information entry. Entry information cannot be modified;
5 Have windows for quickly entering fire rescue, emergency rescue,
information inquiry;
6 Be able to perform firefighting and rescue deployment plotting and
temporary disaster management plan preparation based on live fire
protection geographical information, fire water source and pre-arranged fire rescue plan;
7 Have firefighting and rescue data association, information query, voice prompt function;
information that is collected and transmitted by collection points of fire monitoring image information that are set in key areas of urban fire protection, fire protection key construction (structure), key fire protection parts. 5.5.3 Graphical fire information sub-system shall be able to networked with public security image monitoring system to obtain image information of key areas, key parts, key roads.
5.5.4 Graphical fire information sub-system shall be able to accept live image information such as preparation for firefighting, alarm acceptance and fire force dispatch that is collected, transmitted by information collection points of remote monitoring images that are set in fire station in jurisdiction.
5.5.5 Graphical fire information sub-system shall be able to accept live image information that is uploaded in real time by fire vehicles.
5.5.6 Graphical fire information sub-system shall be able to access to fire command video and audio conference and participate in video and audio
conferences held by public security organs, relevant government departments. 5.5.7 Graphical fire information sub-system shall be able to perform centralized management and control of various image information sources according to authority allocation.
5.5.8 Graphical fire information sub-system shal...

View full details
