GB 50312-2007: Code for engineering acceptance of generic cabling system
GB 50312-2007
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
UDC
P GB 50312-2007

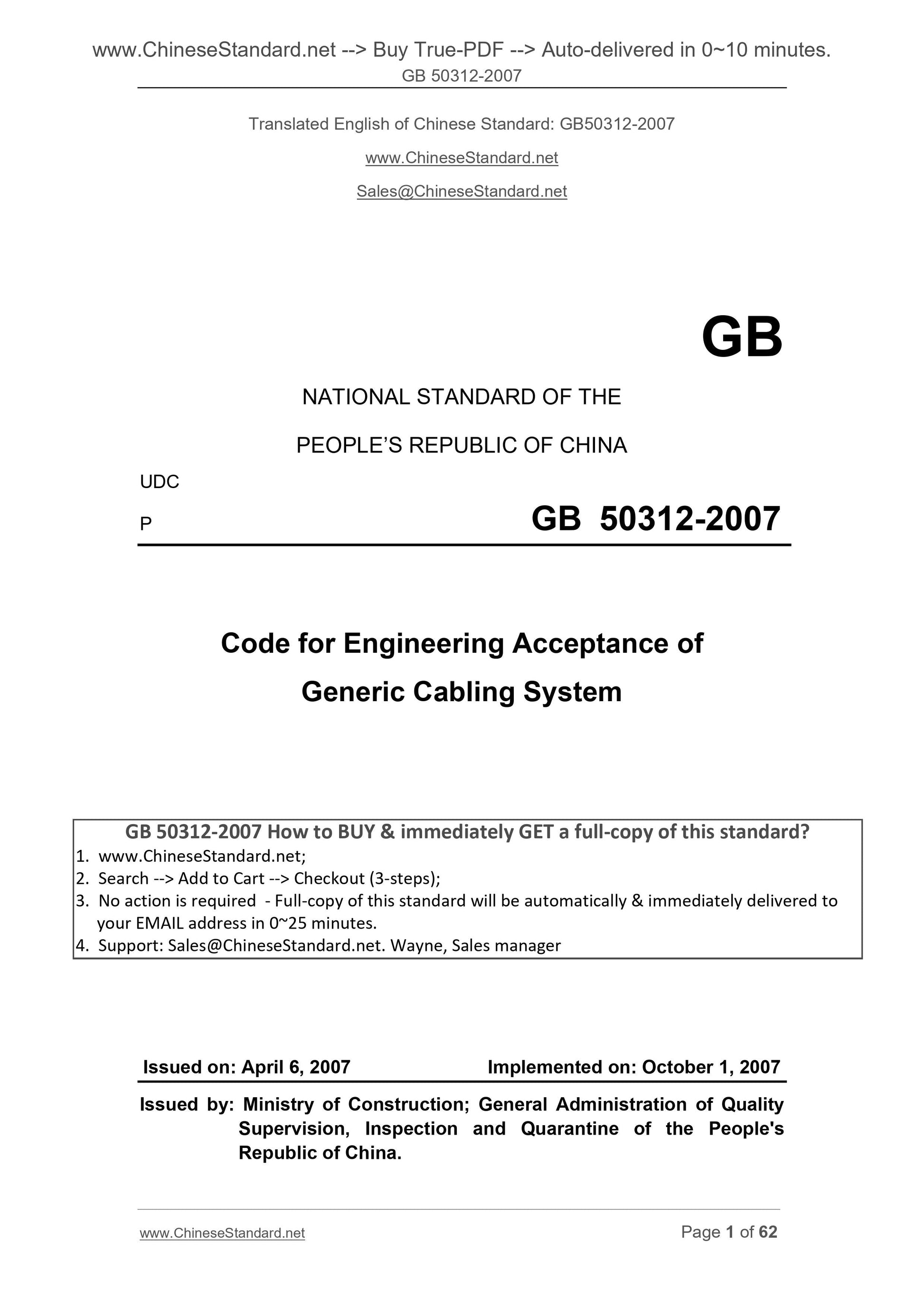

Code for Engineering Acceptance of
Generic Cabling System
ISSUED ON. APRIL 6, 2007
IMPLEMENTED ON. OCTOBER 1, 2007
Issued by. Ministry of Construction; General Administration of Quality
Supervision, Inspection and Quarantine of the People's
Republic of China.

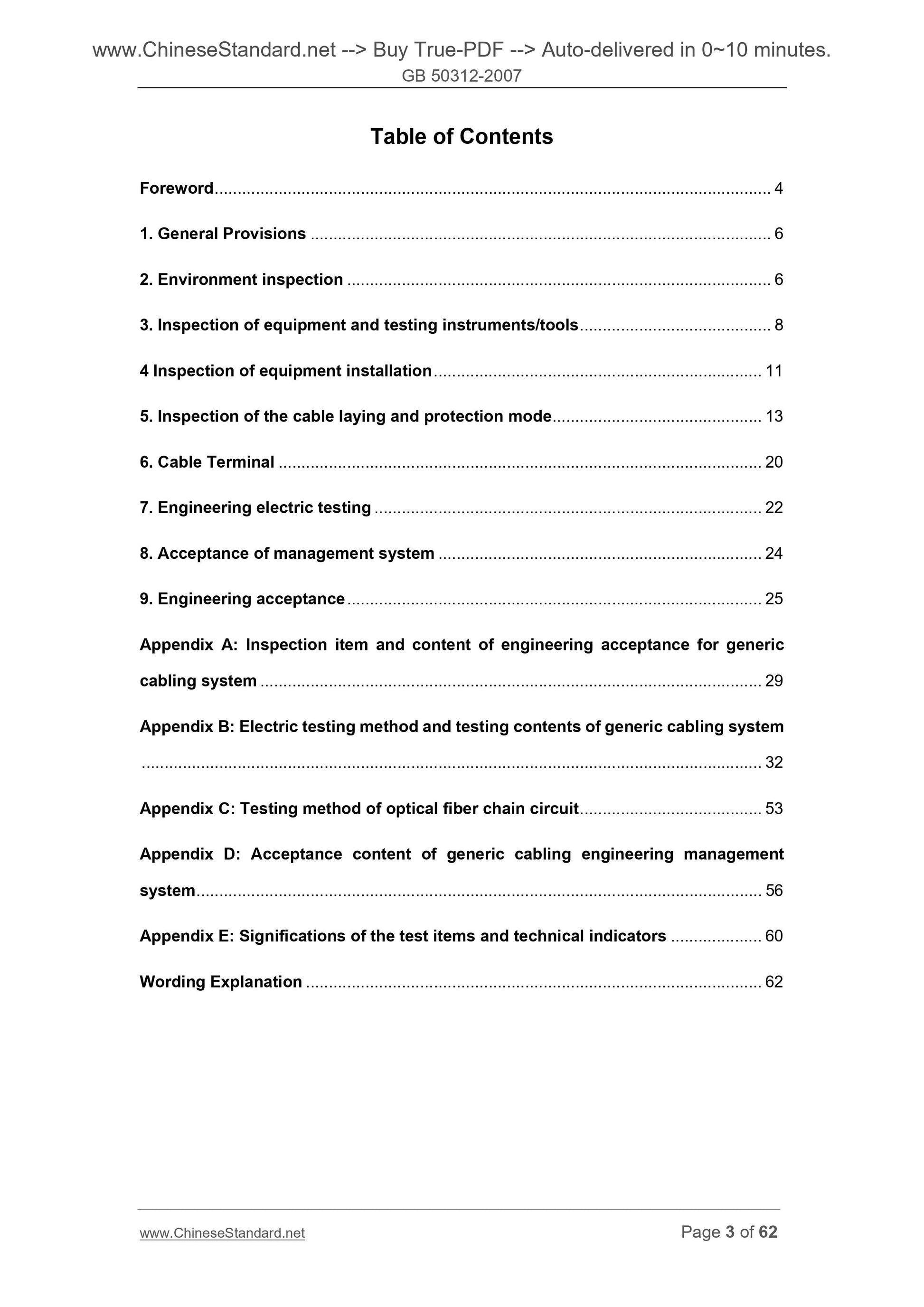

Table of Contents
Foreword ... 4
1. General Provisions ... 6
2. Environment inspection ... 6
3. Inspection of equipment and testing instruments/tools ... 8

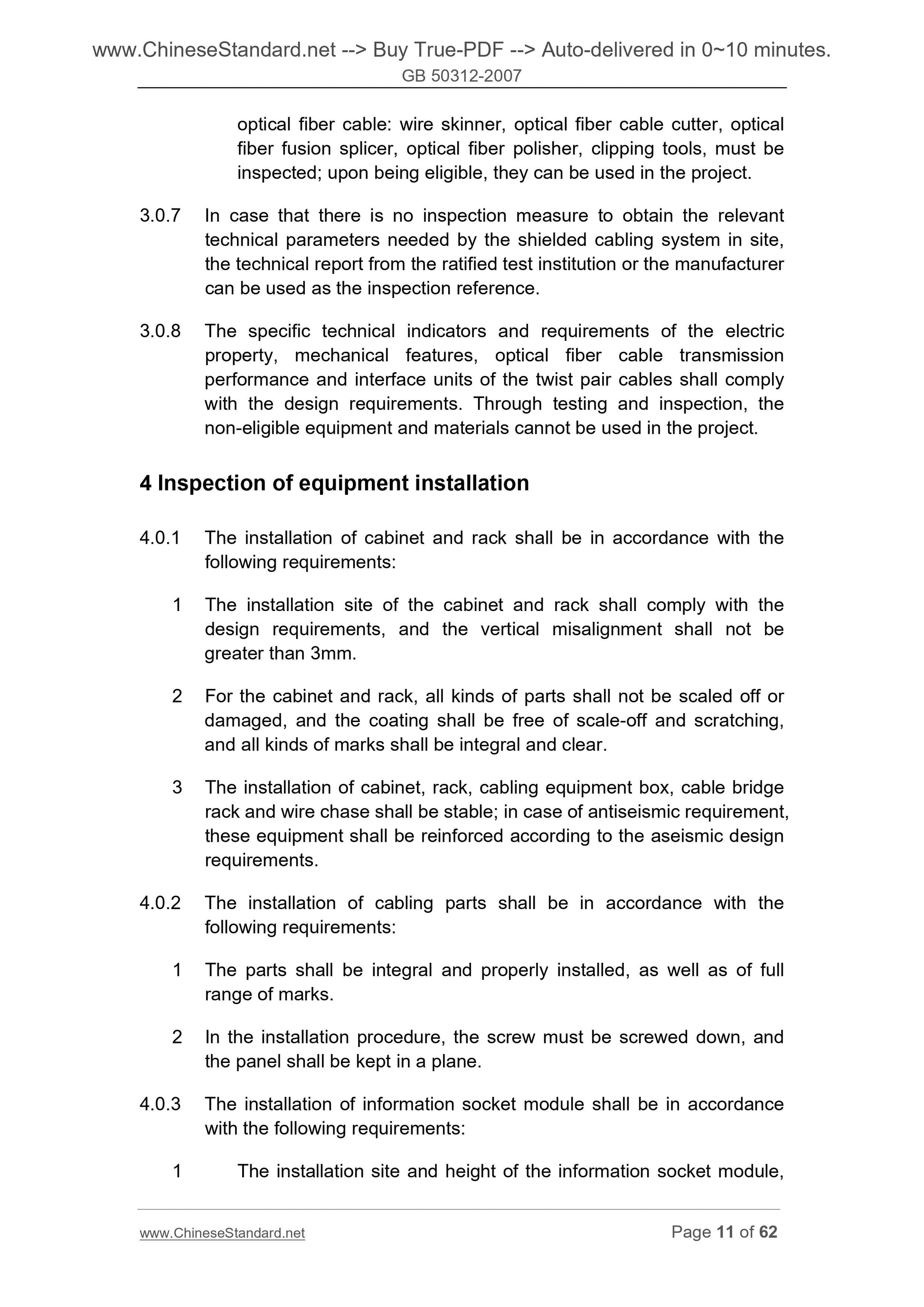

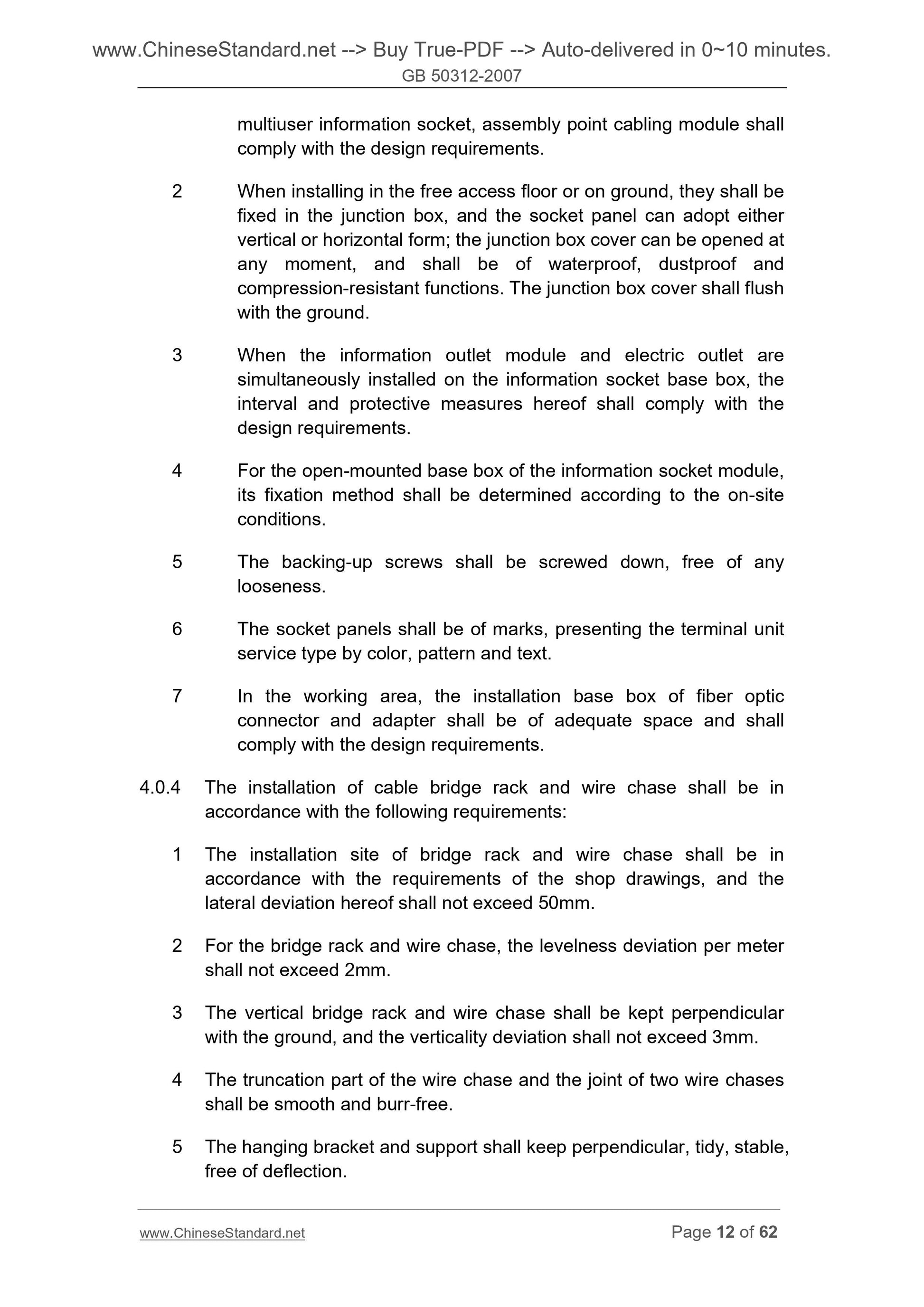

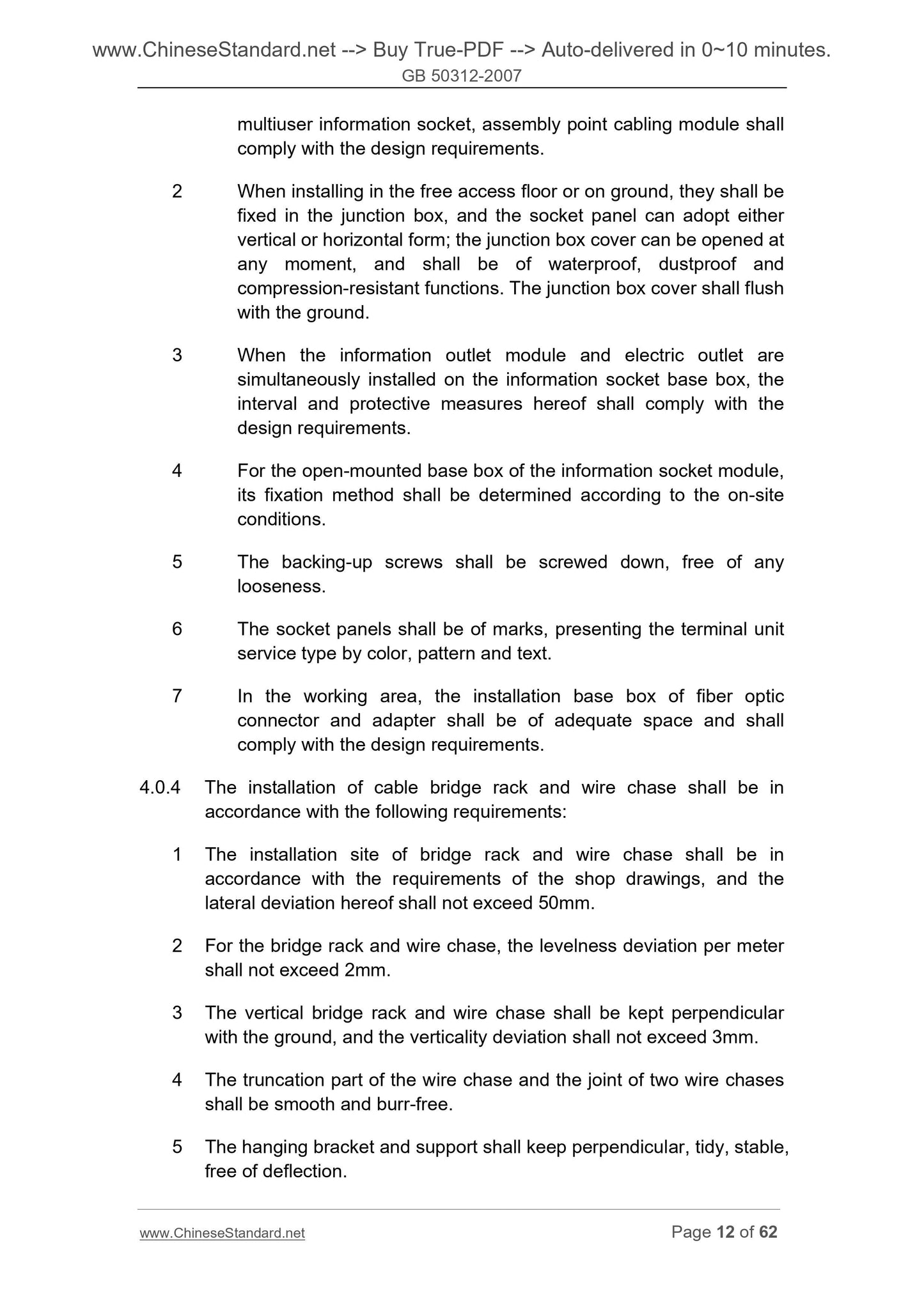

4 Inspection of equipment installation ... 11

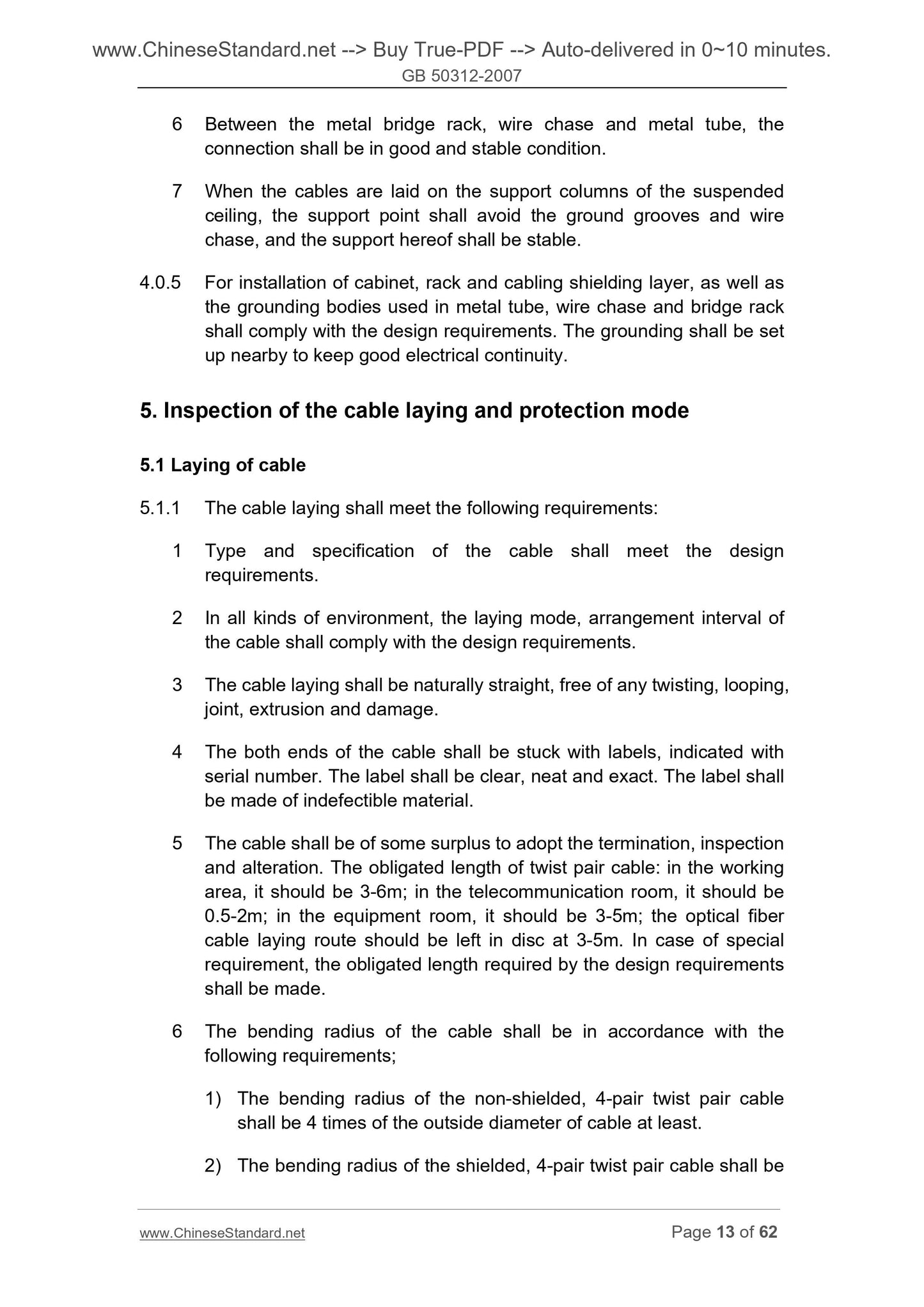

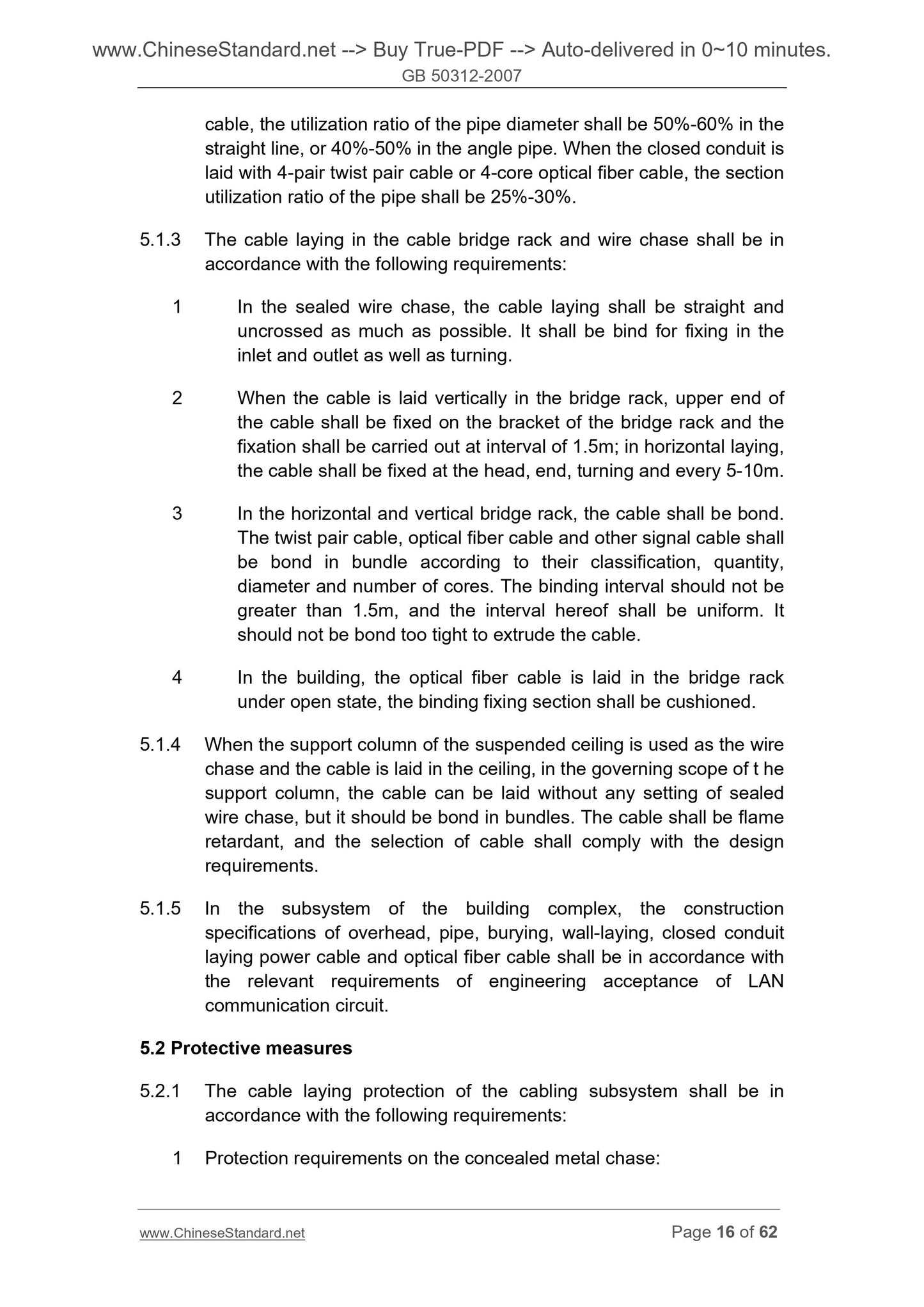

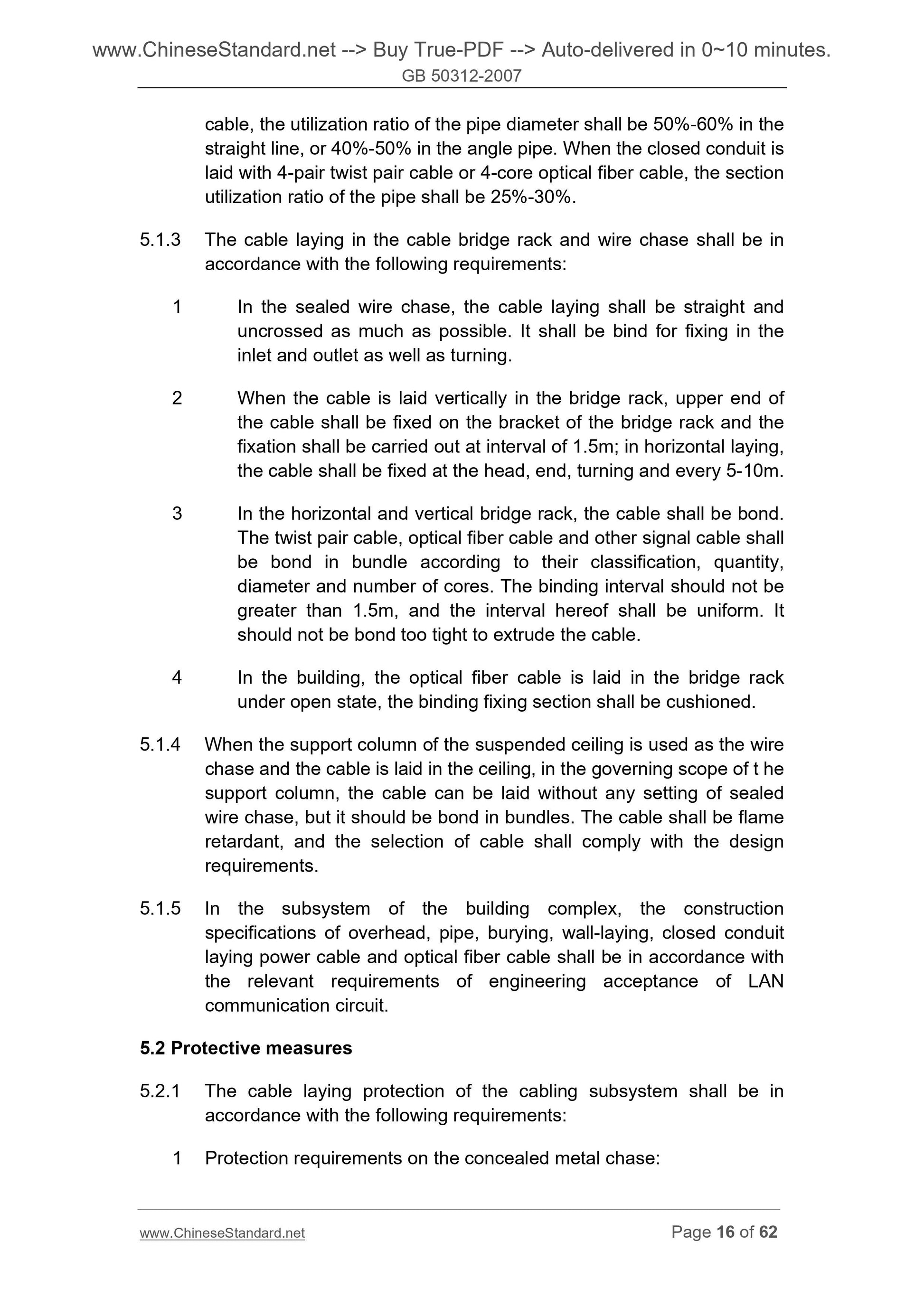

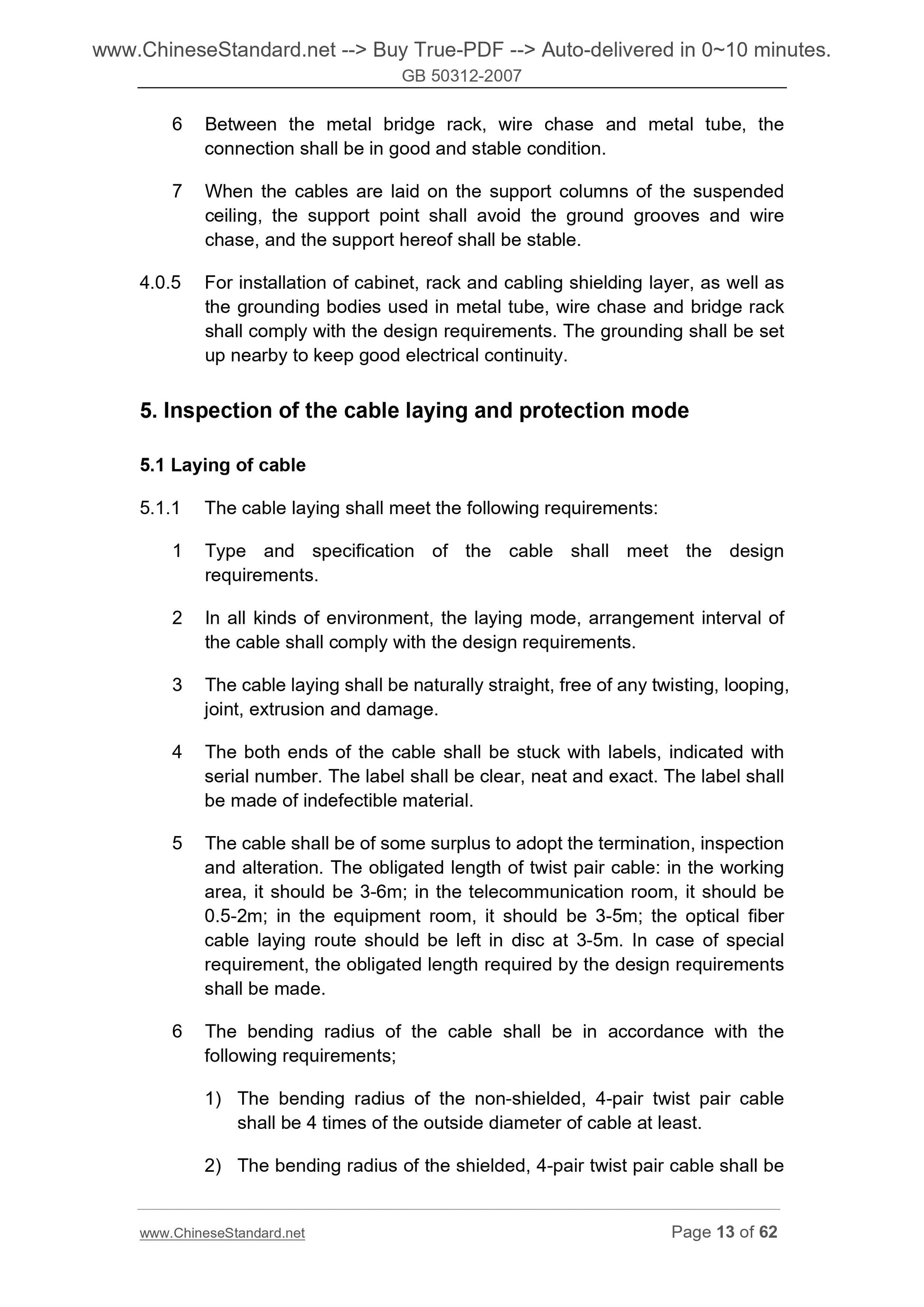

5. Inspection of the cable laying and protection mode ... 13
6. Cable Terminal ... 20
7. Engineering electric testing ... 22
8. Acceptance of management system ... 24
9. Engineering acceptance ... 25
Appendix A. Inspection item and content of engineering acceptance for generic
cabling system ... 29
Appendix B. Electric testing method and testing contents of generic cabling system
... 32
Appendix C. Testing method of optical fiber chain circuit ... 53
Appendix D. Acceptance content of generic cabling engineering management
system ... 56
Appendix E. Significations of the test items and technical indicators ... 60
Wording Explanation ... 62

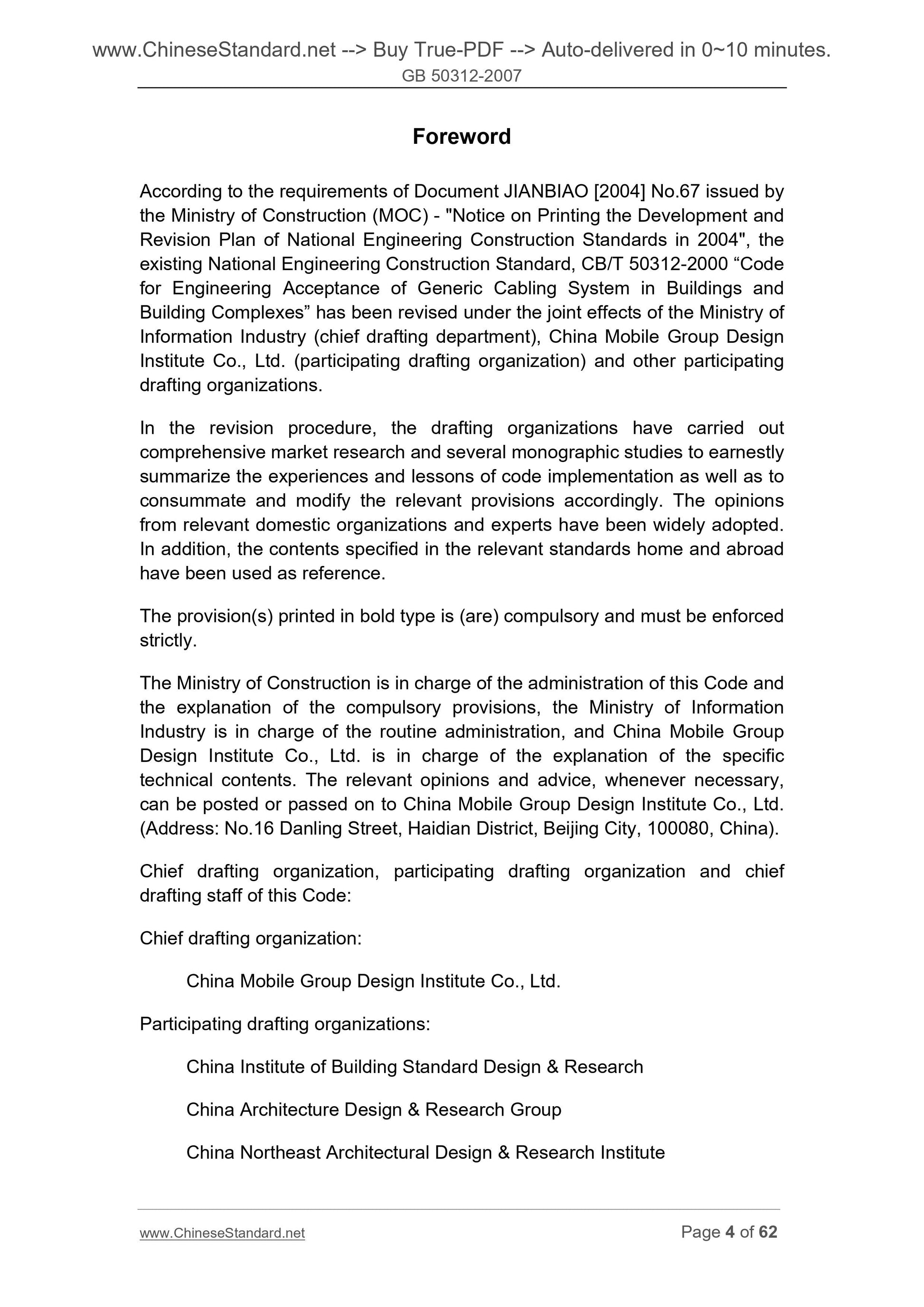

Foreword
According to the requirements of Document JIANBIAO [2004] No.67 issued by
the Ministry of Construction (MOC) - "Notice on Printing the Development and
Revision Plan of National Engineering Construction Standards in 2004", the
existing National Engineering Construction Standard, CB/T 50312-2000 “Code
for Engineering Acceptance of Generic Cabling System in Buildings and
Building Complexes” has been revised under the joint effects of the Ministry of
Information Industry (chief drafting department), China Mobile Group Design
Institute Co., Ltd. (participating drafting organization) and other participating
drafting organizations.
In the revision procedure, the drafting organizations have carried out
comprehensive market research and several monographic studies to earnestly
summarize the experiences and lessons of code implementation as well as to
consummate and modify the relevant provisions accordingly. The opinions
from relevant domestic organizations and experts have been widely adopted.
In addition, the contents specified in the relevant standards home and abroad
have been used as reference.
The provision(s) printed in bold type is (are) compulsory and must be enforced
strictly.
The Ministry of Construction is in charge of the administration of this Code and
the explanation of the compulsory provisions, the Ministry of Information
Industry is in charge of the routine administration, and China Mobile Group
Design Institute Co., Ltd. is in charge of the explanation of the specific
technical contents. The relevant opinions and advice, whenever necessary,
can be posted or passed on to China Mobile Group Design Institute Co., Ltd.
(Address. No.16 Danling Street, Haidian District, Beijing City, 100080, China).
Chief drafting organization, participating drafting organization and chief
drafting staff of this Code.
Chief drafting organization.
China Mobile Group Design Institute Co., Ltd.
Participating drafting organizations.
China Institute of Building Standard Design and Research
China Architecture Design and Research Group
China Northeast Architectural Design and Research Institute
Code for Engineering Acceptance of
Generic Cabling System

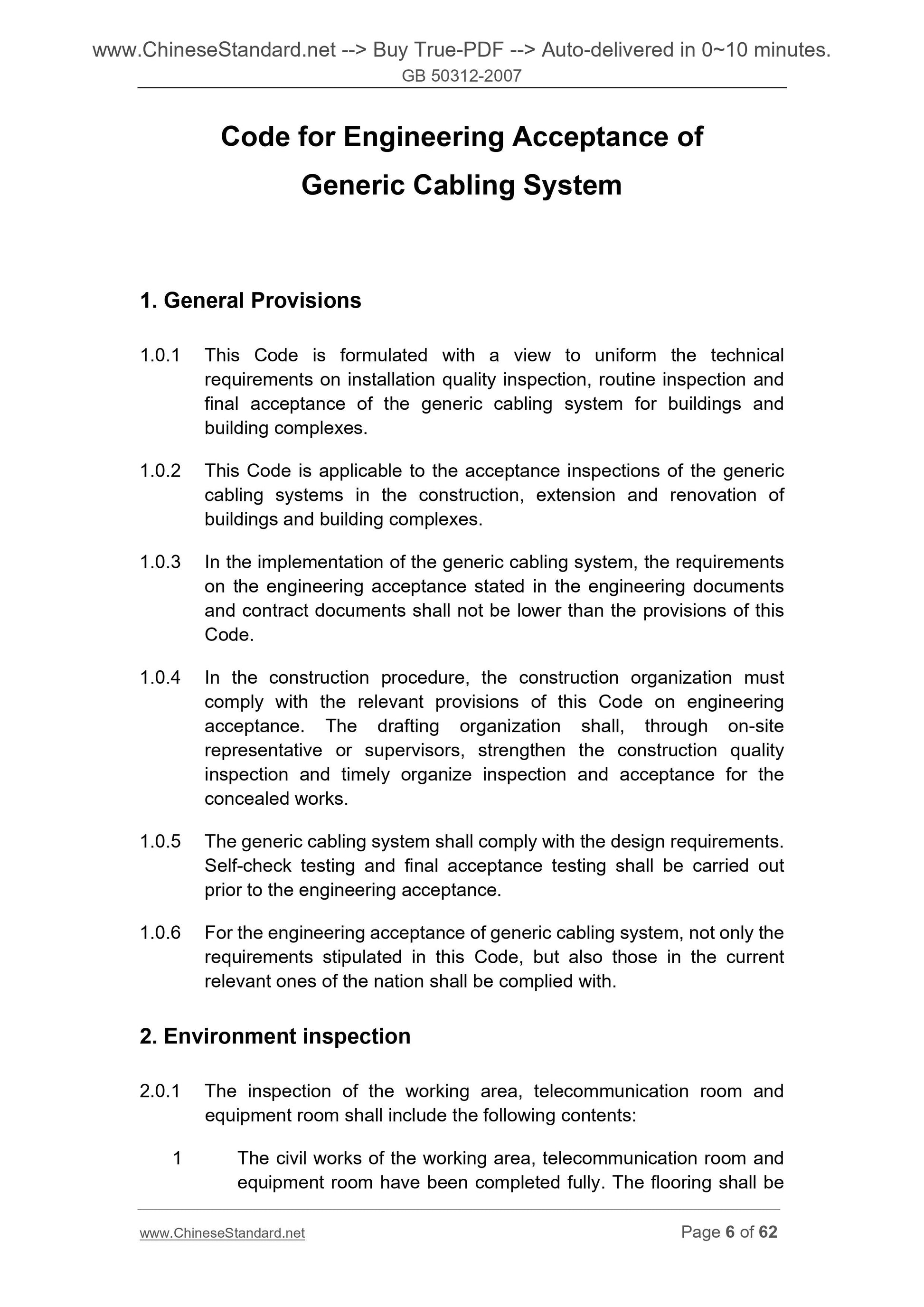

1. General Provisions
1.0.1 This Code is formulated with a view to uniform the technical
requirements on installation quality inspection, routine inspection and
final acceptance of the generic cabling system for buildings and
building complexes.
1.0.2 This Code is applicable to the acceptance inspections of the generic
cabling systems in the construction, extension and renovation of
buildings and building complexes.
1.0.3 In the implementation of the generic cabling system, the requirements
on the engineering acceptance stated in the engineering documents
and contract documents shall not be lower than the provisions of this
Code.
1.0.4 In the construction procedure, the construction organization must
comply with the relevant provisions of this Code on engineering
acceptance. The drafting organization shall, through on-site
representative or supervisors, strengthen the construction quality
inspection and timely organize inspection and acceptance for the
concealed works.
1.0.5 The generic cabling system shall comply with the design requirements.
Self-check testing and final acceptance testing shall be carried out
prior to the engineering acceptance.
1.0.6 For the engineering acceptance of generic cabling system, not only the
requirements stipulated in this Code, but also those in the current
relevant ones of the nation shall be complied with.

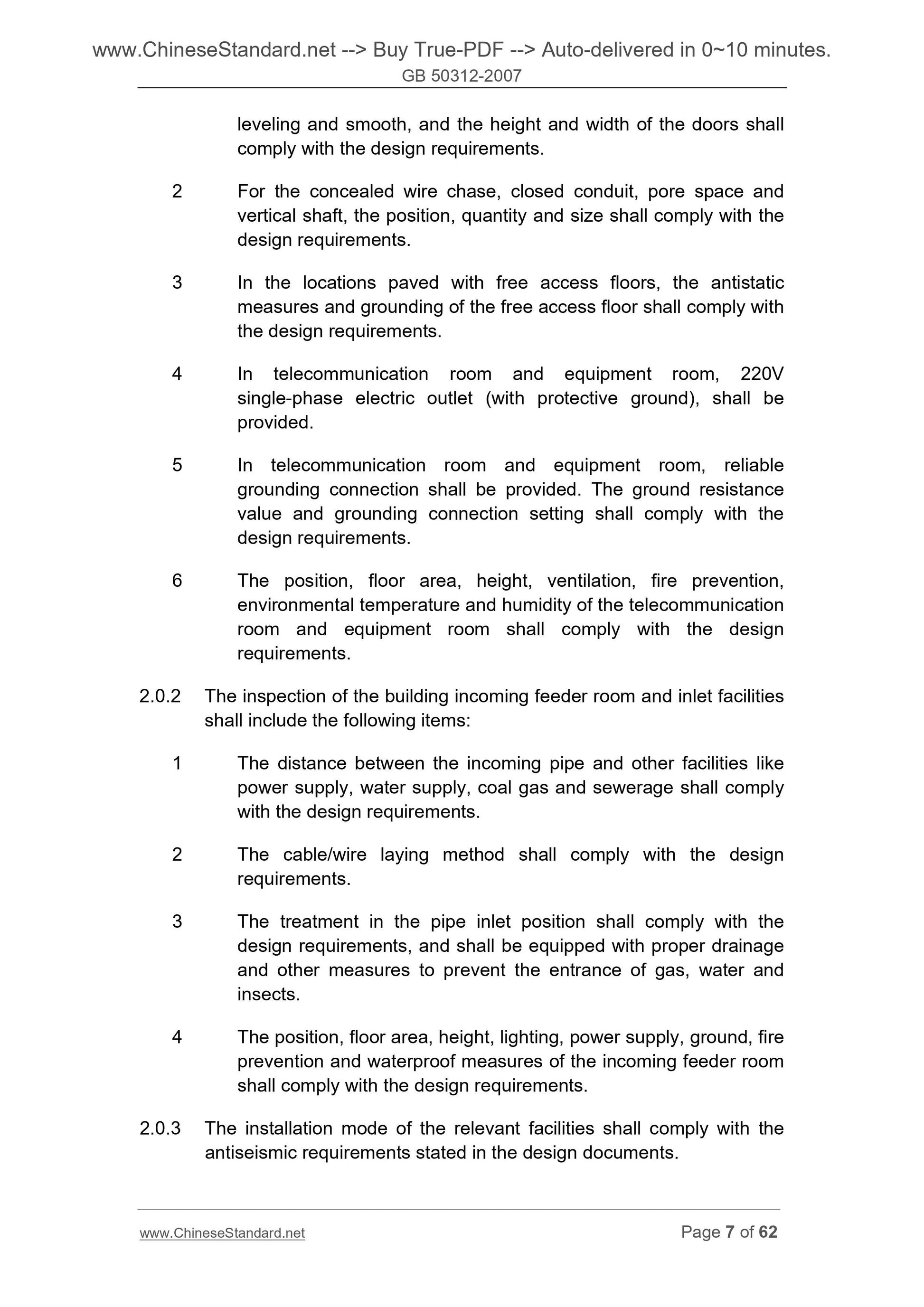

2. Environment inspection
2.0.1 The inspection of the working area, telecommunication room and
equipment room shall include the following contents.
1 The civil works of the working area, telecommunication room and
equipment room have been completed fully. The flooring shall be
leveling and smooth, and the height and width of the doors shall
comply with the design requirements.
2 For the concealed wire chase, closed conduit, pore space and
vertical shaft, the position, quantity and size shall comply with the
design requirements.
3 In the locations paved with free access floors, the antistatic
measures and grounding of the free access floor shall comply with
the design requirements.
4 In telecommunication room and equipment room, 220V
single-phase electric outlet (with protective ground), shall be
provided.
5 In telecommunication room and equipment room, reliable
grounding connection shall be provided. The ground resistance
value and grounding connection setting shall comply with the
design requirements.
6 The position, floor area, height, ventilation, fire prevention,
environmental temperature and humidity of the telecommunication
room and equipment room shall comply with the design
requirements.
2.0.2 The inspection of the building incoming feeder room and inlet facilities
shall include the following items.
1 The distance between the incoming pipe and other facilities like
power supply, water supply, coal gas and sewerage shall comply
with the design requirements.
2 The cable/wire laying method shall comply with the design
requirements.
3 The treatment in the pipe inlet position shall comply with the
design requirements, and shall be equipped with proper drainage
and other measures to prevent the entrance of gas, water and
insects.
4 The position, floor area, height, lighting, power supply, ground, fire
prevention and waterproof measures of the incoming feeder room
shall comply with the design requirements.
2.0.3 The installation mode of the relevant facilities shall comply with the
antiseismic requirements stated in the design documents.

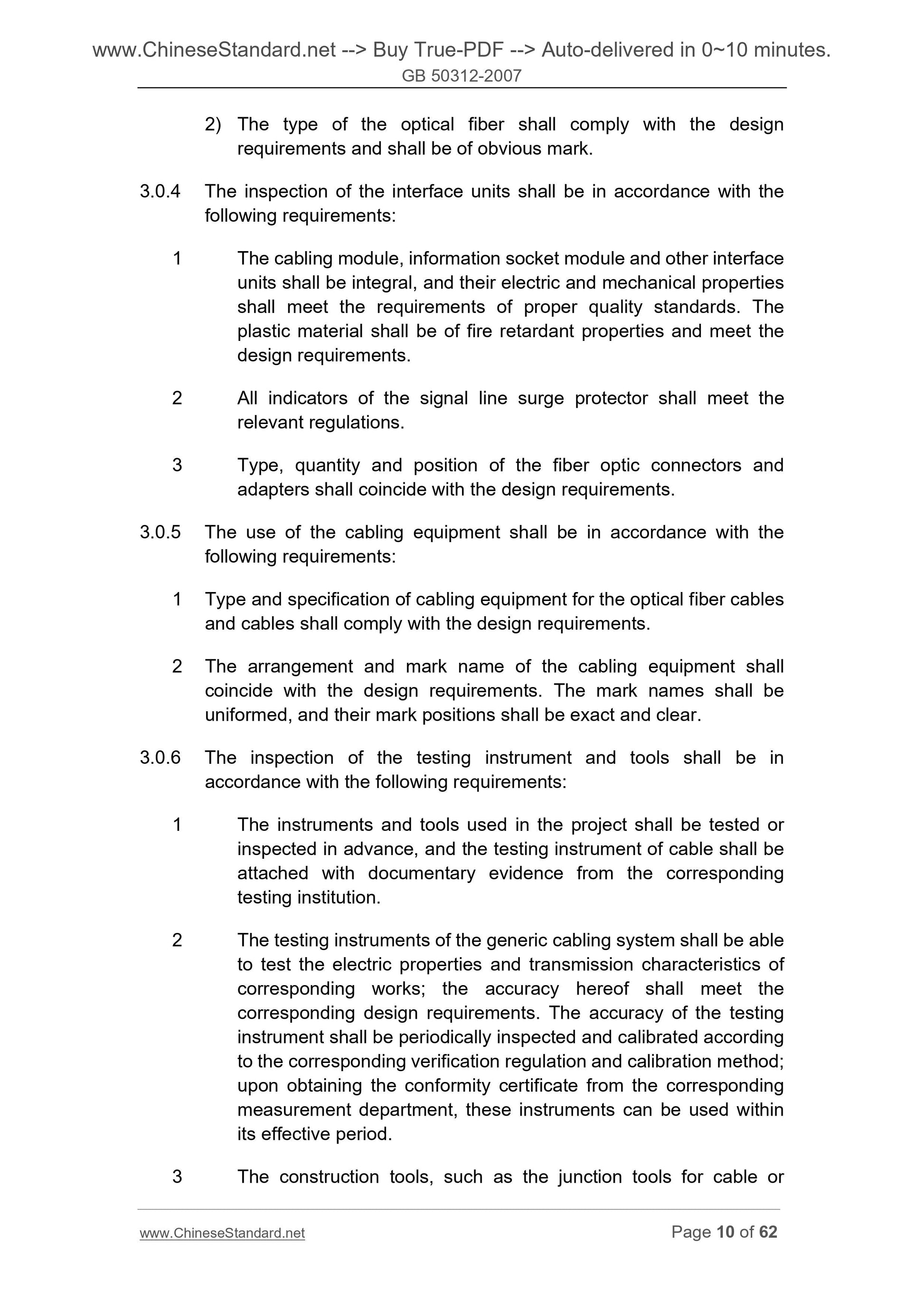

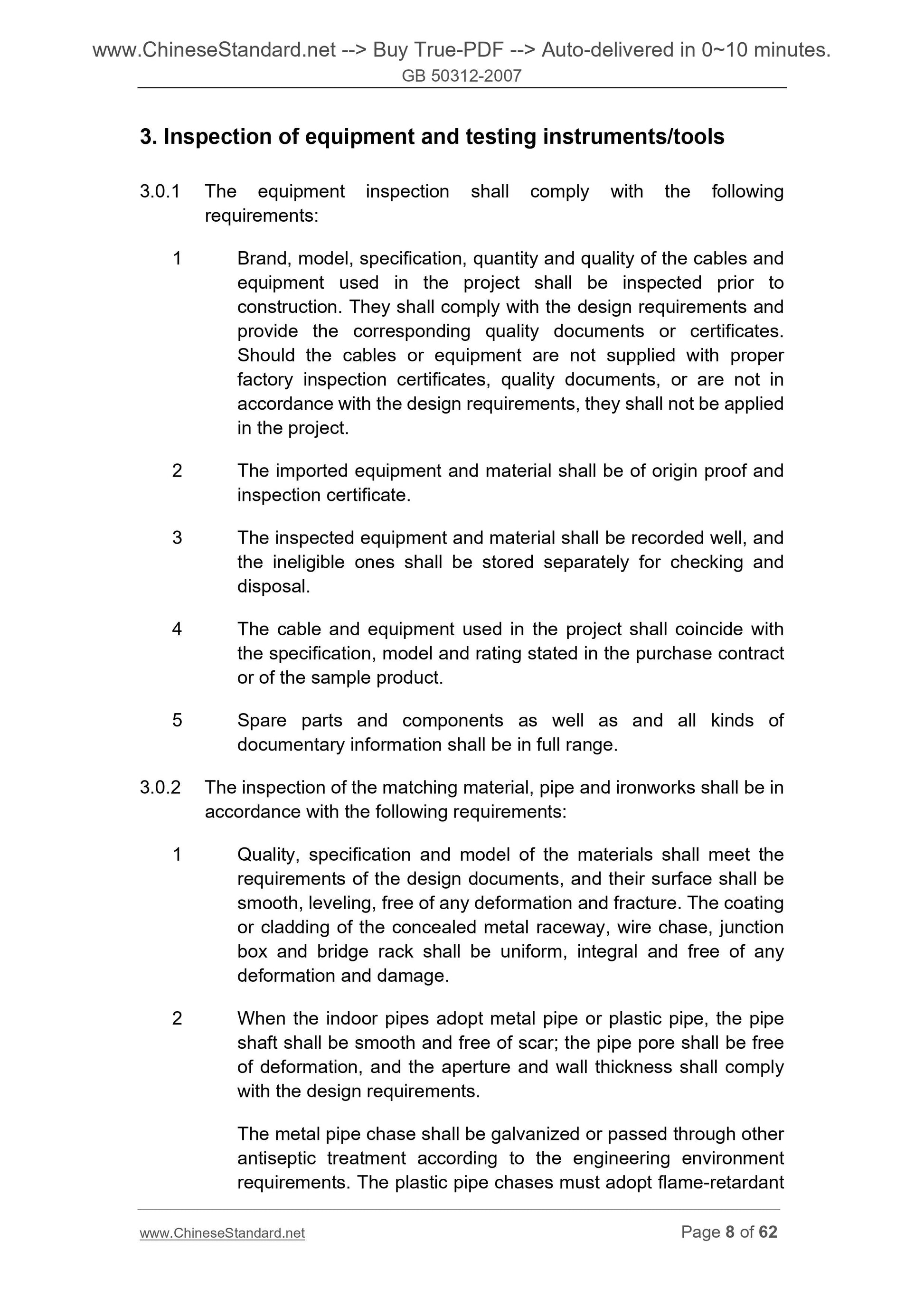

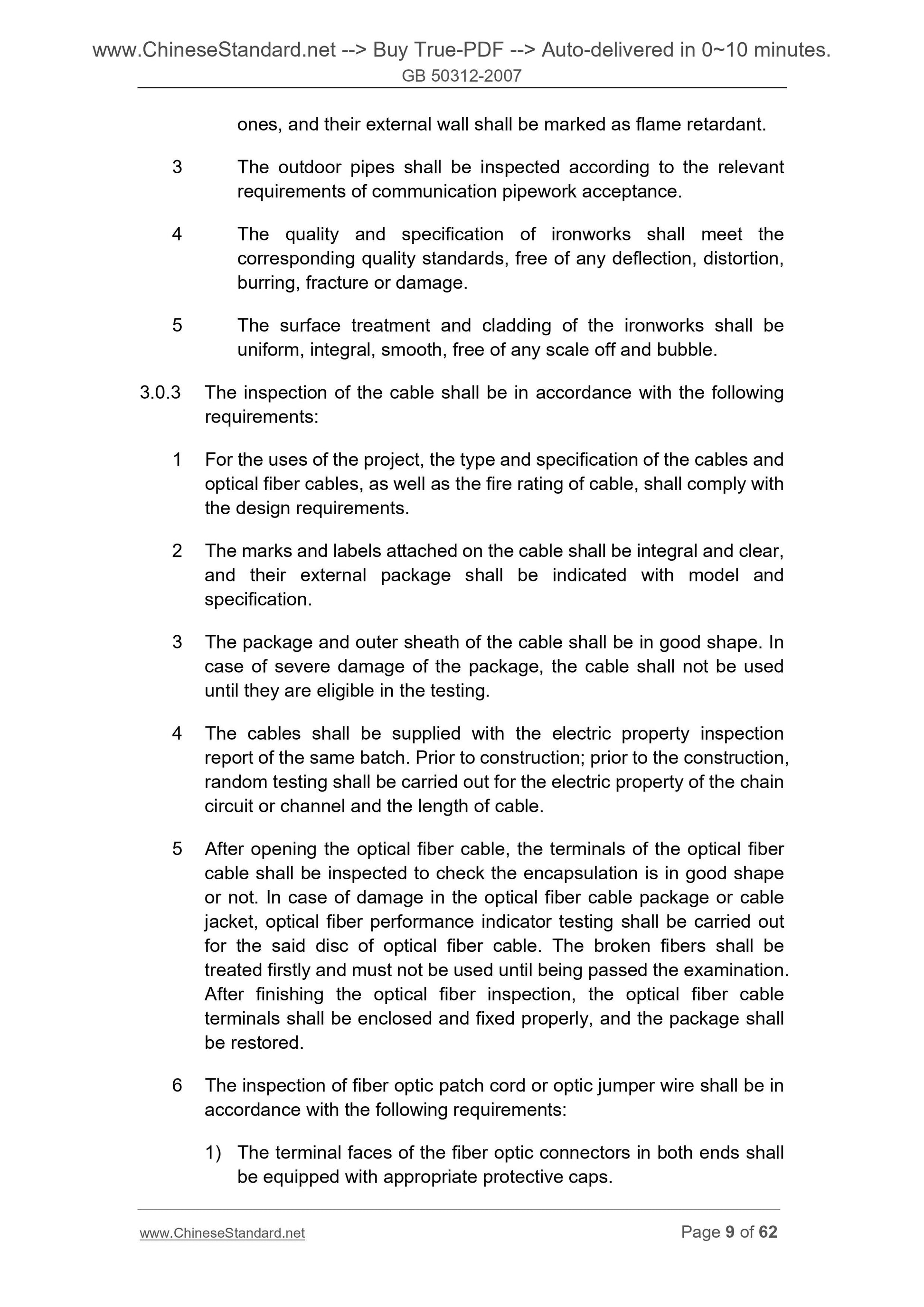

3. Inspection of equipment and testing instruments/tools
3.0.1 The equipment inspection shall comply with the following
requirements.
1 Brand, model, specification, quantity and quality of the cables and
equipment used in the project shall be inspected prior to
construction. They shall comply with the design requirements and
provide the corresponding quality documents or certificates.
Should the cables or equipment are not supplied with proper
factory inspection cert...
