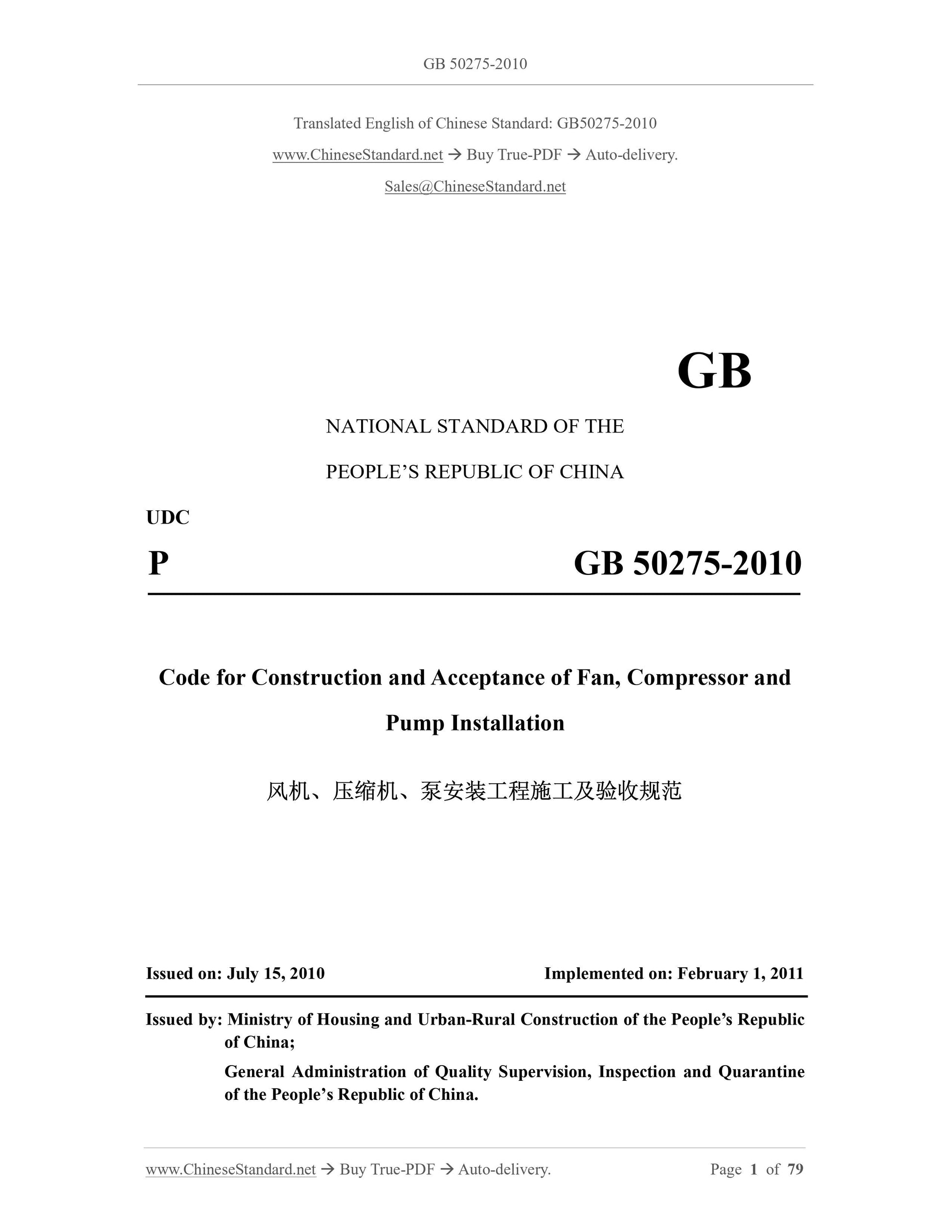

GB 50275-2010: Code for construction and acceptance of fan, compressor and pump installation
UDC
NATIONAL STANDARD
OF THE PEOPLE'S REPUBLIC OF CHINA
Code for Construction and Acceptance of Fan,
Compressor and Pump Installation
ISSUED ON. JULY 15, 2010
IMPLEMENTED ON. FEBRUARY 1, 2011
Jointly Issued by Ministry of Housing and Urban-Rural Construction of the People's
Republic of China
General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China
NKfiONAL STANDARD
OF TI-IE PEOPLE'S REPUBLIC OF CHINA
Code for Construction and Acceptance ofF an,
Compressor and Pump Installation
Chief Development Department. China Machinery Industry Federation
Approval Depattment. Ministry of Housing and Urban-Rural Development of the People's Republic
of China
Implementation Date. February 1, 2011
Beijing 2011
NOTICE
This code is written in Chinese and English. The Chinese text shall be taken as the ruling one in
the event of any inconsistency between the Chinese text and the English text.
Announcement of the Ministry of Housing and Urban-Rural
Development of the People's Republic of China
No. 660
Announcement on Publishing the National Standard "Code for Construction and
Acceptance of Fan, Compressor and Pump Installation"
"Code for Construction and Acceptance of Fan, Compressor and Pump Installation" has been
approved as a national standard with a serial number of GB 50275-2010 and shall be implemented
on February 1, 2011 . Therein, Articles (Items) 2.3 .6 (3), 3.1.1 (5) and 4.7.1 (2) are compulsory
provisions and must be enforced strictly. The former "Code for Construction and Acceptance of
Compressor, Fan and Pump Installation" GB 50275-98 shall be abolished simultaneously.
Authorized by the Standard Rating Research Institute of the Ministry of Housing and Urban-Rural
Development of the People's Republic of China, this code is published and distributed by China
Planning Press.
Ministry of Housing and Urban-Rural Development of the People's Republic of China
July 15, 2010
Foreword
According to the requirements of Document JIANBIAO [2003] No. 102 issued by former
Ministry of Construction (MOC)- "Notice on Printing and Publishing the Development and Revision
Plan of National Engineering Construction Standards in 2002~2003", this standard was formulated
through revising the standard "Code for Construction and Acceptance of Compressor, Fan and Pump
Installation" GB 50275-98 by the China CMIIC Engineering and Construction Corporation jointly
with the organizations concerned.
During the revision process of this standard, the revision group investigated and researched
widely, summarized the practical experience in casting equipment in the last decade, carried out
monographic studies, referred to a great deal of documents and engineering data, sought the opinions
from the organizations and experts concerned nationwide, and finalized this code through examination
after repeated discussion, modification and perfection.
The main changes in this revision include.
1. Adjust the editing order of Chapter 2 "Compressor" and Chapter 3 "Fan" in the former
standard, and change the standard name as "Code for Construction and Acceptance of Fan, Compressor
and Pump Installation"; set the provisions in common requirements in Sections in the former standard
to Section "Bas ic Requirements" in each chapter.
2. Add the technical stipulations in installation, safety and environmental protection of anti-
explosion fan, firefighting smoke extractor fan, vortex pump, gear pump, rotor pump, submersible
water pump, etc.
3. Make adjustment, revision and supplementation for the content and parameters in pa1tial
chapter, Section and appendix in the former standard.
The provisions printed in bold type in this code are compulsory provisions and must be enforced
strictly.
The Ministry of Housing and Urban-Rural Development is in charge of the administration of this
standard and the explanation of the compulsory provisions hereof; the China Machinery Industry
Federation is in charge of the routine management; and the China CMIIC Engineering and Construction
Corporation is responsible for the explanation of specific technical contents. All relevant organizations
are kindly requested to sum up and accumulate your experiences in actual practices during the process
of implementation; the relevant opinions and advices, whenever necessary, can be posted or passed on
to the Mechanical Industrial Installation Engineering Standard Quota Station of China (Address. 5#
Building, 5# South Alley, Sanlihe Road, Xicheng District, Beijing 100045, China; E-mail. jxdez@
cmiic.com.cn) for our later reference during revision.
Organization Unit. China Mechanical Industrial Exploration and Design Association
Chief Development Organization.
China CMIIC Engineering and Construction Corporation
The Fourth Construction Engineering Company of China Machinery Industry
Beijing Industrial Designing and Researching Institute
Participating Development Organizations.
China Machinery Industry Mechanization Construction Company
China Machinery Industry Fifth Construction and Engineering Corporation
China Mechanical Industrial Fourth Construction Engineering Corporation
Southwest Engineering School
China SANAN Engineering Construction Corporation
China Mechanical Industrial Second Construction Engineering Company
Chief Drafting Staffs. Li Gongfu, Xue Tao, Guan Jin, Zhang Qing, Liu Ruimin, Peng Yongyi,
Mei Fangdi, Sun Shuying, Yan Wenhua, Wang Lijuan, Zhengmingxiang,
Zhan Yuan, Fan Huixia, Liu Xulong, Gao Jie, Du Shimin, Xu Hui,
Chai Suihong, Zhang Liheng
Chief Examiners. Liu Huiyuan, Yan Zuqing, Xu Qinglei, Liu Chunlai, Chen Guangyun,
Liu Guanggen, Xu Yinglu, Zhang Guangzhi, Li Yinghui, Wang Qingquan,
Zhou Yan

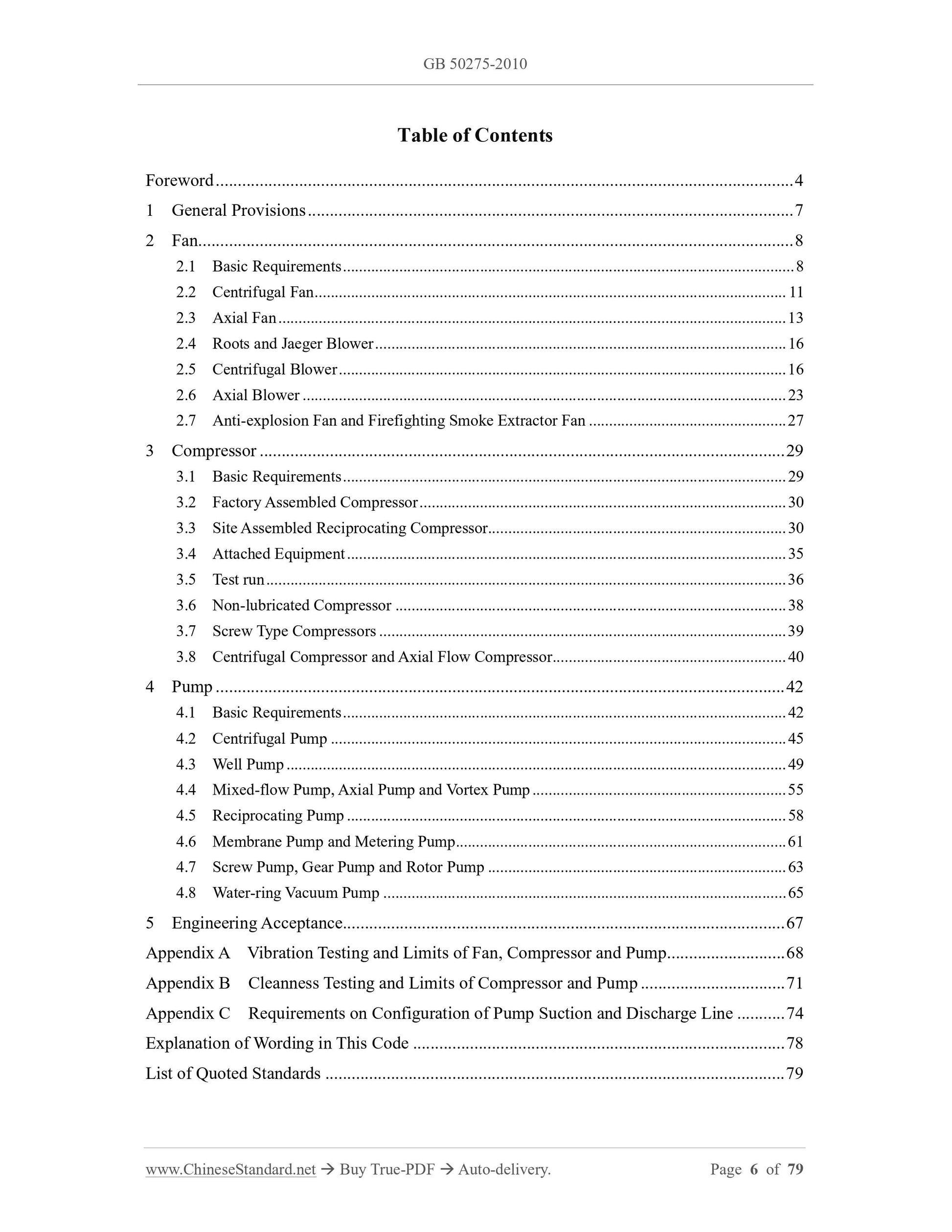

Contents
General Provisions ... 1
2 Fan ... 2

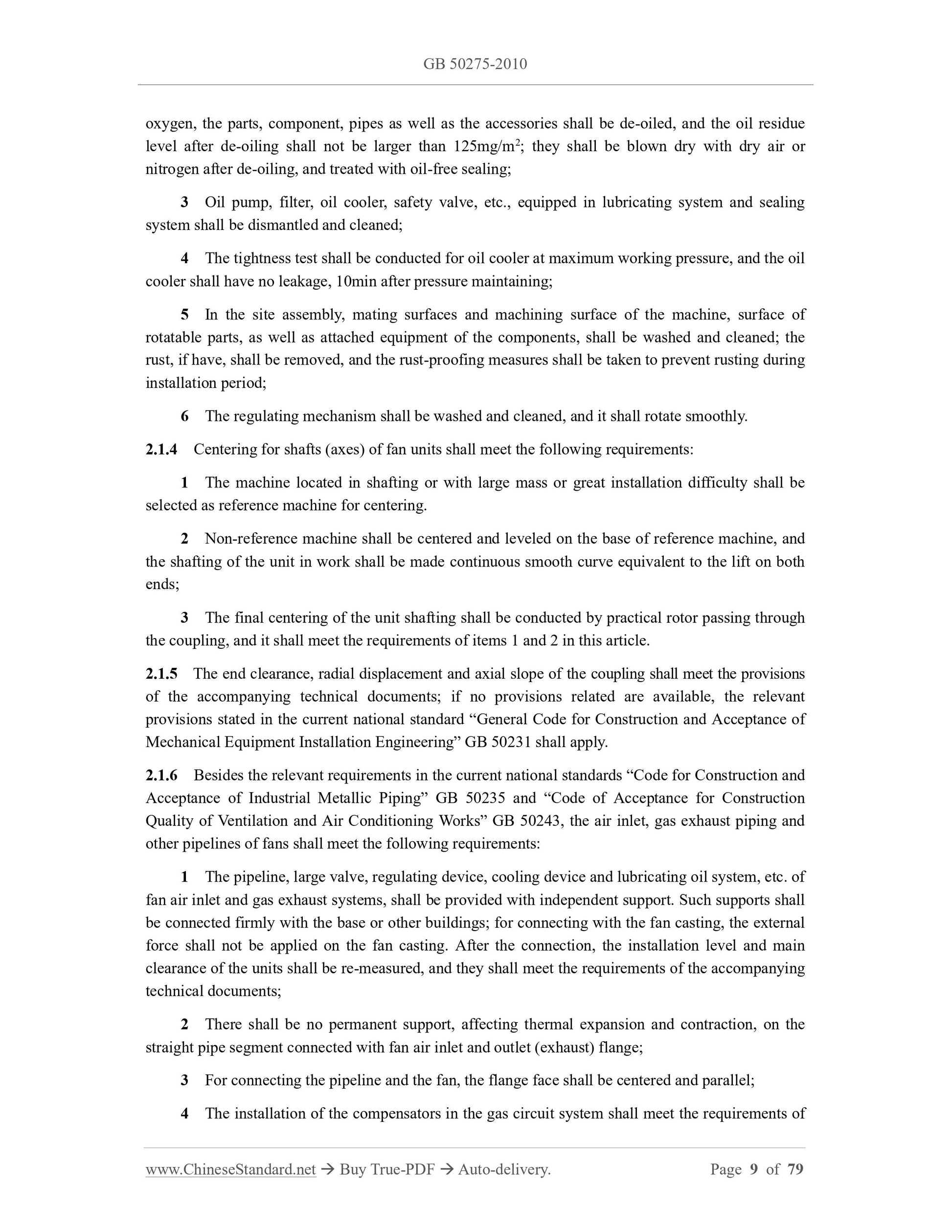

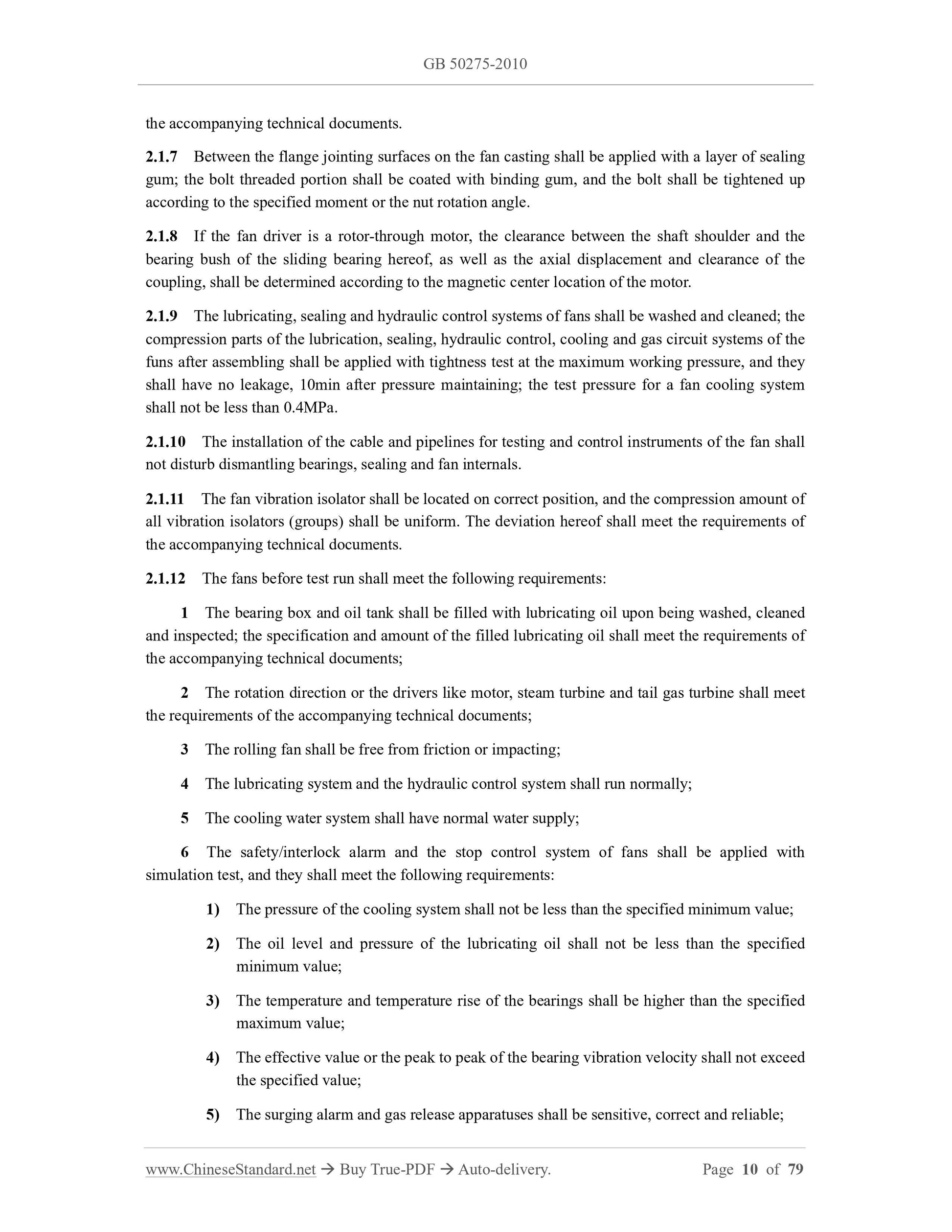

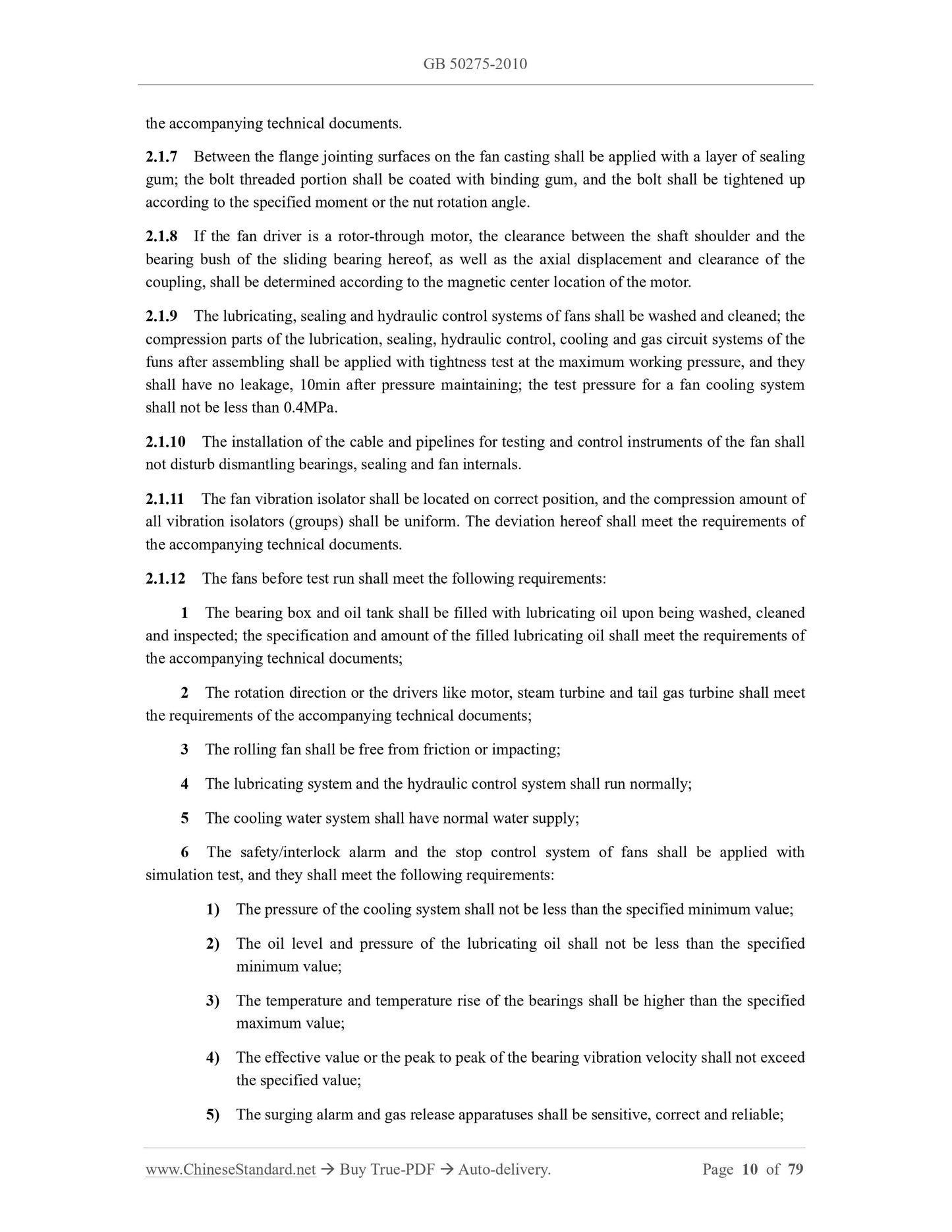

2.1 Basic Requirements ... 2
2.2 Centrifugal Fan ... 5
2.3 Axial Fan ... 7
2.4 Roots and Jaeger Blower ... 9

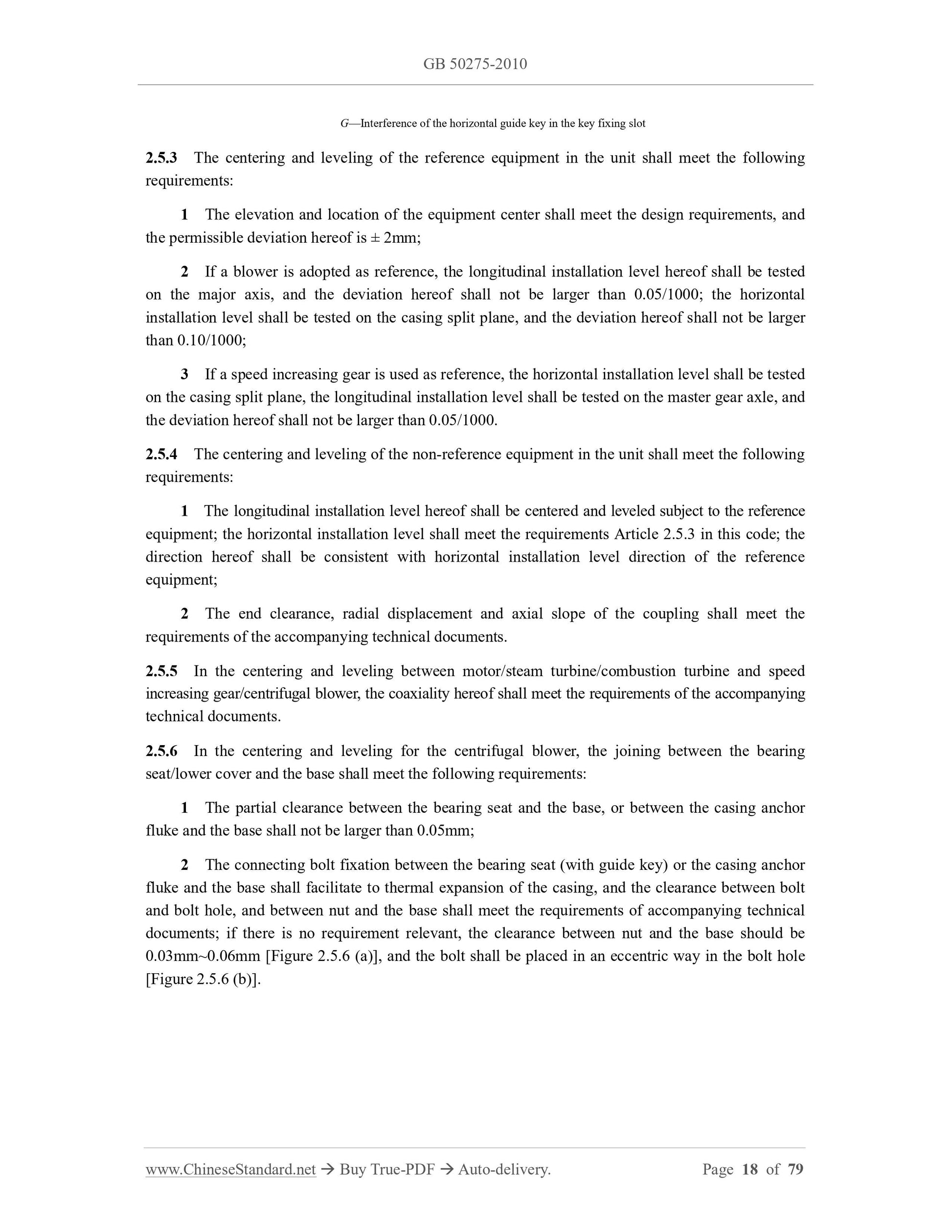

2.5 Centrifugal Blower ... 10

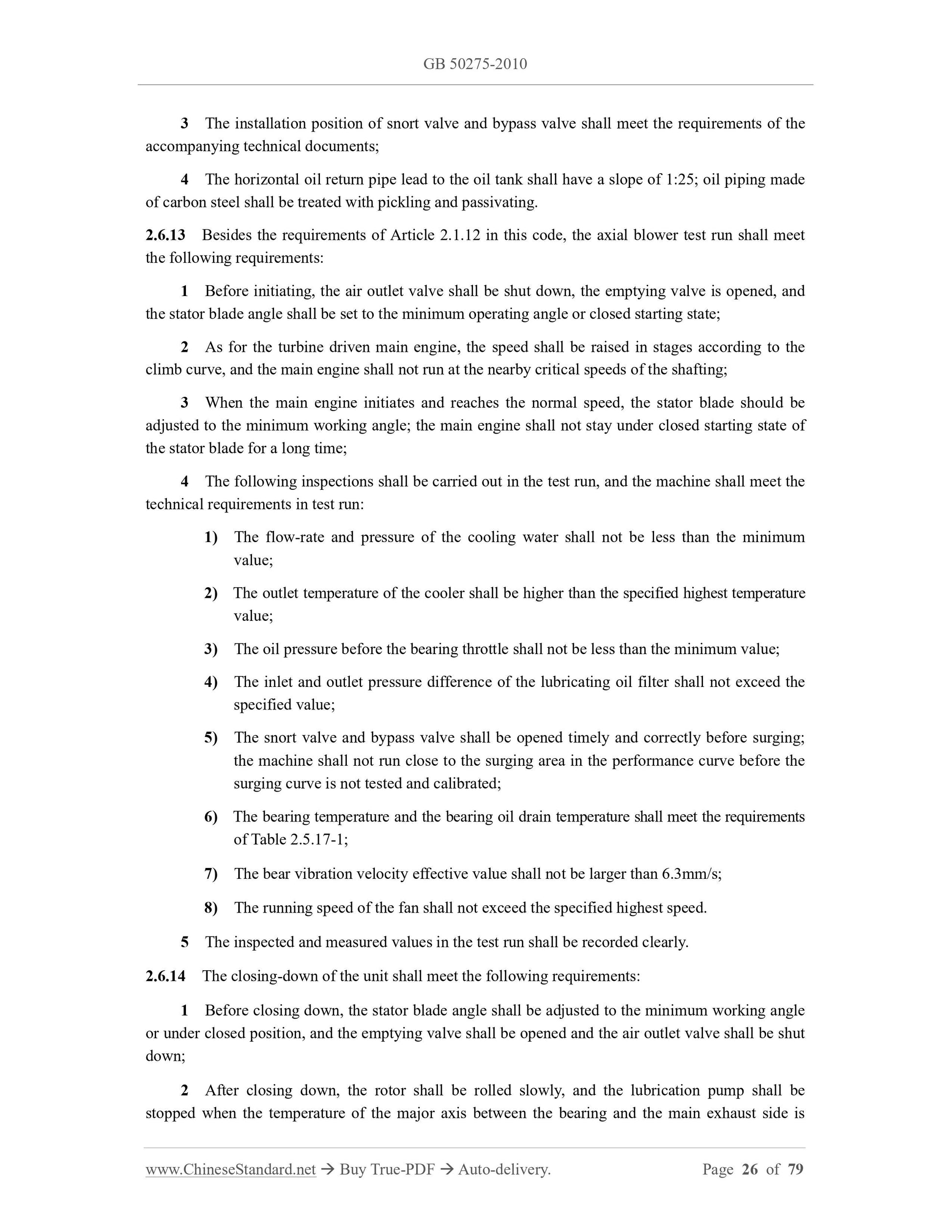

2.6 Axial Blow·er ... 17
2.7 Anti-explosion Fan and Firefighting Smoke Extractor Fan ... 20
3 Compressor... 22

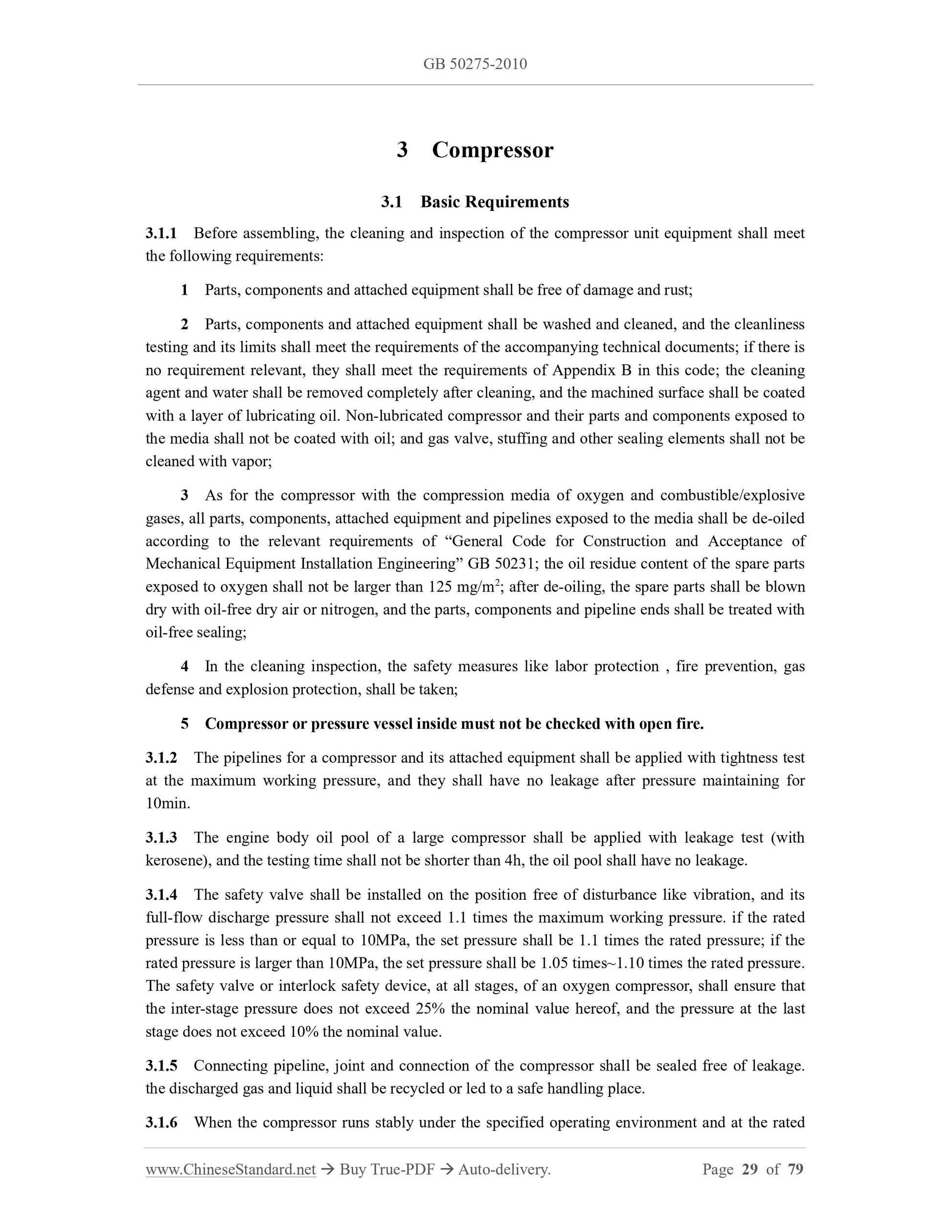

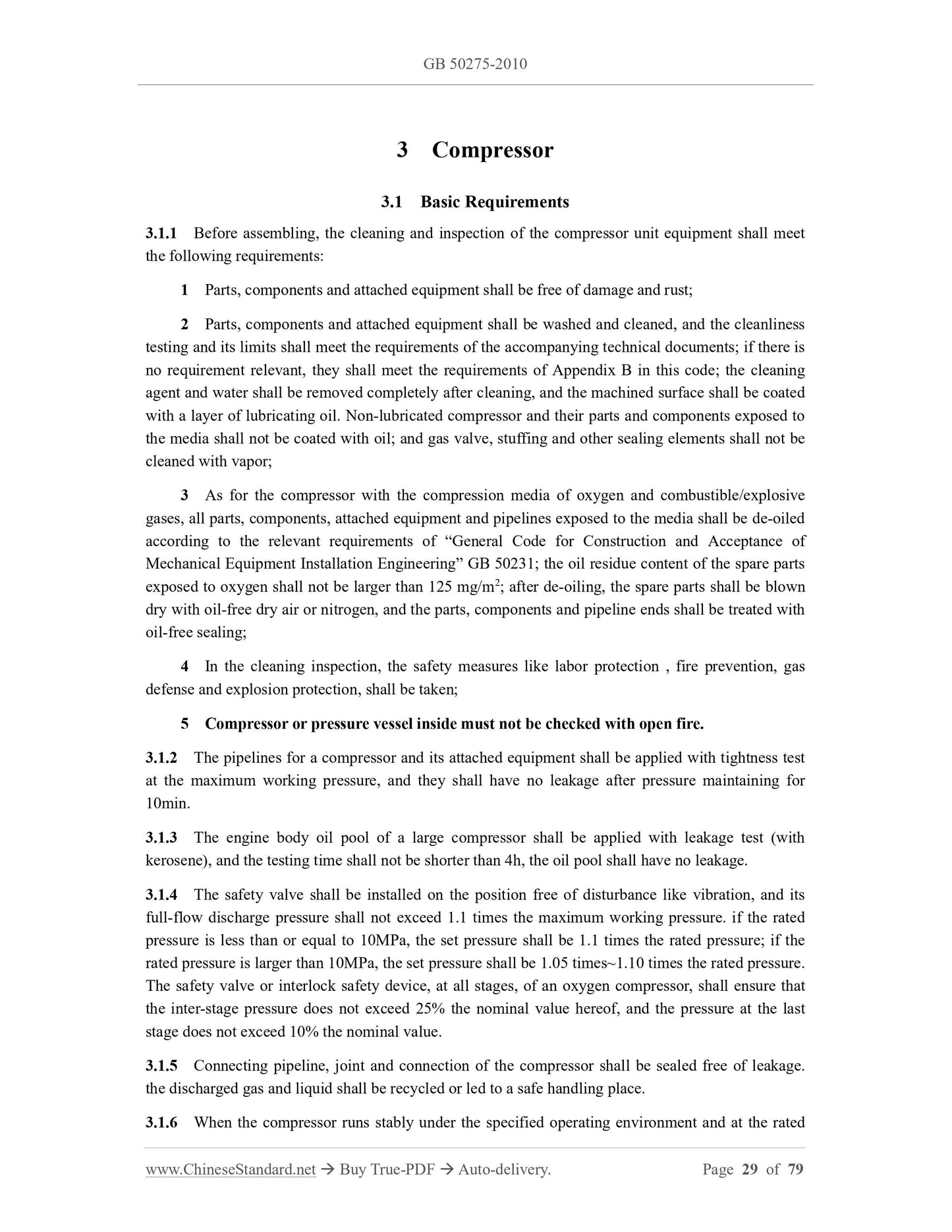

3.1 Basic Requirements ... 22
3.2 Factory Assembled Compressor ... 23

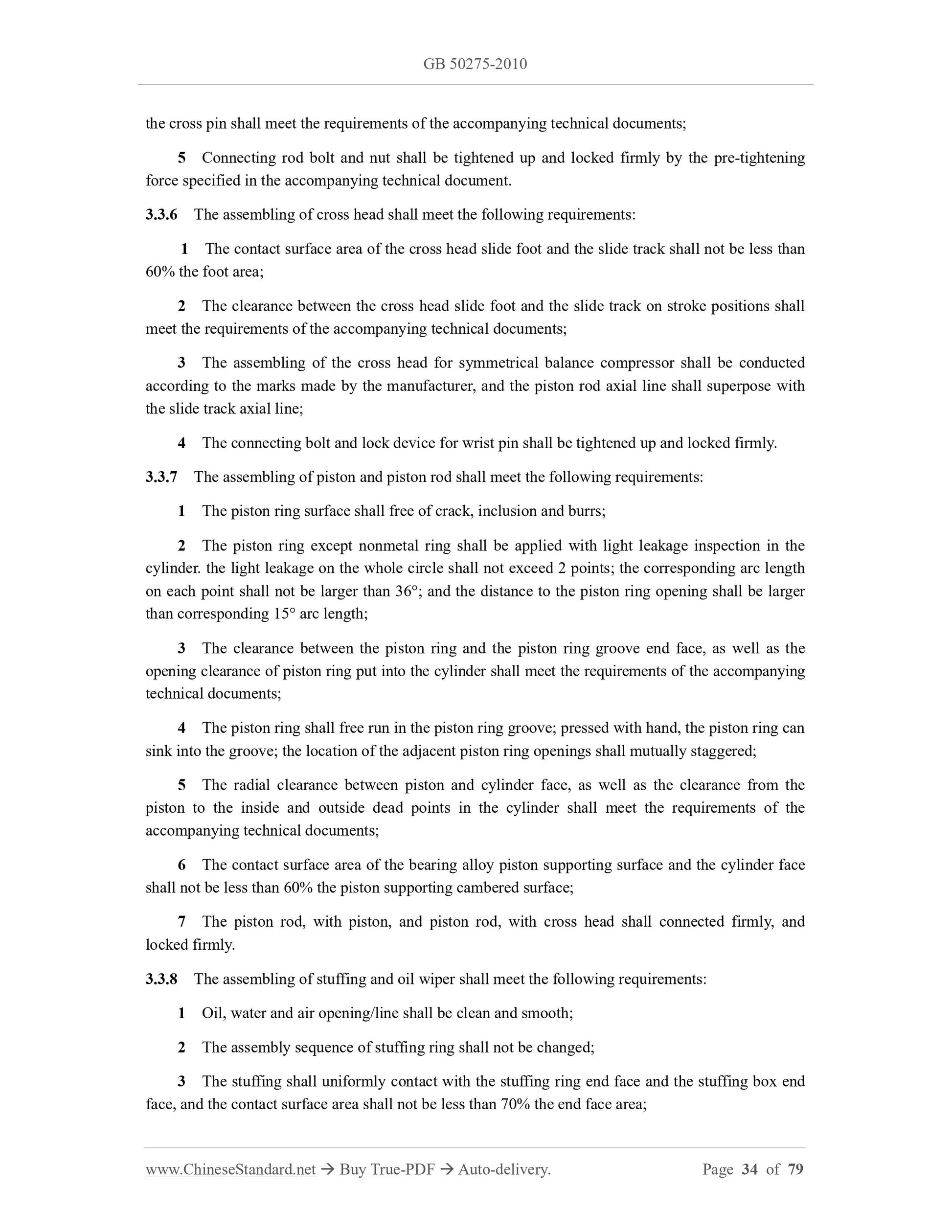

3.3 Site Assembled Reciprocating Compressor ... 23
3.4 Attached Equipments ... 28
3.5 Test run ... 28
3.6 Non-lubricated Compressor... 31
3. 7 Screw Type Compressors ... 3 2
3.8 Centrifugal Compressor and Axial Flow Compressor ... 33
4 Pump ... 35
4.1 Basic Requirements ... 35
4.2 Centrifugal Pun1p ... 38
4.3 Well Putnp ... 42
4.4 Mixed-flow Pump, Axial Pump and Vortex Pump ... 47
4.5 Reciprocating Putnp ... 50
4.6 Membrane Pump and Metering Pump ... 53
4.7 Screw Pump, Gear Pump and Rotor Pump ... 55
4.8 Water-ring Vacutnn Putnp ... 57
5 Engineering Acceptance ... 59
Appendix A Vibration Testing and Limits of Fan, Compressor and Pump ... 60
Appendix B Cleanness Testing and Limits of Compressor and Pump ... 63
Appendix C Requirements on Configuration of Pump Suction and Discharge Line ... 66
Explanation of Wording in This Code ... 69
List of Quoted Standards ... 70

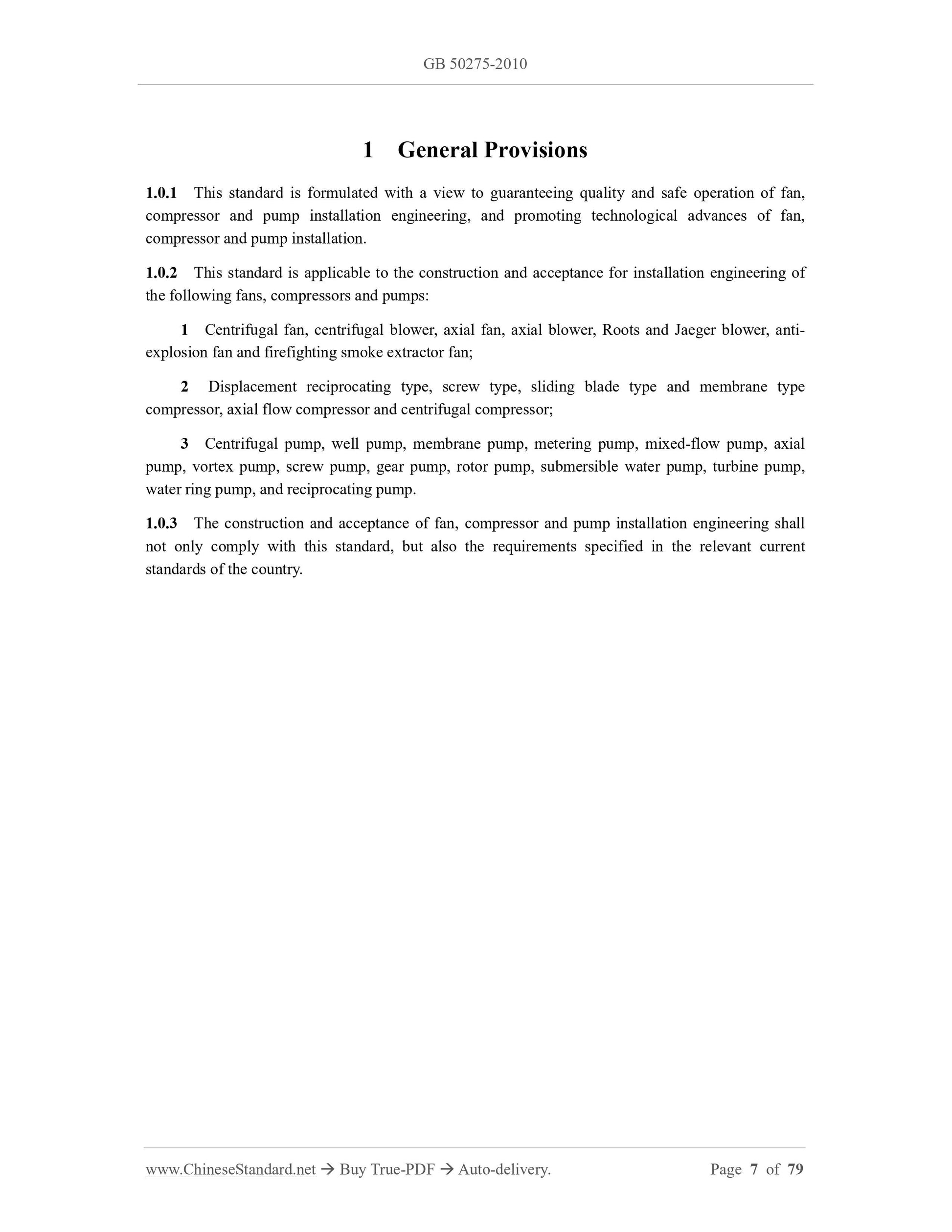

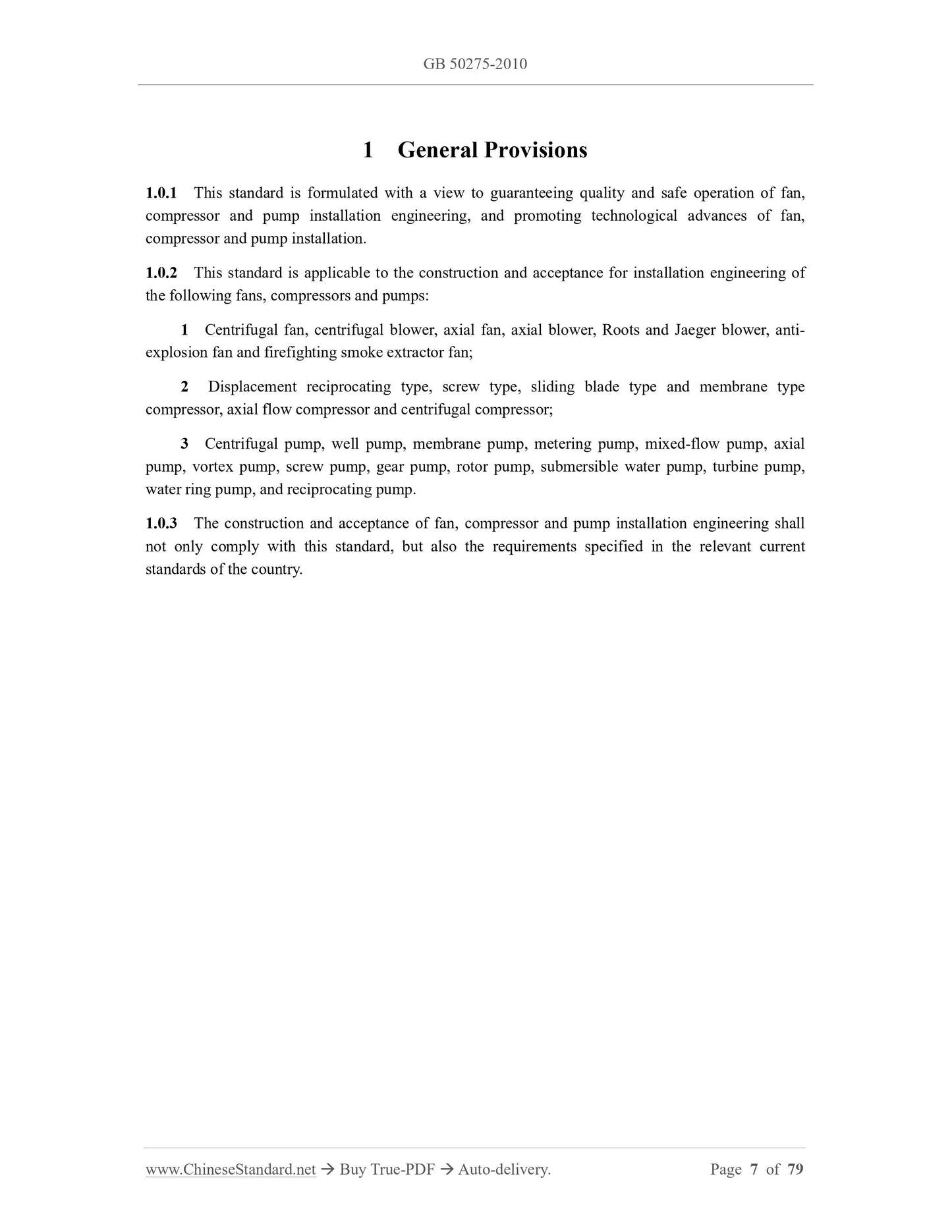

1 GeneraJI>rovisions
1.0.1 This standard is formulated with a view to guaranteeing quality and safe operation of fan,
compressor and pump installation engineering, and promoting technological advances of fan ,
compressor and pump installation.
1.0.2 This standard is applicable to the construction and acceptance for installation engineering of
the following fans , compressors and pumps.
1 Centrifugal fan, centrifugal blower, axial fan,...
