GB 50209-2002: Code for acceptance of construction quality of building ground

This Code is applicable for the acceptance of construction quality of the building ground (including auxiliary constructions such as outdoor apron, acceptance of construction quality of the building ground with special requirements such as heat preservation, heat insulation, ultraclean, screen, anti-radioactivity and anti-corrosion.

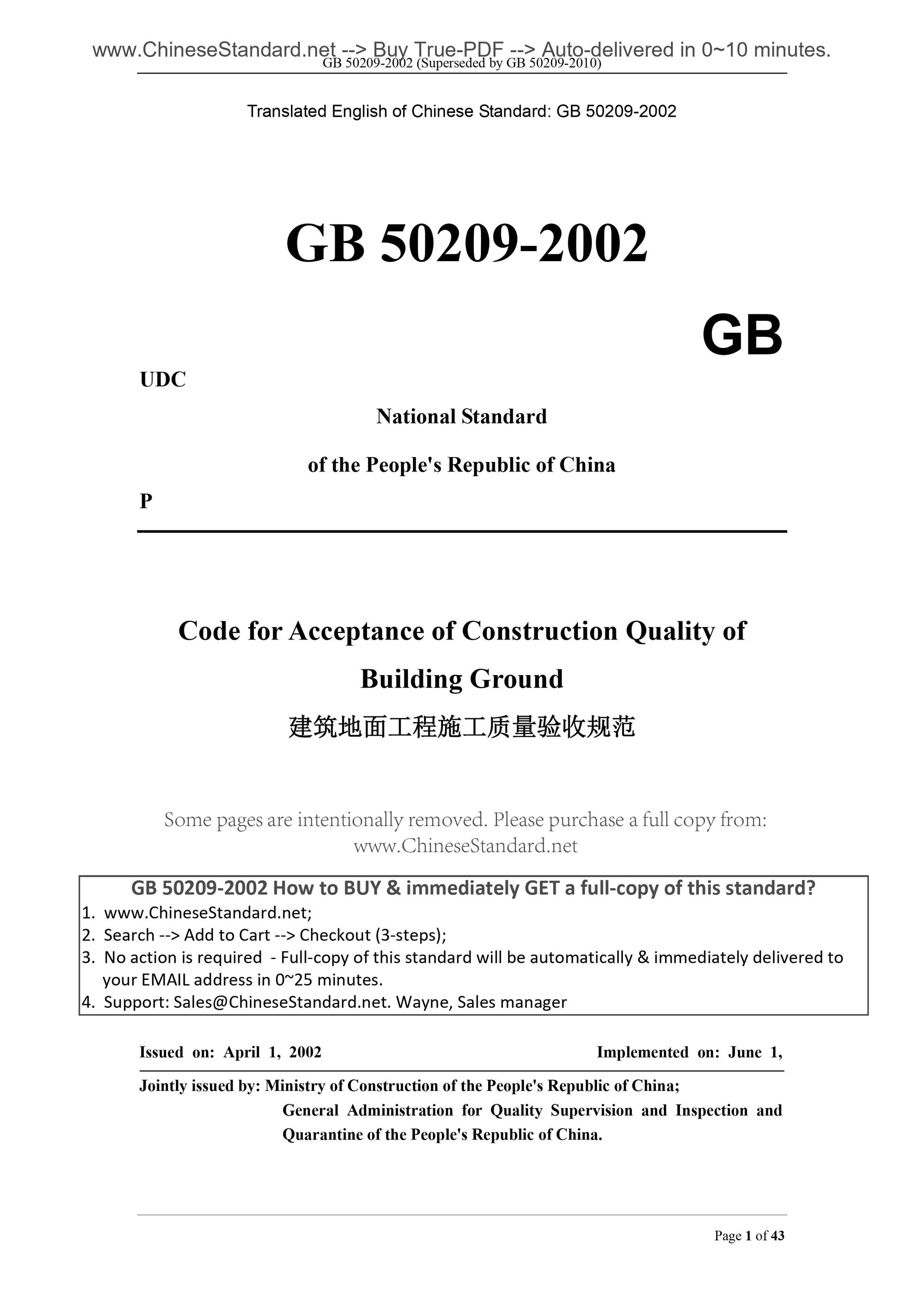

GB 50209-2002 (Superseded by GB 50209-2010)
GB
UDC
National Standard
of the People's Republic of China
Code for Acceptance of Construction Quality of
Building Ground
ISSUED ON. APRIL 1, 2002
IMPLEMENTED ON. JUNE 1,
Jointly issued by. Ministry of Construction of the People's Republic of China; General Administration for Quality Supervision and Inspection and
Quarantine of the People's Republic of China.
Some pages are intentionally removed. Please purchase a full copy from. National Standard

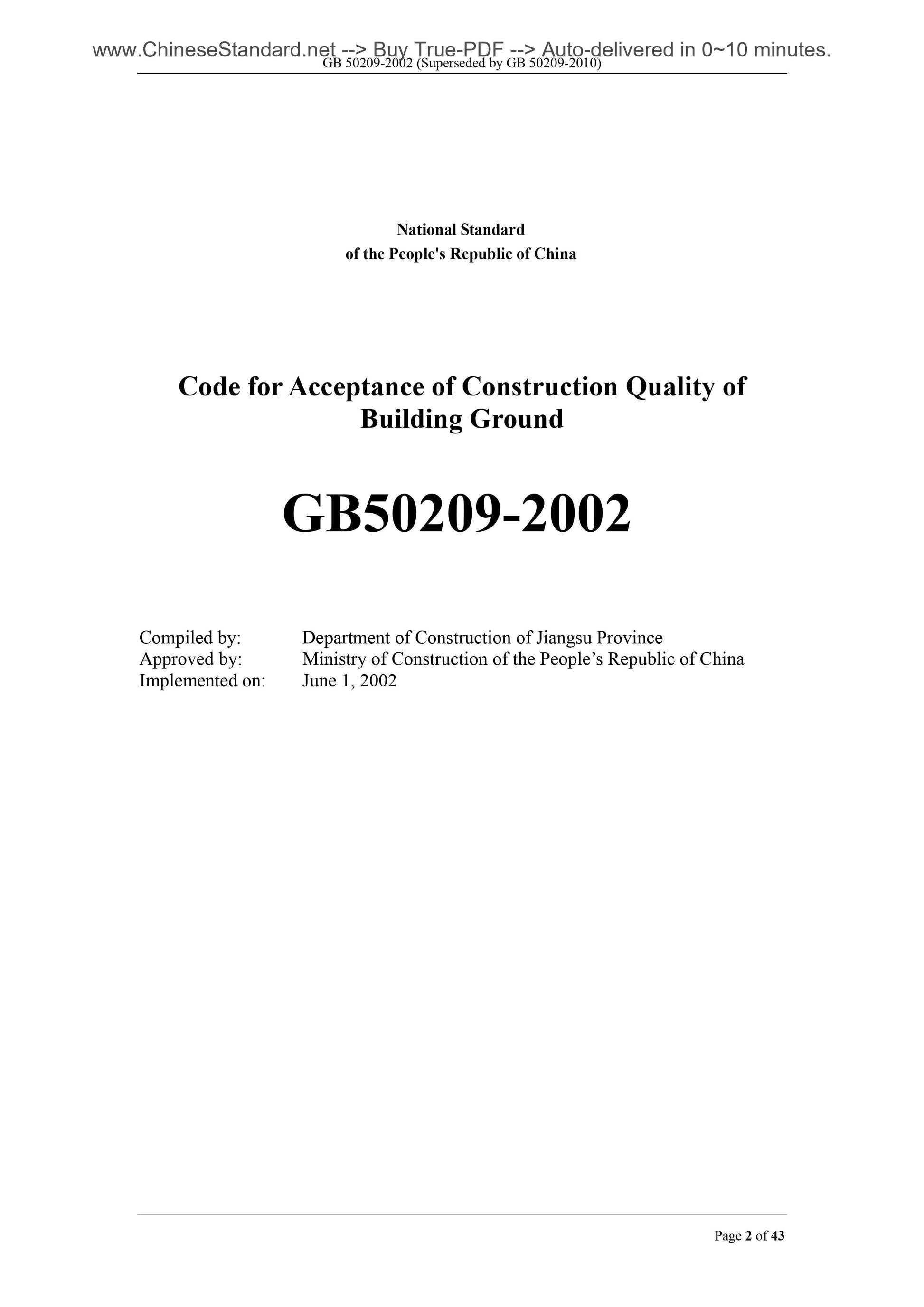

of the People's Republic of China
Code for Acceptance of Construction Quality of
Building Ground
Compiled by. Department of Construction of Jiangsu Province
Approved by. Ministry of Construction of the PEOPLE Republic of China IMPLEMENTED ON. JUNE 1, 2002

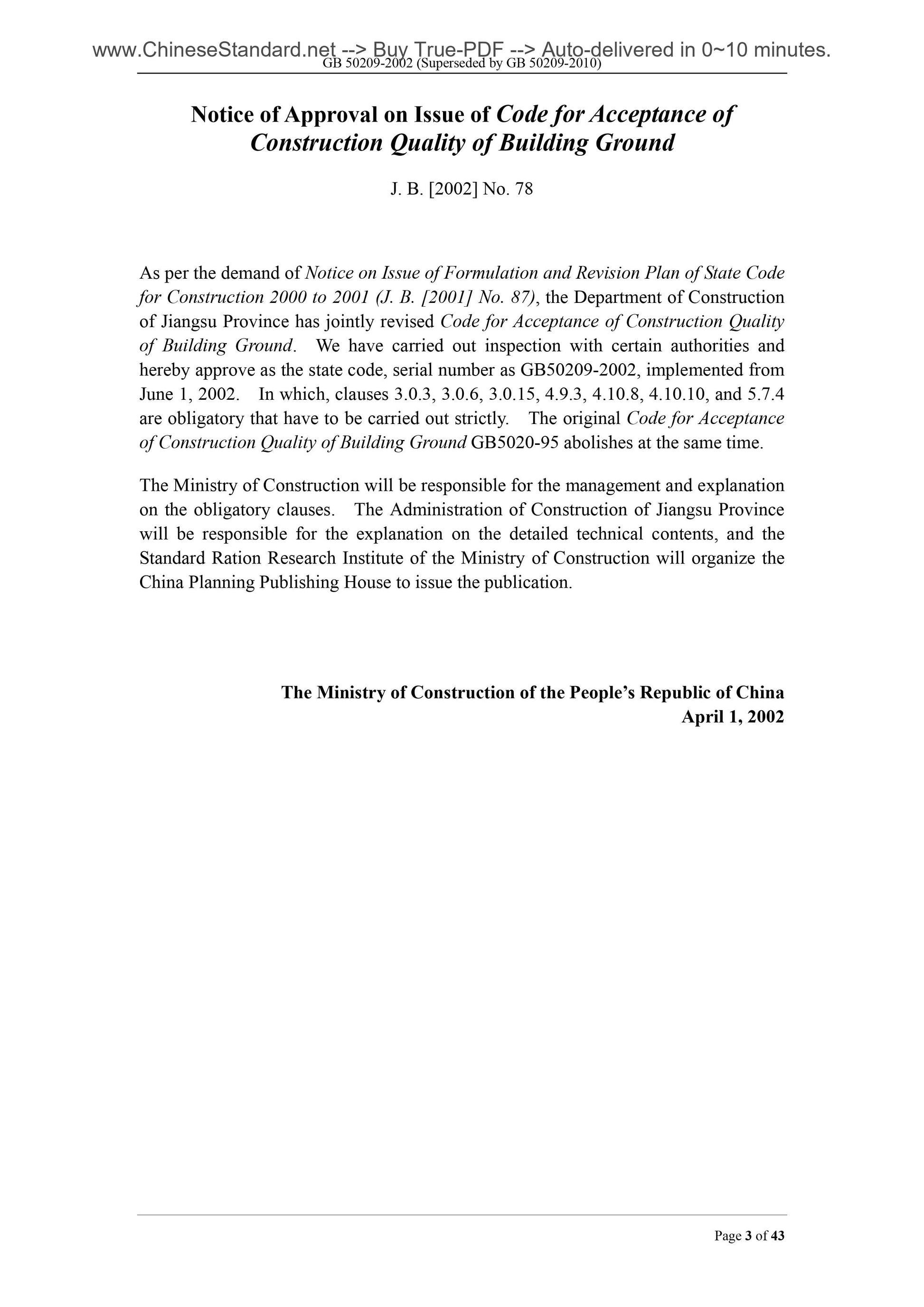

Notice of Approval on Issue of Code for Acceptance of
Construction Quality of Building Ground
J. B. [2002] No. 78
As per the demand of Notice on Issue of Formulation and Revision Plan of State Code for Construction 2000 to 2001 (J. B. [2001] No. 87), the Department of Construction of Jiangsu Province has jointly revised Code for Acceptance of Construction Quality of Building Ground. We have carried out inspection with certain authorities and hereby approve as the state code, serial number as GB50209-2002, implemented from June 1, 2002. In which, clauses 3.0.3, 3.0.6, 3.0.15, 4.9.3, 4.10.8, 4.10.10, and 5.7.4 are obligatory that have to be carried out strictly. The original Code for Acceptance of Construction Quality of Building Ground GB5020-95 abolishes at the same time. The Ministry of Construction will be responsible for the management and explanation on the obligatory clauses. The Administration of Construction of Jiangsu Province will be responsible for the explanation on the detailed technical contents, and the Standard Ration Research Institute of the Ministry of Construction will organize the China Planning Publishing House to issue the publication.
The Ministry of Construction of the PEOPLE Republic of China
April 1, 2002

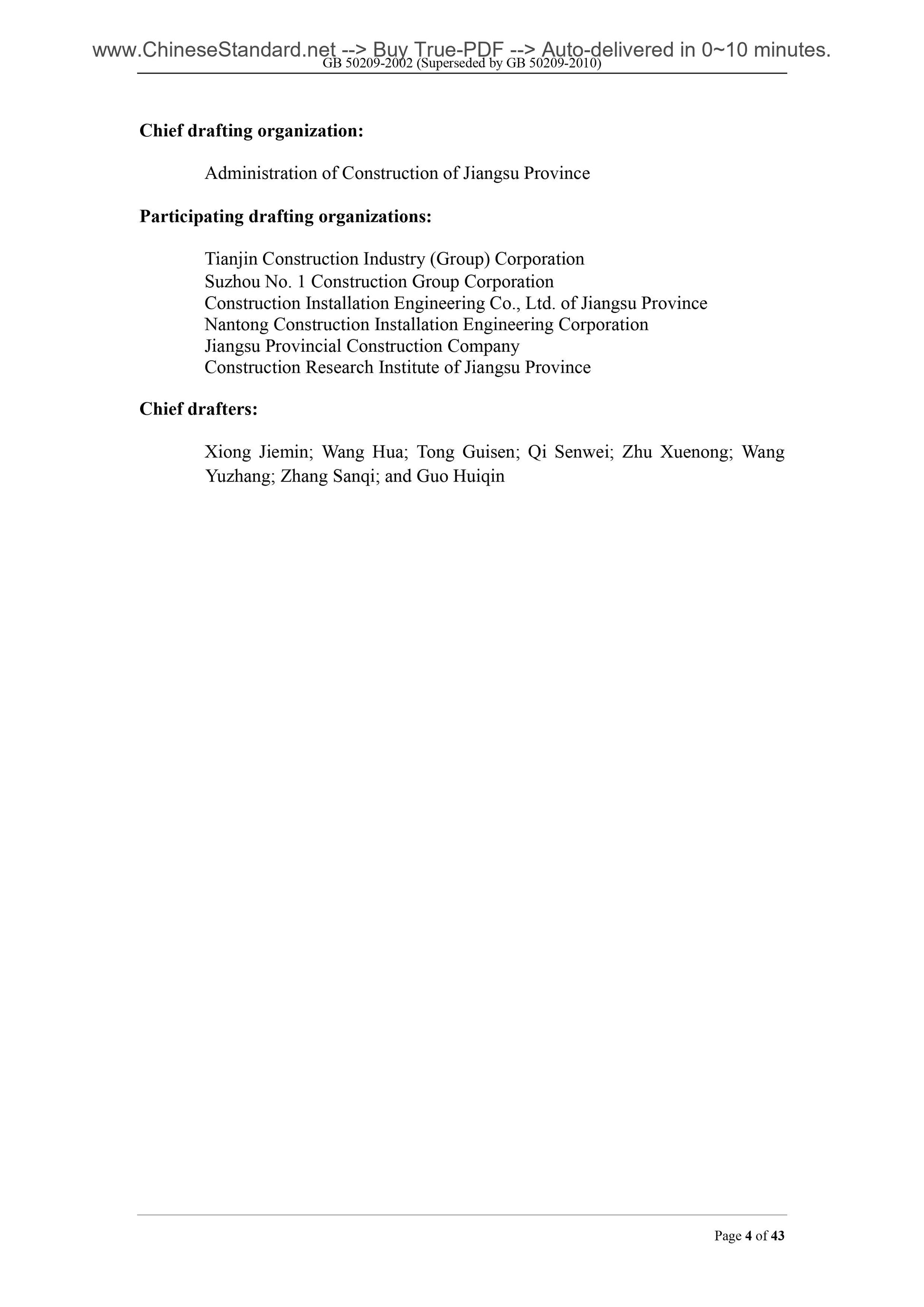

Chief drafting organization.
Administration of Construction of Jiangsu Province
Participating drafting organizations.
Tianjin Construction Industry (Group) Corporation
Suzhou No. 1 Construction Group Corporation
Construction Installation Engineering Co., Ltd. of Jiangsu Province
Nantong Construction Installation Engineering Corporation
Jiangsu Provincial Construction Company
Construction Research Institute of Jiangsu Province
Chief drafters.
Xiong Jiemin; Wang Hua; Tong Guisen; Qi Senwei; Zhu Xuenong; Wang
Yuzhang; Zhang Sanqi; and Guo Huiqin

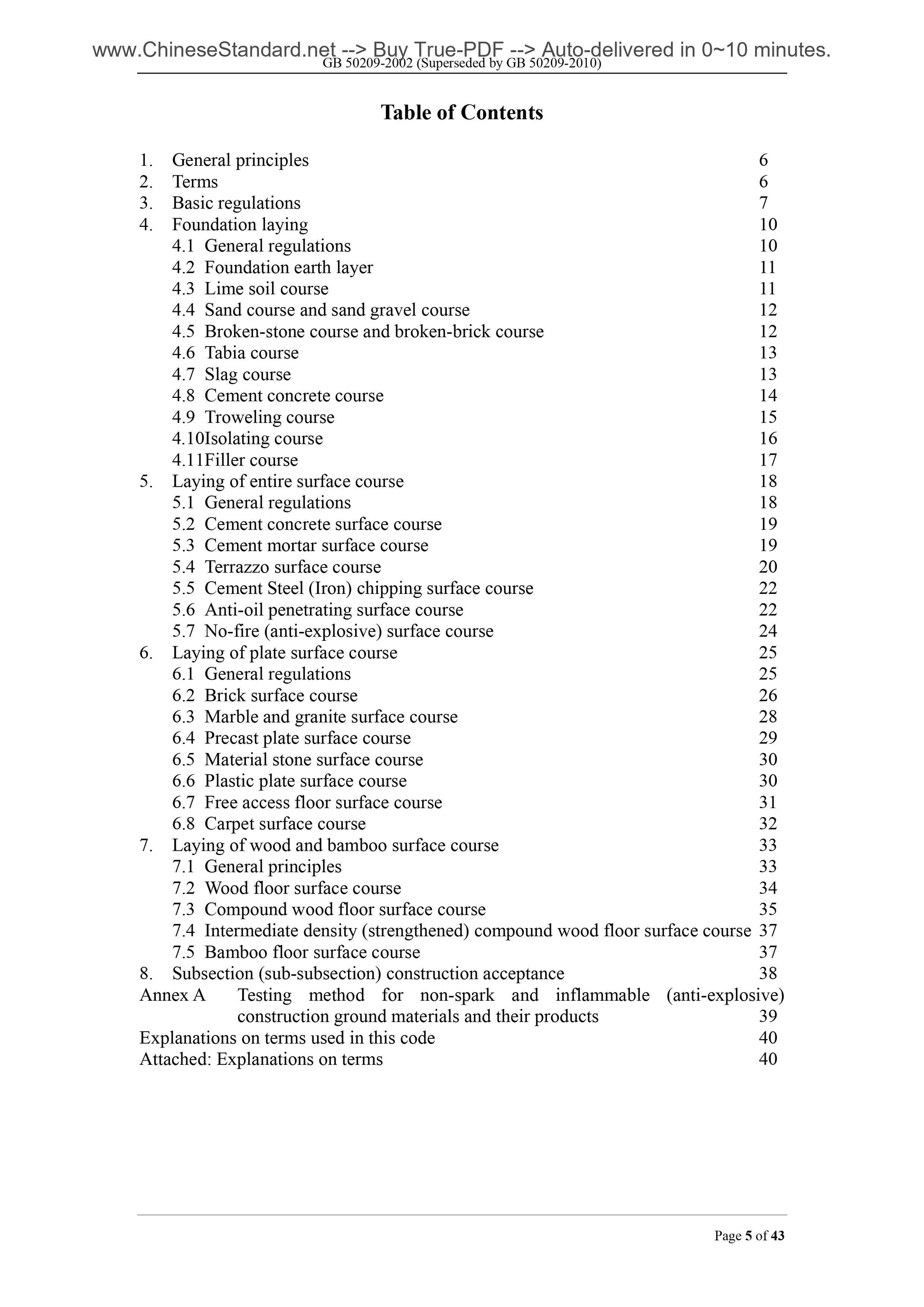

Table of Contents
1. General principles 6
2. Terms 6
3. Basic regulations 7
4. Foundation laying 10
4.1 General regulations 10
4.2 Foundation earth layer 11
4.3 Lime soil course 11
4.4 Sand course and sand gravel course 12
4.5 Broken-stone course and broken-brick course 12
4.6 Tabia course 13
4.7 Slag course 13
4.8 Cement concrete course 14
4.9 Troweling course 15
4.10Isolating course 16
4.11Filler course 17
5. Laying of entire surface course 18
5.1 General regulations 18
5.2 Cement concrete surface course 19
5.3 Cement mortar surface course 19
5.4 Terrazzo surface course 20
5.5 Cement Steel (Iron) chipping surface course 22
5.6 Anti-oil penetrating surface course 22
5.7 No-fire (anti-explosive) surface course 24
6. Laying of plate surface course 25
6.1 General regulations 25
6.2 Brick surface course 26
6.3 Marble and granite surface course 28
6.4 Precast plate surface course 29
6.5 Material stone surface course 30
6.6 Plastic plate surface course 30
6.7 Free access floor surface course 31
6.8 Carpet surface course 32
7. Laying of wood and bamboo surface course 33
7.1 General principles 33
7.2 Wood floor surface course 34
7.3 Compound wood floor surface course 35
7.4 Intermediate density (strengthened) compound wood floor surface course 37 7.5 Bamboo floor surface course 37
8. Subsection (sub-subsection) construction acceptance 38
Annex A Testing method for non-spark and inflammable (anti-explosive)
construction ground materials and their products 39
Explanations on terms used in this code 40
Attached. Explanations on terms 40

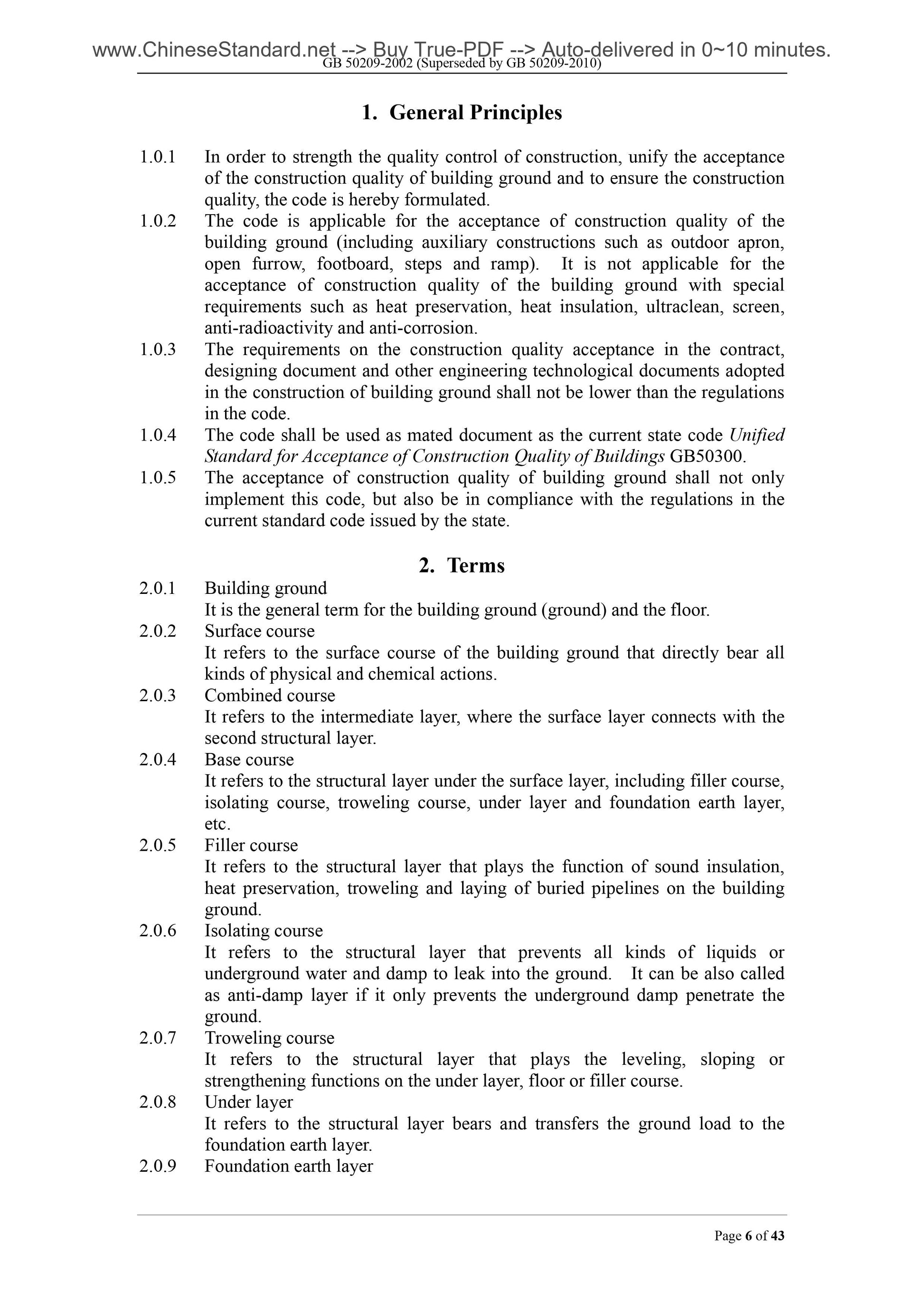

1. General Principles
1.0.1 In order to strength the quality control of construction, unify the acceptance of the construction quality of building ground and to ensure the construction quality, the code is hereby formulated.
1.0.2 The code is applicable for the acceptance of construction quality of the building ground (including auxiliary constructions such as outdoor apron, open furrow, footboard, steps and ramp). It is not applicable for the
acceptance of construction quality of the building ground with special
requirements such as heat preservation, heat insulation, ultraclean, screen, anti-radioactivity and anti-corrosion.
1.0.3 The requirements on the construction quality acceptance in the contract, designing document and other engineering technological documents adopted in the construction of building ground shall not be lower than the regulations in the code.
1.0.4 The code shall be used as mated document as the current state code Unified Standard for Acceptance of Construction Quality of Buildings GB50300.
1.0.5 The acceptance of construction quality of building ground shall not only implement this code, but also be in compliance with the regulations in the current standard code issued by the state.
2. Terms
2.0.1 Building ground
It is the general term for the building ground (ground) and the floor.
2.0.2 Surface course
It refers to the surface course of the building ground that directly bear all kinds of physical and chemical actions.
2.0.3 Combined course
It refers to the intermediate layer, where the surface layer connects with the second structural layer.
2.0.4 Base course
It refers to the structural layer under the surface layer, including filler course, isolating course, troweling course, under layer and foundation earth layer, etc.
2.0.5 Filler course
It refers to the structural layer that plays the function of sound insulation, heat preservation, troweling and laying of buried pipelines on the building ground.
2.0.6 Isolating course
It refers to the structural layer that prevents all kinds of liquids or underground water and damp to leak into the ground. It can be also called as anti-damp layer if it only prevents the underground damp penetrate the ground.
2.0.7 Troweling course
It refers to the structural layer that plays the leveling, sloping or
strengthening functions on the under layer, floor or filler course.
2.0.8 Under layer
It refers to the structural layer bears and transfers the ground load to the foundation earth layer.
2.0.9 Foundation earth layer
It refers to the foundation earth layer on the bottom ground.

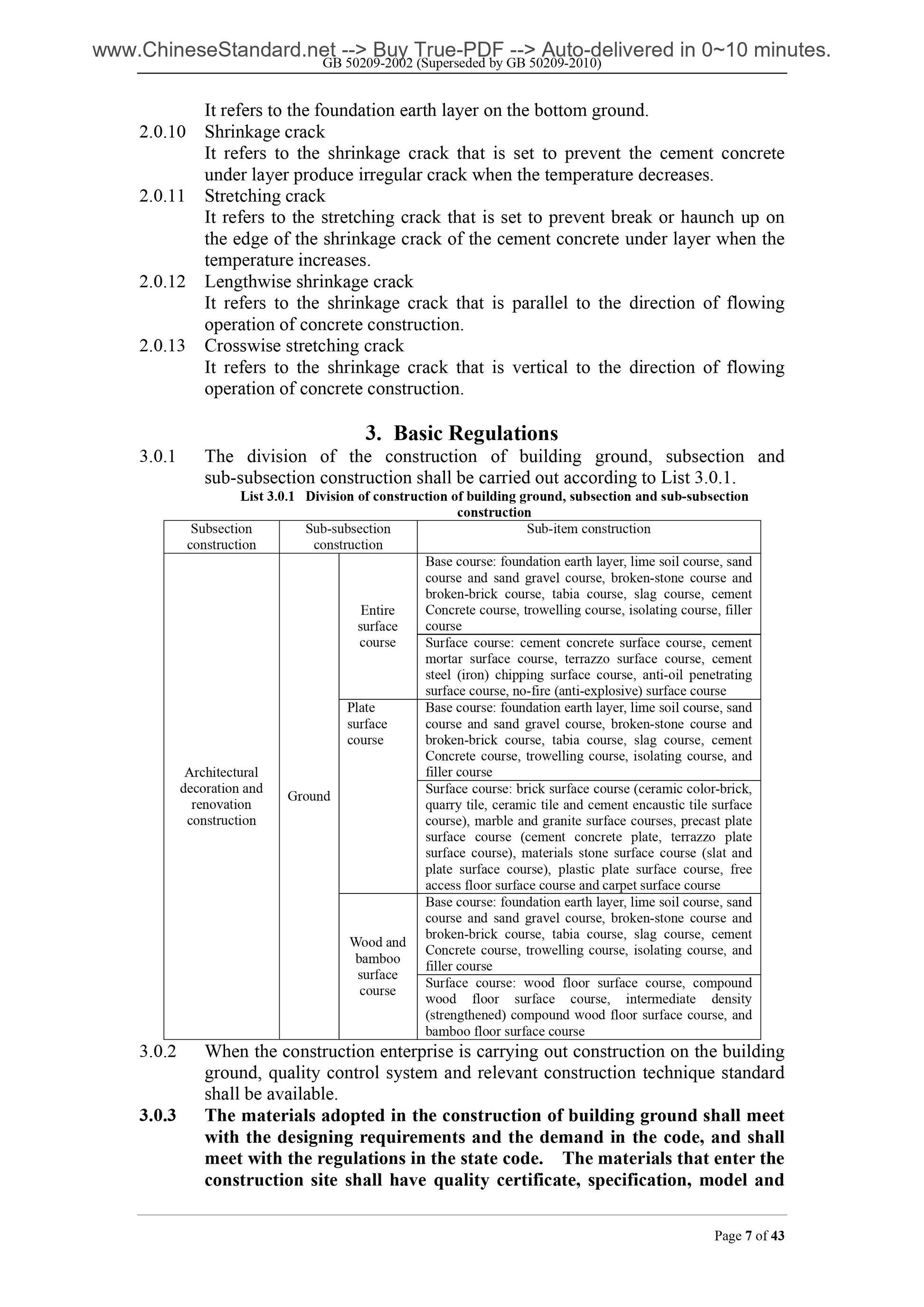

2.0.10 Shrinkage crack
It refers to the shrinkage crack that is set to prevent the cement concrete under layer produce irregular crack when the temperature decreases.
2.0.11 Stretching crack
It refers to the stretching crack that is set to prevent break or haunch up on the edge of the shrinkage crack of the cement concrete under layer when the temperature increases.
2.0.12 Lengthwise shrinkage crack
It refers to the shrinkage crack that is parallel to the direction of flowing operation of concrete construction.
2.0.13 Crosswise stretching crack
It refers to the shrinkage crack that is vertical to the direction of flowing operation of concrete construction.
3. Basic Regulations
3.0.1 The division of the construction of building ground, subsection and sub-subsection construction shall be carried out according to List 3.0.1. List 3.0.1 Division of construction of building ground, subsection and sub-subsection construction
Subsection
construction
Sub-subsection
construction
Sub-item construction
Architectural
decoration and
renovation
construction
Ground
Entire
surface
course
Base course. foundation earth layer, lime soil course, sand
course and sand gravel course, broken-stone course and
broken-brick course, tabia course, slag course, cement
Concrete course, trowelling course, isolating course, filler
course
Surface course. cement concrete surface course, cement
mortar surface course, terrazzo surface course, cement
steel (iron) chipping surface course, anti-oil penetrating
surface course, no-fire (anti-explosive) surface course
Plate
surface
course
Base course. foundation earth layer, lime soil course, sand
course and sand gravel course, broken-stone course and
broken-brick course, tabia course, slag course, cement
Concrete course, trowelling course, isolating course, and
filler course
Surface course. brick surface course (ceramic color-brick,
quarry tile, ceramic tile and cement encaustic tile surface
course), marble and granite surface courses, precast plate
surface course (cement concrete plate, terrazzo plate
surface course), materials stone surface course (slat and
plate surface course), plastic plate surface course, free
access floor surface course and carpet surface course
Wood and
bamboo
surface
course
Base course. foundation earth layer, lime soil course, sand
course and sand gravel course, broken-stone course and
broken-brick course, tabia course, slag course, cement
Concrete course, trowelling course, isolating course, and
filler course
Surface course. wood floor surface ...
