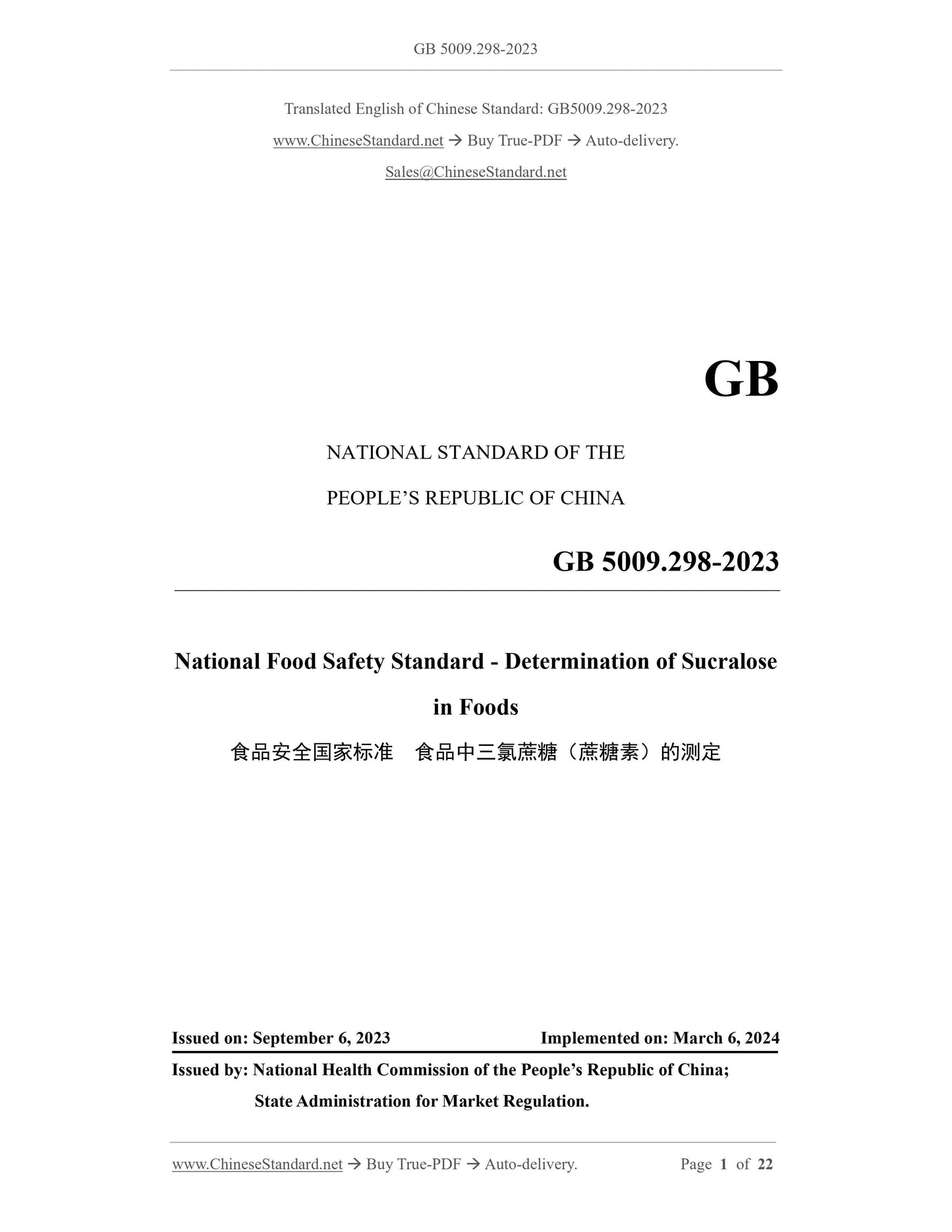

GB 5009.298-2023
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
National Food Safety Standard - Determination of Sucralose
in Foods
ISSUED ON. SEPTEMBER 6, 2023
IMPLEMENTED ON. MARCH 6, 2024
Issued by. National Health Commission of the People’s Republic of China;
State Administration for Market Regulation.

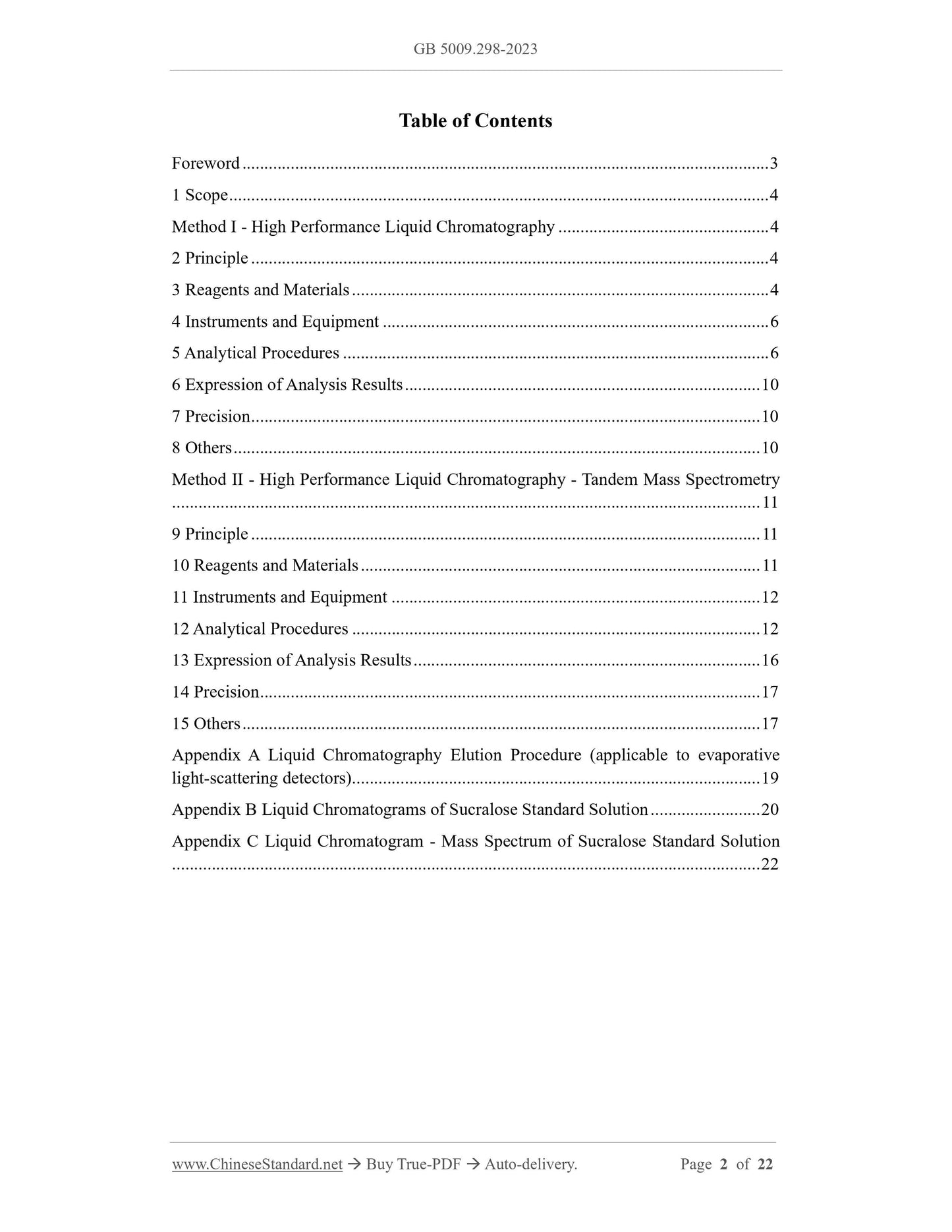

Table of Contents
Foreword... 3
1 Scope... 4
Method I - High Performance Liquid Chromatography... 4
2 Principle... 4
3 Reagents and Materials... 4
4 Instruments and Equipment... 6
5 Analytical Procedures... 6
6 Expression of Analysis Results... 10
7 Precision... 10
8 Others... 10
Method II - High Performance Liquid Chromatography - Tandem Mass Spectrometry
... 11
9 Principle... 11
10 Reagents and Materials... 11
11 Instruments and Equipment... 12
12 Analytical Procedures... 12
13 Expression of Analysis Results... 16
14 Precision... 17
15 Others... 17
Appendix A Liquid Chromatography Elution Procedure (applicable to evaporative
light-scattering detectors)... 19
Appendix B Liquid Chromatograms of Sucralose Standard Solution... 20
Appendix C Liquid Chromatogram - Mass Spectrum of Sucralose Standard Solution
... 22

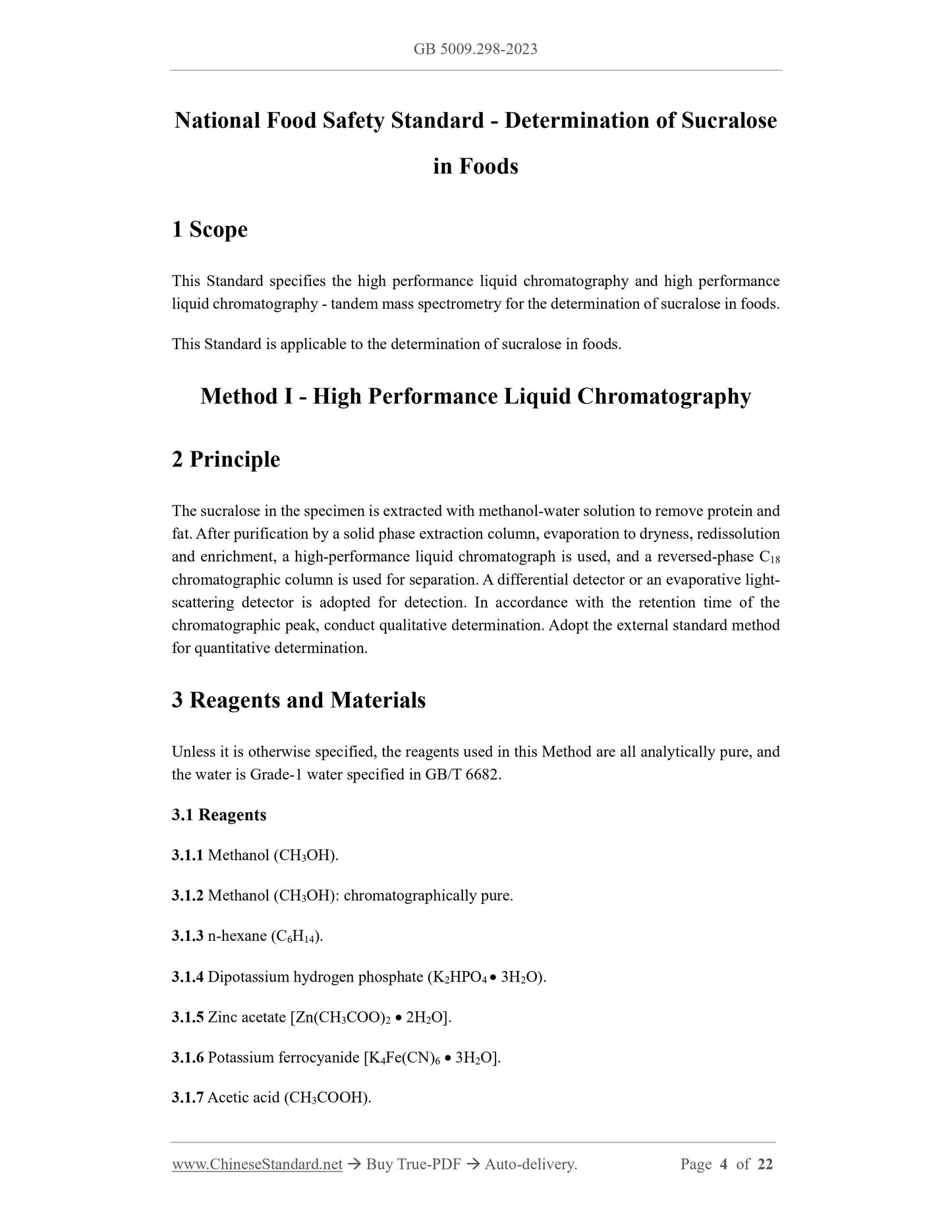

National Food Safety Standard - Determination of Sucralose
in Foods
1 Scope
This Standard specifies the high performance liquid chromatography and high performance
liquid chromatography - tandem mass spectrometry for the determination of sucralose in foods.
This Standard is applicable to the determination of sucralose in foods.
Method I - High Performance Liquid Chromatography
2 Principle
The sucralose in the specimen is extracted with methanol-water solution to remove protein and
fat. After purification by a solid phase extraction column, evaporation to dryness, redissolution
and enrichment, a high-performance liquid chromatograph is used, and a reversed-phase C18
chromatographic column is used for separation. A differential detector or an evaporative light-
scattering detector is adopted for detection. In accordance with the retention time of the
chromatographic peak, conduct qualitative determination. Adopt the external standard method
for quantitative determination.
3 Reagents and Materials
Unless it is otherwise specified, the reagents used in this Method are all analytically pure, and
the water is Grade-1 water specified in GB/T 6682.
3.1 Reagents
3.1.1 Methanol (CH3OH).
3.1.2 Methanol (CH3OH). chromatographically pure.
3.1.3 n-hexane (C6H14).
3.1.4 Dipotassium hydrogen phosphate (K2HPO4  3H2O).
3.1.5 Zinc acetate [Zn(CH3COO)2  2H2O].
3.1.6 Potassium ferrocyanide [K4Fe(CN)6  3H2O].
3.1.7 Acetic acid (CH3COOH).

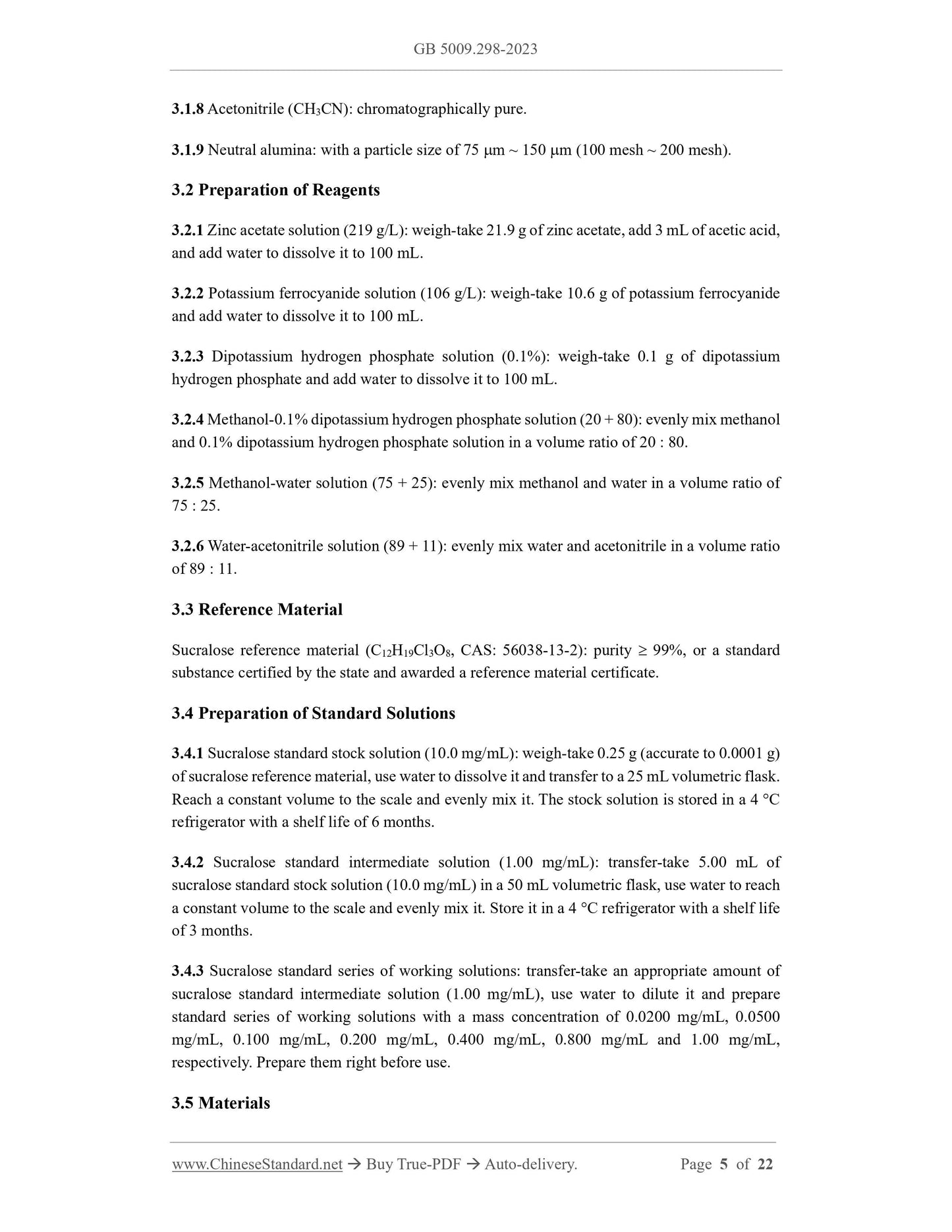

3.1.8 Acetonitrile (CH3CN). chromatographically pure.
3.1.9 Neutral alumina. with a particle size of 75 m ~ 150 m (100 mesh ~ 200 mesh).
3.2 Preparation of Reagents
3.2.1 Zinc acetate solution (219 g/L). weigh-take 21.9 g of zinc acetate, add 3 mL of acetic acid,
and add water to dissolve it to 100 mL.
3.2.2 Potassium ferrocyanide solution (106 g/L). weigh-take 10.6 g of potassium ferrocyanide
and add water to dissolve it to 100 mL.
3.2.3 Dipotassium hydrogen phosphate solution (0.1%). weigh-take 0.1 g of dipotassium
hydrogen phosphate and add water to dissolve it to 100 mL.
3.2.4 Methanol-0.1% dipotassium hydrogen phosphate solution (20 + 80). evenly mix methanol
and 0.1% dipotassium hydrogen phosphate solution in a volume ratio of 20. 80.
3.2.5 Methanol-water solution (75 + 25). evenly mix methanol and water in a volume ratio of
75. 25.
3.2.6 Water-acetonitrile solution (89 + 11). evenly mix water and acetonitrile in a volume ratio
of 89. 11.
3.3 Reference Material
Sucralose reference material (C12H19Cl3O8, CAS. 56038-13-2). purity  99%, or a standard
substance certified by the state and awarded a reference material certificate.
3.4 Preparation of Standard Solutions
3.4.1 Sucralose standard stock solution (10.0 mg/mL). weigh-take 0.25 g (accurate to 0.0001 g)
of sucralose reference material, use water to dissolve it and transfer to a 25 mL volumetric flask.
Reach a constant volume to the scale and evenly mix it. The stock solution is stored in a 4 C
refrigerator with a shelf life of 6 months.
3.4.2 Sucralose standard intermediate solution (1.00 mg/mL). transfer-take 5.00 mL of
sucralose standard stock solution (10.0 mg/mL) in a 50 mL volumetric flask, use water to reach
a constant volume to the scale and evenly mix it. Store it in a 4 C refrigerator with a shelf life
of 3 months.
3.4.3 Sucralose standard series of working solutions. transfer-take an appropriate amount of
sucralose standard intermediate solution (1.00 mg/mL), use water to dilute it and prepare
standard series of working solutions with a mass concentration of 0.0200 mg/mL, 0.0500
mg/mL, 0.100 mg/mL, 0.200 mg/mL, 0.400 mg/mL, 0.800 mg/mL and 1.00 mg/mL,
respectively. Prepare them right before use.
3.5 Materials

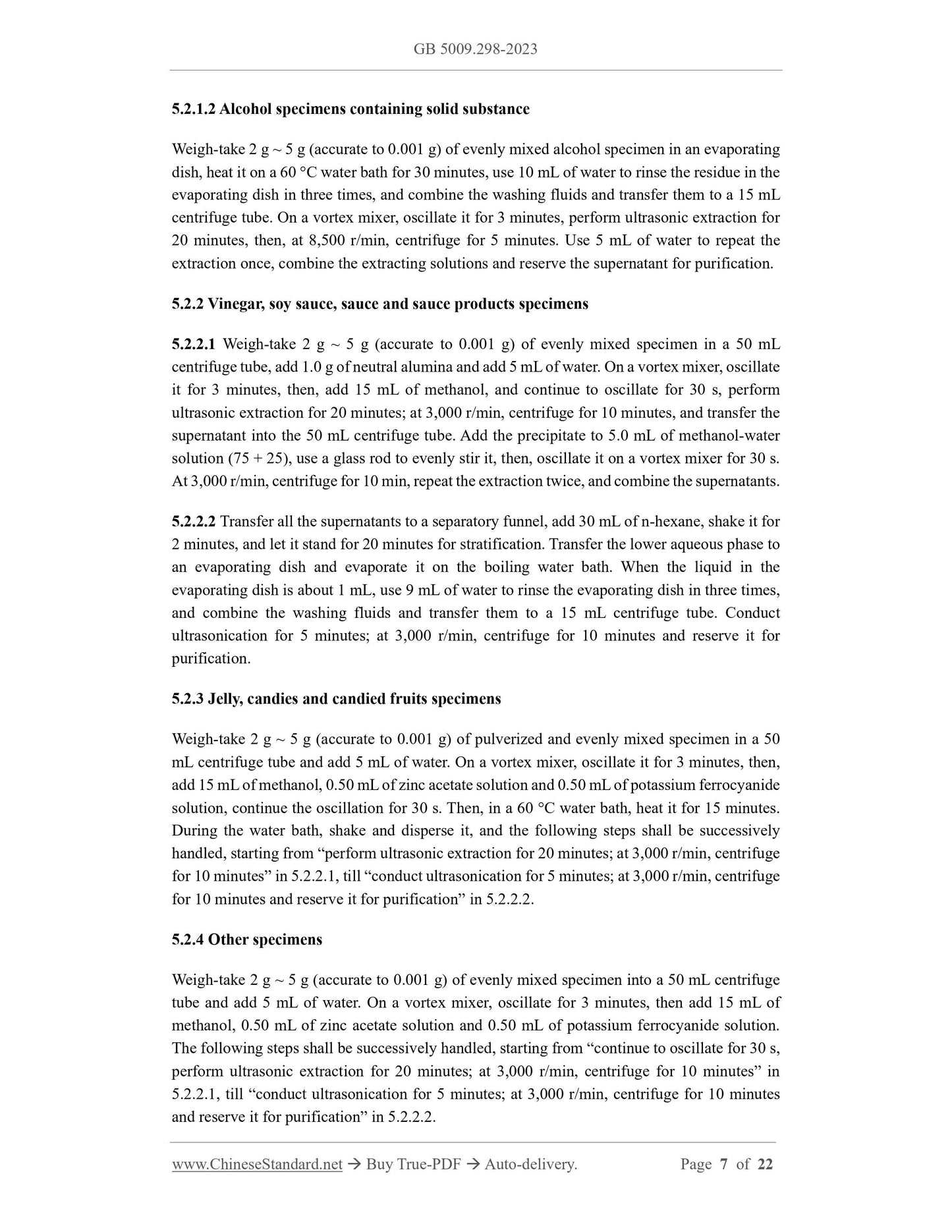

5.2.1.2 Alcohol specimens containing solid substance
Weigh-take 2 g ~ 5 g (accurate to 0.001 g) of evenly mixed alcohol specimen in an evaporating
dish, heat it on a 60 C water bath for 30 minutes, use 10 mL of water to rinse the residue in the
evaporating dish in three times, and combine the washing fluids and transfer them to a 15 mL
centrifuge tube. On a vortex mixer, oscillate it for 3 minutes, perform ultrasonic extraction for
20 minutes, then, at 8,500 r/min, centrifuge for 5 minutes. Use 5 mL of water to repeat the
extraction once, combine the extracting solutions and reserve the supernatant for purification.
5.2.2 Vinegar, soy sauce, sauce and sauce products specimens
5.2.2.1 Weigh-take 2 g ~ 5 g (accurate to 0.001 g) of evenly mixed specimen in a 50 mL
centrifuge tube, add 1.0 g of neutral alumina and add 5 mL of water. On a vortex mixer, oscillate
it for 3 minutes, then, add 15 mL of methanol, and continue to oscillate for 30 s, perform
ultrasonic extraction for 20 minutes; at 3,000 r/min, centrifuge for 10 minutes, and transfer the
supernatant into the 50 mL centrifuge tube. Add the precipitate to 5.0 mL of methanol-water
solution (75 + 25), use a glass rod to evenly stir it, then, oscillate it on a vortex mixer for 30 s.
At 3,000 r/min, centrifuge for 10 min, repeat the extraction twice, and combine the supernatants.
5.2.2.2 Transfer all the supernatants to a separatory funnel, add 30 mL of n-hexane, shake it for
2 minutes, and let it stand for 20 minutes for stratification. Transfer the lower aqueous phase to
an evaporating dish and evaporate it on the boiling water bath. When the liquid in the
evaporating dish is about 1 mL, use 9 mL of water to rinse the evaporating dish in three times,
and combine the washing fluids and transfer them to a 15 mL centrifuge tube. Conduct
ultrasonication for 5 minutes; at 3,000 r/min, centrifuge for 10 minutes and reserve it for
purification.
5.2.3 Jelly, candies and candied fruits specimens
Weigh-take 2 g ~ 5 g (accurate to 0.001 g) of pulverized and evenly mixed specimen in a 50
mL centrifuge tube and add 5 mL of water. On a vortex mixer, oscillate it for 3 minutes, then,
add 15 mL of methanol, 0.50 mL of zinc acetate solution and 0.50 mL of potassium ferrocyanide
solution, continue the oscillation for 30 s. Then, in a 60 C water bath, heat it for 15 minutes.
During the water bath, shake and disperse it, and the following steps shall be successively
handled, starting from “perform ultrasonic extraction for 20 minutes; at 3,000 r/min, centrifuge
for 10 minutes” in 5.2.2.1, till “conduct ultrasonication for 5 minutes; at 3,000 r/min, centrifuge
for 10 minutes and reserve it for purification” in 5.2.2.2.
5.2.4 Other specimens
Weigh-take 2 g ~ 5 g (accurate to 0.001 g) of evenly mixed specimen into a 50 mL centrifuge
tube and add 5 mL of water. On a vortex mixer, oscillate for 3 minutes, then add 15 mL of
methanol, 0.50 mL of zinc acetate solution and 0.50 mL of potassium ferrocyanide solution.
The following steps shall be successively handled, starting from “continue to oscillate for 30 s,
perform ultrasonic extraction for 20 minutes; at 3,000 r/min, centrifuge for 10 minutes” in
5.2.2.1, till “conduct ultrasonication for 5 minutes; at 3,000 r/min, centrifuge for 10 minutes
and reserve it for purification” in 5.2.2.2.

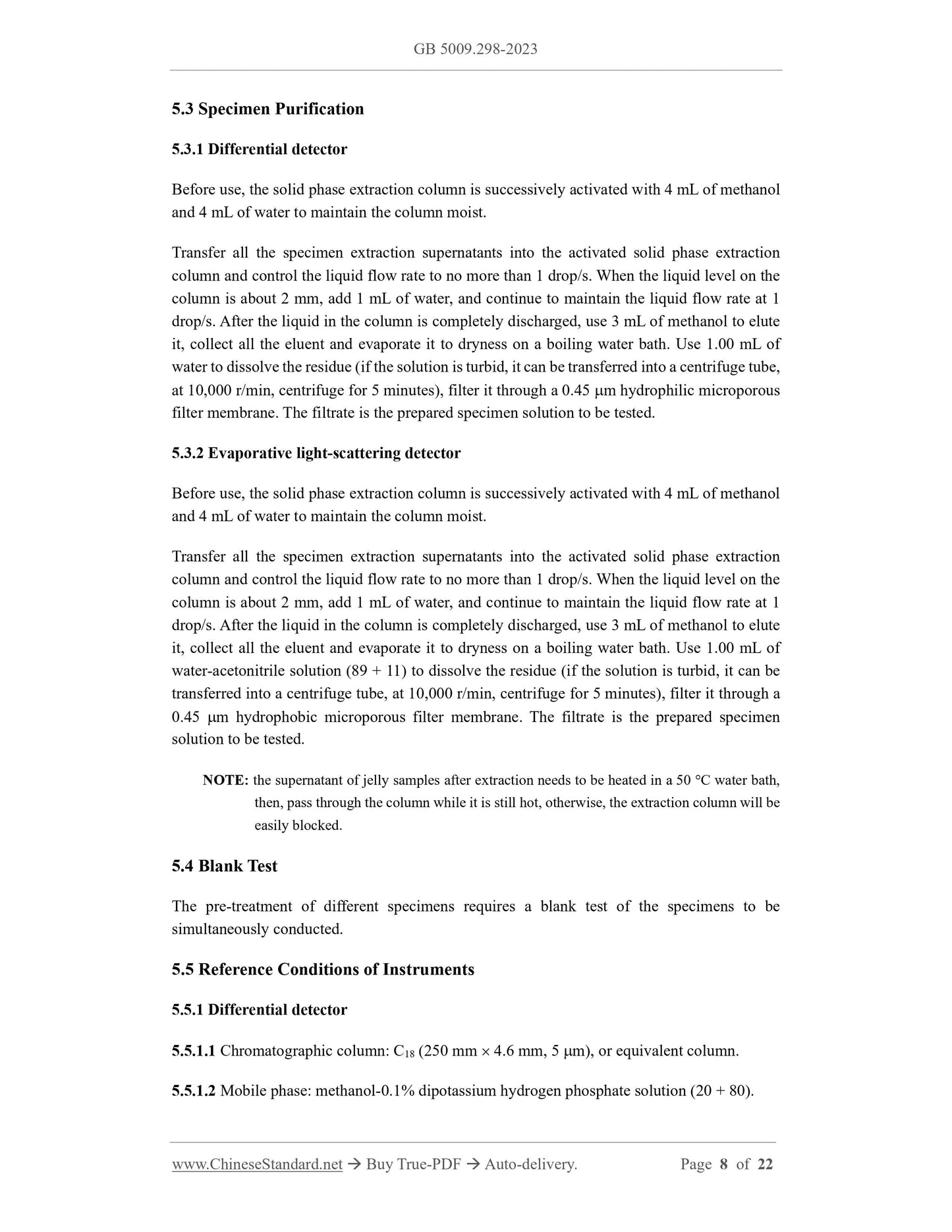

5.3 Specimen Purification
5.3.1 Differential detector
Before use, the solid phase extraction column is successively activated with 4 mL of methanol
and 4 mL of water to maintain the column moist.
Transfer all the specimen extraction supernatants into the activated solid phase extraction
column and control the liquid flow rate to no more than 1 drop/s. When the liquid level on the
column is about 2 mm, add 1 mL of water, and continue to maintain the liquid flow rate at 1
drop/s. After the liquid in the column is completely discharged, use 3 mL of methanol to elute
it, collect all the eluent and evaporate it to dryness on a boiling water bath. Use 1.00 mL of
water to dissolve the residue (if the solution is turbid, it can be transferred into a centrifuge tube,
at 10,000 r/min, centrifuge for 5 minutes), filter it through a 0.45 m hydrophilic microporous
filter membrane. The filtrate is the prepared specimen solution to be tested.
5.3.2 Evaporative light-scattering detector
Before use, the solid phase extraction column is successively activated with 4 mL of methanol
and 4 mL of water to maintain the column moist.
Transfer all the specimen extraction supernatants into the activated solid phase extraction
column and control the liquid flow rate to no more than 1 drop/s. When the liquid level on the
column is about 2 mm, add 1 mL of water, and continue to maintain the liquid flow rate at 1
drop/s. After the liquid in the column is completely discharged, use 3 mL of methanol to elute
it, collect all the eluent and evaporate it to dryness on a boiling water bath. Use 1.00 mL of
water-acetonitrile solution (89 + 11) to dissolve the residue (if the solution is turbid, it can be
transferred into a centrifuge tube, at 10,000 r/min, centrifuge for 5 minutes), filter it through a
0.45 m hydrophobic microporous filter membrane. The filtrate is the prepared specimen
solution to be tested.
NOTE. the supernatant of jelly samples after extraction needs to be heated in a 50 C water bath,
then, pass through the column while it is still hot, otherwise, the extraction column will be
easily blocked.
5.4 Blank Test
The pre-treatment of different specimens requires a blank test of the specimens to be
simultaneously conducted.
5.5 Reference Conditions of Instruments
5.5.1 Differential detector

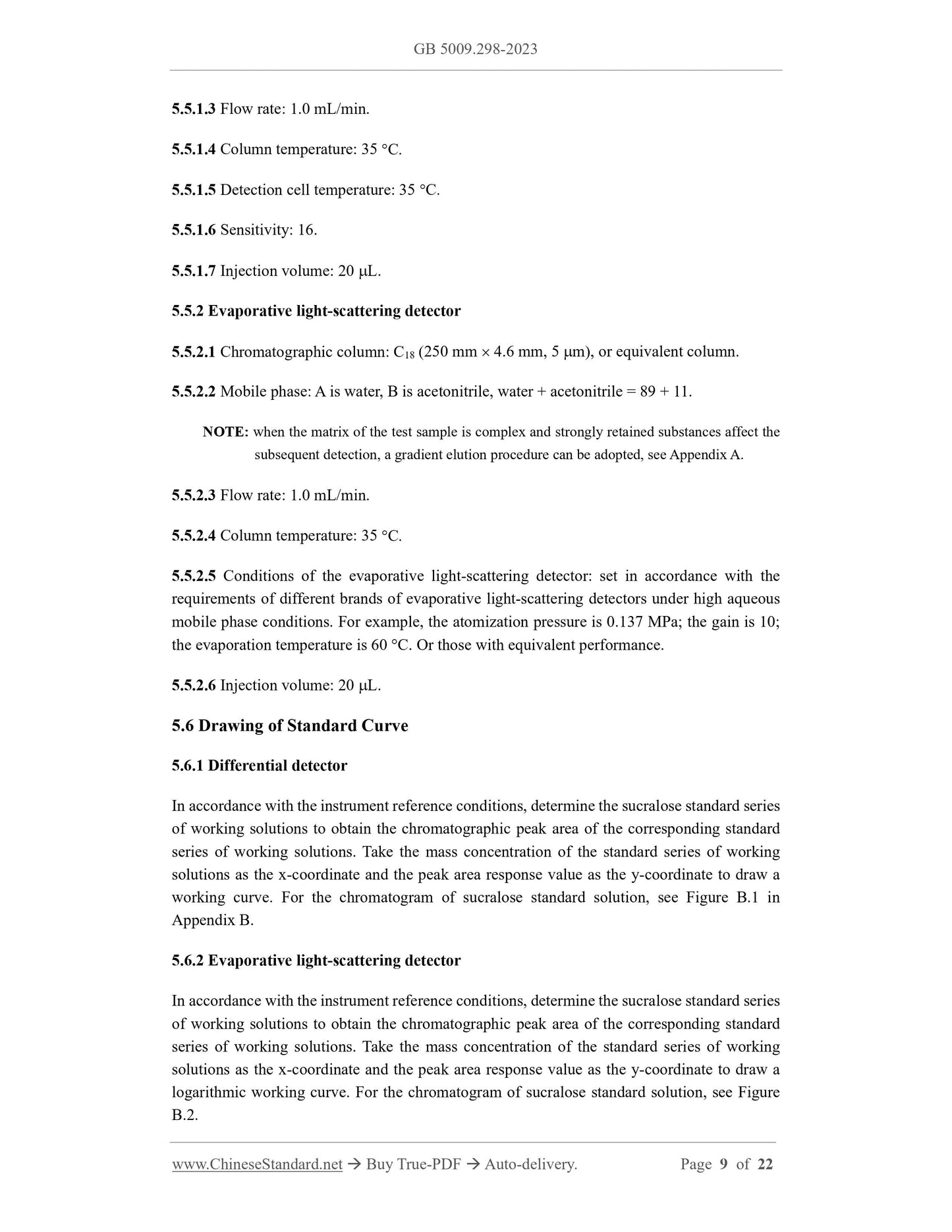

5.5.1.1 Chromatographic column. C18 (250 mm  4.6 mm, 5 m), or equivalent column.
5.5.1.2 Mobile phase. methanol-0.1% dipotassium hydrogen phosphate solution (20 + 80).
5.5.1.3 Flow rate. 1.0 mL/min.
5.5.1.4 Column temperature. 35 C.
5.5.1.5 Detection cell temperature. 35 C.
5.5.1.6 Sensitivity. 16.
5.5.1.7 Injection volume. 20 L.
5.5.2 Evaporative light-scattering detector
5.5.2.1 Chromatographic column. C18 (250 mm  4.6 mm, 5 m), or equivalent column.
5.5.2.2 Mobile phase. A is water, B is acetonitrile, water + acetonitrile = 89 + 11.
NOTE. when the matrix of the test sample is complex and strongly retained substances affect the
subsequent detection, a gradient elution procedure can be adopted, see Appendix A.
5.5.2.3 Flow rate. 1.0 mL/min.
5.5.2.4 Column temperature. 35 C.
5.5.2.5 Conditions of the evaporative light-scattering detector. set in accordance with the
requirements of different brands of evaporative light-scattering detectors under high aqueous
mobile phase conditions. For example, the atomization pressure is 0.137 MPa; the gain is 10;
the evaporation temperature is 60 C. Or those with equivalent performance.
5.5.2.6 Injection volume. 20 L.
5.6 Drawing of Standard Curve
5.6.1 Differential detector
In accordance with the instrument reference conditions, determine the sucralose standard series
of working solutions to obtain the chromatographic peak area of the corresponding standard
series of working solutions. Take the mass concentration of the standard series of working
solutions as the x-coordinate and the peak area response value as the y-coordinate to draw a
working curve. For the chromatogram of sucralose standard solution, see Figure B.1 in
Appendix B.
5.6.2 Evaporative light-scattering detector
In accordance with the instrument reference conditions, determine the sucralose standard series
of working solutions to obtain the chromatographic peak area of the corresponding standard
series of working solutions. Take the mass concentration of the standard series of working
solutions as the x-coordinate and the peak area response value as the y-coordinate to draw a
logarithmic working curve. For the chromatogram of sucralose standard solution, see Figure
B.2.

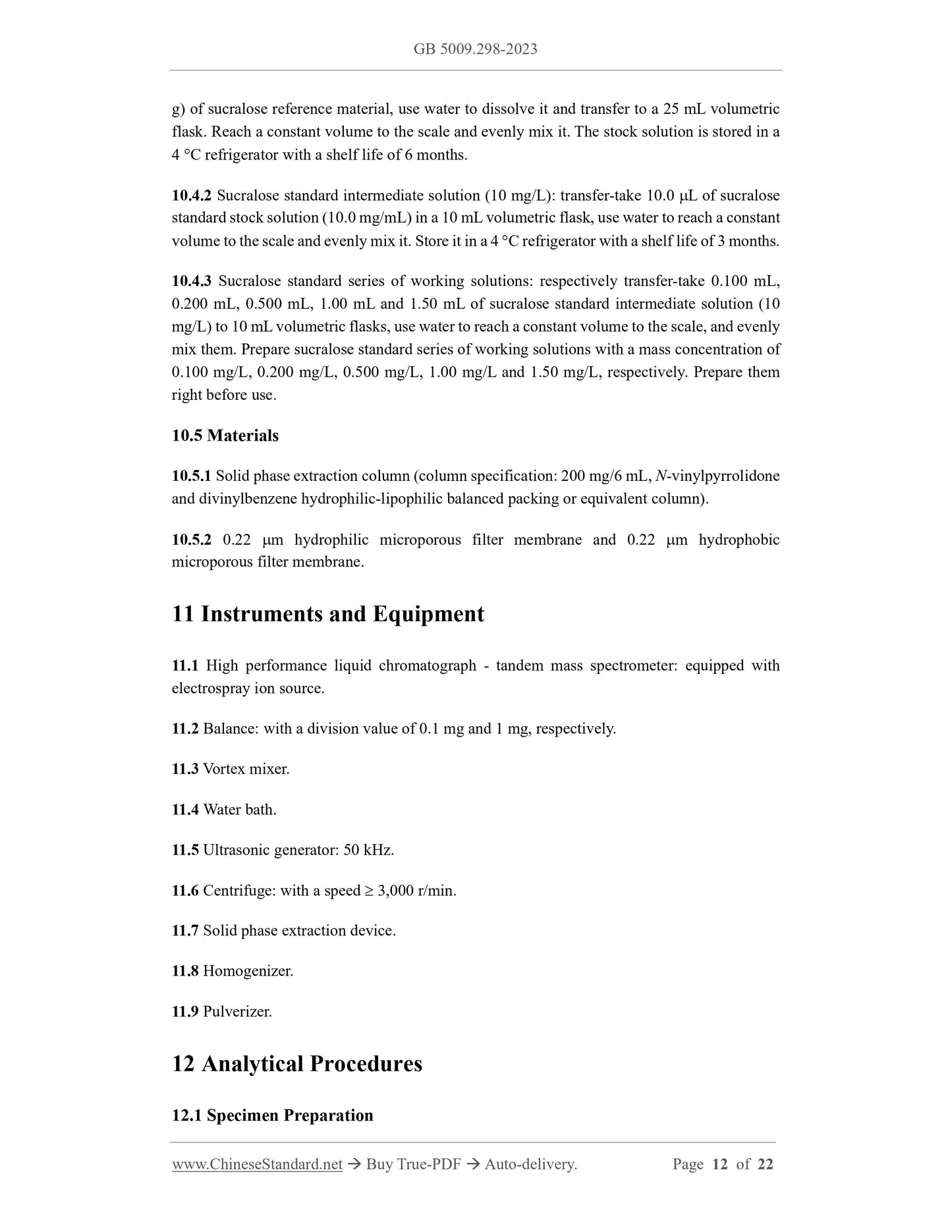

g) of sucralose reference material, use water to dissolve it and transfer to a 25 mL volumetric
flask. Reach a constant volume to the scale and evenly mix it. The stock solution is stored in a
4 C refrigerator with a shelf life of 6 months.
10.4.2 Sucralose standard intermediate solution (10 mg/L). transfer-take 10.0 L of sucralose
standard stock solution (10.0 mg/mL) in a 10 mL volumetric flask, use water to reach a constant
volume to the scale and evenly mix it. Store it in a 4 C refrigerator with a shelf life of 3 months.
10.4.3 Sucralose standard series of working solutions. respectively transfer-take 0.100 mL,
0.200 mL, 0.500 mL, 1.00 mL and 1.50 mL of sucralose standard intermediate solution (10
mg/L) to 10 mL volumetric flasks, use water to reach a constant volume to the scale, and evenly
mix them. Prepare sucralose standard series of working solutions with a mass concentration of
0.100 mg/L, 0.200 mg/L, 0.500 mg/L, 1.00 mg/L and 1.50 mg/L, respectively. Prepare them
right before use.
10.5 Materials
10.5.1 Solid phase extraction column (column specification. 200 mg/6 mL, N-vinylpyrrolidone
and divinylbenzene hydrophilic-lipophilic balanced packing or equivalent column).
10.5.2 0.22 m hydrophilic microporous filter membrane and 0.22 m hydr...
