GB 50084-2017: Code of design for sprinkler systems

This code is developed to properly and reasonably design sprinkler systems and to protect the safety of the person and property. This code applies to the design of sprinkler systems in newly built, expanded or rebuilt civil and industrial buildings.

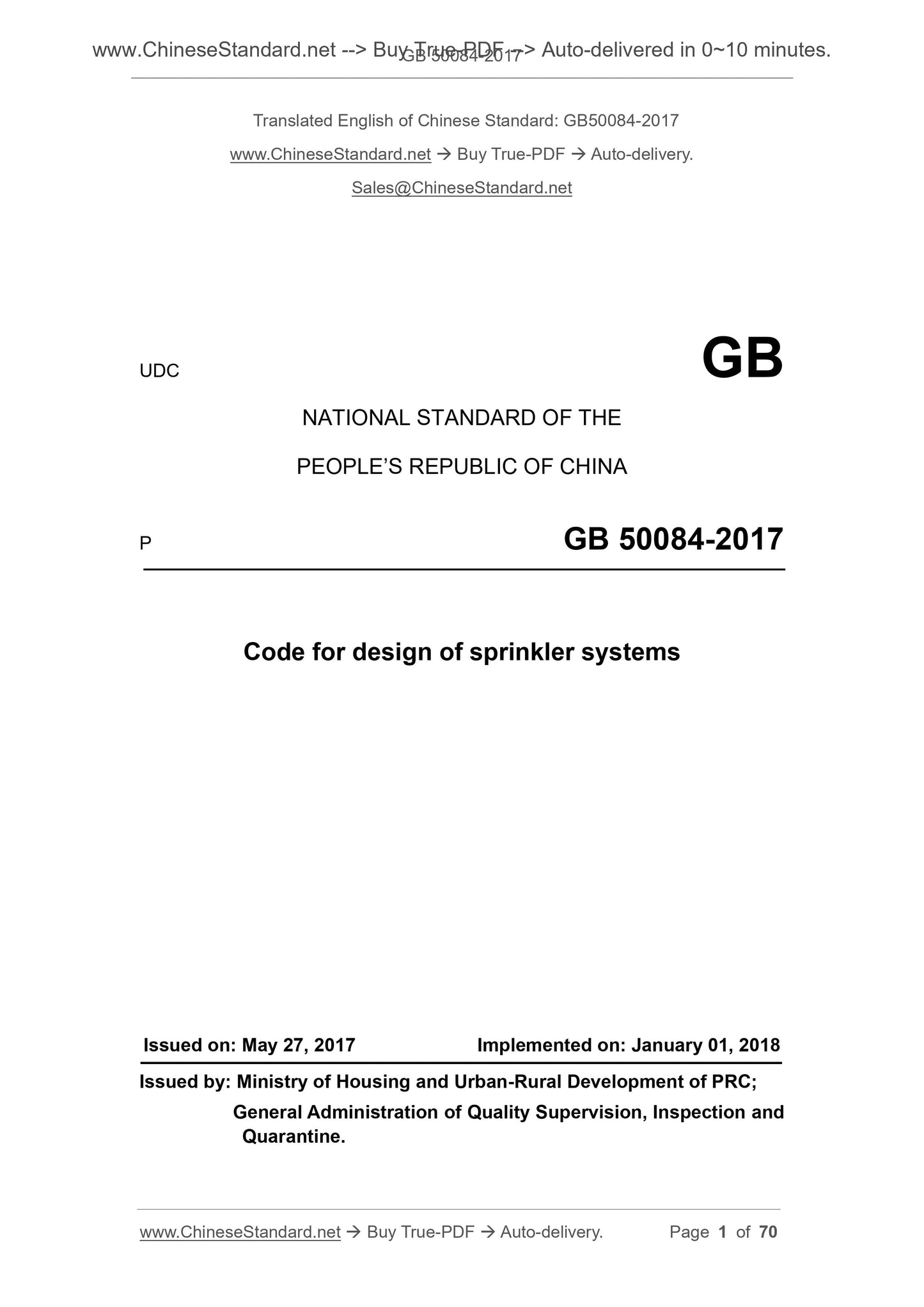

GB 50084-2017
UDC GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
P GB 50084-2017
Code for design of sprinkler systems
ISSUED ON. MAY 27, 2017
IMPLEMENTED ON. JANUARY 01, 2018
Issued by. Ministry of Housing and Urban-Rural Development of PRC;
General Administration of Quality Supervision, Inspection and
Quarantine.

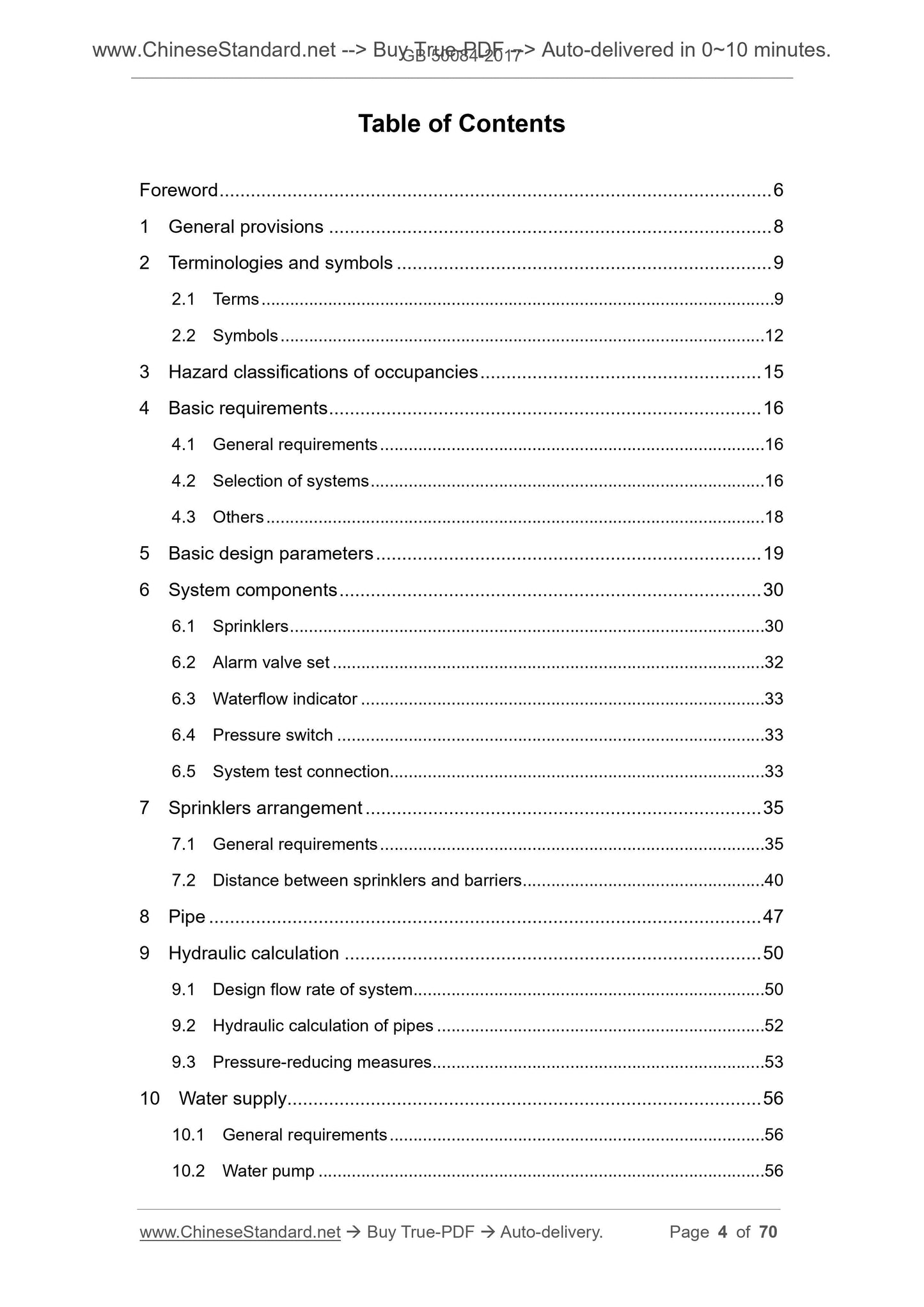

Table of Contents
Foreword . 6
1 General provisions .. 8
2 Terminologies and symbols . 9
2.1 Terms .. 9
2.2 Symbols .. 12
3 Hazard classifications of occupancies .. 15

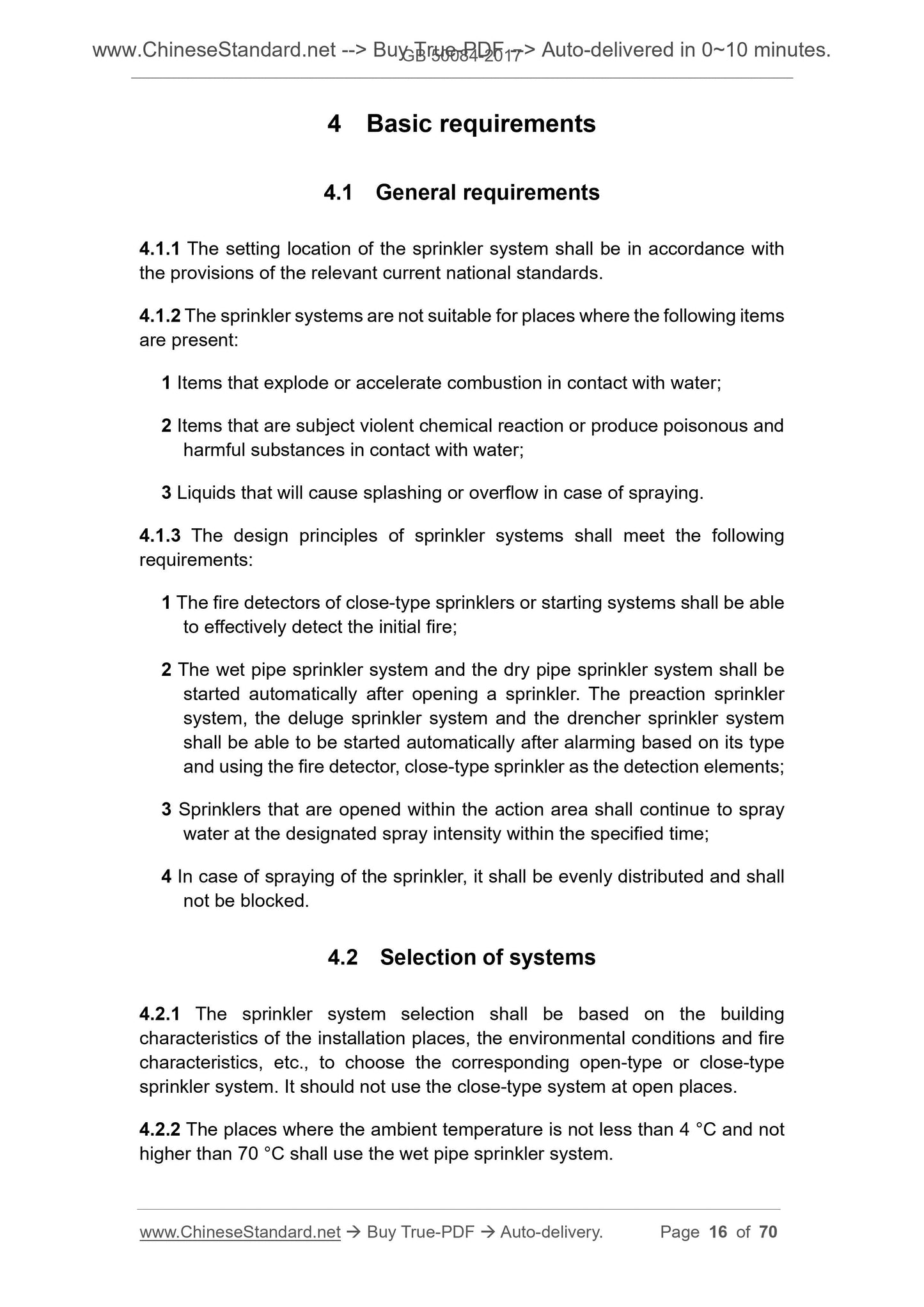

4 Basic requirements . 16
4.1 General requirements . 16
4.2 Selection of systems . 16

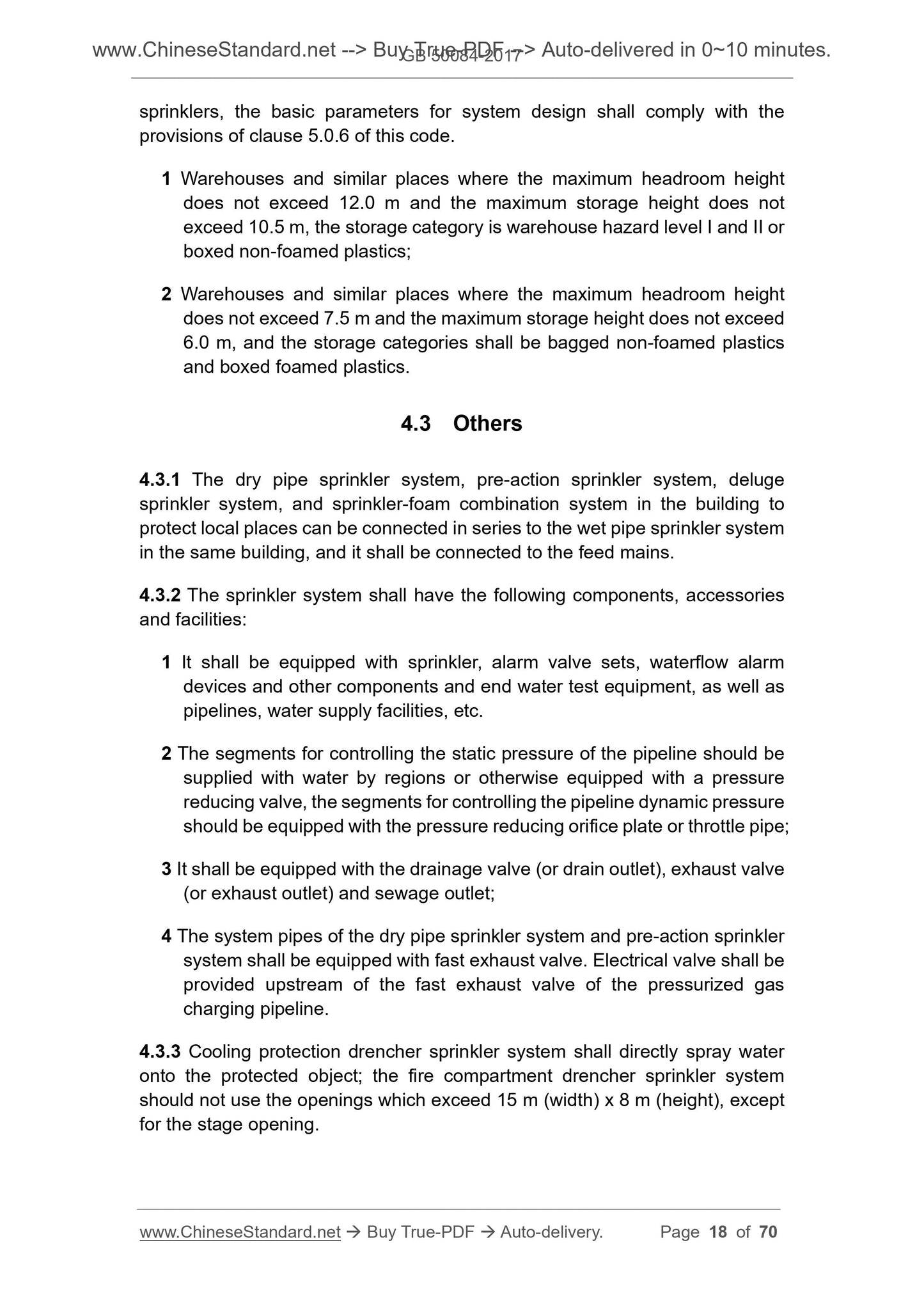

4.3 Others .. 18

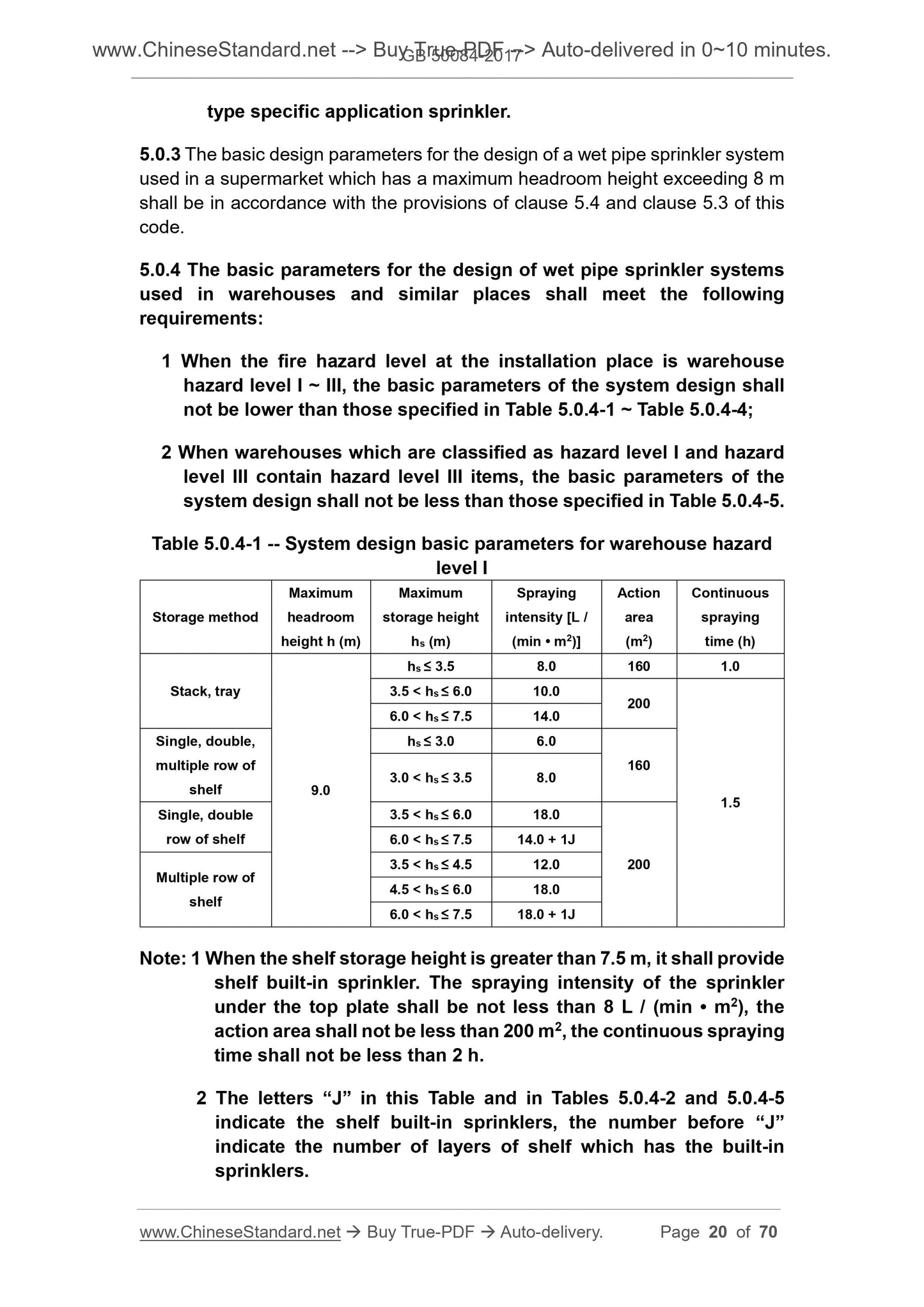

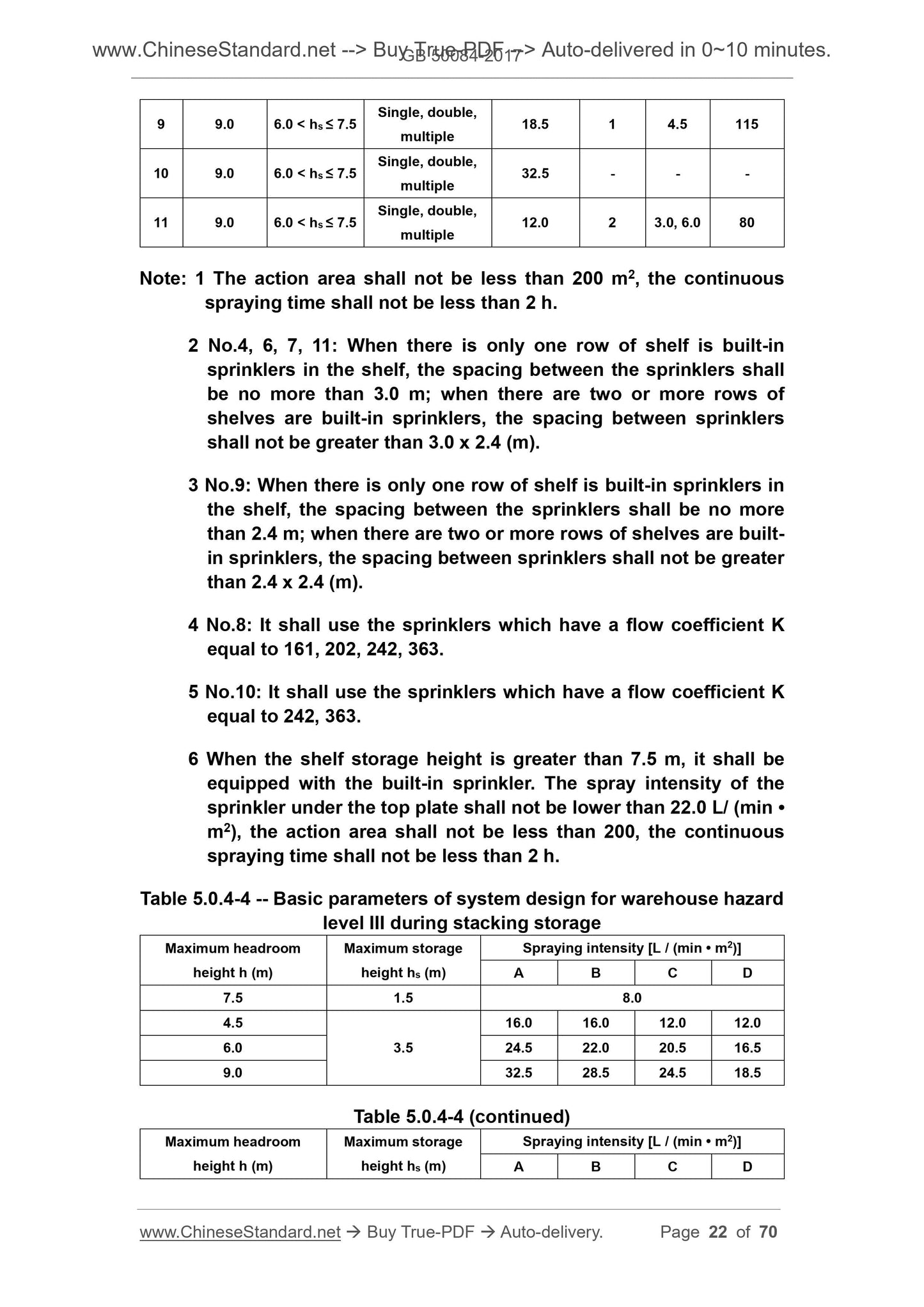

5 Basic design parameters .. 19
6 System components . 30
6.1 Sprinklers . 30
6.2 Alarm valve set .. 32
6.3 Waterflow indicator .. 33
6.4 Pressure switch . 33
6.5 System test connection. 33
7 Sprinklers arrangement . 35
7.1 General requirements . 35
7.2 Distance between sprinklers and barriers .. 40
8 Pipe . 47
9 Hydraulic calculation . 50
9.1 Design flow rate of system.. 50
9.2 Hydraulic calculation of pipes . 52
9.3 Pressure-reducing measures . 53
10 Water supply.. 56
10.1 General requirements . 56
10.2 Water pump .. 56

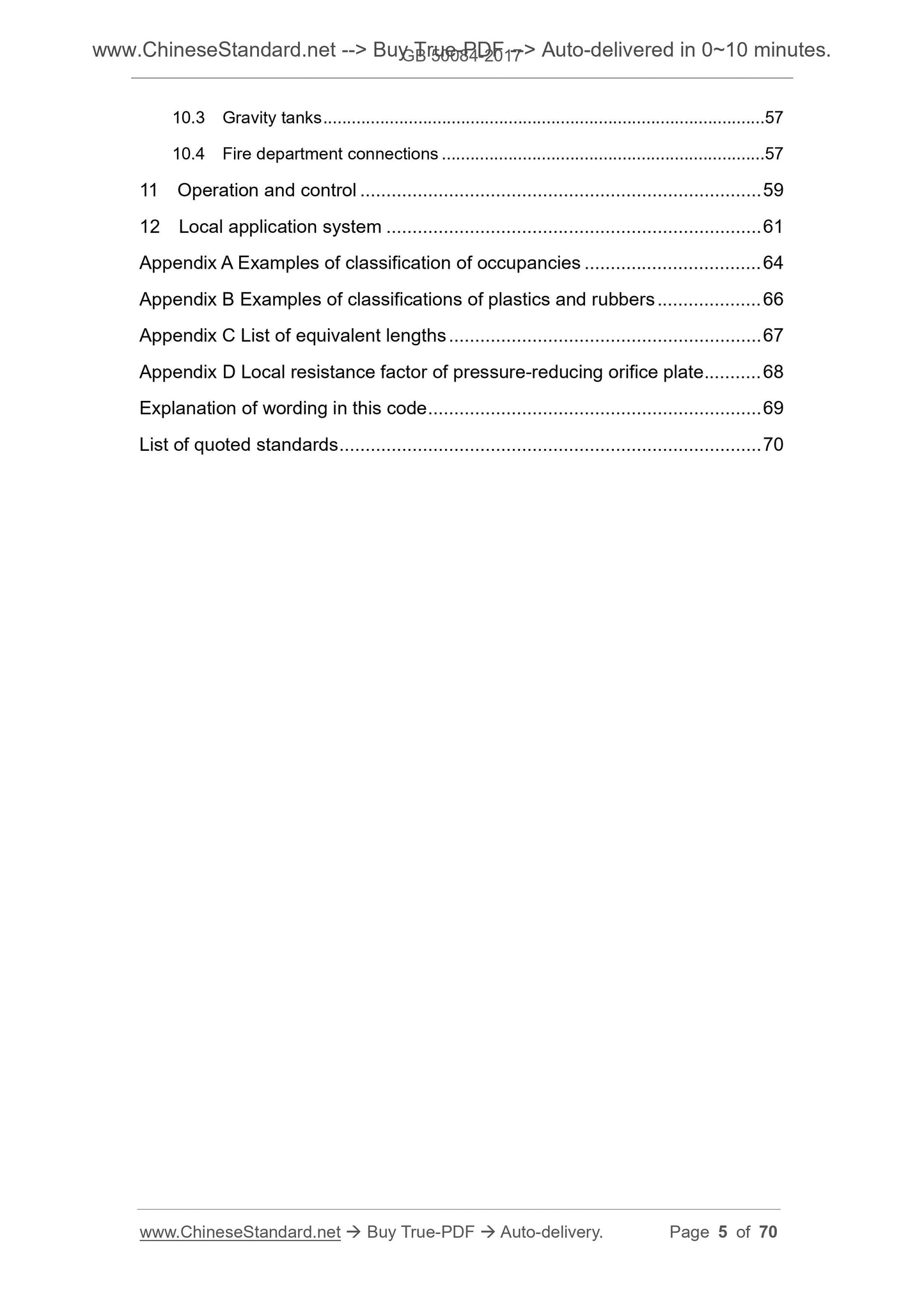

10.3 Gravity tanks . 57
10.4 Fire department connections .. 57
11 Operation and control .. 59
12 Local application system . 61
Appendix A Examples of classification of occupancies .. 64
Appendix B Examples of classifications of plastics and rubbers . 66
Appendix C List of equivalent lengths . 67
Appendix D Local resistance factor of pressure-reducing orifice plate .. 68 Explanation of wording in this code . 69
List of quoted standards . 70

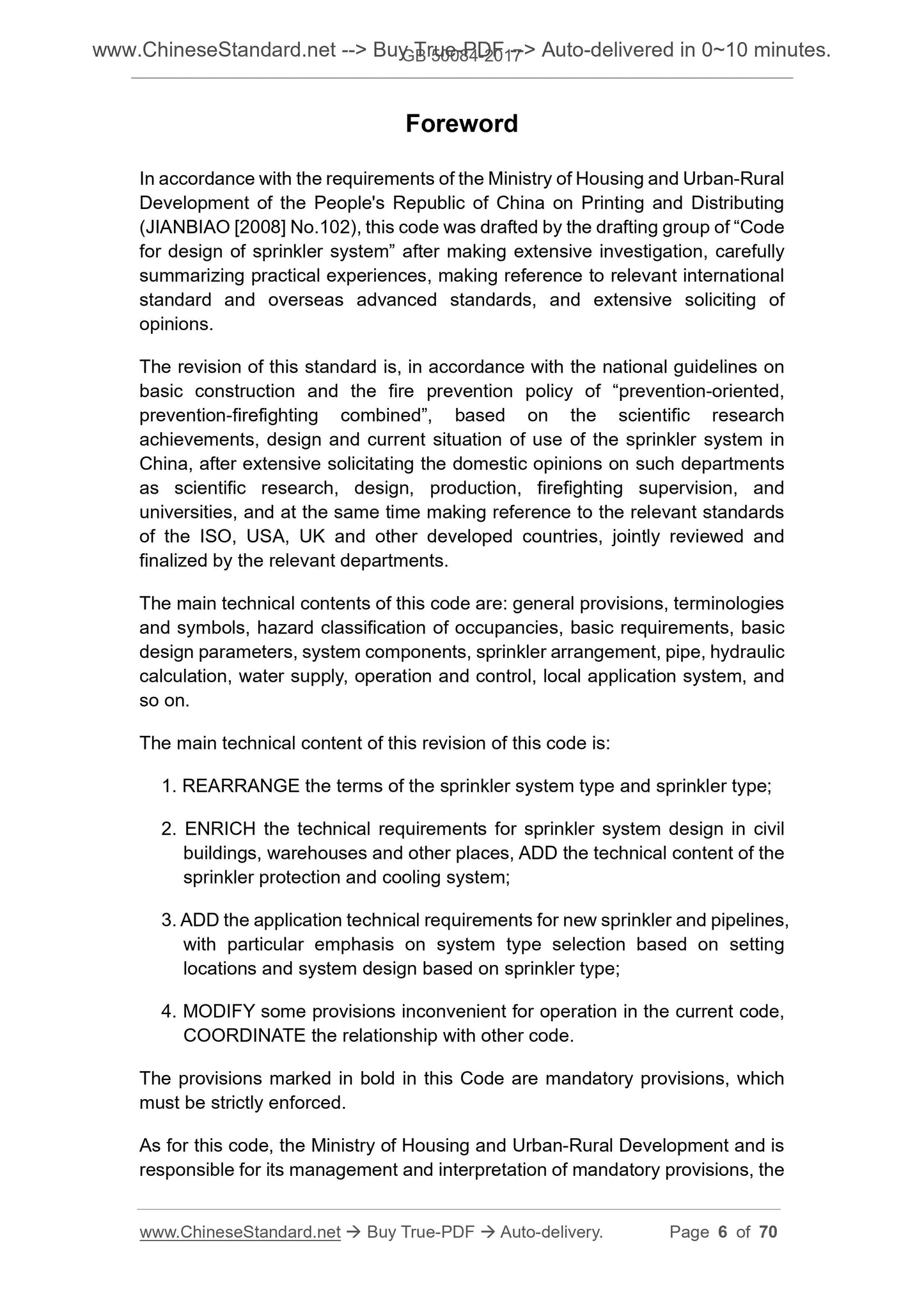

Foreword
In accordance with the requirements of the Ministry of Housing and Urban-Rural Development of the People's Republic of China on Printing and Distributing (JIANBIAO [2008] No.102), this code was drafted by the drafting group of ?€?Code for design of sprinkler system?€? after making extensive investigation, carefully summarizing practical experiences, making reference to relevant international standard and overseas advanced standards, and extensive soliciting of
opinions.
The revision of this standard is, in accordance with the national guidelines on basic construction and the fire prevention policy of ?€?prevention-oriented, prevention-firefighting combined?€?, based on the scientific research
achievements, design and current situation of use of the sprinkler system in China, after extensive solicitating the domestic opinions on such departments as scientific research, design, production, firefighting supervision, and universities, and at the same time making reference to the relevant standards of the ISO, USA, UK and other developed countries, jointly reviewed and finalized by the relevant departments.
The main technical contents of this code are. general provisions, terminologies and symbols, hazard classification of occupancies, basic requirements, basic design parameters, system components, sprinkler arrangement, pipe, hydraulic calculation, water supply, operation and control, local application system, and so on.
The main technical content of this revision of this code is.
1. REARRANGE the terms of the sprinkler system type and sprinkler type; 2. ENRICH the technical requirements for sprinkler system design in civil buildings, warehouses and other places, ADD the technical content of the sprinkler protection and cooling system;
3. ADD the application technical requirements for new sprinkler and pipelines, with particular emphasis on system type selection based on setting
locations and system design based on sprinkler type;
4. MODIFY some provisions inconvenient for operation in the current code, COORDINATE the relationship with other code.
The provisions marked in bold in this Code are mandatory provisions, which must be strictly enforced.
As for this code, the Ministry of Housing and Urban-Rural Development and is responsible for its management and interpretation of mandatory provisions, the Code for design of sprinkler systems

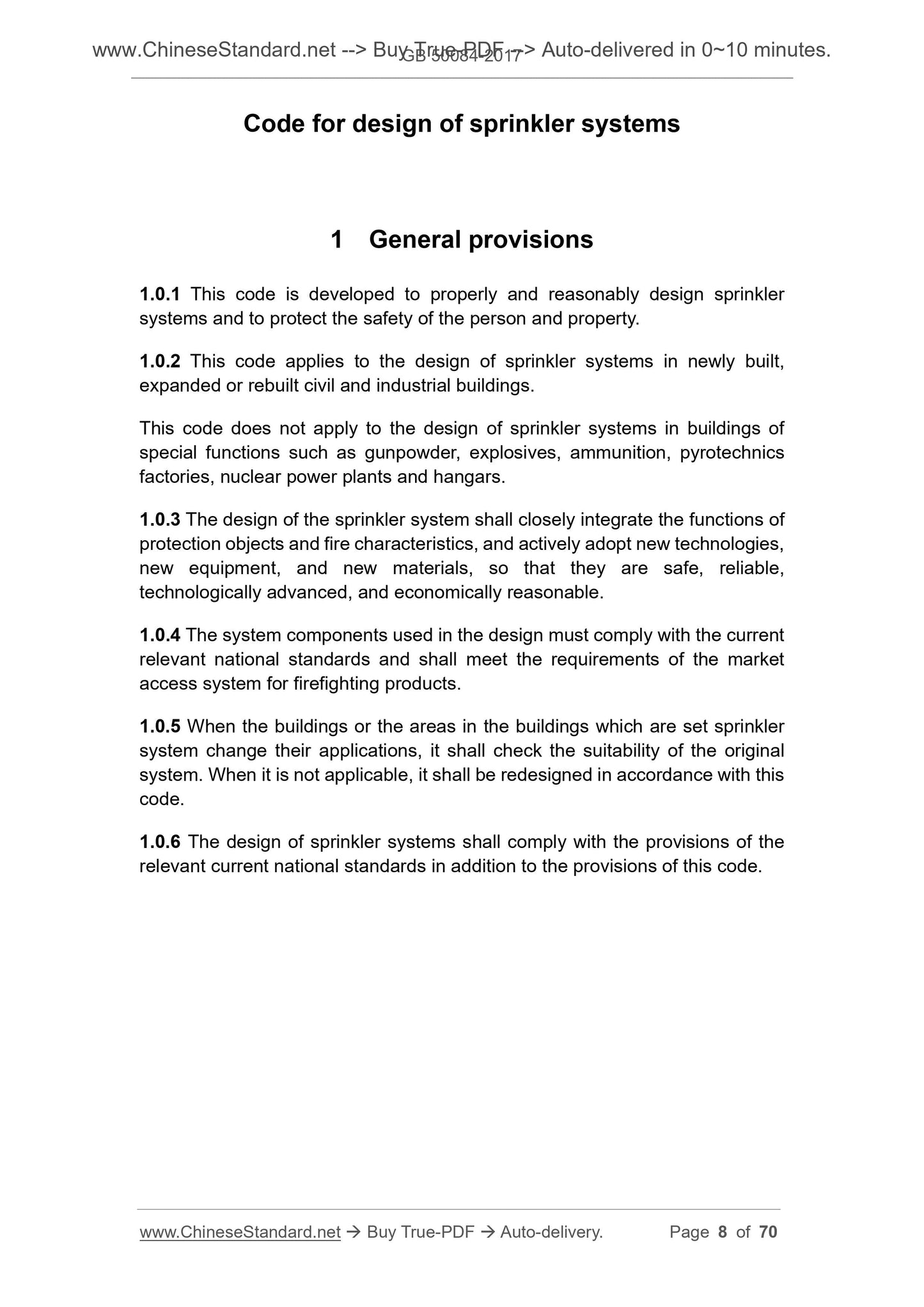

1 General provisions
1.0.1 This code is developed to properly and reasonably design sprinkler systems and to protect the safety of the person and property.
1.0.2 This code applies to the design of sprinkler systems in newly built, expanded or rebuilt civil and industrial buildings.
This code does not apply to the design of sprinkler systems in buildings of special functions such as gunpowder, explosives, ammunition, pyrotechnics factories, nuclear power plants and hangars.
1.0.3 The design of the sprinkler system shall closely integrate the functions of protection objects and fire characteristics, and actively adopt new technologies, new equipment, and new materials, so that they are safe, reliable,
technologically advanced, and economically reasonable.
1.0.4 The system components used in the design must comply with the current relevant national standards and shall meet the requirements of the market access system for firefighting products.
1.0.5 When the buildings or the areas in the buildings which are set sprinkler system change their applications, it shall check the suitability of the original system. When it is not applicable, it shall be redesigned in accordance with this code.
1.0.6 The design of sprinkler systems shall comply with the provisions of the relevant current national standards in addition to the provisions of this code. 2 Terminologies and symbols

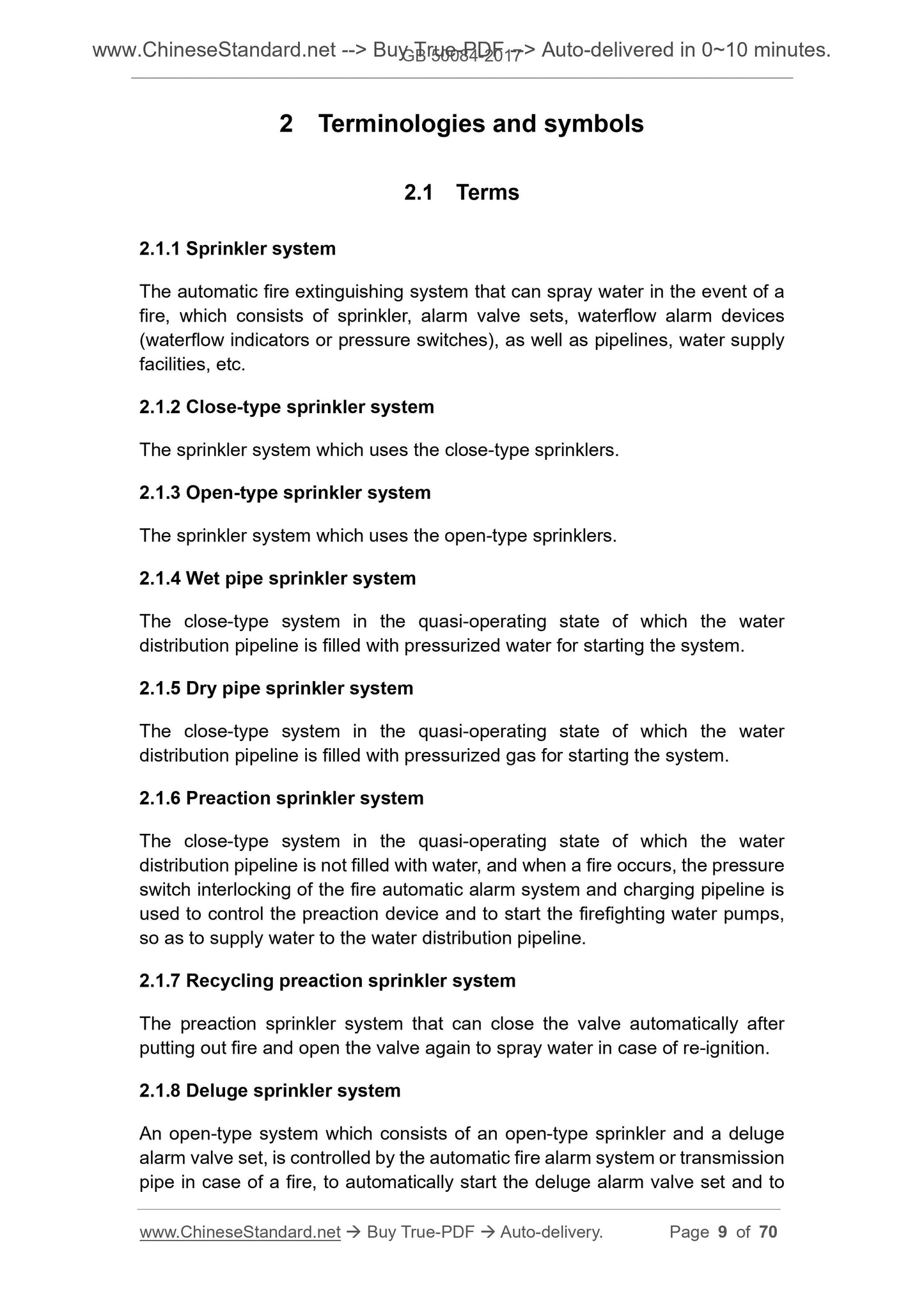

2.1 Terms
2.1.1 Sprinkler system
The automatic fire extinguishing system that can spray water in the event of a fire, which consists of sprinkler, alarm valve sets, waterflow alarm devices (waterflow indicators or pressure switches), as well as pipelines, water supply facilities, etc.
2.1.2 Close-type sprinkler system
The sprinkler system which uses the close-type sprinklers.
2.1.3 Open-type sprinkler system
The sprinkler system which uses the open-type sprinklers.
2.1.4 Wet pipe sprinkler system
The close-type system in the quasi-operating state of which the water
distribution pipeline is filled with pressurized water for starting the system. 2.1.5 Dry pipe sprinkler system
The close-type system in the quasi-operating state of which the water
distribution pipeline is filled with pressurized gas for starting the system. 2.1.6 Preaction sprinkler system
The close-type system in the quasi-operating state of which the water
distribution pipeline is not filled with water, and when a fire occurs, the pressure switch interlocking of the fire automatic alarm system and charging pipeline is used to control the preaction device and to start the firefighting water pumps, so as to supply water to the water distribution pipeline.
2.1.7 Recycling preaction sprinkler system
The preaction sprinkler system that can close the valve automatically after putting out fire and open the valve again to spray water in case of re-ignition. 2.1.8 Deluge sprinkler system

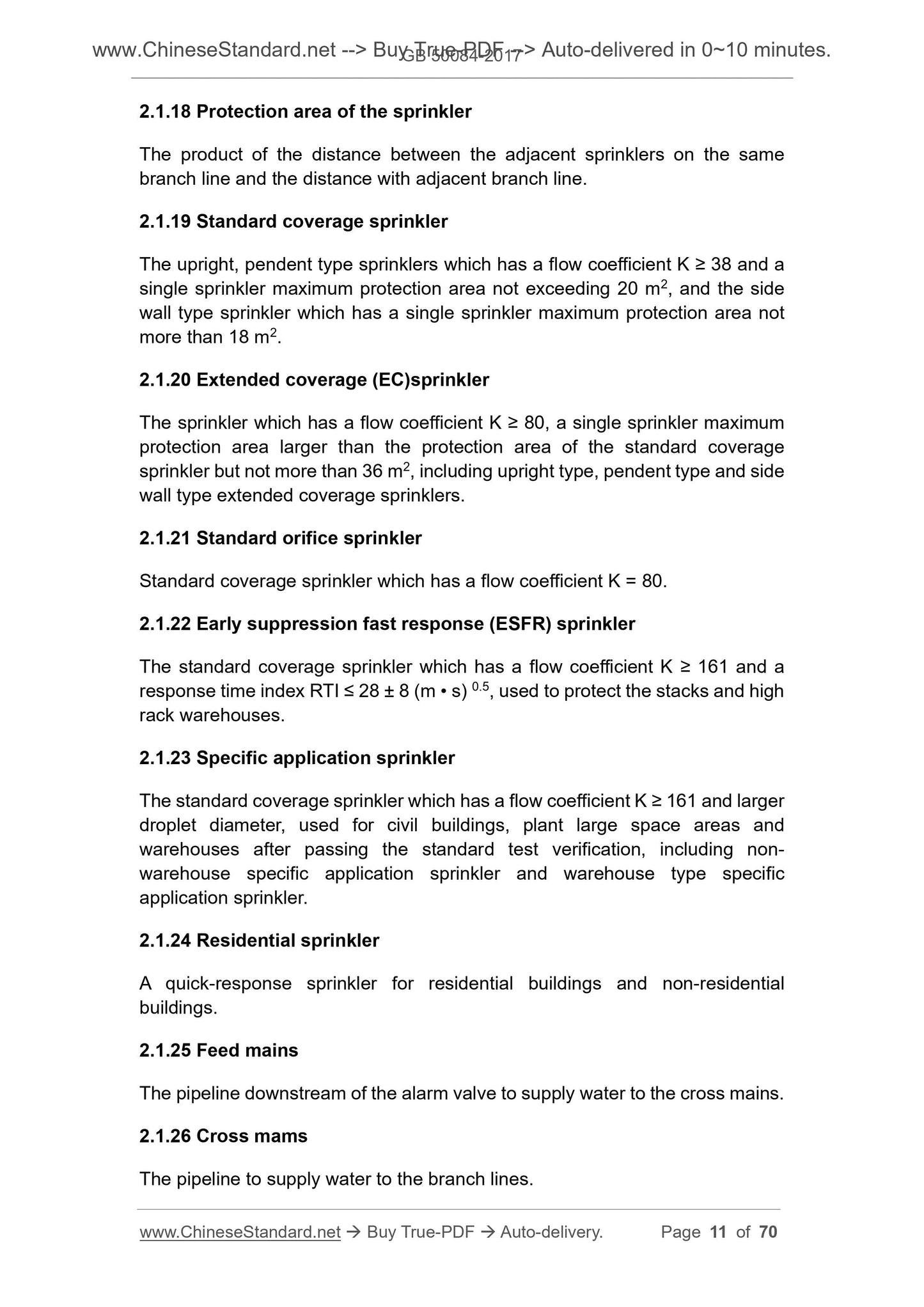

An open-type system which consists of an open-type sprinkler and a deluge alarm valve set, is controlled by the automatic fire alarm system or transmission pipe in case of a fire, to automatically start the deluge alarm valve set and to 2.1.18 Protection area of the sprinkler
The product of the distance between the adjacent sprinklers on the same branch line and the distance with adjacent branch line.
2.1.19 Standard coverage sprinkler
The upright, pendent type sprinklers which has a flow coefficient K ??? 38 and a single sprinkler maximum protection area not exceeding 20 m2, and the side wall type sprinkler which has a single sprinkler maximum protection area not more than 18 m2.
2.1.20 Extended coverage (EC)sprinkler
The sprinkler which has a flow coefficient K ??? 80, a single sprinkler maximum protection area larger than the protection area of the standard coverage sprinkler but not more than 36 m2, including upright type, pendent type and side wall type extended coverage sprinklers.
2.1.21 Standard orifice sprinkler
Standard coverage sprinkler which has a flow coefficient K = 80.
2.1.22 Early suppression fast response (ESFR) sprinkler
The standard coverage sprinkler which has a flow coefficient K ??? 161 and a response time index RTI ??? 28 ?? 8 (m ?€? s) 0.5, used to protect the stacks and high rack warehouses.
2.1.23 Specific application sprinkler
The standard coverage sprinkler which has a flow coefficient K ??? 161 and larger droplet diameter, used for civil buildings, plant large space areas and warehouses after passing the standard test verification, including non- warehouse specific application sprinkler and warehouse type specific
application sprinkler.
2.1.24 Residential sprinkler
A quick-response sprinkler for residential buildings and non-residential buildings.
2.1.25 Feed mains
The pipeline downstream of the alarm valve to supply water to the cross mains. 2.1.26 Cross mams
The pipeline to supply water to the branch lines.

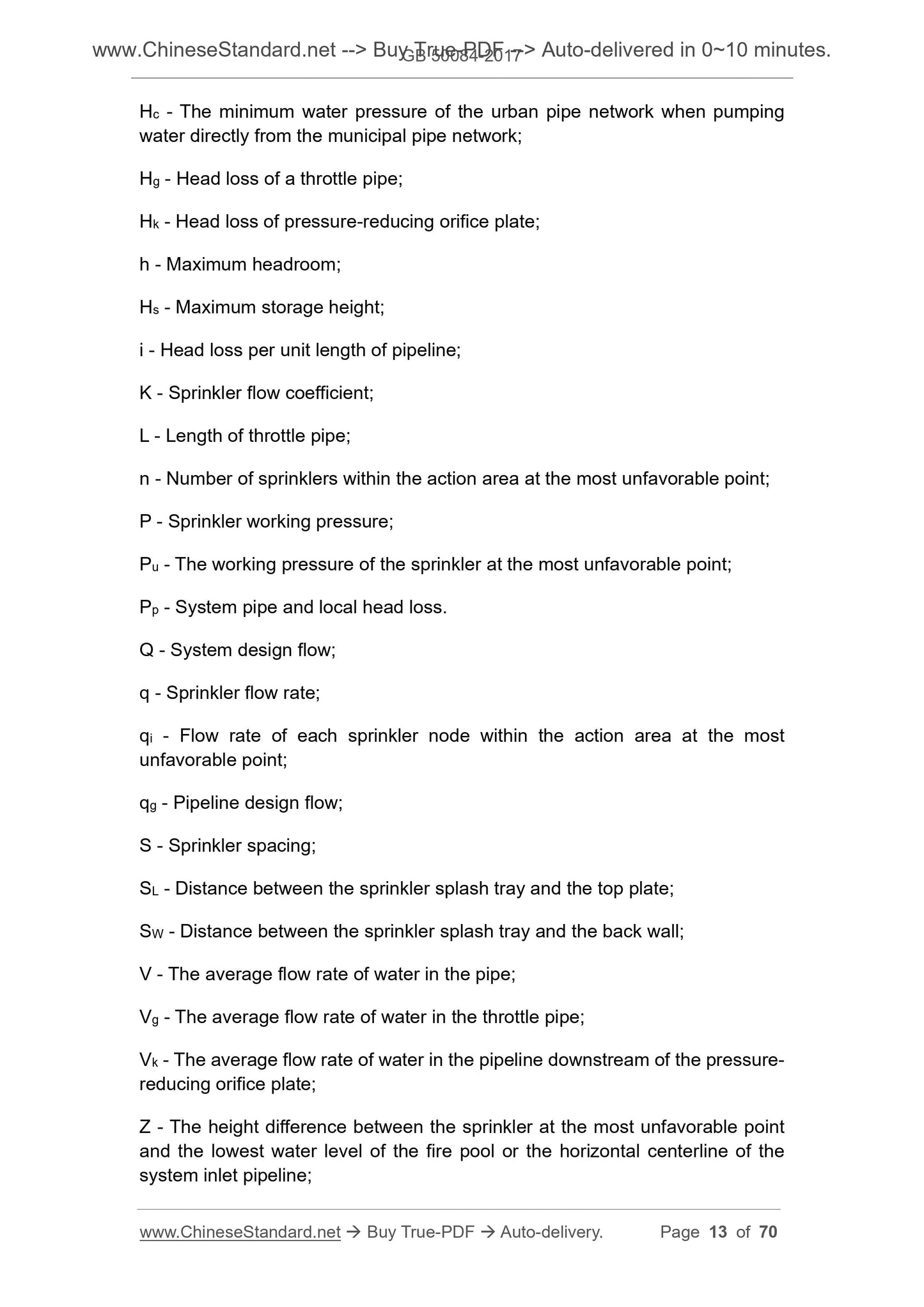

Hc - The minimum water pressure of the urban pipe network when pumping
water directly from the municipal pipe network;
Hg - Head loss of a throttle pipe;
Hk - Head loss of pressure-reducing orifice plate;
h - Maximum headroom;
Hs - Maximum storage height;
i - Head loss per unit length of pipeline;
K - Sprinkler flow coefficient;
L - Length of throttle pipe;
n - Number of sprinklers within the action area at the most unfavorable point; P - Sprinkler working pressure;
Pu - The working pressure of the sprinkler at the most unfavorable point; Pp - System pipe and local head loss.
Q - System design flow;
q - Sprinkler flow rate;
qi - Flow rate of each sprinkler node within the action area at the most unfavorable point;
qg - Pipeline design flow;
S - Sprinkler spacing;
SL - Distance between the sprinkler splash tray and the to...
