GB 4706.81-2014: Household and similar electrical appliances -- Safety -- Particular requirements for vaporizers

GB 4706.81-2014
Household and similar electrical appliances.Safety.Particular requirements for vaporizers ICS 97.180
Y69
National Standards of People's Republic of China
Replacing GB 4706.81-2006
Household and similar electrical appliances - Safety
Particular requirements for vaporizers
(IEC 60335-2-101.2008, Householdandsimilarelectricalappliances-
Safety-Part 2-101. Particularrequirementsforvaporizers, IDT)
Issued on. 2014-12-15
2016-01-01 implementation
Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

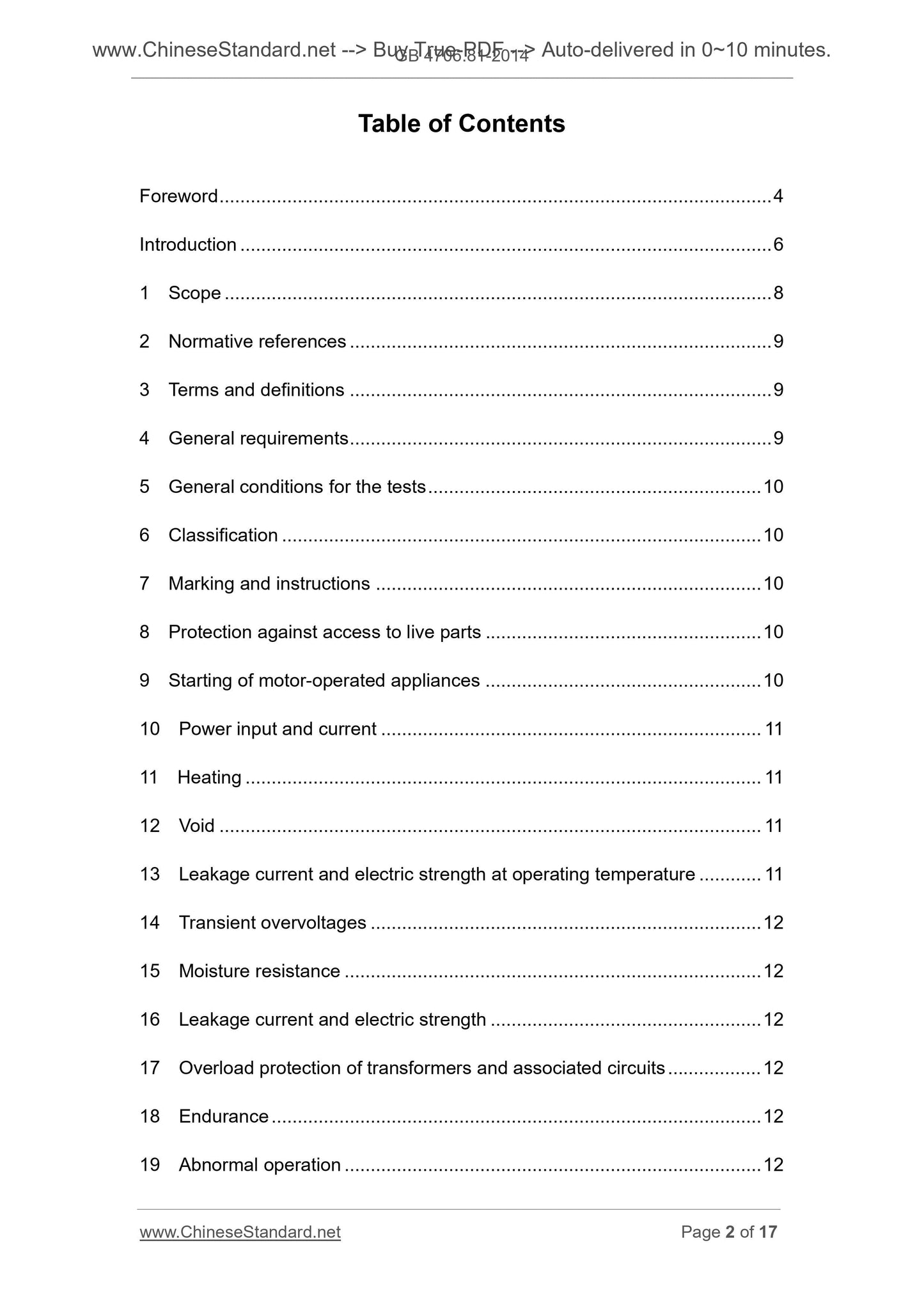

Table of Contents
Introduction Ⅲ
Introduction Ⅳ
1 Scope 1
2 Normative references 1
3 Terms and definitions
4 2 General requirements
5 General conditions for tests 2
6 Category 2
7 Marking and instructions 2
8 pairs of protection access to live parts 2
Start electric appliances 2 9
10 Power input and current 2
11 heat 3
12 Void 3
Leakage current and electric strength at operating temperature of 13 3
14 transient overvoltage 3
15 Moisture resistance 3
16 Leakage current and electric strength 3
17 Overload protection of transformers and associated circuits 3
18 Endurance 4
19 Non-work 4
20 Stability and mechanical hazards 4
2l mechanical strength 4
22 Structure 5
23 Internal wiring 5
24 element 5
25 Supply connection and external flexible cords 5
26 Terminals for external conductors 5
27 grounding measures 5
28 Screws and connections 5
29 Clearances, creepage distances and solid insulation 5
30 Resistance to heat and fire 5
31 6 rust
32 Radiation, toxicity and similar hazards 6
Appendix 7
References 8
Foreword
All technical content in this section is mandatory.
GB 4706 "Household and similar electrical appliances" made up of several parts, Part 1. General requirements, other parts of the special Claim.
This is part of the GB Part 814 706. This section should be GB 4706.1-2005 "Safety of household and similar electrical appliances Part 1. General requirements "in conjunction.
This section drafted in accordance with GB/T 1.1-2009 given rules.
This Part replaces GB 4706.81-2006 "Particular requirements for the volatile security and similar electrical appliances." The main difference between this part and GB 4706.81-2006 are as follows. --- Range of personnel do not involve the use of an extension of the following. Persons (including children).
Physical, perceptual and mental deficiency; or
Lack of experience and common sense;
Avoid the use of dangerous appliances such persons may be generated without supervision or guidance. --- 21.101 appliance not equipped with a medium according to GB/T 2423.8 2 drop test prescribed procedures. --- 23.3 Note 101 made clear. a rotation cycle of a clockwise and counterclockwise directions. --- 32 101 NOTE volatile toxic materials shall comply with national regulations. This section uses the translation method is equivalent to using IEC 60335-2-101 "Safety - Part 2-101 Household and similar electrical appliances. Volatile Particular requirements. "
Please note that some of the content of this document may involve patents. Release mechanism of the present document does not assume responsibility for the identification of these patents. This part is proposed by the China National Light Industry Council.
This part of the National Standardization Technical Committee appliances (SAC/TC46) centralized. This part of the main drafting units. China Household Electrical Appliances Research Institute, Wenzhou Oustar Electric Industrial Co., Ltd., Chengdu Rainbow Electric (Group) Co., Ltd., Shenzhen Inspection and Quarantine Science Research Institute, China Quality Certification Center, the State Quality Supervision and Testing Center of household appliances. The main drafters of this section. Zhu Yan, Hu Lixin, Deng Xu, Liu Xiangdong, Xiejin Xiong, Sun Peng. This part of the standard replaces the previous editions are.
--- GB 4706.81-2006.
introduction
In drafting this section has been assumed by appropriately qualified and experienced people to implement the provisions of this section. This section is recognized Household and similar electrical appliances under normal use in the manufacturer's instructions noted that the conditions of the appliance An internationally acceptable level of electrical, mechanical, thermal, fire and radiation hazard protection, it also includes the use of expected possible Irregular situation, and to consider electromagnetic interference for the safe operation of the appliance impact way. In developing this section has been taken into account as far as possible the requirements of IEC 60364 "Electrical installations of buildings" in the provisions of such instruments in Harmonized rules and requirements for electrical wiring to connect to the grid. If the appliance within the scope of this section also contains other standard GB 4706 covered by function, as far as is reasonable situation Under conditions other part of the standard to be applied separately to each of the relevant function. If applicable, taking into account the influence of one function to another function. If other parts of the standard does not include additional requirements to cover the danger referred to in Part 1, Part 1 applies. Note 1. The Technical Committee is responsible for the centralized here mean that other parts of the standard has been decided. according to its appliance, in addition to general requirements, the provision is not necessary special requirements.
This part is related to a security appliance product family standards, and standards covering the same subject at the same level and the same category In priority.
Note 2. The standard deals with the same dangerous levels and categories do not apply, because in the development of GB 4706 general requirements and specific requirements have to be considered in Van Enclosed within. For example, many appliance surface temperature requirements, in addition to the first part and other parts of the common standards (such as for hot surfaces ISO 12732-1) Not applicable.
An appliance that complies in this part of the text, when examined and tested, found to have other features that will be covered by the requirements of this damage And when the level of security, it will not necessarily be considered to comply with this section of the safety guidelines. When using a variety of materials or products in various forms the structure of the section in the requirements, then the product can be in accordance with these requirements Intent to be inspected and tested. If found to be substantially equivalent, it may be considered to comply with the requirements of this section. Household and similar electrical appliances - Safety
Particular requirements for vaporizers
1 Scope
GB 4706.1-2005 The chapter replaced by the following.
GB This section 4706 specifies the electric vaporizers for rated voltage not exceeding 250V household and similar safety. 101 Note. This section includes appliances, for example air freshener and insecticide, which may be connected with the power cord and plug directly into a power outlet or on plug.
Not as a general family use, but the public may cause a dangerous instrument, such as going to the store, light industry and farms in non Professionals use the appliance within the scope of this section also.
This section refers to the various instruments exist common hazards of all persons in and around the home environment may encounter. This section generally does not involve the following.
--- Persons (including children).
Physical, perceptual and mental deficiency; or
Lack of experience and common sense;
Avoid the use of dangerous appliances such persons may be generated without supervision or guidance. Play appliance case --- children.
102 Note. to draw attention to the following.
--- Intended for use on vehicles, vessels or aircraft appliance, you may need to add additional requirements; --- Many health authorities, the national labor protection and similar authorities also provides for additional requirements. 103 Note. This section does not apply to.
--- Designed for industrial use and design of the appliance;
--- Intended for use in special places appliance, such as. the presence of corrosive or explosive atmosphere (dust, vapor or gas); --- Liquid heaters (GB 4706.19);
--- Insect killers (GB 4706.76);
--- Fabric ironing device (GB 4706.84);
--- Humidifier (GB 4706.48).
2 Normative references
The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB 4706.1-2005 is applicable.
3 Terms and Definitions
The following terms and definitions apply to this document.
GB 4706.1-2005 This chapter is applicable except as follows.
3.1.9 Replacement.
To work normaloperation
Depending on specification requirements filled or not filled with volatile media work the appliance, choose a more unfavorable situation. 3.101
Vaporizers vaporizer
Impact on the indoor air with volatile media electric heater means.
4 General requirements
GB 4706.1-2005 is applicable.
5 General conditions for tests
GB 4706.1-2005 This chapter is applicable except as follows.
5.2 Addition.
21.101 tests carried out on a new appliance.
Category 6
GB 4706.1-2005 is applicable.
7 Marking and instructions
GB 4706.1-2005 This chapter is applicable except as follows.
7.1 Addition.
101 Note. If the rated input power does not exceed 10W, the appliance can be labeled "10Wmax". 7.12 Addition.
Instructions should include the following.
Appliance Use only recommended media evaporation, using other media may produce toxic or fire. For appliances directly into an electrical outlet, if the test in Chapter 11, in normal use accessible surface temperature over a short time Grip handle, handle, gripper and the like of a predetermined value, use the instructions shall include the following. Has evaporated active medium hot surfaces, use should not touch these hot surfaces. 8 pairs of protection access to live parts
GB 4706.1-2005 is applicable.
9 start electric appliances
GB 4706.1-2005 This chapter does not apply.
10 Power input and current
GB 4706.1-2005 This chapter is applicable except as follows.
10.1 Addition.
Marked "10Wmax" appliance, the input power should not exceed this value. Fever 11
GB 4706.1-2005 This chapter is applicable except as follows.
11.4 Review.
Appliances - 1.06 times the rated voltage instead of 1.15 times the rated input power test. 11.7 Replacement.
The appliance is operated until steady conditions are established.
11.8 Review.
In Table 3, does not measure the surface temperature of the oil contact members. increase.
For appliances directly into an electrical outlet, the accessible surface temperature shall not exceed the short-term use only in the normal grip handle, handle, Grasping claw prescribed limits and similar components. This does not apply to join the steam outlet grille and media slots and the distance of these components within 7mm s surface.
Appliance socket housing near surface temperature should not exceed 40K. 12 Void
13 Leakage current and electric strength at operating temperature
GB 4706.1-2005 This chapter is applicable except as follows.
13.1 Modify
Appliances - 1.06 times the rated voltage instead of 1.15 times the rated input power test. 14 transient overvoltage
GB 4706.1-2005 is applicable.
15 Moisture resistance
GB 4706.1-2005 is applicable.
16 Leakage current and electric strength
GB 4706.1-2005 is applicable.
17 Overload protection of transformers and associated circuits
GB 4706.1-2005 is applicable.
18 Endurance
GB 4706.1-2005 This chapter does not apply.
19 Abnormal operation
GB 4706.1-2005 This chapter is applicable except as follows.
19.1 Addition.
The appliance should also be subjected to the test of 19.101.
19.2 Addition.
Appliance work under insufficient volatile media state.
modify.
Appliance with 0.9 times the rated voltage instead of 0.85 times the rated input power test. 19.3 Review.
Appliances - 1.1 times the rated voltage instead of 1.24 times the rated input power test. 19.4 Review.
Appliances - 1.06 times the rated voltage instead of 1.15 times the rated input power test. 19.13 Addition.
During the test, the appliance directly into an electrical outlet accessible surface temperature shall not exceed. --- Metal. 55K;
--- Ceramic or enamel enamel. 65K;
--- Molding materials, rubber or timber. 75K.
This does not apply to the air outlet grilles and added steam volatile media slot and the distance between the inner surfaces of these components 7mm. Appliance near the power outlet near the surface temperature should not exceed 65K. 19.101 with prewash double hem 70cm × 70cm, dry state per unit mass of between 140g/m2 ~ 170g/m2 monolayer Cotton sheet covering the appliance, the appliance is operating normally at rated voltage. Cotton should not smoke or ignite.
20 Stability and mechanical hazards
GB 4706.1-2005 is applicable.
21 Mechanical strength
GB 4706.1-2005 This chapter is applicable except as follows.
21.1 Addition.
Rely pins will be fixed when the appliance directly into the power outlet test NOTE. 101. Directly into a power outlet of the appliance should also be subjected to 21.101 tests, tests carried out on a new appliance. 21.101 appliance not equipped with a media press GB/T 2423.8 prescribed procedures 2 drop test, drop times are. --- When the appliance mass greater than 250g 50 times;
--- Other apparatus 100.
After the test, the appliance does not comply with Chapter 8 and Chapter 29 requirements should not be damaged. 22 Construction
GB 4706.1-2005 This chapter is applicable except as follows.
22.4 does not apply.
23 Internal wiring
GB 4706.1-2005 This chapter is applicable except as follows.
23.3 Addition.
Directly into an electrical outlet and rotatable instrument, shall be subjected to the following tests. Counterclockwise direction and clockwise direction, according to the maximum angle of the rotating member structure allows the appliance to 10r/min rotation speed of 100 times. 101 Note. clockwise and counterclockwise a loop once.
After the test, the appliance shall comply with the requirements of Chapter 8 and Chapter 29, and the electrical connections should not be loose. 24 element
GB 4706.1-2005 is applicable.
25 Supply connection and external flexible cords
GB 4706.1-2005 This chapter is applicable except as follows.
25.5 Addition.
Allow Z-connection.
26 Terminals for external conductors
GB 4706.1-2005 is applicable.
27 Provision for earthing
GB 4706.1-2005 is applicable.
28 Screws and connections
GB 4706.1-2005 is applicable.
29 Clearances, creepage distances and solid insulation
GB 4706.1-2005 is applicable.
30 Resistance to heat and fire
GB 4706.1-2005 This chapter is applicable except as follows.
30.2.2 Not applicable.
31 rust
GB 4706.1-2005 is applicable.
32 Radiation, toxicity and similar hazards
GB 4706.1-2005 This chapter is applicable except as follows.
increase.
101 Note. Volatile toxic materials shall comply with national regulations. appendix
Appendix GB 4706.1-2005 are applicable.

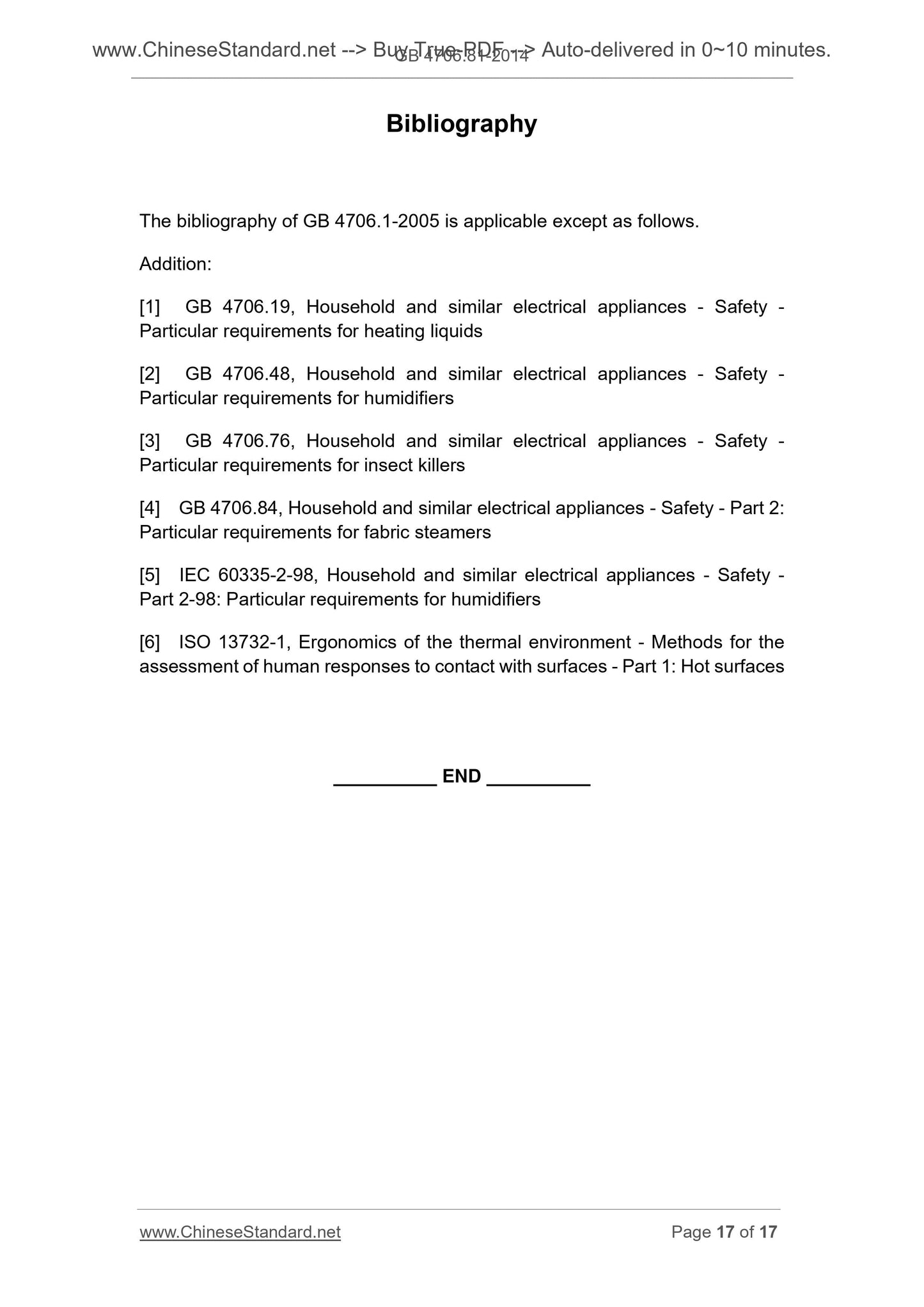

references
GB 4706.1-2005 reference except for the following apply.
increase.
[1] GB 4706.19 special requirements of household and similar electrical appliances for heating liquids [2] GB 4706.48 special requirements of household and similar electrical appliances humidifier [3] GB 4706.76 Particular requirements for insect killers and similar electrical appliances [4] GB 4706.84 - Safety - Part 2 Household and similar electrical appliances. Particular requirements for fabric steamers [5] Safety - Part 2-59 IEC 60335-2-59 Household and similar electrical appliances. Particular requirements for pesticides (Householdandsimilarelectricalappliances-Safety-Part 2-59. Particularrequirementsforinsect kilers)
[6] ISO 13732-1 thermal environment ergonomics evaluation methods of human perception reaction contact surface - Part 1. Hot table Surface (Ergonomicsofthermalenvirment-Methodsfortheassessmentofhumanresponsestocontact withsurfaces-Part 1. Hotsurfaces)
