GB 4599-2024: Road illumination devices and systems for motor vehicles

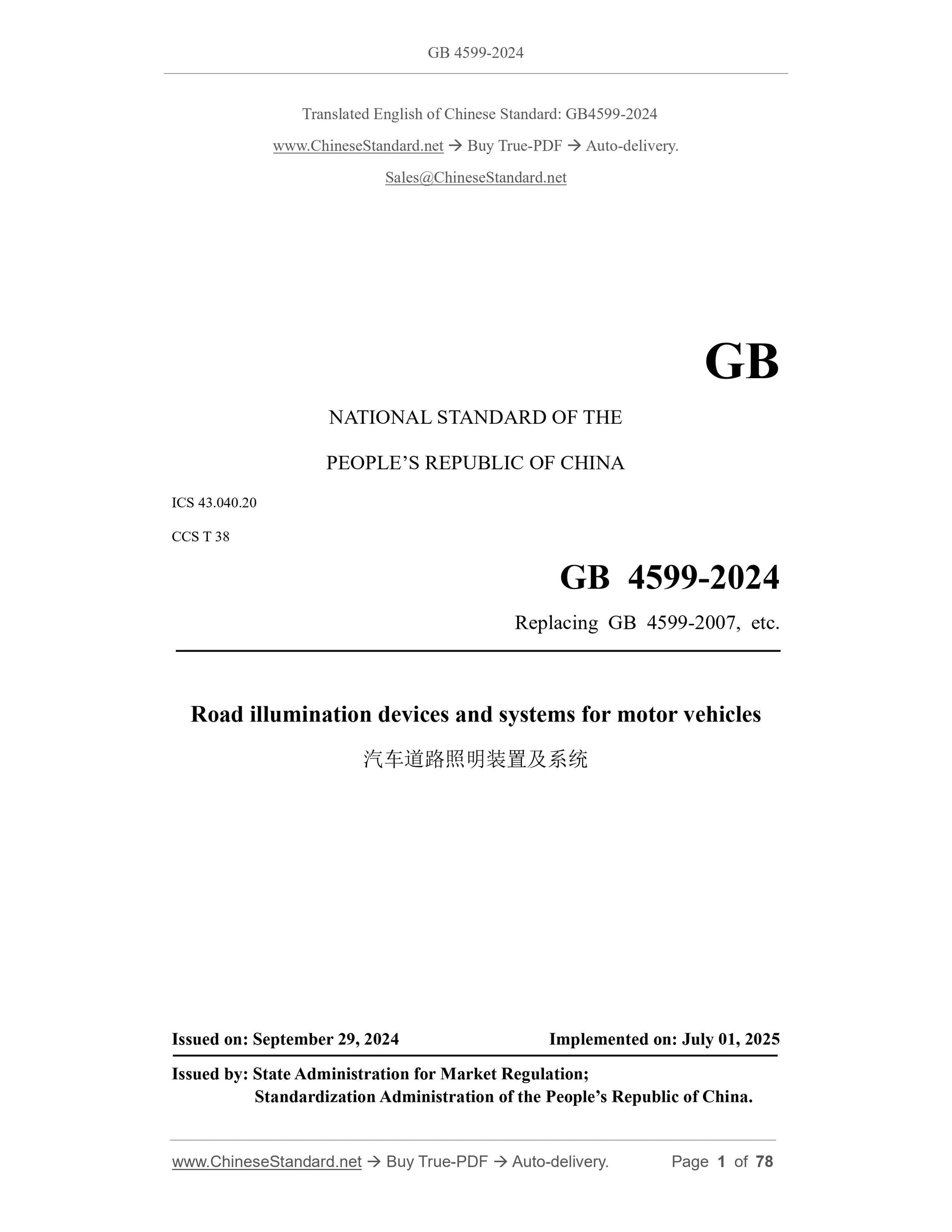

GB 4599-2024
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.040.20
CCS T 38
Replacing GB 4599-2007, etc.
Road illumination devices and systems for motor vehicles
ISSUED ON: SEPTEMBER 29, 2024
IMPLEMENTED ON: JULY 01, 2025
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

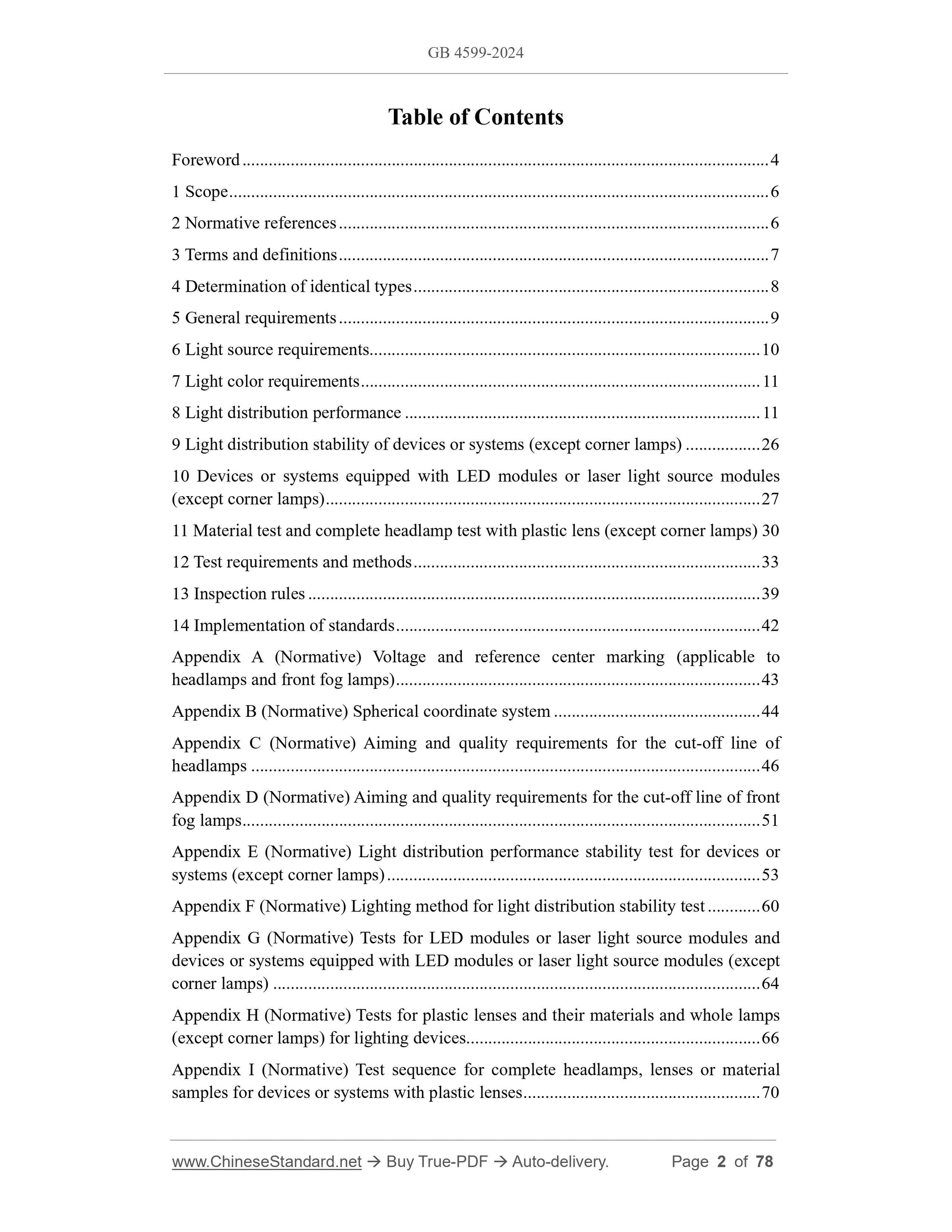

Table of Contents
Foreword ... 4
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 7
4 Determination of identical types ... 8
5 General requirements ... 9
6 Light source requirements ... 10
7 Light color requirements ... 11
8 Light distribution performance ... 11
9 Light distribution stability of devices or systems (except corner lamps) ... 26
10 Devices or systems equipped with LED modules or laser light source modules
(except corner lamps) ... 27
11 Material test and complete headlamp test with plastic lens (except corner lamps) 30

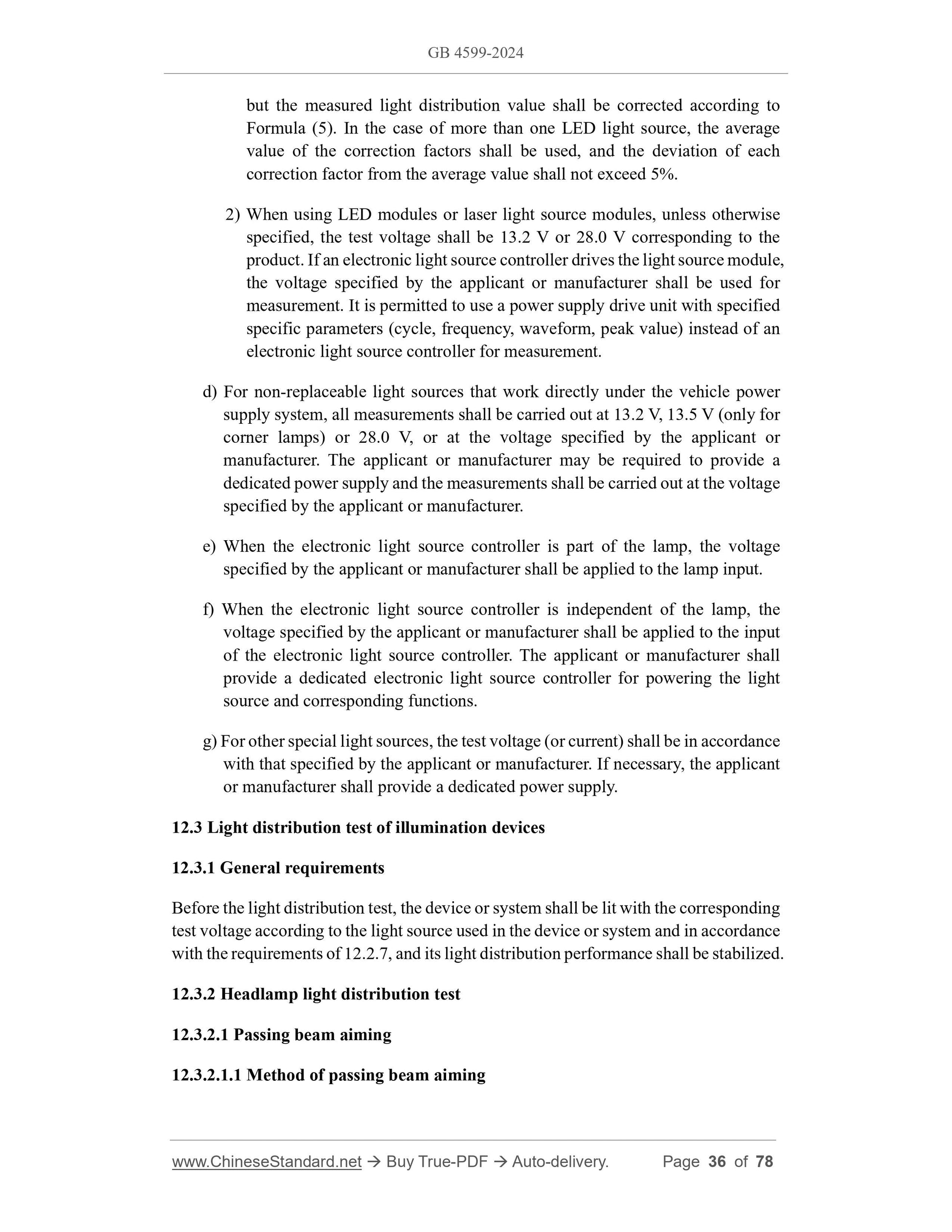

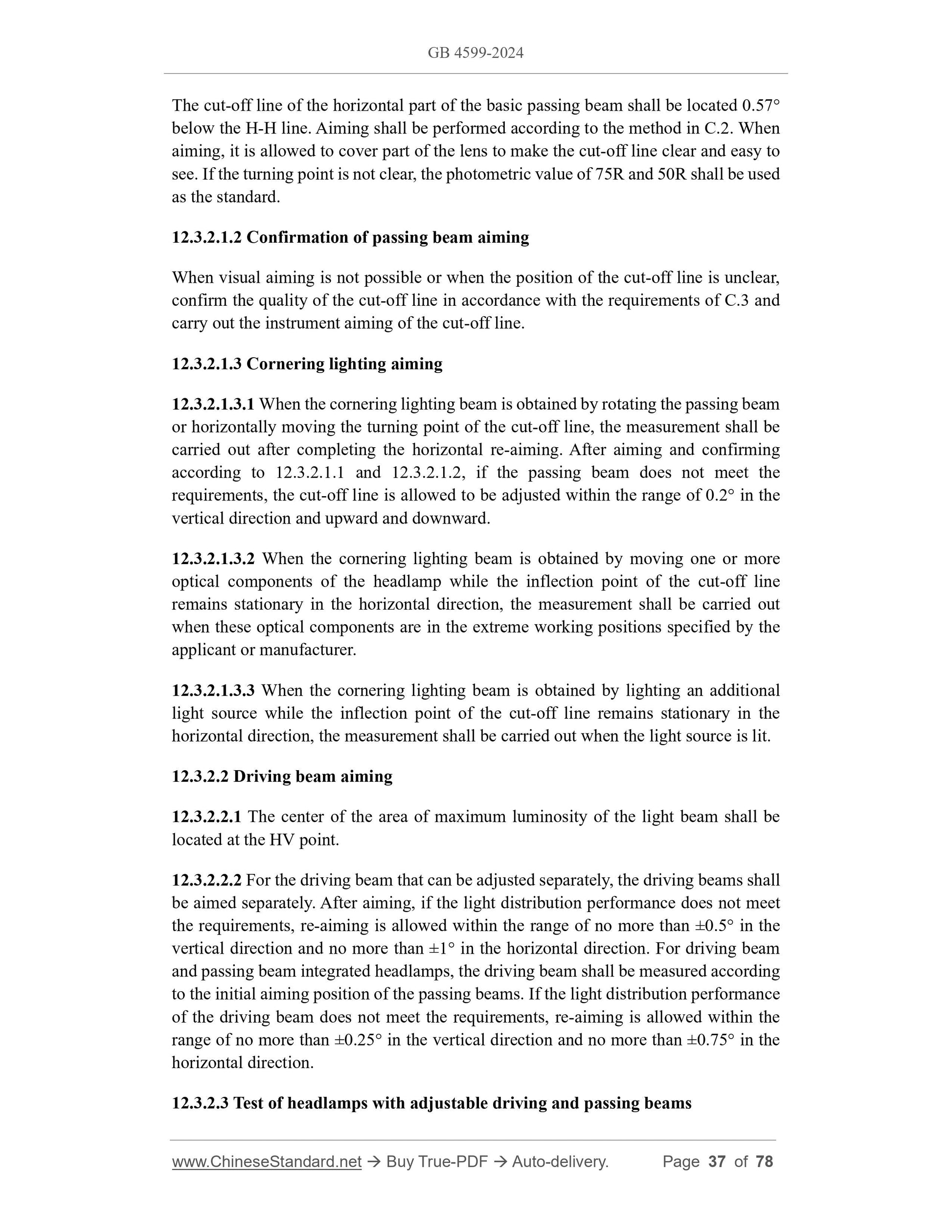

12 Test requirements and methods ... 33

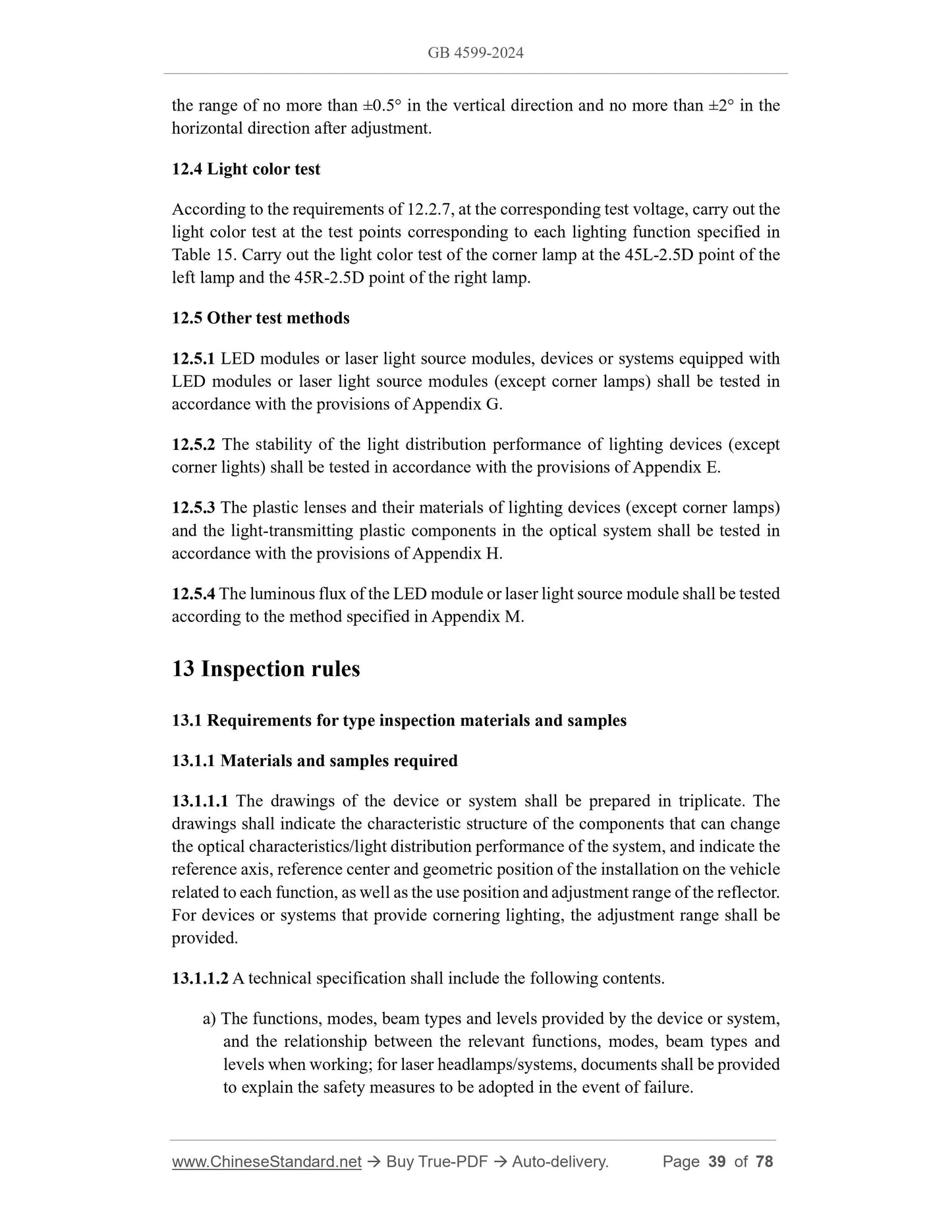

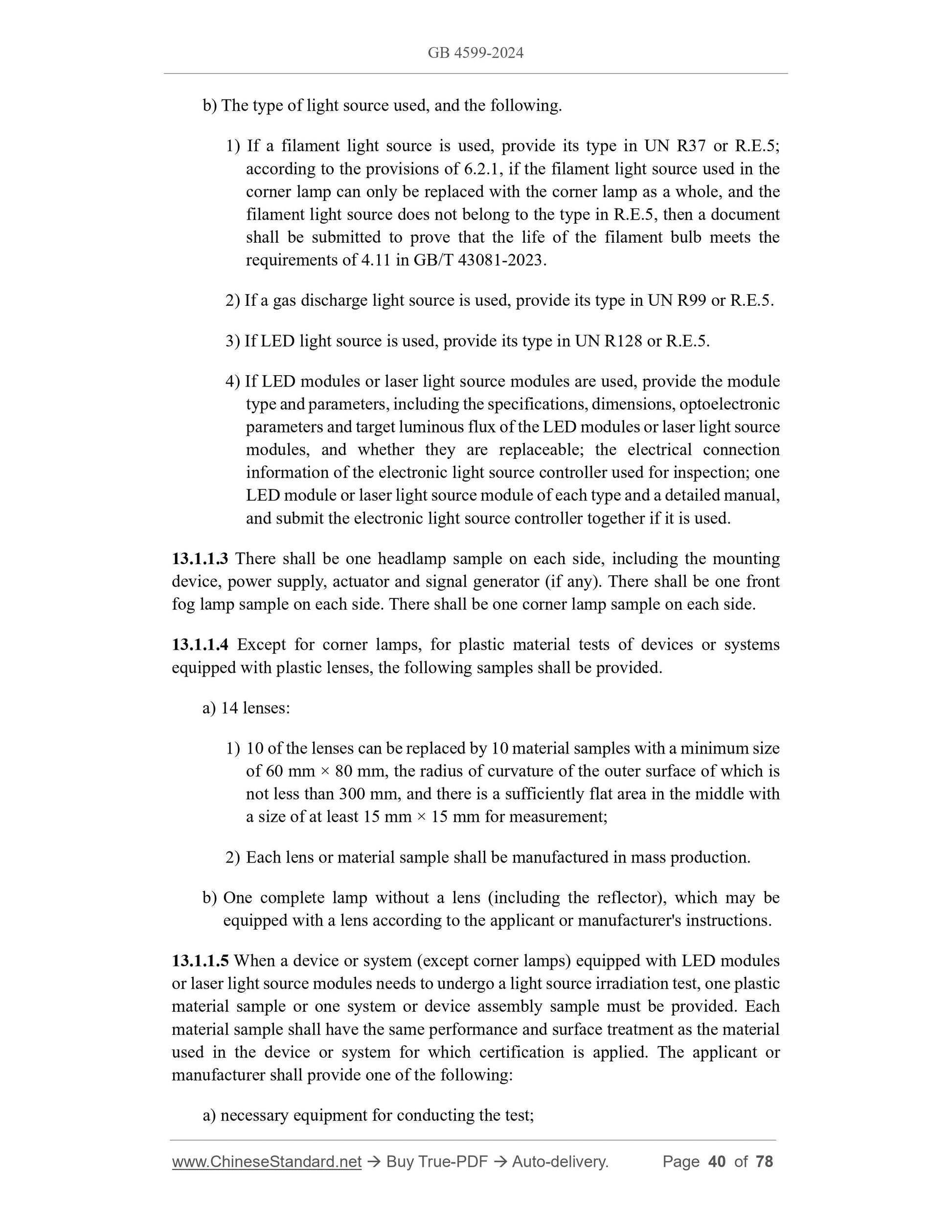

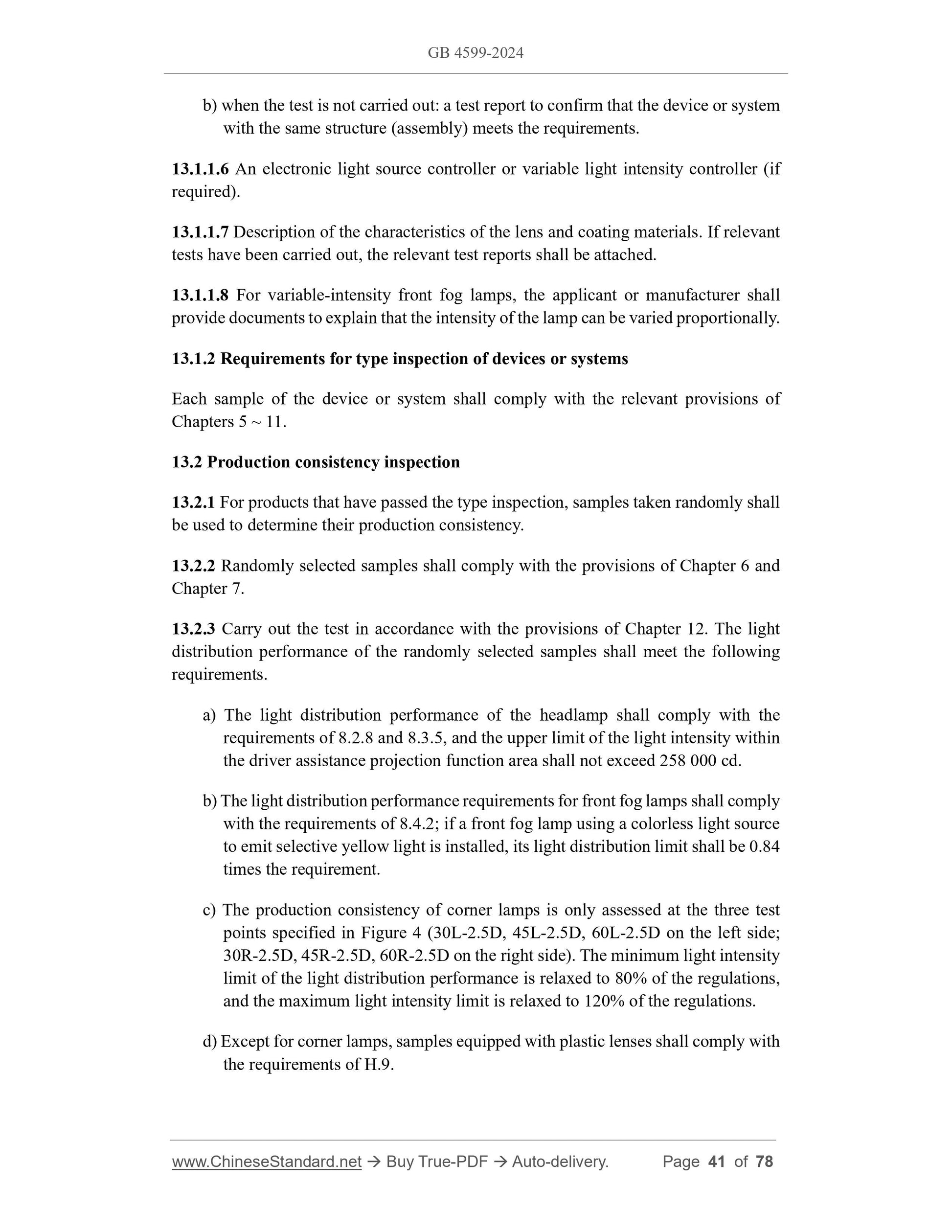

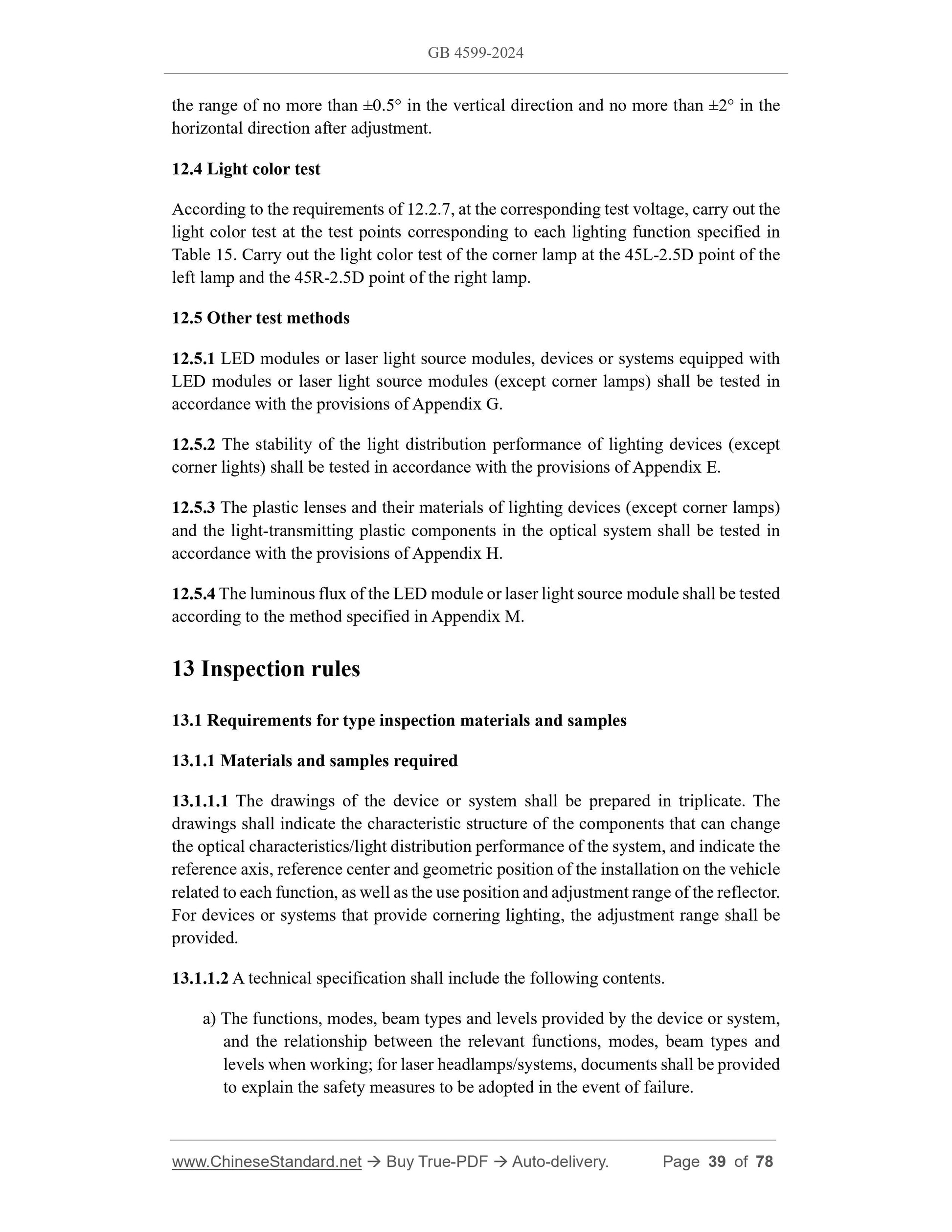

13 Inspection rules ... 39
14 Implementation of standards ... 42
Appendix A (Normative) Voltage and reference center marking (applicable to
headlamps and front fog lamps) ... 43
Appendix B (Normative) Spherical coordinate system ... 44
Appendix C (Normative) Aiming and quality requirements for the cut-off line of
headlamps ... 46
Appendix D (Normative) Aiming and quality requirements for the cut-off line of front
fog lamps ... 51

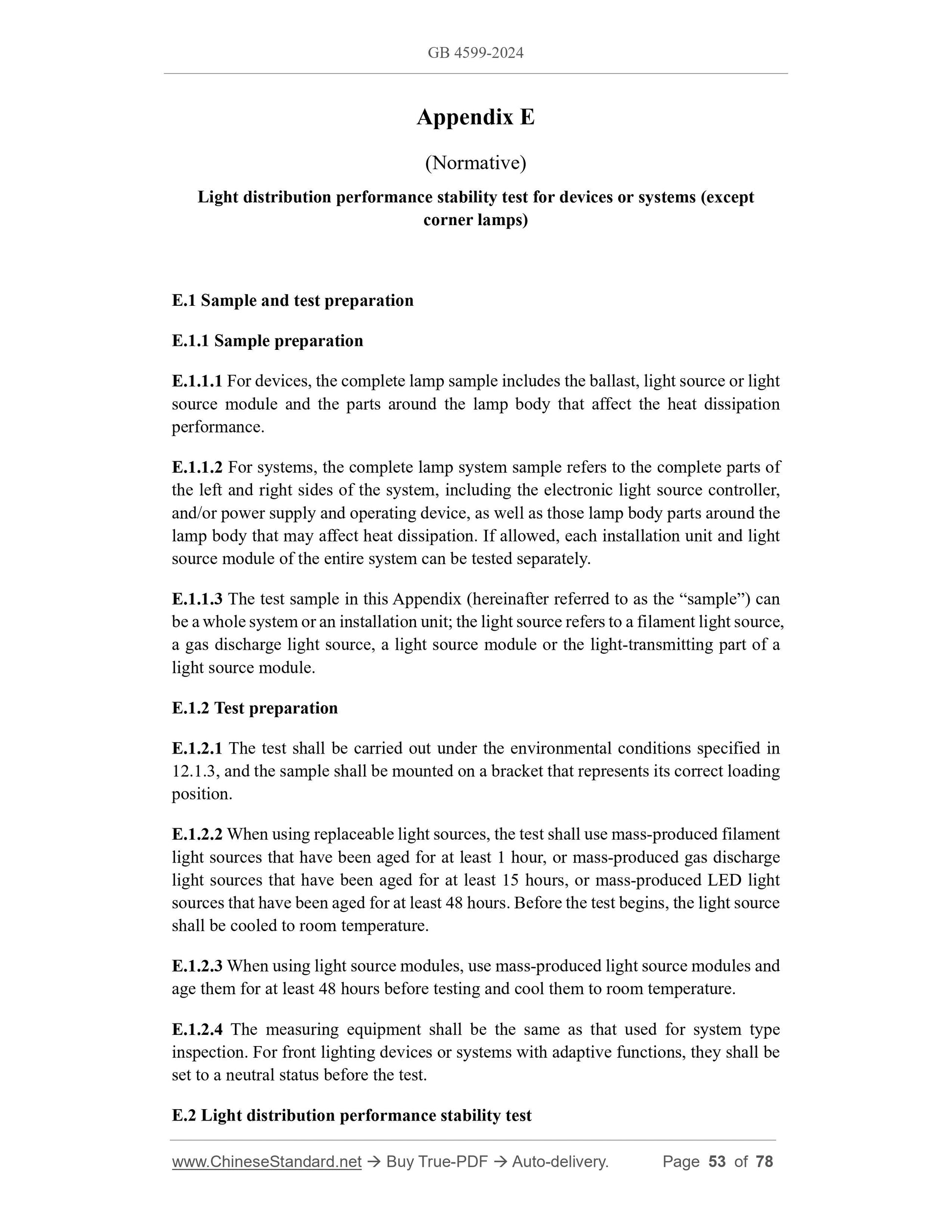

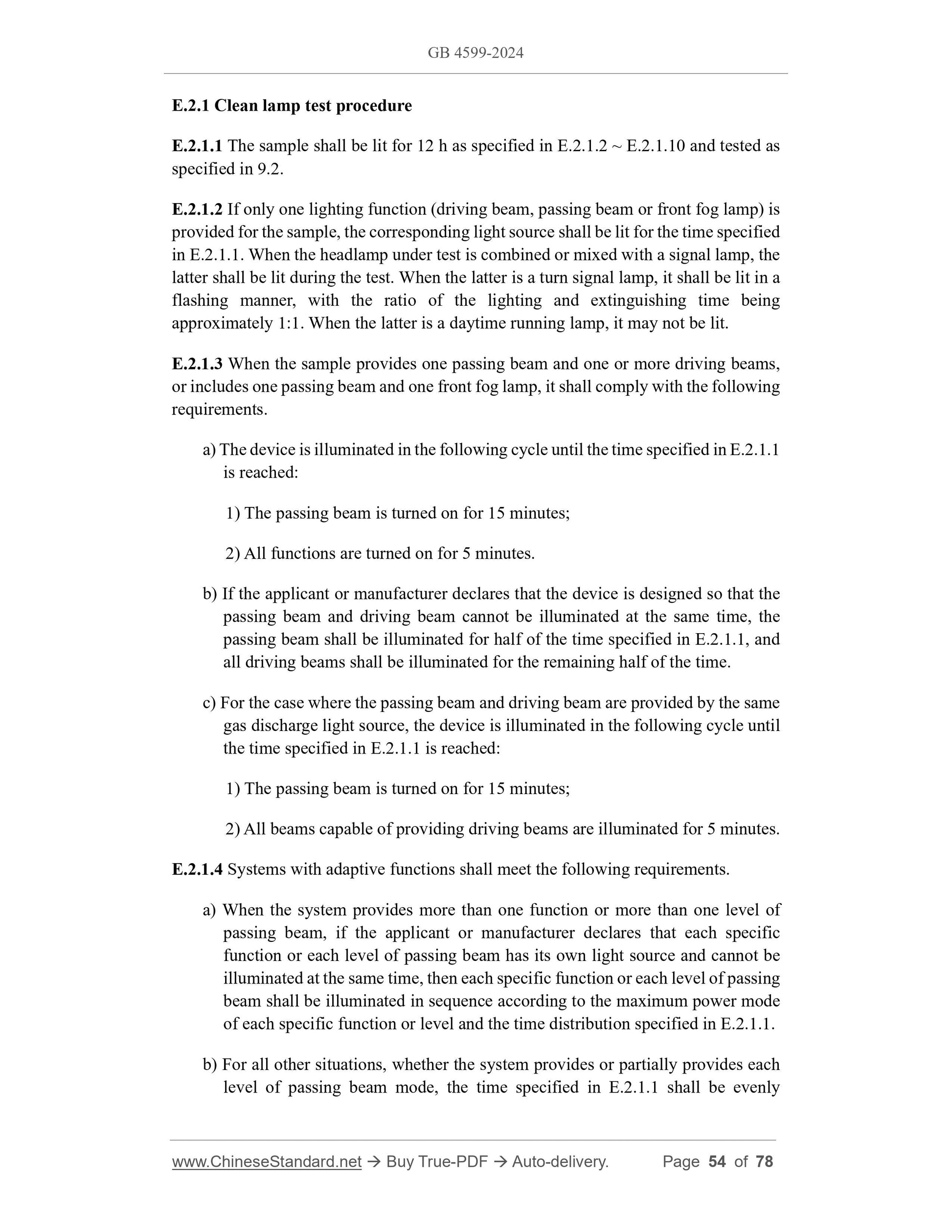

Appendix E (Normative) Light distribution performance stability test for devices or
systems (except corner lamps) ... 53
Appendix F (Normative) Lighting method for light distribution stability test ... 60
Appendix G (Normative) Tests for LED modules or laser light source modules and
devices or systems equipped with LED modules or laser light source modules (except
corner lamps) ... 64
Appendix H (Normative) Tests for plastic lenses and their materials and whole lamps
(except corner lamps) for lighting devices ... 66
Appendix I (Normative) Test sequence for complete headlamps, lenses or material
samples for devices or systems with plastic lenses ... 70

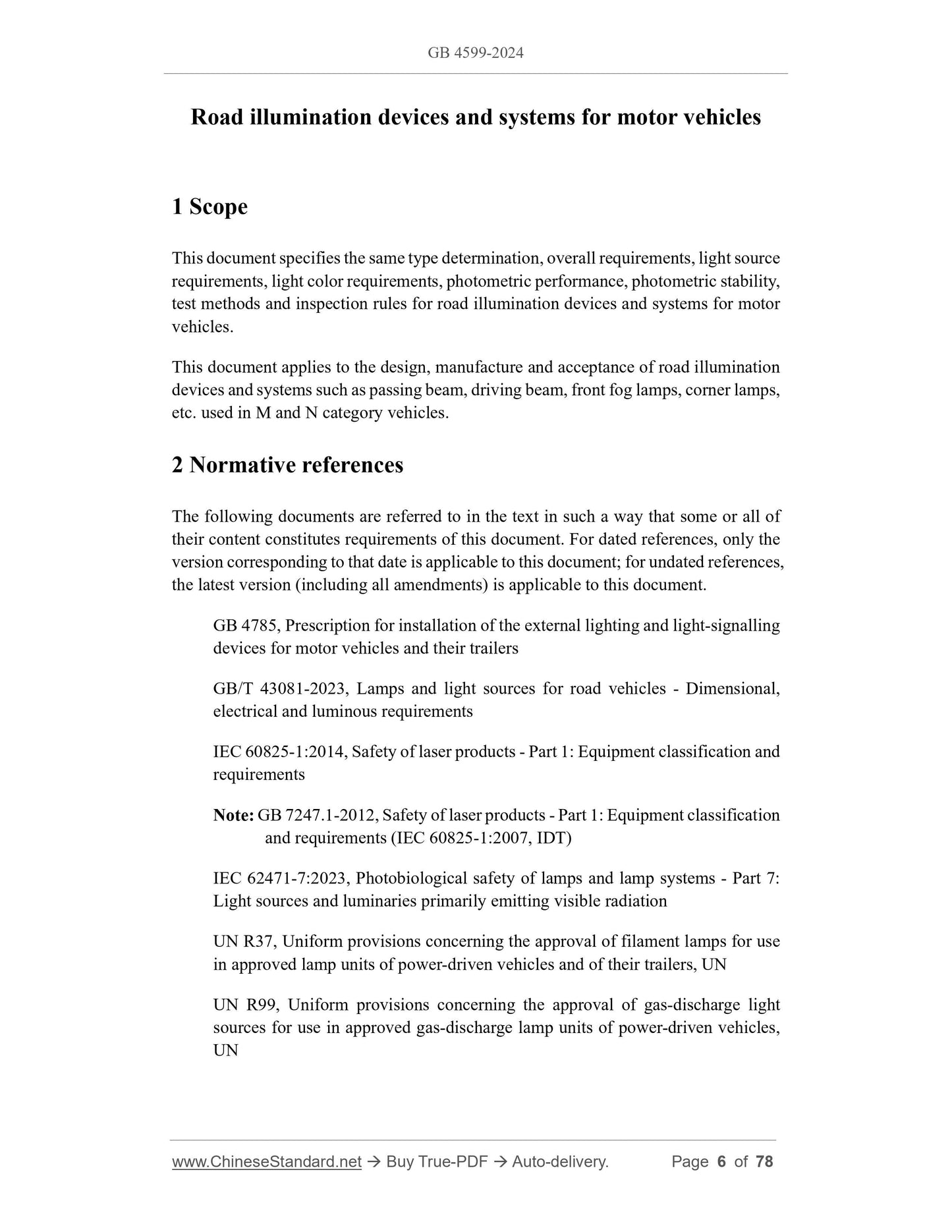

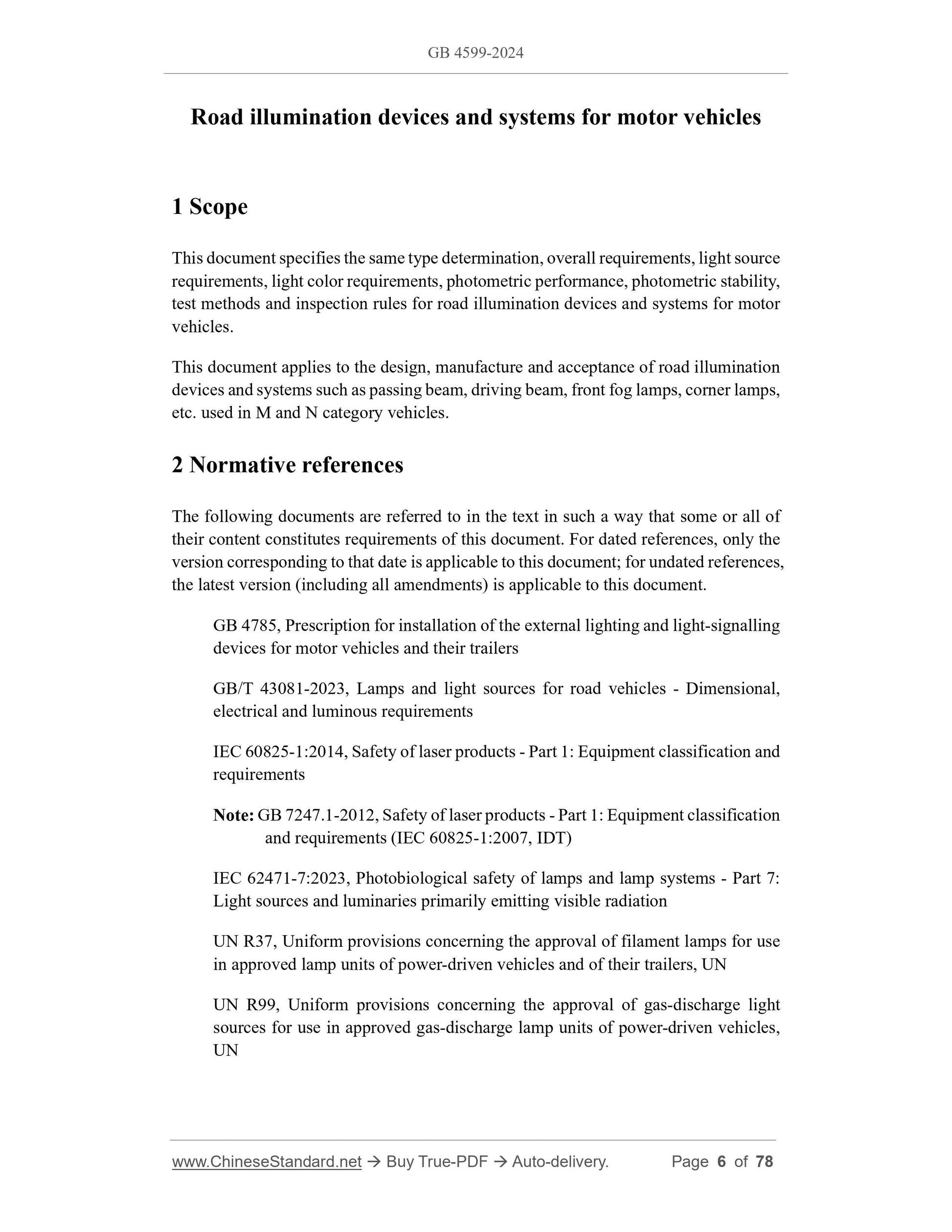

Road illumination devices and systems for motor vehicles
1 Scope
This document specifies the same type determination, overall requirements, light source
requirements, light color requirements, photometric performance, photometric stability,
test methods and inspection rules for road illumination devices and systems for motor
vehicles.
This document applies to the design, manufacture and acceptance of road illumination
devices and systems such as passing beam, driving beam, front fog lamps, corner lamps,
etc. used in M and N category vehicles.
2 Normative references
The following documents are referred to in the text in such a way that some or all of
their content constitutes requirements of this document. For dated references, only the
version corresponding to that date is applicable to this document; for undated references,
the latest version (including all amendments) is applicable to this document.
GB 4785, Prescription for installation of the external lighting and light-signalling
devices for motor vehicles and their trailers
GB/T 43081-2023, Lamps and light sources for road vehicles - Dimensional,
electrical and luminous requirements
IEC 60825-1:2014, Safety of laser products - Part 1: Equipment classification and
requirements
Note: GB 7247.1-2012, Safety of laser products - Part 1: Equipment classification
and requirements (IEC 60825-1:2007, IDT)
IEC 62471-7:2023, Photobiological safety of lamps and lamp systems - Part 7:
Light sources and luminaries primarily emitting visible radiation
UN R37, Uniform provisions concerning the approval of filament lamps for use
in approved lamp units of power-driven vehicles and of their trailers, UN
UN R99, Uniform provisions concerning the approval of gas-discharge light
sources for use in approved gas-discharge lamp units of power-driven vehicles,
UN

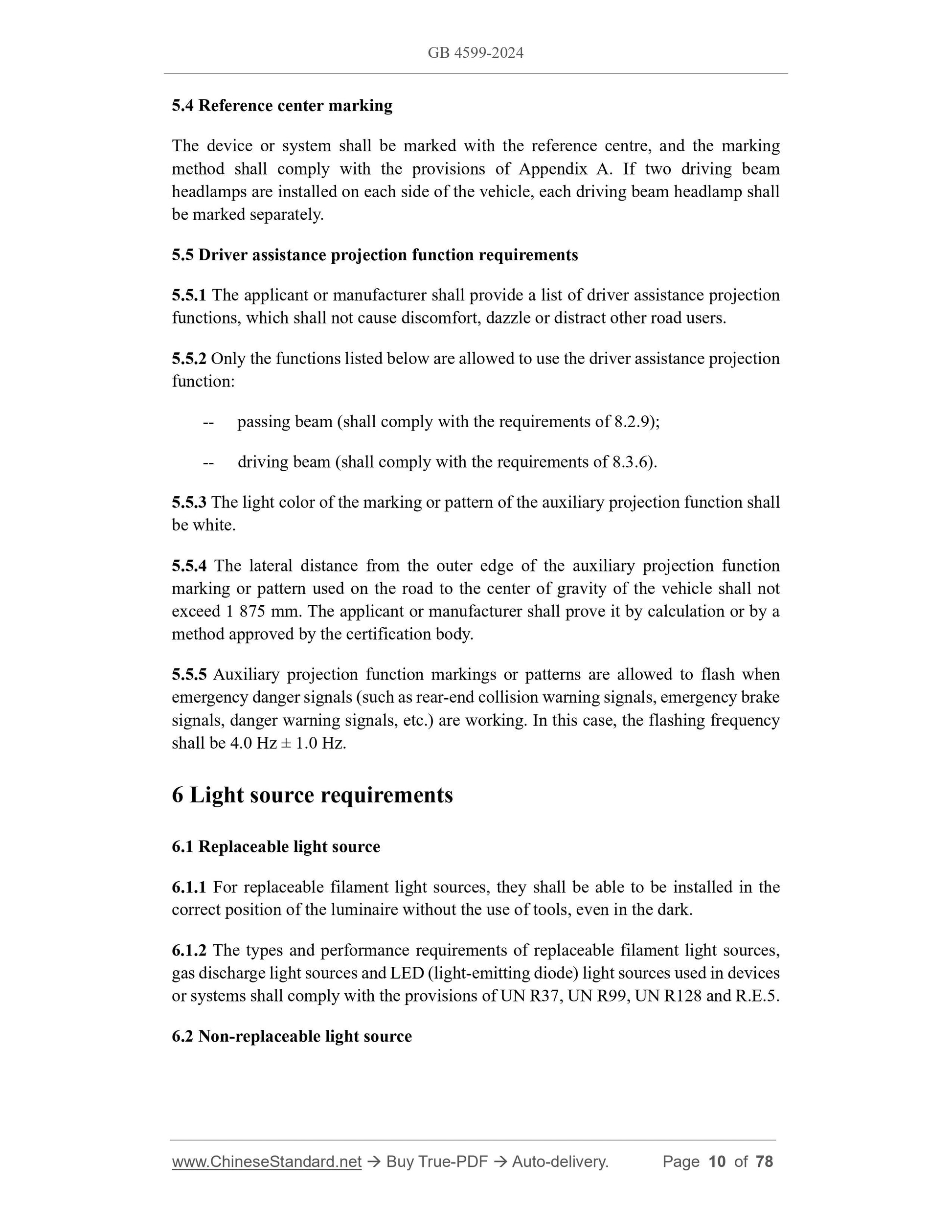

5.4 Reference center marking
The device or system shall be marked with the reference centre, and the marking
method shall comply with the provisions of Appendix A. If two driving beam
headlamps are installed on each side of the vehicle, each driving beam headlamp shall
be marked separately.
5.5 Driver assistance projection function requirements
5.5.1 The applicant or manufacturer shall provide a list of driver assistance projection
functions, which shall not cause discomfort, dazzle or distract other road users.
5.5.2 Only the functions listed below are allowed to use the driver assistance projection
function:
-- passing beam (shall comply with the requirements of 8.2.9);
-- driving beam (shall comply with the requirements of 8.3.6).
5.5.3 The light color of the marking or pattern of the auxiliary projection function shall
be white.
5.5.4 The lateral distance from the outer edge of the auxiliary projection function
marking or pattern used on the road to the center of gravity of the vehicle shall not
exceed 1 875 mm. The applicant or manufacturer shall prove it by calculation or by a
method approved by the certification body.
5.5.5 Auxiliary projection function markings or patterns are allowed to flash when
emergency danger signals (such as rear-end collision warning signals, emergency brake
signals, danger warning signals, etc.) are working. In this case, the flashing frequency
shall be 4.0 Hz ± 1.0 Hz.
6 Light source requirements
6.1 Replaceable light source
6.1.1 For replaceable filament light sources, they shall be able to be installed in the
correct position of the luminaire without the use of tools, even in the dark.
6.1.2 The types and performance requirements of replaceable filament light sources,
gas discharge light sources and LED (light-emitting diode) light sources used in devices
or systems shall comply with the provisions of UN R37, UN R99, UN R128 and R.E.5.

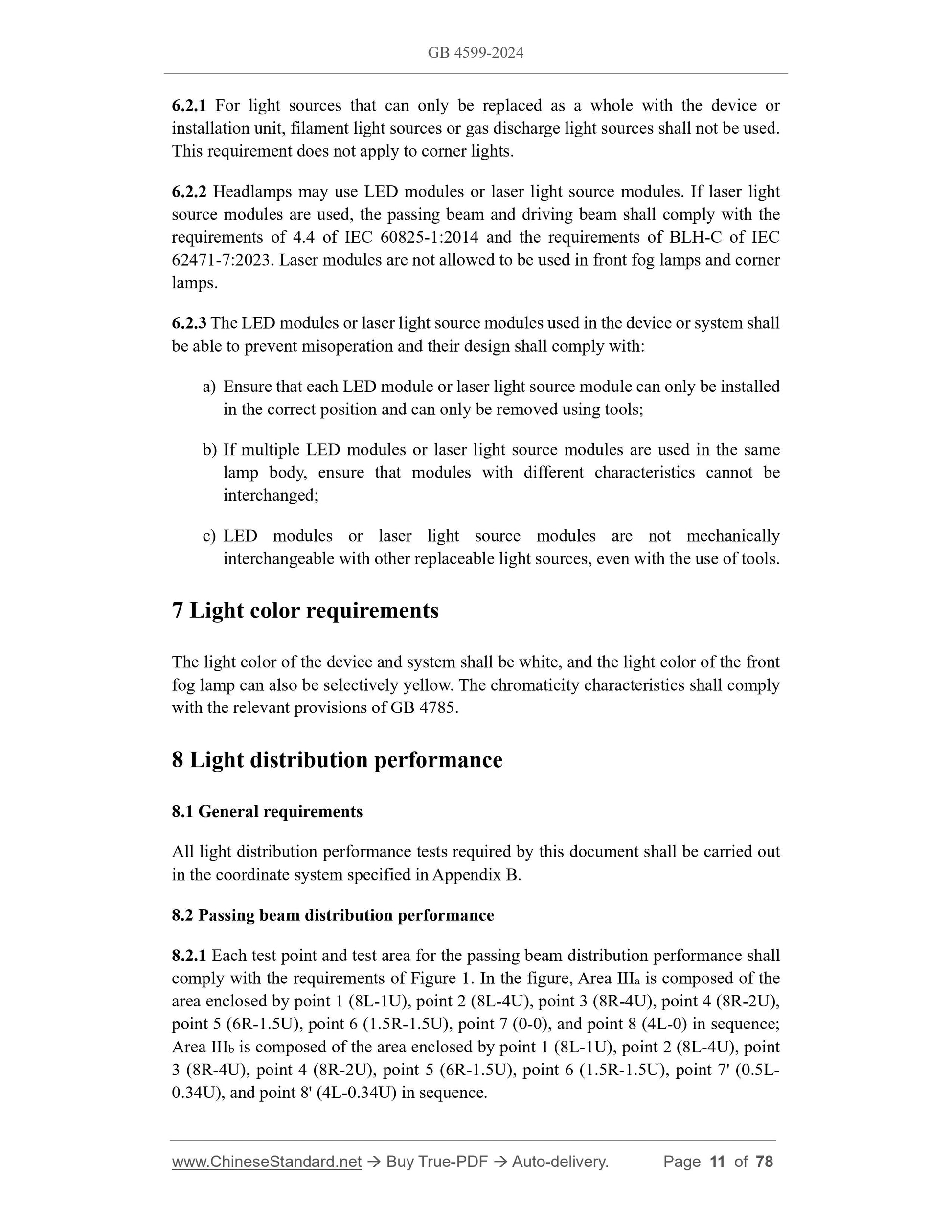

6.2 Non-replaceable light source
6.2.1 For light sources that can only be replaced as a whole with the device or
installation unit, filament light sources or gas discharge light sources shall not be used.
This requirement does not apply to corner lights.
6.2.2 Headlamps may use LED modules or laser light source modules. If laser light
source modules are used, the passing beam and driving beam shall comply with the
requirements of 4.4 of IEC 60825-1:2014 and the requirements of BLH-C of IEC
62471-7:2023. Laser modules are not allowed to be used in front fog lamps and corner
lamps.
6.2.3 The LED modules or laser light source modules used in the device or system shall
be able to prevent misoperation and their design shall comply with:
a) Ensure that each LED module or laser light source module can only be installed
in the correct position and can only be removed using tools;
b) If multiple LED modules or laser light source modules are used in the same
lamp body, ensure that modules with different characteristics cannot be
interchanged;
c) LED modules or laser light source modules are not mechanically
interchangeable with other replaceable light sources, even with the use of tools.
7 Light color requirements
The light color of the device and system shall be white, and the light color of the front
fog lamp can also be selectively yellow. The chromaticity characteristics shall comply
with the relevant provisions of GB 4785.
8 Light distribution performance
8.1 General requirements
All light distribution performance tests required by this document shall be c...
