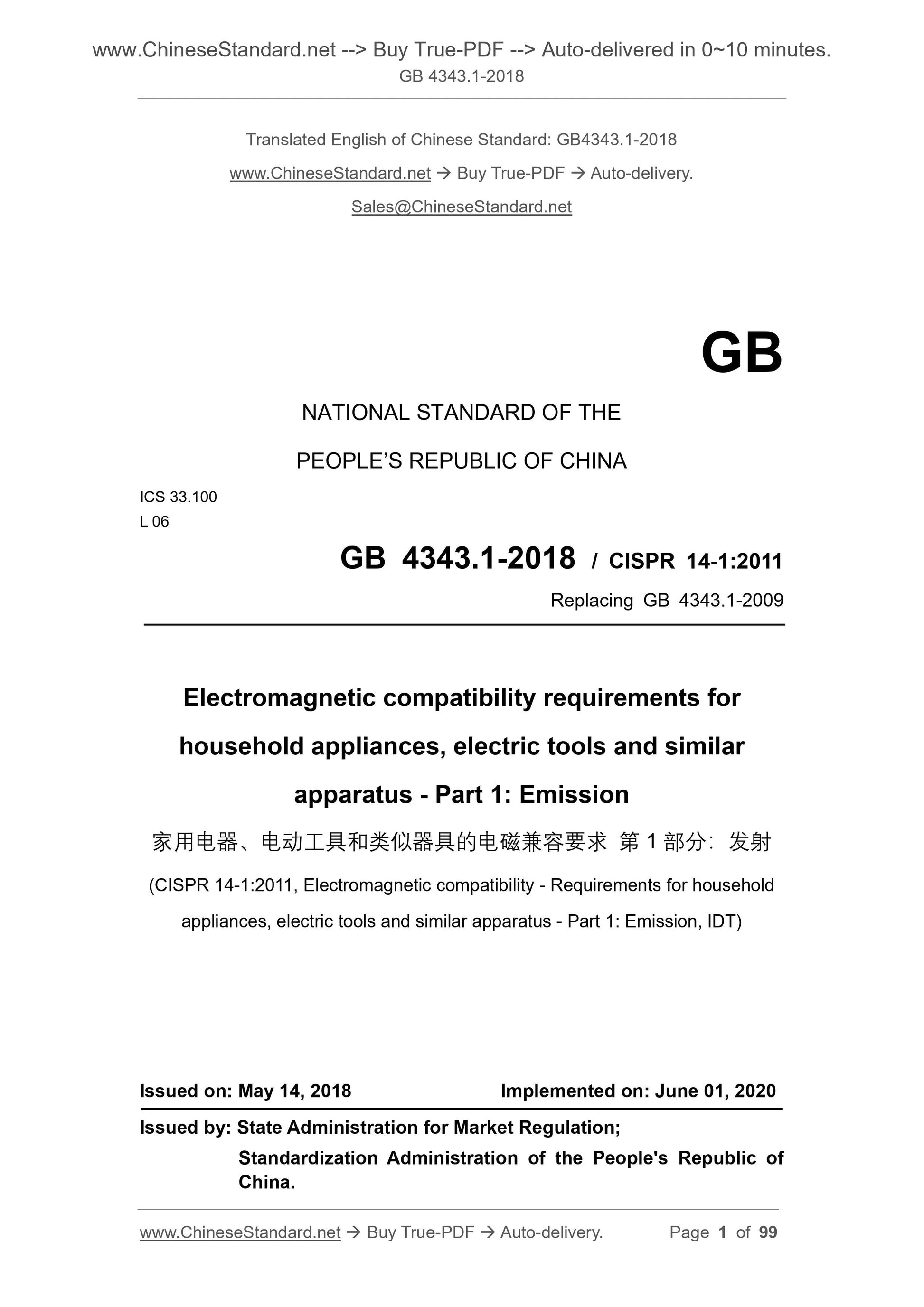

GB 4343.1-2018: Electromagnetic compatibility requirements for household appliances, electric tools and similar apparatus -- Part 1: Emission

GB 4343.1-2018
Electromagnetic compatibility requirements for household appliances, electric tools and similar apparatus. Part 1. Emission ICS 33.100
L06
National Standards of People's Republic of China
Replace GB 4343.1-2009
Household appliances, power tools and similar appliances
Electromagnetic compatibility requirements Part 1. Launch
Electrictoolsandsimilarapparatus-Part 1.Emission
(CISPR14-1.2011, Electromagneticcompatibility-
similarapparatus-Part 1.Emission,IDT)
2018-05-14 released 2020-06-01 implementation
State Market Supervisory Administration
China National Standardization Administration issued

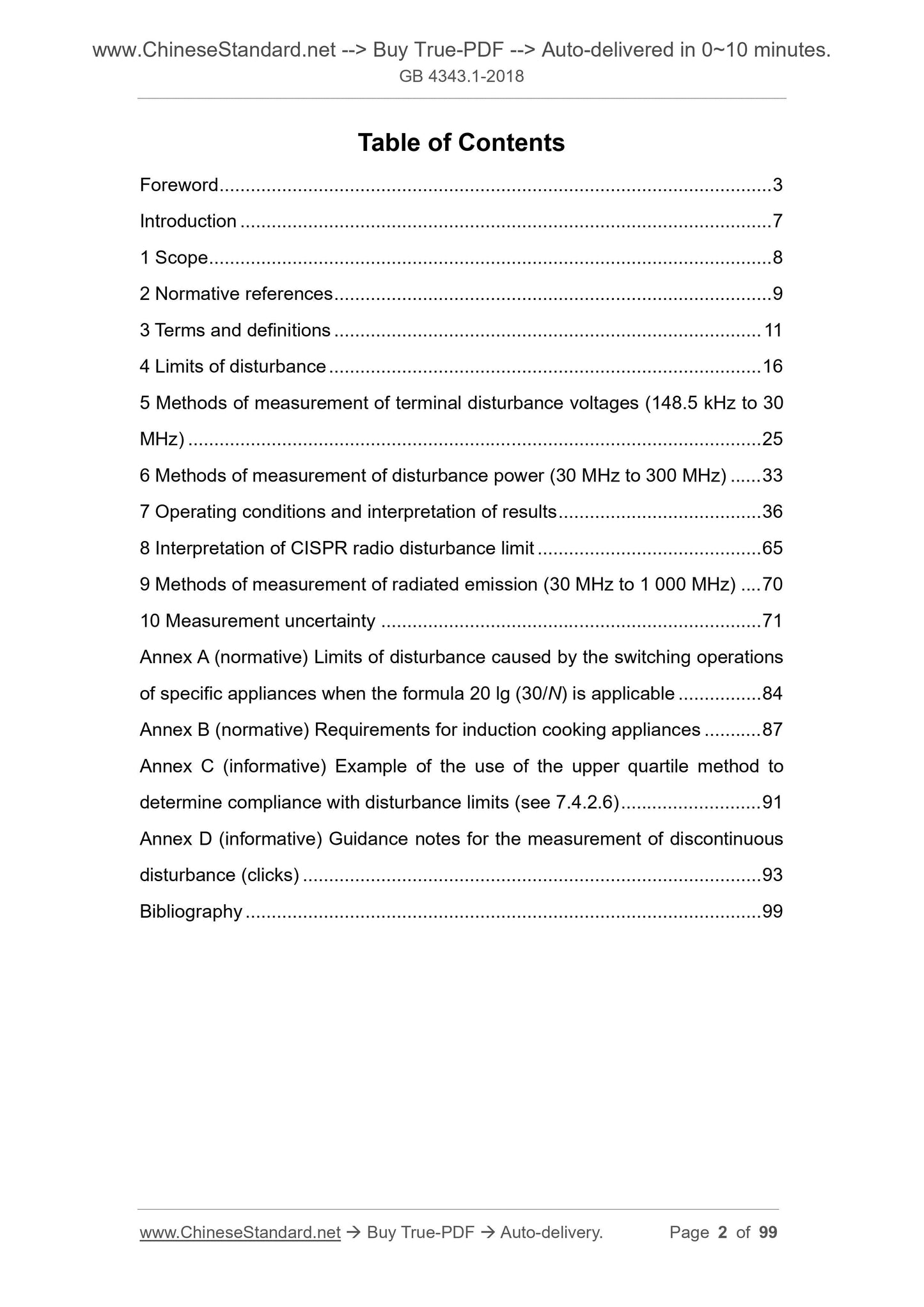

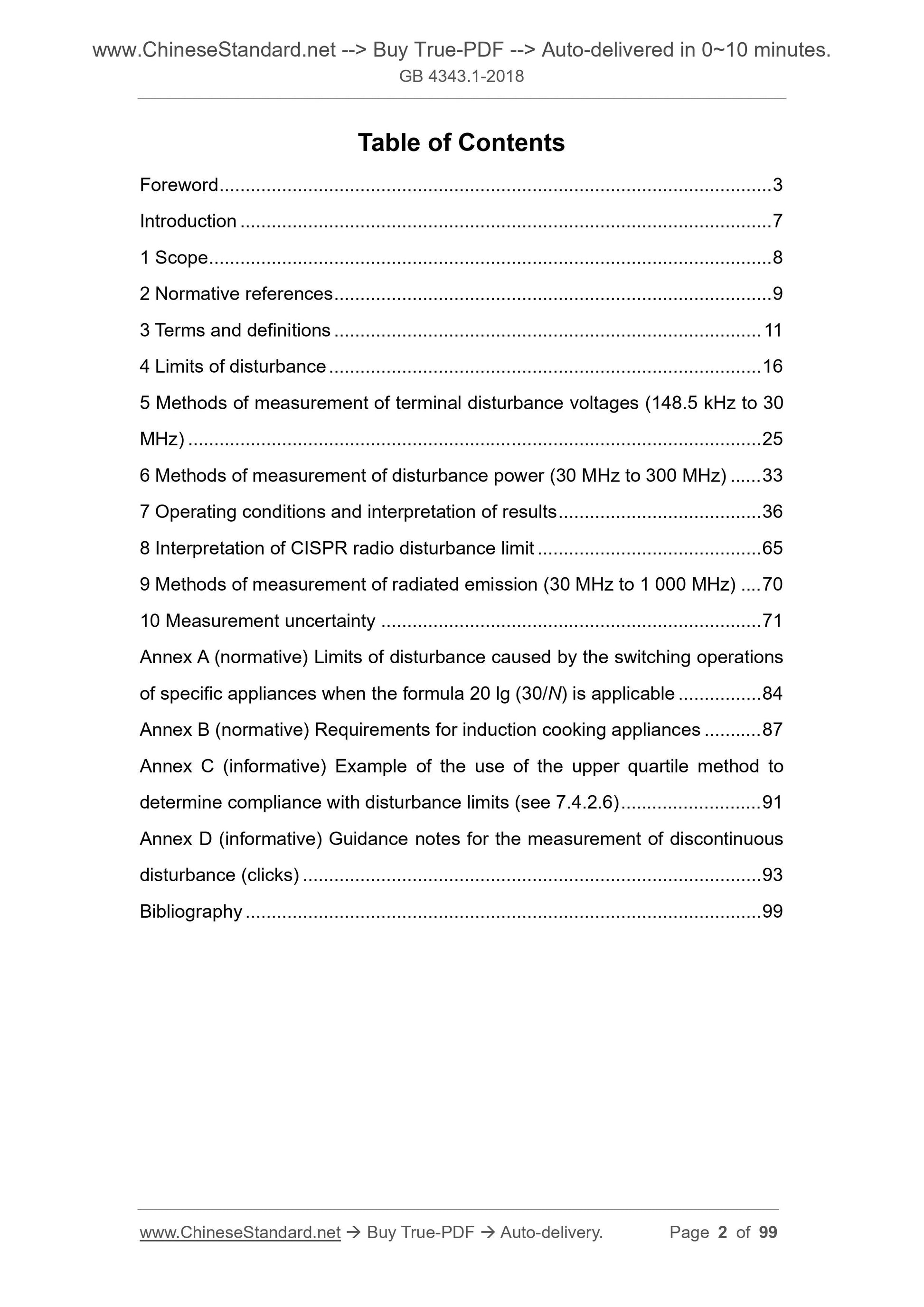

Content
Foreword III
Introduction V
1 range 1
2 Normative references 1
3 Terms and Definitions 3
4 disturbance limit 5
5 Terminal disturbance voltage measurement method (148.5kHz~30MHz) 10
6 Measurement method of disturbance power (30MHz~300MHz) 14
7 Operating conditions and results description 16
8 Description of CISPR Radio Frequency Disturbance Limits 31
9 Measurement method of radiation emission (30MHz~1000MHz) 34
10 Measurement uncertainty 34
Appendix A (Normative) The disturbance limit 45 for the formula 20lg (30/N) caused by the switching operation of special appliances Appendix B (Normative) Requirements for induction cookware 47
Appendix C (Informative Appendix) Examples of determining the compliance with disturbance limits using the upper quartile method (see 7.4.2.6) 50 Appendix D (informative) Intermittent harassment (click) measurement guidelines 52 Reference 56
Figure 1 Illustration of limits for household appliances and power tools (see 4.1.1) 35 Figure 2 Illustration of the limits of the regulation controller (see 4.1.1) 36 Figure 3 shows an example of intermittent disturbances that are clicked (see 3.2). Figure 4 Example of intermittent disturbances with continuous disturbance limits (see 4.2.2.1) 38 Figure 5 Adjustment controller measurement arrangement (see 5.2.4) 39
Figure 6 Measurement arrangement of disturbance voltage generated at the fence end of the electric fence actuator (see 7.3.7.2) 40 Figure 7 Measurement arrangement of toys traveling on the track 40
Figure 8 Application of the simulated hand (see 5.1.4 and 5.2.2.2) 41
Figure 9 Intermittent harassment (see Appendix D) Measurement Flowchart 42 Figure 10 Flow chart of the transmission test of the grid power supply in the 30MHz~1000MHz band 43 Figure 11 Flow chart of the battery power supply test in the 30MHz~1000MHz band 44 Table 1 Terminal voltage limit of frequency range 148.5kHz~30MHz 6
Table 2a Disturbance power limit of frequency range 30MHz~300MHz 7
Table 2b Disturbance power measurement margin in the frequency range 30MHz~300MHz 7 Table 3 Radiated disturbance limits and measurement methods with frequency range from 30MHz to 1000MHz 8 Table 4 Limits for statistical evaluation General margin 32
Table 5 Coefficients k applied to non-central t distributions
Table 6 Application of binomial distribution 33
Table A.1 Apparatus and limits for the click rate N from the clicks in 4.2.2 and 4.2.3 Application example 45 Table A.2 derives the click rate N from the switch operand and the factor f mentioned in the relevant operating conditions. Appliances and Limits Application Examples 46
Table B.1 Terminal voltage limits for induction cookware in the frequency range from 9 kHz to 30 MHz 47 Table B.2 Magnetic field strength limits for commercial induction cookware 47 Table B.3 Magnetic induction current limit for household induction cookware in a 2-meter loop antenna 48 Foreword

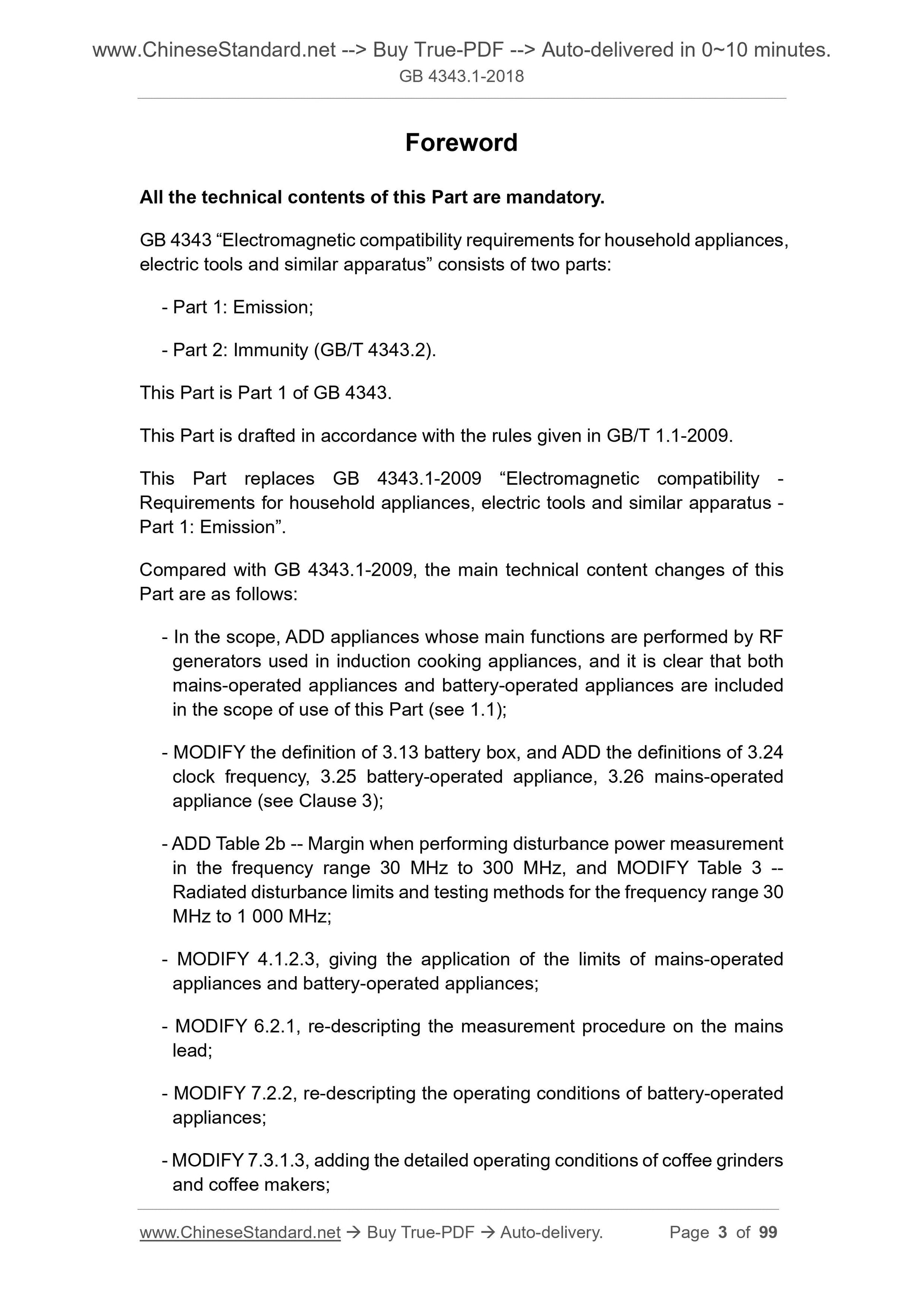

All technical content in this section is mandatory.
GB 4343 "Electromagnetic Compatibility Requirements for Household Appliances, Power Tools and Similar Appliances" is divided into two parts. --- Part 1. Launch;
--- Part 2. Immunity (GB/T 4343.2).
This part is the first part of GB 4343.
This part is drafted in accordance with the rules given in GB/T 1.1-2009. This part replaces GB 4343.1-2009 "Electromagnetic compatibility requirements for household appliances, power tools and similar appliances - Part 1. Shoot.

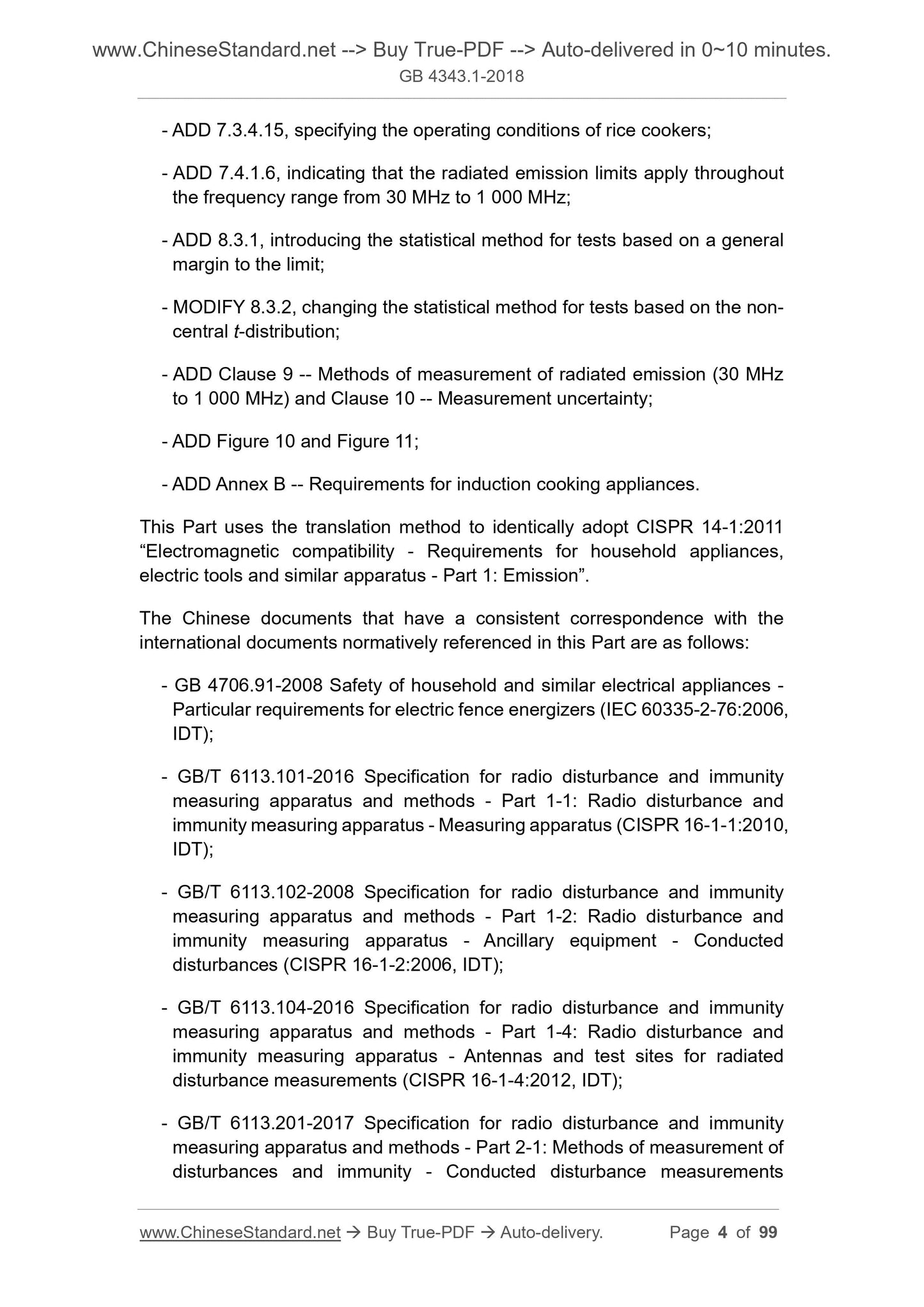

Compared with GB 4343.1-2009, the main technical contents of this part are as follows. --- The scope has added an appliance whose main function is realized by an RF generator for induction cookware, and clarifies the power supply for the grid and the battery. Electrical appliances are included in the scope of use of this section (see 1.1); --- Modified the definition of 3.13 battery box, increased the 3.24 clock frequency, 3.25 battery-powered appliances, 3.26 grid-powered appliances Definition (see Chapter 3);
--- Increased the disturbance power measurement margin in Table 2b with a frequency range of 30MHz~300MHz, and modified the frequency range of Table 3 as Radiation disturbance limits and measurement methods from 30MHz to 1000MHz; --- Modified 4.1.2.3, giving application methods for grid power supply equipment and battery power supply equipment limits; --- Modified 6.2.1, re-description of the measurement procedure on the power leads; --- Revised 7.2.2, re-described the operating conditions of battery-powered appliances; --- Modified 7.3.1.3 to increase the detailed operating conditions of the coffee grinder and coffee machine; --- Added 7.3.4.15, specifying the operating conditions of the rice cooker; --- Added 7.4.1.6, indicating that the limits of radiated emissions apply to the 30MHz~1000MHz band; --- Added 8.3.1, introducing a statistical method based on the test of the limit general margin; --- Revised 8.3.2, changing the statistical method of testing based on non-central t distribution; --- Added Chapter 9 Measurement Methods for Radiated Emissions (30MHz~1000MHz) and Chapter 10 Measurement Uncertainty; --- Added Figure 10 and Figure 11;
--- Added the requirements of Appendix B induction cookware.
This section uses the translation method equivalent to the CISPR14-1.2011 requirements for electromagnetic compatibility household appliances, power tools and similar appliances. Part 1. Launch.

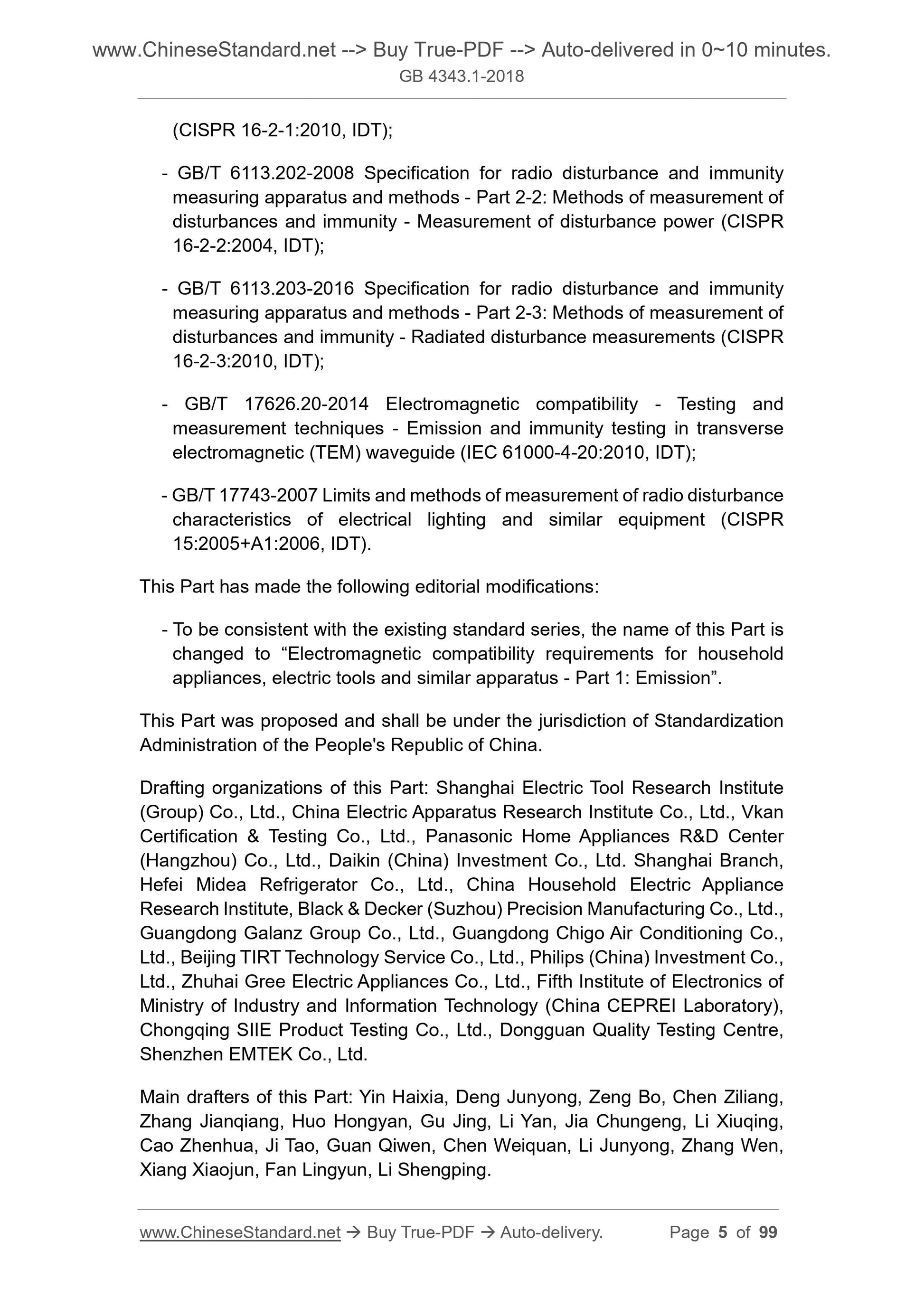

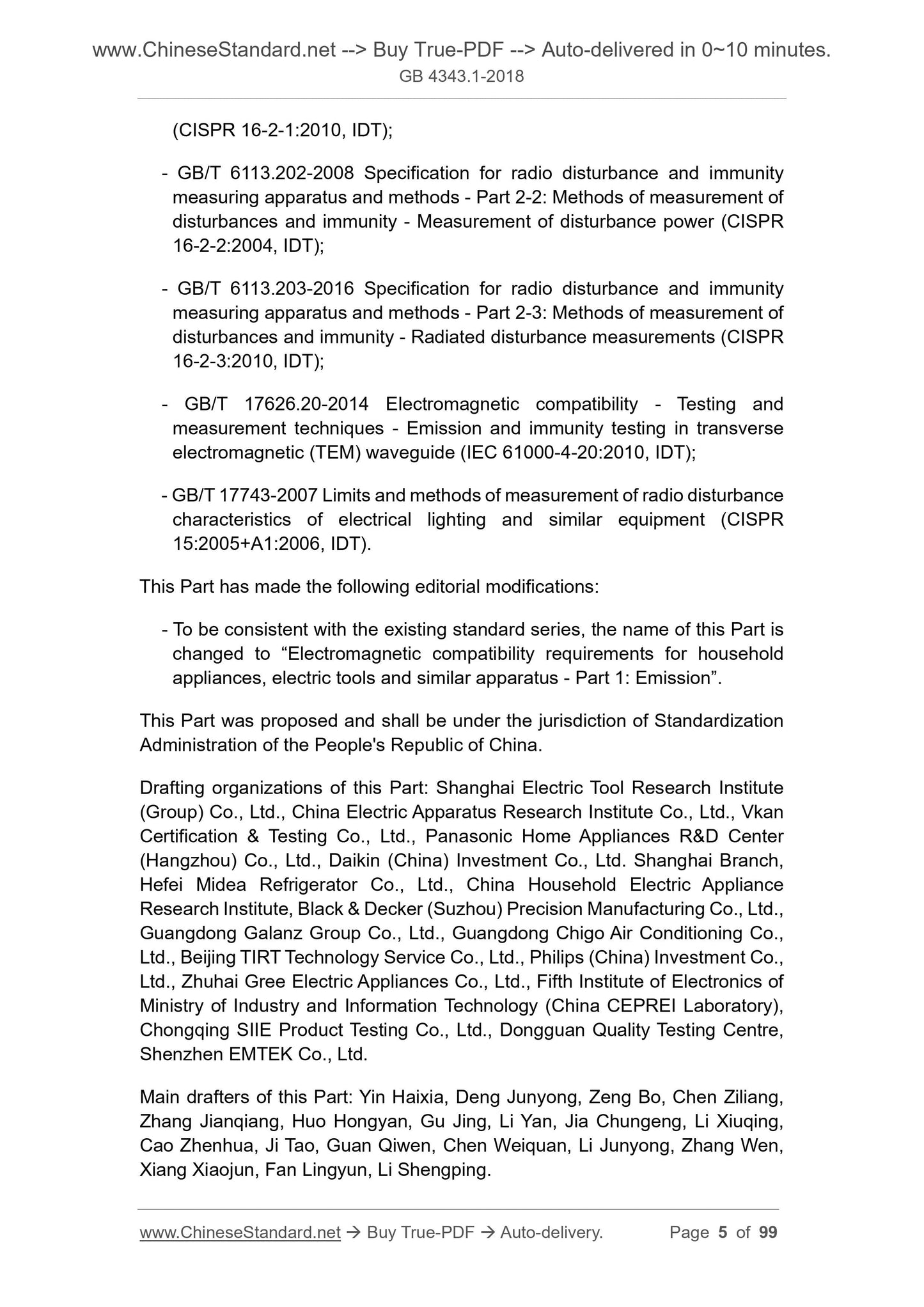

The documents of our country that have a consistent correspondence with the international documents referenced in this part are as follows. --- GB 4706.91-2008 Particular requirements for safety electric fence actuators for household and similar electrical appliances (IEC 60335-2- 76.2006, IDT);
---GB/T 6113.101-2016 Radio disturbance and immunity measuring equipment and measuring methods - Part 1-1 Electrical disturbance and immunity measuring equipment measuring equipment (CISPR16-1-1..2010, IDT); --- GB/T 6113.102-2008 Radio disturbance and immunity measuring equipment and measuring methods - Part 1-2 Electrical disturbance and immunity measurement equipment auxiliary equipment conducted disturbance (CISPR16-1-2.2006, IDT); --- GB/T 6113.104-2016 Radio disturbance and immunity measuring equipment and measuring methods - Part 1-4. Radio Harassment and immunity measuring equipment for radiation disturbance measurement antennas and test sites (CISPR16-1-4..2012, IDT); --- GB/T 6113.201-2017 Radio disturbance and immunity measuring equipment and measuring methods - Part 2-1. Radio Harassment and Immunity Measurement Method Conducted Disturbance Test (CISPR16-2-1..2010, IDT); -- GB/T 6113.202-2008 - Radio disturbance and immunity measurement equipment and methods of measurement - Part 2-2. Radio Harassment and immunity measurement method disturbance power measurement (CISPR16-2-2.2004, IDT); --- GB/T 6113.203-2016 Radio disturbance and immunity measuring equipment and measuring methods - Part 2-3. Radio Harassment and Immunity Measurement Methods Radiation Disturbance Measurement (CISPR16-2-3.2010, IDT); ---GB/T 17626.20-2014 Electromagnetic Compatibility Test and Measurement Technology Emission and Immunity in Transverse Electromagnetic Wave (TEM) Waveguides Degree test (IEC 61000-4-20.2010, IDT);
---GB/T 17743-2007 Limits and methods of measurement of radio disturbance characteristics for electrical lighting and similar equipment (CISPR15. 2005 A1.2006, IDT).
This section has made the following editorial changes.
--- In line with the existing standard series, change the name of this part to the electromagnetic compatibility requirements of household appliances, power tools and similar appliances. Part 1. Launch.
This part is proposed and managed by the China National Standardization Administration. This section was drafted by. Shanghai Electric Tools Research Institute (Group) Co., Ltd., China Electric Apparatus Research Institute Co., Ltd., Weikai Testing Technology Co., Ltd., Matsushita Electric Appliance Research and Development (Hangzhou) Co., Ltd., Daikin (China) Investment Co., Ltd. Shanghai Branch, Hefei Midea Refrigerator Co., Ltd., China Household Electric Appliance Research Institute, Black and Decker (Suzhou) Precision Manufacturing Co., Ltd., Guangdong Galanz Group Co., Ltd., Guangdong Zhi High Air Conditioning Co., Ltd., Beijing Tairuite Testing Technology Service Co., Ltd., Philips (China) Investment Co., Ltd., Zhuhai Gree Electric Appliance Co., Ltd. Co., Ltd., the Fifth Institute of Electronics of the Ministry of Industry and Information Technology, Chongqing Shiyi Product Quality Testing Co., Ltd., Dongguan City, Guangdong Province Quality Supervision and Inspection Center, Shenzhen Information Measurement Standard Technology Service Co., Ltd. The main drafters of this section. Yin Haixia, Deng Junyong, Zeng Bo, Chen Ziliang, Zhang Jianqiang, Huo Hongyan, Gu Jing, Li Wei, Jia Chungeng, Li Xiuqing, Cao Zhenhua, Ji Tao, Guan Qiwen, Chen Weiquan, Li Junyong, Zhang Wen, Xiang Xiaojun, Fan Lingyun, Li Life. The previous versions of the standards replaced by this section are.
---GB 4343-1984, GB 4343-1995, GB 4343.1-2003, GB 4343.1-2009.
introduction
The purpose of this section is to establish a uniform requirement for the level of radio frequency disturbance of household appliances, power tools and similar appliances to determine harassment. Limits, describing measurement methods and standardizing the analysis of operating conditions and results. Household appliances, power tools and similar appliances
Electromagnetic compatibility requirements Part 1. Launch

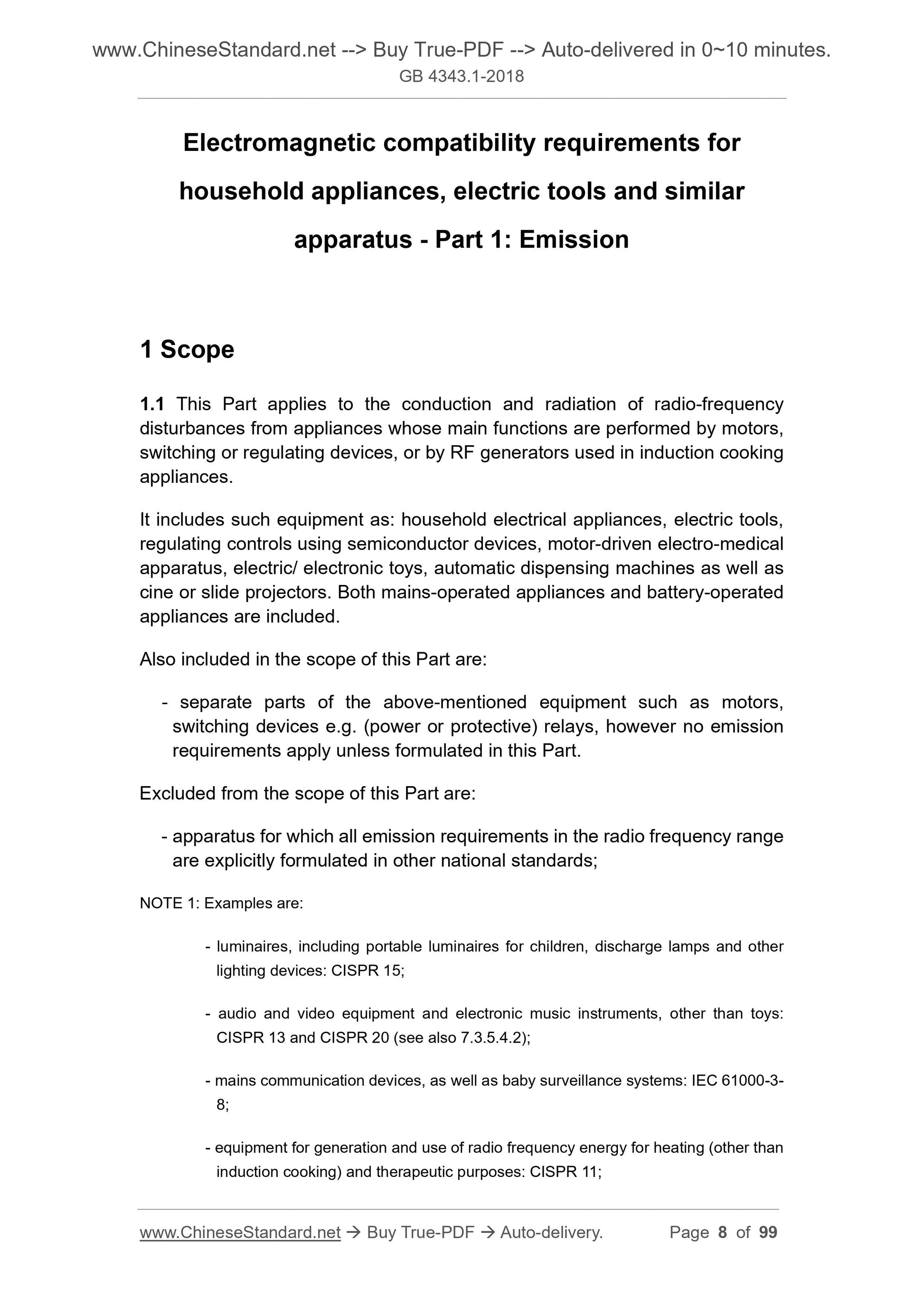

1 Scope
1.1 This section applies to appliances whose primary function is realized by an electric motor, a switch or an adjustment device, or an RF generator for an induction cooker. Radio frequency conduction and radiation disturbance.
These appliances include. household appliances, power tools, adjustment controllers using semiconductor devices, electric motor-driven electrical medical devices, Electric toys, vending machines, and movie or slide projectors. Grid-powered appliances and battery-powered appliances are included in this section. Inside.
Also included in this section are.
--- separate components of the above mentioned equipment, such as electric motors, switching devices such as (power or protection) relays, if not mentioned in this section And, there are no emission requirements for these individual components. Not included in the scope of this section are.
--- Clearly propose equipment for all launch requirements in its RF range in other national standards. Note 1. The examples are as follows.
---Lamps, including portable children's lamps, discharge lamps and other lighting devices. CISPR15; --- Audio-visual equipment and electronic musical instruments, except toys. CISPR13 and CISPR20 (see 7.3.5.4.2); --- Grid communication devices, including baby monitoring systems. IEC 61000-3-8; --- Equipment for generating and using RF energy for heating (except for induction cookware) and for therapeutic purposes. CISPR11; ---Microwave oven. CISPR11 (but should pay attention to 1.3 about multi-function equipment); ---Information technology equipment, such as home computers, personal computers, electronic copiers. GB/T 9254-2008; ---Electronic equipment used in motor vehicles. CISPR12;
---Radio controllers, walkie-talkies and other types of radio transmitters, including in toys; ---Arc welding equipment. CISPR11.
--- Adjustment controllers for semiconductor devices with rated input currents greater than 25A per phase and devices with such adjustment controllers. ---Power supply used alone.
Note 2. Toys supplied by power supply systems such as motor vehicles, ships or aircraft are not included in the scope of this section. Note 3. Before the induction cooker is removed from the scope of application of GB 4824, you can choose GB 4824 or one of the parts for compliance determination. 1.2 Covers the frequency range from 9 kHz to 400 GHz.
1.3 Multi-function devices that apply different terms and/or other standards in this section shall meet each clause/standard when using the relevant functions. Requirements (see 7.2.1 for details).
1.4 The limits of this part are determined on the basis of probability, which can keep the disturbance suppression at an economically reasonable level while still achieving Sufficient RF protection. In special cases, radio frequency interference may occur even if the limits are met. In this case it may be necessary to attach Add regulations.
1.5 The effects of electromagnetic phenomena related to the safety performance of the appliance are not included in the scope of this section. 2 Normative references
The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 4365-2003 Electrotechnical terminology electromagnetic compatibility [IEC 60050 (161)..1990, IDT] GB/T 6113.103-2008 - Radio disturbance and immunity measuring equipment and measuring methods - Part 1-3. Radio disturbance And immunity measurement equipment auxiliary equipment disturbance power (CISPR16-1-3.2004, IDT) GB/T 6113.402-2006 Radio disturbance and immunity measuring equipment and methods of measurement - Part 4-2. Uncertainty, Statistics and Limits Modeling Measurement Equipment and Facility Uncertainty (CISPR16-4-2.2003, IDT) GB 7000.4-2007 Part 2-10. Particular requirements for portable luminaires for children (IEC 60598-2-10.2003, IDT)
GB 7000.204-2008 Part 2-4. Particular requirements for portable general purpose lamps (IEC 60598-2-4..1997, IDT) GB/T 9254-2008 Radio interference and measurement methods for information technology equipment (CISPR22.2006, IDT) IEC 60335-2-76.2002 Particular requirements for safety electric fence actuators for household and similar electrical appliances (Household similarelectricalappliances-Safety-Part 2-76.Particularrequirementsforelectricfenceenergizers) IEC 61000-4-20.2003 Electromagnetic compatibility test and measurement techniques - Emission and immunity tests in transverse electromagnetic (TEM) waveguides [Electromagneticcompatibility(EMC)-Part 4-20. Testingandmeasurementtechniques-Emission Andimmunitytestingintransverseelectromagnetic(TEM)waveguides]
CISPR15.2000 Limits and methods of measurement of radio disturbance characteristics for electrical lighting and similar equipment (Limitsandmethods) Ofmeasurementofradiodisturbancecharacteristicselectricallightingandsimilarequipment) CISPR16-1-1.2003 Radio disturbance and immunity measurement equipment and methods of measurement - Part 1-1 Radio disturbances And immunity measuring equipment measuring equipment (Specificationforradiodisturbanceandimmunitymeasuringapparatu- sandmethods-Part 1-1. Radiodisturbanceandimmunitymeasuringapparatus-Measuringapparatus) CISPR16-1-2.2003 Radio disturbance and immunity measurement equipment and methods of measurement - Part 1-2. Radio disturbances and Immunity measurement equipment auxiliary equipment conduction disturbance (Specification forradiodisturbanceandimmunitymeasuring Apparatusand methods-Part 1-2. Radiodisturbanceandimmunity measuringapparatus-Ancil- laryequipment-Conducteddisturbances)
CISPR16-1-4.2007 Specification for Radioacoustic and Immunity Measurement Equipment and Methods of Measurement - Part 1-4. Radio disturbances and Immunity measurement equipment auxiliary equipment radiation disturbance (Specification forradiodisturbanceandimmunitymeasuring apparatusandmethods-Part 1-4. Radiodisturbanceandimmunitymeasuringapparatus-Ancilarye- quipment-Radiateddisturbances)
CISPR16-2-1.2003 Radio disturbance and immunity measurement equipment and methods of measurement - Part 2-1. Radio disturbances and Immunity measurement method Conductive disturbance measurement (Specification forradiodisturbanceandimmunitymeasuringappara- tusandmethods-Part 2-1. Methodsofmeasurementofdisturbancesandimmunity-Conducteddis- Turbancemeasurements)
CISPR16-2-2.2003 Specification for radio disturbance and immunity measuring devices and methods of measurement - Part 2-2. Radio disturbances and Immunity measurement method disturbance power measurement (Specification forradiodisturbanceandimmunitymeasuringappara- tusandmethods-Part 2-2. Methodsofmeasurementofdisturbancesandimmunity-Measurementof Disturbancepower)
CISPR16-2-3.2006 Radio disturbance and immunity measurement equipment and methods of measurement - Part 2-3. Radio disturbances and Immunity measurement method Radiation disturbance measurement (Specification forradiodisturbanceandimmunity measuring apparatusandmethods-Part 2-3. Methodsofmeasurementofdisturbancesandimmunity-Radiated Disturbancemeasurements)
3 Terms and definitions
The following terms and definitions as defined in GB/T 4365-2003 apply to this document. 3.1 The following terms and definitions as defined in CISPR16-2-1 or CISPR16-2-2 Reference ground
Equipment under test (EUT) equipmentundertest(EUT)
Level level
Weighted weighting
3.2
Click click
A kind of harassment that exceeds the quasi-peak limit of continuous disturbance, lasts no more than.200ms, and the latter harassment is from the previous disturbance At least.200ms. The duration is determined by a signal that exceeds the intermediate frequency reference level of the measurement receiver. A click may contain many pulses; in this case, the correlation time is from the first pulse to the end of the last pulse time.
Note. Certain types of harassment are not included in this definition under certain conditions (see 4.2.3). 3.3
IF reference level ifreferencelevel
A phase produced by an unmodulated sinusoidal signal having a quasi-peak indication value equal to the continuous disturbance limit at the intermediate frequency output of the measurement receiver Should be worth.
3.4
Switch operation switching operation
The switch or contact is once broken or closed.
Note. It does not depend on whether or not a click is observed.
3.5
Minimum observation time minimumobservationtime
When counting clicks (or related switch operands), in order to statistically determine the number of clicks per unit time (or switch operands) The minimum time required to stabilize the data (see also 7.4.2.1).
3.6
Click rate clickrate
Generally refers to the number of clicks or switch operands within 1 min. This number is used to determine the click limit (see also 7.4.2.3). 3.7
Click limit clicklimit
Lq
The corresponding limit L of continuous disturbance measured by the quasi-peak detector given in 4.1.1, plus a fixed value determined by the click rate N Value (see 4.2.2.2).
The click limit applies to harassment as assessed by the upper quartile. 3.8
Upper quartile method upperquartilemethod
A quarter of the number of clicks recorded during the observation time T is allowed to exceed the click limit Lq. In the case of a switching operation, one qu...
