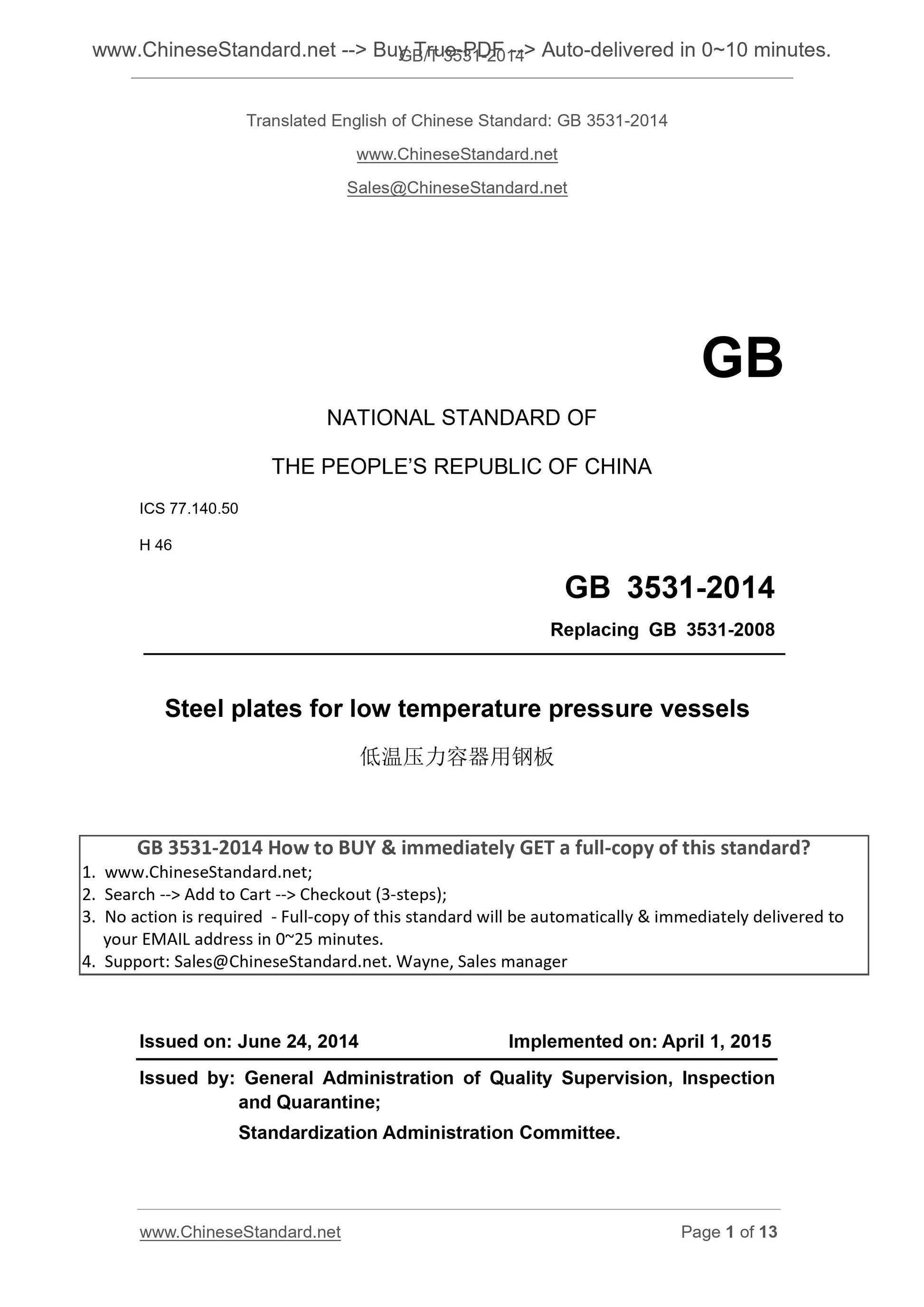

GB 3531-2014: [GB/T 3531-2014] Steel plates for low temperature pressure vessels

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB 3531-2014 (Self-service in 1-minute)
Newer / historical versions: GB 3531-2014

Preview True-PDF

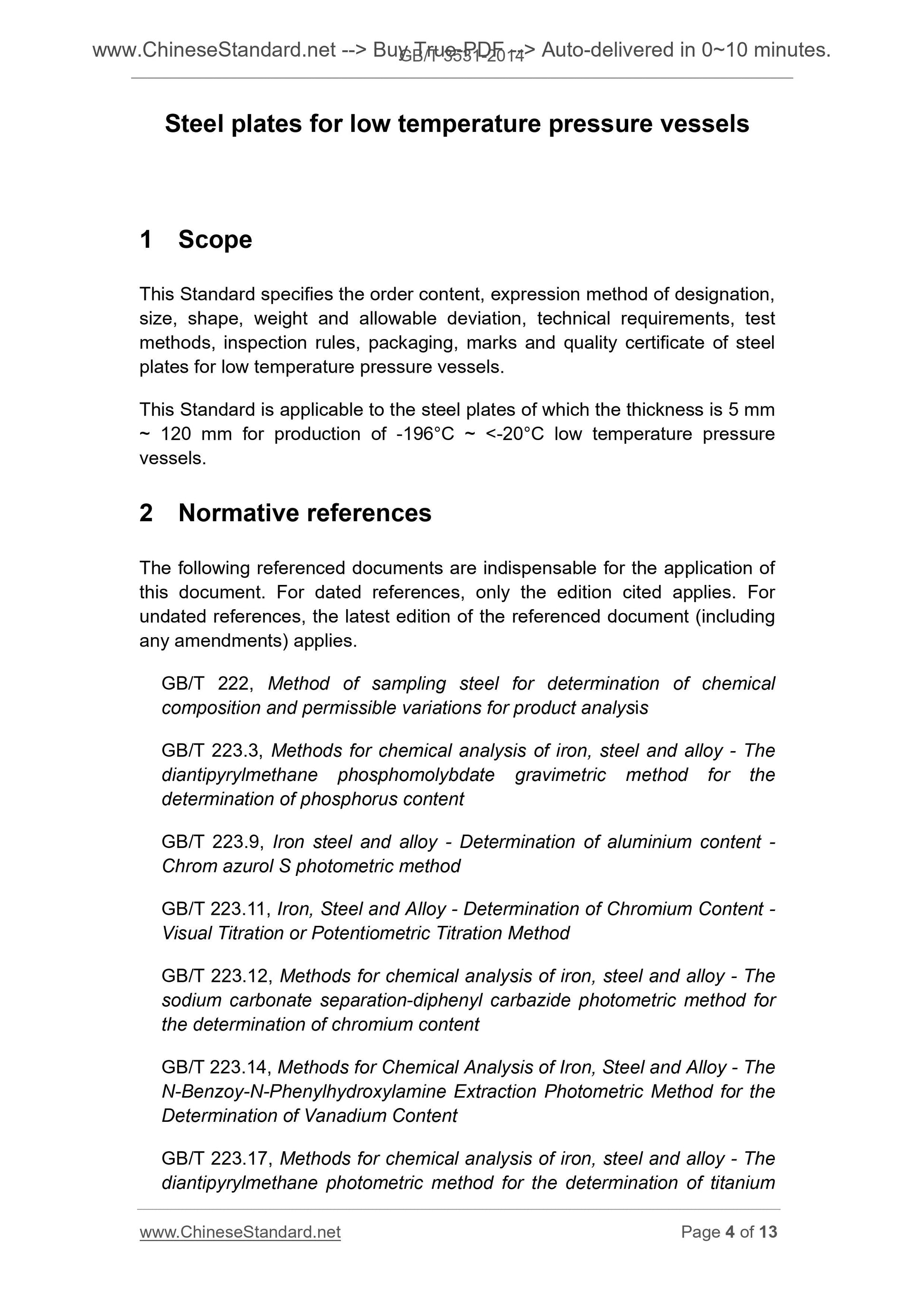

Scope

This Standard specifies the order content, expression method of designation,
size, shape, weight and allowable deviation, technical requirements, test
methods, inspection rules, packaging, marks and quality certificate of steel
plates for low temperature pressure vessels.
This Standard is applicable to the steel plates of which the thickness is 5 mm
~ 120 mm for production of -196°C ~ < -20°C low temperature pressure
vessels.

Basic Data

Standard ID	GB 3531-2014 (GB3531-2014)
Description (Translated English)	[GB/T 3531-2014] Steel plates for low temperature pressure vessels
Sector / Industry	National Standard
Classification of Chinese Standard	H46
Classification of International Standard	77.140.50
Word Count Estimation	9,942
Date of Issue	6/24/2014
Date of Implementation	4/1/2015
Older Standard (superseded by this standard)	GB 3531-2008

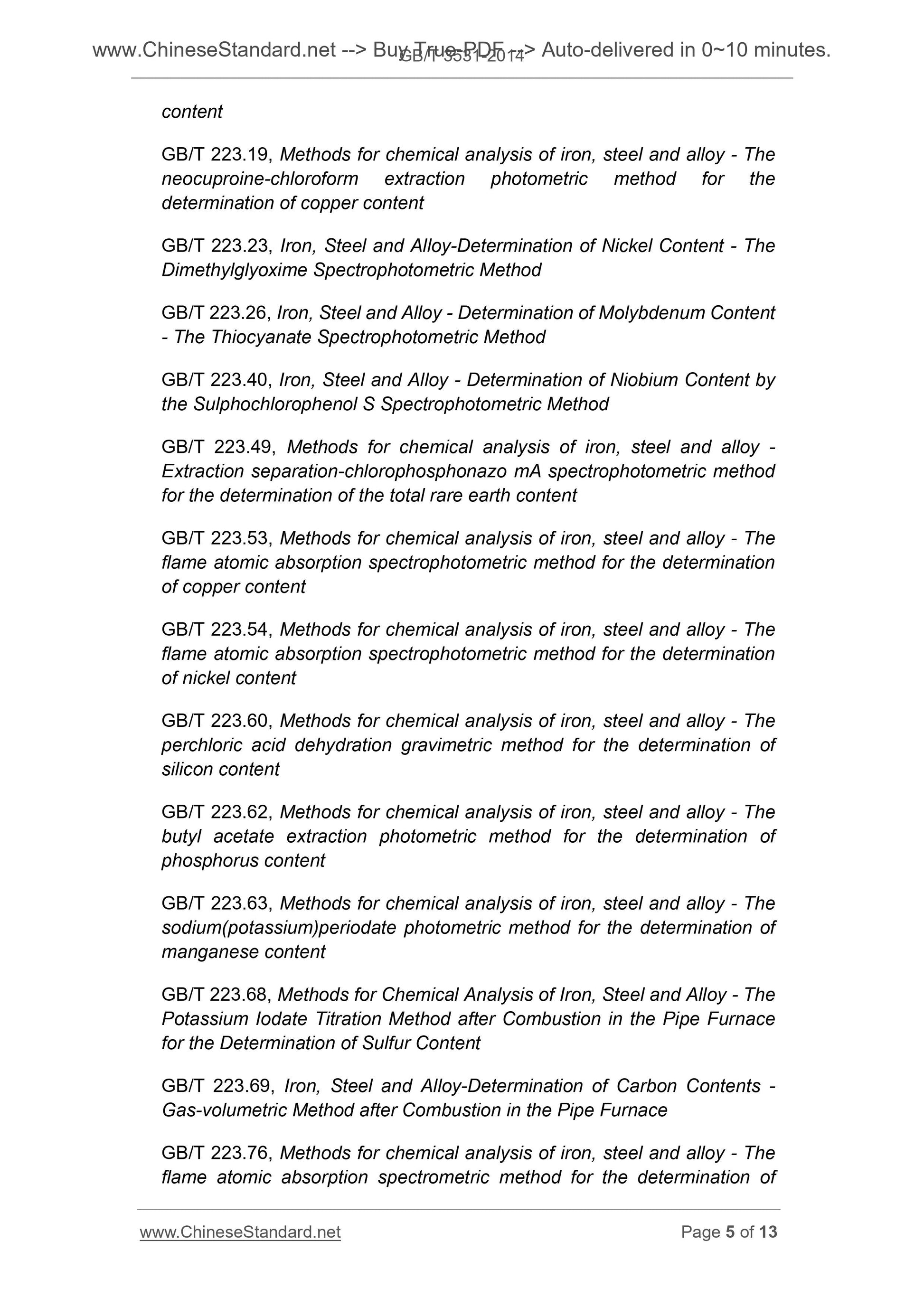

Quoted Standard	GB/T 222; GB/T 223.3; GB/T 223.9; GB/T 223.11; GB/T 223.12; GB/T 223.14; GB/T 223.17; GB/T 223.19; GB/T 223.23; GB/T 223.26; GB/T 223.40; GB/T 223.49; GB/T 223.53; GB/T 223.54; GB/T 223.60; GB/T 223.62; GB/T 223.68; GB/T 223.69; GB/T 223.76; GB/T 228.1; G
Regulation (derived from)	National Standards Bulletin No. 14 of 2014
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This Standard specifies the temperature pressure vessel steel plate ordering content, grades representation, size, shape, weight and tolerances, technical requirements, test methods, inspection rules, packaging, marking and quality certificates. This Stan
