GB 32030-2015: Minimum allowable values of energy efficiency and energy efficiency grades for submersible pumps for deep well

This Standard specifies the energy efficiency grades, minimum allowable values of energy efficiency, evaluating values of energy conservation, test methods, inspection rules, and labels of energy efficiency grades for submersible pumps for deep well. This Standard is applicable to the submersible pumps for deep well, which integrates pumps with the submersible motor for deep well to submerge into water and extract clear water.

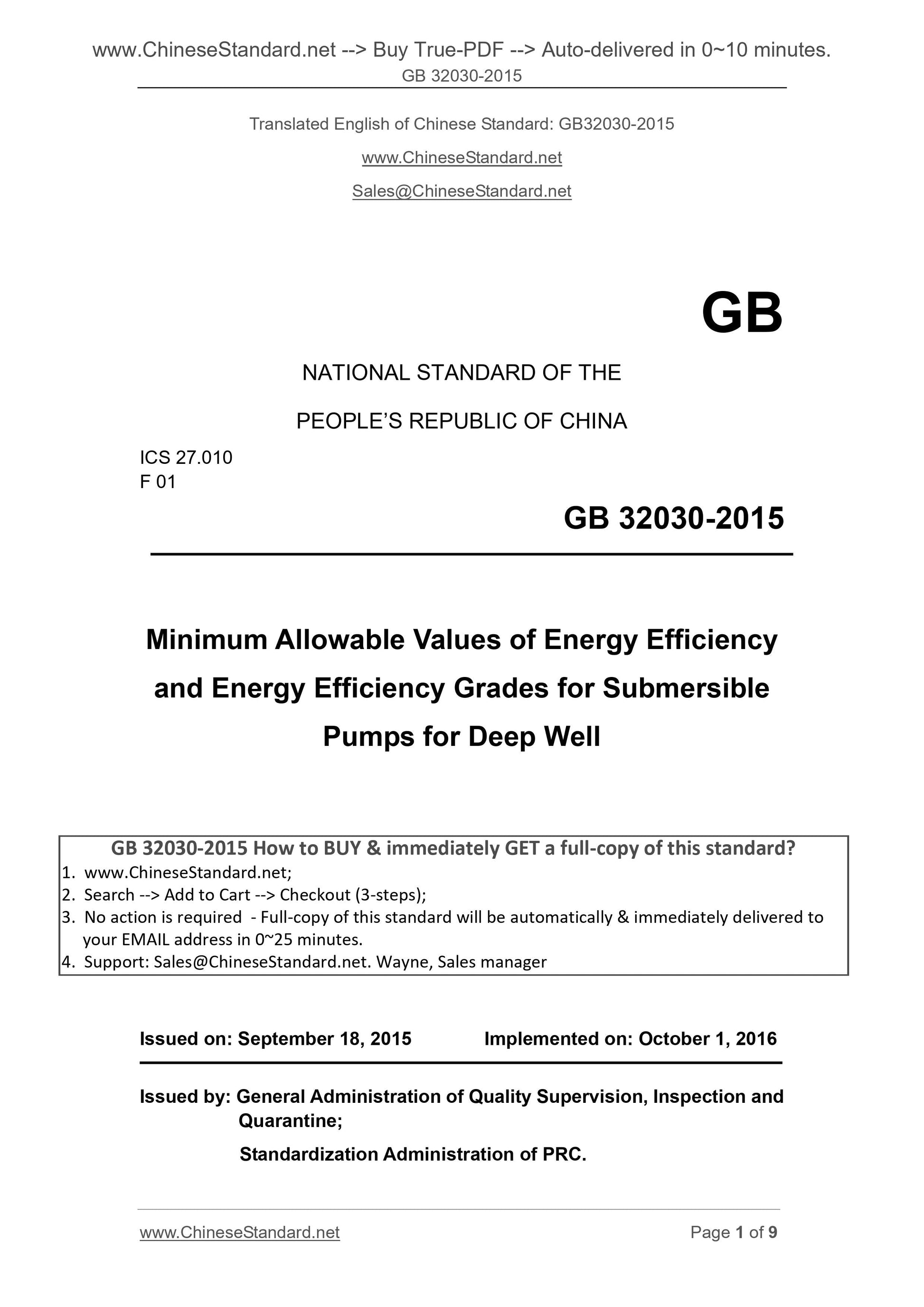

GB 32030-2015
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 27.010
F 01
Minimum Allowable Values of Energy Efficiency
and Energy Efficiency Grades for Submersible
Pumps for Deep Well
ISSUED ON. SEPTEMBER 18, 2015
IMPLEMENTED ON. OCTOBER 1, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.

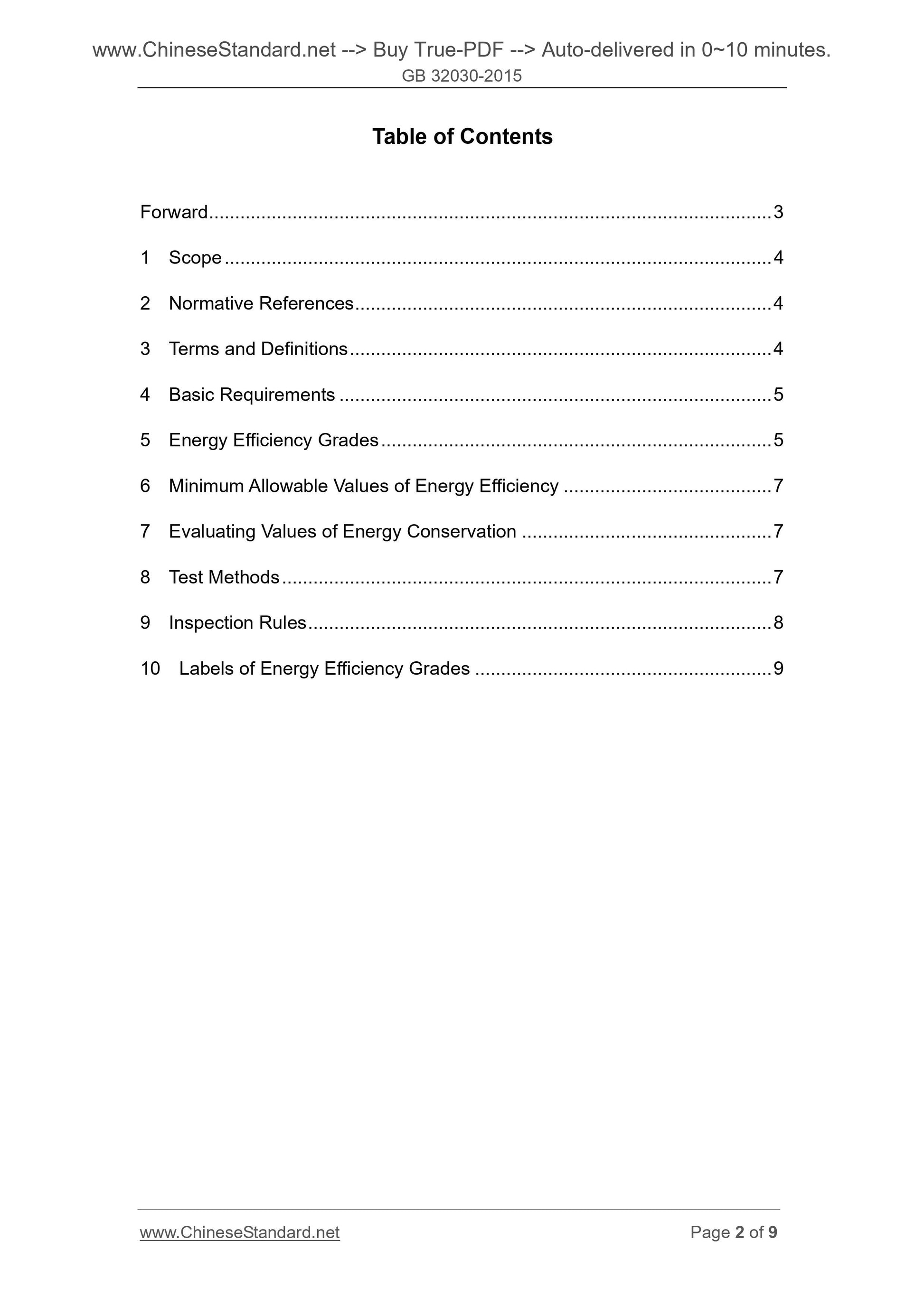

Table of Contents
Forward ... 3
1 Scope ... 4
2 Normative References ... 4
3 Terms and Definitions ... 4
4 Basic Requirements ... 5
5 Energy Efficiency Grades ... 5
6 Minimum Allowable Values of Energy Efficiency ... 7
7 Evaluating Values of Energy Conservation ... 7
8 Test Methods ... 7
9 Inspection Rules ... 8
10 Labels of Energy Efficiency Grades ... 9

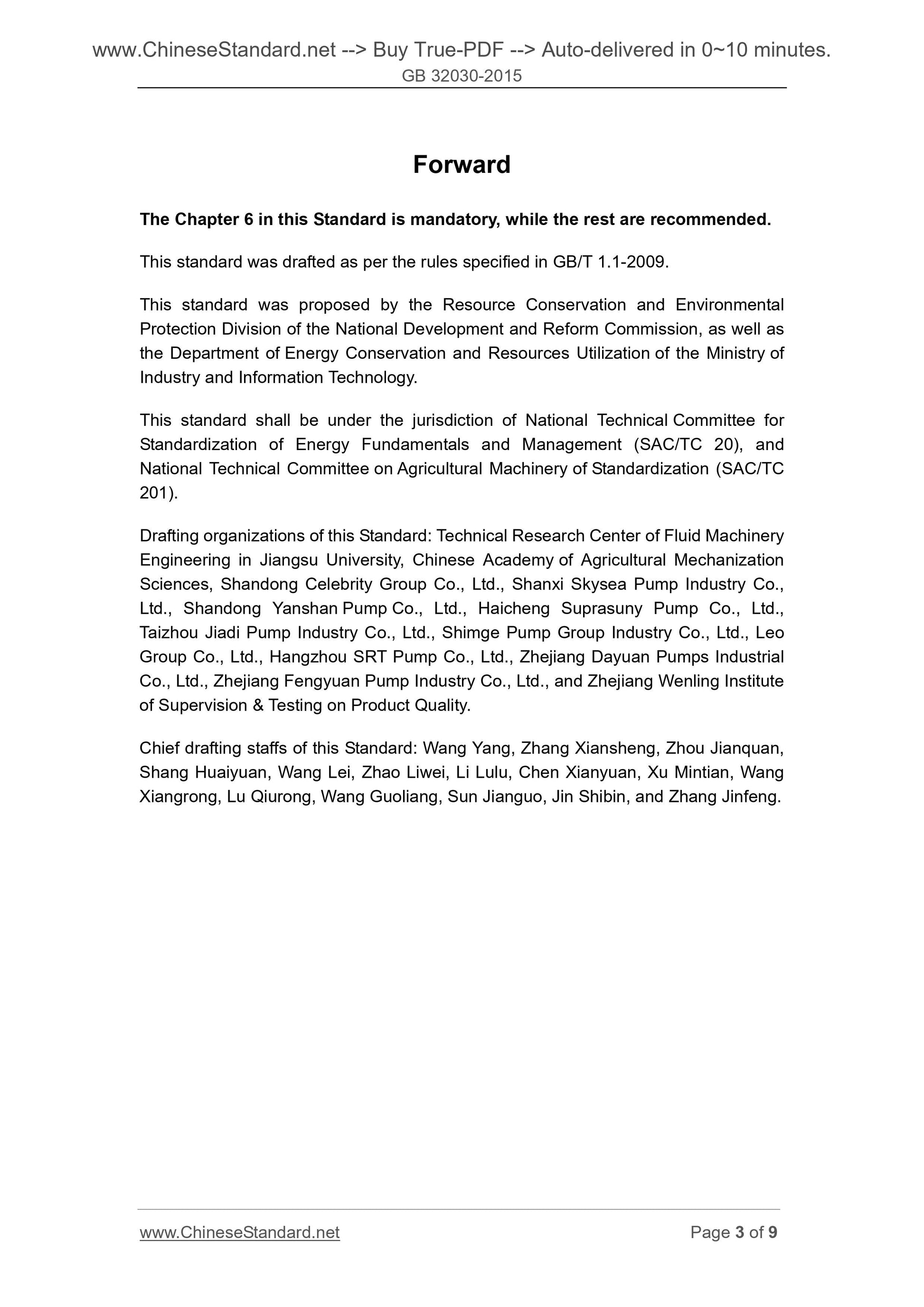

Forward
The Chapter 6 in this Standard is mandatory, while the rest are recommended. This standard was drafted as per the rules specified in GB/T 1.1-2009.
This standard was proposed by the Resource Conservation and Environmental Protection Division of the National Development and Reform Commission, as well as the Department of Energy Conservation and Resources Utilization of the Ministry of Industry and Information Technology.
This standard shall be under the jurisdiction of National Technical Committee for Standardization of Energy Fundamentals and Management (SAC/TC 20), and
National Technical Committee on Agricultural Machinery of Standardization (SAC/TC 201).
Drafting organizations of this Standard. Technical Research Center of Fluid Machinery Engineering in Jiangsu University, Chinese Academy of Agricultural Mechanization Sciences, Shandong Celebrity Group Co., Ltd., Shanxi Skysea Pump Industry Co., Ltd., Shandong Yanshan Pump Co., Ltd., Haicheng Suprasuny Pump Co., Ltd., Taizhou Jiadi Pump Industry Co., Ltd., Shimge Pump Group Industry Co., Ltd., Leo Group Co., Ltd., Hangzhou SRT Pump Co., Ltd., Zhejiang Dayuan Pumps Industrial Co., Ltd., Zhejiang Fengyuan Pump Industry Co., Ltd., and Zhejiang Wenling Institute of Supervision & Testing on Product Quality.
Chief drafting staffs of this Standard. Wang Yang, Zhang Xiansheng, Zhou Jianquan, Shang Huaiyuan, Wang Lei, Zhao Liwei, Li Lulu, Chen Xianyuan, Xu Mintian, Wang Xiangrong, Lu Qiurong, Wang Guoliang, Sun Jianguo, Jin Shibin, and Zhang Jinfeng. Minimum Allowable Values of Energy Efficiency
and Energy Efficiency Grades for Submersible
Pumps for Deep Well

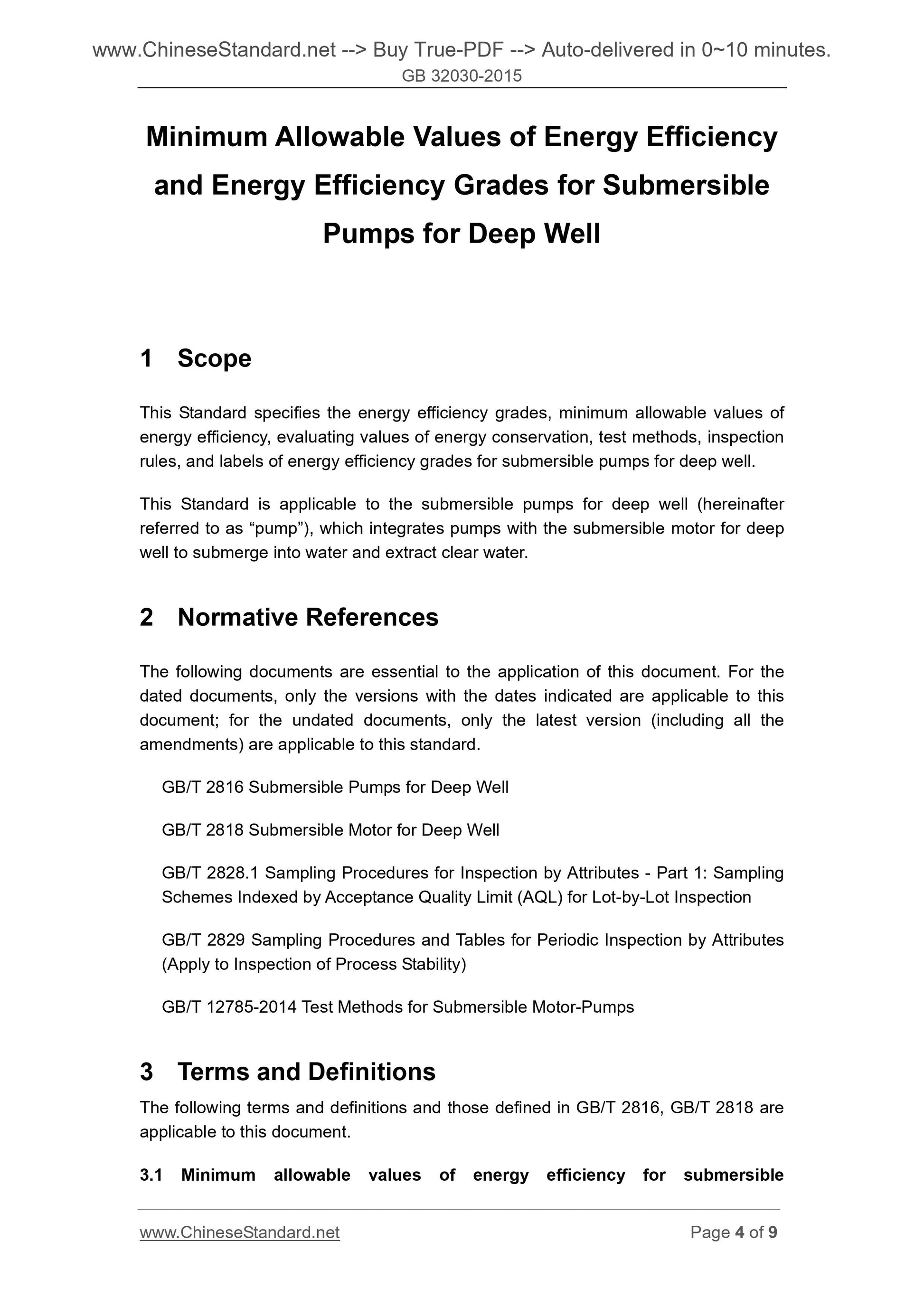

1 Scope
This Standard specifies the energy efficiency grades, minimum allowable values of energy efficiency, evaluating values of energy conservation, test methods, inspection rules, and labels of energy efficiency grades for submersible pumps for deep well. This Standard is applicable to the submersible pumps for deep well (hereinafter referred to as ?€?pump?€?), which integrates pumps with the submersible motor for deep well to submerge into water and extract clear water.
2 Normative References
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard.
GB/T 2816 Submersible Pumps for Deep Well
GB/T 2818 Submersible Motor for Deep Well
GB/T 2828.1 Sampling Procedures for Inspection by Attributes - Part 1. Sampling Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-Lot Inspection GB/T 2829 Sampling Procedures and Tables for Periodic Inspection by Attributes (Apply to Inspection of Process Stability)
GB/T 12785-2014 Test Methods for Submersible Motor-Pumps
3 Terms and Definitions
The following terms and definitions and those defined in GB/T 2816, GB/T 2818 are applicable to this document.
3.1 Minimum allowable values of energy efficiency for submersible

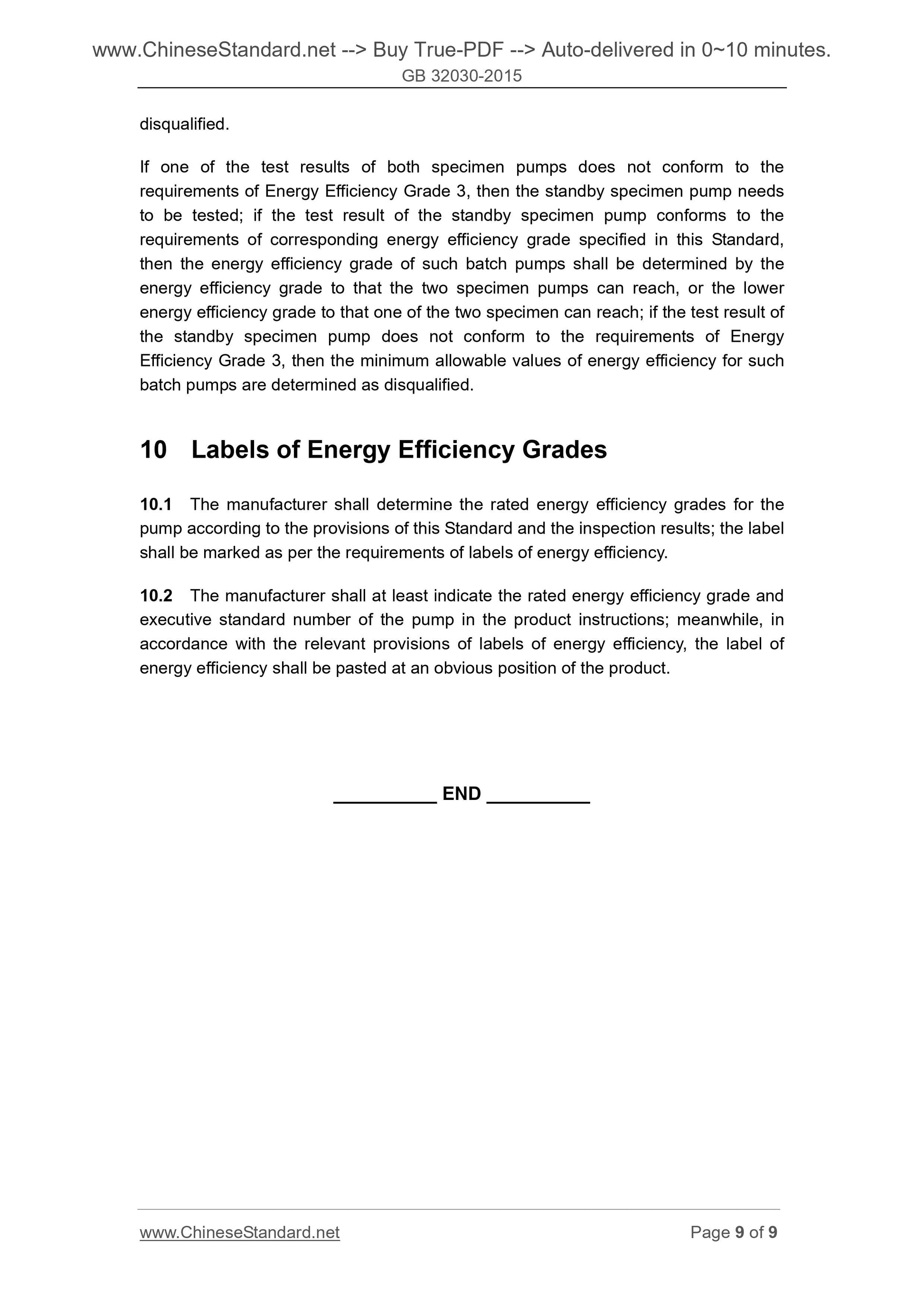

disqualified.
If one of the test results of both specimen pumps does not conform to the requirements of Energy Efficiency Grade 3, then the standby specimen pump needs to be tested; if the test result of the standby specimen pump conforms to the requirements of corresponding energy efficiency grade specified in this Standard, then the energy efficiency grade of such batch pumps shall be determined by the energy efficiency grade to that the two specimen pumps can reach, or the lower energy efficiency grade to that one of the two specimen can reach; if the test result of the standby specimen pump does not conform to the requirements of Energy Efficiency Grade 3, then the minimum allowable values of energy efficiency for such batch pumps are determined as disqualified.
10 Labels of Energy Efficiency Grades
10.1 The manufacturer shall determine the rated energy efficiency grades for the pump according to the provisions of this Standard and the inspection results; the label shall be marked as per the requirements of labels of energy efficiency. 10.2 The manufacturer shall at least indicate the rated energy efficiency grade and executive standard number of the pump in the product instructions; meanwhile, in accordance with the relevant provisions of labels of energy efficiency, the label of energy efficiency shall be pasted at an obvious position of the product.
