GB 28381-2026: Minimum allowable values of energy efficiency and energy efficiency grades for blowers

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB 28381-2026 (Self-service in 1-minute)
Newer / historical versions: GB 28381-2026

Preview True-PDF

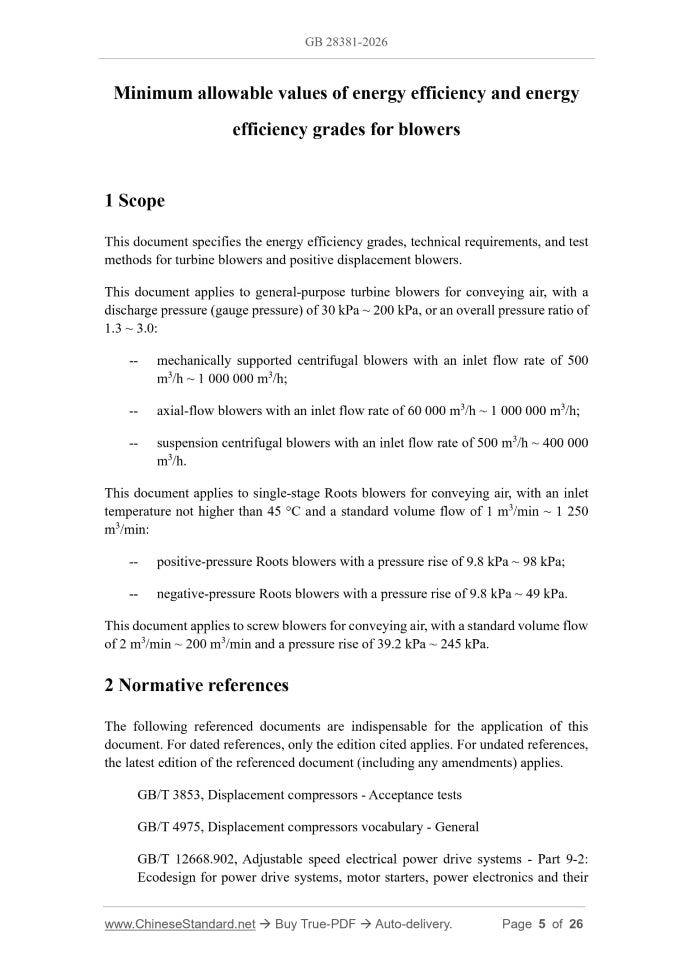

Scope

This document specifies the energy efficiency grades, technical requirements, and test
methods for turbine blowers and positive displacement blowers.
This document applies to general-purpose turbine blowers for conveying air, with a
discharge pressure (gauge pressure) of 30 kPa ~ 200 kPa, or an overall pressure ratio of
1.3 ~ 3.0.
-- mechanically supported centrifugal blowers with an inlet flow rate of 500
m3/h ~ 1 000 000 m3/h;
-- axial-flow blowers with an inlet flow rate of 60 000 m3/h ~ 1 000 000 m3/h;
-- suspension centrifugal blowers with an inlet flow rate of 500 m3/h ~ 400 000
m3/h.
This document applies to single-stage Roots blowers for conveying air, with an inlet
temperature not higher than 45 °C and a standard volume flow of 1 m3/min ~ 1 250
m3/min.
-- positive-pressure Roots blowers with a pressure rise of 9.8 kPa ~ 98 kPa;
-- negative-pressure Roots blowers with a pressure rise of 9.8 kPa ~ 49 kPa.
This document applies to screw blowers for conveying air, with a standard volume flow
of 2 m3/min ~ 200 m3/min and a pressure rise of 39.2 kPa ~ 245 kPa.

Basic Data

Standard ID	GB 28381-2026 (GB28381-2026)
Description (Translated English)	Minimum allowable values of energy efficiency and energy efficiency grades for blowers
Sector / Industry	National Standard
Classification of Chinese Standard	F01
Classification of International Standard	27.010
Word Count Estimation	54,560
Date of Issue	2026-03-31
Date of Implementation	2027-04-01
Older Standard (superseded by this standard)	GB 28381-2012
Issuing agency(ies)	State Administration for Market Regulation, China National Standardization Administration
