GB 26134-2010: Roof crush resistance of passenger cars

This Standard specifies the requirements for the roof crush resistance of passenger cars. This Standard is applicable to the Type-M1 vehicle, but not applicable to the convertibles.
GB 26134-2010
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.040.60
T 26
Roof Crush Resistance of Passenger Cars
ISSUED ON. JANUARY 14, 2011
IMPLEMENTED ON. JANUARY 01, 2012
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of PRC.
Table of Contents
Foreword ... 3
1 Scope ... 4
2 Terms and Definitions ... 4
3 Requirements ... 4
4 Test Equipment ... 5
5 Test Procedures ... 5

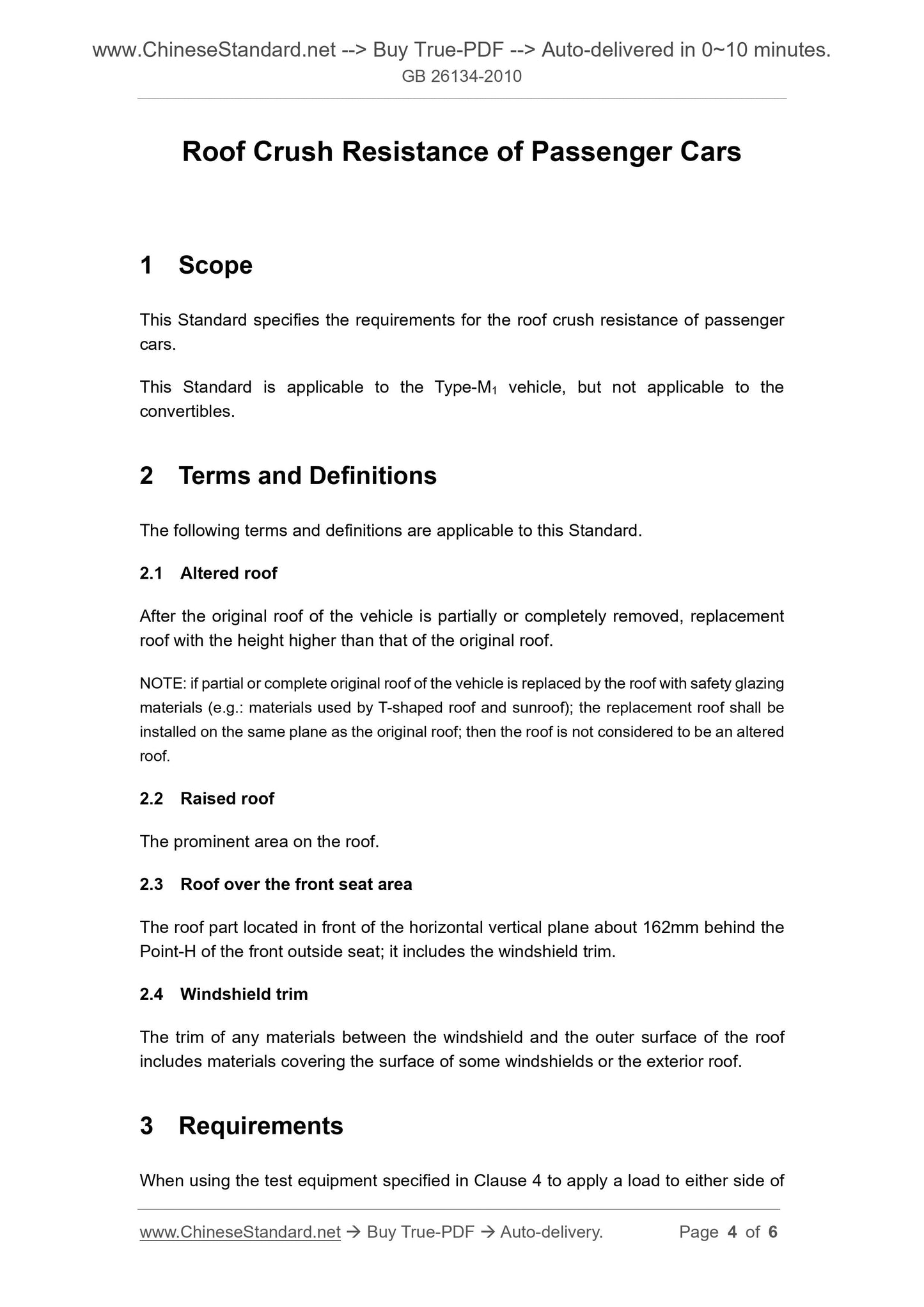

Roof Crush Resistance of Passenger Cars
1 Scope
This Standard specifies the requirements for the roof crush resistance of passenger cars.
This Standard is applicable to the Type-M1 vehicle, but not applicable to the convertibles.
2 Terms and Definitions
The following terms and definitions are applicable to this Standard.
2.1 Altered roof
After the original roof of the vehicle is partially or completely removed, replacement roof with the height higher than that of the original roof.
NOTE. if partial or complete original roof of the vehicle is replaced by the roof with safety glazing materials (e.g.. materials used by T-shaped roof and sunroof); the replacement roof shall be installed on the same plane as the original roof; then the roof is not considered to be an altered roof.
2.2 Raised roof
The prominent area on the roof.
2.3 Roof over the front seat area
The roof part located in front of the horizontal vertical plane about 162mm behind the Point-H of the front outside seat; it includes the windshield trim.
2.4 Windshield trim
The trim of any materials between the windshield and the outer surface of the roof includes materials covering the surface of some windshields or the exterior roof. 3 Requirements
When using the test equipment specified in Clause 4 to apply a load to either side of
