GB 25991-2010: Automotive headlamps with LED light sources and/or LED modules

This standard specifies the test methods and inspection rules for the light distribution performance, light color, temperature cycle of the automotive headlamps with LED light source or LED light source/module.

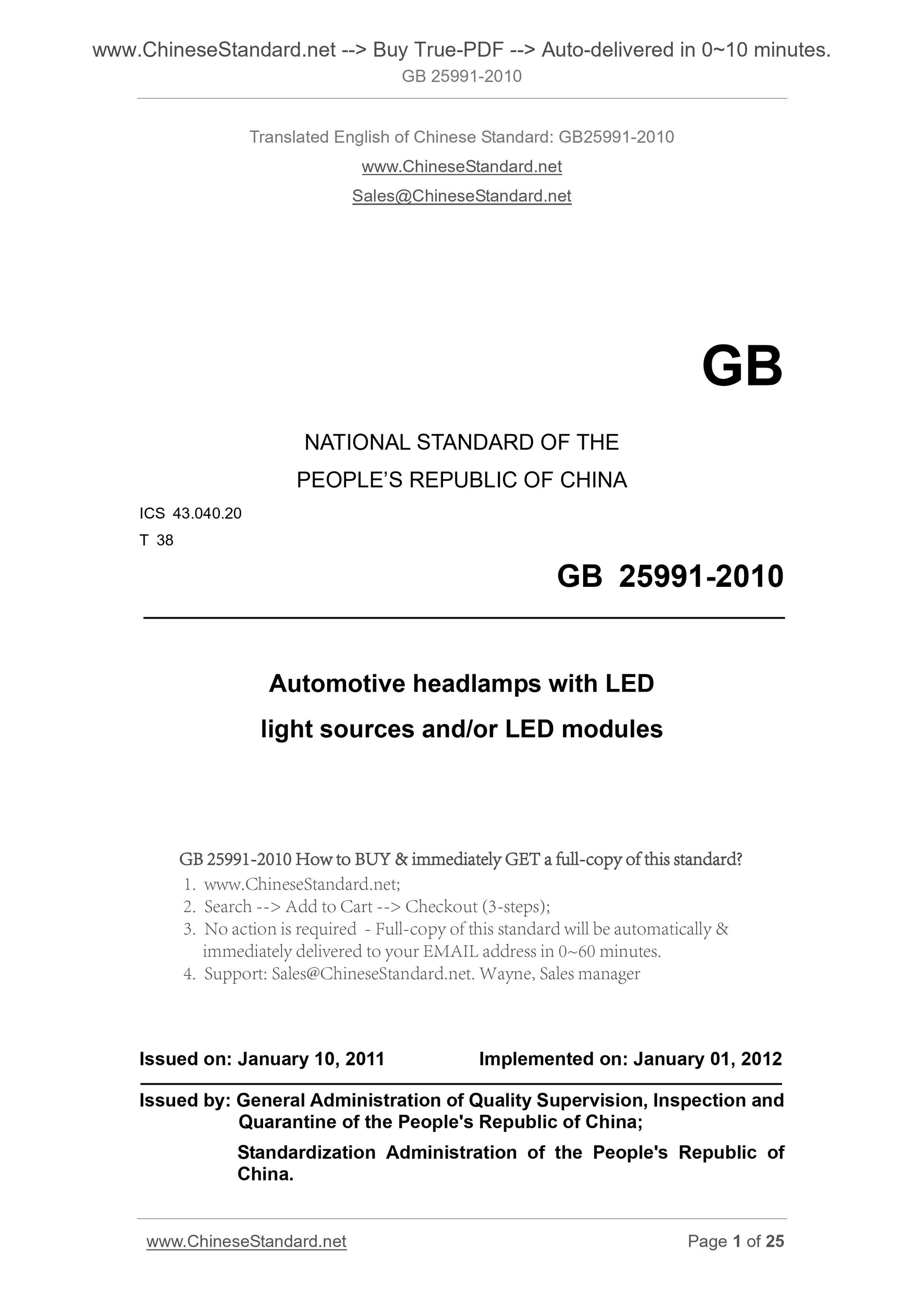

GB 25991-2010
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.040.20
T 38
Automotive headlamps with LED
light sources and/or LED modules
ISSUED ON. JANUARY 10, 2011
IMPLEMENTED ON. JANUARY 01, 2012
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

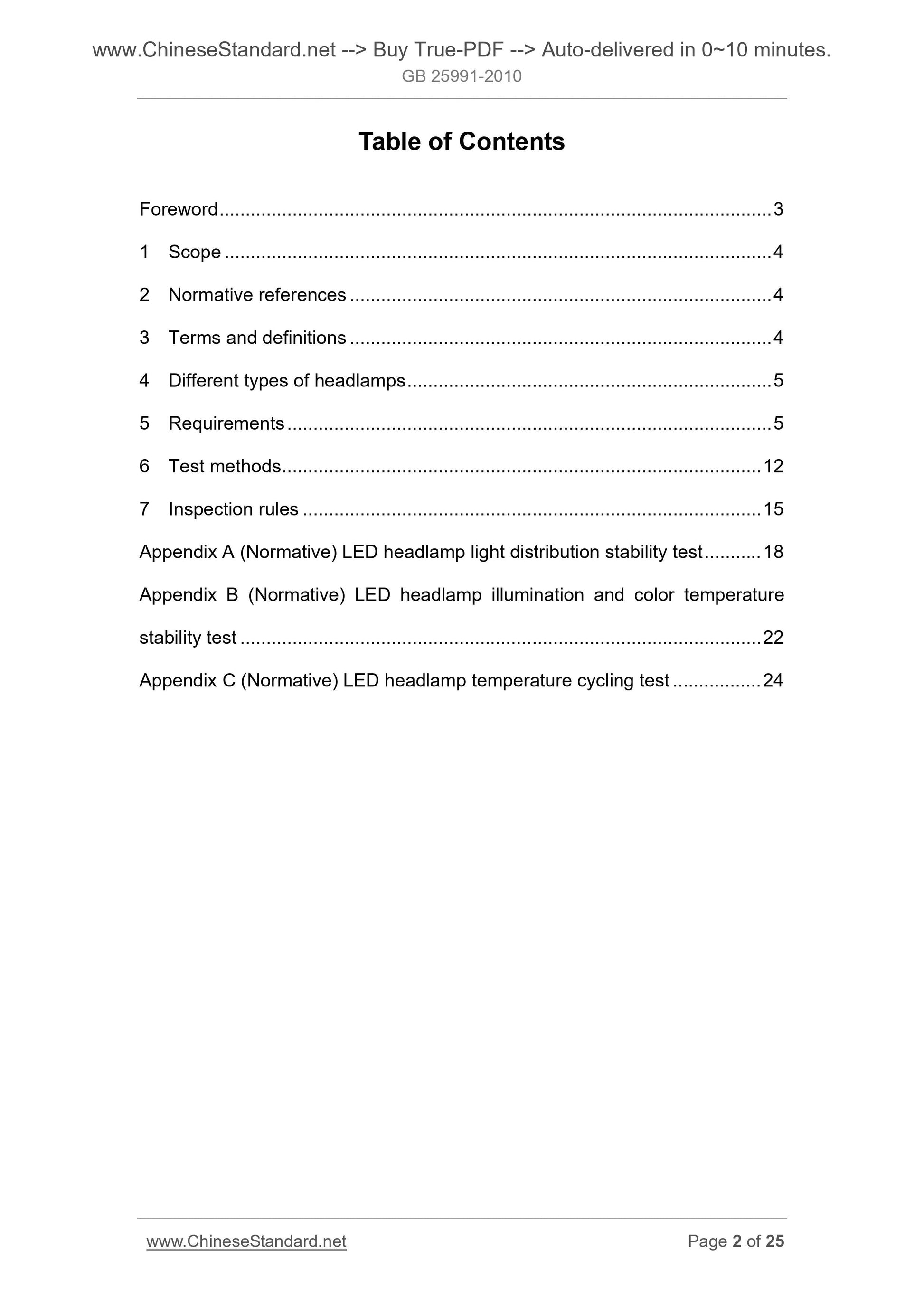

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Different types of headlamps ... 5
5 Requirements ... 5

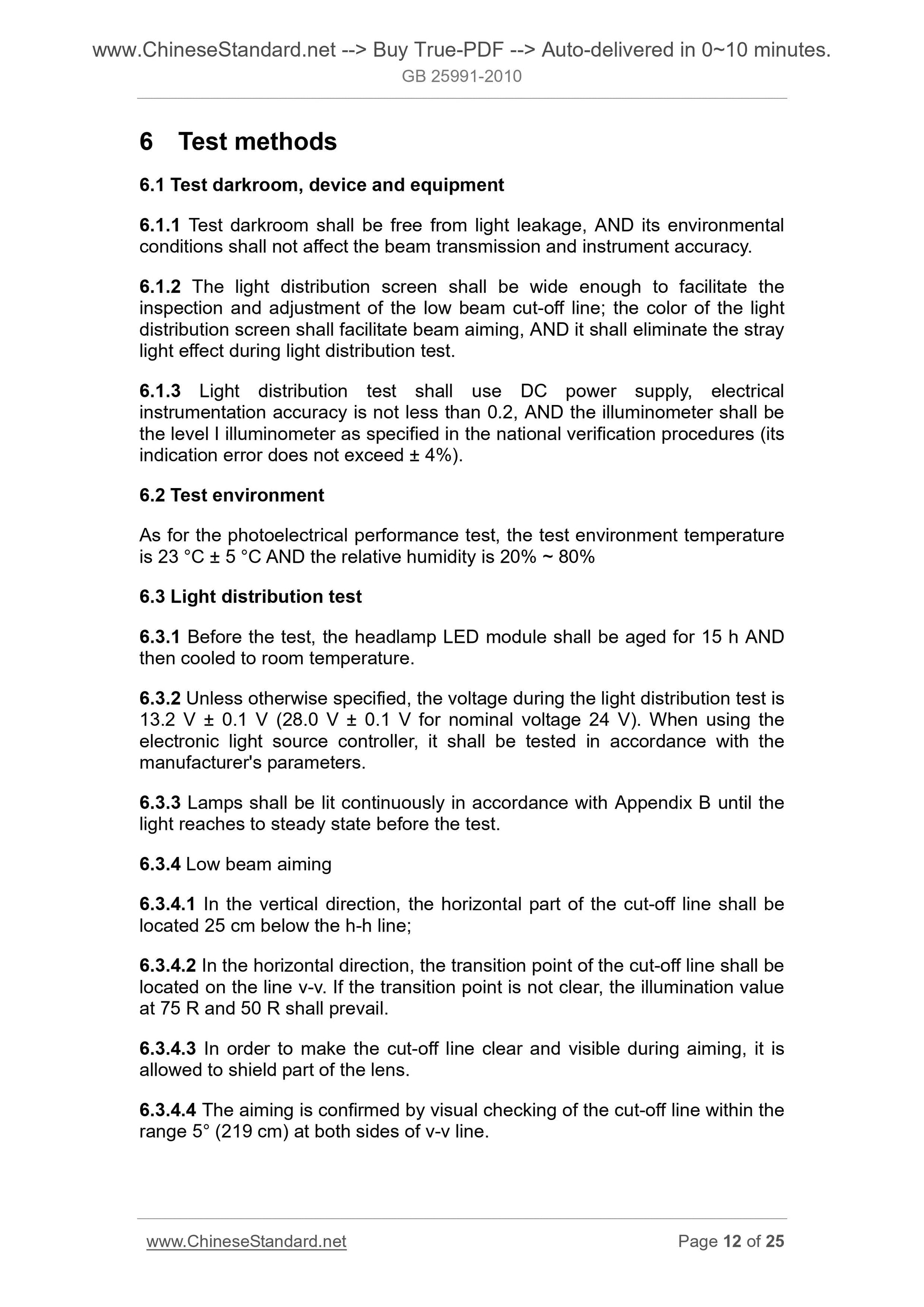

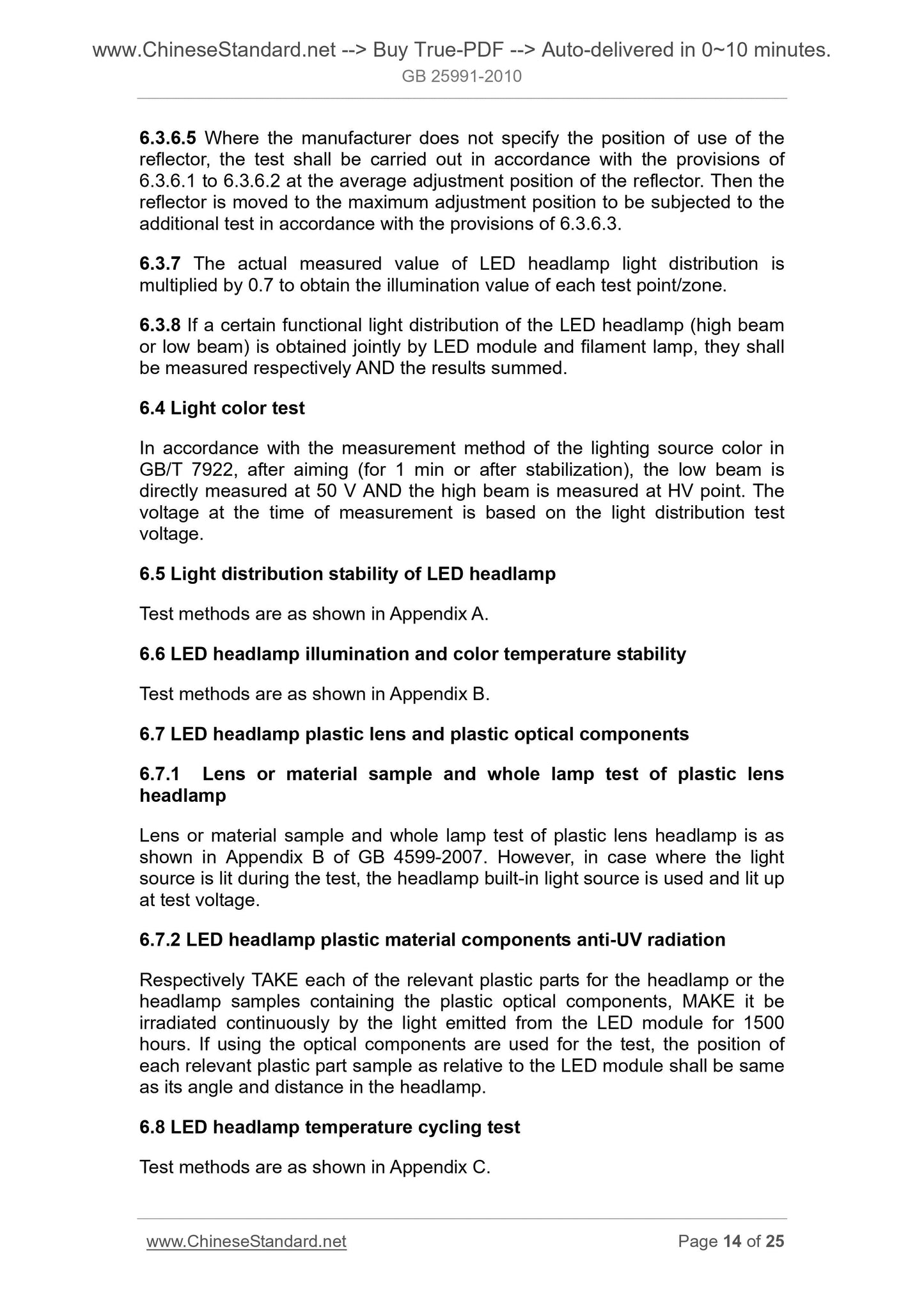

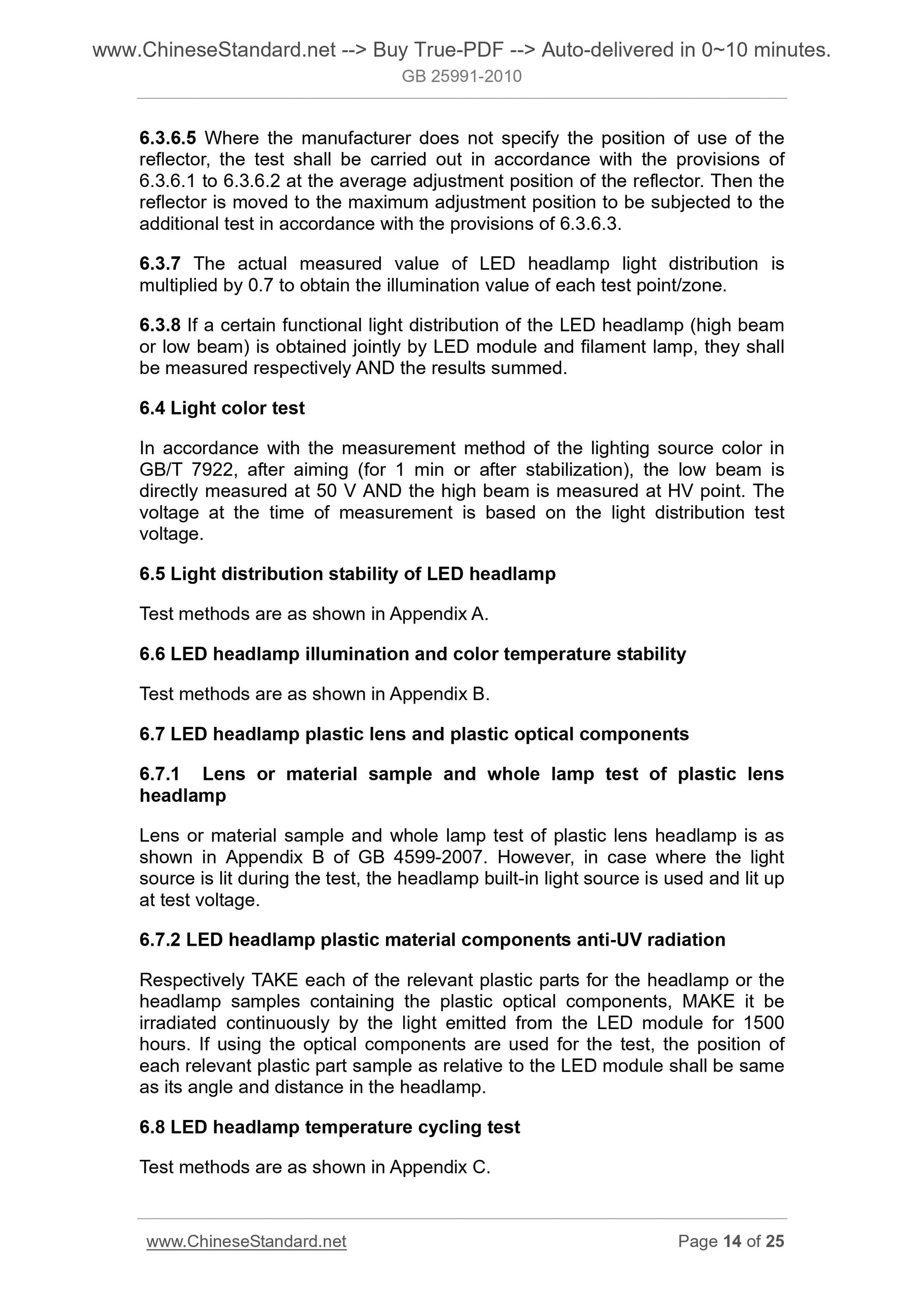

6 Test methods ... 12
7 Inspection rules ... 15

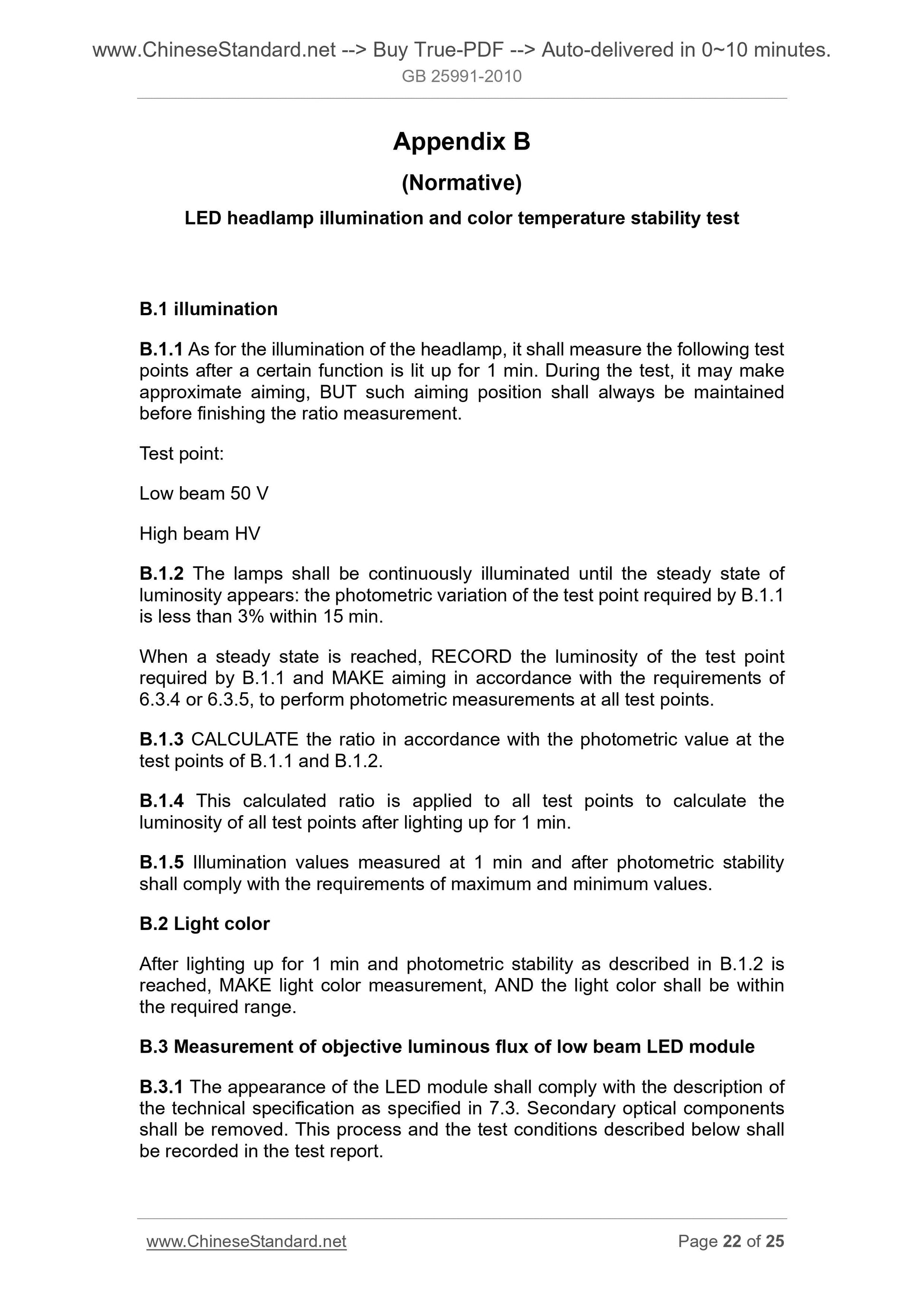

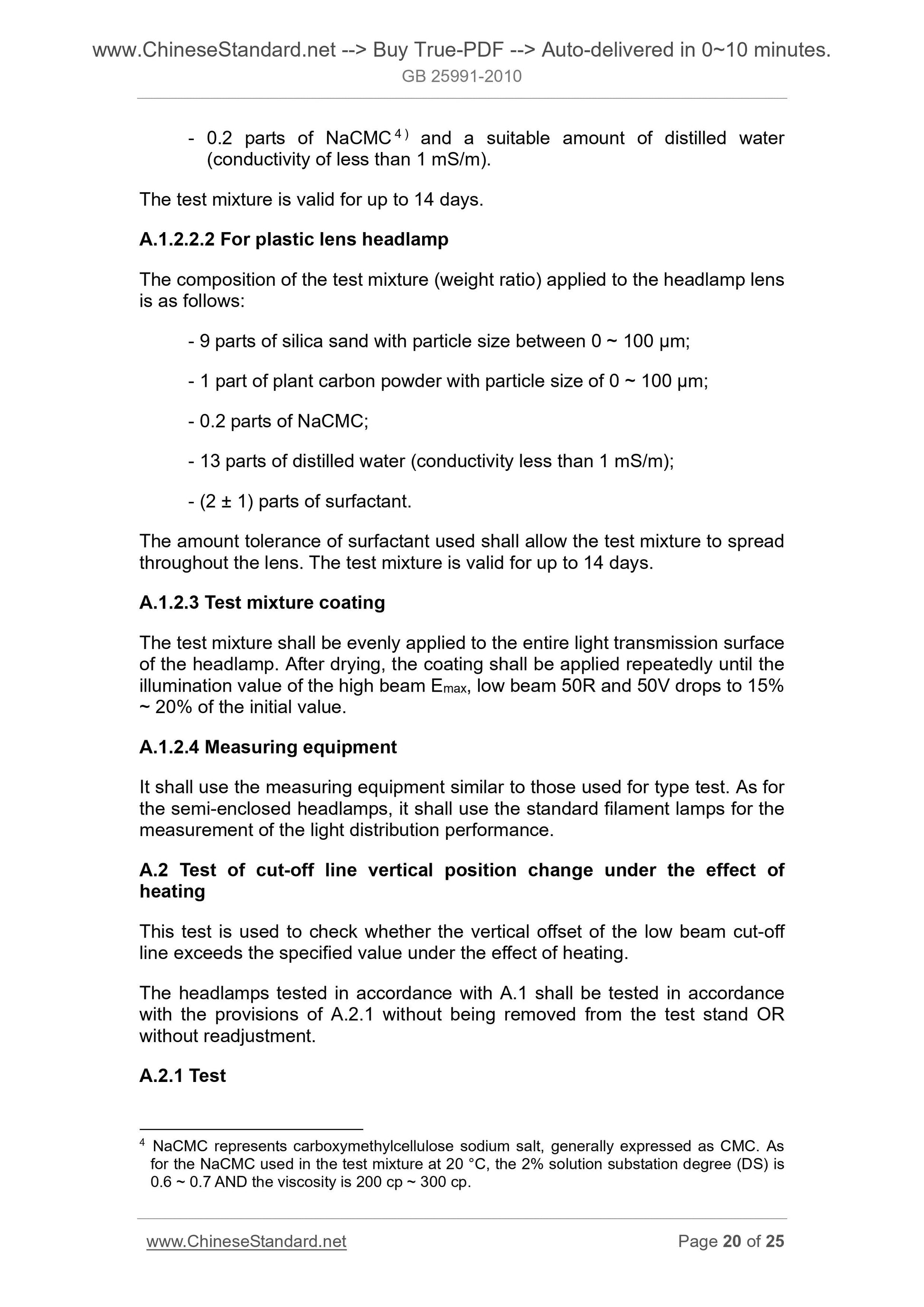

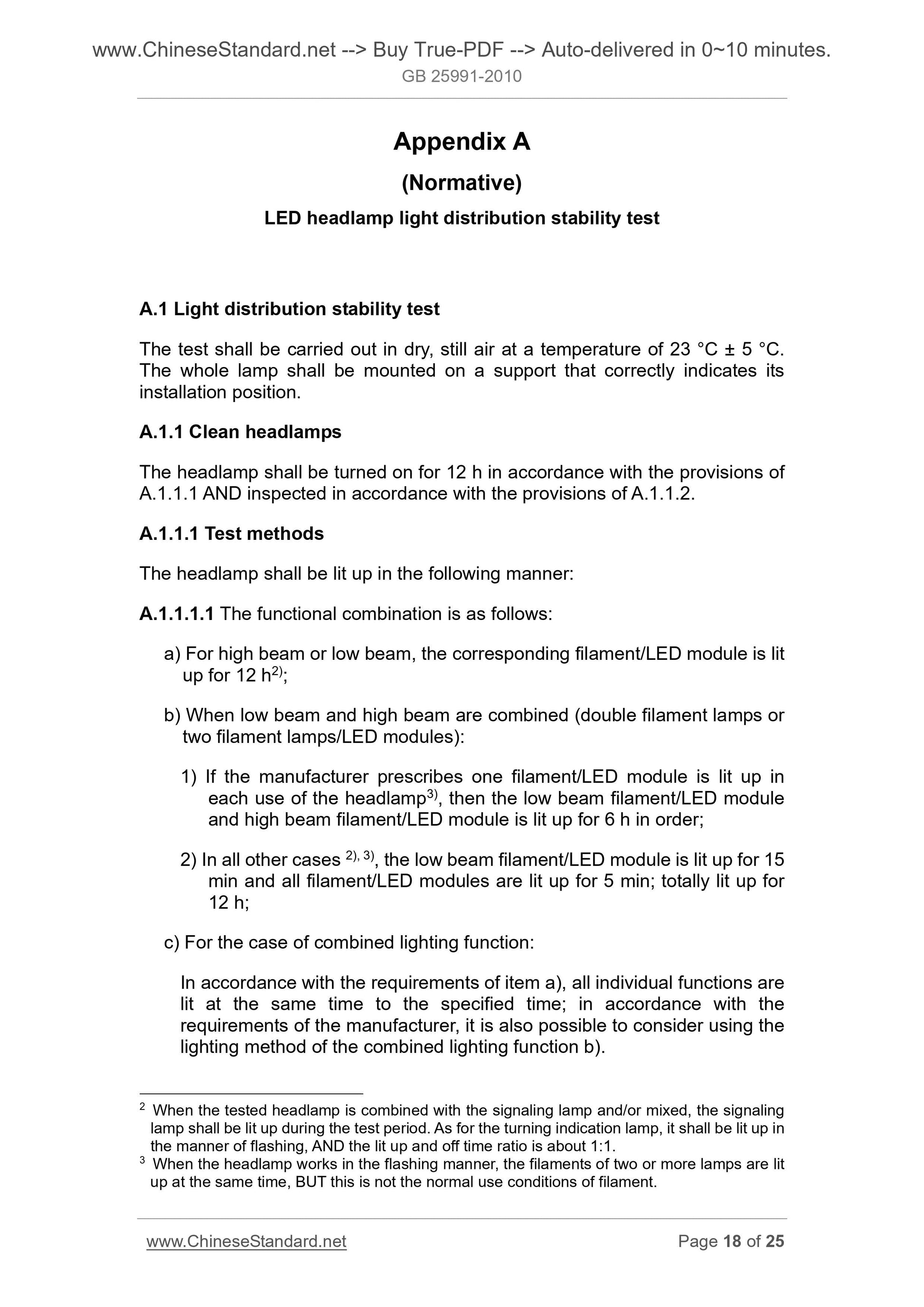

Appendix A (Normative) LED headlamp light distribution stability test ... 18 Appendix B (Normative) LED headlamp illumination and color temperature
stability test ... 22
Appendix C (Normative) LED headlamp temperature cycling test ... 24

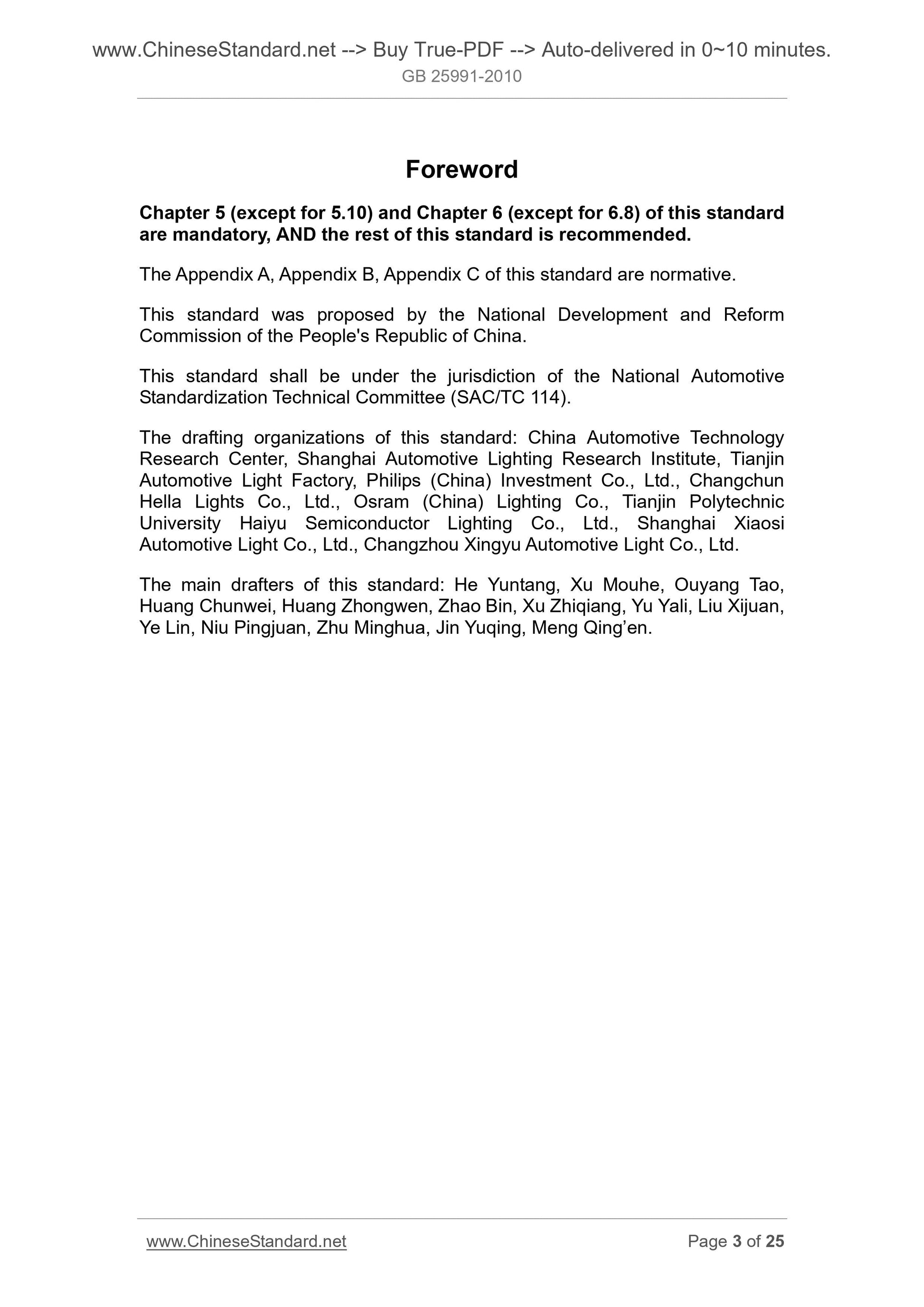

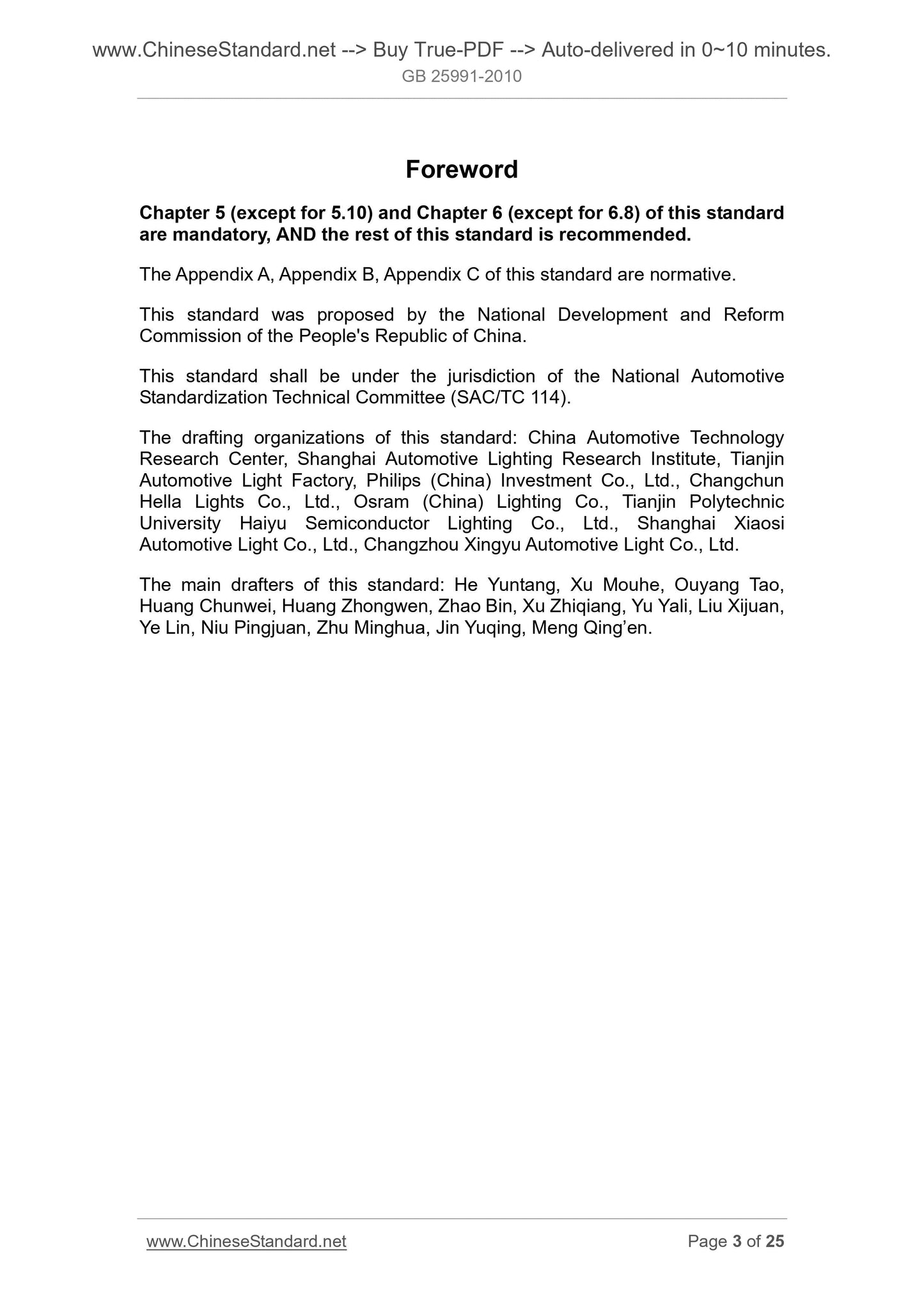

Foreword
Chapter 5 (except for 5.10) and Chapter 6 (except for 6.8) of this standard are mandatory, AND the rest of this standard is recommended.
The Appendix A, Appendix B, Appendix C of this standard are normative.
This standard was proposed by the National Development and Reform
Commission of the People's Republic of China.
This standard shall be under the jurisdiction of the National Automotive Standardization Technical Committee (SAC/TC 114).
The drafting organizations of this standard. China Automotive Technology Research Center, Shanghai Automotive Lighting Research Institute, Tianjin Automotive Light Factory, Philips (China) Investment Co., Ltd., Changchun Hella Lights Co., Ltd., Osram (China) Lighting Co., Tianjin Polytechnic University Haiyu Semiconductor Lighting Co., Ltd., Shanghai Xiaosi
Automotive Light Co., Ltd., Changzhou Xingyu Automotive Light Co., Ltd. The main drafters of this standard. He Yuntang, Xu Mouhe, Ouyang Tao,
Huang Chunwei, Huang Zhongwen, Zhao Bin, Xu Zhiqiang, Yu Yali, Liu Xijuan, Ye Lin, Niu Pingjuan, Zhu Minghua, Jin Yuqing, Meng Qing?€?en.
Automotive headlamps with LED
light sources and/or LED modules

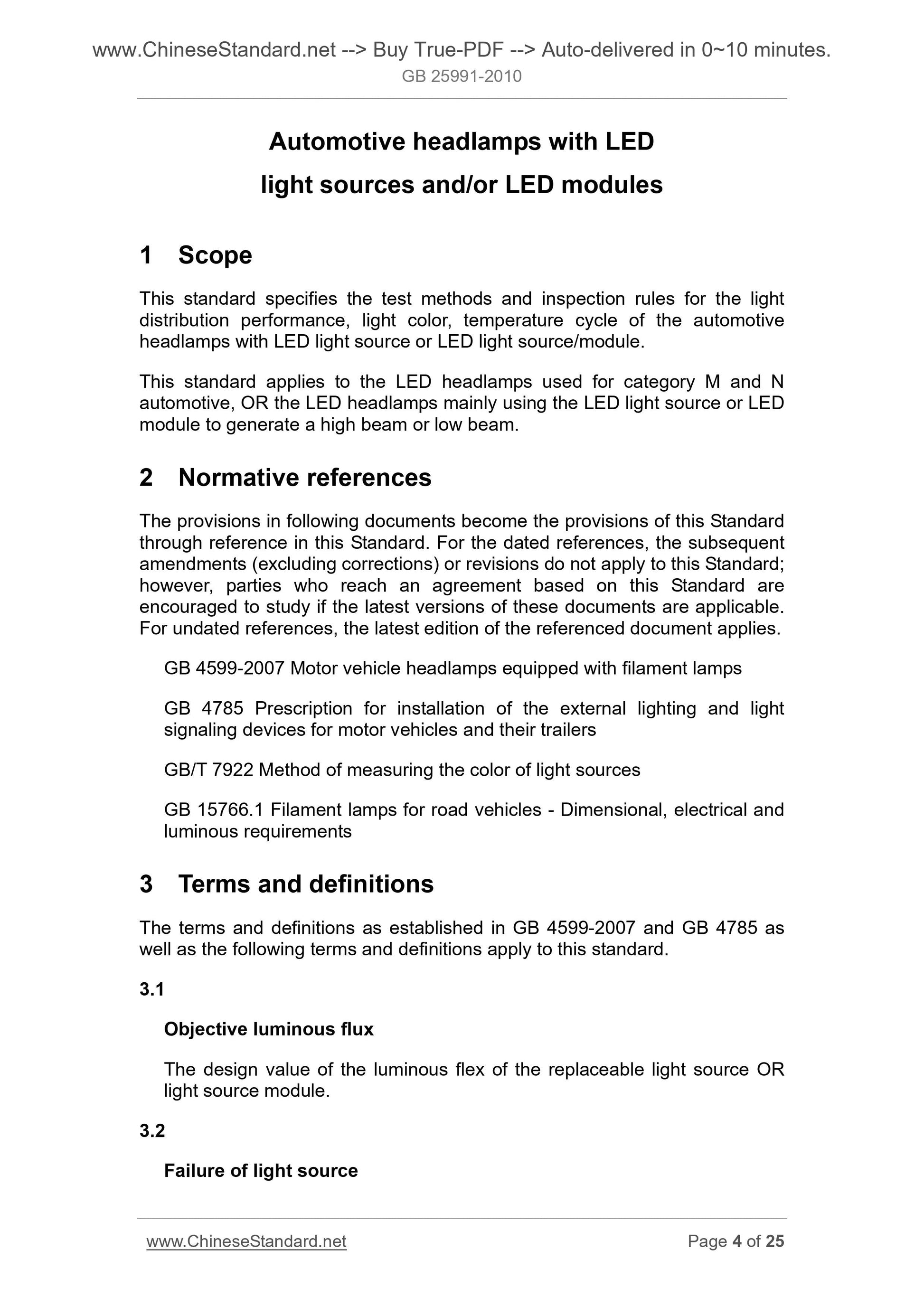

1 Scope
This standard specifies the test methods and inspection rules for the light distribution performance, light color, temperature cycle of the automotive headlamps with LED light source or LED light source/module.
This standard applies to the LED headlamps used for category M and N
automotive, OR the LED headlamps mainly using the LED light source or LED module to generate a high beam or low beam.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB 4599-2007 Motor vehicle headlamps equipped with filament lamps
GB 4785 Prescription for installation of the external lighting and light signaling devices for motor vehicles and their trailers
GB/T 7922 Method of measuring the color of light sources
GB 15766.1 Filament lamps for road vehicles - Dimensional, electrical and luminous requirements
3 Terms and definitions
The terms and definitions as established in GB 4599-2007 and GB 4785 as well as the following terms and definitions apply to this standard.
3.1
Objective luminous flux
The design value of the luminous flex of the replaceable light source OR light source module.
3.2
Failure of light source
The phenomenon of loss of lighting function, darkening, chroma exceeding criteria, or flashing of one or more LED during the normal use of LED or LED module.
3.3
LED module
Light source module containing LED only.

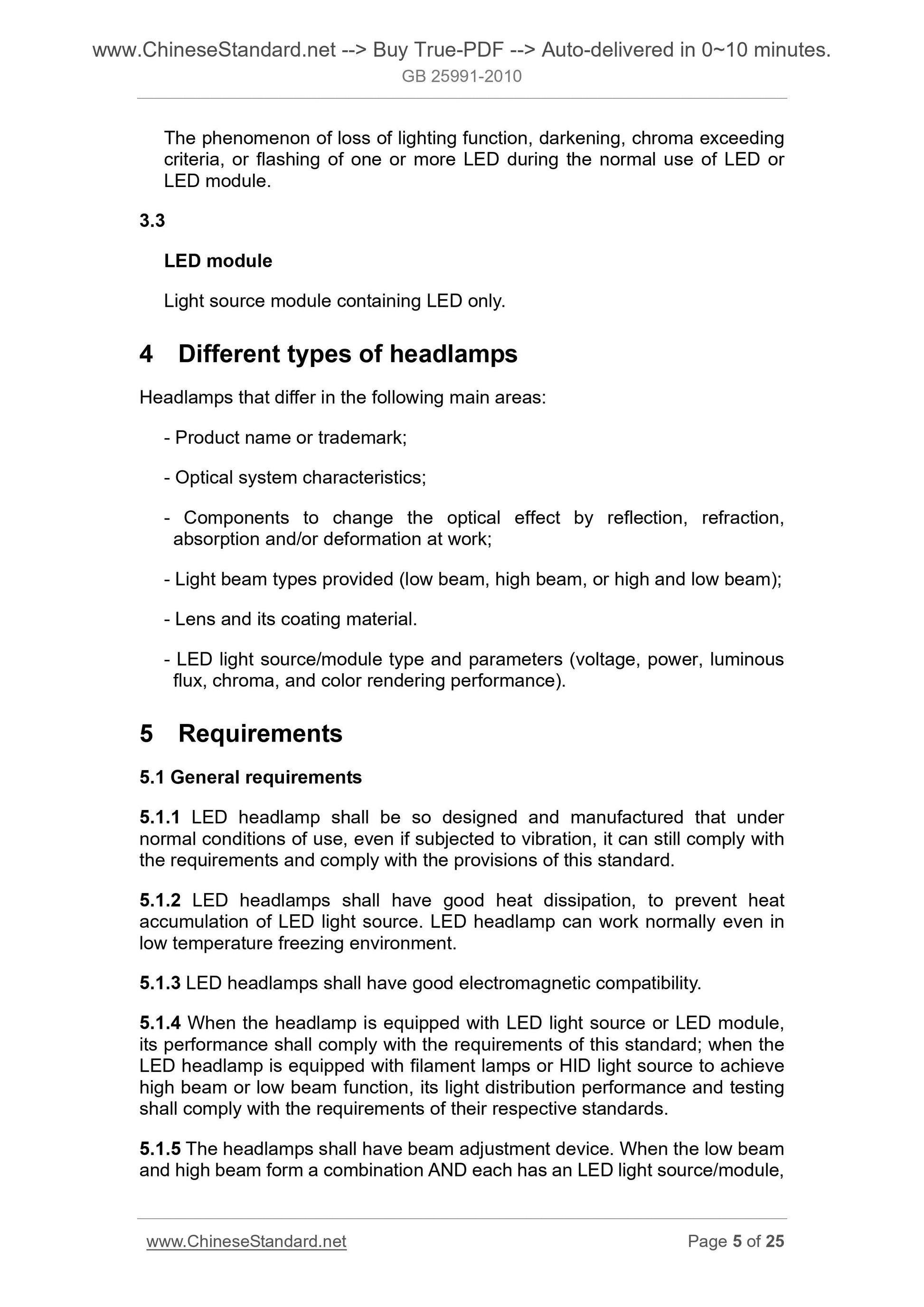

4 Different types of headlamps
Headlamps that differ in the following main areas.
- Product name or trademark;
- Optical system characteristics;
- Components to change the optical effect by reflection, refraction,
absorption and/or deformation at work;
- Light beam types provided (low beam, high beam, or high and low beam); - Lens and its coating material.
- LED light source/module type and parameters (voltage, power, luminous flux, chroma, and color rendering performance).
5 Requirements
5.1 General requirements
5.1.1 LED headlamp shall be so designed and manufactured that under
normal conditions of use, even if subjected to vibration, it can still comply with the requirements and comply with the provisions of this standard.
5.1.2 LED headlamps shall have good heat dissipation, to prevent heat
accumulation of LED light source. LED headlamp can work normally even in low temperature freezing environment.
5.1.3 LED headlamps shall have good electromagnetic compatibility.
5.1.4 When the headlamp is equipped with LED light source or LED module, its performance shall comply with the requirements of this standard; when the LED headlamp is equipped with filament lamps or HID light source to achieve high beam or low beam function, its light distribution performance and testing shall comply with the requirements of their respective standards.
5.1.5 The headlamps shall have beam adjustment device. When the low beam and high beam form a combination AND each has an LED light source/module, filament lamp (or combination lamp), the adjustment device shall be able to adjust them individually, BUT these requirements do not apply to the headlamp for which the high beam and low beam cannot be adjusted separately.
5.1.6 LED headlamps shall include the following markings.
- LED headlamp
- Voltage;
- Reference center.
5.2 General requirements of LED module and electronic light source
controller
5.2.1 LED module shall use the LED light source which emits visible light, AND it is not allowed to use other forms of light.
5.2.2 LED module under normal conditions of use, shall be maintained at a good working condition without design and manufacturing defects, AND the entire module shall be deemed as failure when there is a LED light source damage.
5.2.3 LED on the LED module shall be mounted on a suitable fixed substrate, AND the fixed substrate shall have good strength and stability to protect the LED and LED module.
5.2.4 LED module (in the lamp) shall be positioned accurately and fixed well, to prevent the movement.
5.2.5 For the replaceable LED module, in case of replacement, it shall use the LED module complying with the design requirements; AND the LED modules
of different specifications in the same lamp shall not be interchangeable. 5.2.6 Regardless of the electronic light source controller placed inside or outside, it is considered as part of LED headlamps.
5.2.7 If not specified by the manufacturer, the LED module shall be tested in the headlamp submitted by the manufacturer.
5.3 Light distribution
5.3.1 The headlamp low beam shall have enough lighting BUT shall not
produce dazzling, AND the high beam shall have good lighting. Bend lighting can be achieved by means of an additional light source which is part of a low beam headlamp. If the additional light source fails, the light distribution shall still comply with the low beam requirements.
5.3.2 The light distribution shall be measured on a vertical plane light distribution screen 25 m away from the reference center of the headlamp. The positions of the test points and zones are as shown in Figure 1.
Unit in millimeter
Figure 1 -- Light distribution screen
5.3.3 Low beam light distribution requirements
5.3.3.1 On the light distribution screen, the low beam shall have a clear cut-off line with the horizontal part to the left of the v-v line AND the HV-H2-H3 line or the HV-H1-H2-H4 line to the right. It is allowed to have multiple cut-off lines visually visible.
Illumination limit on the light distribution screen shall be consistent with the provisions of Table 1.
Road centreline
Zone I
Zone IV
Zone II
Zone III
Area A
Area B
Table 1
5.3.3.2 For LED headlamps, the illumination limits of test points 1 to 8 on light distribution screens shall comply with the following requirements.
- Test point 1 + 2 + 3 ??? 0.3 lx;
- Test point 4 + 5 + 6 ??? 0.6 lx;
- 0.7 lx ??? test point 7 ??? 0.1 lx;
- 0.7 lx ??? test point 8 ??? 0.2 lx,
5.3.3.3 As for the LED headlamps with adjustable reflectors, each position of use of the reflector as specified by the manufacturer shall comply with the requirements of 5.3.3.1 and 5.3.3.2.
5.3.3.4 There shall be no change in lateral illumination that affects good visibility in zones I, II, III and IV.
5.3.3.5 If the bend lighting beam is obtained by the following methods, the requirements in the above Table 1 are also applicable to the headlamps which are designed to generate bend lighting beam.
- Rotating the low beam or moving the cutoff line transition horizontally; - Moving one or more optical components of the headlamp ...
