GB 24511-2009: [GB/T 24511-2009] Stainless steel plate, sheet and strip for pressure equipment

This Standard specifies the classification and code, dimension, shape, allowable deviation, technical requirements, test methods, inspection rules, packaging, marking, product quality certificates, etc. of the stainless steel plate, sheet and strip for pressure equipment.

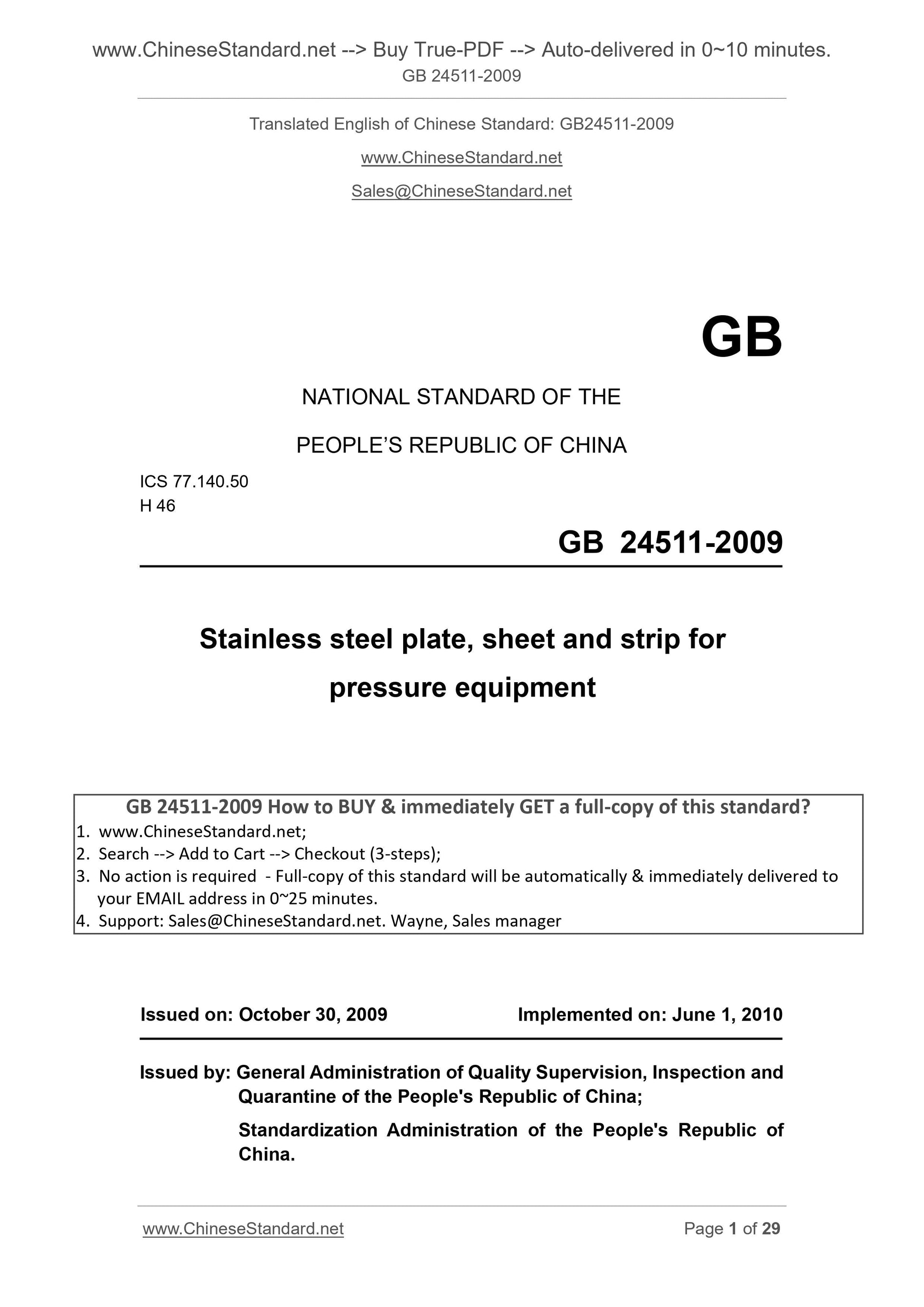

GB 24511-2009
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.50
H 46
Stainless steel plate, sheet and strip for
pressure equipment
ISSUED ON. OCTOBER 30, 2009
IMPLEMENTED ON. JUNE 1, 2010
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the People's Republic of
China.

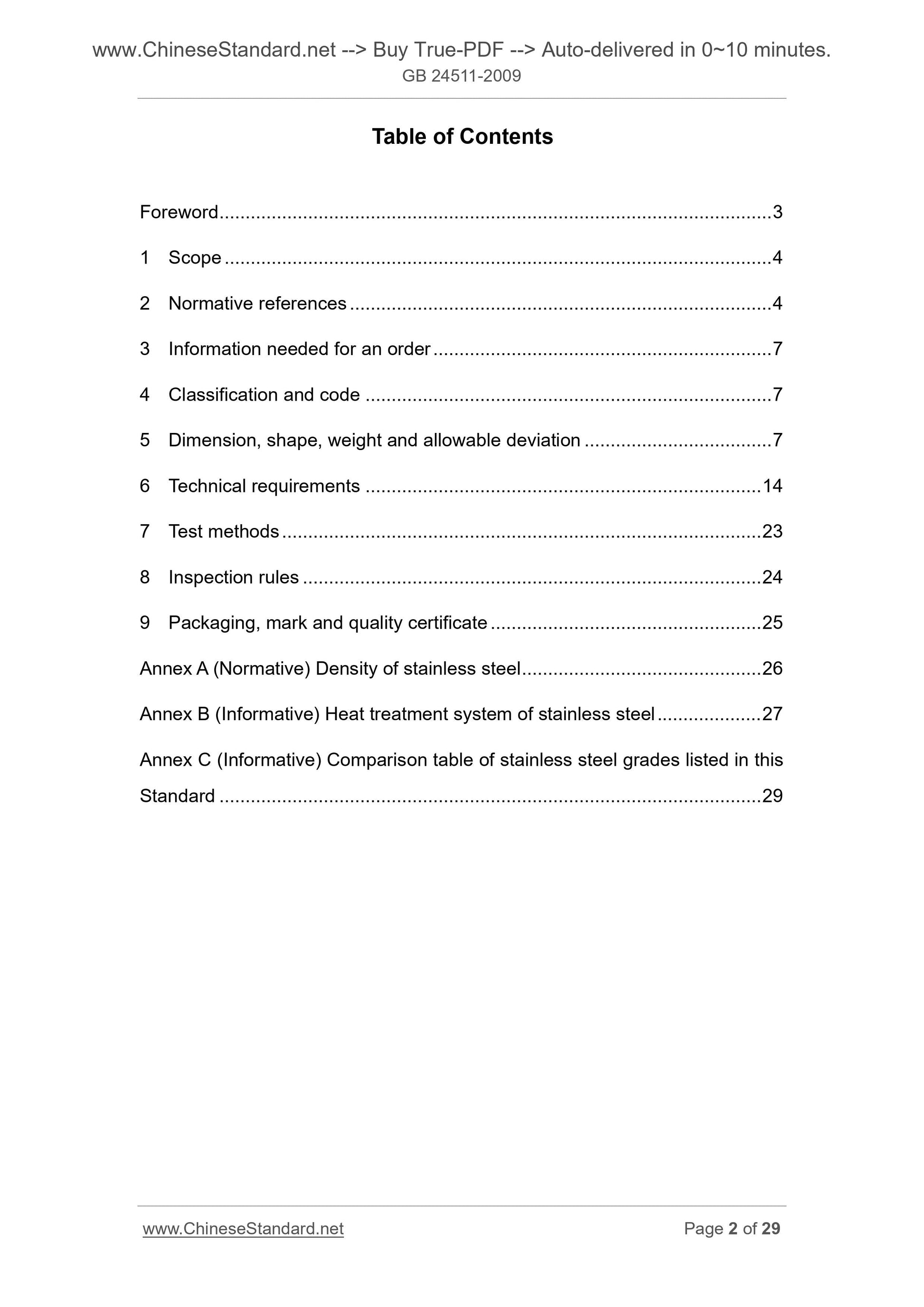

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Information needed for an order ... 7
4 Classification and code ... 7
5 Dimension, shape, weight and allowable deviation ... 7
6 Technical requirements ... 14
7 Test methods ... 23
8 Inspection rules ... 24
9 Packaging, mark and quality certificate ... 25
Annex A (Normative) Density of stainless steel ... 26
Annex B (Informative) Heat treatment system of stainless steel ... 27

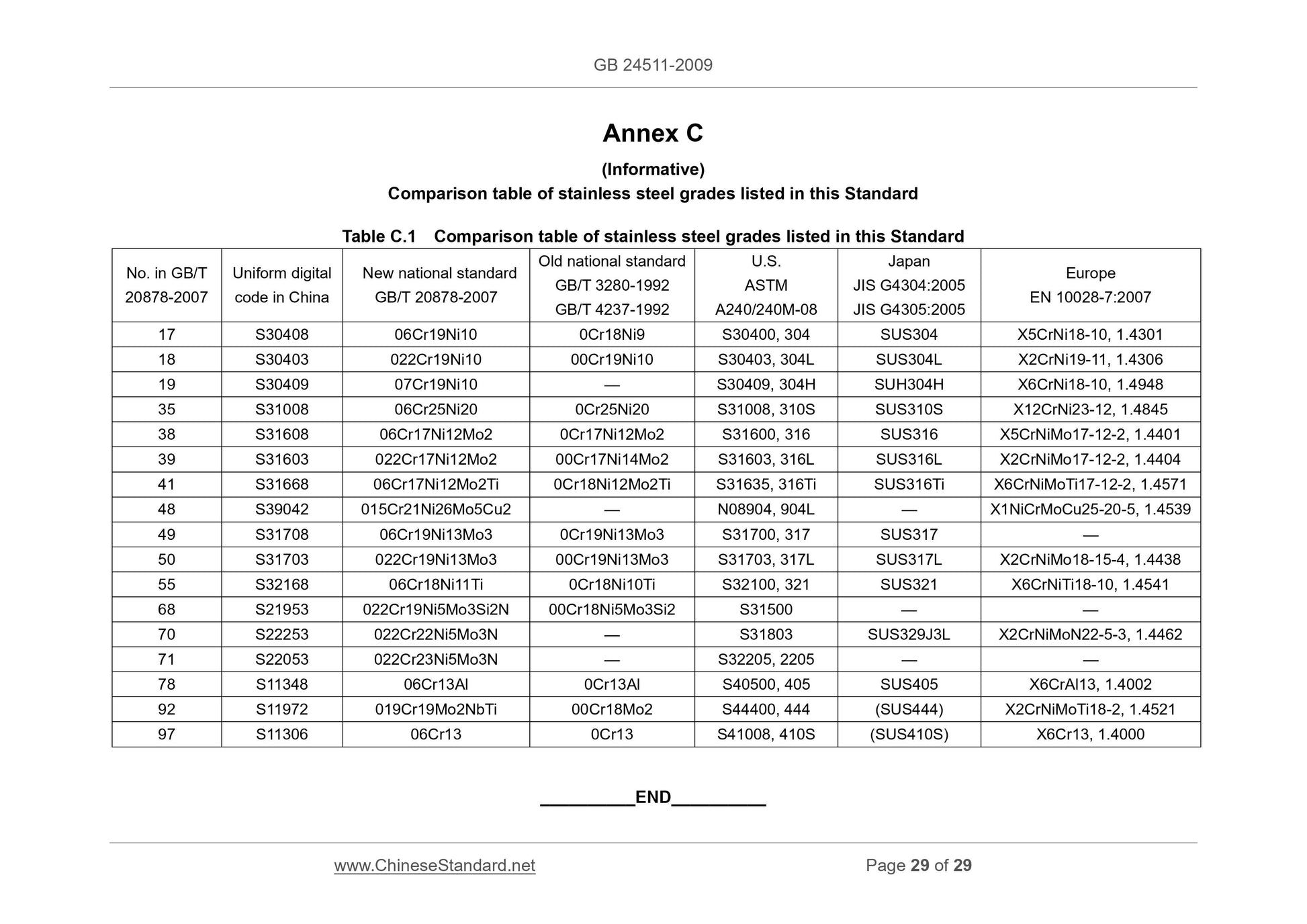

Annex C (Informative) Comparison table of stainless steel grades listed in this Standard ... 29

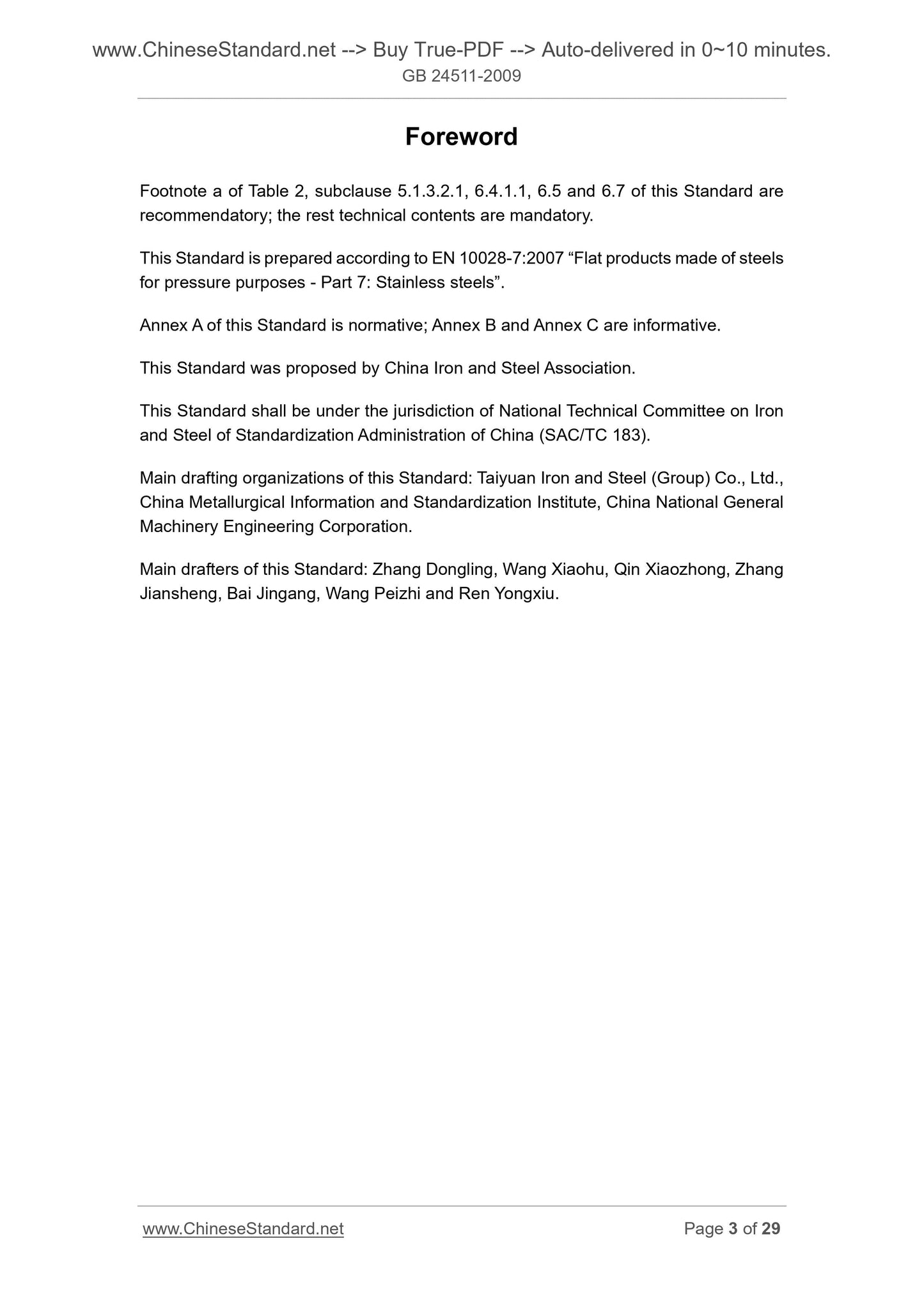

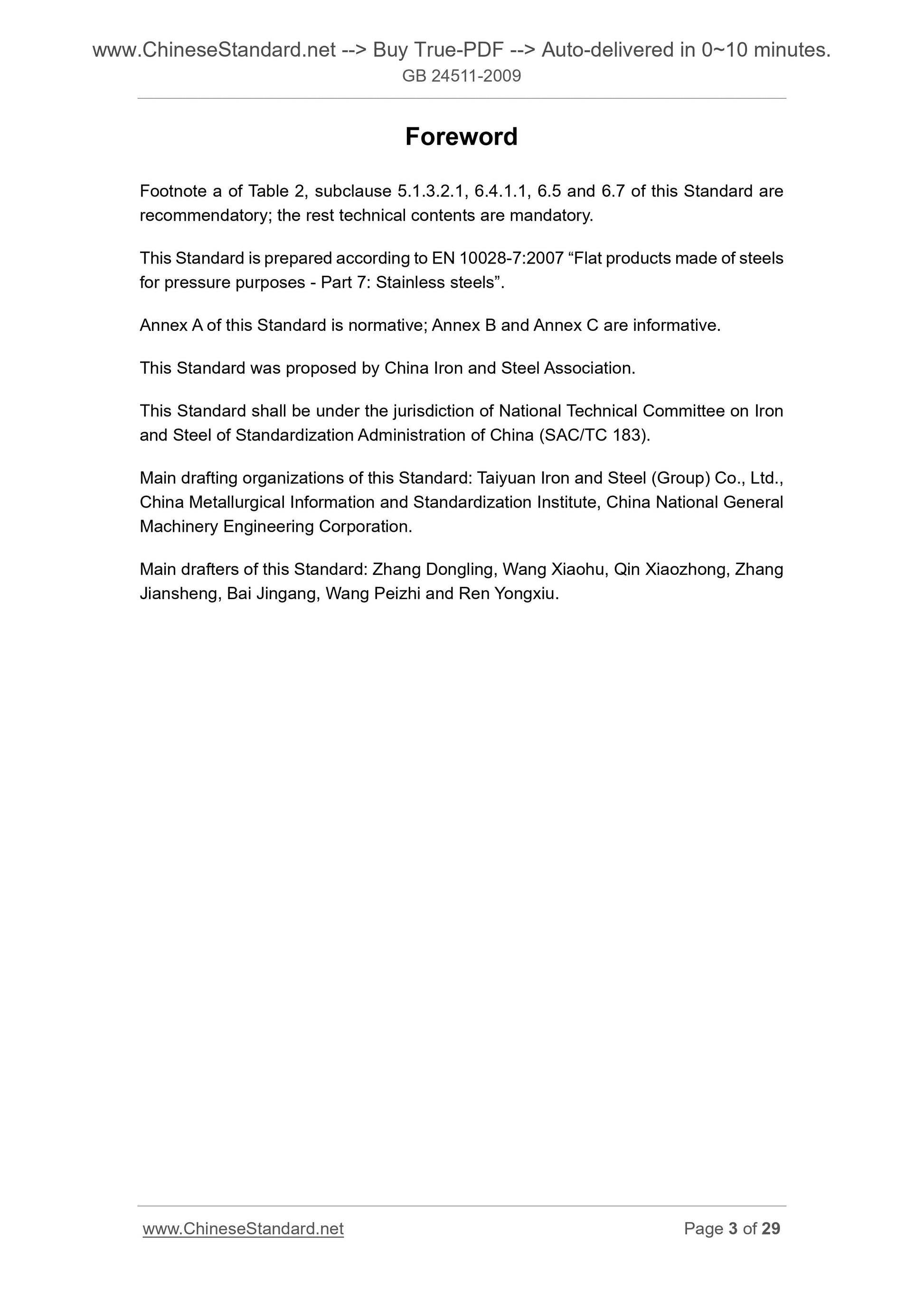

Foreword
Footnote a of Table 2, subclause 5.1.3.2.1, 6.4.1.1, 6.5 and 6.7 of this Standard are recommendatory; the rest technical contents are mandatory.
This Standard is prepared according to EN 10028-7.2007 ?€?Flat products made of steels for pressure purposes - Part 7. Stainless steels?€?.
Annex A of this Standard is normative; Annex B and Annex C are informative. This Standard was proposed by China Iron and Steel Association.
This Standard shall be under the jurisdiction of National Technical Committee on Iron and Steel of Standardization Administration of China (SAC/TC 183).
Main drafting organizations of this Standard. Taiyuan Iron and Steel (Group) Co., Ltd., China Metallurgical Information and Standardization Institute, China National General Machinery Engineering Corporation.
Main drafters of this Standard. Zhang Dongling, Wang Xiaohu, Qin Xiaozhong, Zhang Jiansheng, Bai Jingang, Wang Peizhi and Ren Yongxiu.
Stainless steel plate, sheet and strip for
pressure equipment

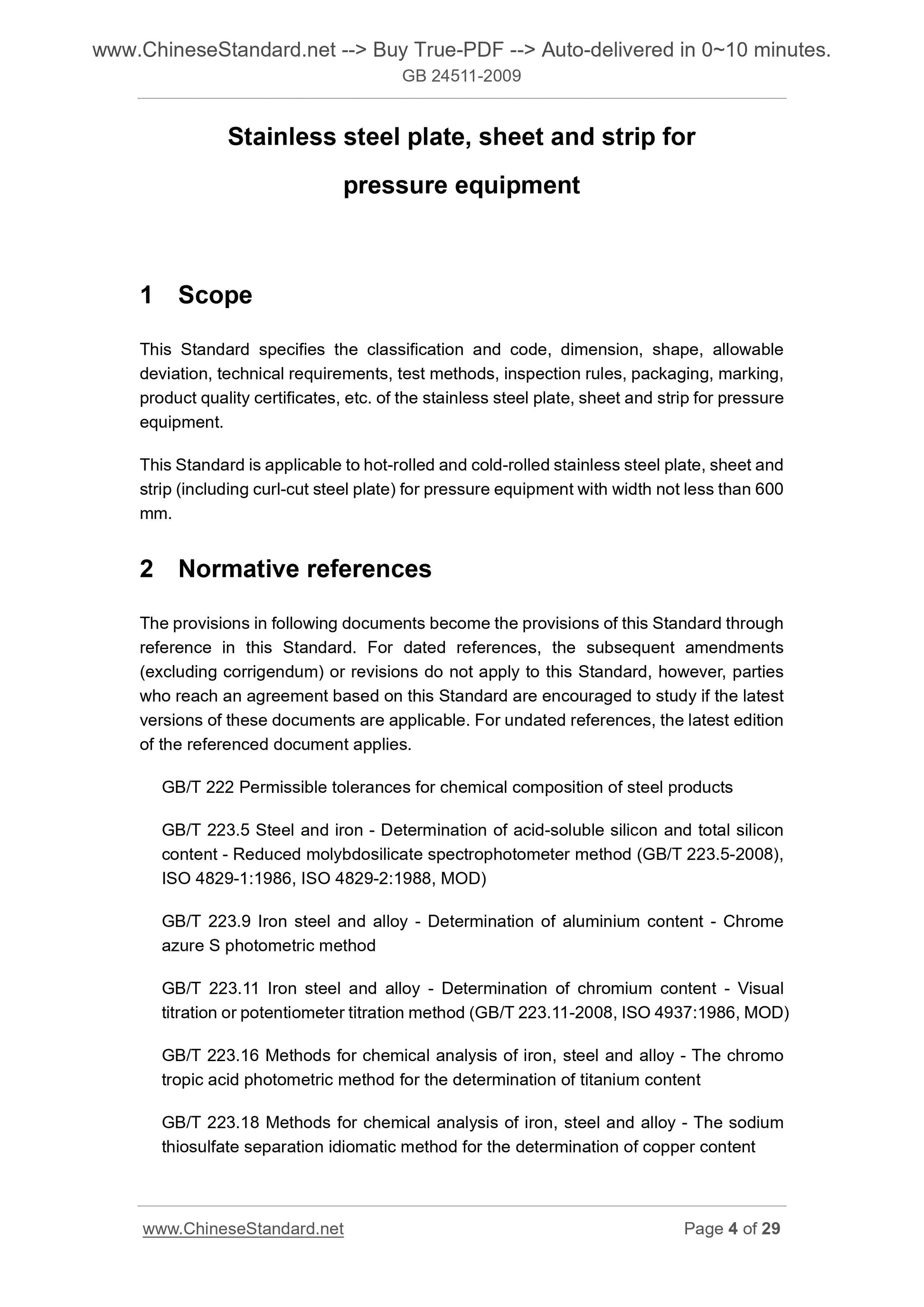

1 Scope
This Standard specifies the classification and code, dimension, shape, allowable deviation, technical requirements, test methods, inspection rules, packaging, marking, product quality certificates, etc. of the stainless steel plate, sheet and strip for pressure equipment.
This Standard is applicable to hot-rolled and cold-rolled stainless steel plate, sheet and strip (including curl-cut steel plate) for pressure equipment with width not less than 600 mm.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB/T 222 Permissible tolerances for chemical composition of steel products GB/T 223.5 Steel and iron - Determination of acid-soluble silicon and total silicon content - Reduced molybdosilicate spectrophotometer method (GB/T 223.5-2008), ISO 4829-1.1986, ISO 4829-2.1988, MOD)
GB/T 223.9 Iron steel and alloy - Determination of aluminium content - Chrome azure S photometric method

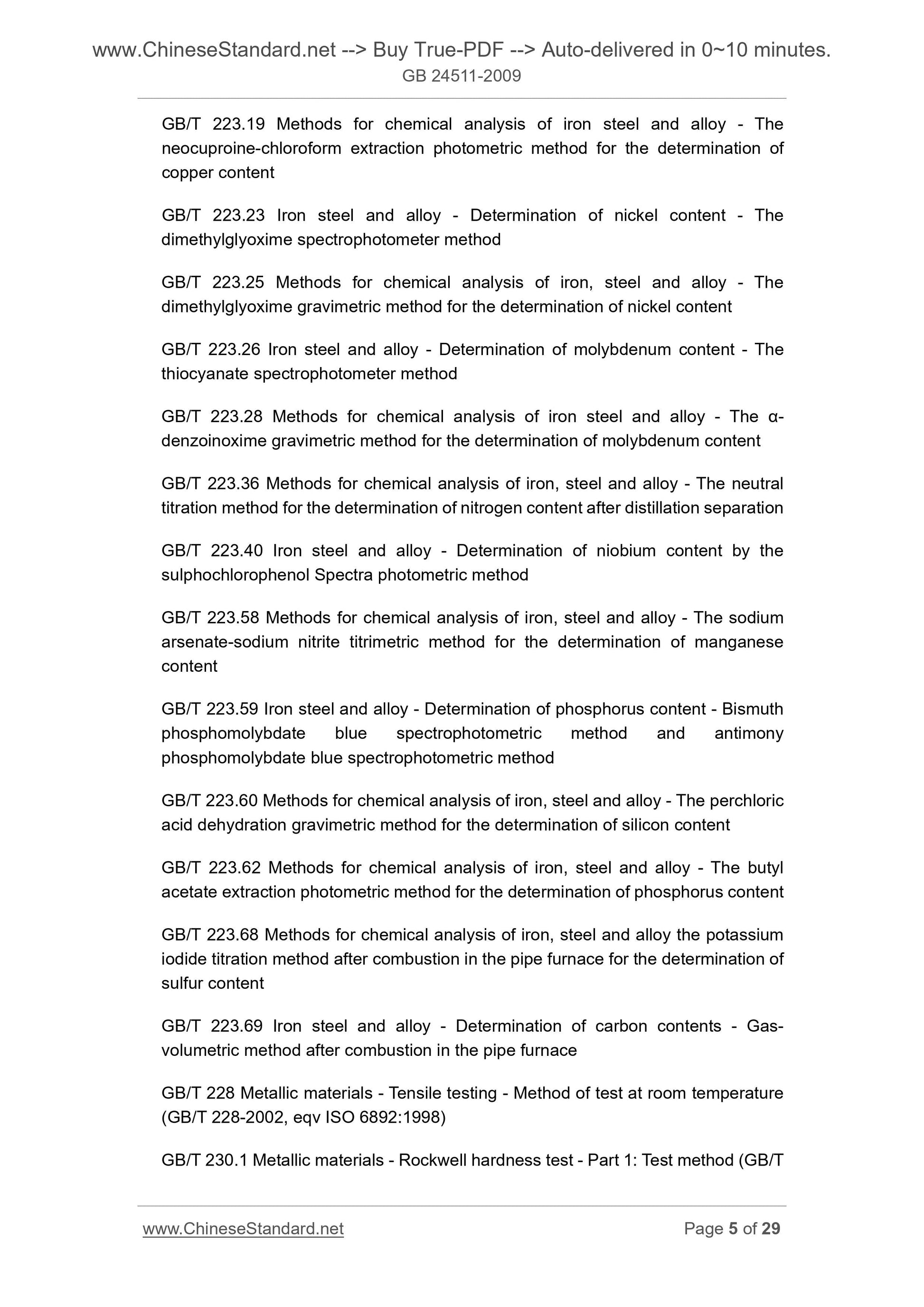

GB/T 223.11 Iron steel and alloy - Determination of chromium content - Visual titration or potentiometer titration method (GB/T 223.11-2008, ISO 4937.1986, MOD) GB/T 223.16 Methods for chemical analysis of iron, steel and alloy - The chromo tropic acid photometric method for the determination of titanium content GB/T 223.18 Methods for chemical analysis of iron, steel and alloy - The sodium thiosulfate separation idiomatic method for the determination of copper content GB/T 223.19 Methods for chemical analysis of iron steel and alloy - The neocuproine-chloroform extraction photometric method for the determination of copper content
GB/T 223.23 Iron steel and alloy - Determination of nickel content - The dimethylglyoxime spectrophotometer method
GB/T 223.25 Methods for chemical analysis of iron, steel and alloy - The dimethylglyoxime gravimetric method for the determination of nickel content GB/T 223.26 Iron steel and alloy - Determination of molybdenum content - The thiocyanate spectrophotometer method
GB/T 223.28 Methods for chemical analysis of iron steel and alloy - The ??- denzoinoxime gravimetric method for the determination of molybdenum content GB/T 223.36 Methods for chemical analysis of iron, steel and alloy - The neutral titration method for the determination of nitrogen content after distillation separation GB/T 223.40 Iron steel and alloy - Determination of niobium content by the sulphochlorophenol Spectra photometric method
GB/T 223.58 Methods for chemical analysis of iron, steel and alloy - The sodium arsenate-sodium nitrite titrimetric method for the determination of manganese content
GB/T 223.59 Iron steel and alloy - Determination of phosphorus content - Bismuth phosphomolybdate blue spectrophotometric method and antimony
phosphomolybdate blue spectrophotometric method
GB/T 223.60 Methods for chemical analysis of iron, steel and alloy - The perchloric acid dehydration gravimetric method for the determination of silicon content GB/T 223.62 Methods for chemical analysis of iron, steel and alloy - The butyl acetate extraction photometric method for the determination of phosphorus content GB/T 223.68 Methods for chemical analysis of iron, steel and alloy the potassium iodide titration method after combustion in the pipe furnace for the determination of sulfur content
GB/T 223.69 Iron steel and alloy - Determination of carbon contents - Gas- volumetric method after combustion in the pipe furnace
GB/T 228 Metallic materials - Tensile testing - Method of test at room temperature (GB/T 228-2002, eqv ISO 6892.1998)

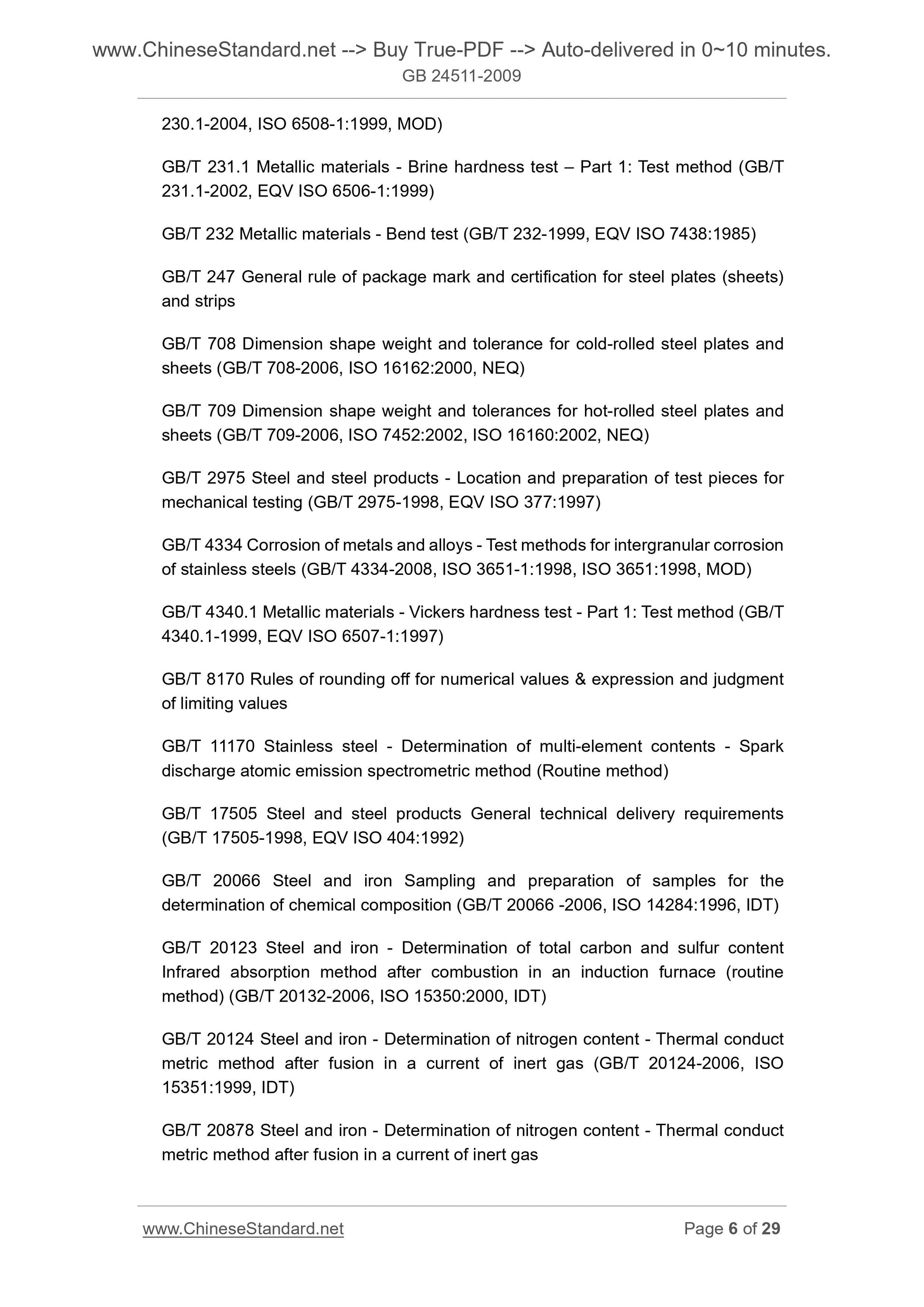

GB/T 230.1 Metallic materials - Rockwell hardness test - Part 1. Test method (GB/T 230.1-2004, ISO 6508-1.1999, MOD)
GB/T 231.1 Metallic materials - Brine hardness test ?€? Part 1. Test method (GB/T 231.1-2002, EQV ISO 6506-1.1999)
GB/T 232 Metallic materials - Bend test (GB/T 232-1999, EQV ISO 7438.1985) GB/T 247 General rule of package mark and certification for steel plates (sheets) and strips
GB/T 708 Dimension shape weight and tolerance for cold-rolled steel plates and sheets (GB/T 708-2006, ISO 16162.2000, NEQ)
GB/T 709 Dimension shape weight and tolerances for hot-rolled steel plates and sheets (GB/T 709-2006, ISO 7452.2002, ISO 16160.2002, NEQ)
GB/T 2975 Steel and steel products - Location and preparation of test pieces for mechanical testing (GB/T 2975-1998, EQV ISO 377.1997)
GB/T 4334 Corrosion of metals and alloys - Test methods for intergranular corrosion of stainless steels (GB/T 4334-2008, ISO 3651-1.1998, ISO 3651.1998, MOD) GB/T 4340.1 Metallic materials - Vickers hardness test - Part 1. Test method (GB/T 4340.1-1999, EQV ISO 6507-1.1997)
GB/T 8170 Rules of rounding off for numerical values and expression and judgment of limiting values
GB/T 11170 Stainless steel - Determination of multi-element contents - Spark discharge atomic emission spectrometric method (Routine method)
GB/T 17505 Steel and steel products General technical delivery requirements (GB/T 17505-1998, EQV ISO 404.1992)
GB/T 20066 Steel and iron Sampling and preparation of samples for the
determination of chemical composition (GB/T 20066 -2006, ISO 14284.1996, IDT) GB/T 20123 Steel and iron - Determination of total carbon and sulfur content Infrared absorption method after combustion in an induction furnace (routine method) (GB/T 20132-2006, ISO 15350.2000, IDT)
GB/T 20124 Steel and iron - Determination of nitrogen content - Thermal conduct metric method after fusion in a current of inert gas (GB/T 20124-2006, ISO 15351.1999, IDT)
GB/T 20878 Steel and iron - Determination of nitrogen content - Thermal conduct metric method after fusion in a current of inert gas
specifications in Table 12.

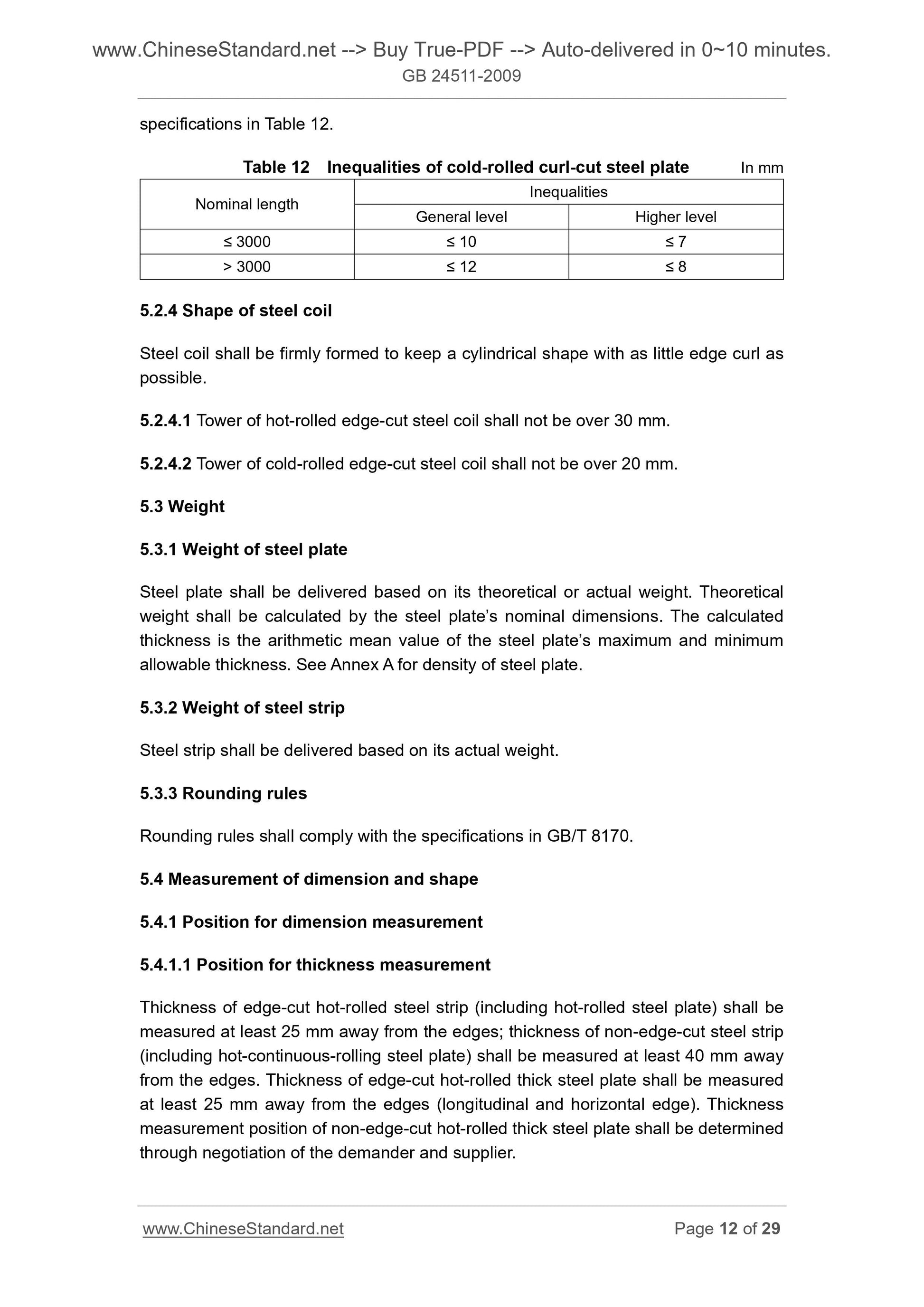

Table 12 Inequalities of cold-rolled curl-cut steel plate In mm
Nominal length Inequalities General level Higher level
??? 3000 ??? 10 ??? 7
> 3000 ??? 12 ??? 8
5.2.4 Shape of steel coil
Steel coil shall be firmly formed to keep a cylindrical shape with as little edge curl as possible.
5.2.4.1 Tower of hot-rolled edge-cut steel coil shall not be over 30 mm. 5.2.4.2 Tower of cold-rolled edge-cut steel coil shall not be over 20 mm. 5.3 Weight
5.3.1 Weight of steel plate
Steel plate shall be delivered based on its theoretical or actual weight. Theoretical weight shall be calculated by the steel plate?€?s nominal dimensions. The calculated thickness is the arithmetic mean value of the steel plate?€?s maximum and minimum allowable thickness. See Annex A for density of steel plate.
5.3.2 Weight of steel strip
Steel strip shall be delivered...
