GB 24436-2009: Rehabilitation training instrument -- General safety requirements

This Standard specifies the definitions and terms, general requirements and test methods in terms of safety, etc. for rehabilitation training instrument. This Standard is applicable to the instrument that the physical disabled perform rehabilitation training at rehabilitation training facility or family under the guidance of a rehabilitation physician or nursing staff.

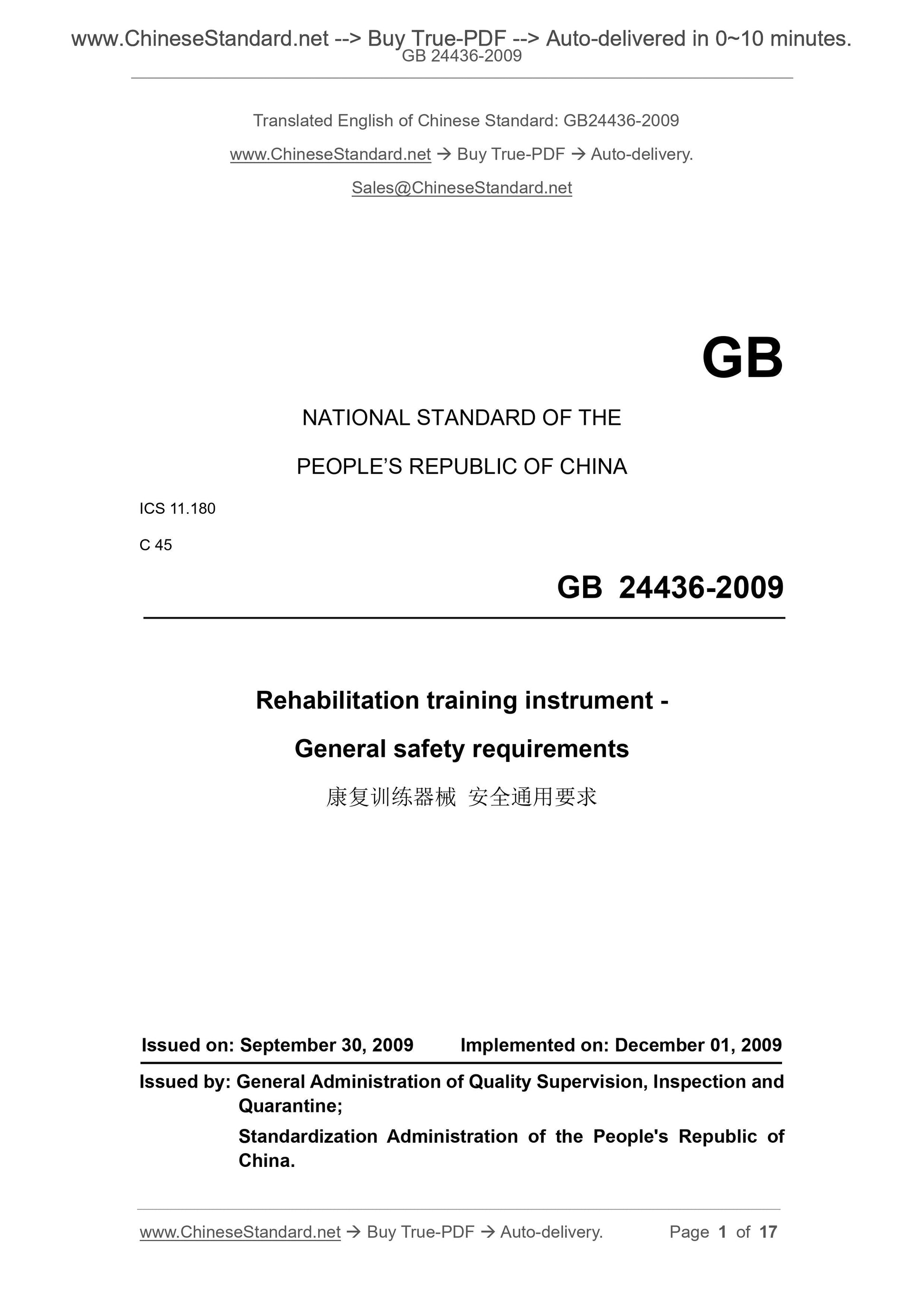

GB 24436-2009
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 11.180
C 45
Rehabilitation training instrument -
General safety requirements
ISSUED ON. SEPTEMBER 30, 2009
IMPLEMENTED ON. DECEMBER 01, 2009
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People's Republic of
China.

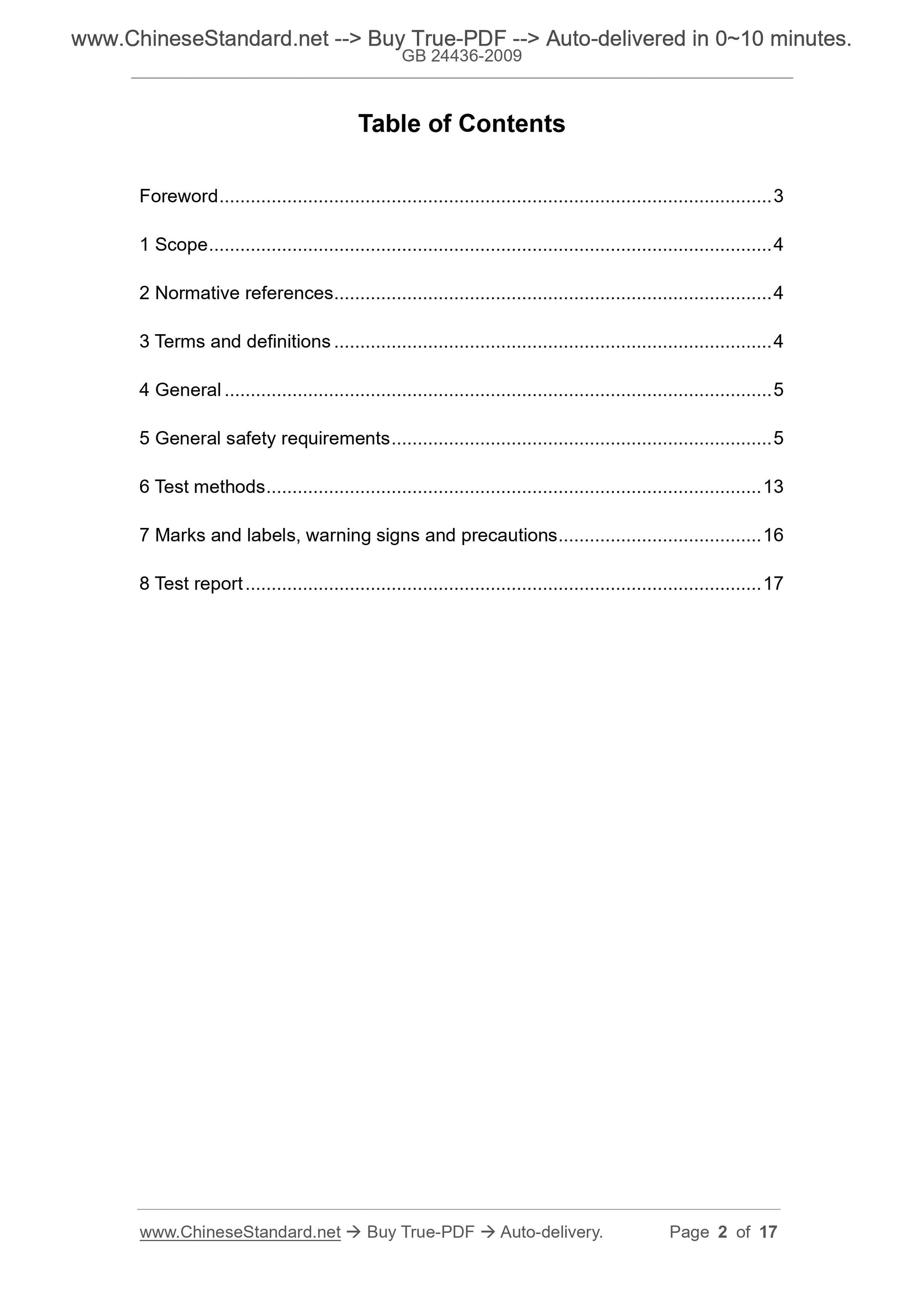

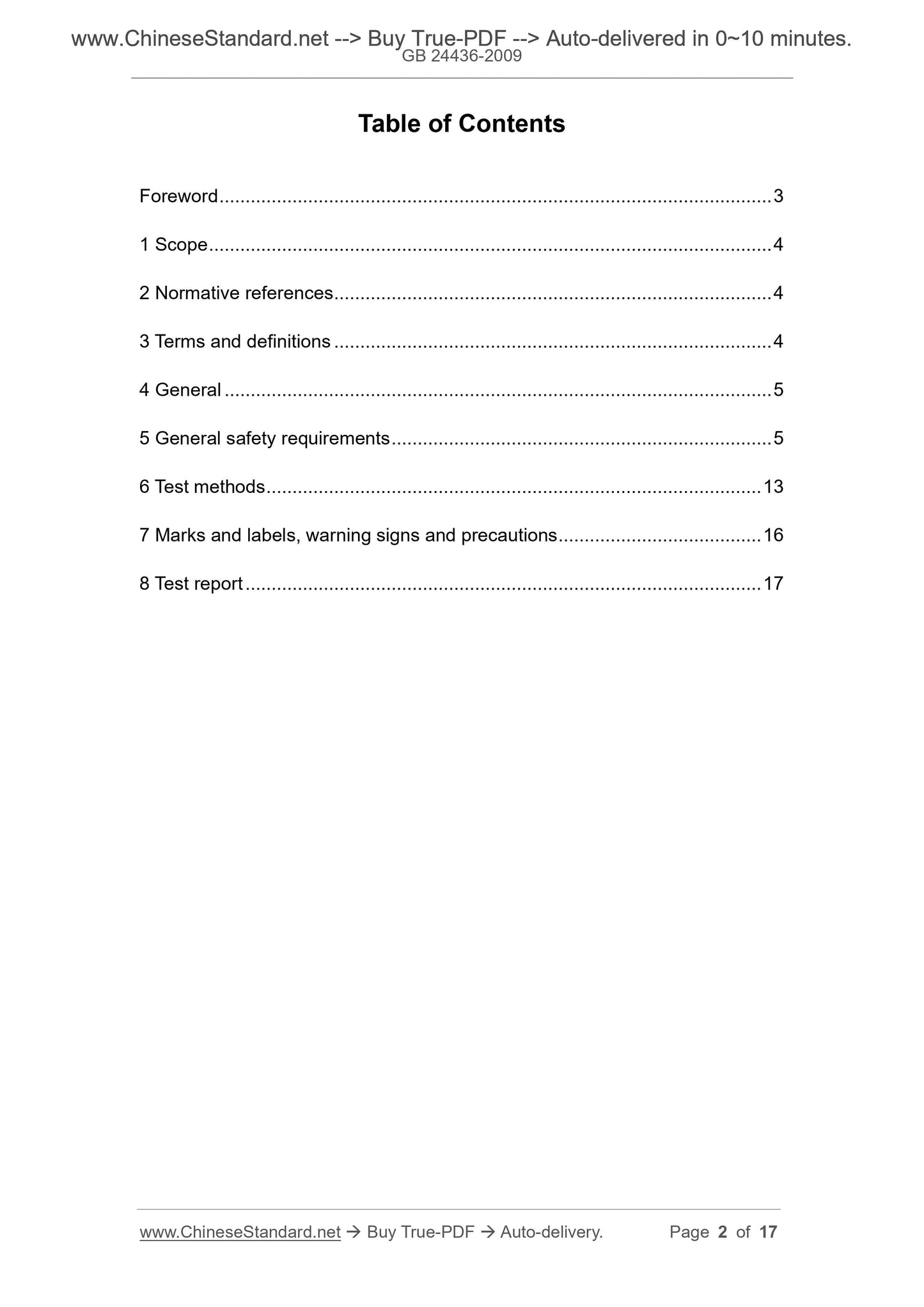

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 General ... 5
5 General safety requirements ... 5
6 Test methods ... 13
7 Marks and labels, warning signs and precautions ... 16
8 Test report ... 17

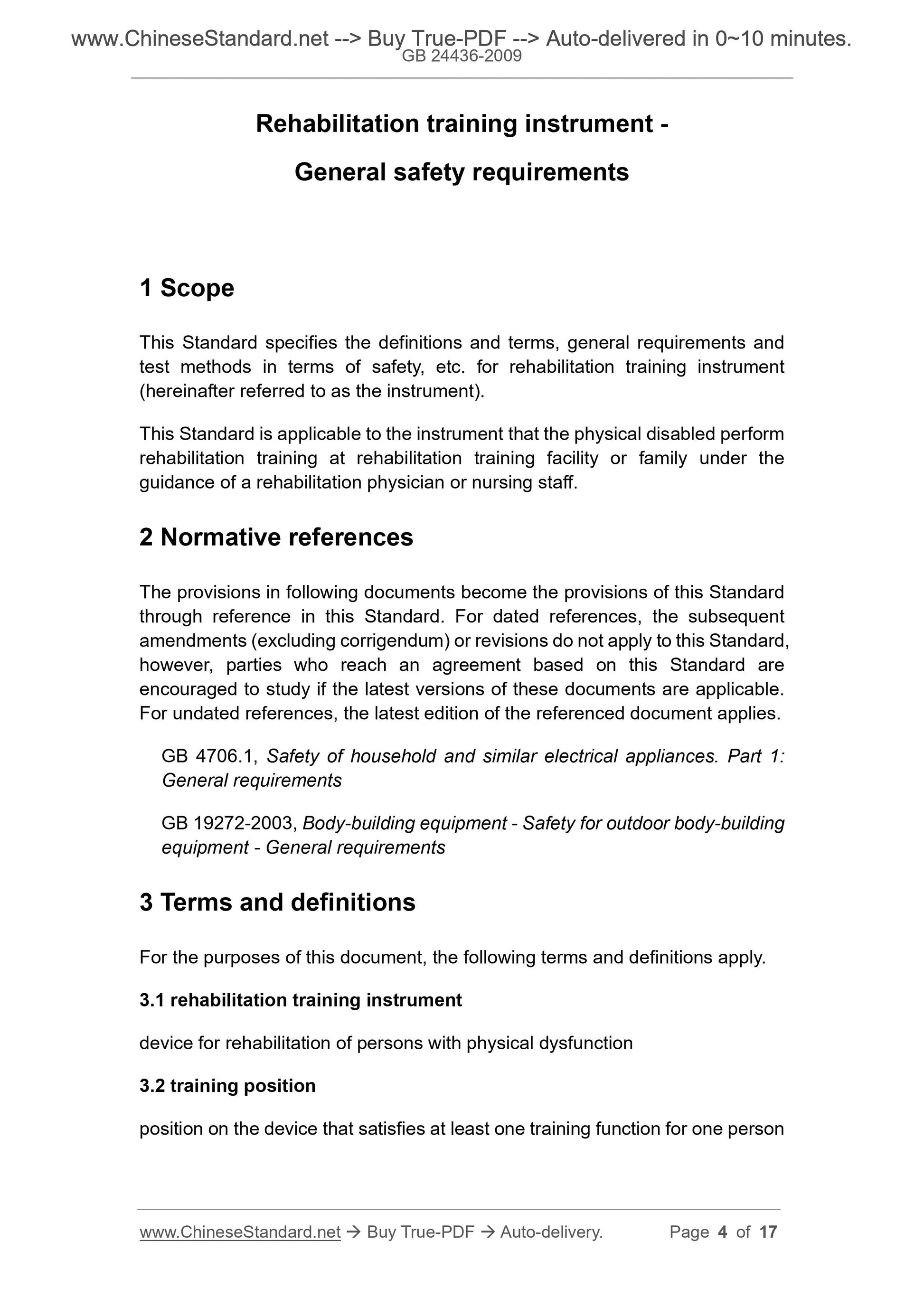

Rehabilitation training instrument -
General safety requirements
1 Scope
This Standard specifies the definitions and terms, general requirements and test methods in terms of safety, etc. for rehabilitation training instrument (hereinafter referred to as the instrument).
This Standard is applicable to the instrument that the physical disabled perform rehabilitation training at rehabilitation training facility or family under the guidance of a rehabilitation physician or nursing staff.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB 4706.1, Safety of household and similar electrical appliances. Part 1. General requirements
GB 19272-2003, Body-building equipment - Safety for outdoor body-building equipment - General requirements
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply. 3.1 rehabilitation training instrument
device for rehabilitation of persons with physical dysfunction
3.2 training position

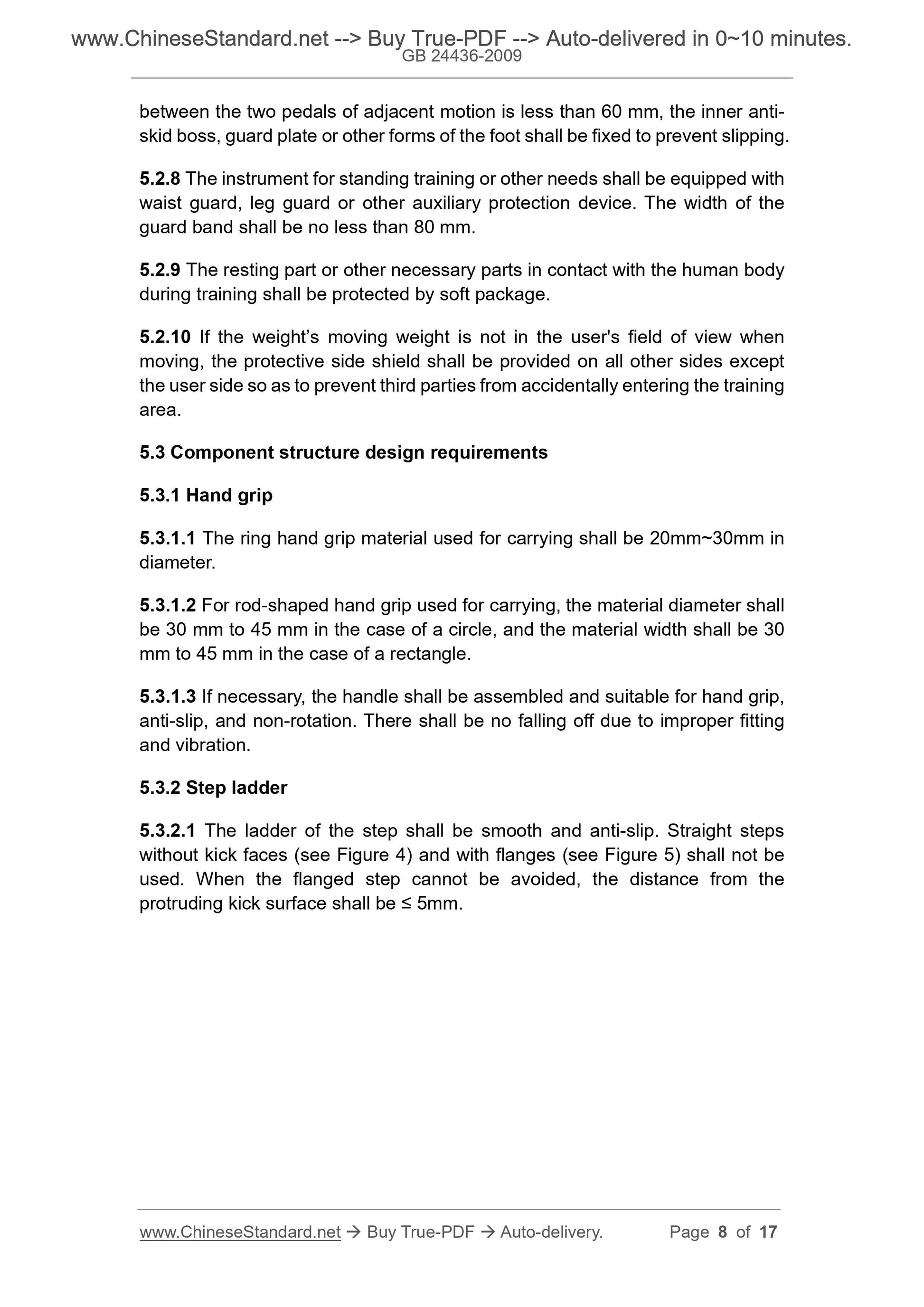

position on the device that satisfies at least one training function for one person between the two pedals of adjacent motion is less than 60 mm, the inner anti- skid boss, guard plate or other forms of the foot shall be fixed to prevent slipping. 5.2.8 The instrument for standing training or other needs shall be equipped with waist guard, leg guard or other auxiliary protection device. The width of the guard band shall be no less than 80 mm.
5.2.9 The resting part or other necessary parts in contact with the human body during training shall be protected by soft package.
5.2.10 If the weight?€?s moving weight is not in the user's field of view when moving, the protective side shield shall be provided on all other sides except the user side so as to prevent third parties from accidentally entering the training area.
5.3 Component structure design requirements
5.3.1 Hand grip
5.3.1.1 The ring hand grip material used for carrying shall be 20mm~30mm in diameter.
5.3.1.2 For rod-shaped hand grip used for carrying, the material diameter shall be 30 mm to 45 mm in the case of a circle, and the material width shall be 30 mm to 45 mm in the case of a rectangle.
5.3.1.3 If necessary, the handle shall be assembled and suitable for hand grip, anti-slip, and non-rotation. There shall be no falling off due to improper fitting and vibration.
5.3.2 Step ladder
5.3.2.1 The ladder of the step shall be smooth and anti-slip. Straight steps without kick faces (see Figure 4) and with flanges (see Figure 5) shall not be used. When the flanged step cannot be avoided, the distance from the
protruding kick surface shall be ??? 5mm.

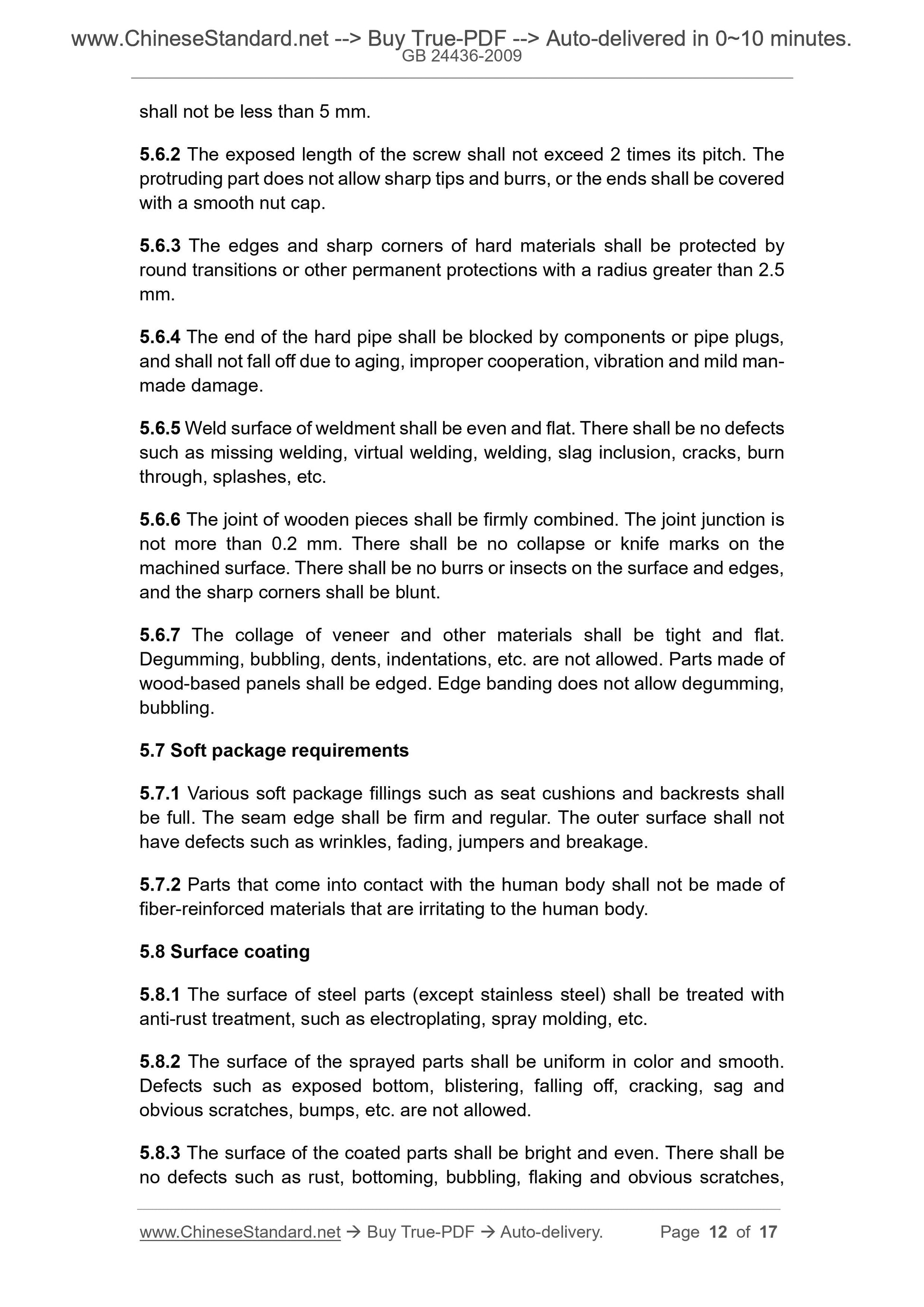

shall not be less than 5 mm.
5.6.2 The exposed length of the screw shall not exceed 2 times its pitch. The protruding part does not allow sharp tips and burrs, or the ends shall be covered with a smooth nut cap.
5.6.3 The edges and sharp corners of hard materials shall be protected by round transitions or other permanent protections with a radius greater than 2.5 mm.
5.6.4 The end of the hard pipe shall be blocked by components or pipe plugs, and shall not fall off due to aging, improper cooperation, vibration and mild man- made damage.
5.6.5 Weld surface of weldment shall be even and flat. There shall be no defects such as missing welding, virtual welding, welding, slag inclusion, cracks, burn through, splashes, etc.
5.6.6 The joint of wooden pieces shall be firmly combined. The joint junction is not more than 0.2 mm. There shall be no collapse or knife marks on the
machined surface. There shall be no burrs or insects on the surface and edges, and the sharp corners shall be blunt.
5.6.7 The collage of veneer and other materials shall be tight and flat. Degumming, bubbling, dents, indentations, etc. are not allowed. Parts made of wood-based panels shall be edged. Edge banding does not allow degumming, bubbling.
5.7 Soft package requirements
5.7.1 Various soft package fillings such as seat cushions and backrests shall be full. The seam edge shall be firm and regular. The outer surface shall not have defects such as wrinkles, fading, jumpers and breakage.
5.7.2 Parts that come into contact with the human body shall not be made of fiber-reinforced materials that are irritating to the human body.
5.8 Surface coating
5.8.1 The surface of steel parts (except stainless steel) shall be treated with anti-rust treatment, such as electroplating, spray molding, etc.
5.8.2 The surface of the sprayed parts shall be uniform in color and smooth. Defects such as exposed bottom, blistering, falling off, cracking, sag and obvious scratches, bumps, etc. are not allowed.

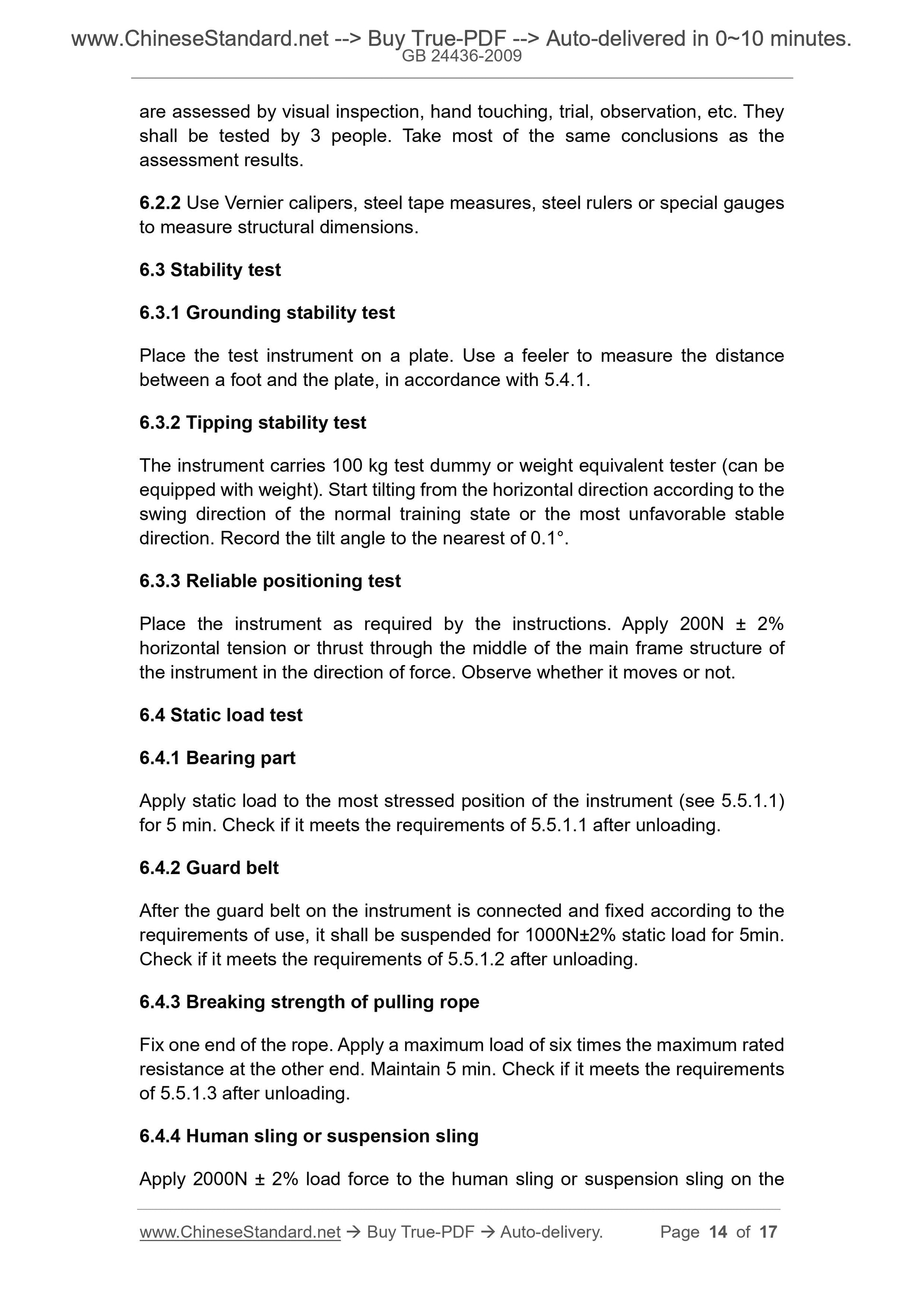

5.8.3 The surface of the coated parts shall be bright and even. There shall be no defects such as rust, bottoming, bubbling, flaking and obvious scratches, are assessed by visual inspection, hand touching, trial, observation, etc. They shall be tested by 3 people. Take most of the same conclusions as the
assessment results.
6.2.2 Use Vernier calipers, steel tape measures, steel rulers or special gauges to measure structural dimensions.
6.3 Stability test
6.3.1 Grounding stability test
Place the test instrument on a plate. Use a feeler to measure the distance between a foot and the plate, in accordance with 5.4.1.
6.3.2 Tipping stability test
The instrument carries 100 kg test dummy or weight equivalent tester (can be equipped with weight). Start tilting from the horizontal direction according to the swing direction of the normal training state or the most unfavorable stable direction. Record the tilt angle to the nearest of 0.1??.
6.3.3 Reliable positioning test
Place the instrument as required by the instructions. Apply 200N ?? 2%
horizontal tension or thrust through the middle of the main frame structure of the instrument in the direction of force. Observe whether it moves or not. 6.4 Static load test
6.4.1 Bearing part
Apply static load to the most stressed position of the instrument (see 5.5.1.1) for 5 min. Check if it meets the requirements of 5.5.1.1 after unloading. 6.4.2 Guard belt
After the guard belt on the instrument is connected and fixed according to the requirements of use, it shall be suspended for 1000N??2% static load for 5min. Check if it meets the requirements of 5.5.1.2 after unloading.
6.4.3 Breaking strength of pulling rope
Fix one end of the rope. Apply a maximum load of six times the maximum rated resistance at the other end. Maintain 5 min. Check if it meets the requirements of 5.5.1.3 after unloading.
6.4.4 Human sling or suspension sling
Apply 2000N ?? 2% load force to the human sling or suspension sling on the
