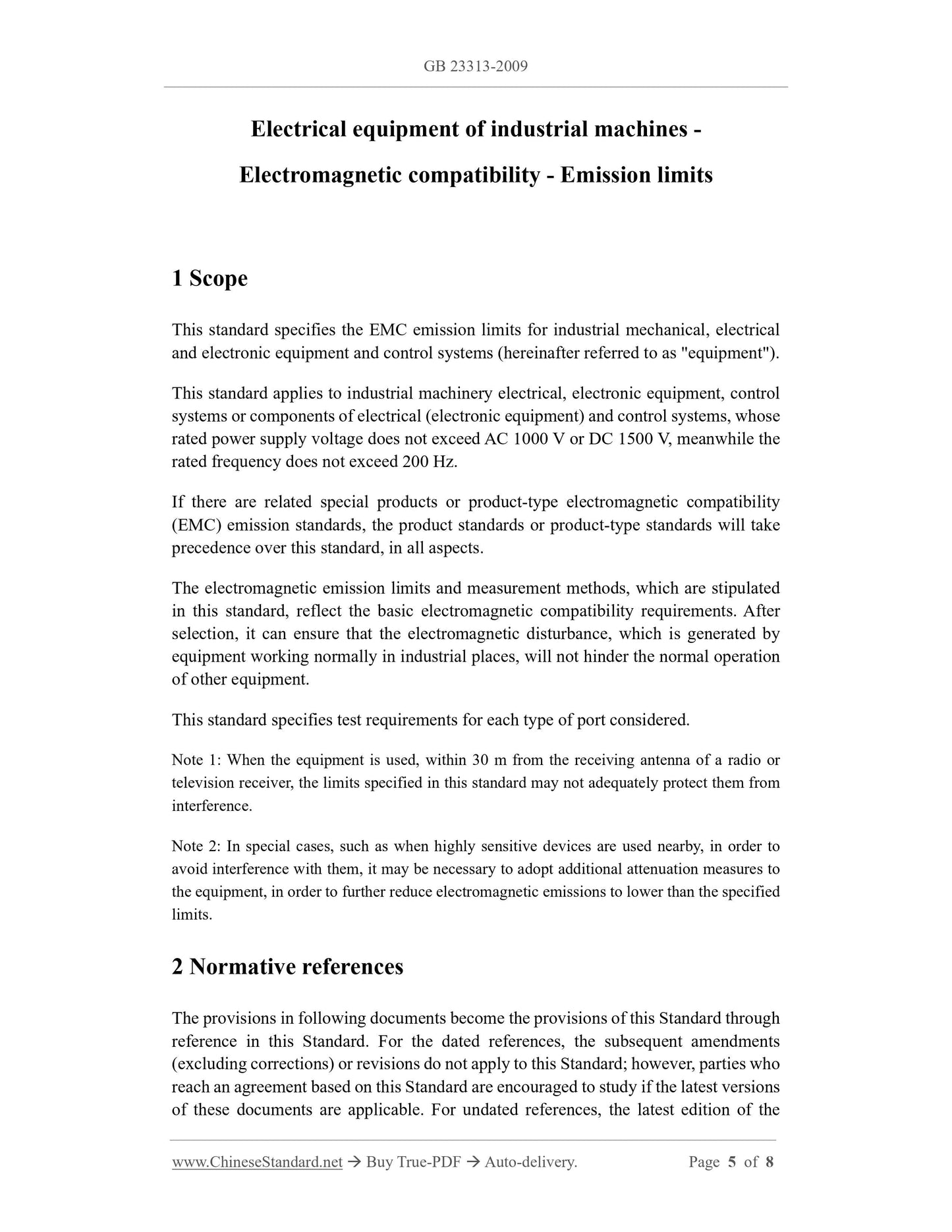

Scope

This standard specifies the EMC emission limits for industrial mechanical, electrical
and electronic equipment and control systems (hereinafter referred to as "equipment").
This standard applies to industrial machinery electrical, electronic equipment, control
systems or components of electrical (electronic equipment) and control systems, whose
rated power supply voltage does not exceed AC 1000 V or DC 1500 V, meanwhile the
rated frequency does not exceed 200 Hz.
If there are related special products or product-type electromagnetic compatibility
(EMC) emission standards, the product standards or product-type standards will take
precedence over this standard, in all aspects.
The electromagnetic emission limits and measurement methods, which are stipulated
in this standard, reflect the basic electromagnetic compatibility requirements. After
selection, it can ensure that the electromagnetic disturbance, which is generated by
equipment working normally in industrial places, will not hinder the normal operation
of other equipment.
This standard specifies test requirements for each type of port considered.
Note 1.When the equipment is used, within 30 m from the receiving antenna of a radio or
television receiver, the limits specified in this standard may not adequately protect them from
interference.
Note 2.In special cases, such as when highly sensitive devices are used nearby, in order to
avoid interference with them, it may be necessary to adopt additional attenuation measures to
the equipment, in order to further reduce electromagnetic emissions to lower than the specified
limits.

Basic Data

Standard ID	GB 23313-2009 (GB23313-2009)
Description (Translated English)	Electrical equipment of industrial machines -- Electromagnetic compatibility -- Emission limits
Sector / Industry	National Standard
Classification of Chinese Standard	J09
Classification of International Standard	29.020
Word Count Estimation	8,816
Date of Issue	2009-03-19
Date of Implementation	2010-02-01
Regulation (derived from)	Announcement of Newly Approved National Standards No. 3, 2009 (No. 143 overall)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This Chinese standard specifies the electrical industrial machinery, electronic equipment and control system (hereinafter may be abbreviated"Equipment") EMC emission limits. This standard applies to electrical industrial machinery, electronic equipment and control systems or electrical (electronic equipment) and control system components does not exceed the rated supply voltage AC 1000V or DC 1500V, rated frequency not exceeding 200 Hz. Has been associated with specific products or product categories electromagnetic compatibility (EMC) emission standards, product standards or product class standards in all respects will give priority to this standard. This standard specifies the electromagnetic emission limits and measurement methods reflect the basic electromagnetic compatibility requirements of selected industrial establishments to ensure the normal operation of the electromagnetic disturbance generated by the equipment does not interfere with other devices work properly. Considered the standard ports are provided for each test requirements.
